Brand Quagmire Repair LLC
Manufacturer Part Number MILKBUSTER

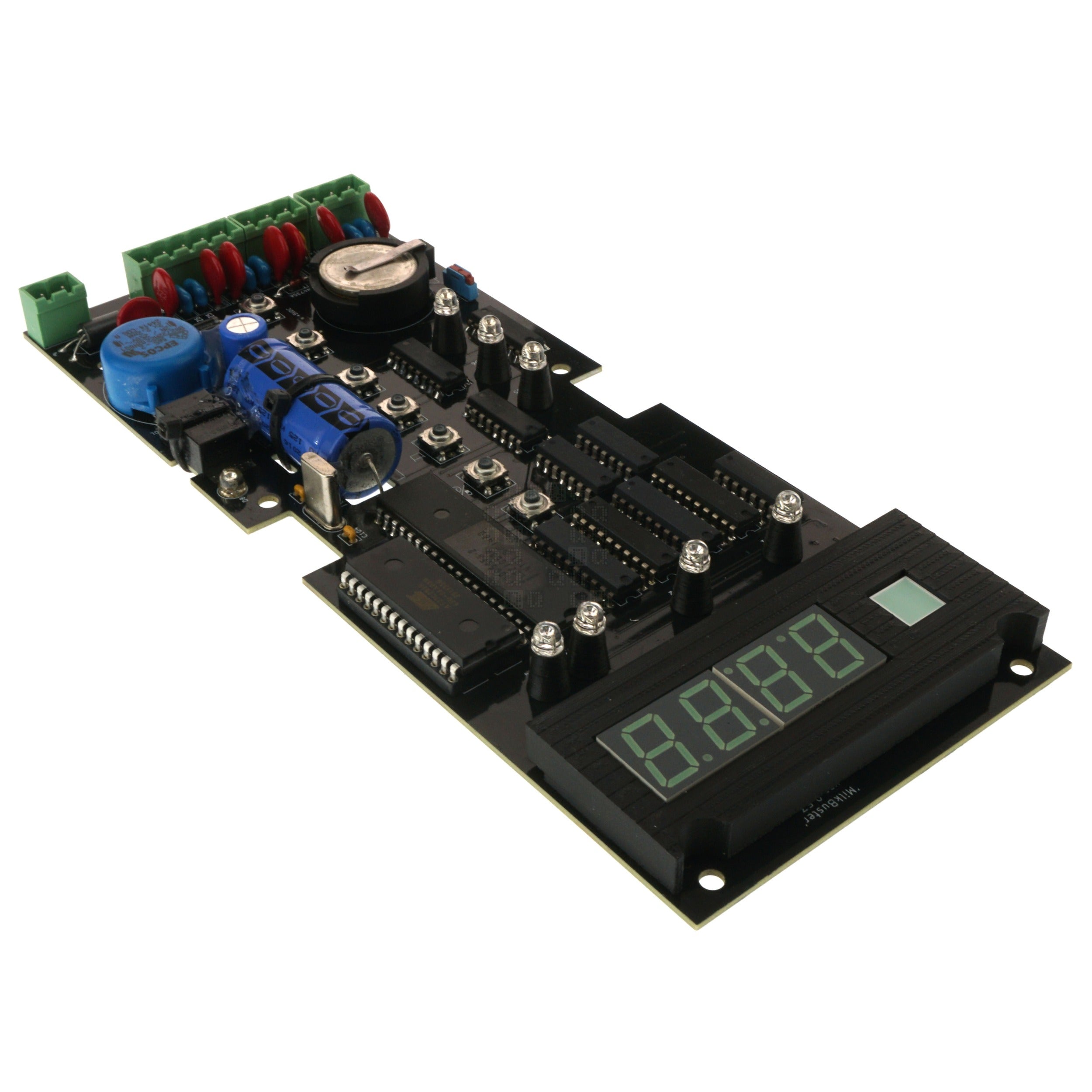

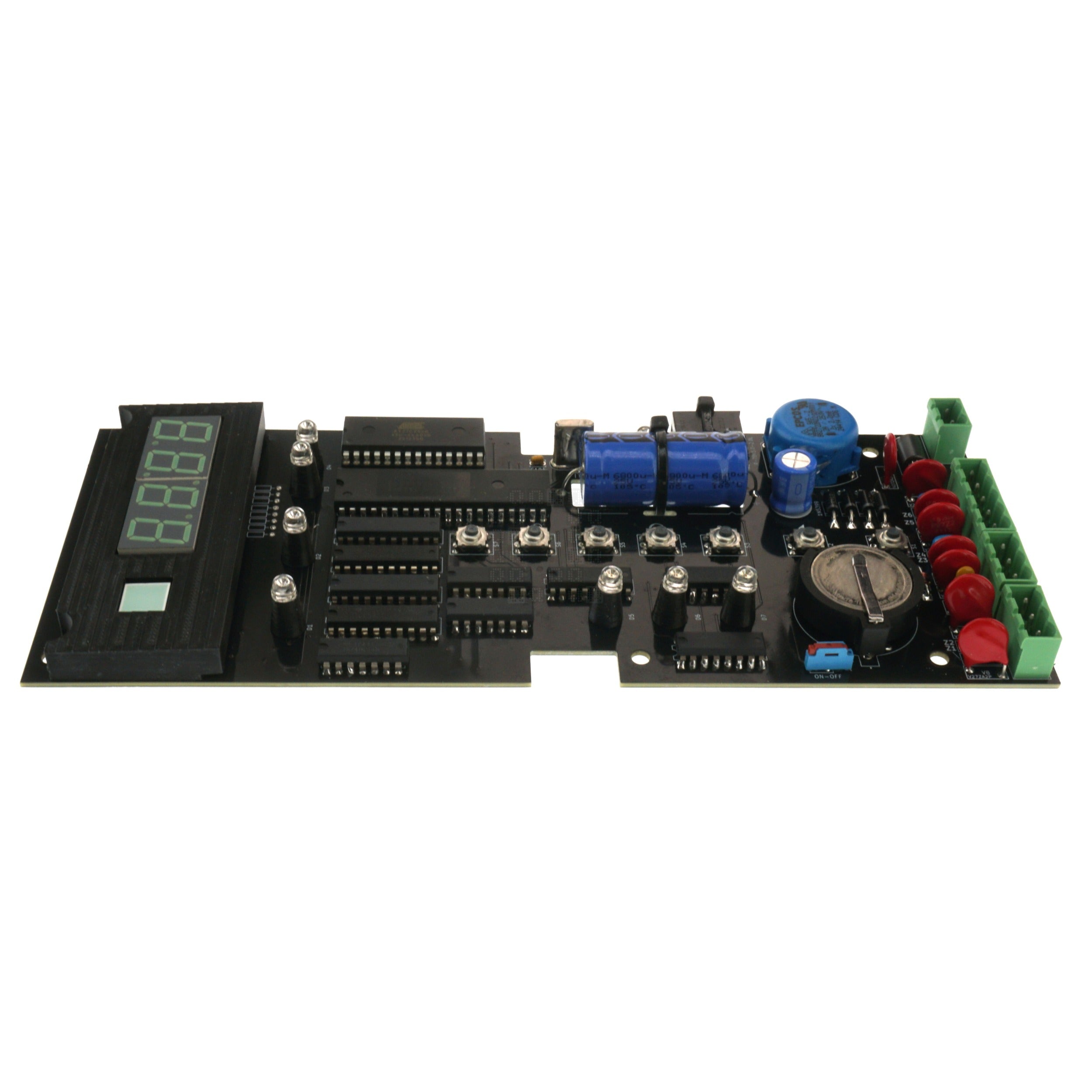

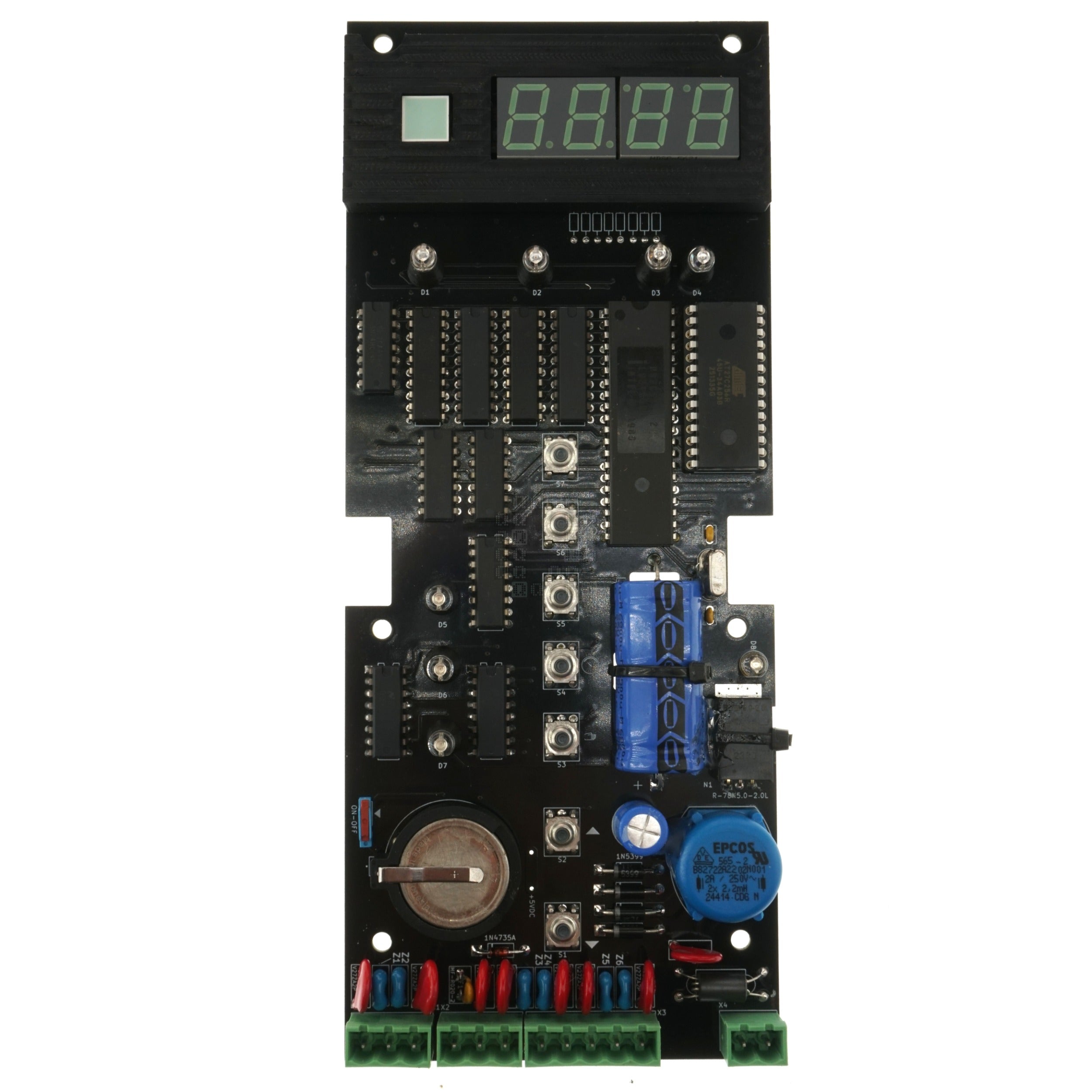

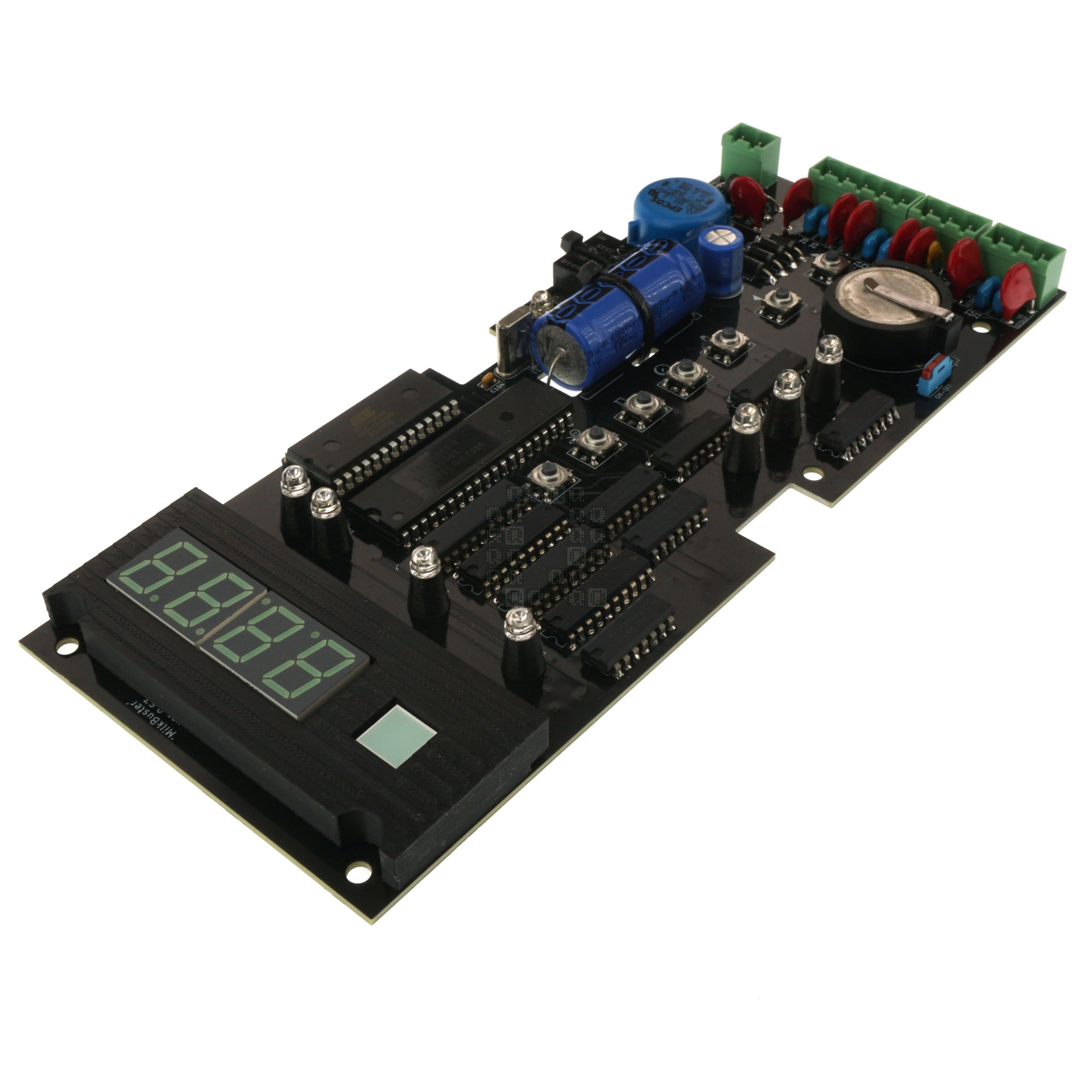

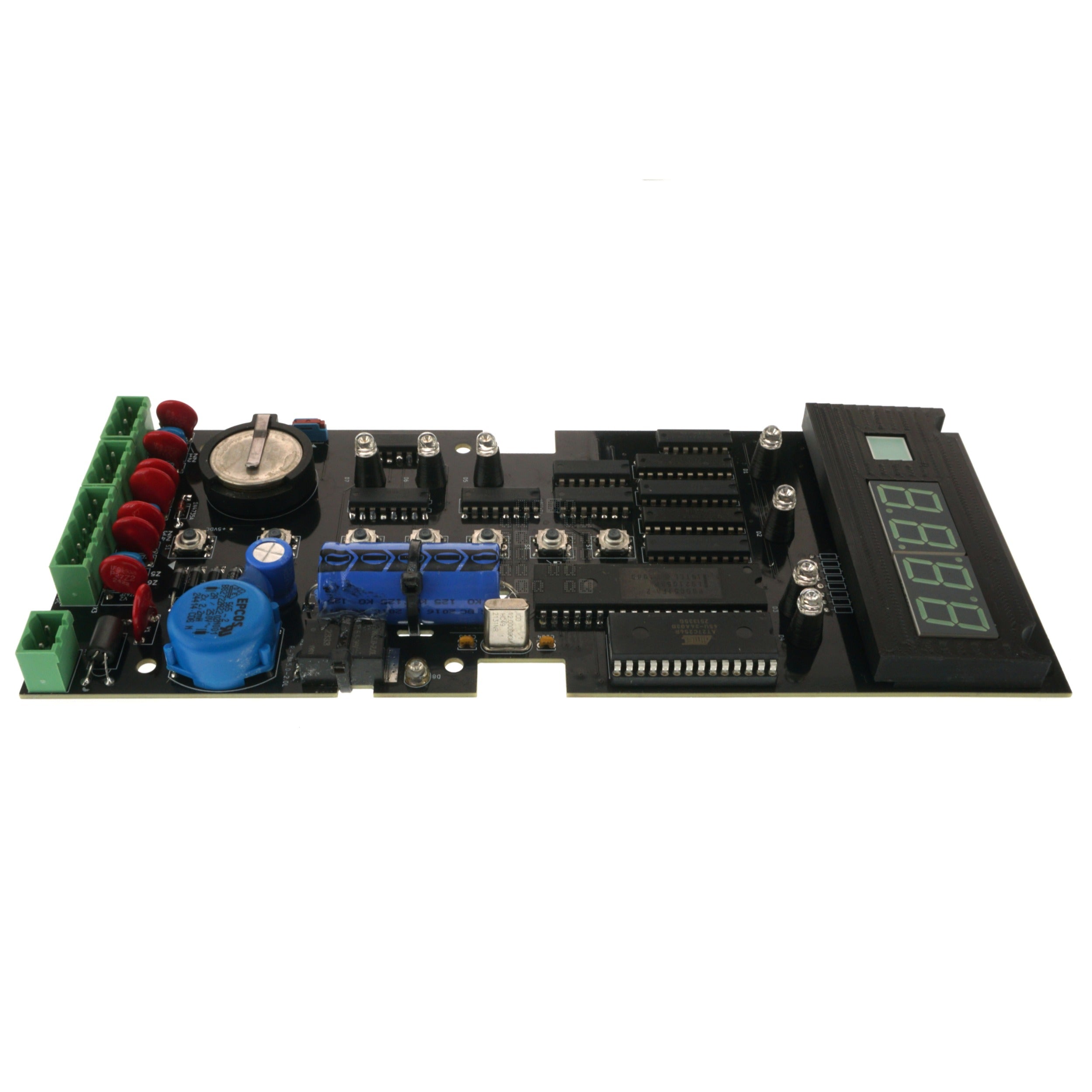

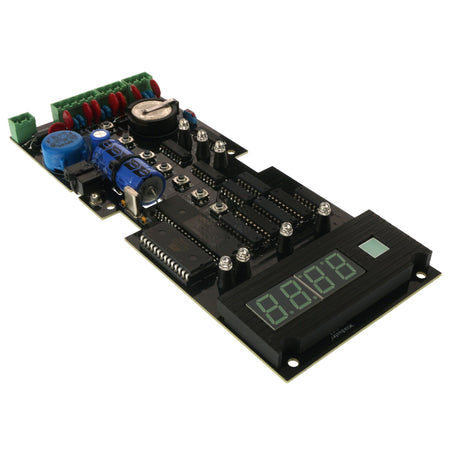

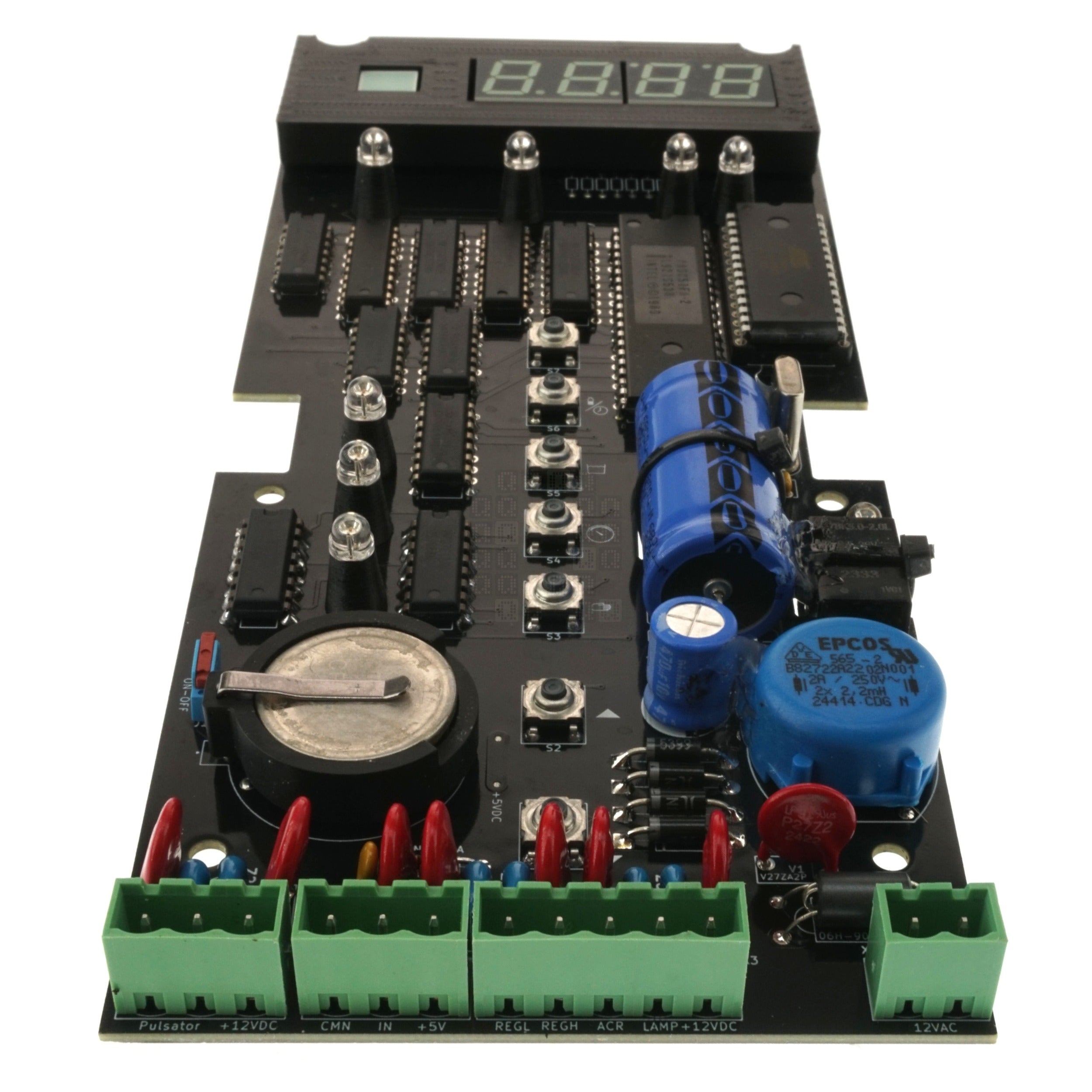

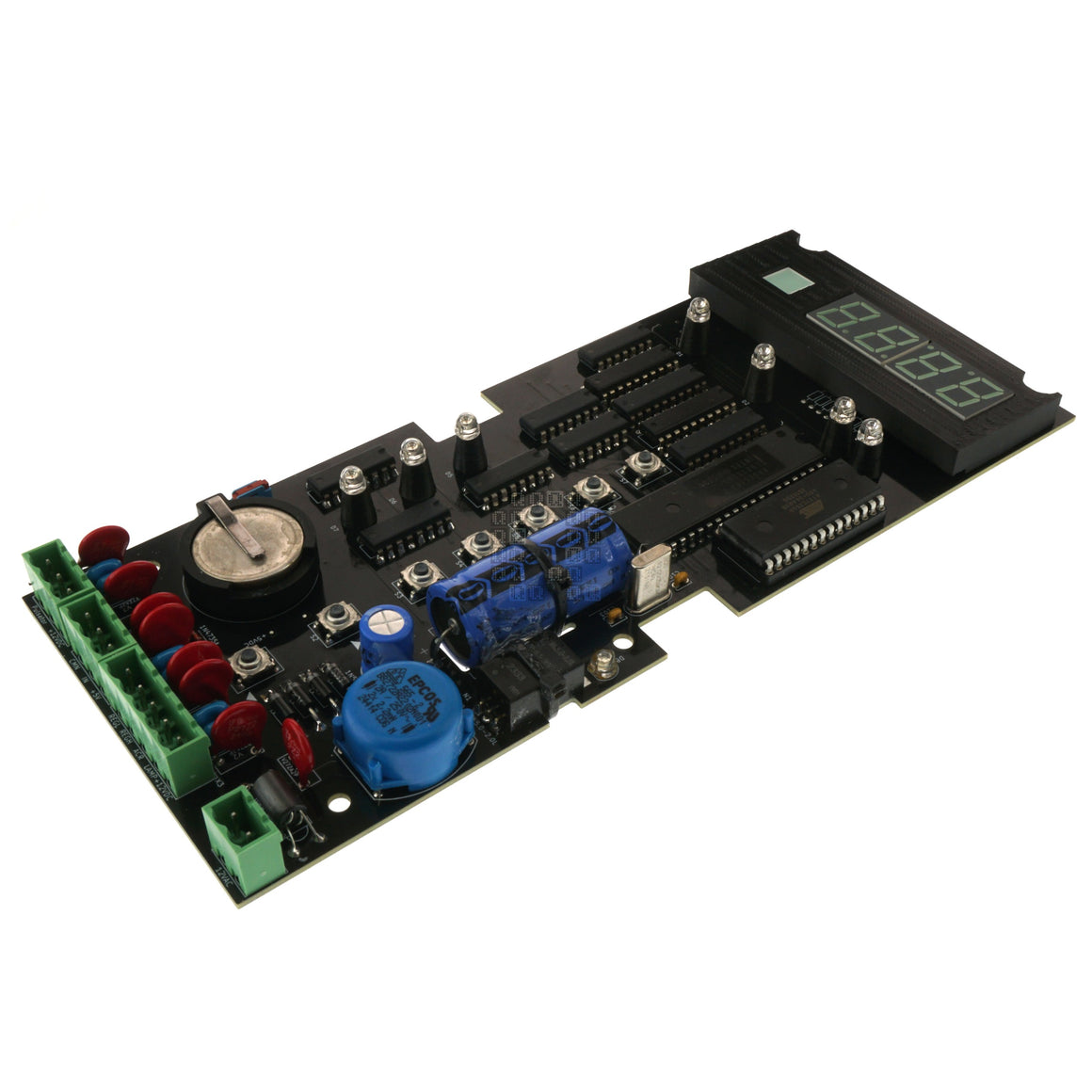

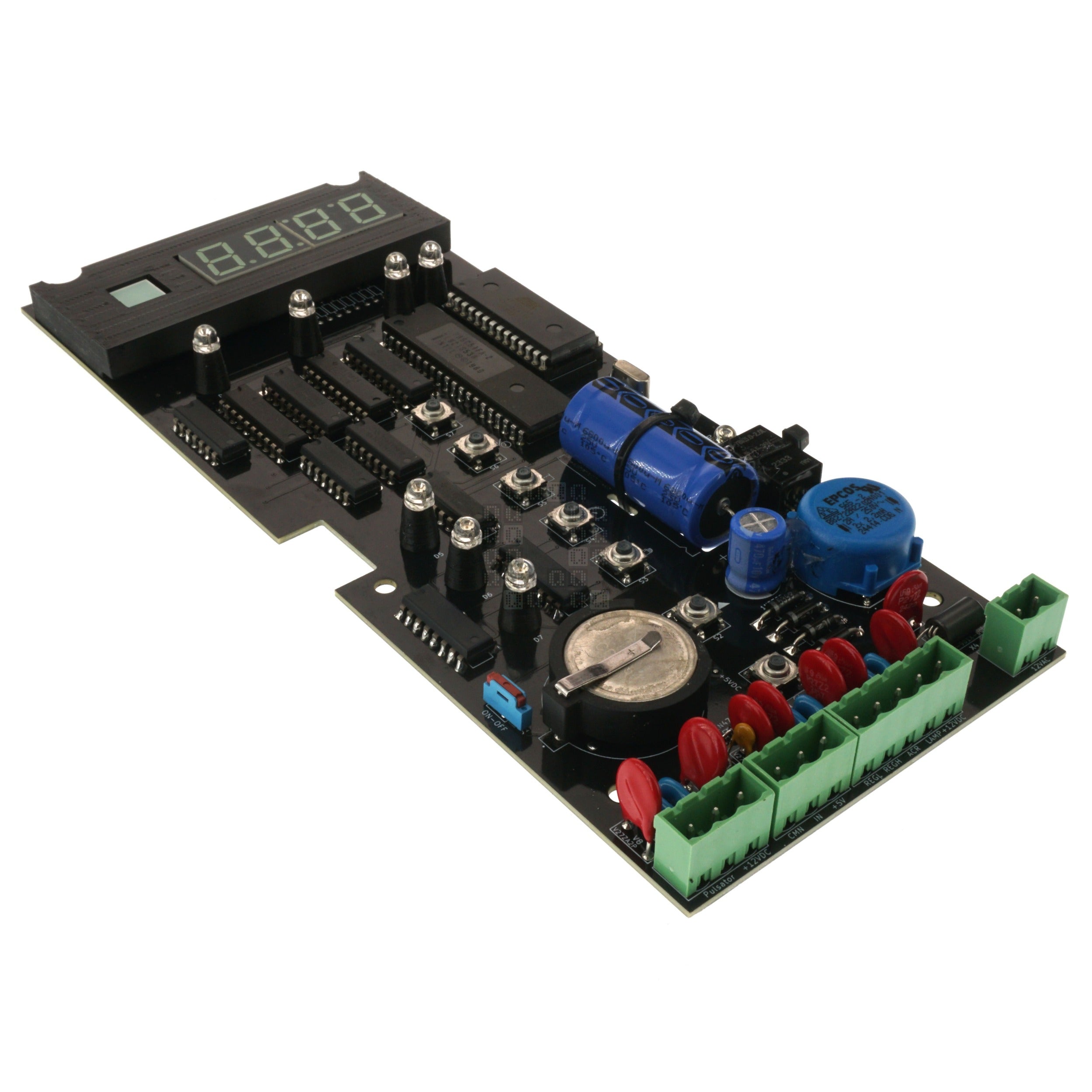

Cross Reference (Fit/Form/Function) Aftermarket replacement for the Delaval Milkmaster MU350 Printed Circuit Board
This list is not intended to be complete.

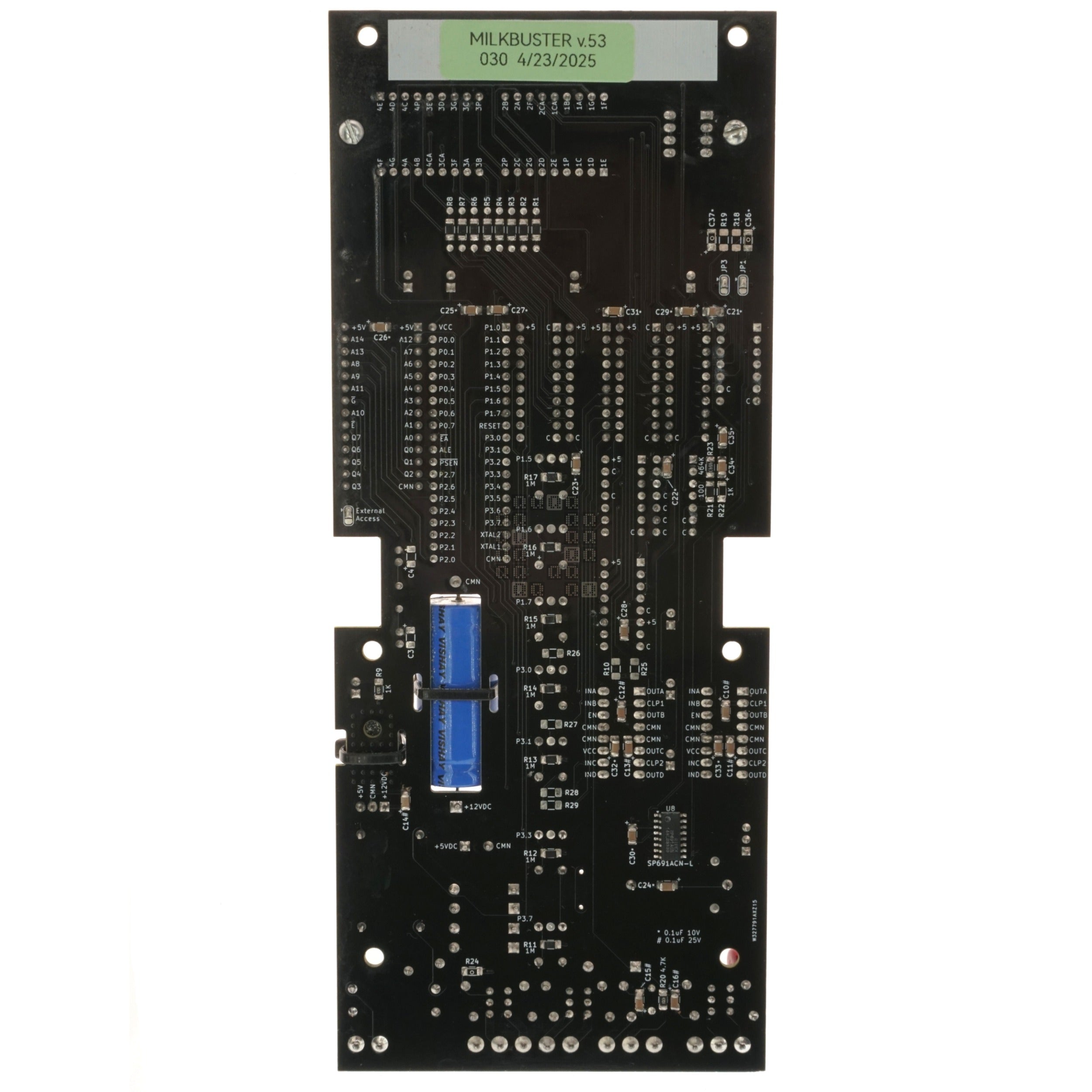

Circuit Board Dimensions 3.63" x 8.75" Height

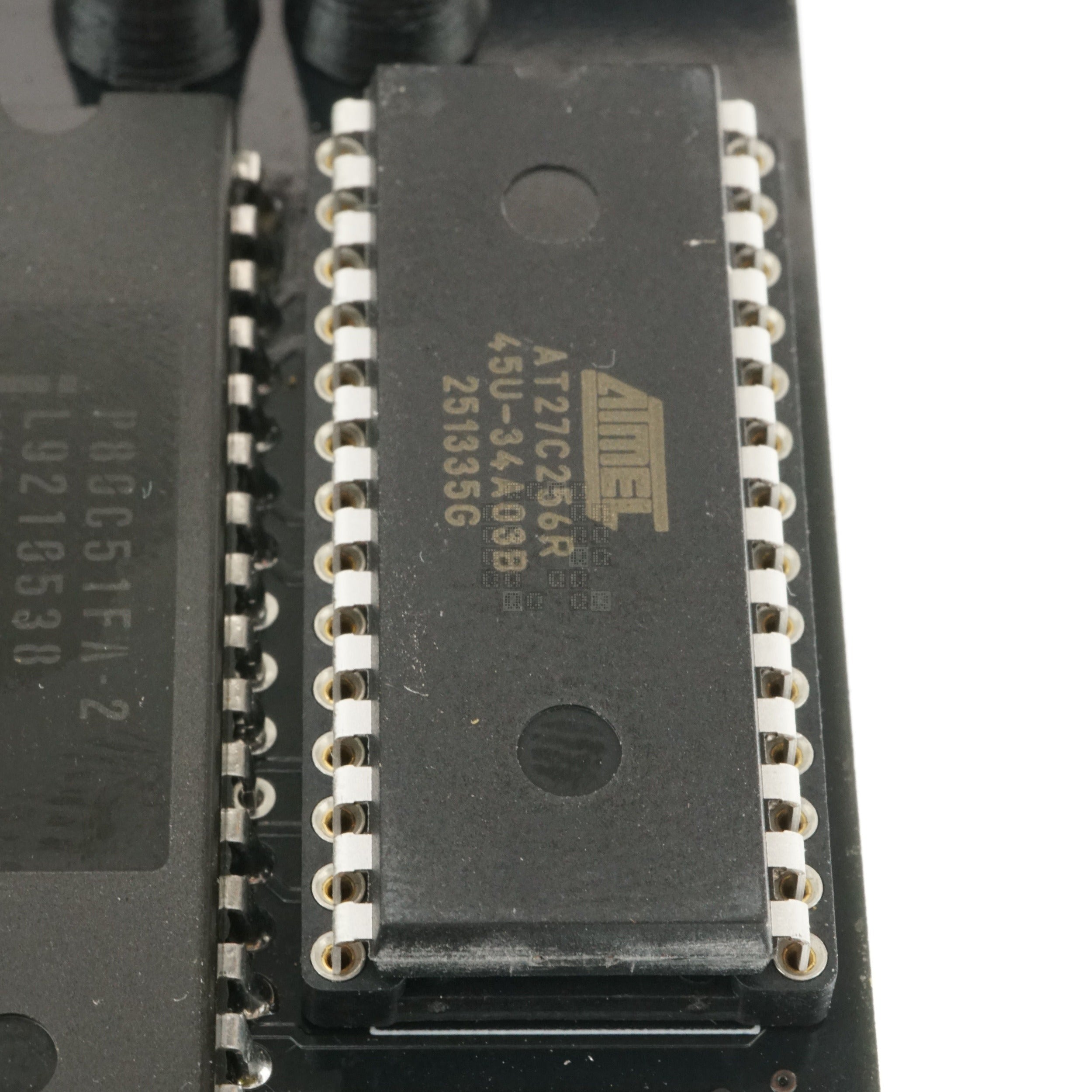

Features / Upgrades Replaceable ROM

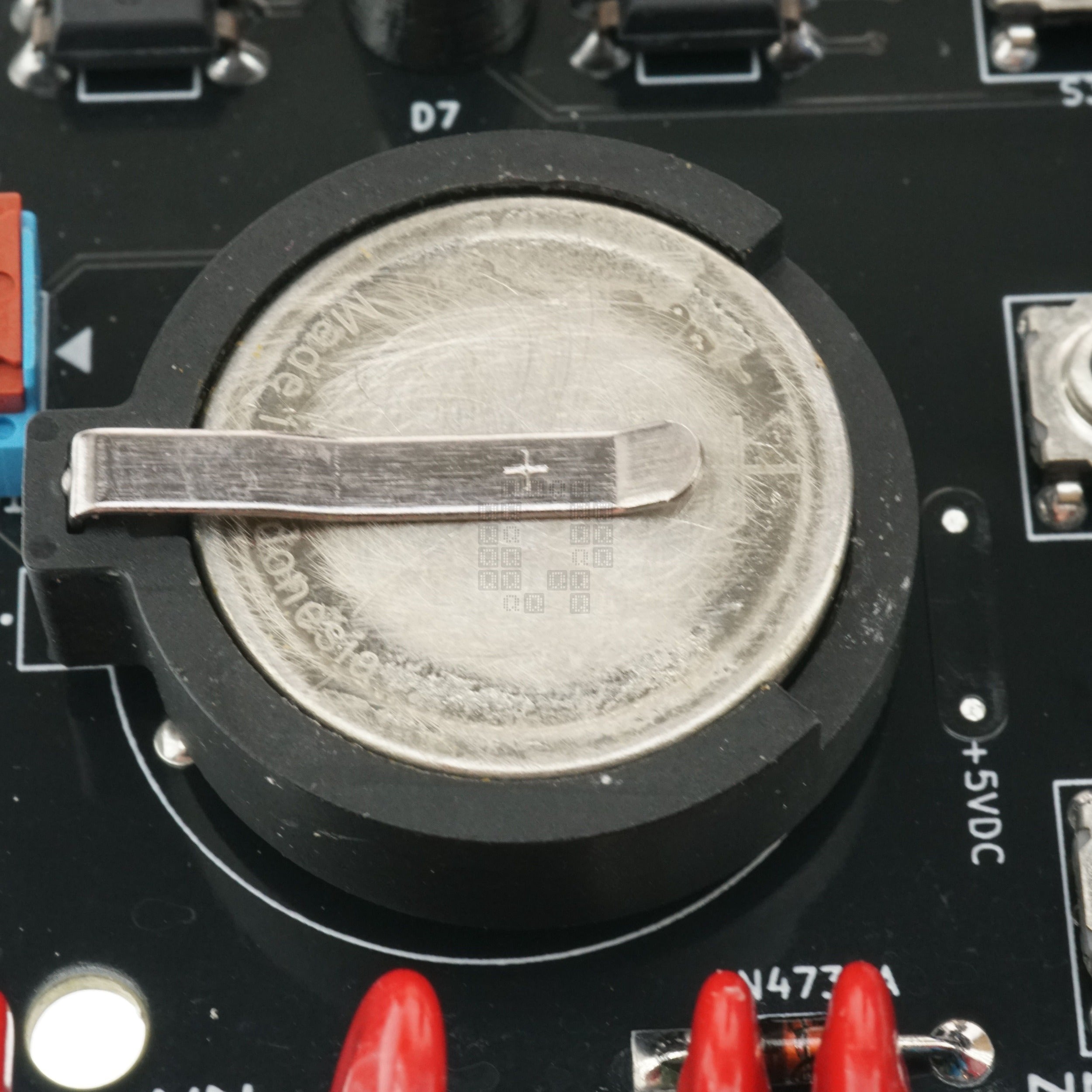

Replaceable CR2354 Battery

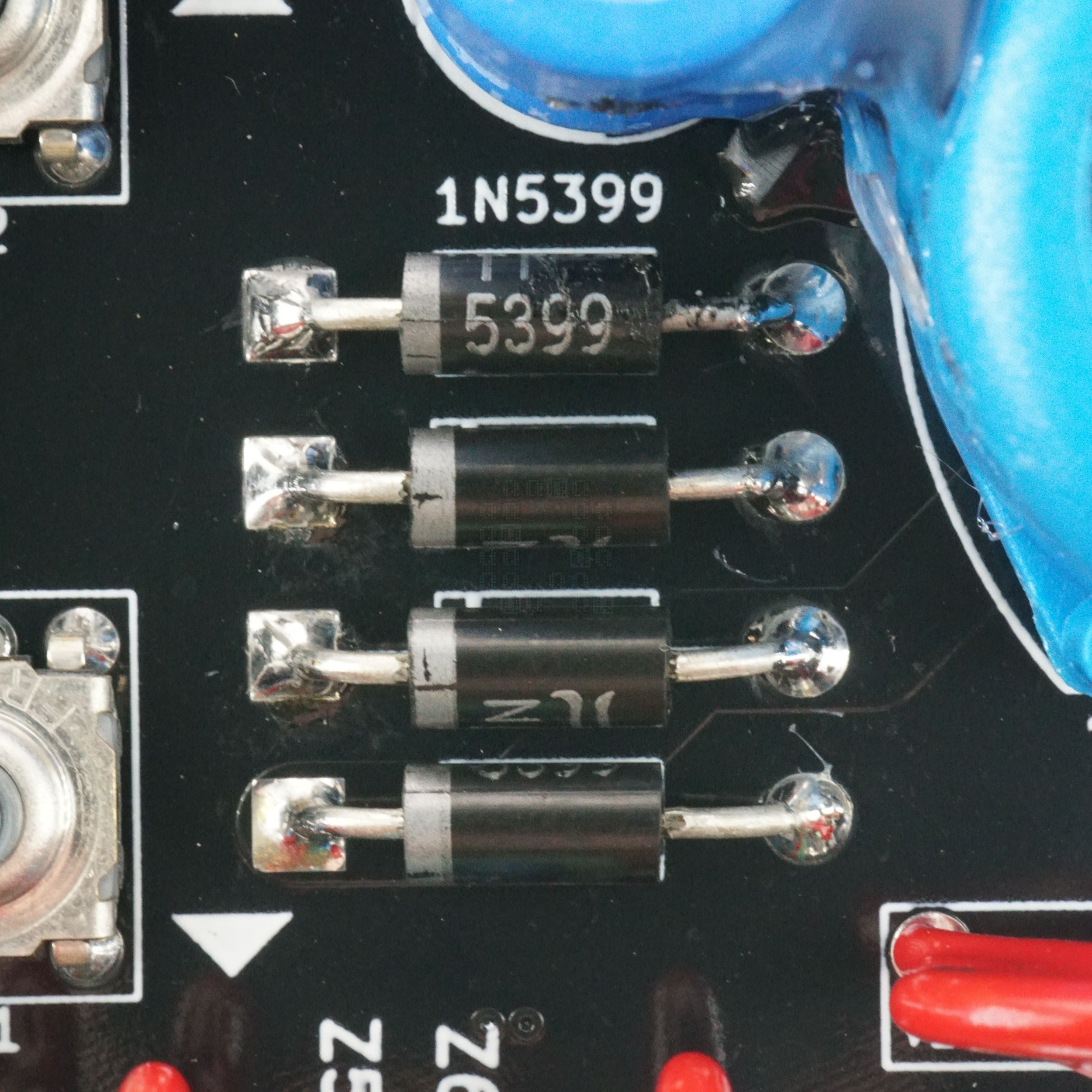

Upgraded Rectifier Diodes (1.5Amp vs 1Amp)

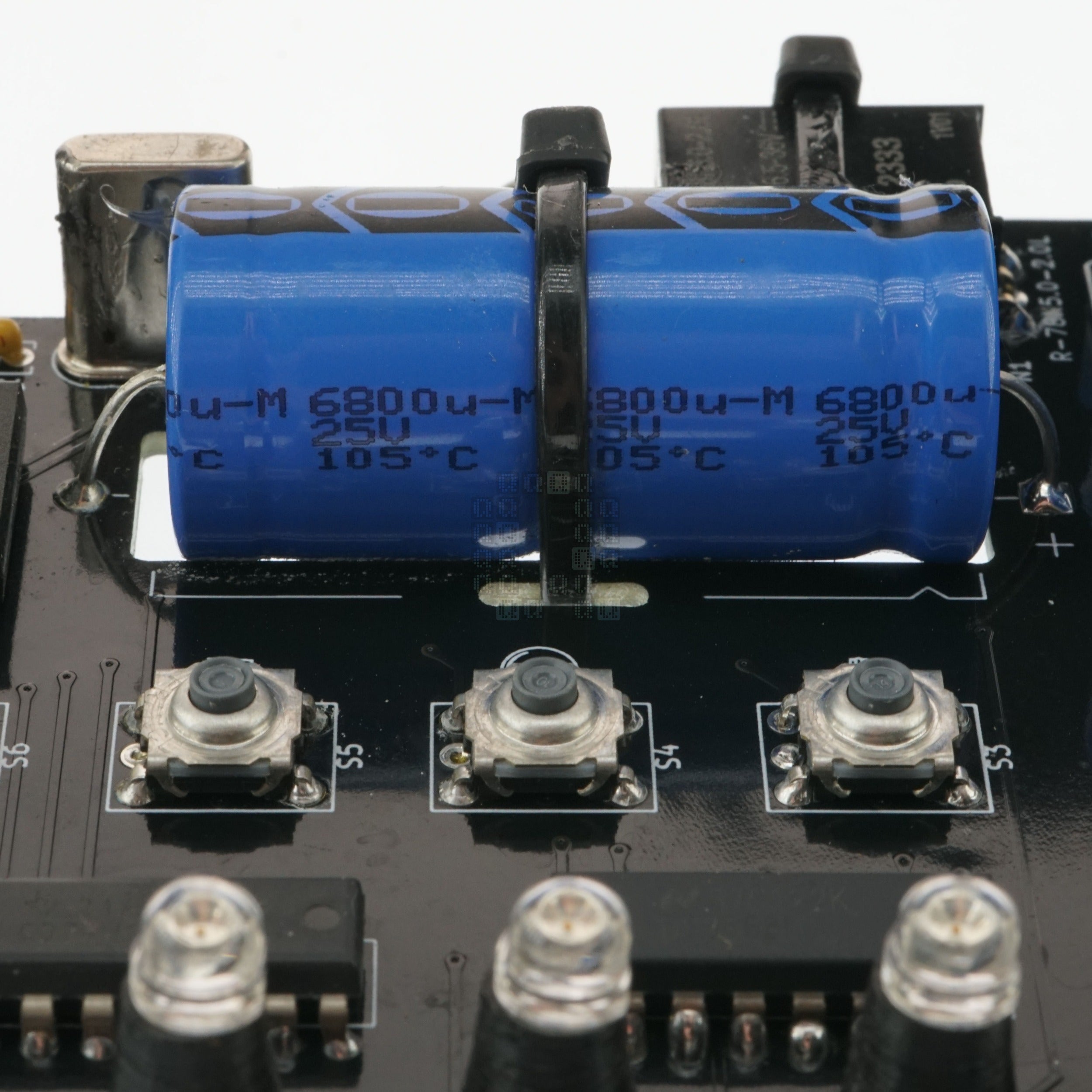

Larger Capacity Capacitor (6800uF vs 4700uF)

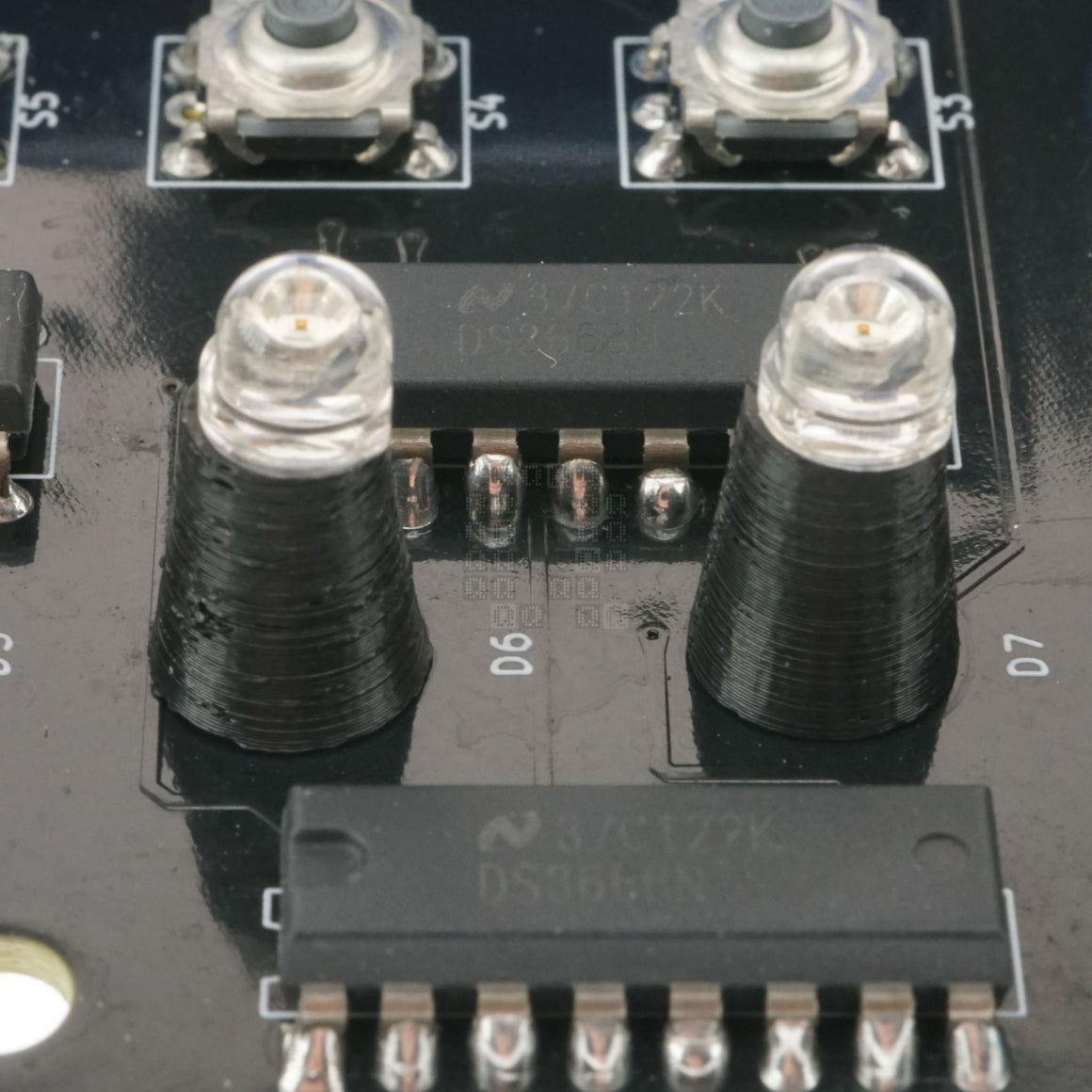

Better LED Supports

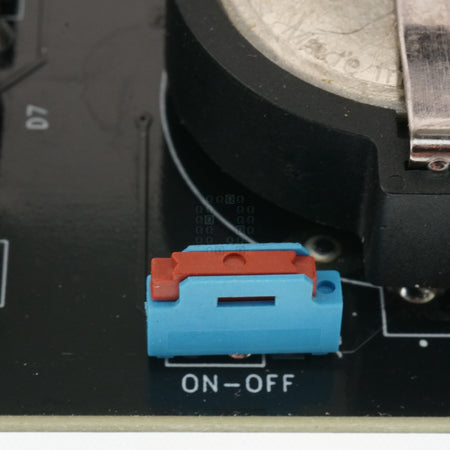

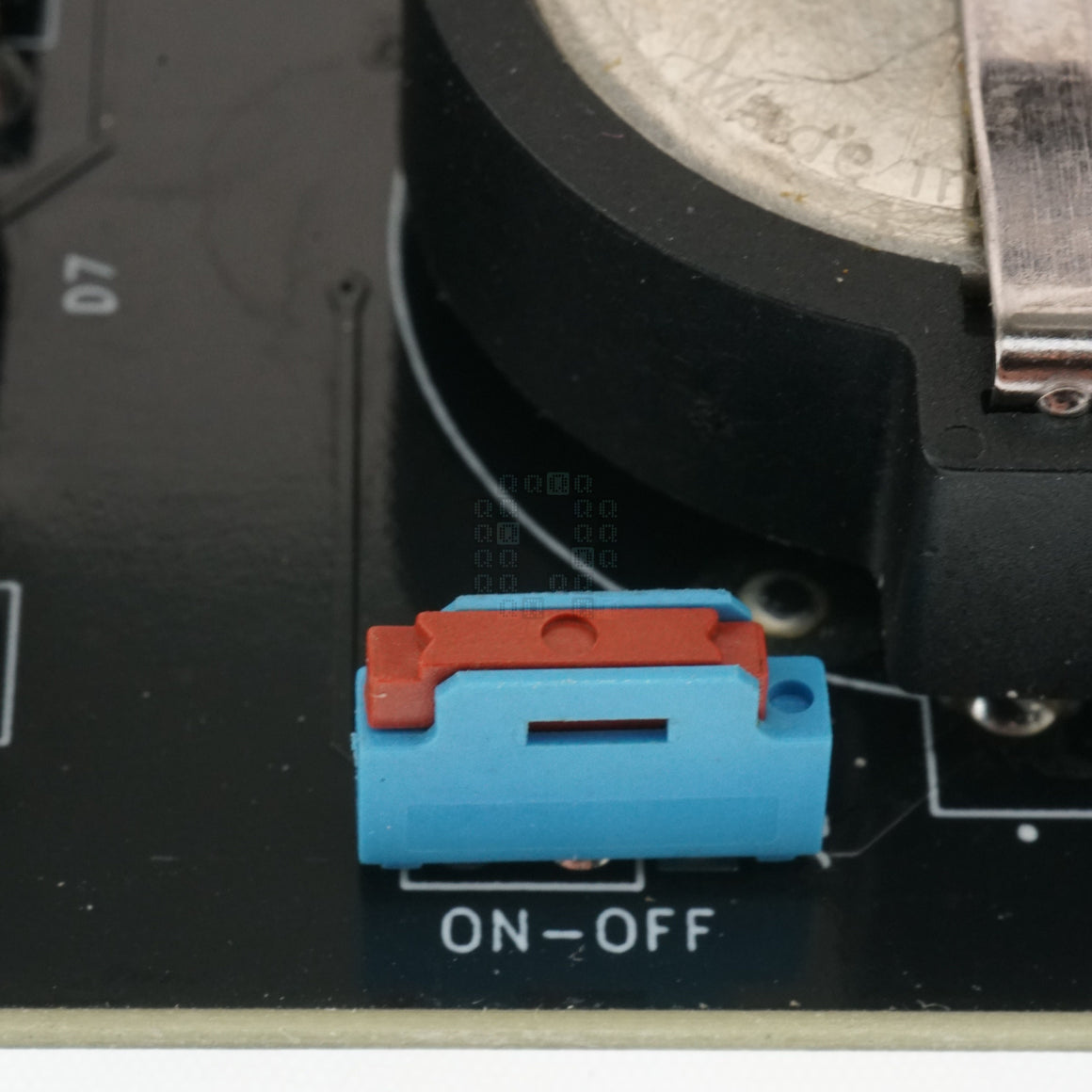

ON-OFF Switch for Battery (!BOARD MUST BE POWERED WHEN TURNING ON!)

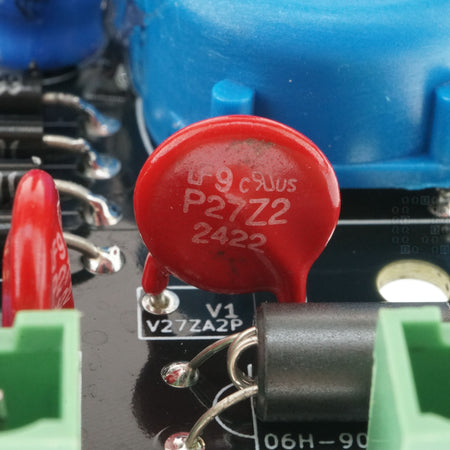

Larger Surge Suppressors on Inputs/Outputs (2.5J vs 1J, 5 Amp Peak vs 2.5 Amp)
Silicone Conformal Coated
Anti-Glare Display Shield
High Efficiency 5VDC Voltage Regulator (up to 96% vs <50%)
Power Indicator LED
3-N Switches rated for 100,000 Operations (with Gold plated contacts)
Larger Solder pads on power terminals to prevent damage
Reduced IC Count (-2)
Mounting Six (6) Screws (Not Included)

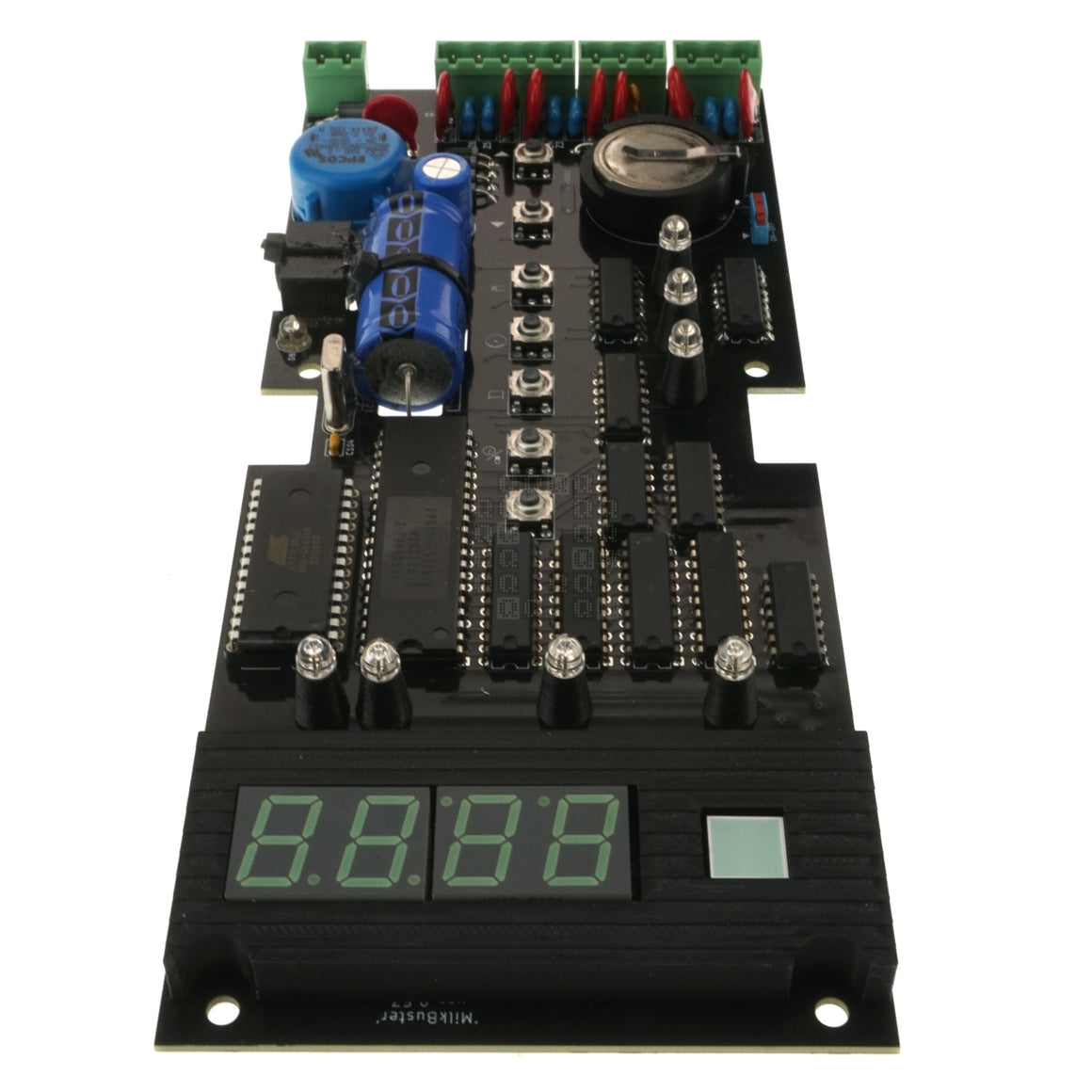

Display 0.56" 4-Digit 7-Segment Green LED Display
Input Voltage 12VAC/DC
(7.5V Min, 34V Max Input Range)
UPC
Country of Origin Assembled in USA from Global Components
Notes New.
WARNING: BATTERY MUST BE INSTALLED WHILE BOARD IS POWERED!
Location Y1-12
