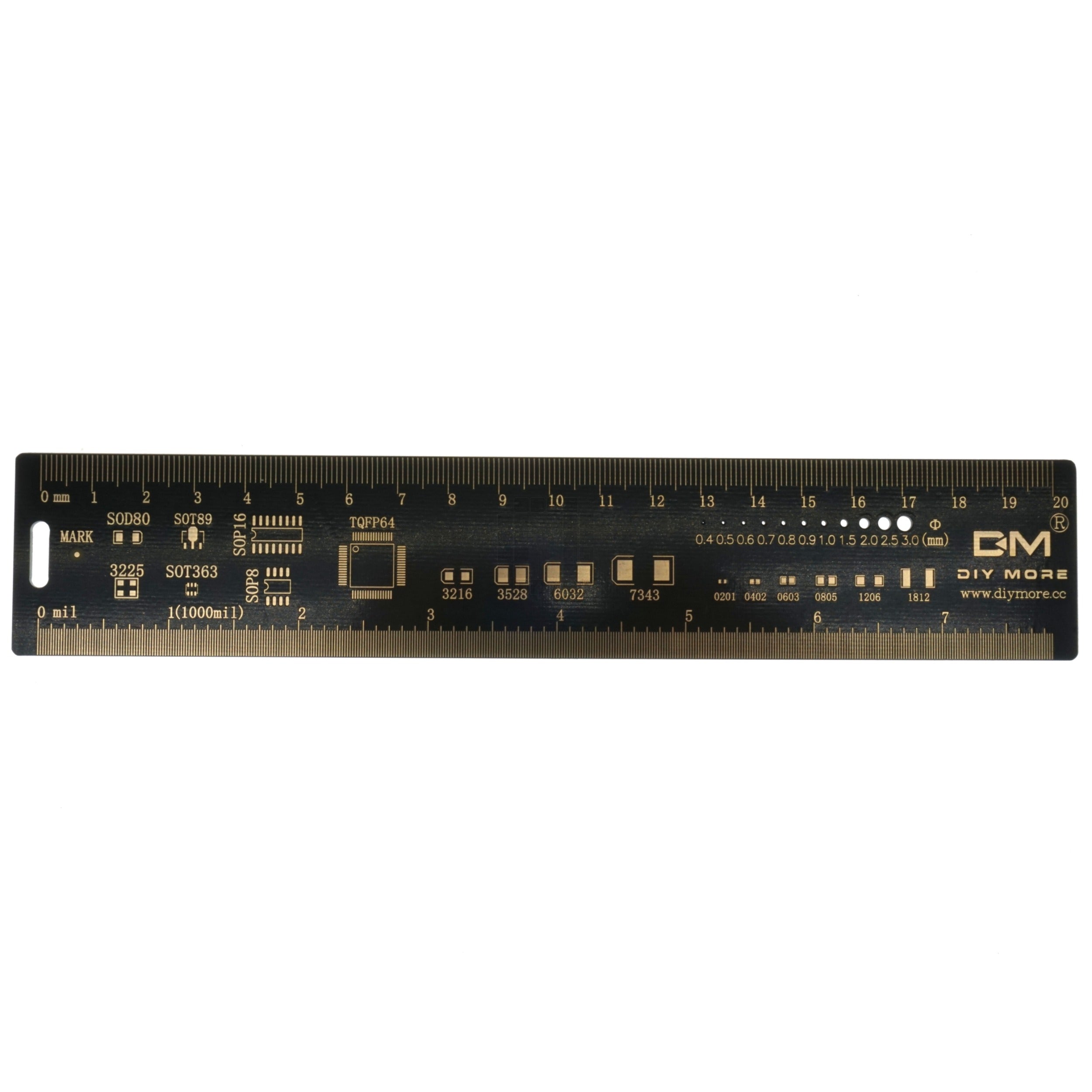

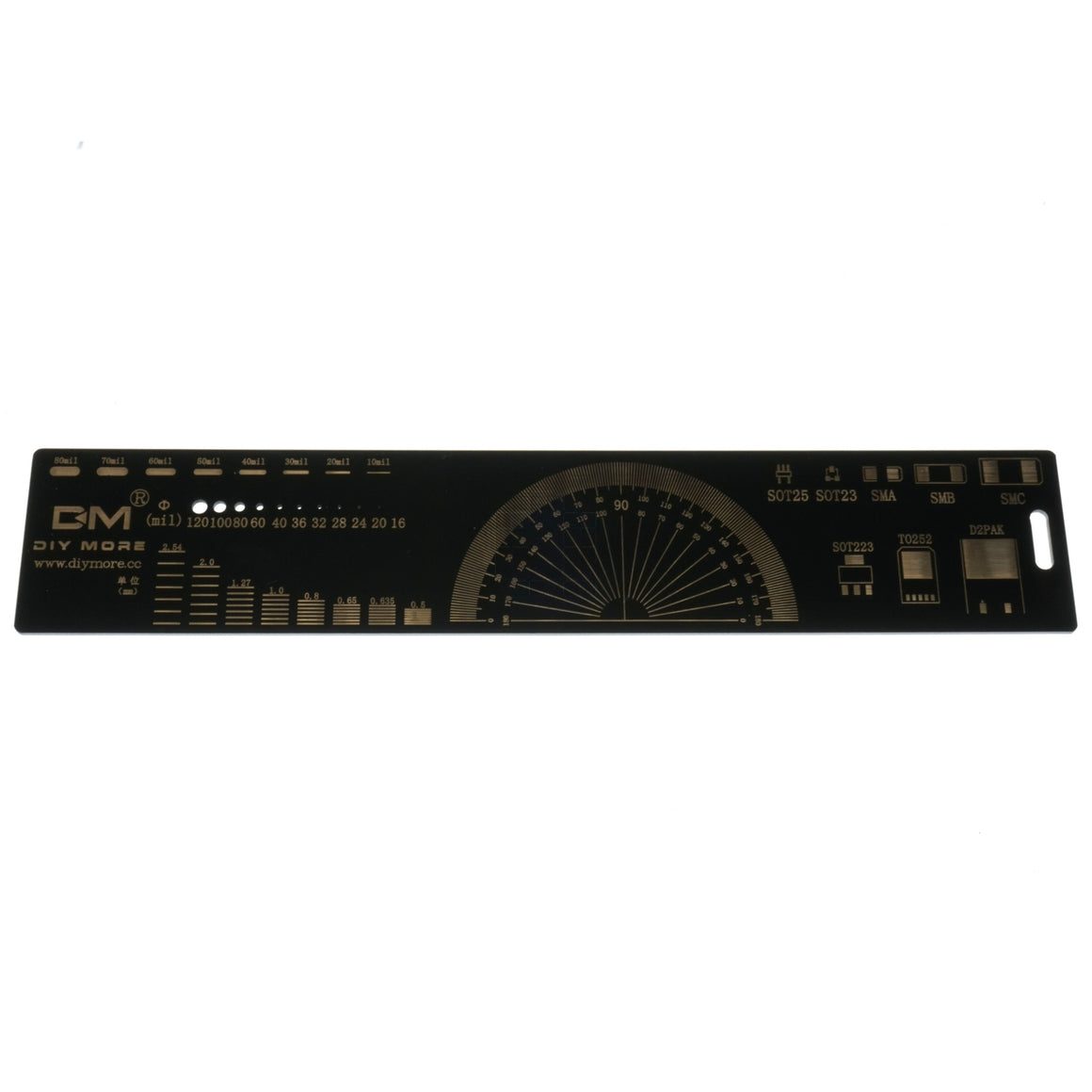

DIY More 020097 20CM Printed Circuit Board PCB Ruler

Name: DIY More 020097 20CM Printed Circuit Board PCB Ruler
Brand: DIY More
SKU: 020097
Price: 1.94 USD
Availability: InStock

(0)

Please note: While we strive for accuracy in our descriptions and images, the actual color and appearance of the items may vary slightly from the photographs due to lighting conditions or varying computer monitor settings.

DIY More SKU: 020097

$1.94 USD

Only 2 left

Stock Low

Product Information

Product Description Product Metafields About the Manufacturer Shipping & Handling Product Metafields (Unsorted)

Brand	DM DIY More
Manufacturer Part Number	020097
Dimensions	0.055" Thickness 1.57" Height 8.25" Length

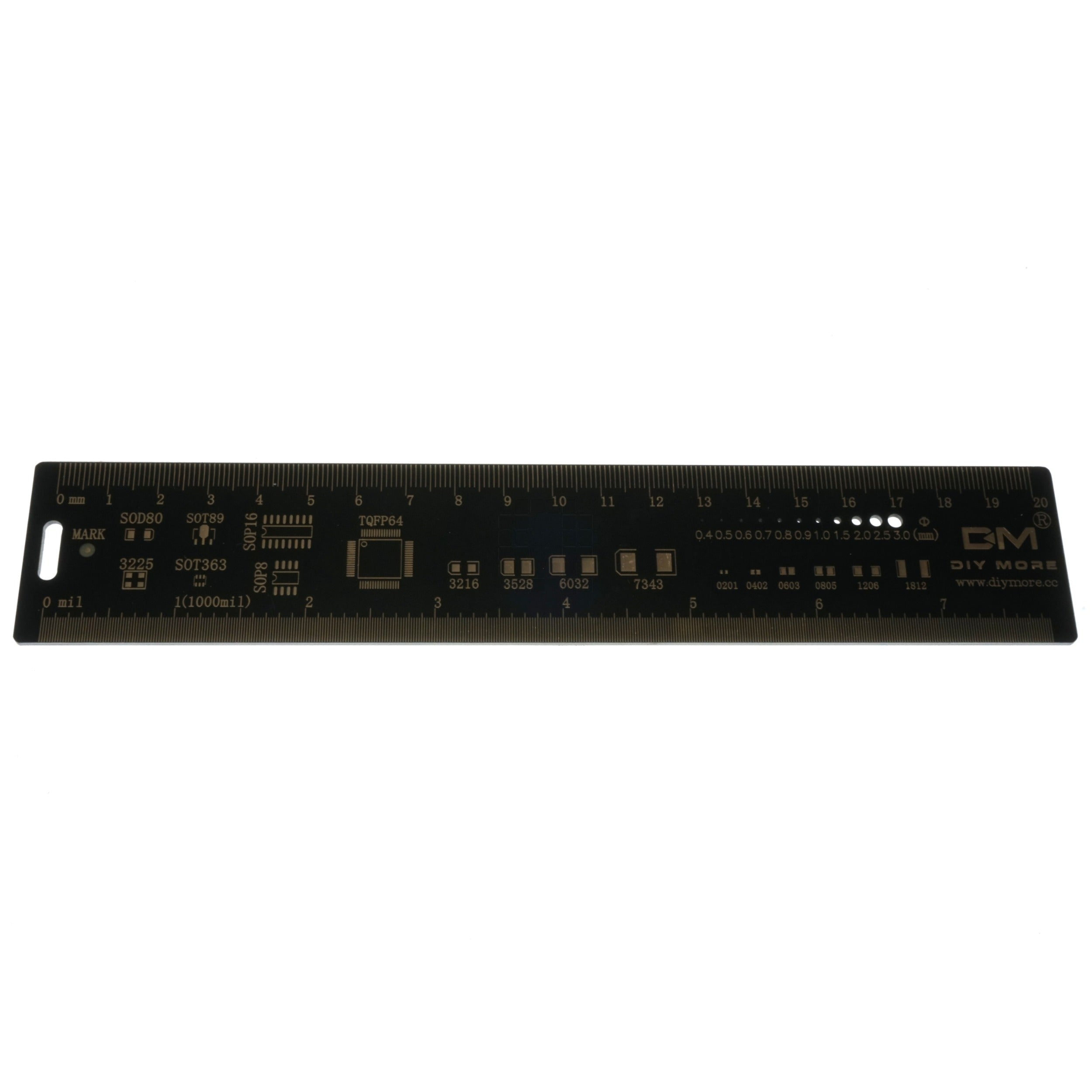

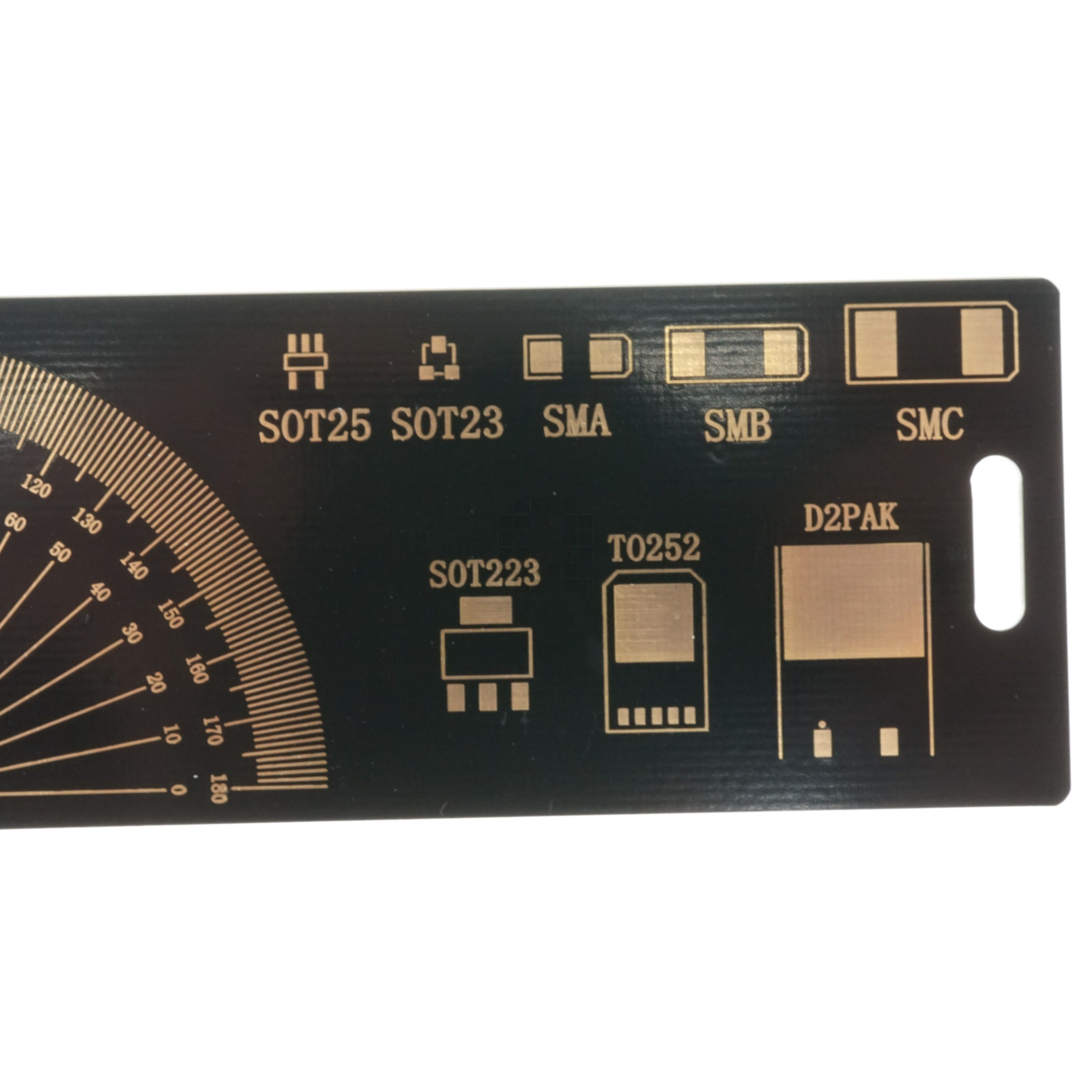

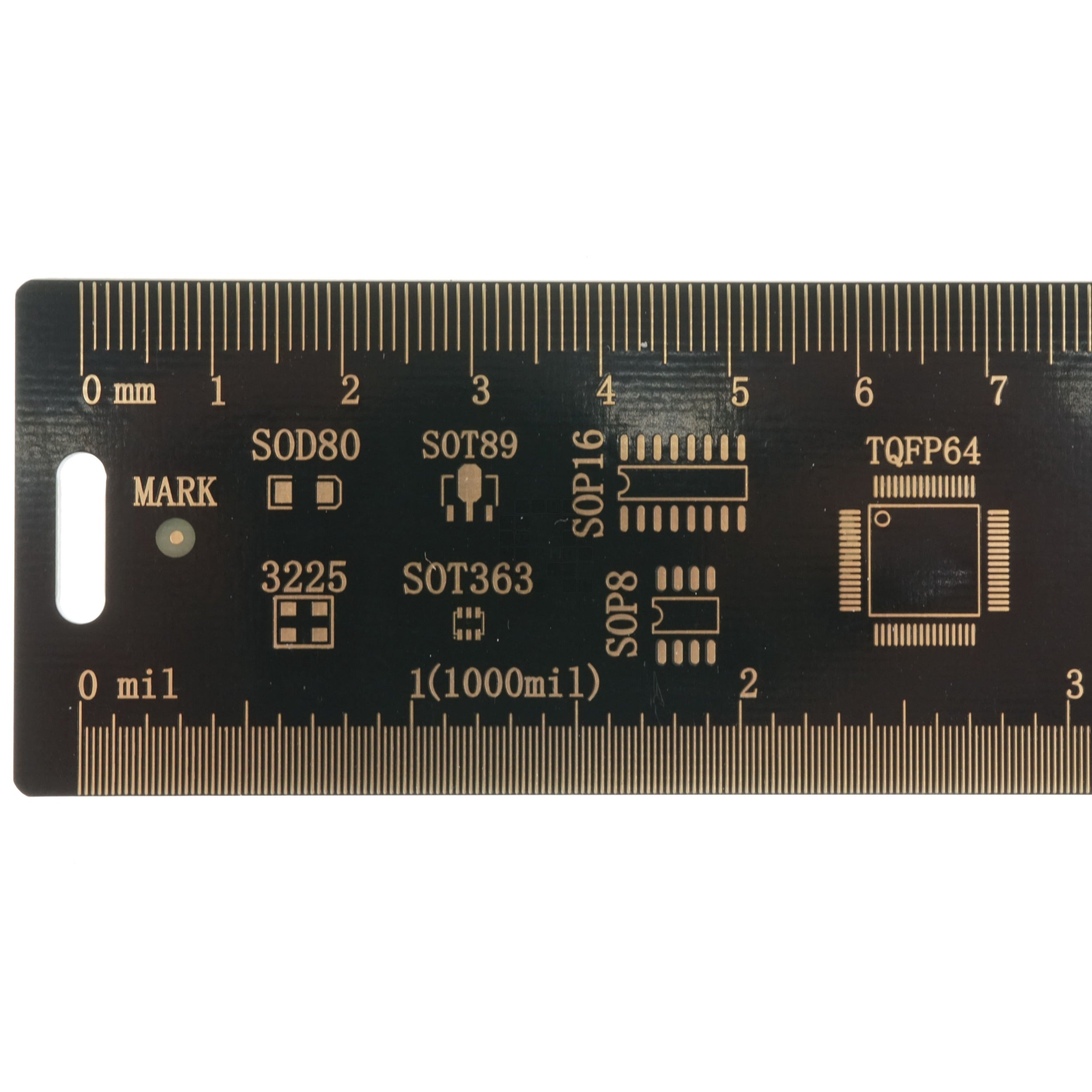

Packages	SOT23 SOT25 SOT89 SOT223 SOT363 SMA, SMB, SMC TO252 D2PAK SOD80 SOP8 SOP16 3225 TQFP64

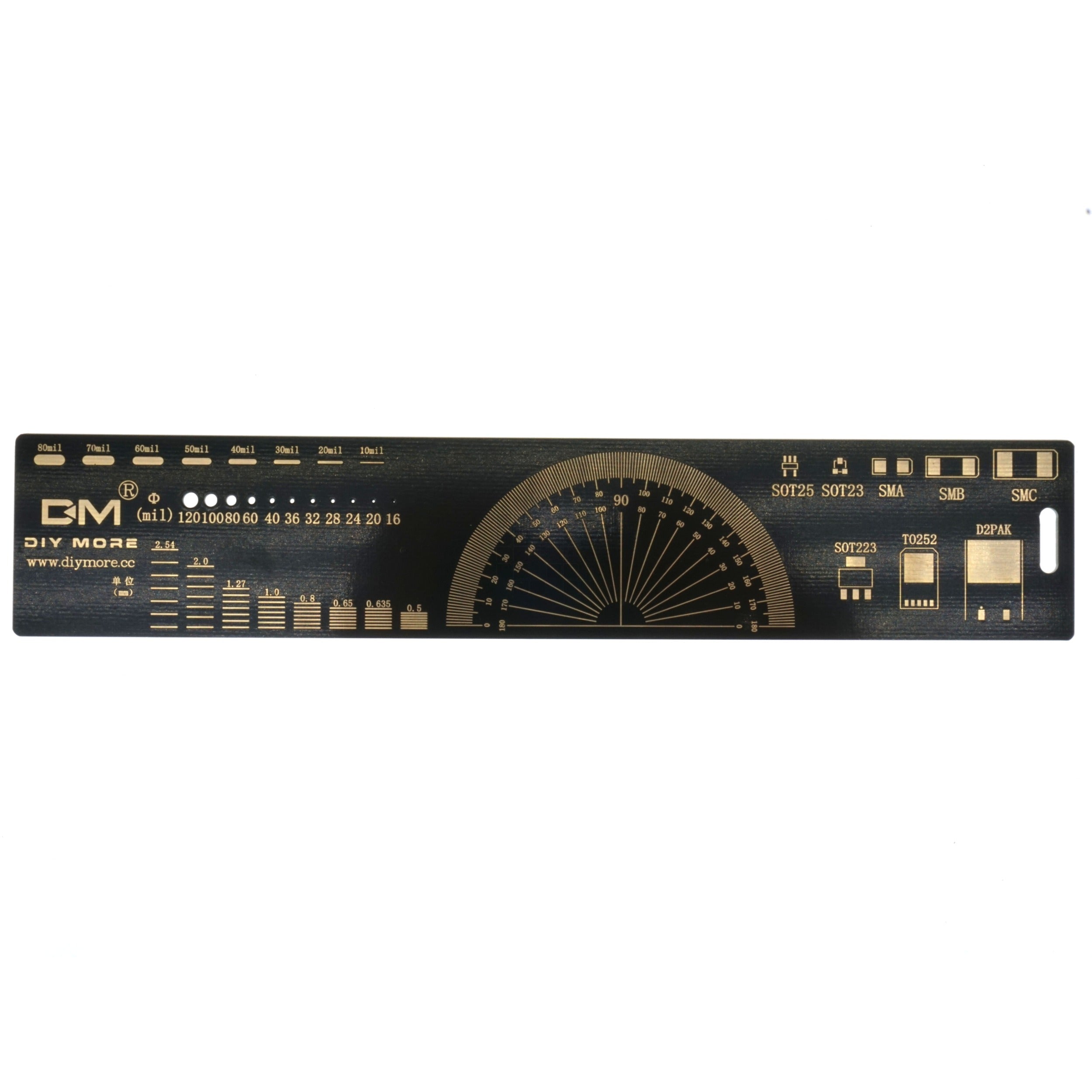

Trace Widths	10, 20, 30, 40, 50, 60, 70 & 80 mils

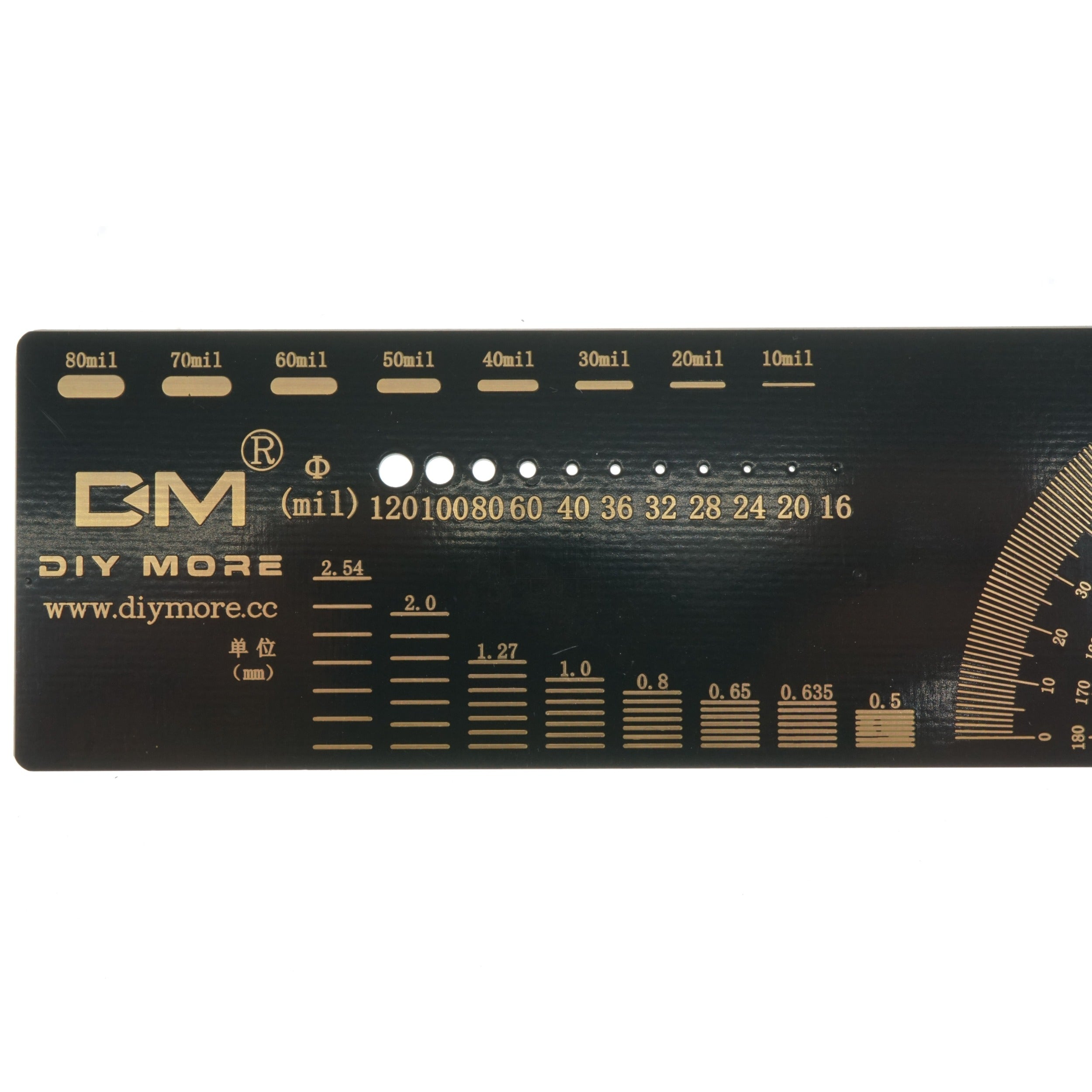

Hole Sizes	16, 20, 24, 28, 32, 36, 40, 60, 80, 100 & 120 mils 0.4, 0.5, 0.6, 0.7, 0.8, 0.9, 1.0, 1.5, 2.0, 2.5 & 3.0mm
Ruler Measurements	0-20CM (mm divisions) 0-7.8 inches (0.020 inch divisions) 0-7800 mils (20mil divisions)

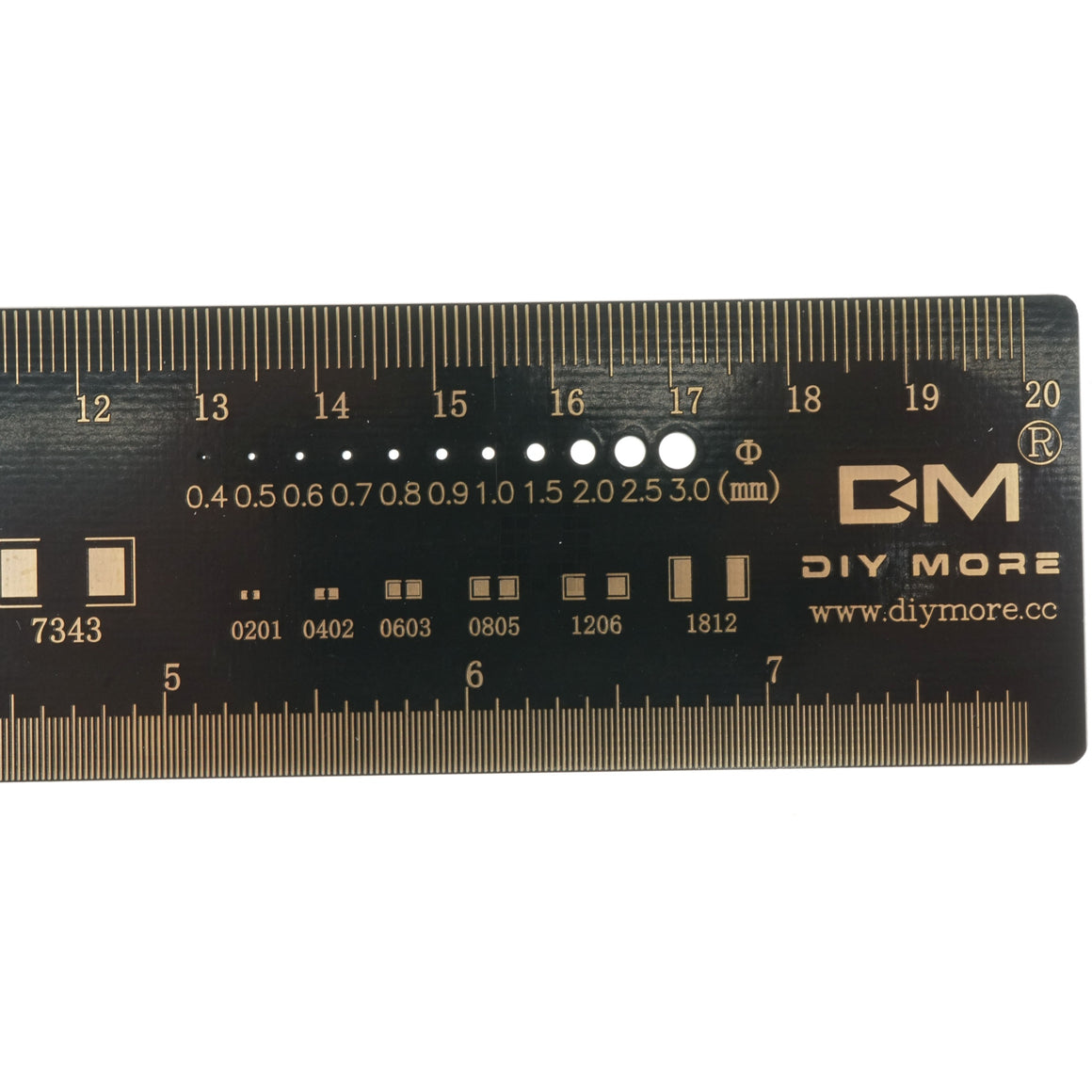

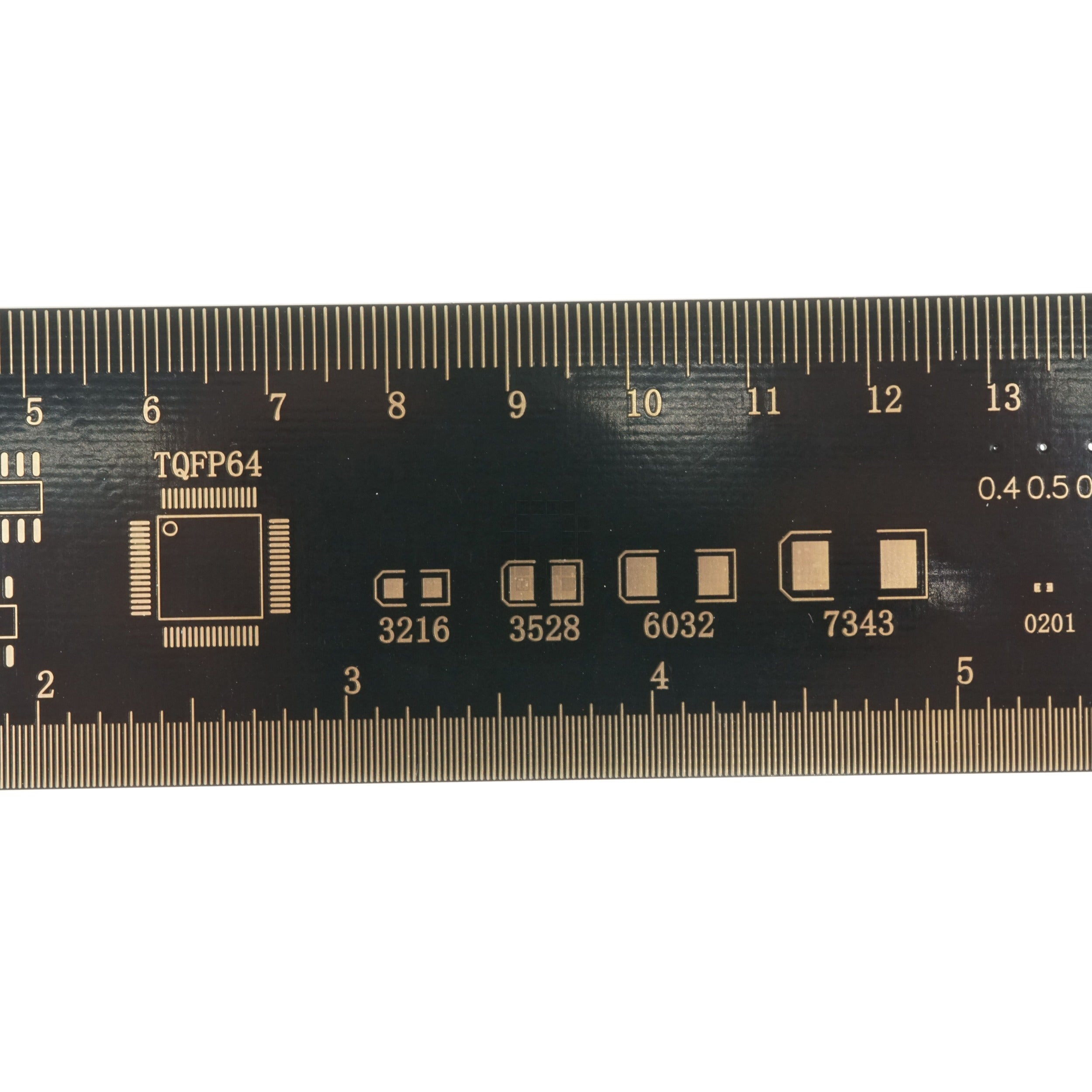

SMD R/C/L	0201 0402 0603 0805 1206 1812 3216 3528 6032 7343
Spacing	0.5, 0.635, 0.65, 0.8, 1.0, 1.27, 2.0, 2.54mm

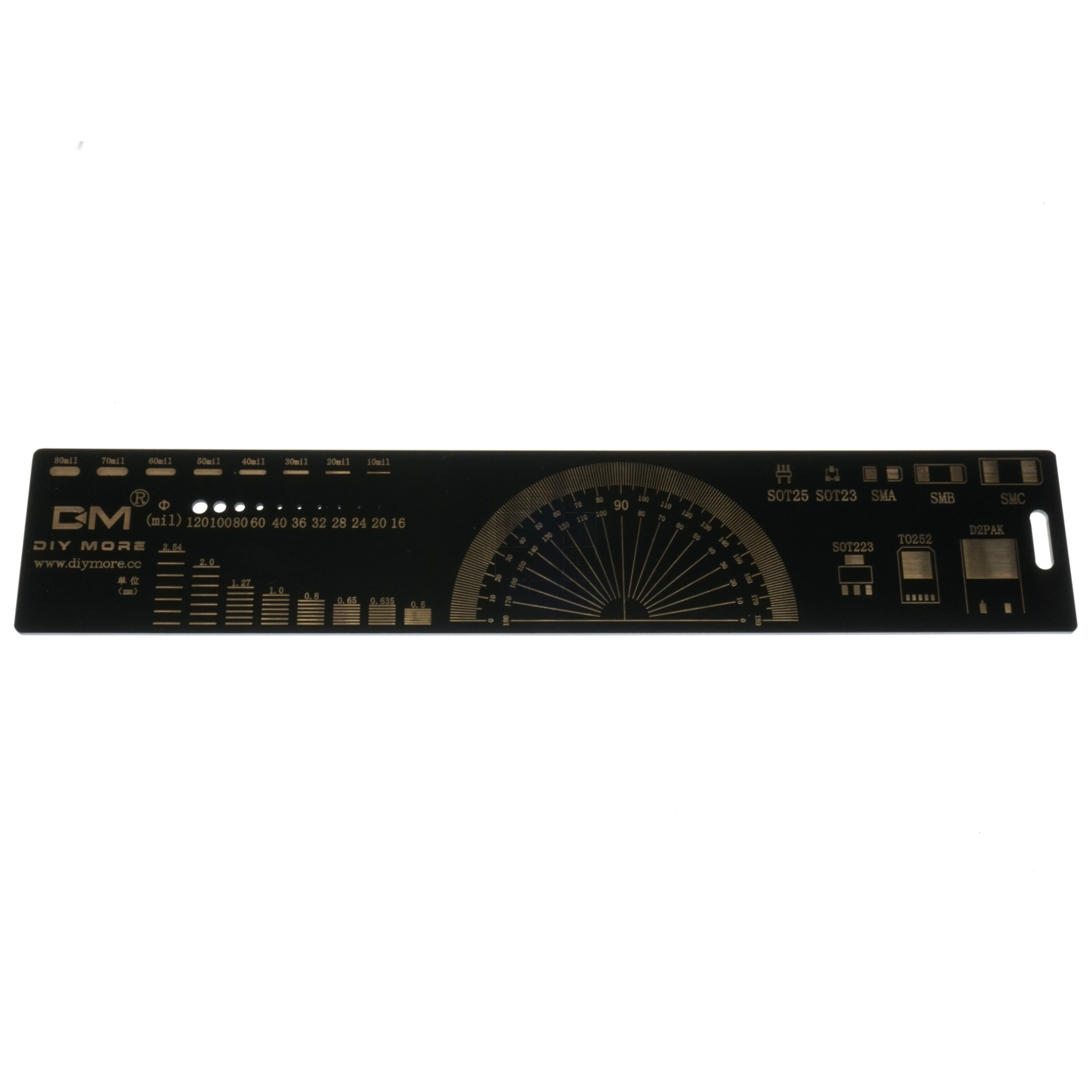

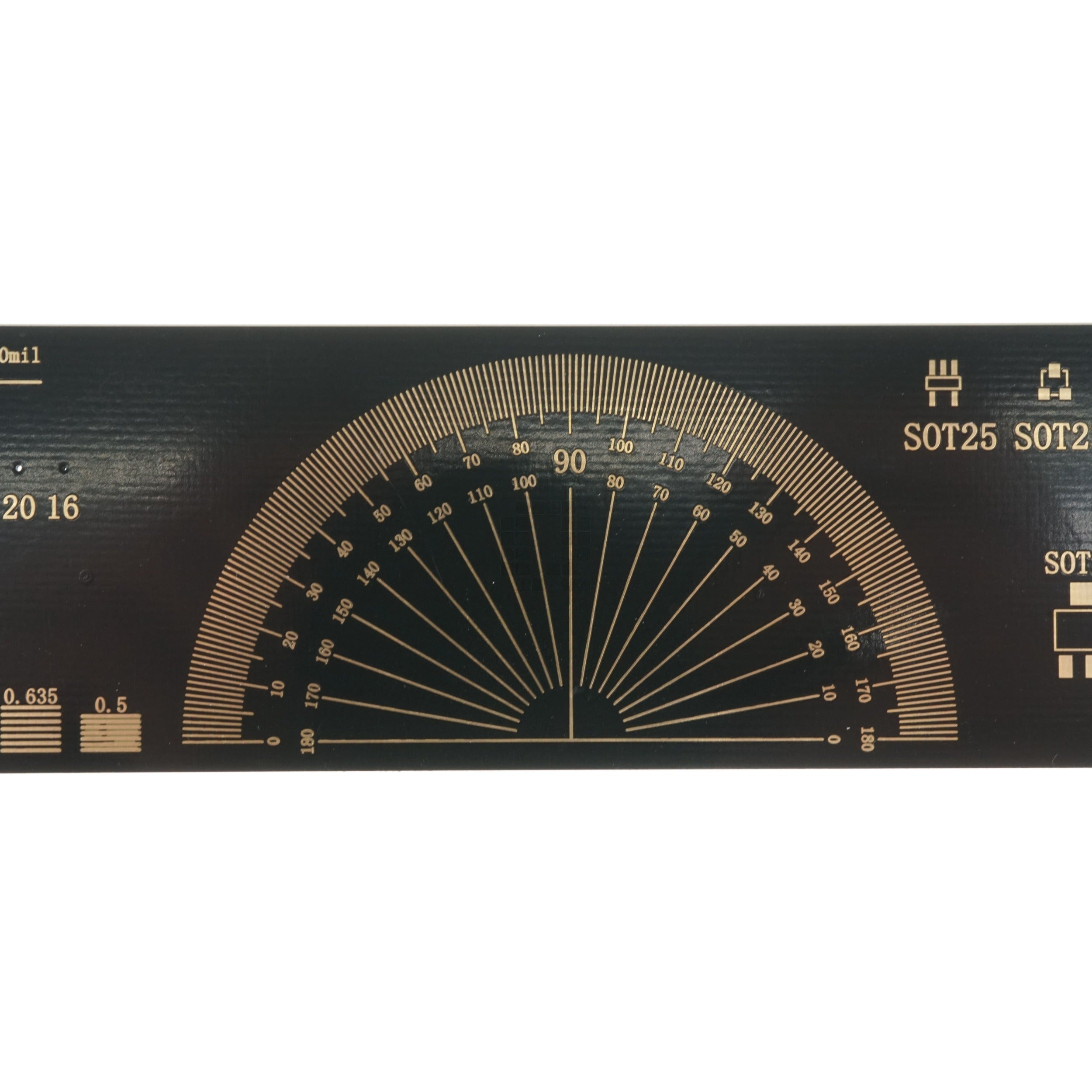

Angles	0 to 180 degrees (1 degree divisions)
UPC	N/A
Country of Origin	China
Notes	New.
Location	R1-36
