Brand Genteq
Manufacturer Part Number 97F9386
OV-15/3-370
Cross Reference (Fit/Form/Function)
Capacitance 3 uF / 15 uF +/-6%
(Dual Rated)
Working Voltage 370 VAC
Frequency 50/60 Hz
Working Temperature Range -40°C to +70°C
-40°F to +158°F
Type Run Capacitor

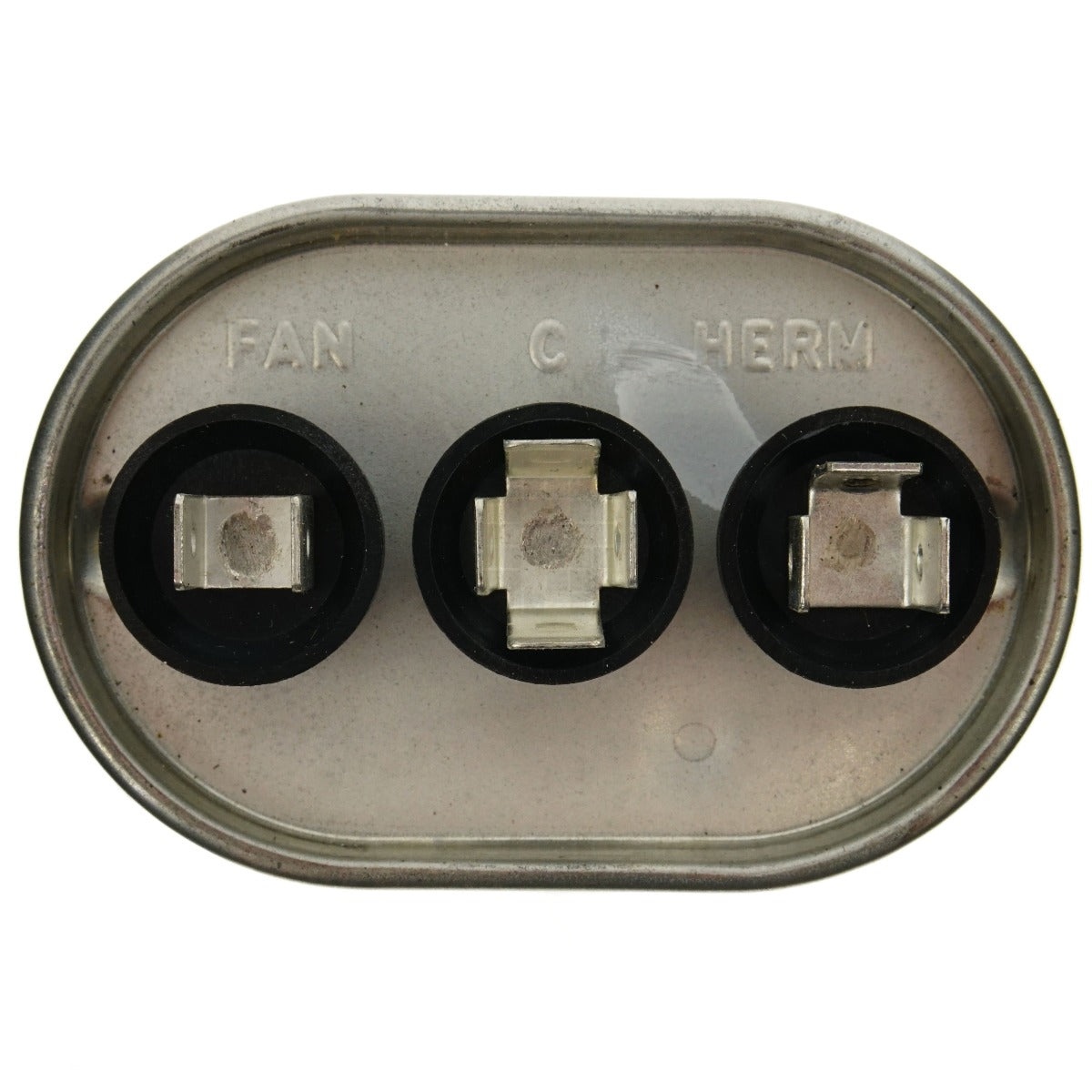

Connection 3 Posts
Four 1/4” male spade terminals on each post
Resistor None
Construction Aluminum Case
Certifications/Approvals
Rated Life 60,000 Hours
94% Survival
Case Code 3
Dissipation Factor 0.1% Maximum
UPC None
Product Origin (COO) Mexico

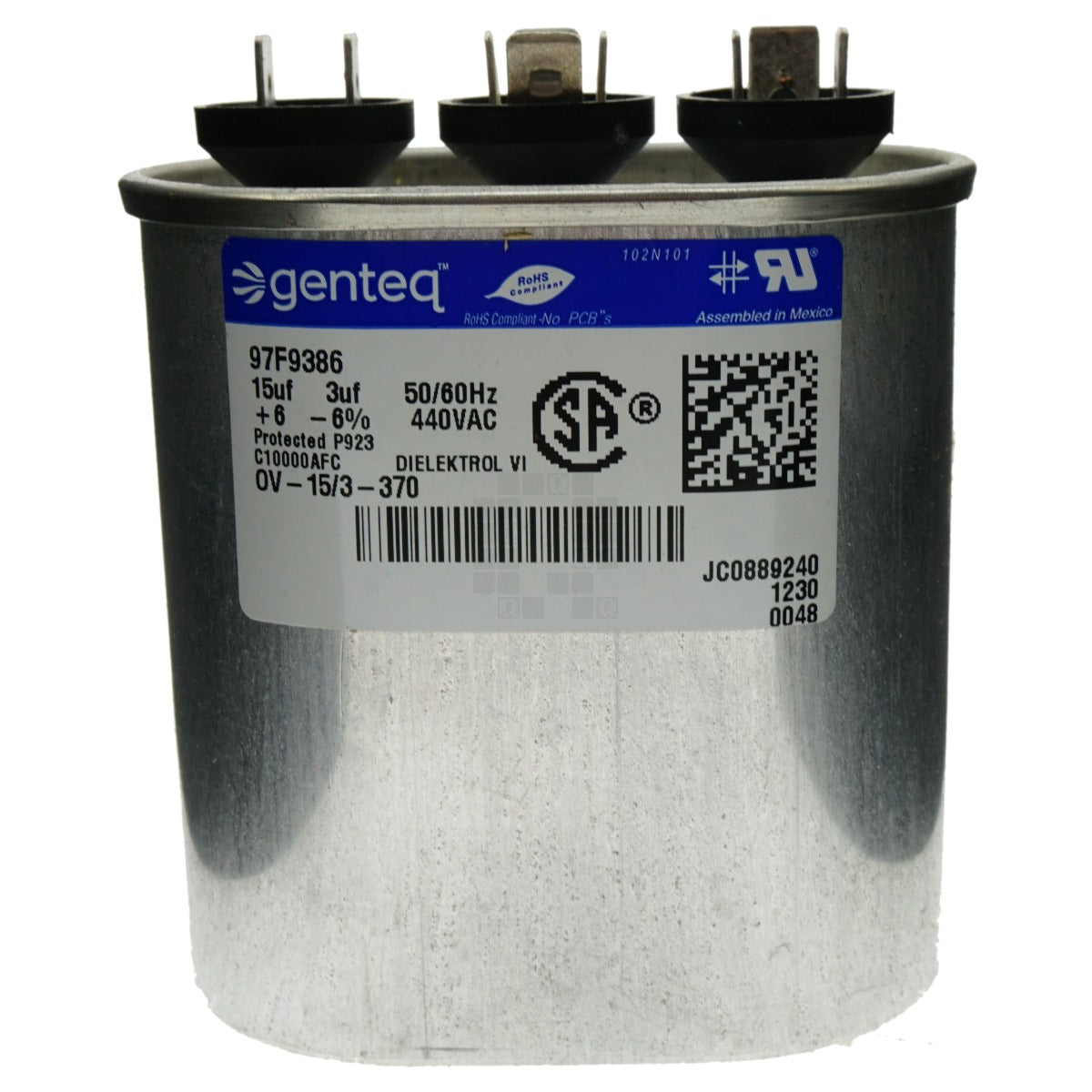

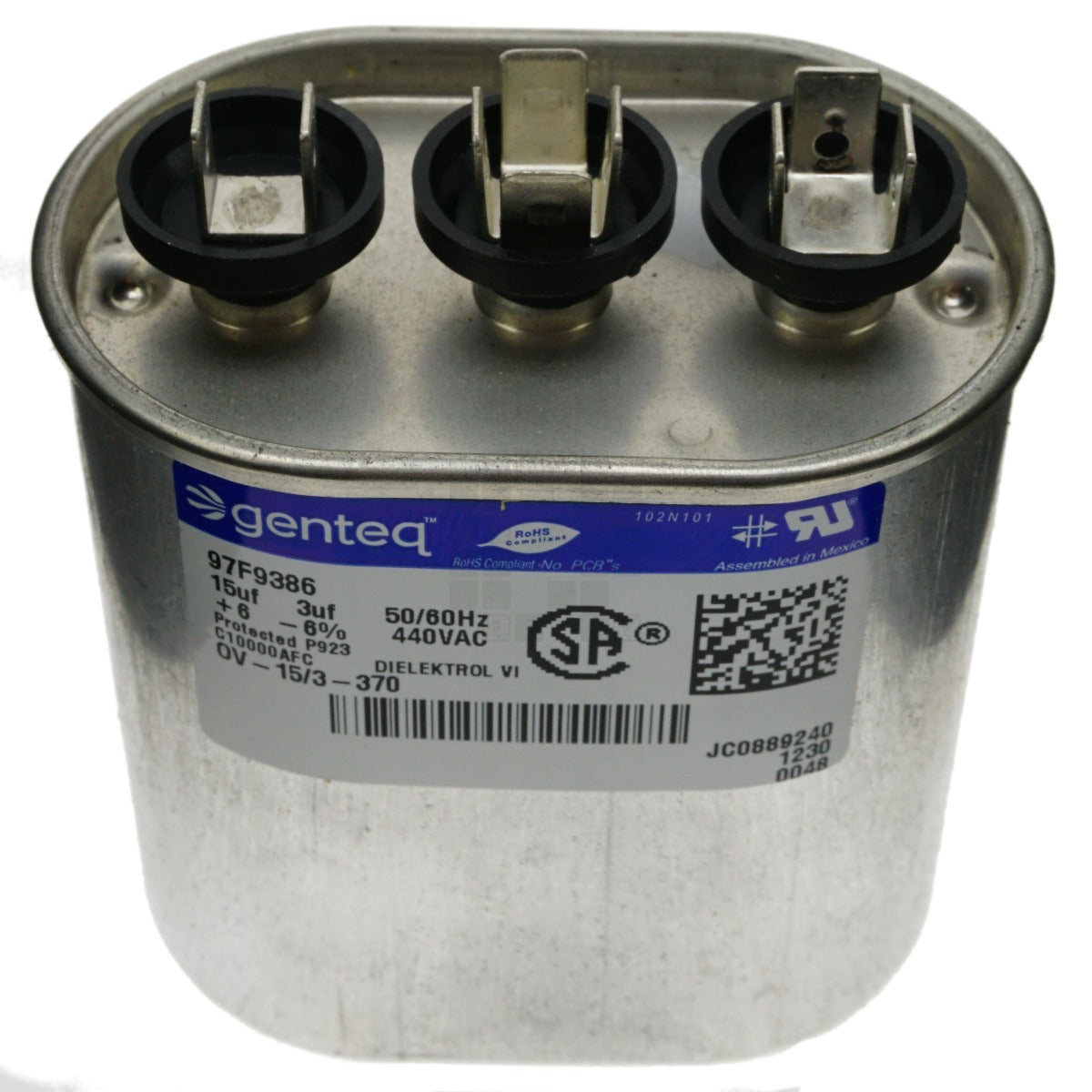

Product Label Genteq RoHS Compliant - No PCBs Assembled in Mexico
97F9386
15 uf / 3 uF 50/60Hz
+6/-6% 440VAC
Protected P923
C10000AFC Dielktrol VI
OV-15/3-370

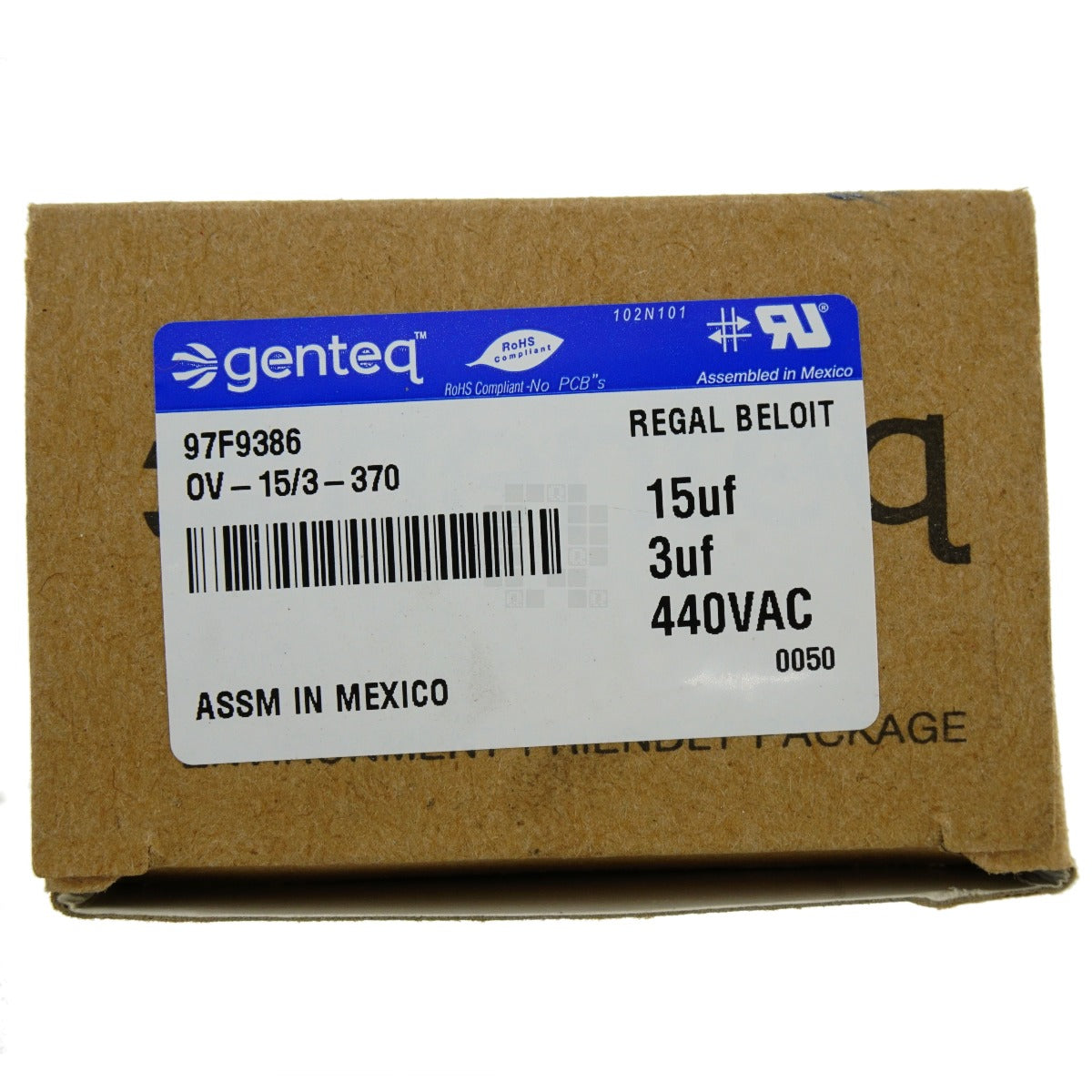

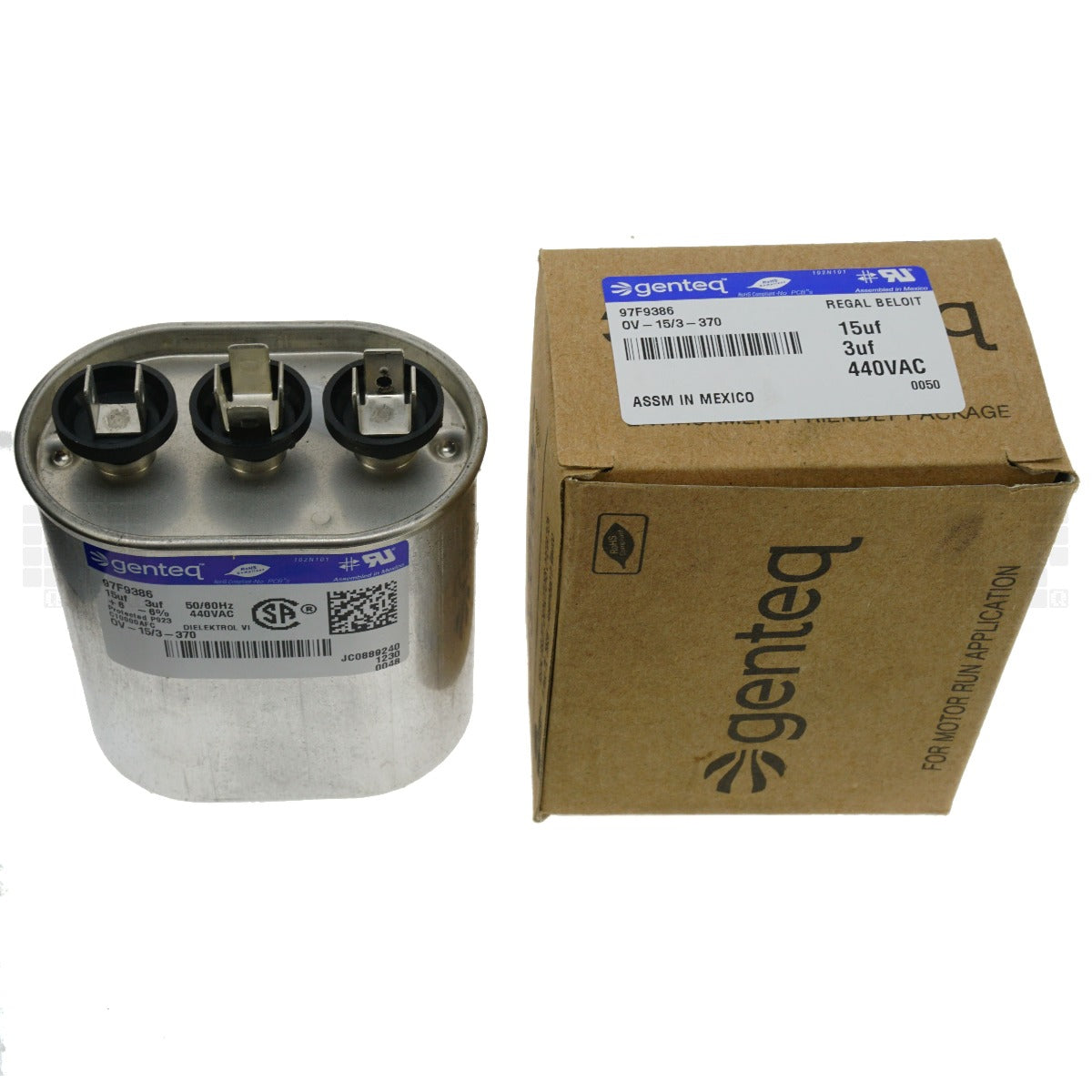

Package Label Genteq RoHS Compliant - No PCBs Assembled in Mexico
97F9386 Regal Beloit
OV-15/3-370
15 uF / 3 uF 440VAC

Notes An occasional dent in the aluminum housing may be present due to shipping and handling. This is a commercial part and cosmetic damage IS NOT considered a valid reason for a return.
Product Color Silver
Product Shape Oval
Product Dimensions 2.91" Width (Rolled Edge)
1.91" Depth (Rolled Edge)
2.97" Height (Case Only)
3.50" Height (Case and Terminals)
Distance Between Terminals 0.81" +/-0.03"
Product Weight 9 oz
Package Dimensions (LxWxH) 2.95" x 2.00" x 2.69"
Package Weight 10 oz
