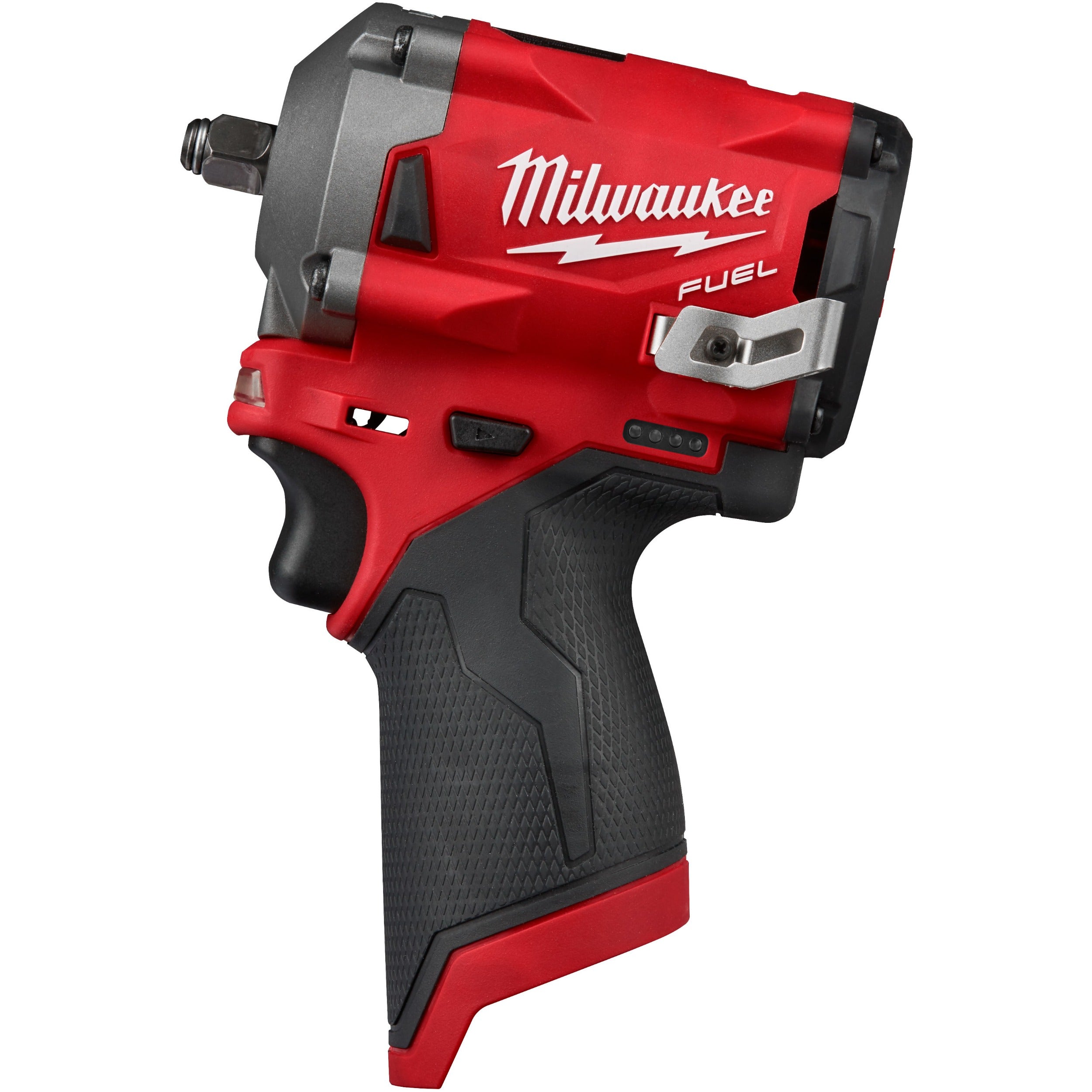

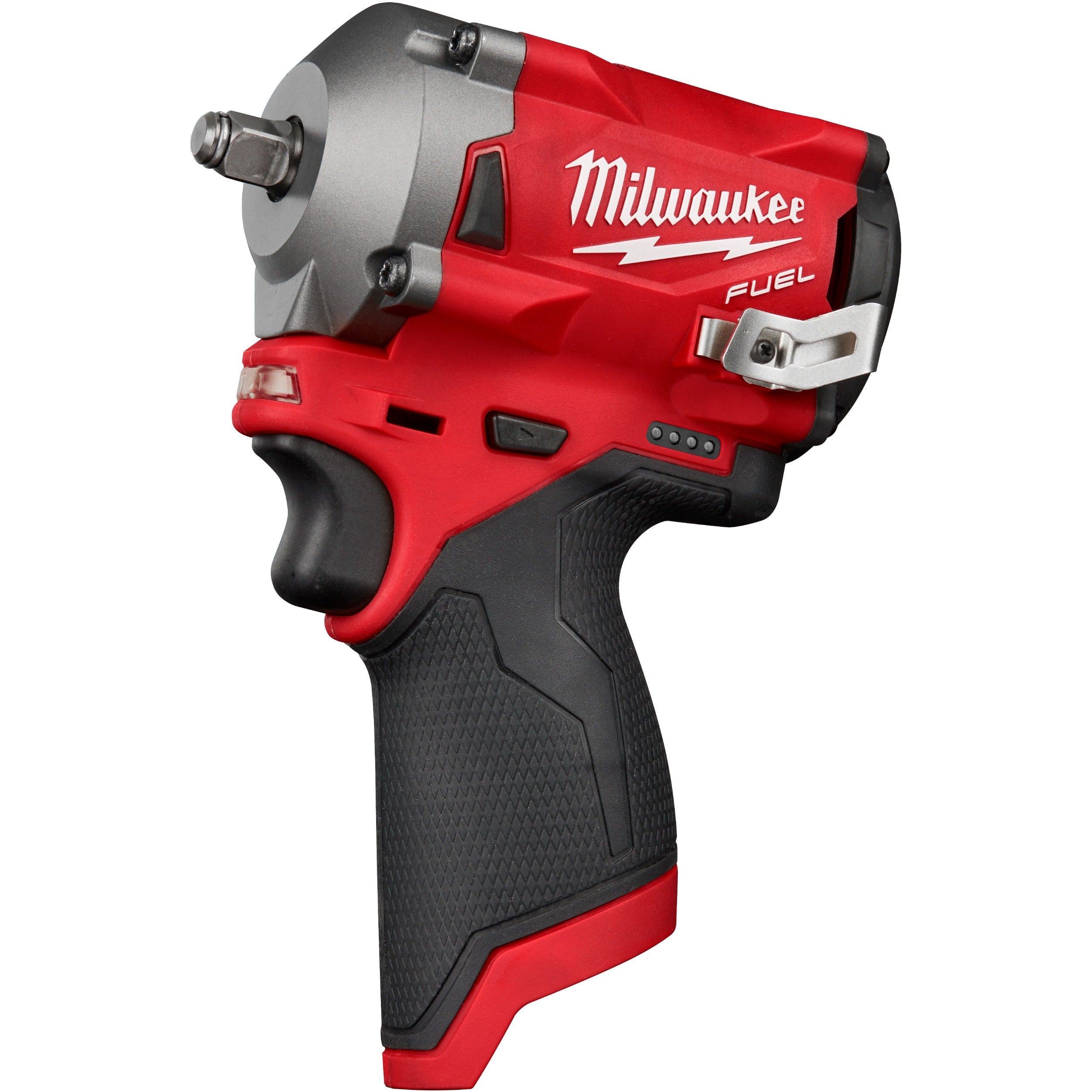

Milwaukee Tool 2554-20 M12 FUEL 3/8" Impact Wrench with Friction Ring

Name: Milwaukee Tool 2554-20 M12 FUEL 3/8" Impact Wrench with Friction Ring
Brand: Milwaukee Tool
SKU: 2554-20_J61A
Price: 326.00 USD
Availability: OutOfStock

(0)

Please note: While we strive for accuracy in our descriptions and images, the actual color and appearance of the items may vary slightly from the photographs due to lighting conditions or varying computer monitor settings.

Milwaukee Tool SKU: 2554-20_J61A UPC: 045242521173

$326.00 USD

Out of stock

Out of Stock

This item is not for sale; this page is for part number reference only.

Catalog Number: 2554-20

For Serial Numbers starting with J61A

Revision: June 2018

Data Sources:
Milwaukee 2554-20 Service Parts List, Serial J61A (PDF, 9.13MB)
Milwaukee 2554-20 Operator's Manual (PDF, 2.47MB)

Product Information

Product Description Product Metafields About the Manufacturer Shipping & Handling Product Metafields (Unsorted)

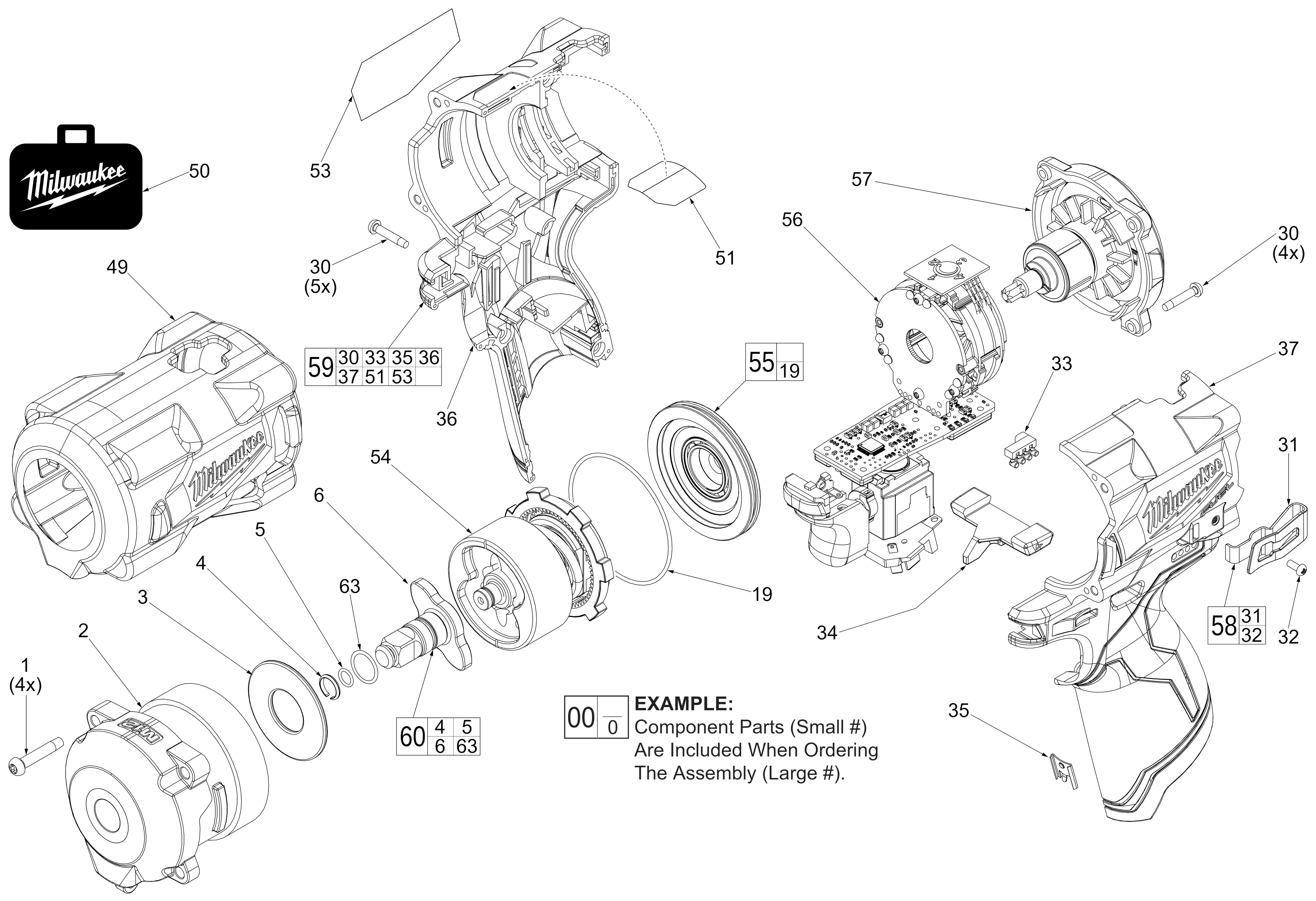

Figure	Quantity	Component	Changed	Description	Notes
1	1.00	05-88-1255		M4 X 24 T20 Screw
2	1.00	28-50-2554		Aluminum 3/8" Gear Case Cover
3	1.00	45-88-2554		Front Gear Case Washer
4	1.00	44-90-1050		3/8" Friction Ring
5	1.00	34-40-1885		3/8" O-Ring
6	1.00	---		3/8" Anvil
19	1.00	34-40-2554		O-Ring
30	1.00	06-82-6351		Self-Tapping Screw, M3 X 16mm
31	1.00	---		Belt Clip
32	1.00	05-88-1015		Phillips Machine Screw, M2.5-0.45 x 6mm
33	1.00	23-28-0320		Light Pipe
34	1.00	45-24-2554		Forward/Reverse Shuttle
35	1.00	42-70-0058		Housing Clip
36	1.00	---		Right Housing Half - Cover
37	1.00	---		Left Housing Half - Support
49	1.00	49-16-2554		Rubber Boot
50	1.00	42-55-0300		Zippered Tool Case
51	1.00	10-20-2553		Label Warning
53	1.00	12-20-2554		Service Nameplate
54	1.00	14-30-2554		Impacting Assembly W/Pkg
55	1.00	44-66-2554		End Cap Assembly W/Pkg
56	1.00	14-20-2554		Electronics Assembly W/Pkg
57	1.00	16-01-2554		Rotor/Back Cap Assembly W/Pkg
58	1.00	42-70-0495		Belt Clip Kit Assembly
59	1.00	31-44-2554		Housing Assembly W/Pkg
60	1.00	42-06-2554		3/8" Anvil Assembly With Friction Ring
63	1.00	---		O-Ring
	1.00	49-08-4220		Grease, Type J, 1Lb

Electrical
Amperage:

Battery System:

Contact Form:

Frequency:
Protection Type:

Terminal Type:

Voltage:

12VDC

Packaging & Dimensions:
Inside Diameter:

Outside Diameter:

Overall Length:

Packaging Type:

Package Length:

Package Width:

Package Height:

Sold As:

Threads
Flute Direction:

Number of Flutes:

Pitch:

Thread Size:

Thread Direction:

TPI:

Milwaukee Tool

Milwaukee Electric Tool Corporation, more commonly known as Milwaukee Tool or simply Milwaukee, is an American multi-national company that develops, manufactures and markets power tools, hand tools, tool accessories, tool storage and personal protective equipment. The company operates as an independent subsidiary of TTI Group alongside brands like AEG, Ryobi, Hoover, Dirt Devil, and Vax.

Milwaukee tools are manufactured globally in China, Germany, Mexico, the United States, and Vietnam. Their product line includes corded and cordless power tools, hand tools, pliers, hand saws, screwdrivers, utility knives, impact drivers, and much more. They also distribute various other tools such as multimeters, thermal imaging equipment, oscillating multi-tools, drilling devices, chargers. Well-known Milwaukee Tool trademarks include M12, M18, MX FUEL, and PACKOUT.
