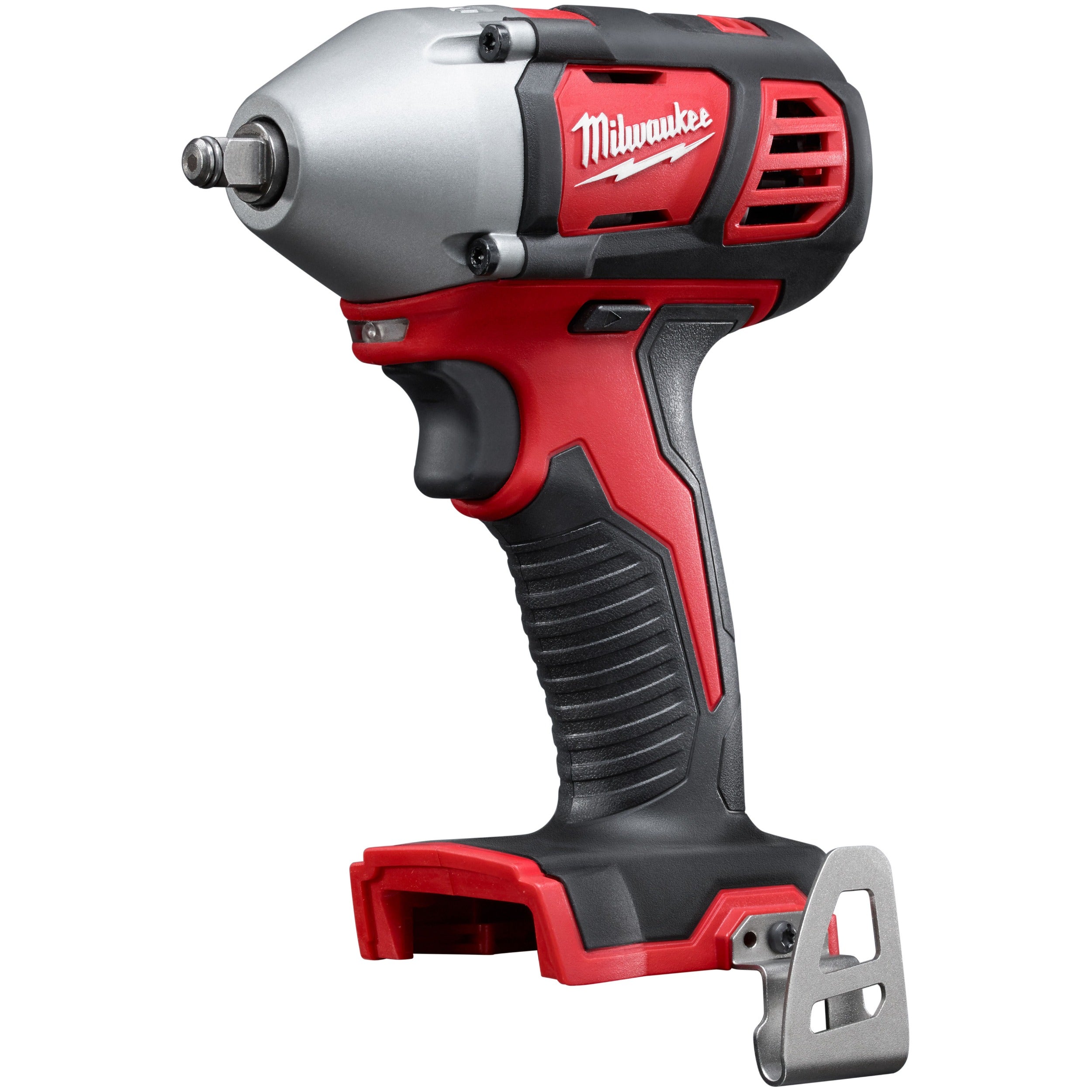

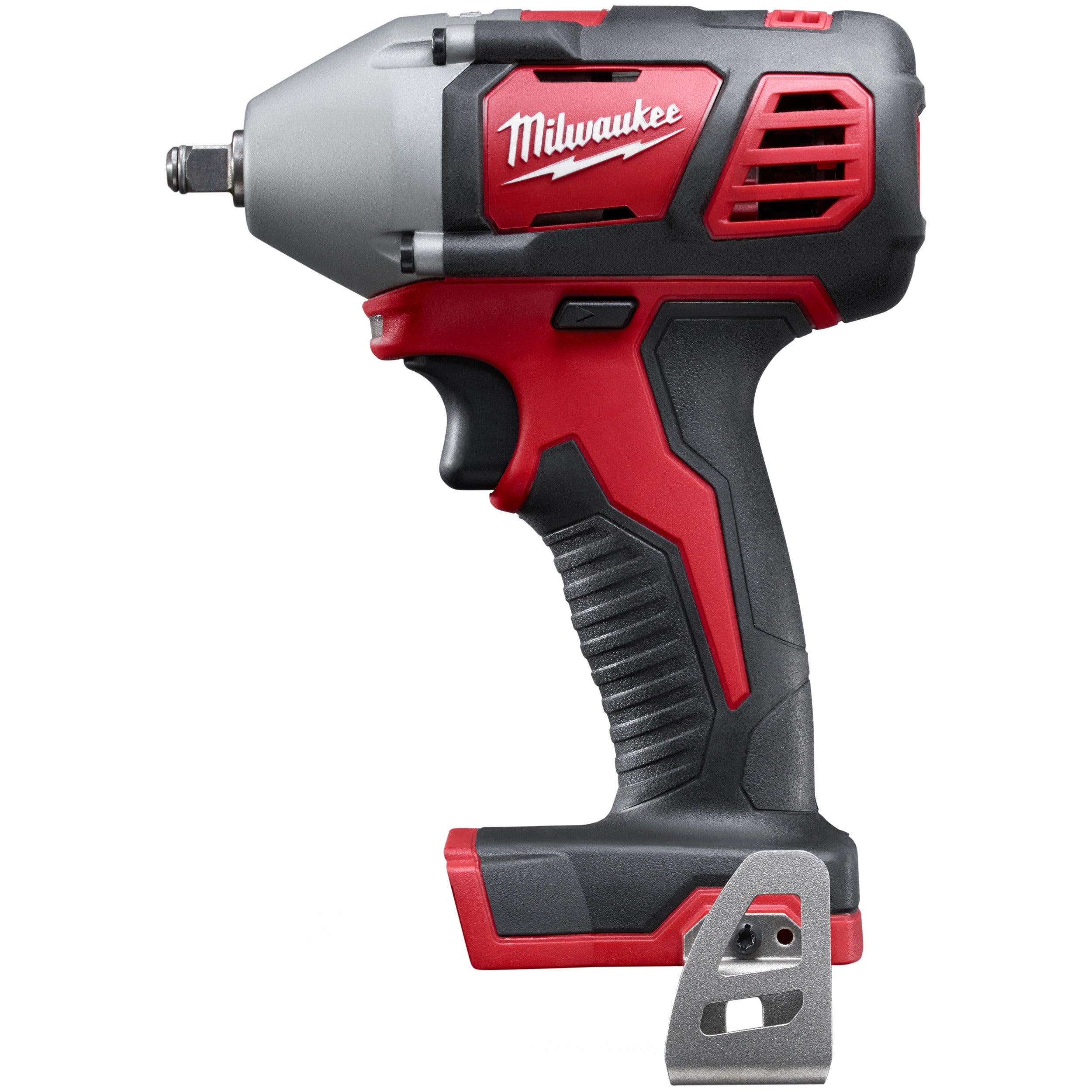

Milwaukee Tool 2658-20 M18 3/8" Square Impact Wrench with Friction Ring

Name: Milwaukee Tool 2658-20 M18 3/8" Square Impact Wrench with Friction Ring
Brand: Milwaukee Tool
SKU: 2658-20_F49B
Price: 310.00 USD
Availability: OutOfStock

(0)

Please note: While we strive for accuracy in our descriptions and images, the actual color and appearance of the items may vary slightly from the photographs due to lighting conditions or varying computer monitor settings.

Milwaukee Tool SKU: 2658-20_F49B UPC: 045242313525

$310.00 USD

Out of stock

Out of Stock

This item is not for sale; this page is for part number reference only.

Catalog Number: 2658-20

For Serial Numbers starting with F49A and F49B

Revision: July 2016

Data Sources:
Milwaukee 2658-20 Service Parts List, Serial F49A, November 2014 (PDF, 451KB)
Milwaukee 2658-20 Service Parts List, Serial F49B, July 2016 (PDF, 709KB)
Milwaukee 2656-20, 2657-20 2658-20 & 2659-20 Operator's Manual (PDF, 3.90MB)

Product Information

Product Description Product Metafields About the Manufacturer Shipping & Handling Product Metafields (Unsorted)

Figure	Quantity	Component	Changed	Description	Notes
1	1.00	31-44-1040		Housing Set
2	1.00	---		Left Handle Housing Half
3	1.00	---		Right Handle Housing Half
4	4.00	05-88-0400		M4 X 20mm Pan Head T20 Screw
8	1.00	45-88-1317		Washer
9	1.00	44-90-1050		3/8" Friction Ring
10	1.00	34-40-1885		3/8" O-Ring
11	1.00	---		3/8" Square Anvil with Needle Bearing
13	1.00	02-02-1300		5mm Ball Bearing
19	2.00	02-02-0180		3/16" Steel Ball Bearing
28	1.00	18-01-3010		XP50S 25mm Field - Service
33	1.00	22-22-2657		Carbon Brush Card Assembly
34	8.00	45-30-0250		Rubber Slug
35	1.00	45-24-2657		Fwd/Rev Shuttle/2657-9
37	1.00	40-50-1090		Terminal Block Compression Spring
38	1.00	---		Belt Clip
39	1.00	06-82-0130		Belt Clip Screw
46	1.00	12-20-2622		Service Nameplate
50	9.00	06-82-6350		T10 M3 Handle Screw
51	1.00	28-50-0060		Front Housing Assembly
52	1.00	42-06-0075		Anvil Assembly
55	1.00	14-30-0115		Hammer Cam Shaft Kit
56	1.00	16-01-3010		Motor Armature Assembly
57	1.00	23-66-2659		Switch Electronics Assembly
58	2.00	05-88-0926		M3 X 5 Torx Phillips Head Cap Screw
59	2.00	45-88-1980		Spring Washer
60	1.00	42-70-2653		Belt Clip Assembly
71	1.00	---		Leadwire Assembly - Black - Right Side
72	1.00	---		Leadwire Assembly - Black - Left Side
73	1.00	---		Brush Spring - Right
74	1.00	---		Brush Spring - Left
75	1.00	42-55-2762		BMC Carrying Case
76	1.00	14-46-2394		Leadwire/Screw/Washer Kit
77	1.00	10-20-1126		Warning Label (Not Shown)
	1.00	49-08-4220		Grease, Type J, 1Lb

Electrical
Amperage:

Battery System:

Contact Form:

Frequency:
Protection Type:

Terminal Type:

Voltage:

Packaging & Dimensions:
Inside Diameter:

Outside Diameter:

Overall Length:

5.75 in (5-3/4 in)

Packaging Type:

Package Length:

Package Width:

Package Height:

Sold As:Each

Threads
Flute Direction:

Number of Flutes:

Pitch:

Thread Size:

Thread Direction:

TPI:

Milwaukee Tool

Milwaukee Electric Tool Corporation, more commonly known as Milwaukee Tool or simply Milwaukee, is an American multi-national company that develops, manufactures and markets power tools, hand tools, tool accessories, tool storage and personal protective equipment. The company operates as an independent subsidiary of TTI Group alongside brands like AEG, Ryobi, Hoover, Dirt Devil, and Vax.

Milwaukee tools are manufactured globally in China, Germany, Mexico, the United States, and Vietnam. Their product line includes corded and cordless power tools, hand tools, pliers, hand saws, screwdrivers, utility knives, impact drivers, and much more. They also distribute various other tools such as multimeters, thermal imaging equipment, oscillating multi-tools, drilling devices, chargers. Well-known Milwaukee Tool trademarks include M12, M18, MX FUEL, and PACKOUT.

Handling:

Most orders are shipped within 2 business days.

Carriers & Shipping Services:

USPS:
- Typical pickup time is around 1PM EST.
- USPS Ground Advantage: (Continental USA) Typically 2-5 business days. Up to 70lbs. $100 Insurance & Tracking included. More info at USPS.
- USPS Priority Mail: (Continental USA) Typically 1-3 business days. Up to 70lbs. $100 Insurance & Tracking included. More info at USPS.
- USPS Priority Mail International (Canada Only): Typically 6-10 business days. Up to 70lbs. $200 Insurance and Tracking included. More info at USPS.
- USPS First-Class Package International (Canada Only): Up to 4lbs. No Insurance. Tracking in USA. Delivery Confirmation. More info at USPS.

UPS
- Typical pickup time is around 3-5PM EST.
- UPS Ground: (Continental USA) Typically 1-5 business days. Up to 150lbs. $100 Insurance & Tracking included. More info at UPS.
- UPS Worldwide Saver (Canada Only): Typically 1-3 business days. $100 Insurance & Tracking included. More info at UPS.

Local pickups are not available at this time. (We don't have a physical storefront.)

All applicable duties, provincial sales taxes (PST), harmonized sales taxes (HST), goods and services taxes (GST), tariffs, etc are to be paid & remitted by the purchaser. These taxes are not calculated, prepaid or otherwise included in the sale of any goods or services purchased on this website.

Shipping Holidays:

Estimated Delivery Maps:

USPS Ground Advantage

USPS Priority Mail

UPS Ground

Unsorted:
Warranty:

5 Year Limited

Location:
Condition:New
Capacitance:

Branding:

Bolt Clearance:

Finish:

Application:

Theme:

Gauge:

BPM:
Abrasive:

Material:

Thread Direction:

Input Drive:

Drive Type:

Shape:

Mounting Type:

Point Type:

System of Measurement:

Point Angle:

Shank:

Output Drive:

3/8" Square

Operating Temperature Minimum °C:

Operating Temperature Maximum °C:

Operating Temperature Minimum °F:

Operating Temperature Maximum °F:

Outlet:

Nut Depth:

Socket Shape:

Standard:

Inlet:

Head Type:

Speed:

0 to 2,450

Pressure:

Grit:

Cross Section:

Torque:

167 ft-lbs
