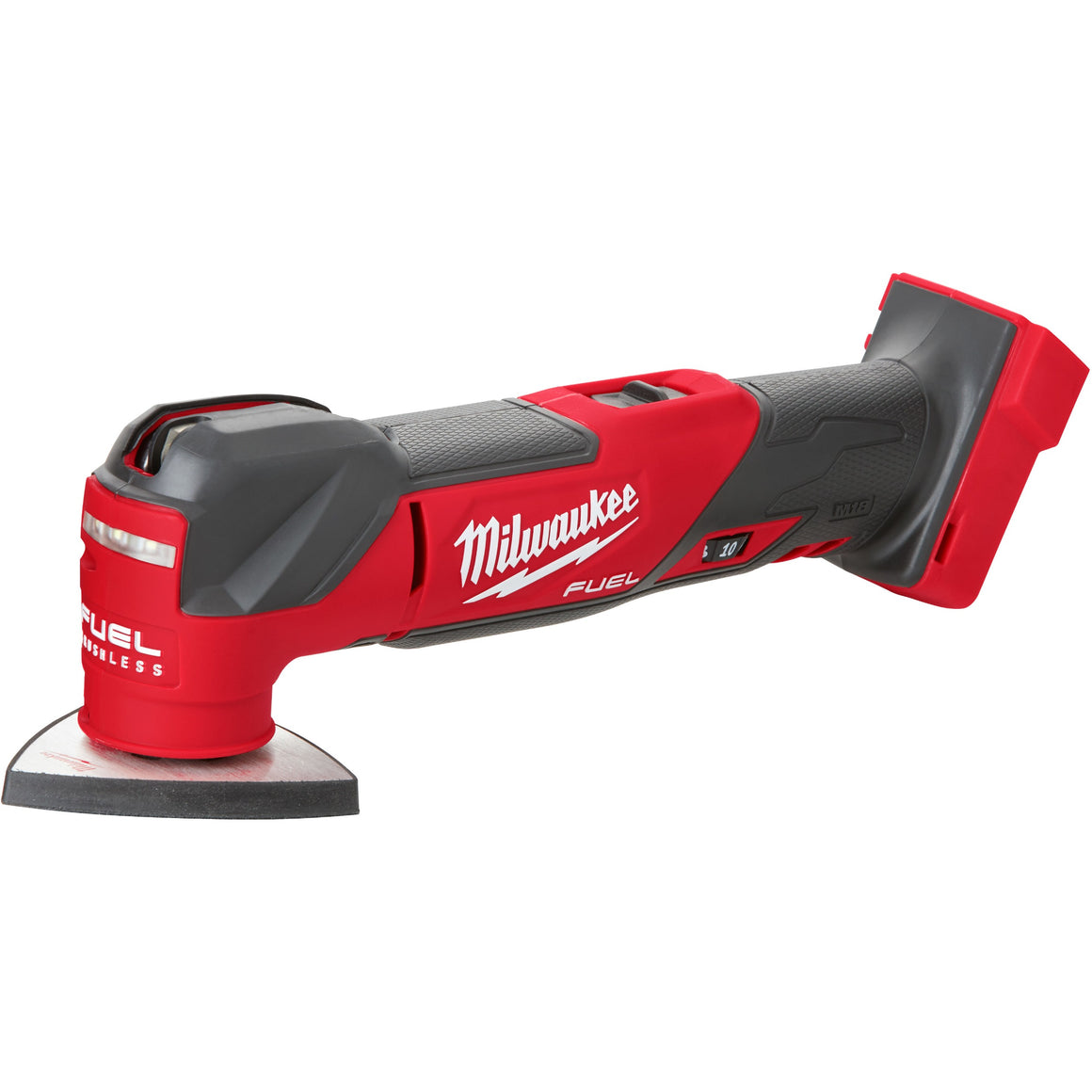

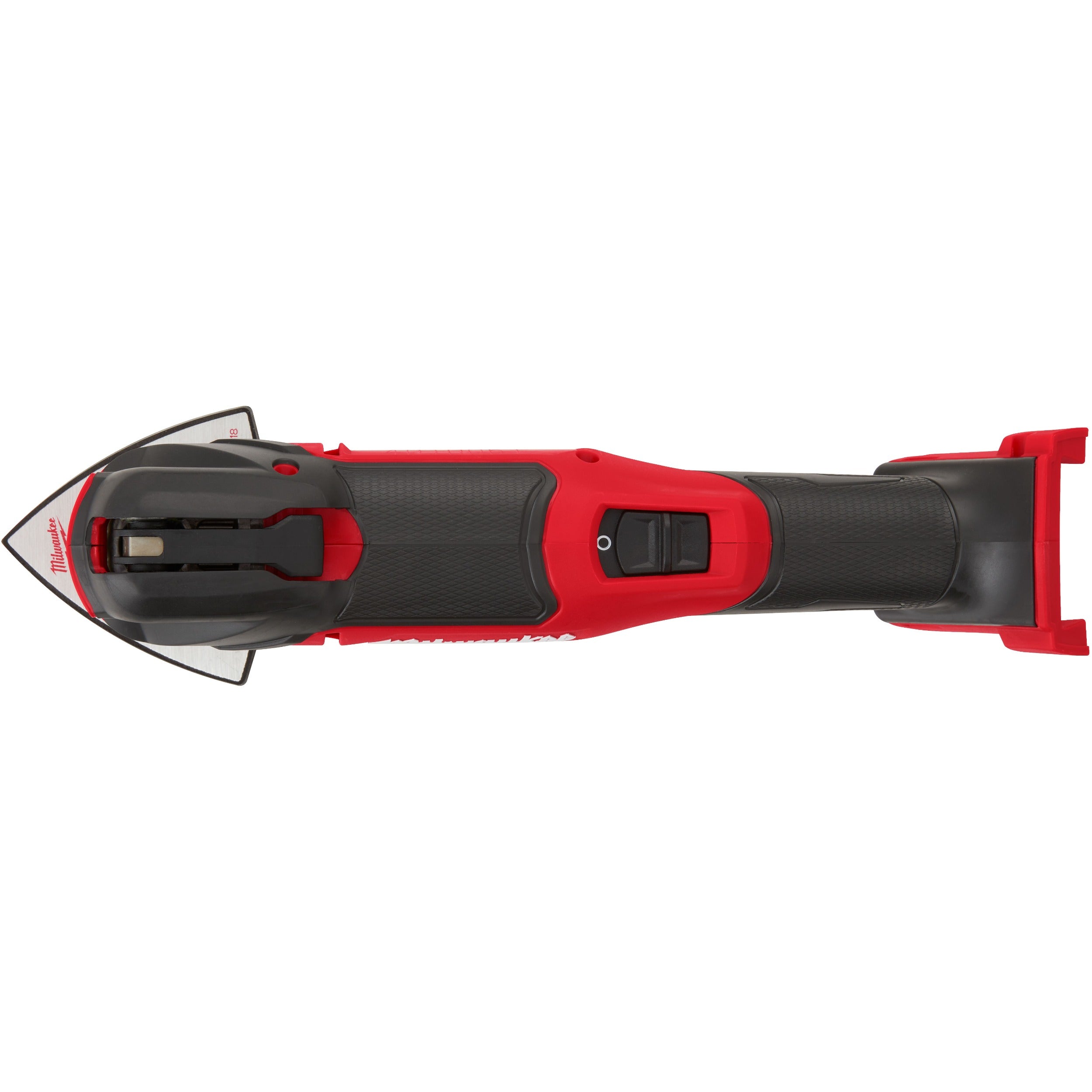

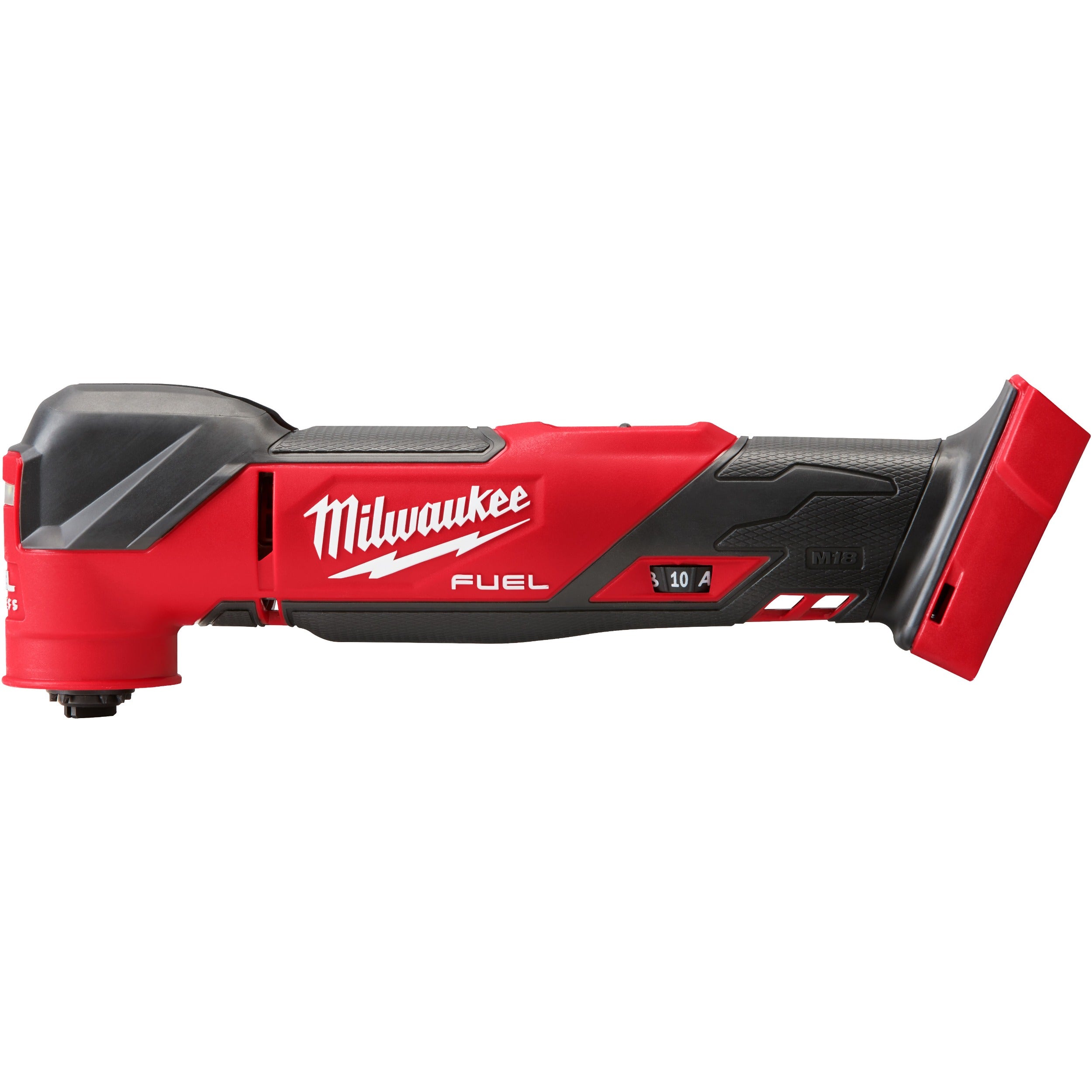

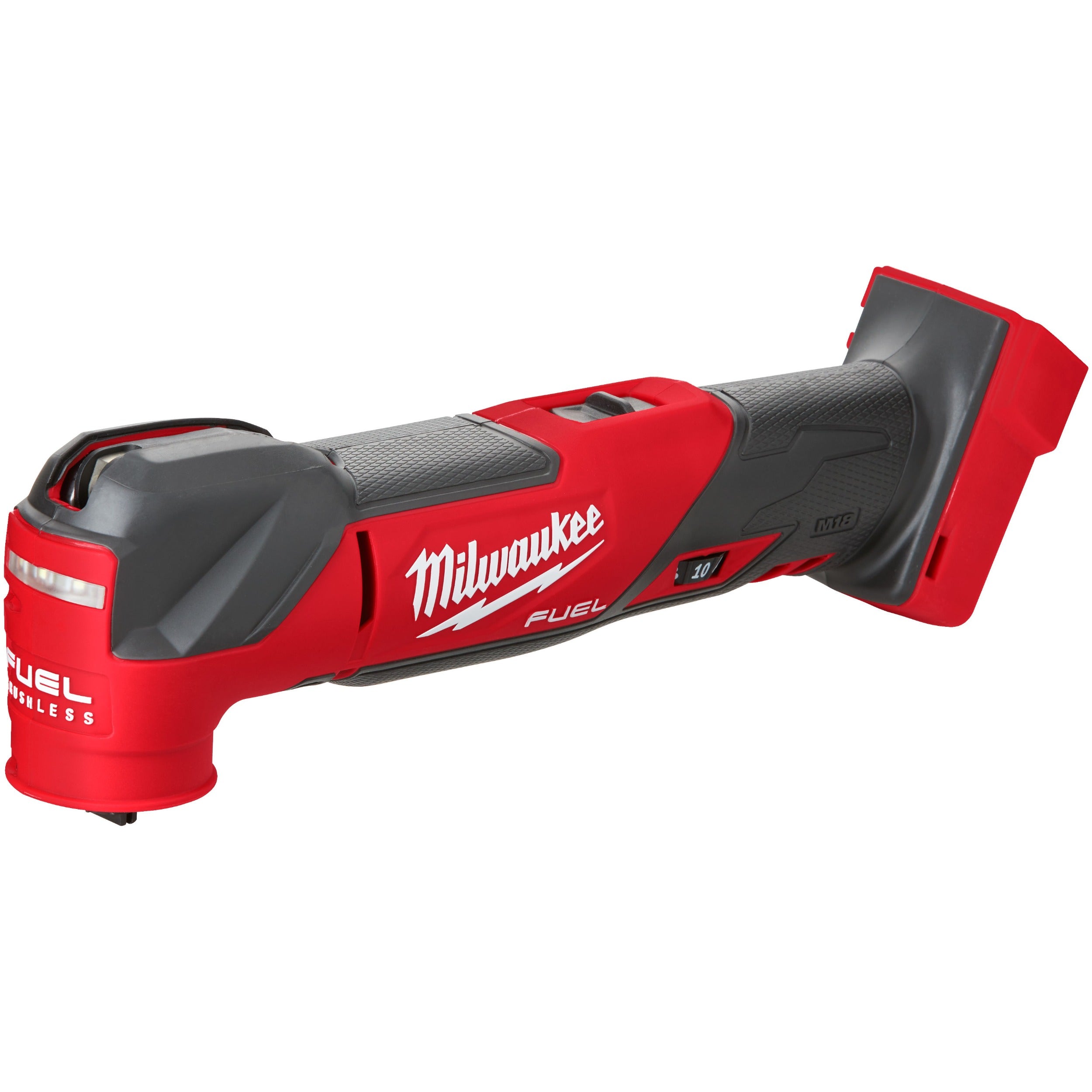

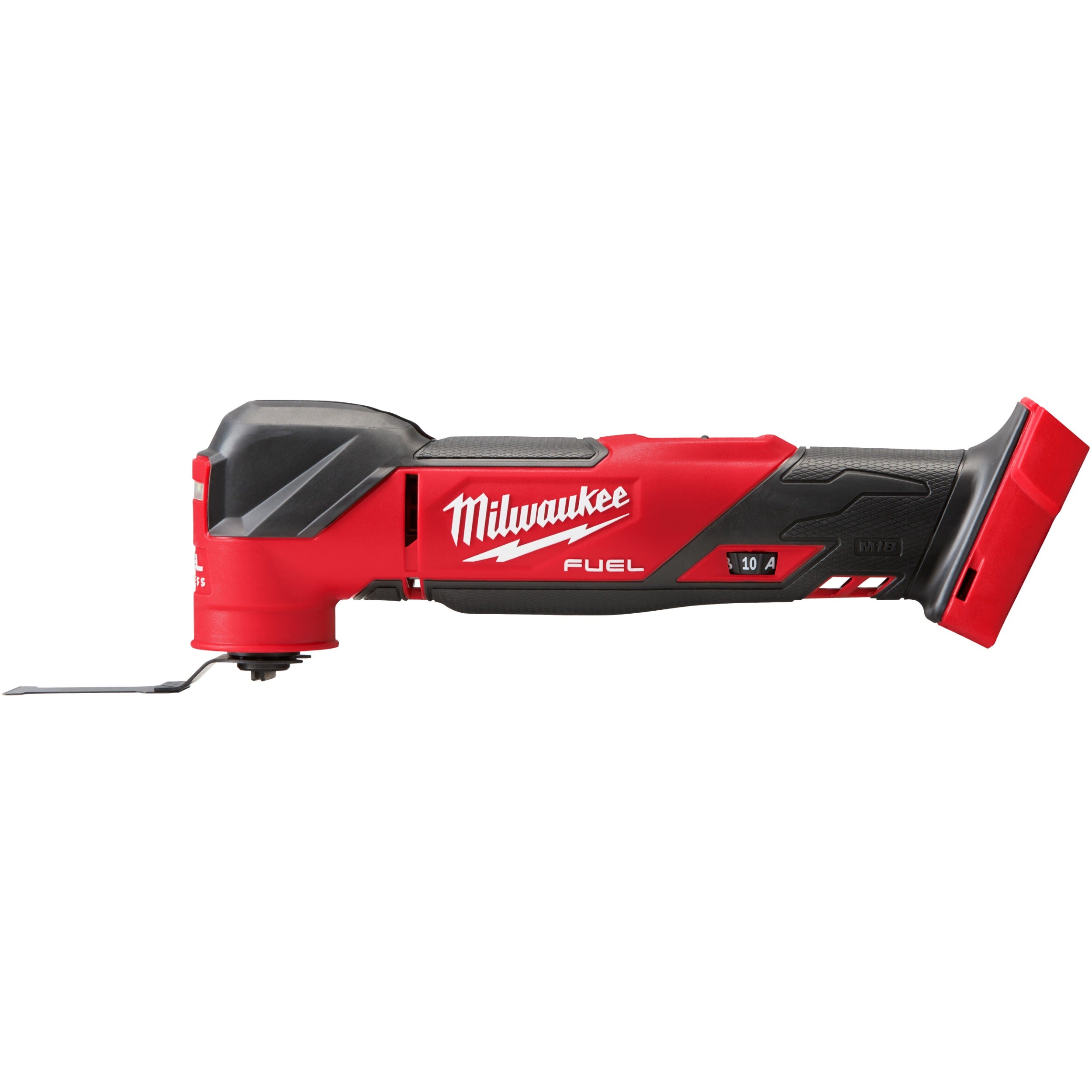

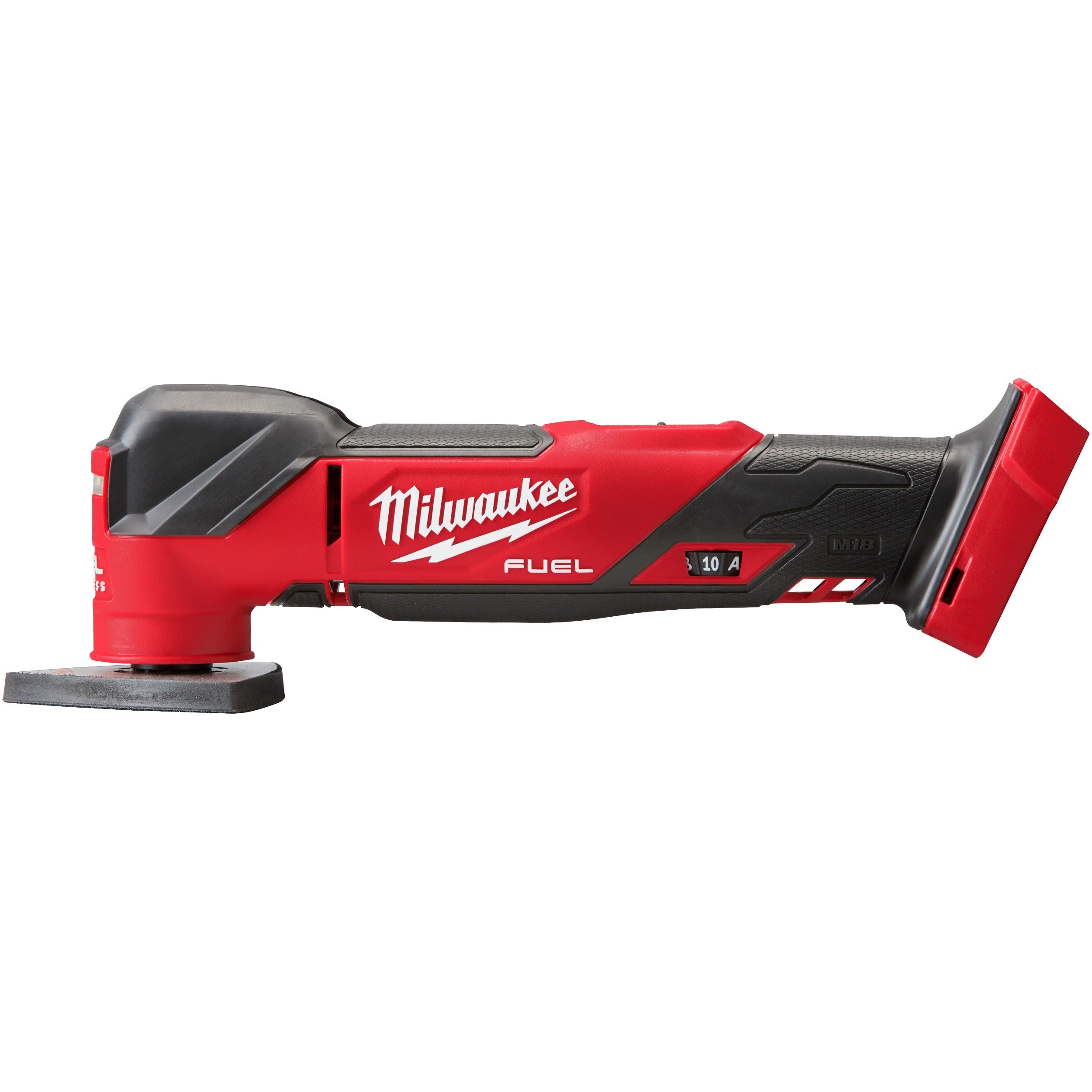

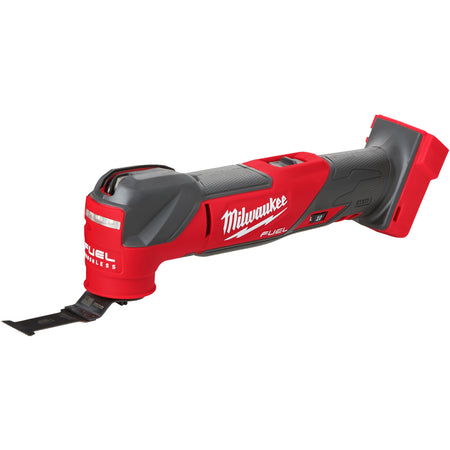

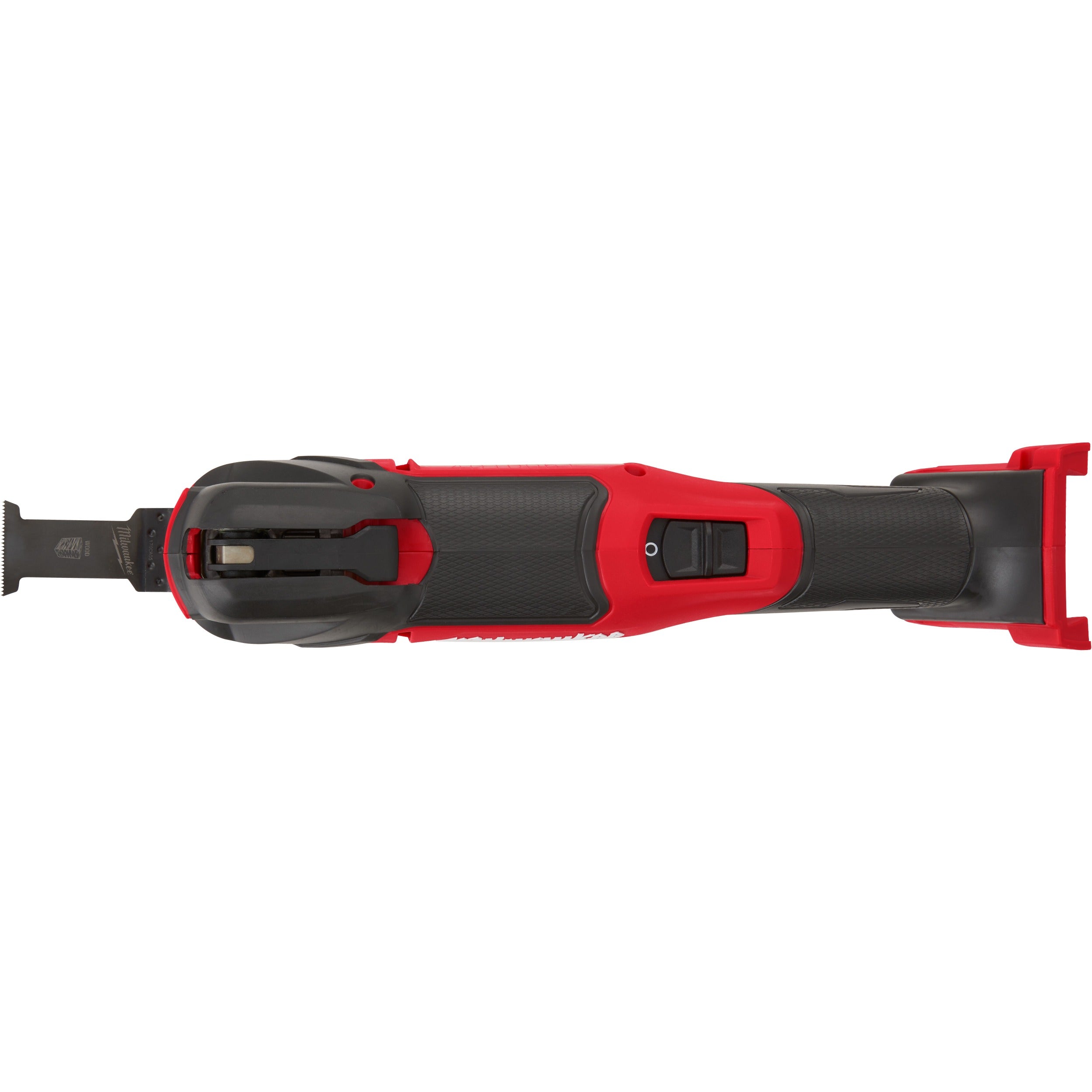

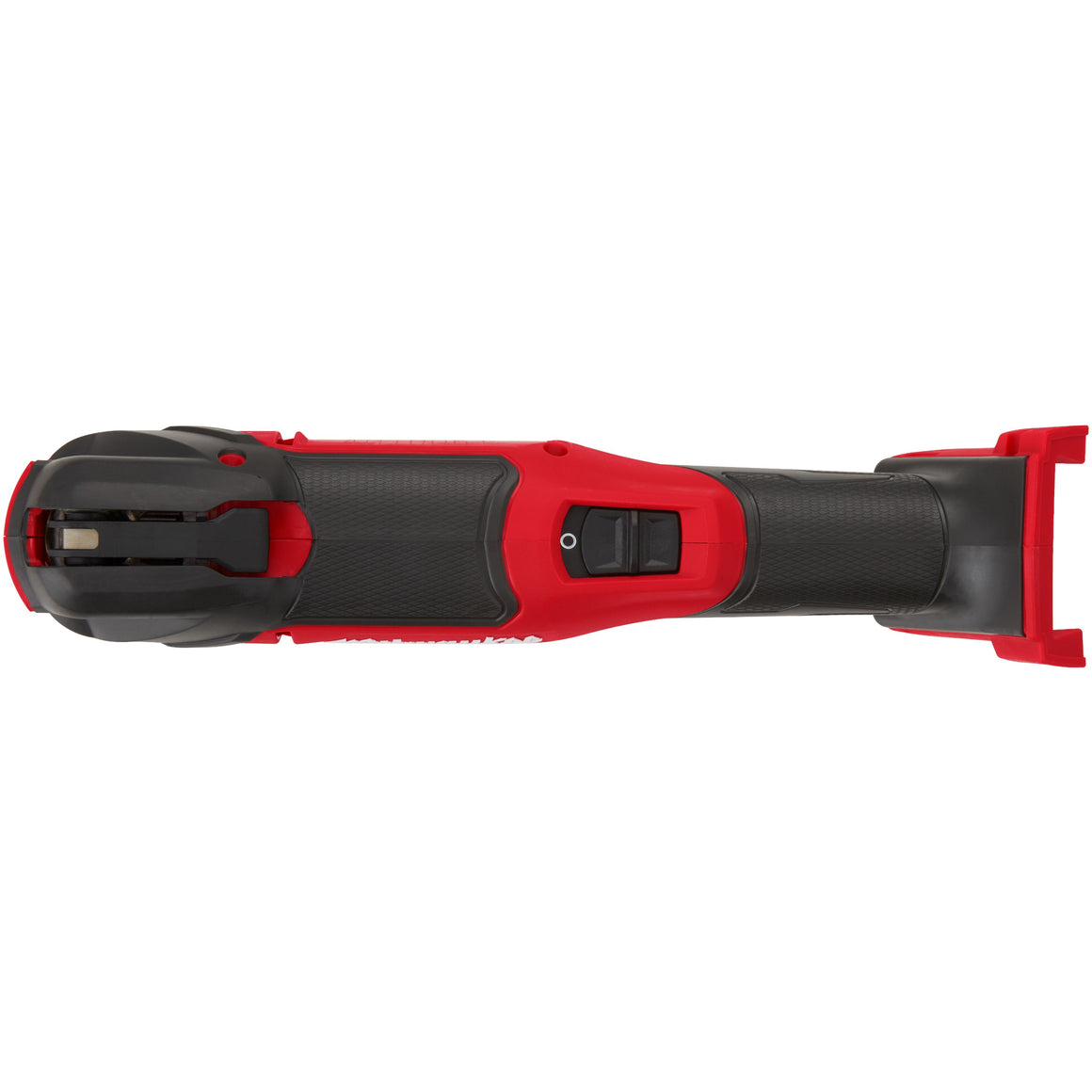

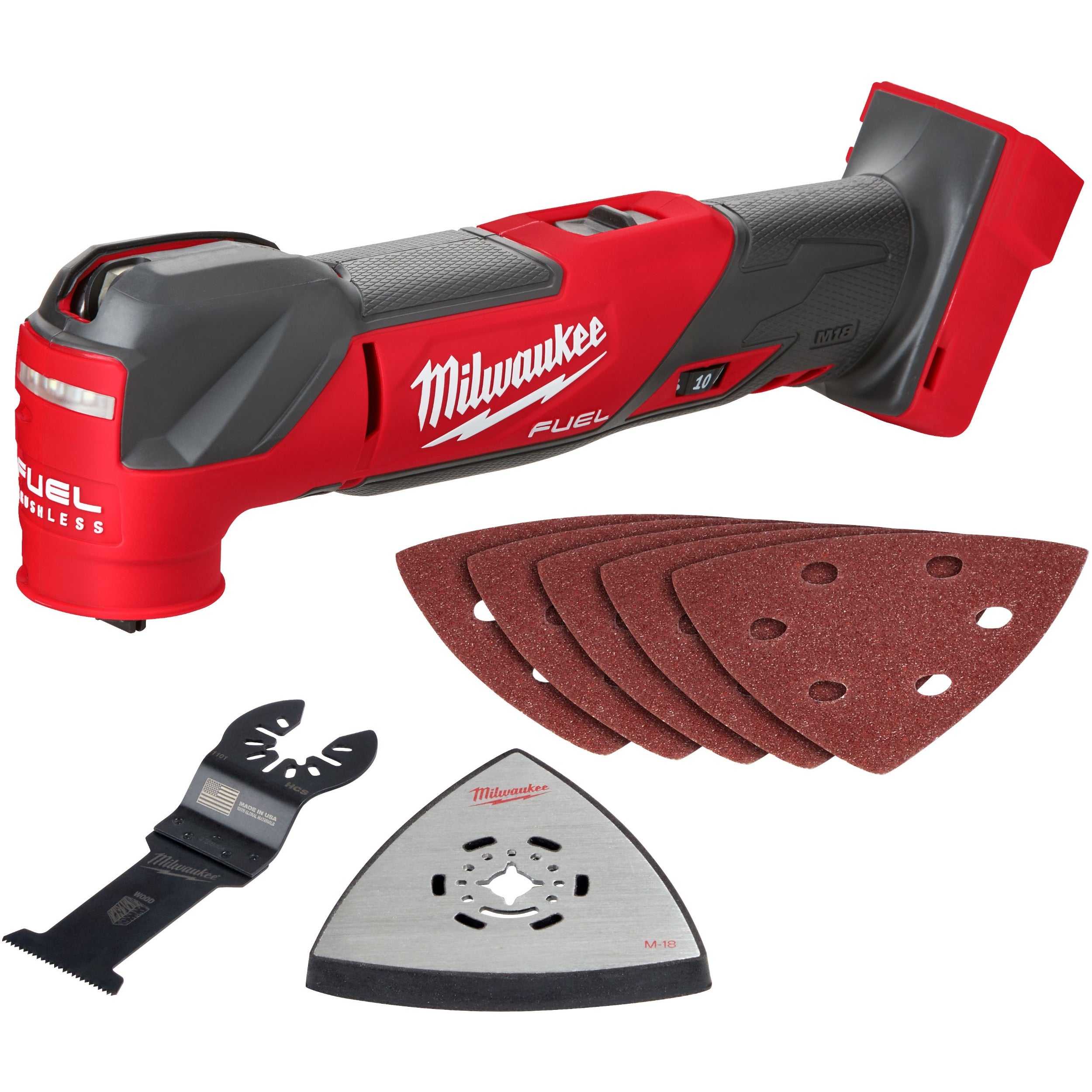

Milwaukee Tool 2836-20 M18 FUEL Multi-Tool

Name: Milwaukee Tool 2836-20 M18 FUEL Multi-Tool
Brand: Milwaukee Tool
SKU: 2836-20_L53A
Price: 413.18 USD
Availability: OutOfStock

(0)

Please note: While we strive for accuracy in our descriptions and images, the actual color and appearance of the items may vary slightly from the photographs due to lighting conditions or varying computer monitor settings.

New

Milwaukee Tool SKU: 2836-20_L53A UPC: 045242561643

$413.18 USD

Out of stock

Out of Stock

This item is not for sale; this page is for part number reference only.

Catalog Number: 2836-20

For Serial Numbers starting with L53A

Revision: August 2020

Data Sources:
Milwaukee 2836-20 Service Parts List, Serial L53A, August 2020 (PDF, 1.49MB)
Milwaukee 2836-20 Operator's Manual (PDF, 2.39MB)

Product Information

Product Description Product Metafields About the Manufacturer Shipping & Handling Product Metafields (Unsorted)

Figure	Quantity	Component	Changed	Description	Notes
2	1.00	05-88-1015		Phillips Machine Screw, M2.5-0.45 x 6mm
3	1.00	45-88-0232		19mm Flat Washer
4	1.00	---		M4 x 35mm Cap Head Hex Recess Machine Screw
5	1.00	---		Motor End Plate
6	1.00	02-04-0223		Ball Bearing, 626-2Rs
7	1.00	42-24-0212		Bushing
21	1.00	---		Left Housing Half with Cushions
27	1.00	42-70-0510		Clip
28	1.00	05-78-0105		Screw Self Tapping M4 X 10mm T20
29	4.00	05-78-1010		M3.5 X 12mm Pan Head T-10 Machine Screw
36	1.00	45-22-0026		Rubber Sleeve
46	1.00	34-40-0431		O-Ring
47	1.00	06-75-1015		Blade Fastener Bolt
48	4.00	06-82-2395		Pan Head Plastite T8 Torx Screw, M2.6X10Mm
49	6.00	06-82-1080		M3 X 14mm Pan Head Self Tapping T-10 Screw
50	1.00	---		Right Housing Half with Cushions
51	1.00	45-72-0024		Slide Lever
53	1.00	34-40-0147		O-Ring
58	1.00	12-20-0446		Service Nameplate
59	1.00	31-44-0167		Housing Kit
60	1.00	14-20-0297		Electronics Kit
61	1.00	14-46-0205		Motor End Plate Kit
64	1.00	14-50-0029		Rotor/Jam Sleeve Assembly
65	1.00	14-29-0068		Gearcase Assembly
66	1.00	42-55-2866		Contractor Bag
70	1.00	48-03-2526		Blade Adapter
72	1.00	49-90-2430		Depth Stop
73	1.00	49-90-2420		Dust Extractor
	1.00	49-08-4220		Grease, Type J, 1Lb

Electrical
Amperage:

Battery System:

Contact Form:

Frequency:
Protection Type:

Terminal Type:

Voltage:

18VDC

Packaging & Dimensions:
Inside Diameter:

Outside Diameter:

Overall Length:

Packaging Type:

Package Length:

Package Width:

Package Height:

Sold As:Each

Threads
Flute Direction:

Number of Flutes:

Pitch:

Thread Size:

Thread Direction:

TPI:

Milwaukee Tool

Milwaukee Electric Tool Corporation, more commonly known as Milwaukee Tool or simply Milwaukee, is an American multi-national company that develops, manufactures and markets power tools, hand tools, tool accessories, tool storage and personal protective equipment. The company operates as an independent subsidiary of TTI Group alongside brands like AEG, Ryobi, Hoover, Dirt Devil, and Vax.

Milwaukee tools are manufactured globally in China, Germany, Mexico, the United States, and Vietnam. Their product line includes corded and cordless power tools, hand tools, pliers, hand saws, screwdrivers, utility knives, impact drivers, and much more. They also distribute various other tools such as multimeters, thermal imaging equipment, oscillating multi-tools, drilling devices, chargers. Well-known Milwaukee Tool trademarks include M12, M18, MX FUEL, and PACKOUT.
