Milwaukee Tool 2854-20 M18 FUEL 3/8" Compact Impact Wrench

Name: Milwaukee Tool 2854-20 M18 FUEL 3/8" Compact Impact Wrench
Brand: Milwaukee Tool
SKU: 2854-20_L57A
Price: 371.00 USD
Availability: OutOfStock

(0)

Please note: While we strive for accuracy in our descriptions and images, the actual color and appearance of the items may vary slightly from the photographs due to lighting conditions or varying computer monitor settings.

Milwaukee Tool SKU: 2854-20_L57A UPC: 045242568819

$371.00 USD

Out of stock

Out of Stock

This item is not for sale; this page is for part number reference only.

Catalog Number: 2854-20

For Serial Numbers starting with L57A

Revision: August 2020

Data Sources:
Milwaukee 2854-20 Service Parts List (PDF, 6.40MB)
Milwaukee 2854-20/2855-20/2855P-20 English/French/Spanish Operator's Manual (PDF, 2.54MB)

Product Information

Product Description Product Metafields About the Manufacturer Shipping & Handling Product Metafields (Unsorted)

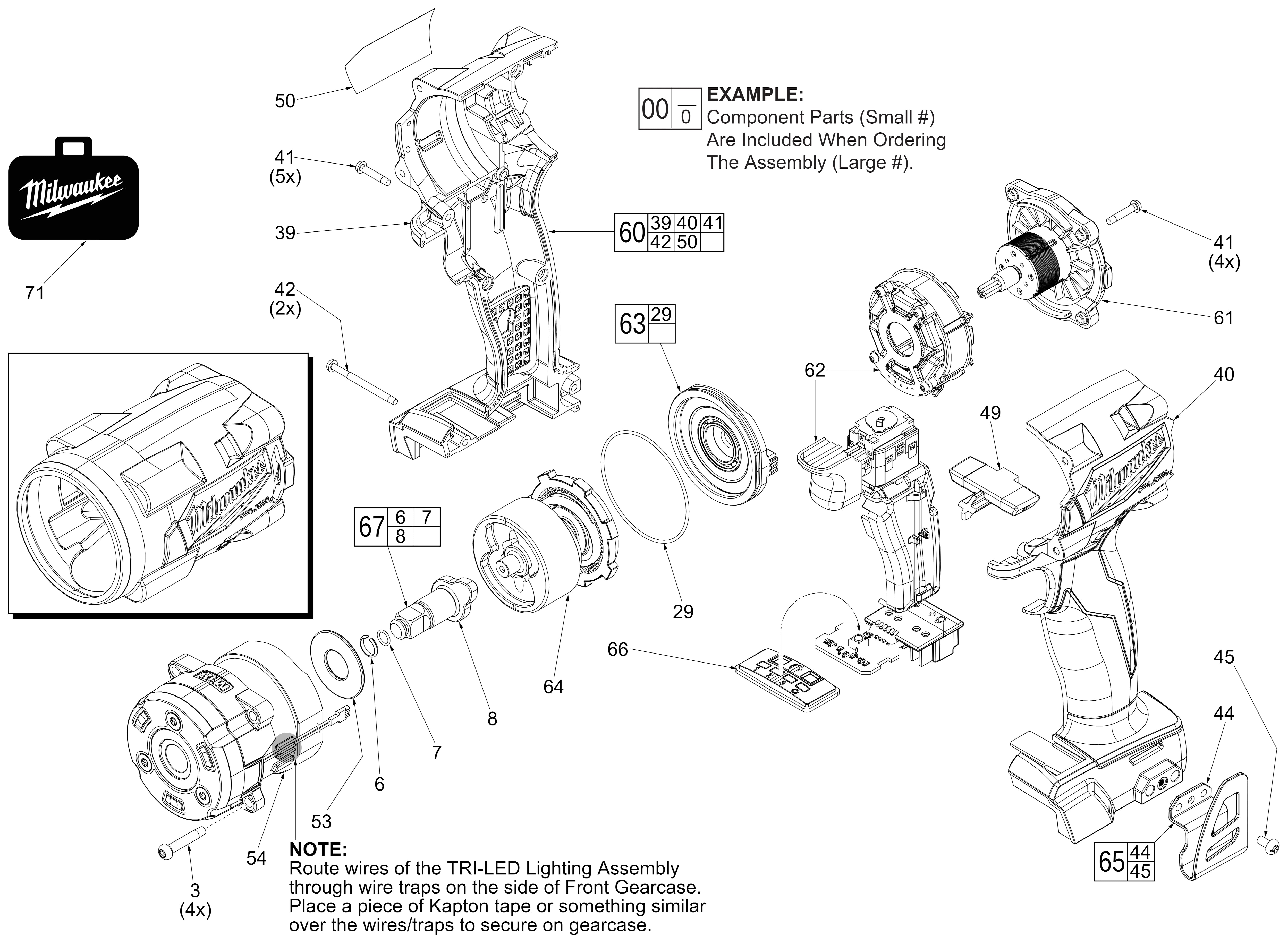

Figure	Quantity	Component	Changed	Description	Notes
3	4.00	05-88-1257		M4 X 22mm Pan Head T-20 Self-Tapping Screw
6	1.00	44-90-1050		3/8" Friction Ring
7	1.00	34-40-1885		3/8" O-Ring
8	1.00	---		3/8" Anvil
29	1.00	34-40-8005		O-Ring
39	1.00	---		Right Housing Half - Cover
40	1.00	---		Left Housing Half - Support
41	9.00	06-82-6351		St Screw M3 x 16mm
42	2.00	06-82-2367		M3 x 38mm Pan Head Self-Tapping T10 Torx Screw
44	1.00	---		Belt Hook
45	1.00	06-82-2500		#6-32 X 5/16" Slotted T-15 Torx Machine Screw
49	1.00	45-24-0031		Forward/Reverse Shuttle
50	1.00	12-20-0253		Service Nameplate
53	1.00	45-88-2554		Front Gear Case Washer
54	1.00	28-50-2854		Front Gearcase Assembly With Tri-Led Lighting
60	1.00	31-44-2854		Housing Service Kit
61	1.00	16-01-2854		Rotor/Back Cap Assembly
62	1.00	14-20-2854		Electronics Assembly
63	1.00	44-66-2854		End Cap Assembly
64	1.00	14-30-2854		Impacting Assembly
65	1.00	42-70-0950		Belt Clip Kit
66	1.00	45-24-2854		Speed Selector Assembly
67	1.00	42-06-2854		3/8" Square Anvil Assembly
70	1.00	49-16-2854		Rubber Boot
71	1.00	42-55-0067		Blow Molded Carrying Case
	1.00	49-08-4220		Grease, Type J, 1Lb

Electrical
Amperage:

Battery System:

Contact Form:

Frequency:
Protection Type:

Terminal Type:

Voltage:

18VDC

Packaging & Dimensions:
Inside Diameter:

Outside Diameter:

Overall Length:

Packaging Type:

Package Length:

Package Width:

Package Height:

Sold As:Each

Threads
Flute Direction:

Number of Flutes:

Pitch:

Thread Size:

Thread Direction:

TPI:

Milwaukee Tool

Milwaukee Electric Tool Corporation, more commonly known as Milwaukee Tool or simply Milwaukee, is an American multi-national company that develops, manufactures and markets power tools, hand tools, tool accessories, tool storage and personal protective equipment. The company operates as an independent subsidiary of TTI Group alongside brands like AEG, Ryobi, Hoover, Dirt Devil, and Vax.

Milwaukee tools are manufactured globally in China, Germany, Mexico, the United States, and Vietnam. Their product line includes corded and cordless power tools, hand tools, pliers, hand saws, screwdrivers, utility knives, impact drivers, and much more. They also distribute various other tools such as multimeters, thermal imaging equipment, oscillating multi-tools, drilling devices, chargers. Well-known Milwaukee Tool trademarks include M12, M18, MX FUEL, and PACKOUT.

Handling:

Most orders are shipped within 2 business days.

Carriers & Shipping Services:

USPS:
- Typical pickup time is around 1PM EST.
- USPS Ground Advantage: (Continental USA) Typically 2-5 business days. Up to 70lbs. $100 Insurance & Tracking included. More info at USPS.
- USPS Priority Mail: (Continental USA) Typically 1-3 business days. Up to 70lbs. $100 Insurance & Tracking included. More info at USPS.
- USPS Priority Mail International (Canada Only): Typically 6-10 business days. Up to 70lbs. $200 Insurance and Tracking included. More info at USPS.
- USPS First-Class Package International (Canada Only): Up to 4lbs. No Insurance. Tracking in USA. Delivery Confirmation. More info at USPS.

UPS
- Typical pickup time is around 3-5PM EST.
- UPS Ground: (Continental USA) Typically 1-5 business days. Up to 150lbs. $100 Insurance & Tracking included. More info at UPS.
- UPS Worldwide Saver (Canada Only): Typically 1-3 business days. $100 Insurance & Tracking included. More info at UPS.

Local pickups are not available at this time. (We don't have a physical storefront.)

All applicable duties, provincial sales taxes (PST), harmonized sales taxes (HST), goods and services taxes (GST), tariffs, etc are to be paid & remitted by the purchaser. These taxes are not calculated, prepaid or otherwise included in the sale of any goods or services purchased on this website.

Shipping Holidays:

Estimated Delivery Maps:

USPS Ground Advantage

USPS Priority Mail

UPS Ground

Unsorted:
Warranty:

5 Year Limited

Location:
Condition:New
Capacitance:

Branding:

Bolt Clearance:

Finish:

Application:

Theme:

Gauge:

BPM:
Abrasive:

Material:

Copper
Plastic
Rubber
Steel

Thread Direction:

Input Drive:

Drive Type:

Shape:

Mounting Type:

Point Type:

System of Measurement:

Point Angle:

Shank:

Output Drive:

3/8" Square

Operating Temperature Minimum °C:

Operating Temperature Maximum °C:

Operating Temperature Minimum °F:

Operating Temperature Maximum °F:

Outlet:

Nut Depth:

Socket Shape:

Standard:

Inlet:

Head Type:

Speed:

0 to 3,500

Pressure:

Grit:

Cross Section:

Torque:

250 ft/lbs

Gauge:

Brush Width:
Brush Height:
