Brand Unbranded

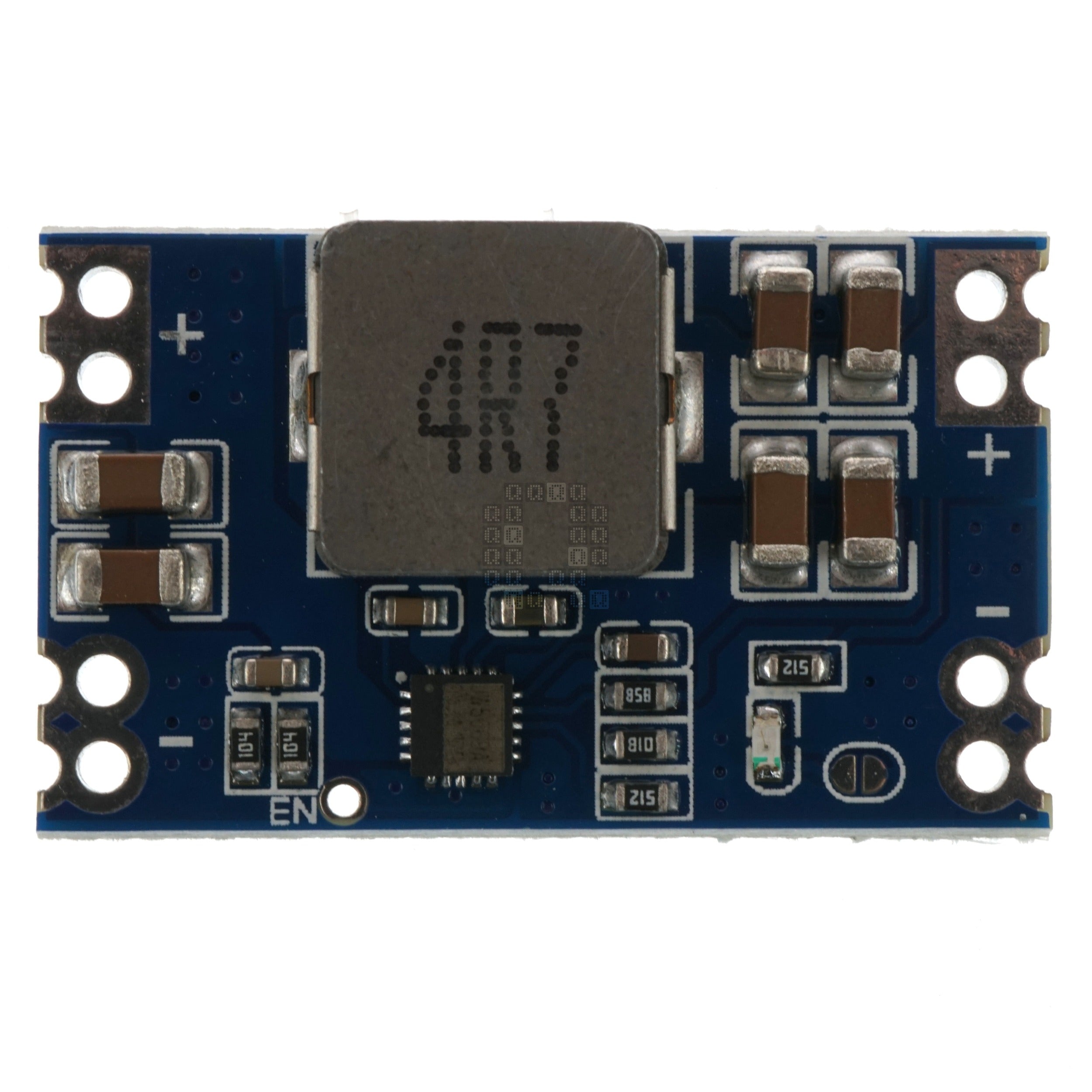

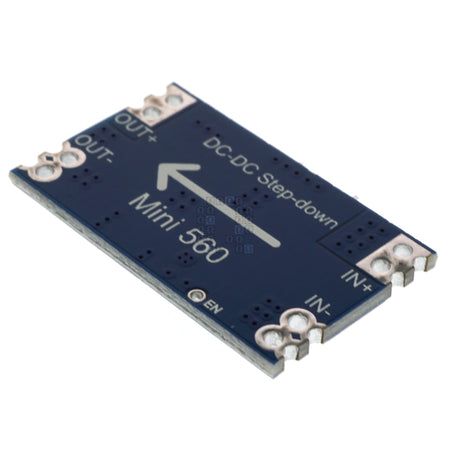

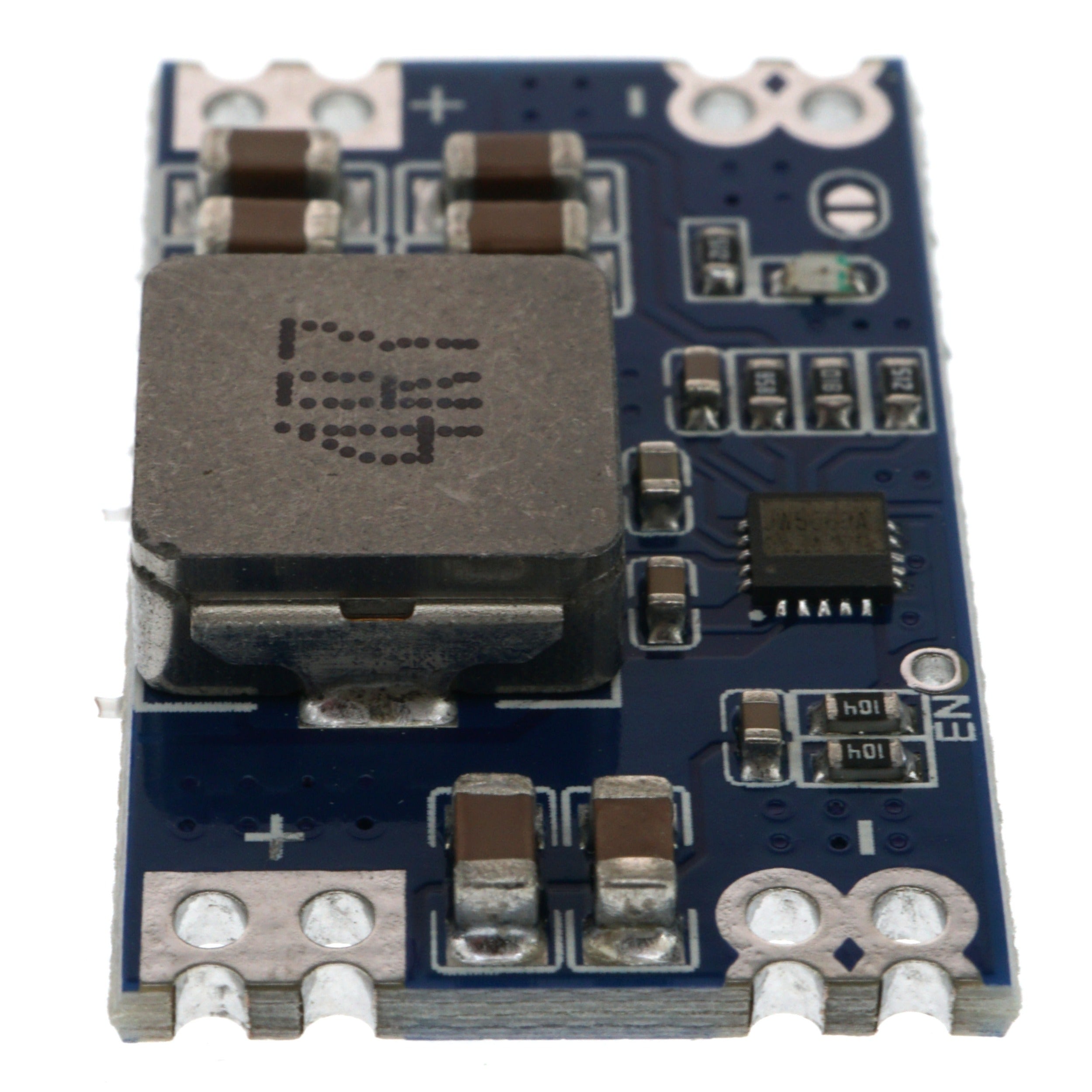

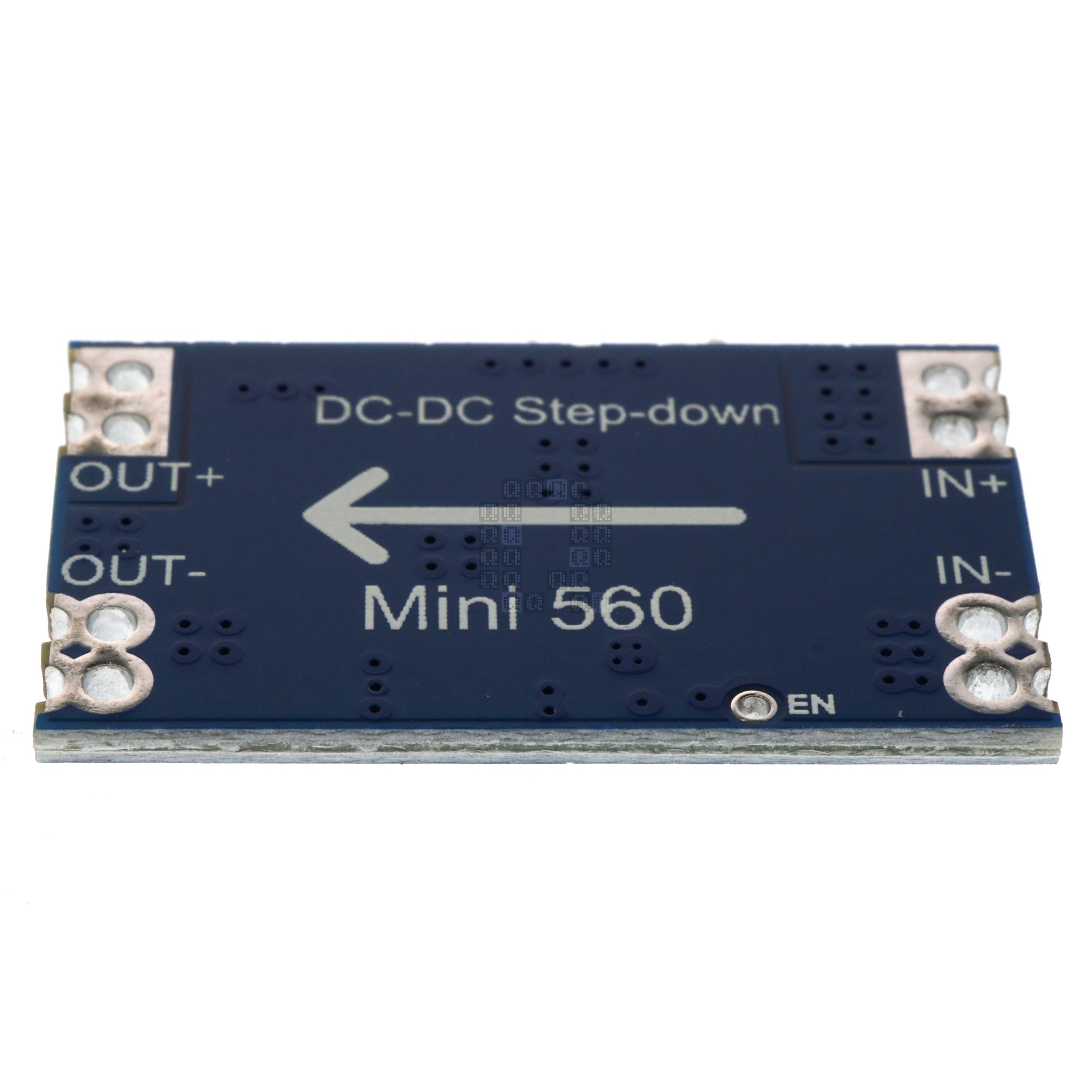

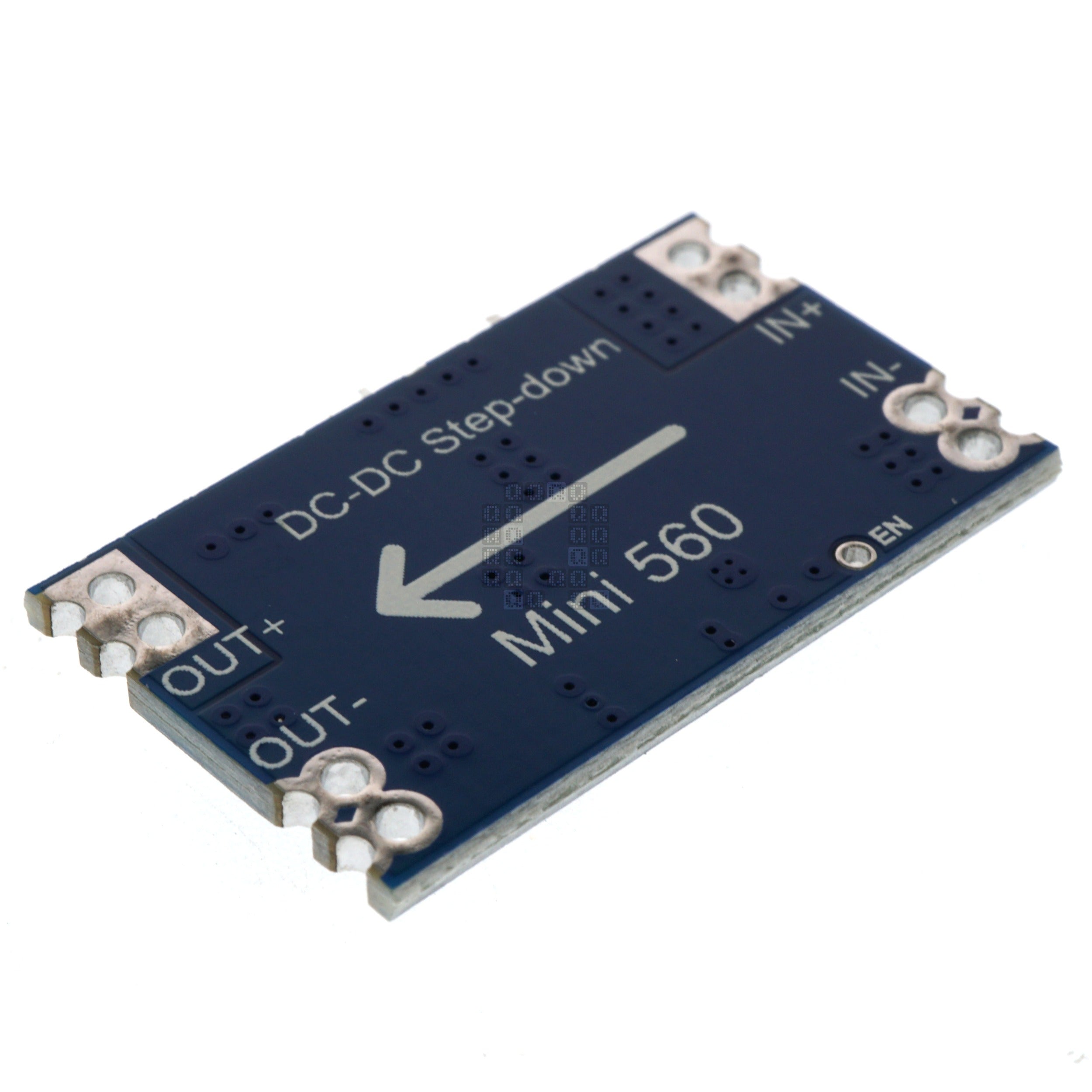

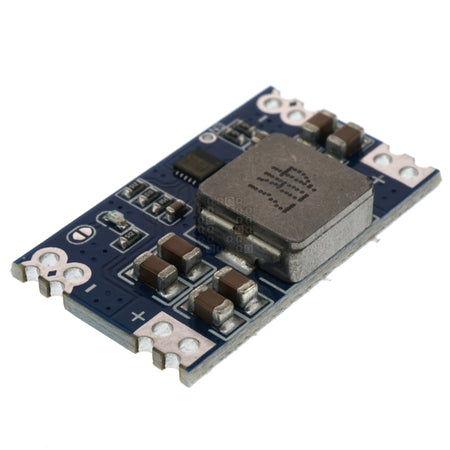

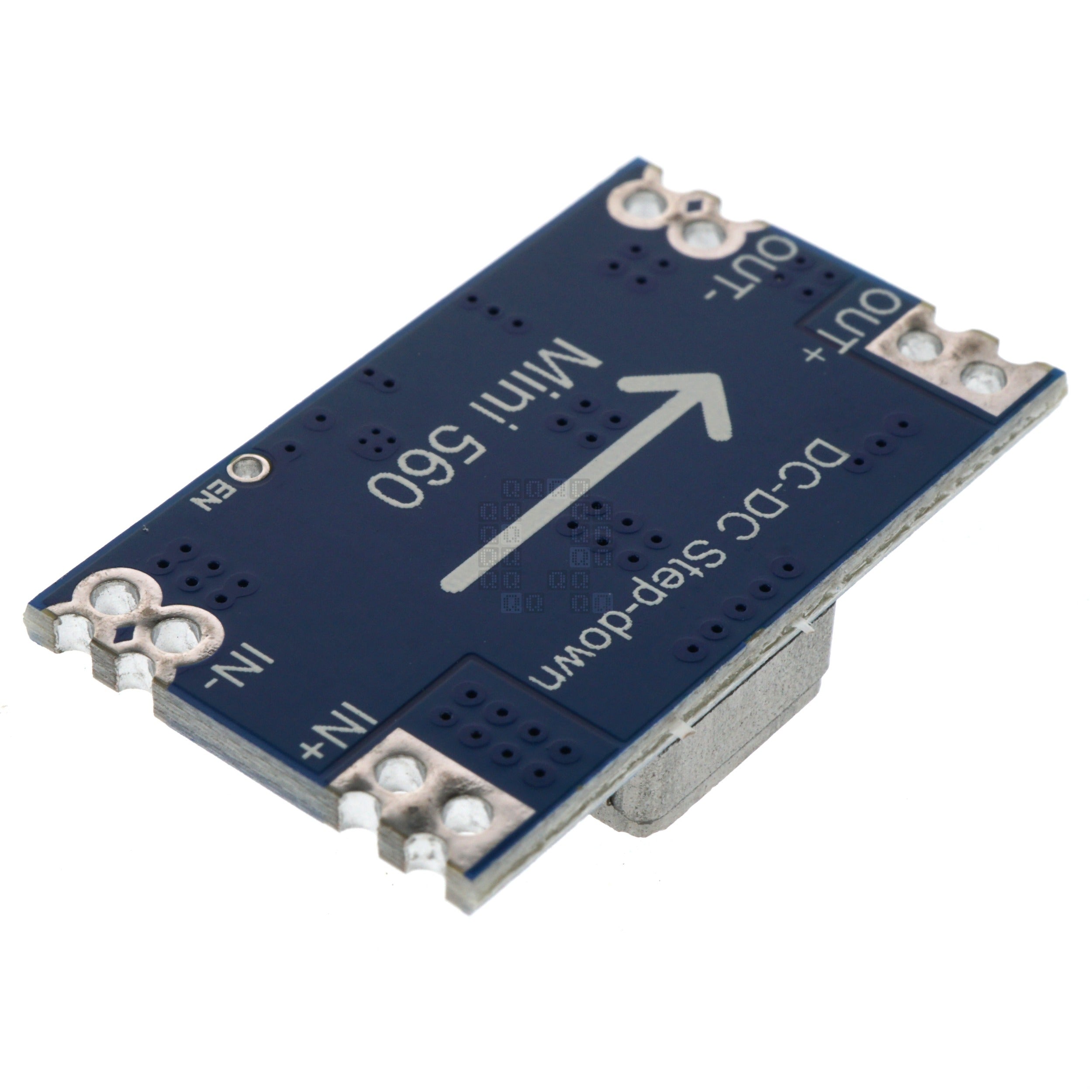

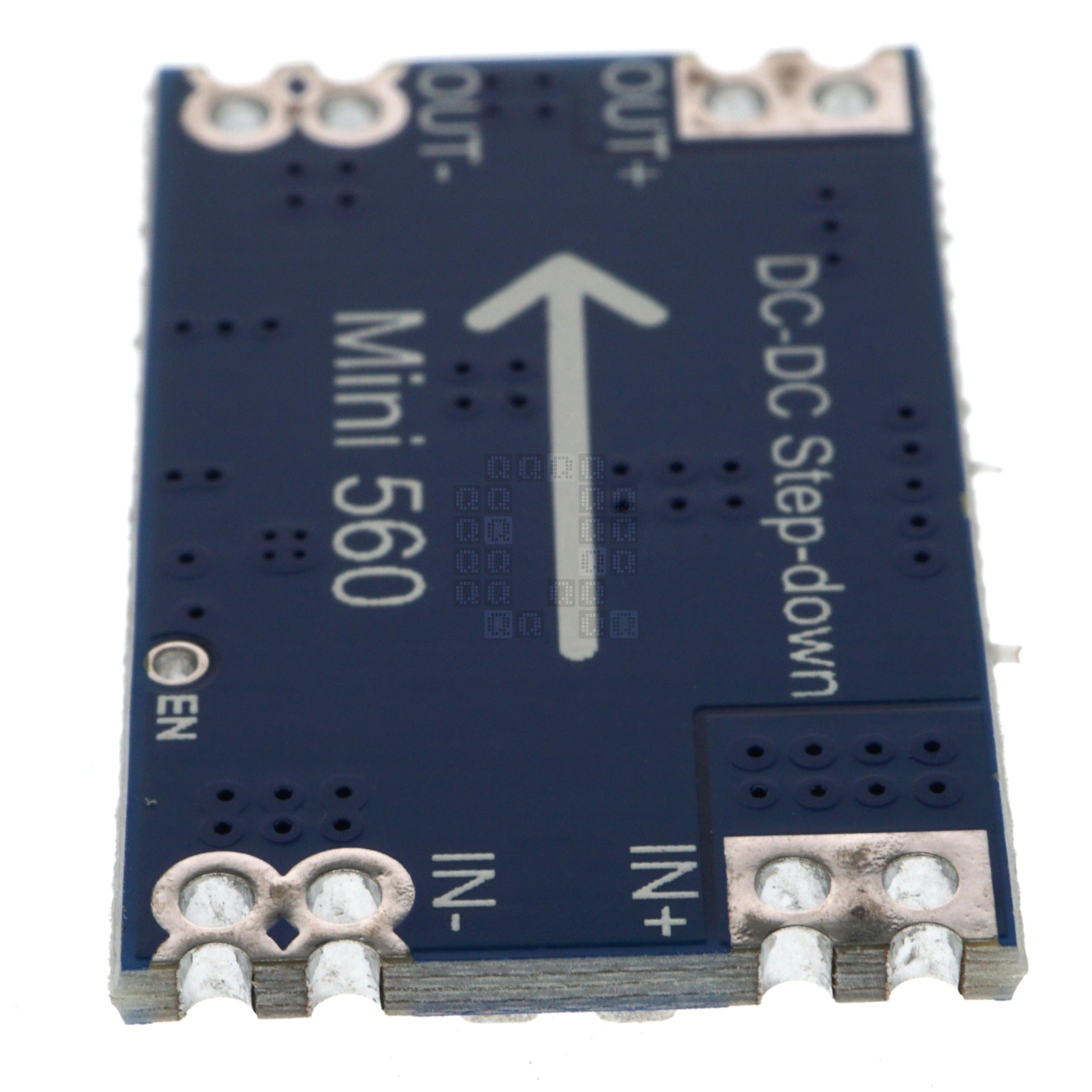

Manufacturer Part Number MINI560
Output Voltage 5VDC
Input Voltage 7VC to 20VDC
Amperage 5 Amps Max
Heat Sink Required for >4 Amps
Switching Frequency 500KHz
Efficiency Highest: 99%
98.0% @ 2 Amps (12VDC Input)
96.7% @ 4 Amps (12VDC Input)
95.6% @ 5 Amps (12VDC Input)
Operating Temperature +40°C to +85°C
Type DC-DC Step Down
Pins Five (5)
Circuit Board Dimensions 0.715" Height
1.175" Width
Mounting Through Hole
Surface Mount
Power Indicator LED
IC JW5069A
UPC N/A
Country of Origin China
Notes New.
Location 48-12
