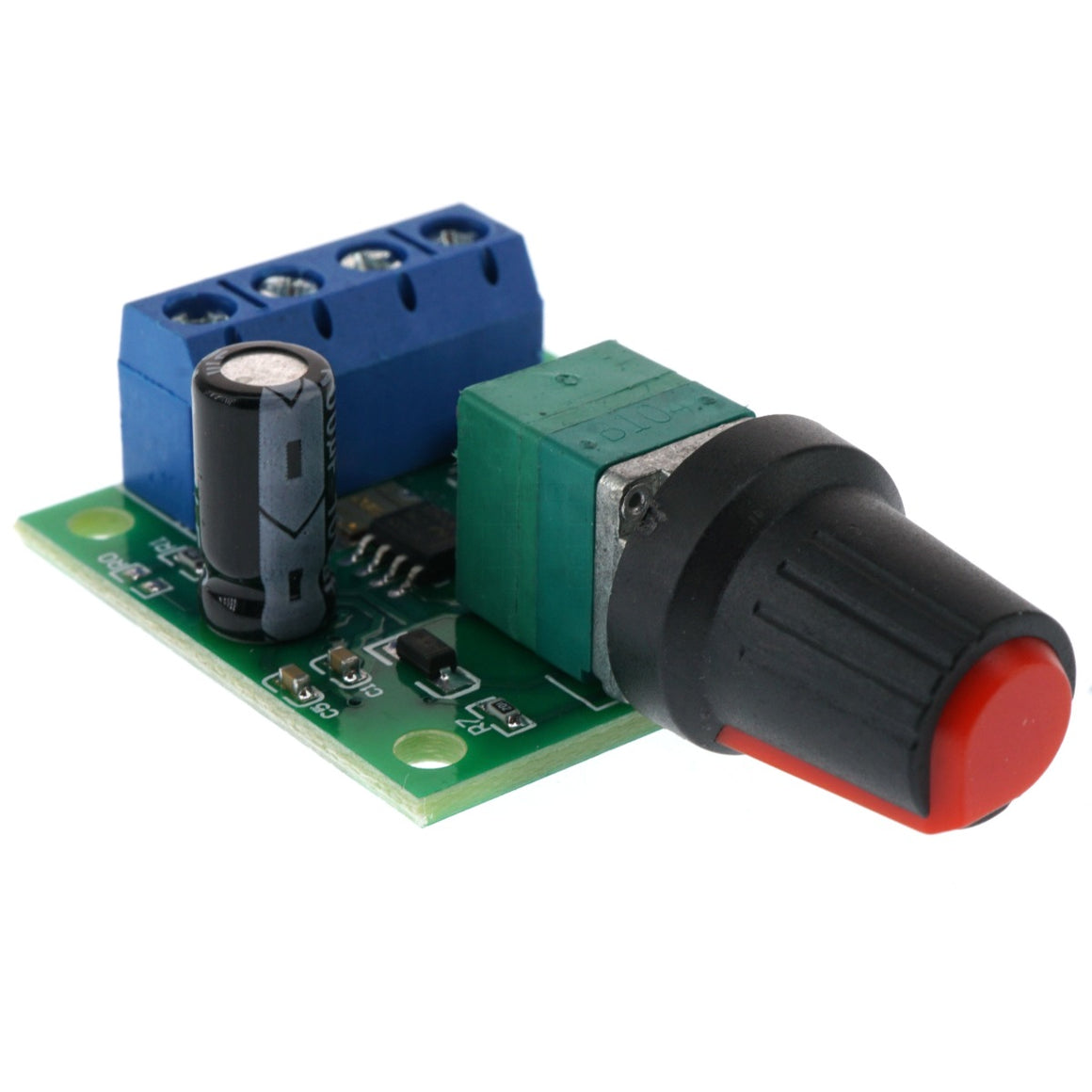

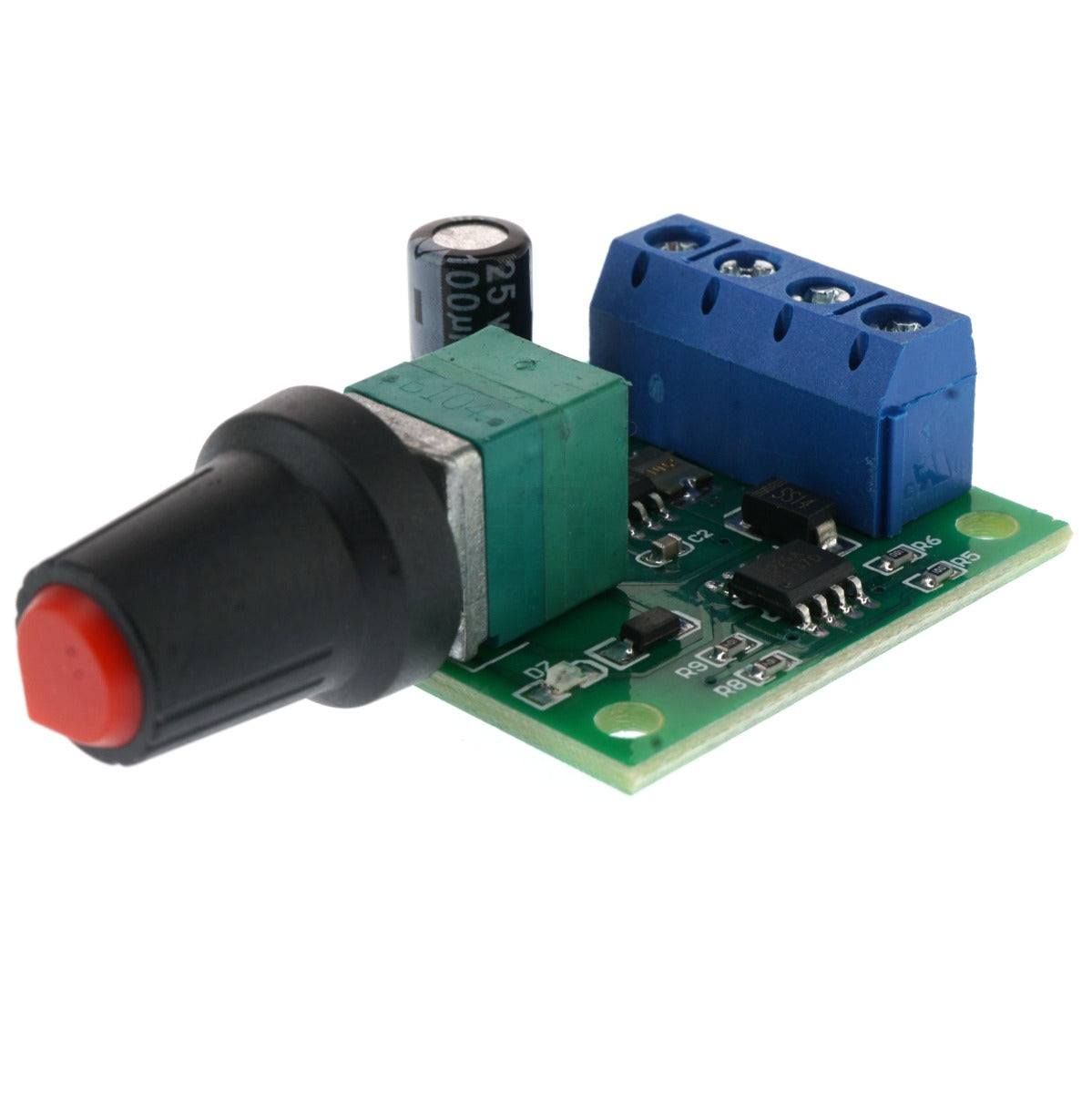

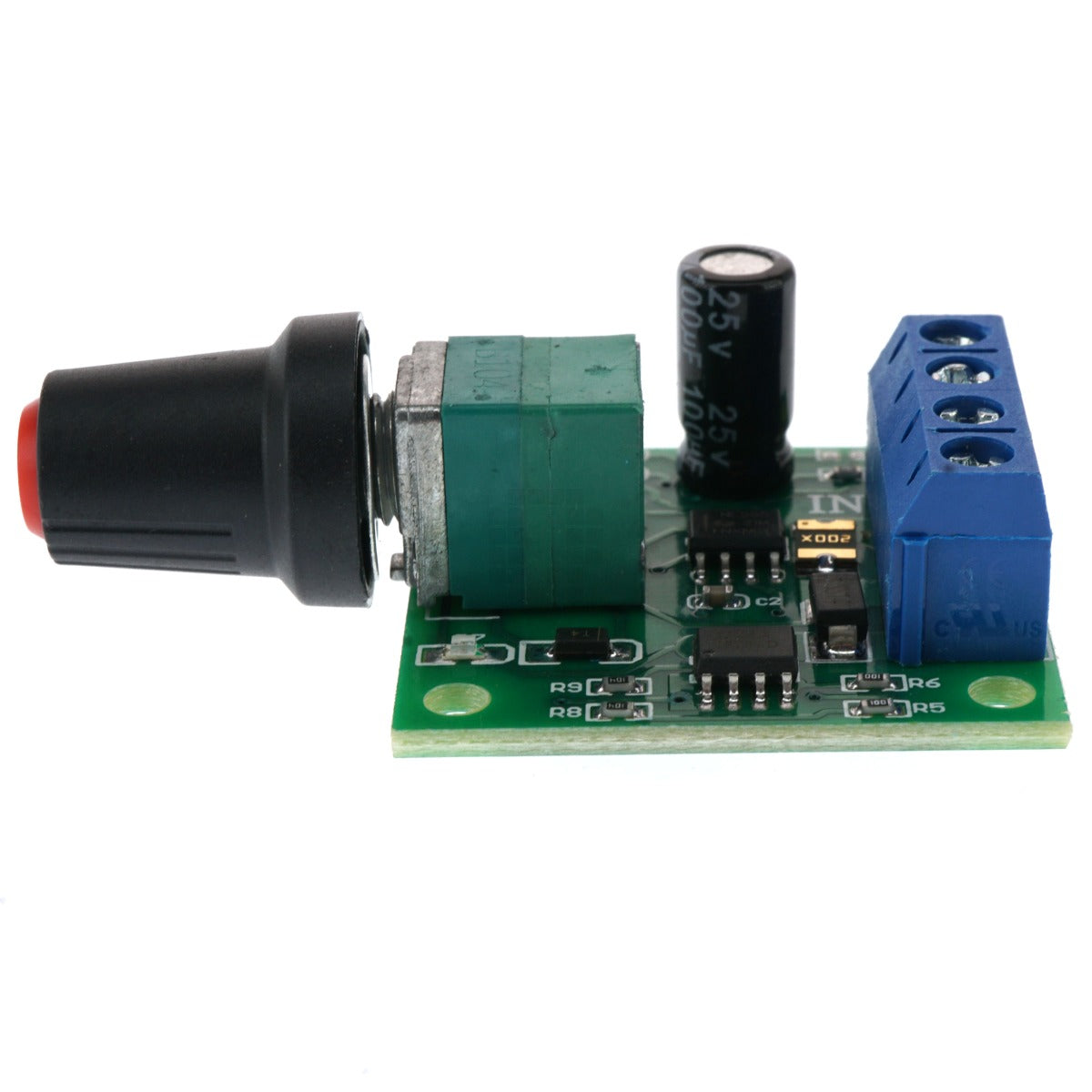

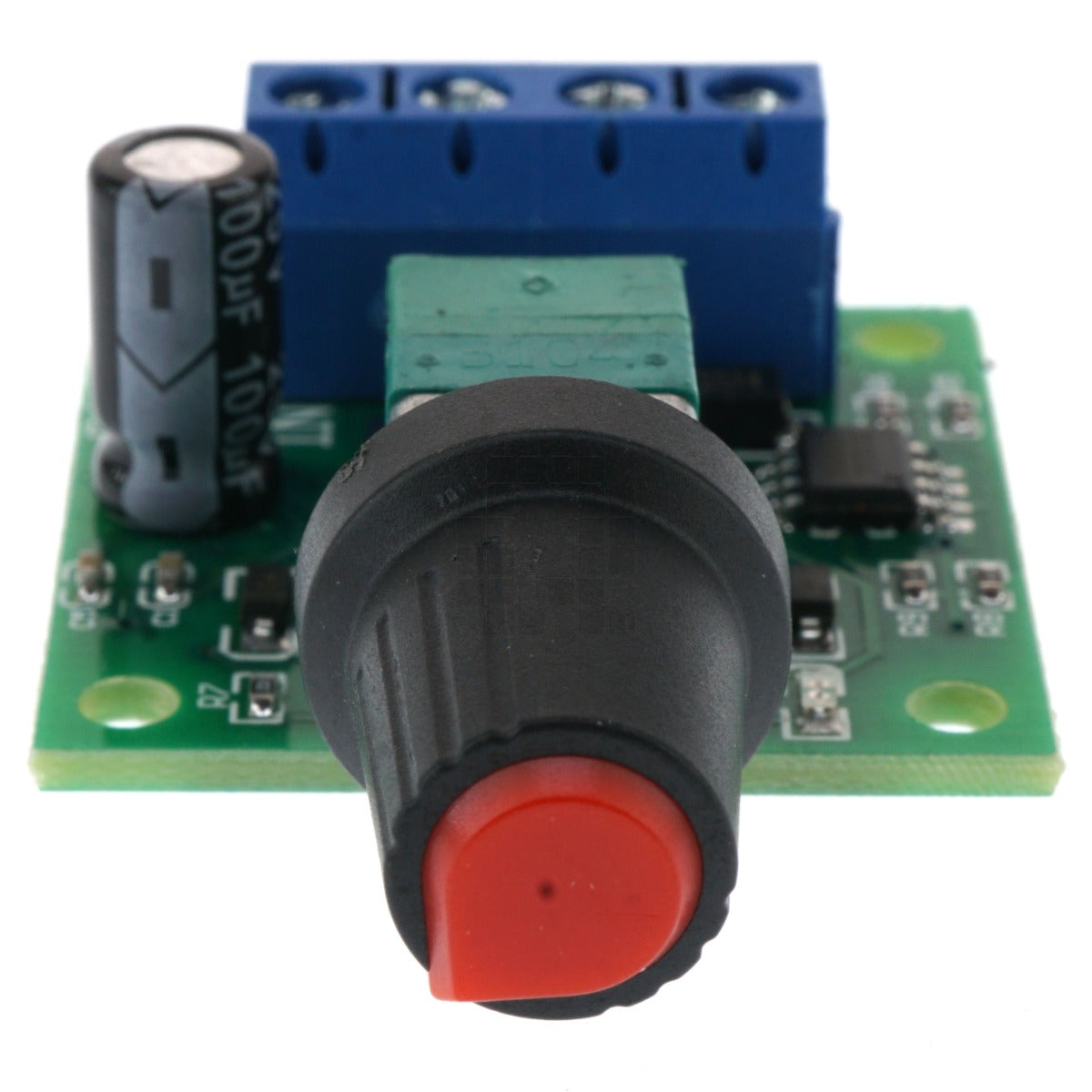

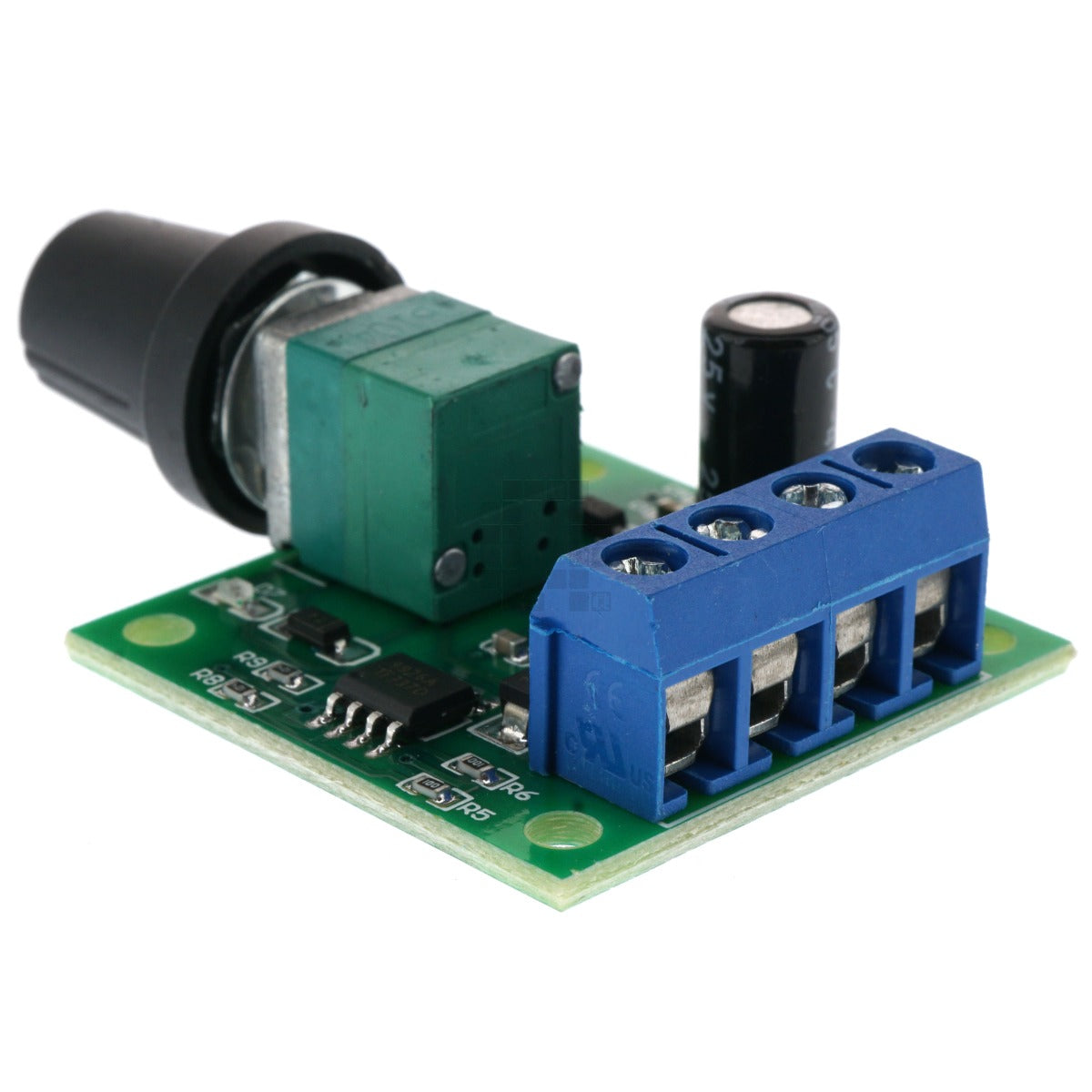

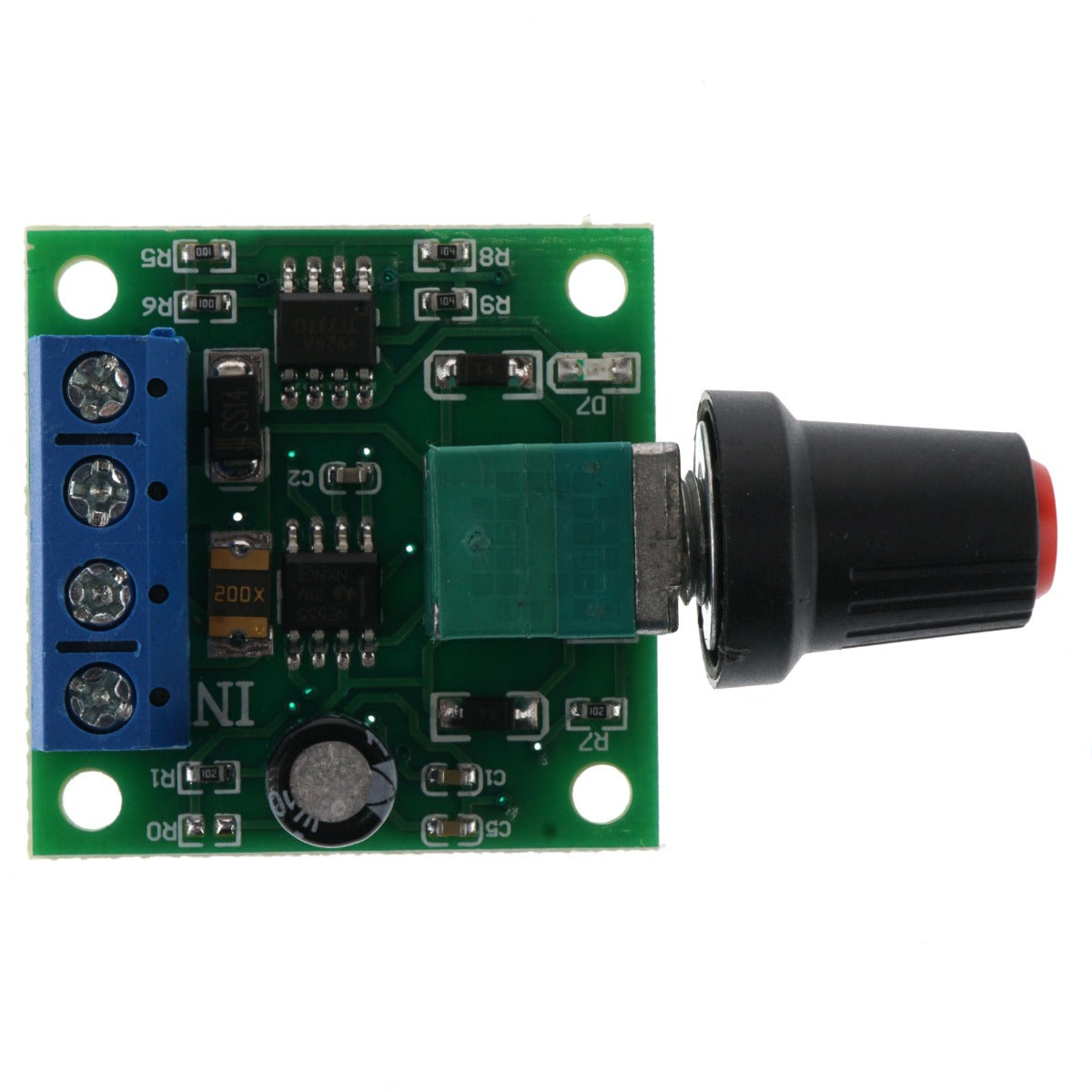

PWM Low Voltage DC Motor Speed Controller, 1.8-15VDC, 30 Watt, 1803BK

Name: PWM Low Voltage DC Motor Speed Controller, 1.8-15VDC, 30 Watt, 1803BK
Brand: Unbranded
SKU: DCSPEED12-2
Price: 1.24 USD
Availability: InStock

(0)

Please note: While we strive for accuracy in our descriptions and images, the actual color and appearance of the items may vary slightly from the photographs due to lighting conditions or varying computer monitor settings.

Unbranded SKU: DCSPEED12-2

$1.24 USD

In stock - 9 items available

Usually ships within 48 hours

Product Information

Product Description Product Metafields About the Manufacturer Shipping & Handling Product Metafields (Unsorted)

Brand	Unbranded
Manufacturer Part Number	N/A
Voltage	1.8-15VDC
Mounting	Panel Mount (0.265" Hole) Screw (0.115" Hole Diameter, 1.02" Between Centers)
Load	2 Amps Max 30 Watts Max
Circuit Board Dimensions	1.270" Width 1.270" Length

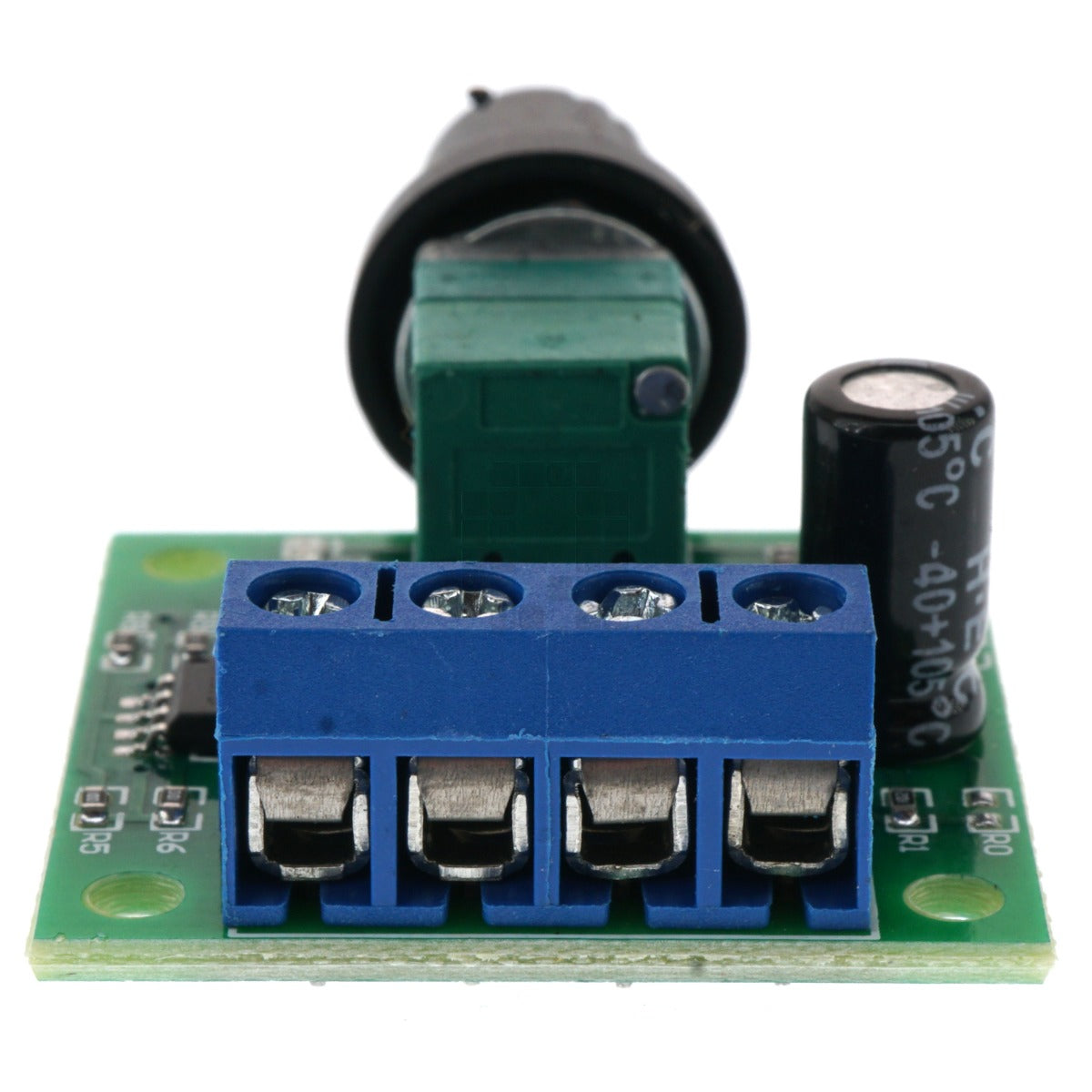

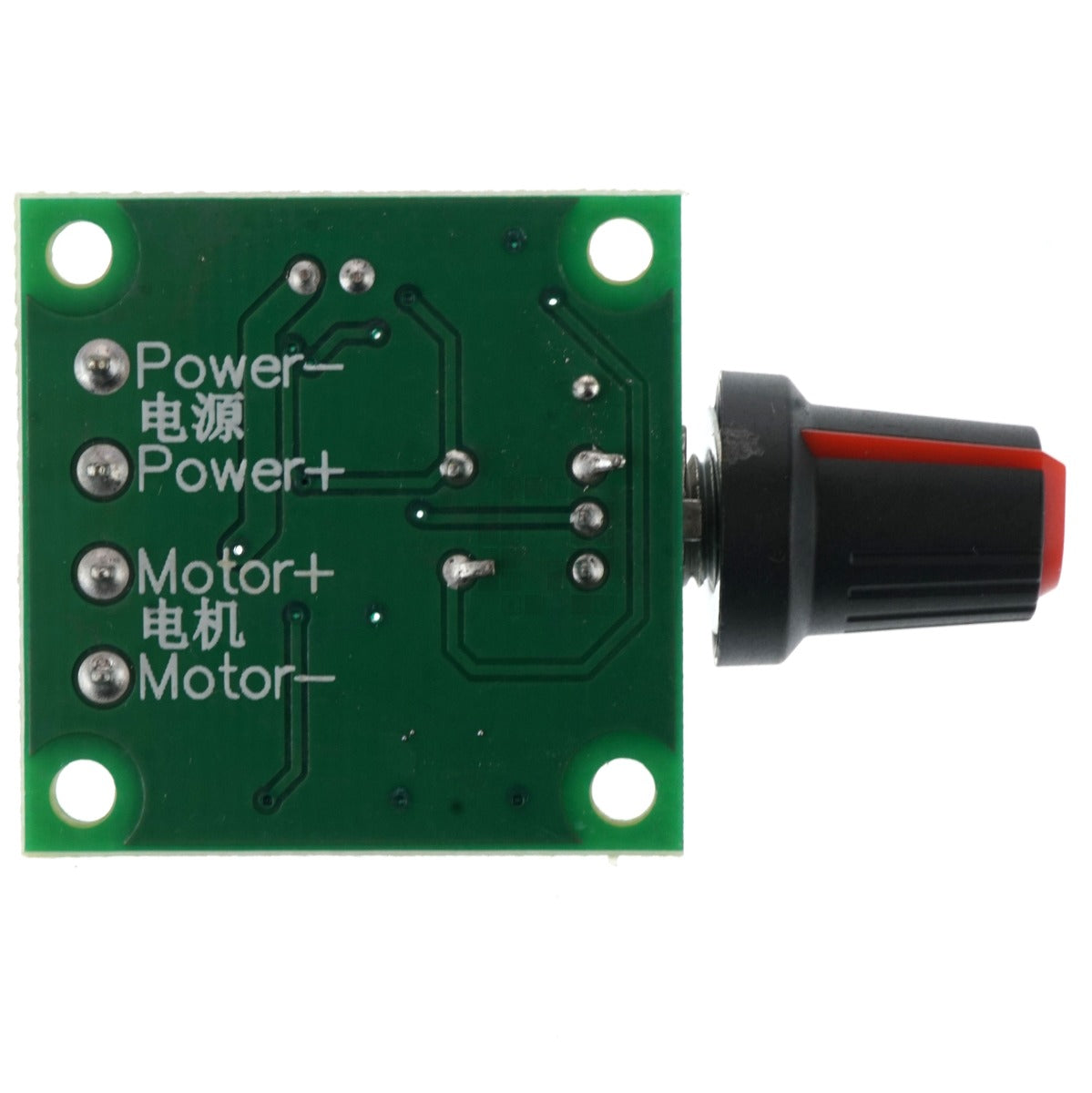

Connections	4 Pin Terminal Block
Switching	PWM
Applications	Low Voltage DC Motor Speed Control
Frequency Generator	NE555 Timer

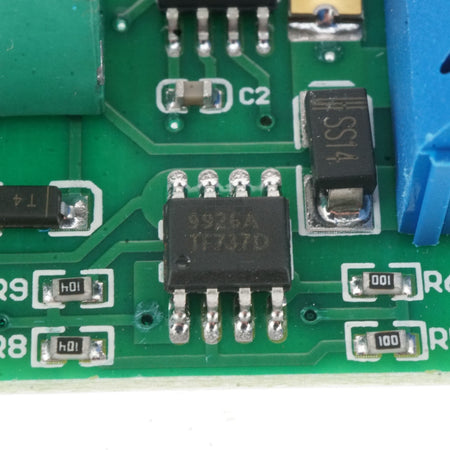

Transistor	9926A Dual N-Channel MOSFET
Knob	0.585" Base Diameter 0.665" Height
Running Indicator	Red Surface Mount LED

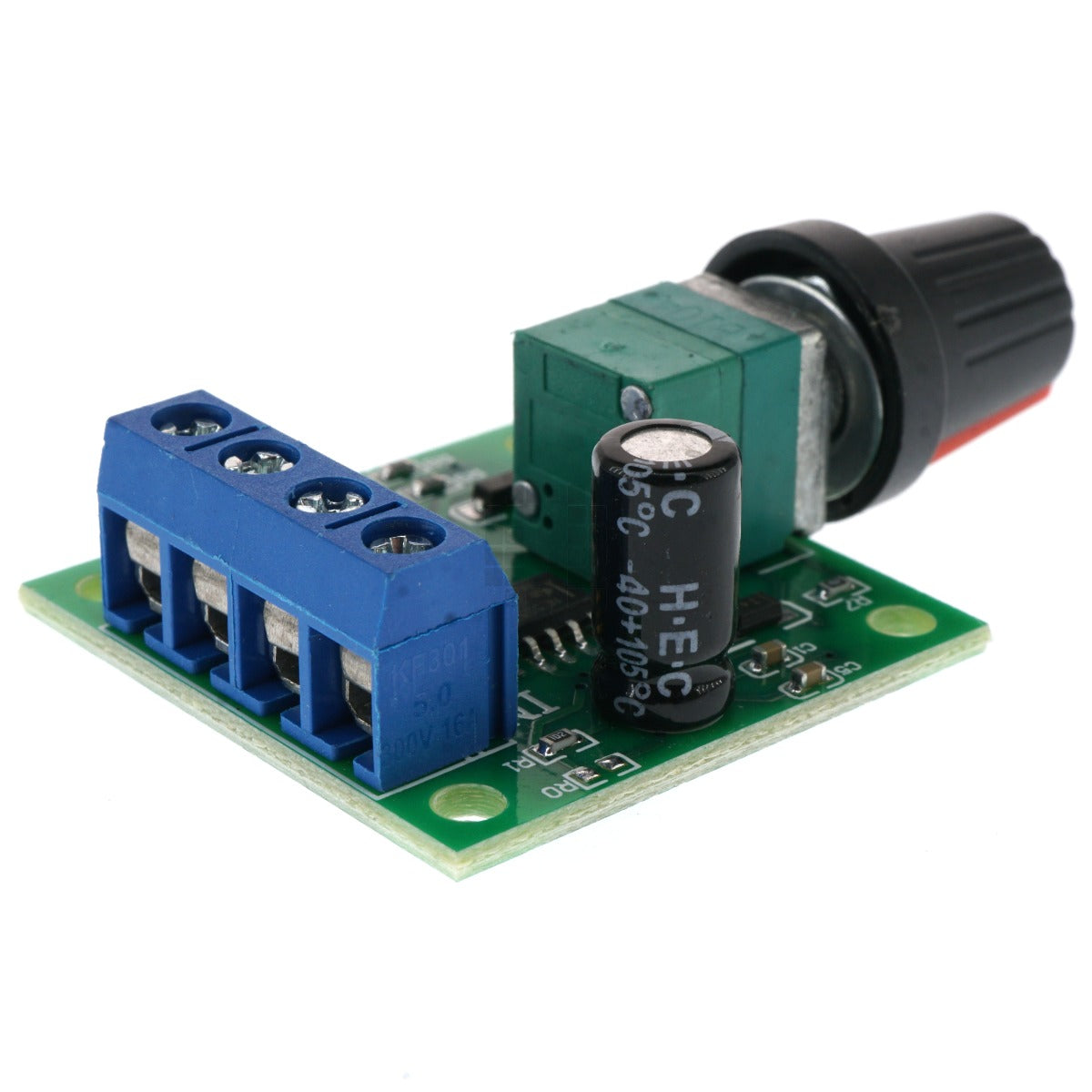

Capacitor	H.E.C. 100uF 25V 105°C
Knob Function	On/Off Variable Switch Frequency
UPC	N/A
Country of Origin	China
Notes	New. Specifications may vary or change without notice.
Location	R1-27
