Brand Unbranded

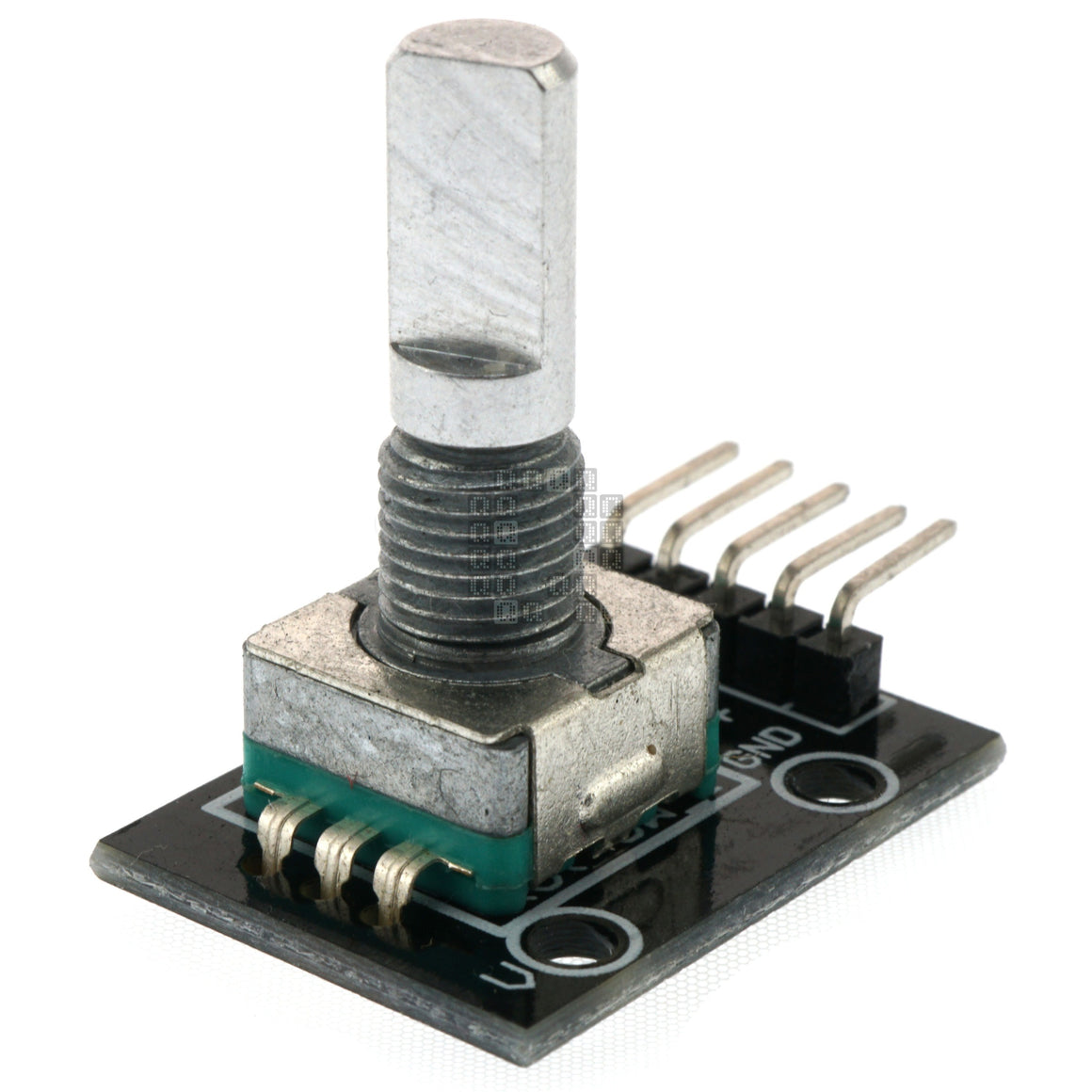

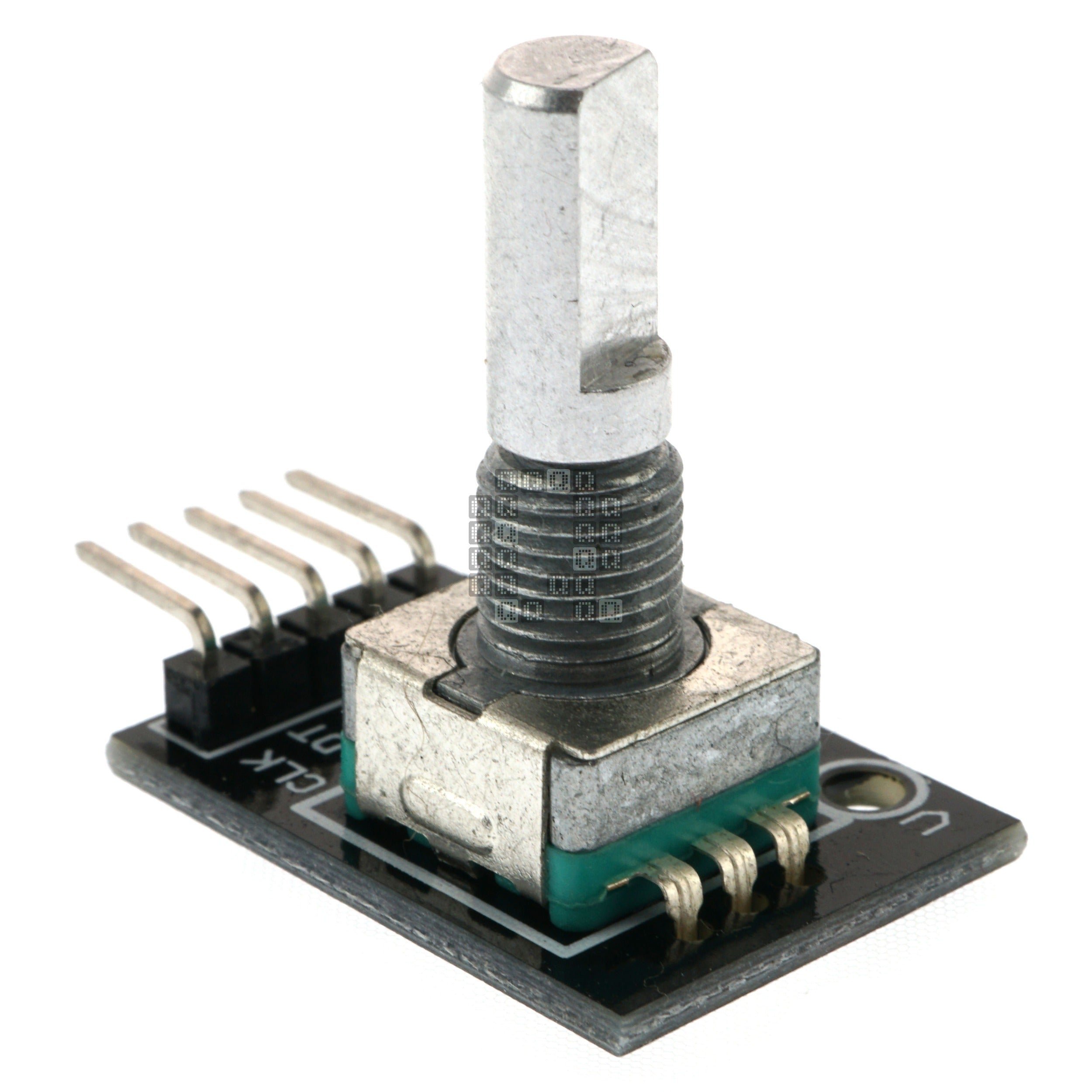

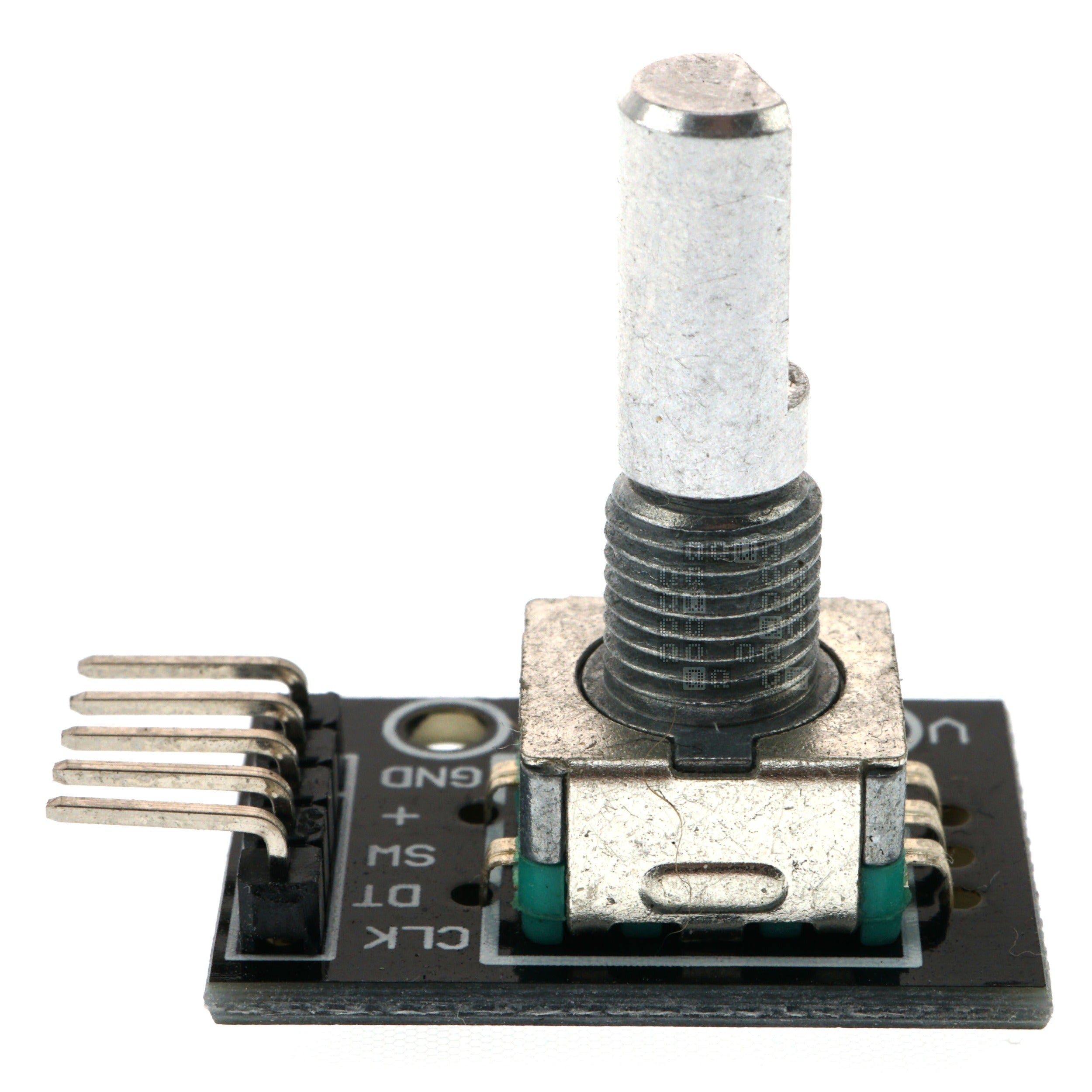

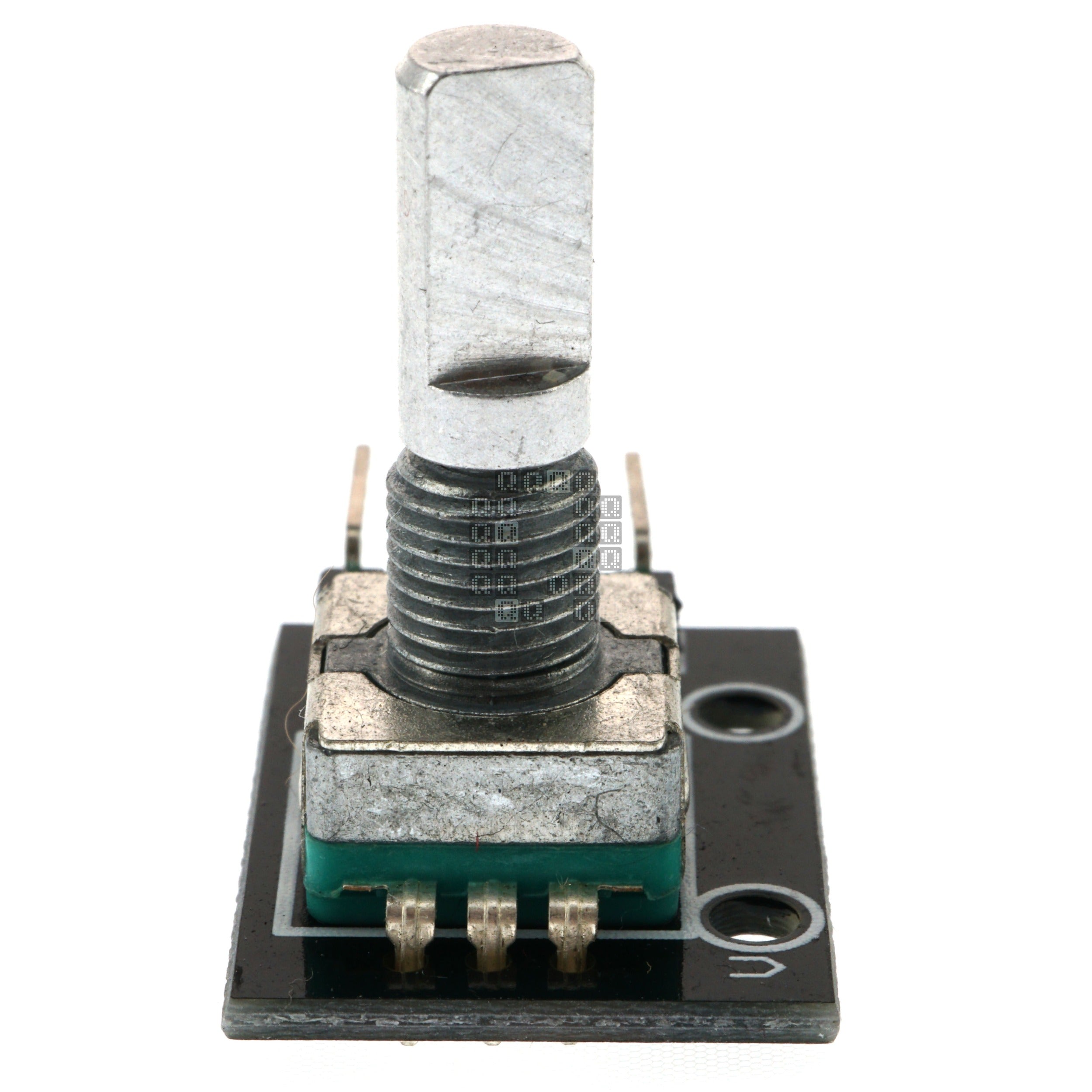

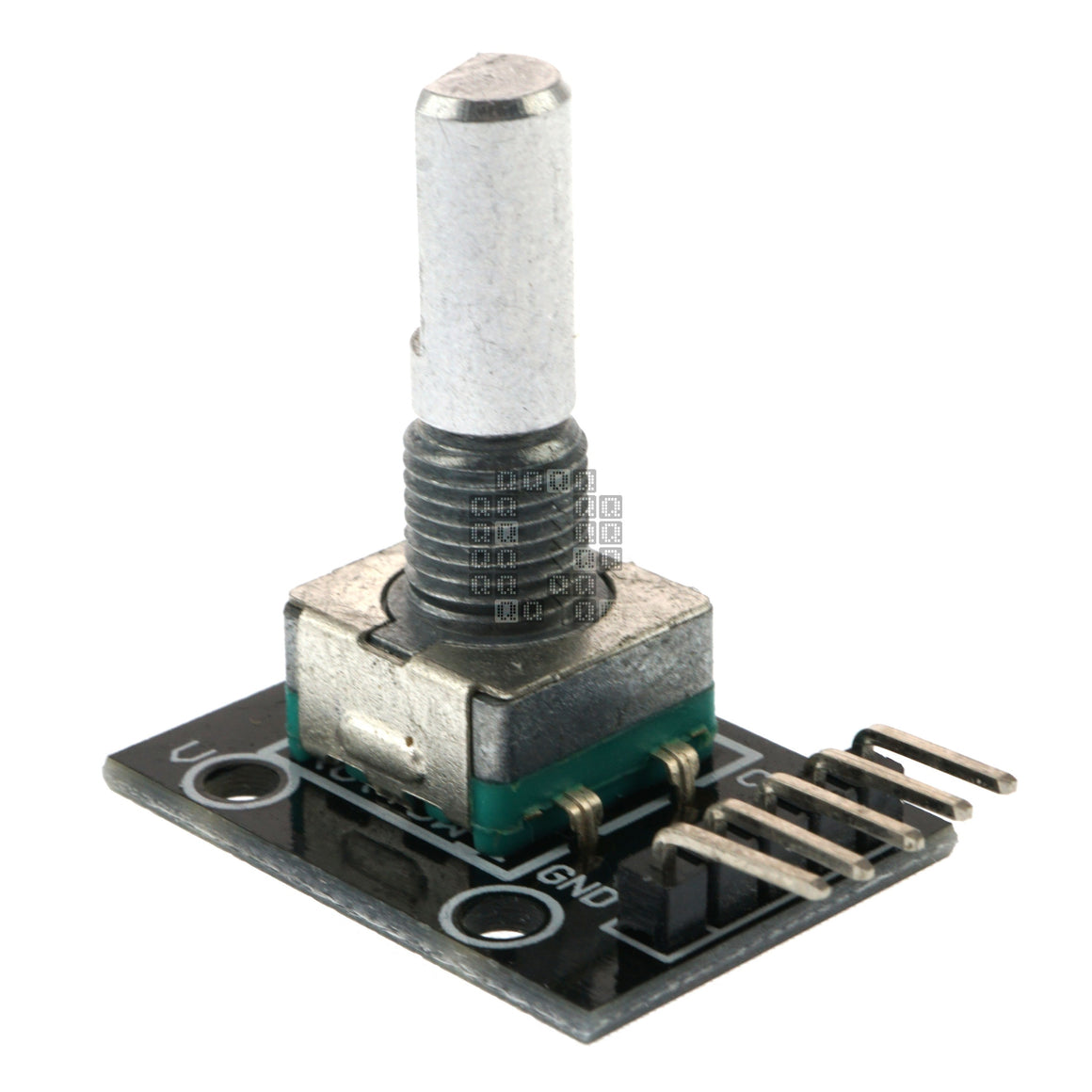

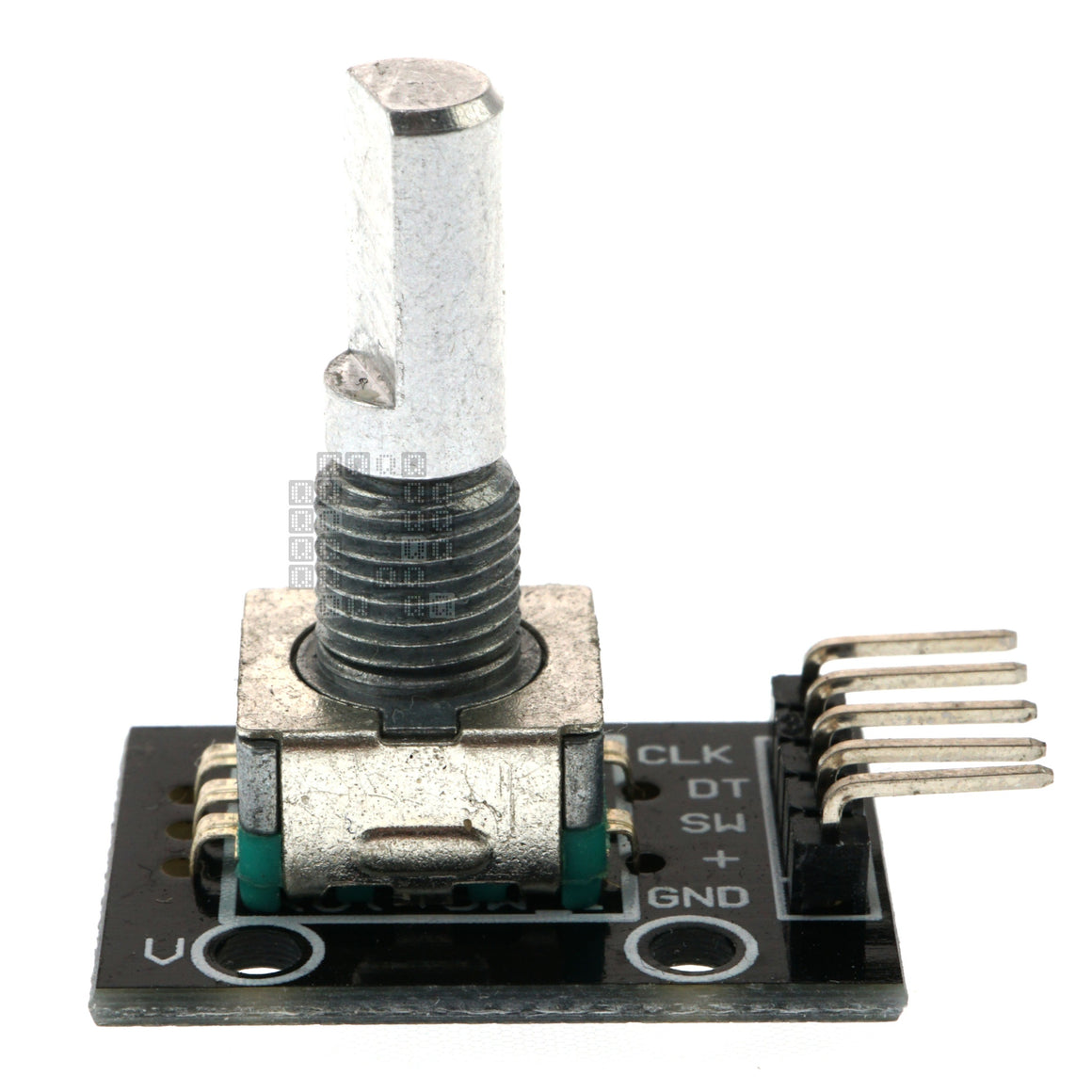

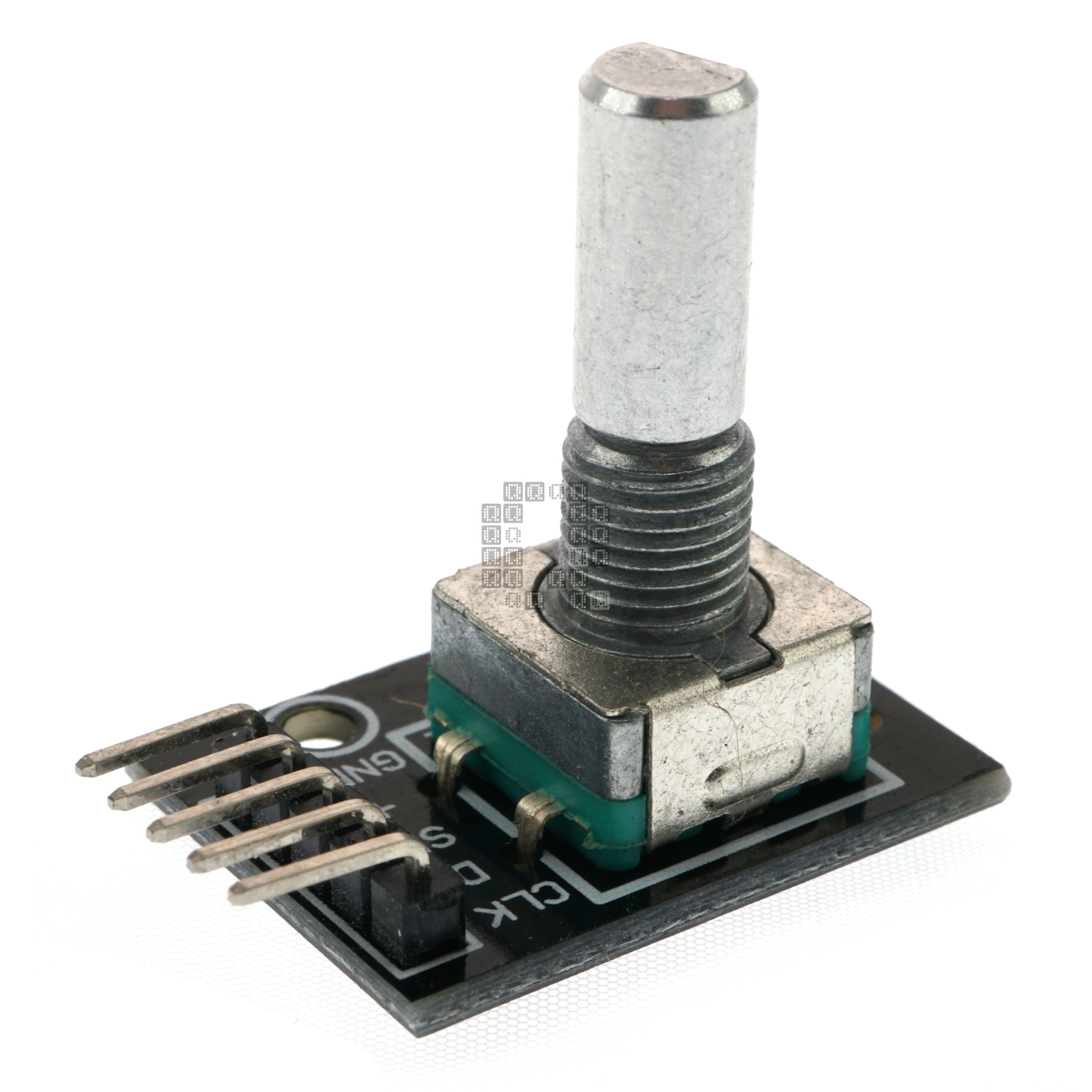

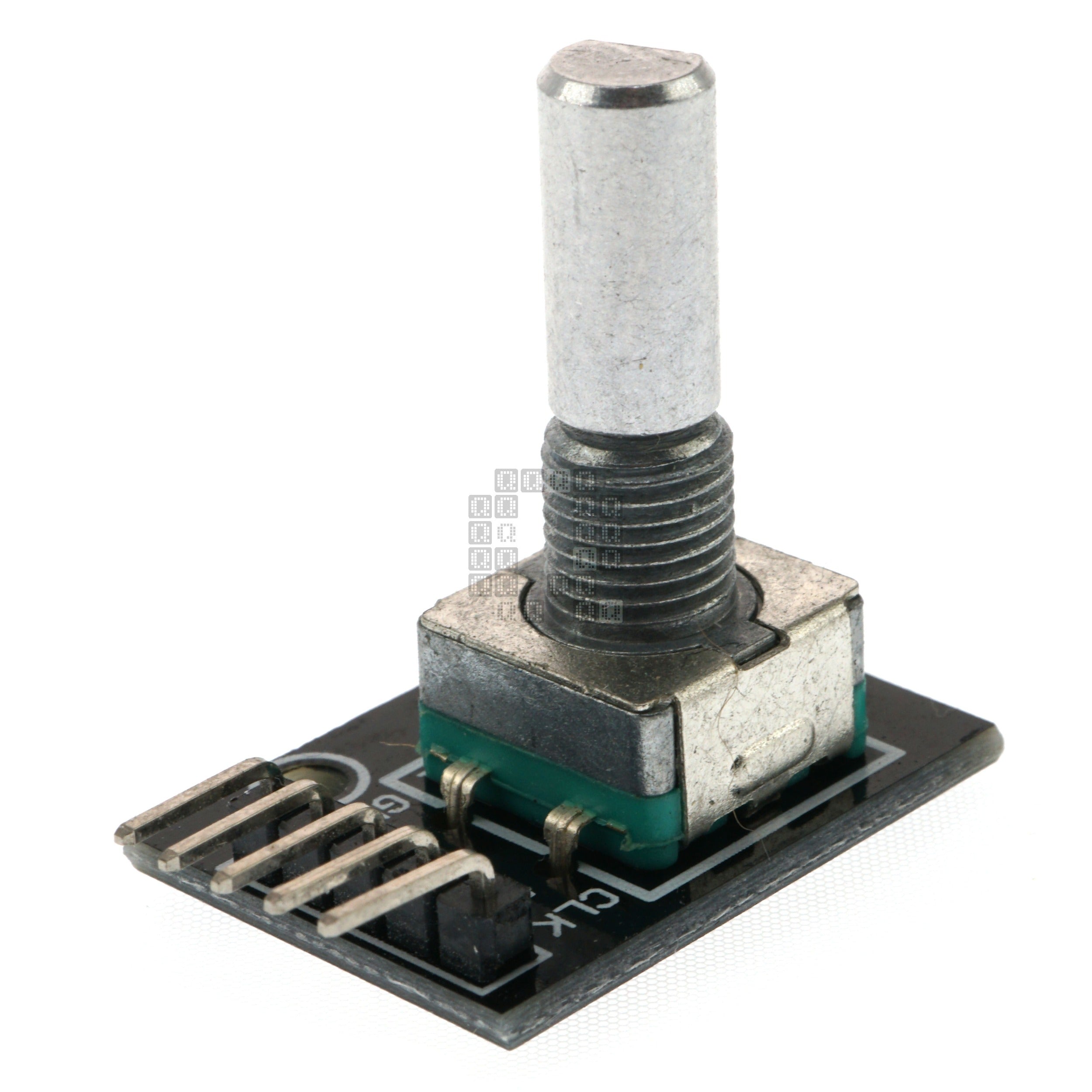

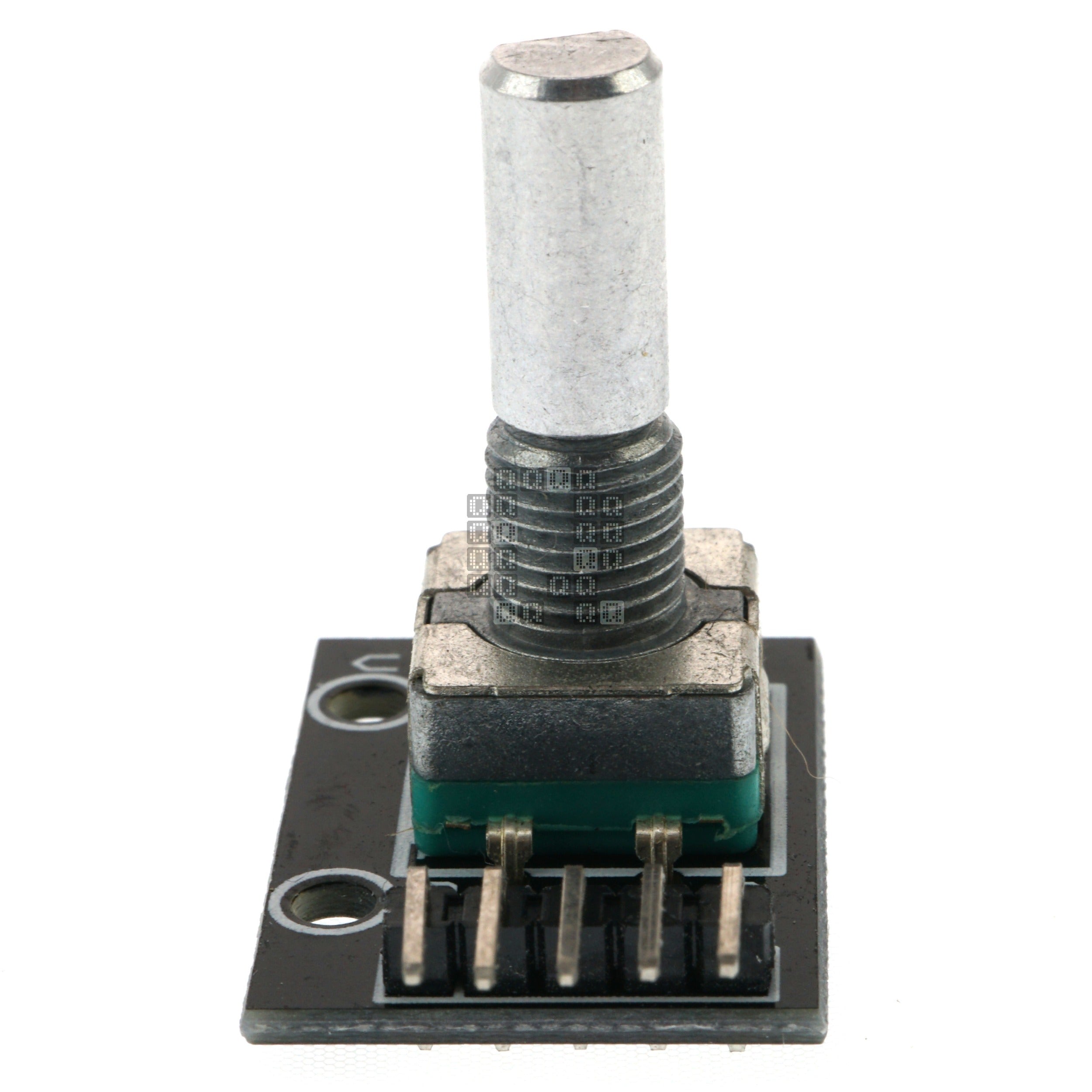

Manufacturer Part Number KY-040
Cross Reference (Fit/Form/Function)
Shaft 6mm Round Shaft with Flat
12mm Length

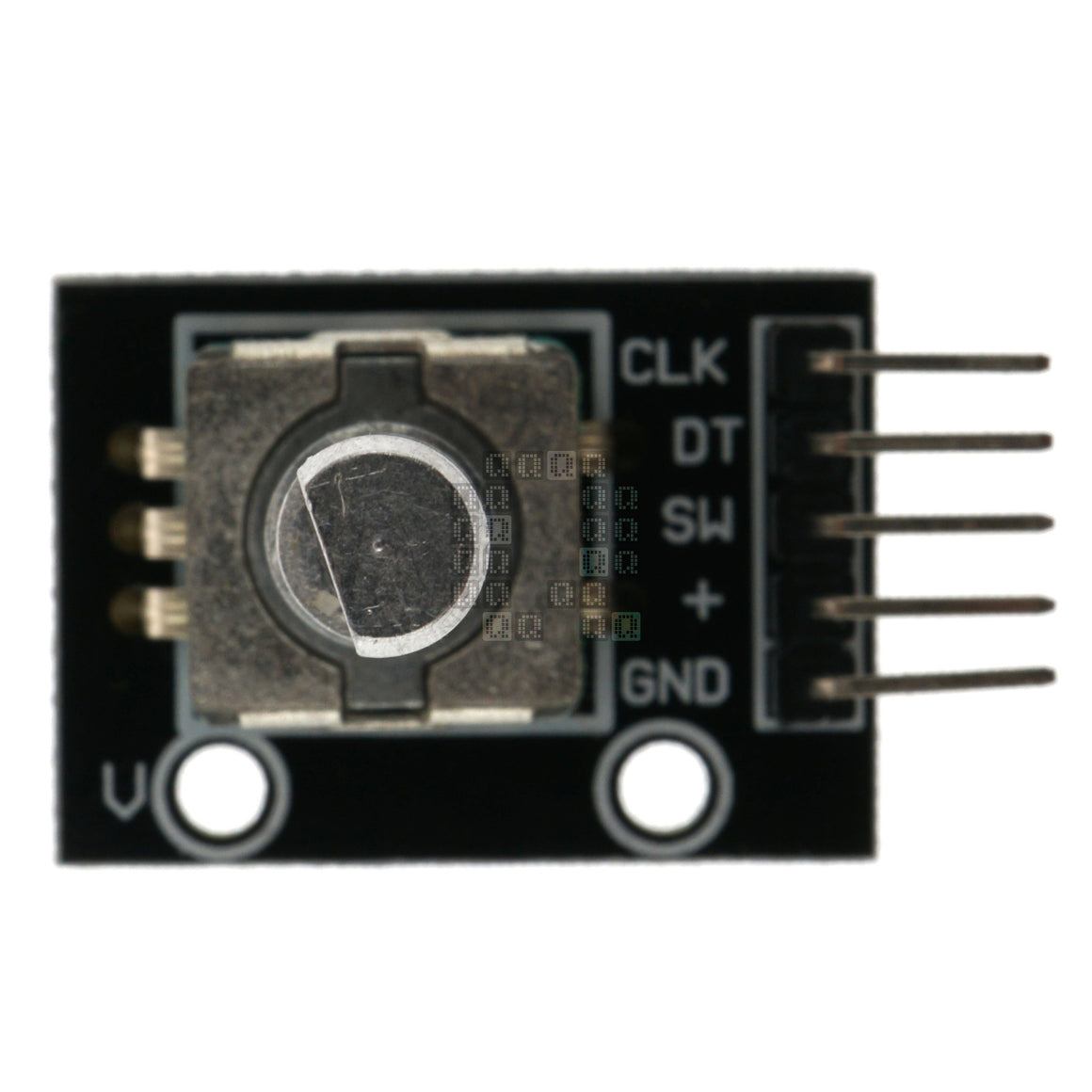

Pins Five (5) Total
(1) Clock, Encoder A
(2) DT, Encoder B
(3) Push Switch
(4) VCC, 3.3-5VDC
(5) Ground
Switch Single Pole Single Throw (SPST)
Push-on
10mA / 5VDC Rating
0.5mm Travel
200-460gf
Encoder 50gf/cm Rotational Torque
12 detents (30° each)
1mA/10VDC Rating
12 pulses / 360°
Circuit Board Dimensions 0.74" x 1.03"
Thread Right Hand (RH)
UPC
Country of Origin China
Notes New.
Location 08-02
