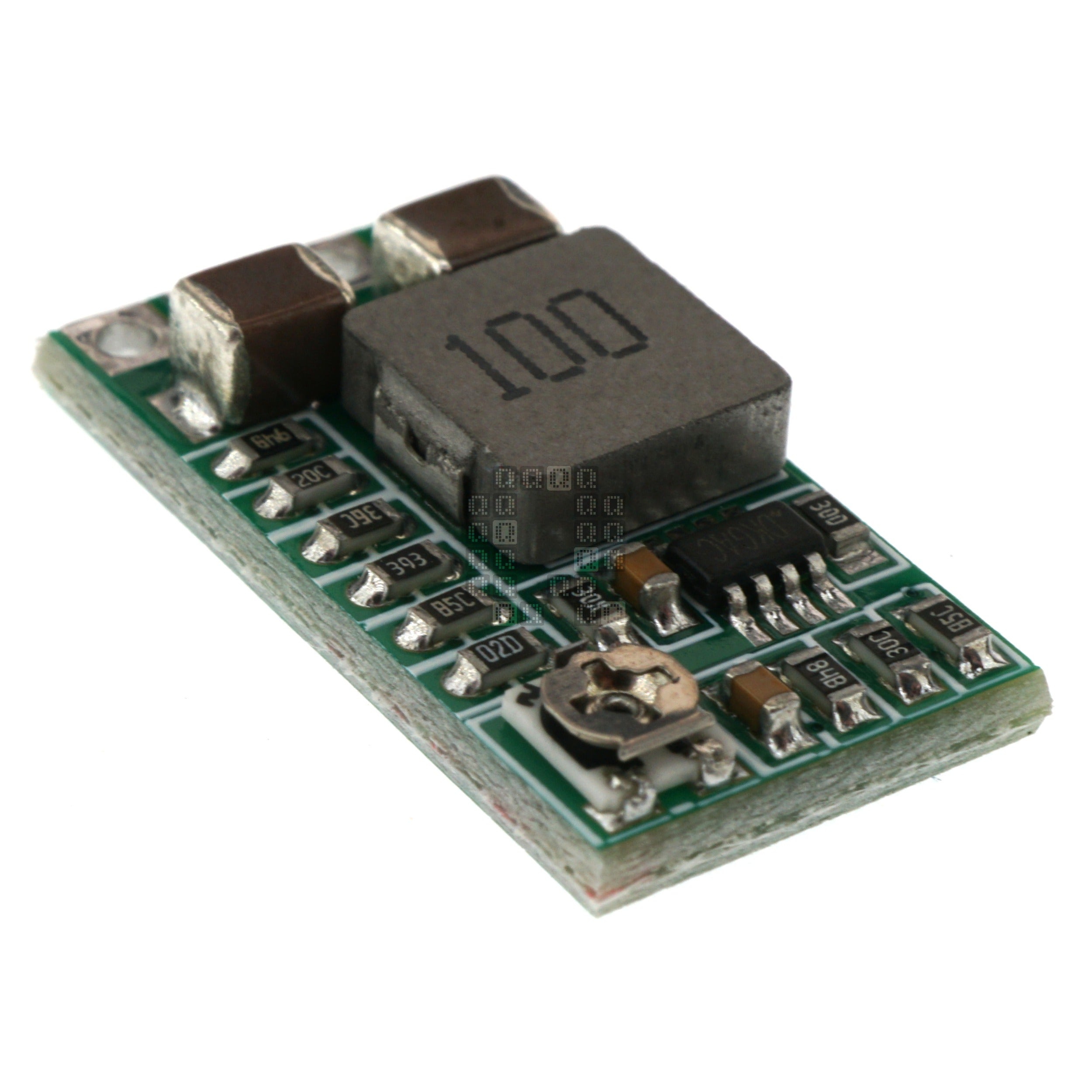

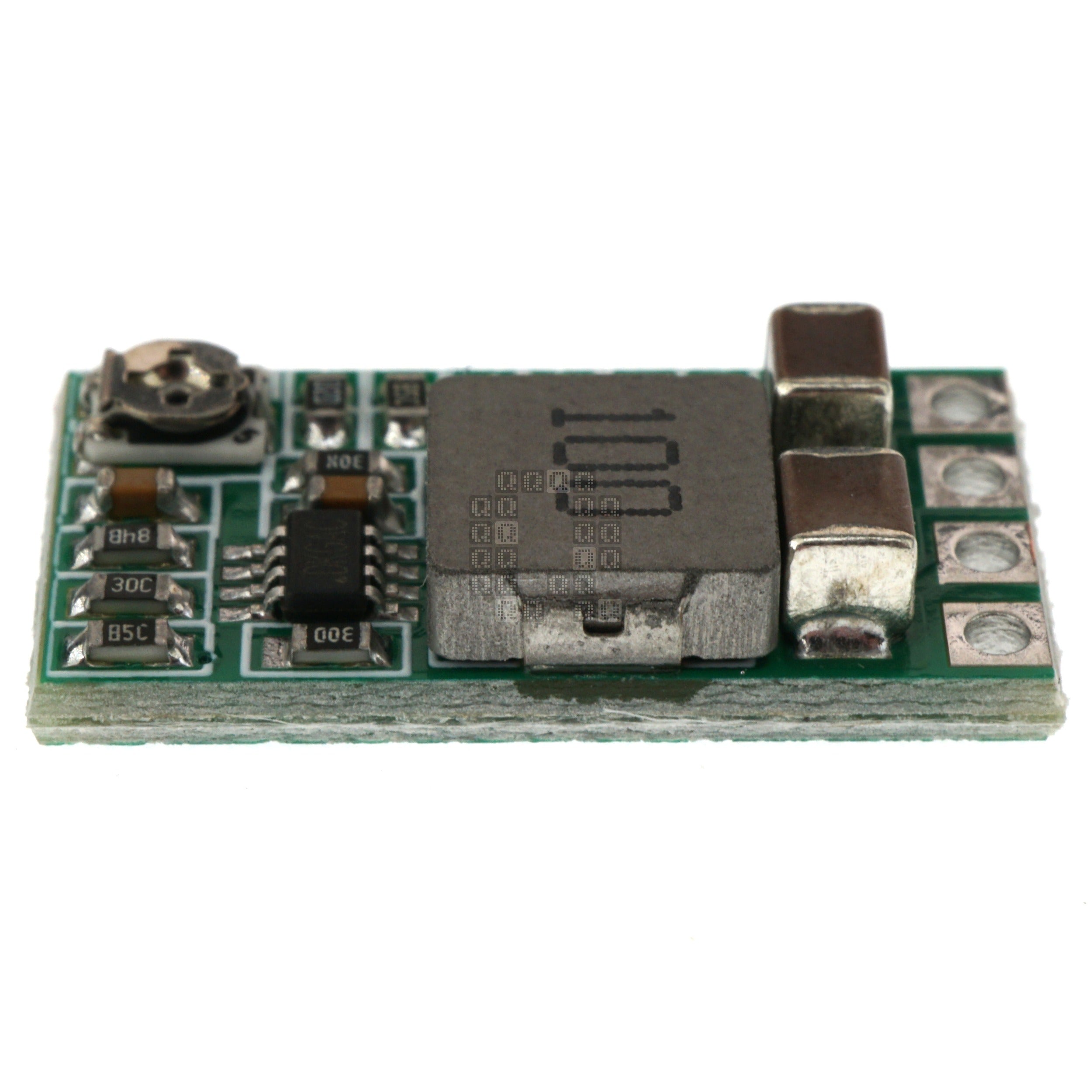

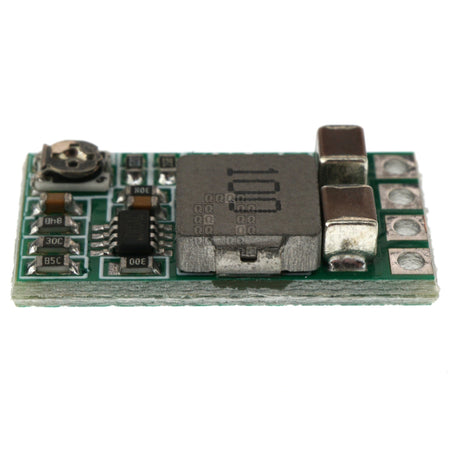

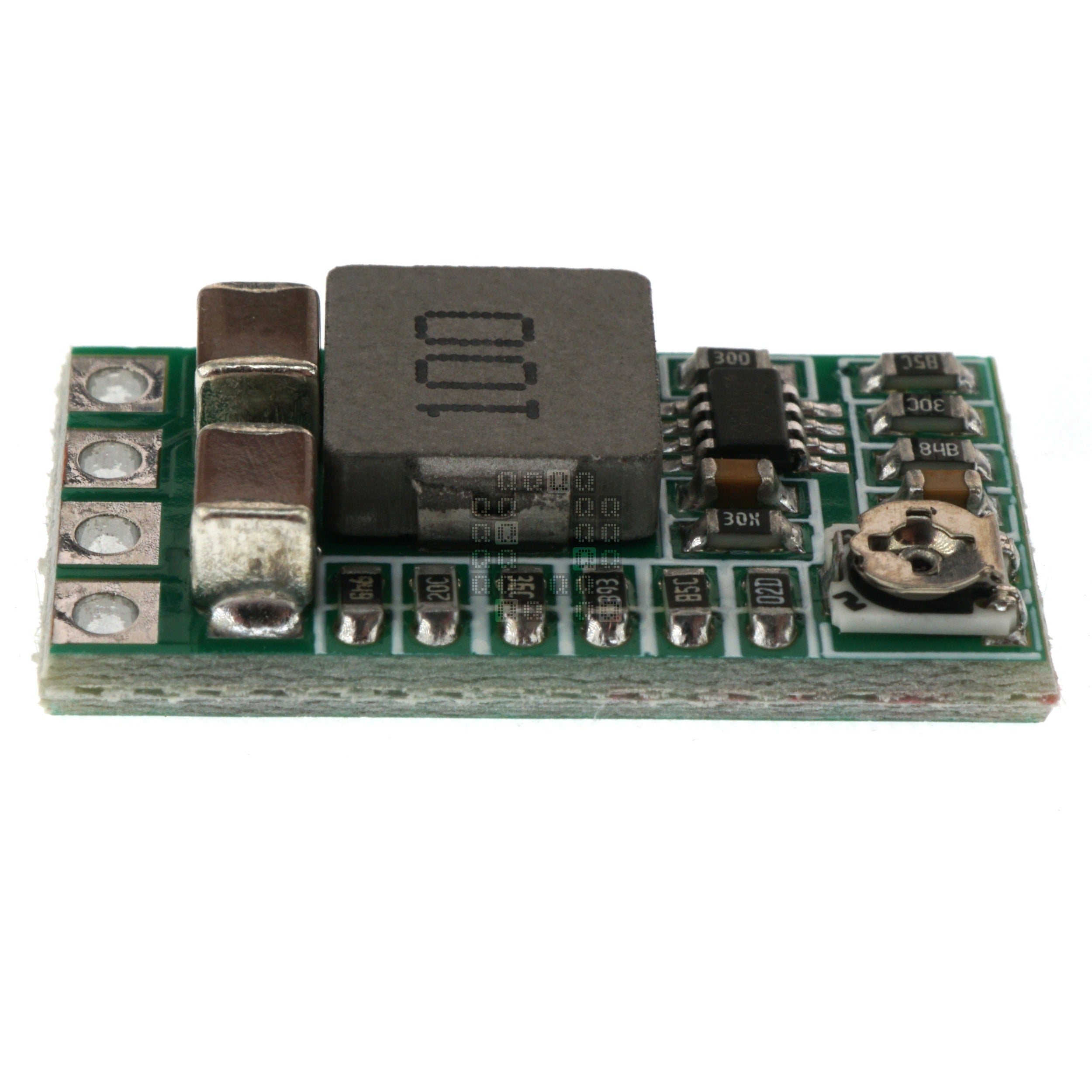

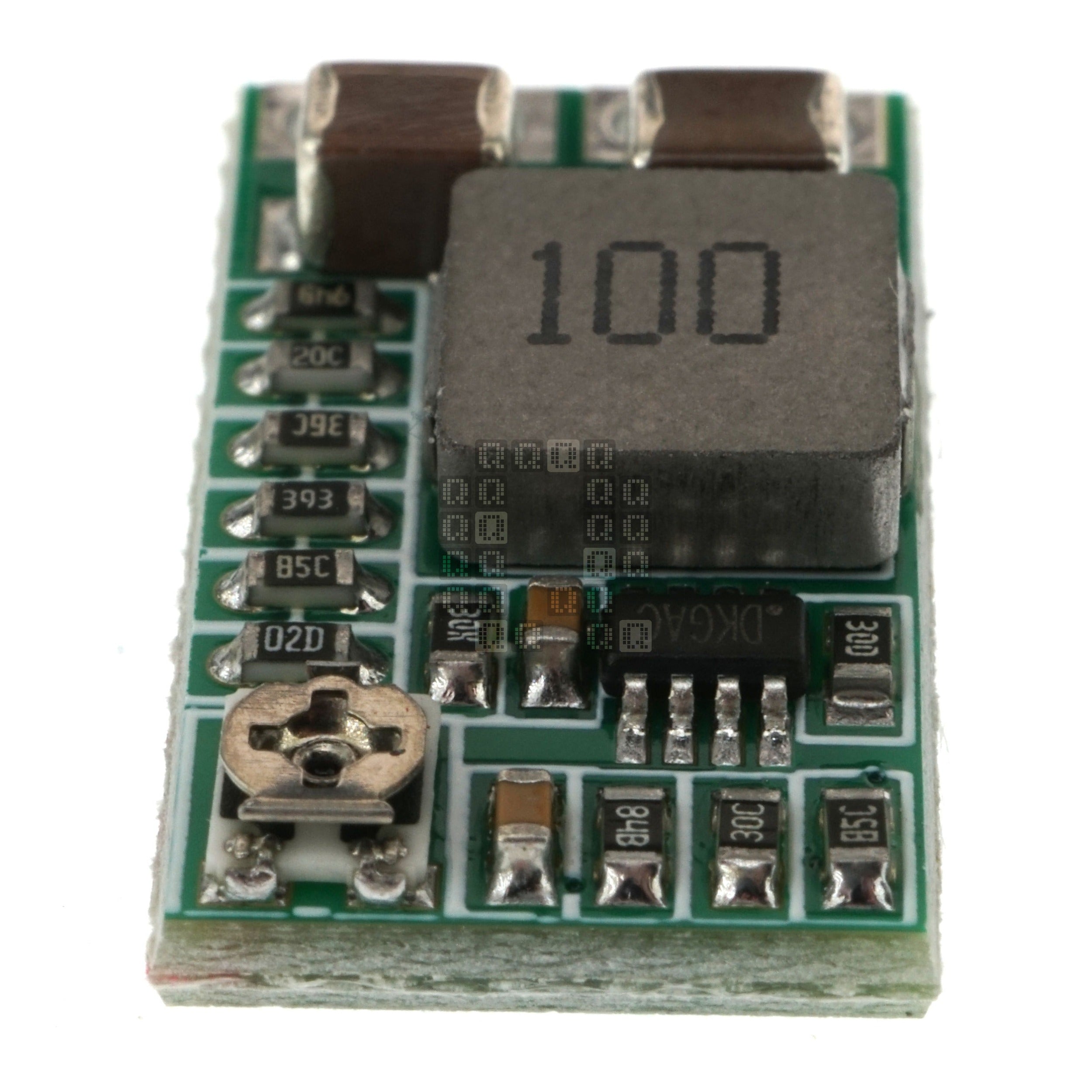

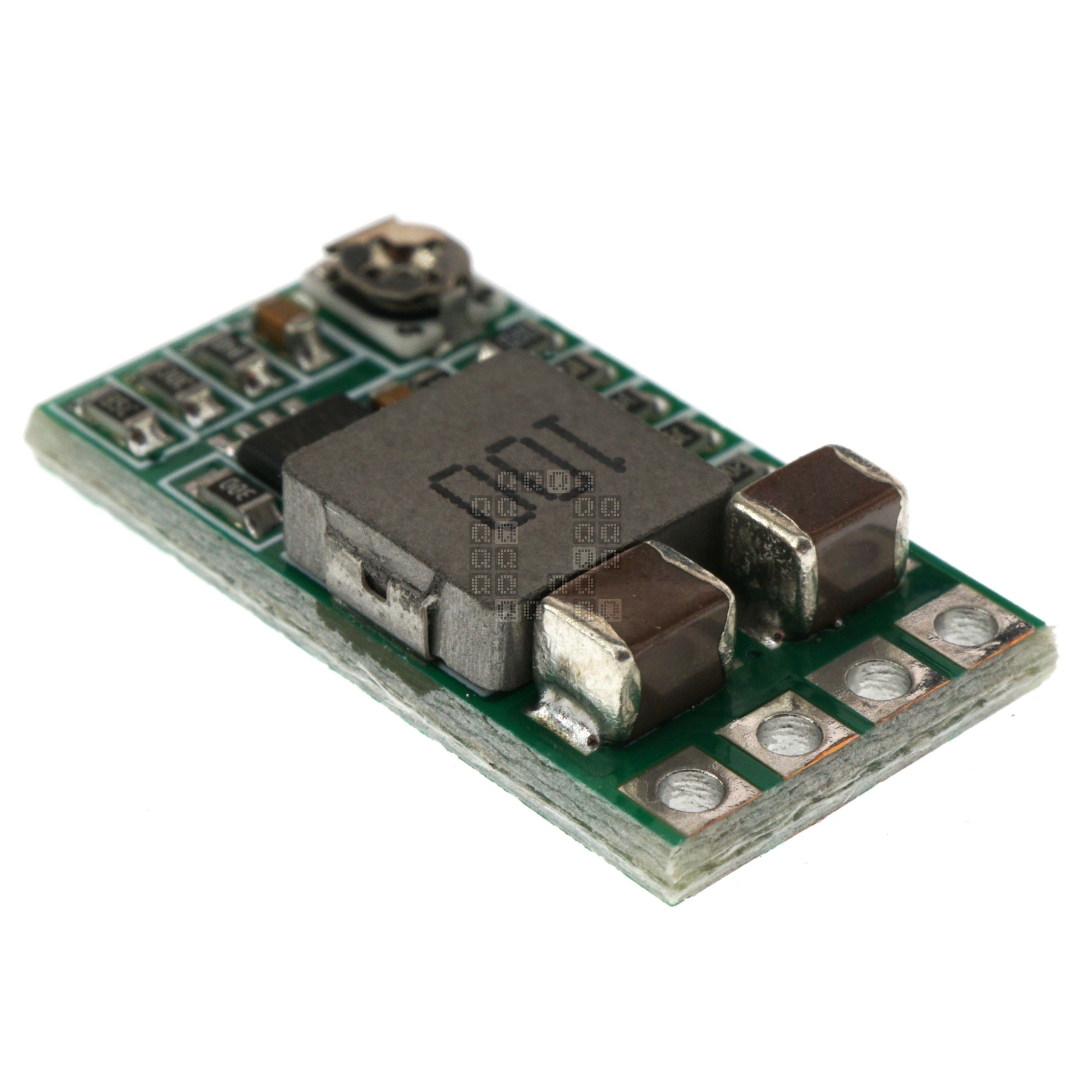

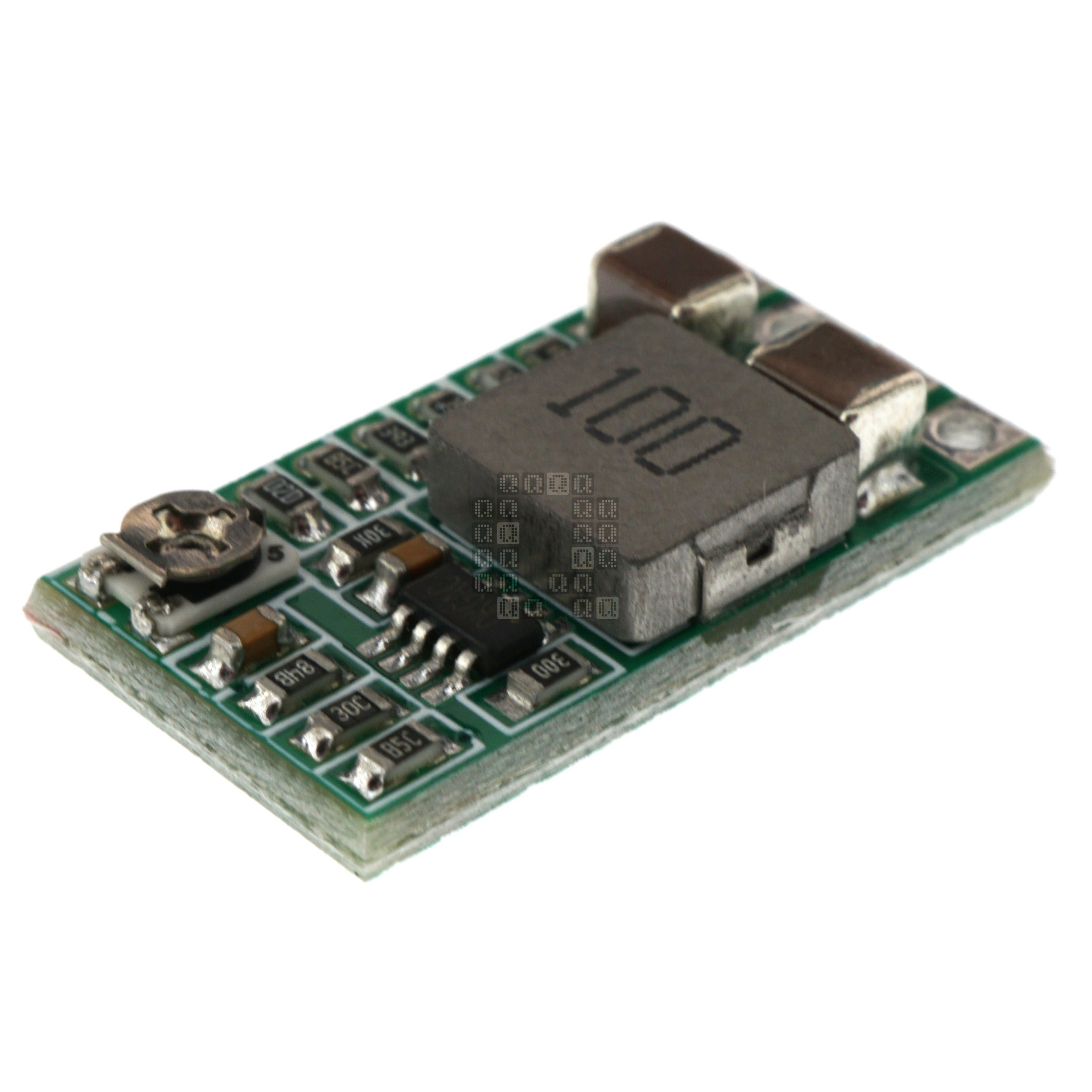

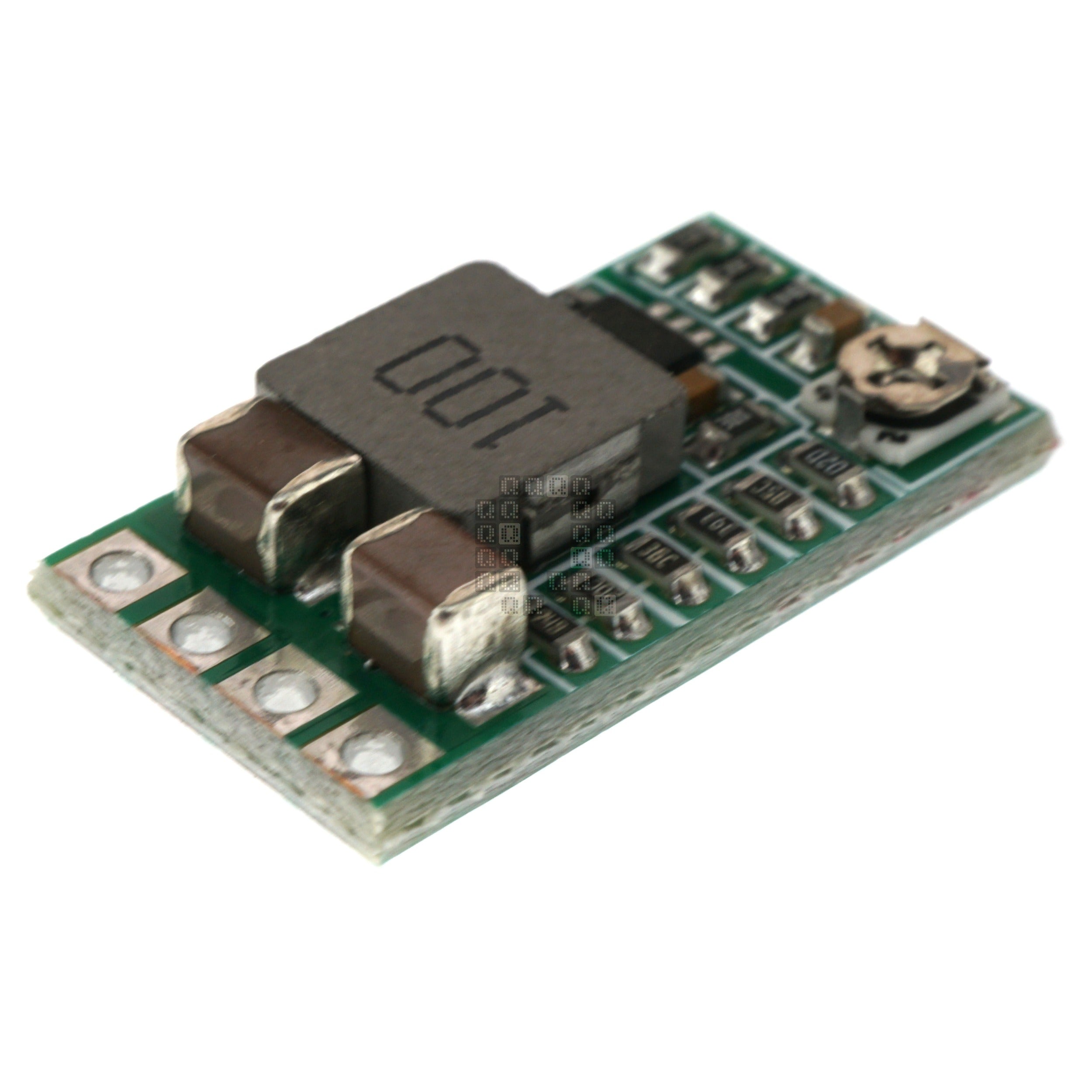

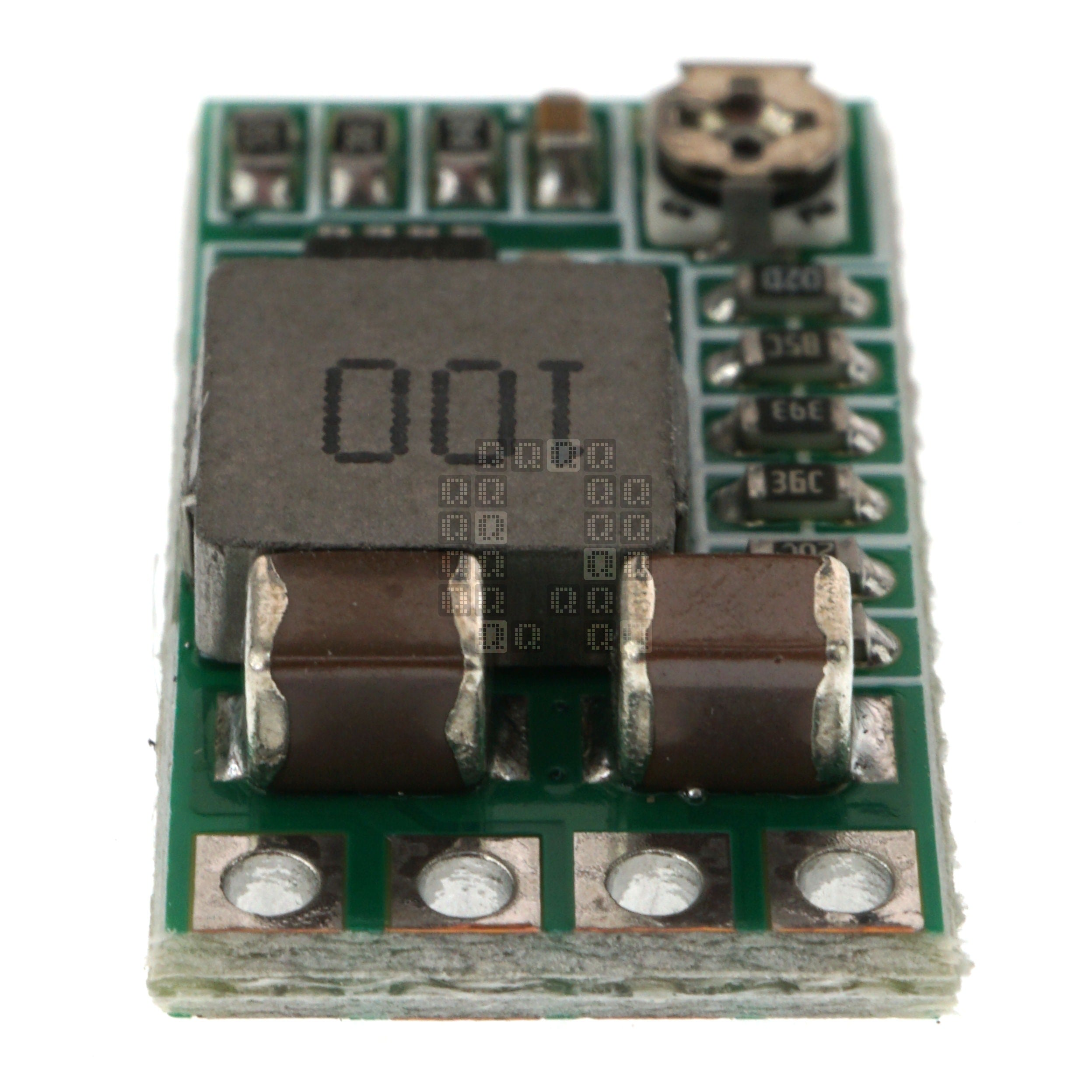

User Selectable Voltage Miniature Buck DC-DC Converter Module, 2.1-Amp

Name: User Selectable Voltage Miniature Buck DC-DC Converter Module, 2.1-Amp
Brand: Unbranded
SKU: ADJSTEPDOWN_3A
Price: 0.74 USD
Availability: InStock

(0)

Please note: While we strive for accuracy in our descriptions and images, the actual color and appearance of the items may vary slightly from the photographs due to lighting conditions or varying computer monitor settings.

Unbranded SKU: ADJSTEPDOWN_3A

$0.74 USD

In stock - 8 items available

Usually ships within 48 hours

Product Information

Product Description Product Metafields About the Manufacturer Shipping & Handling Product Metafields (Unsorted)

Brand	Unbranded
Manufacturer Part Number
Cross Reference (Fit/Form/Function)
Module Dimensions	20mm x 11mm (0.787" x 0.433") 5mm Height
Input Voltage	4-20VDC Minimum required voltage varies with selected output voltage.
Efficiency	up to 97.5%

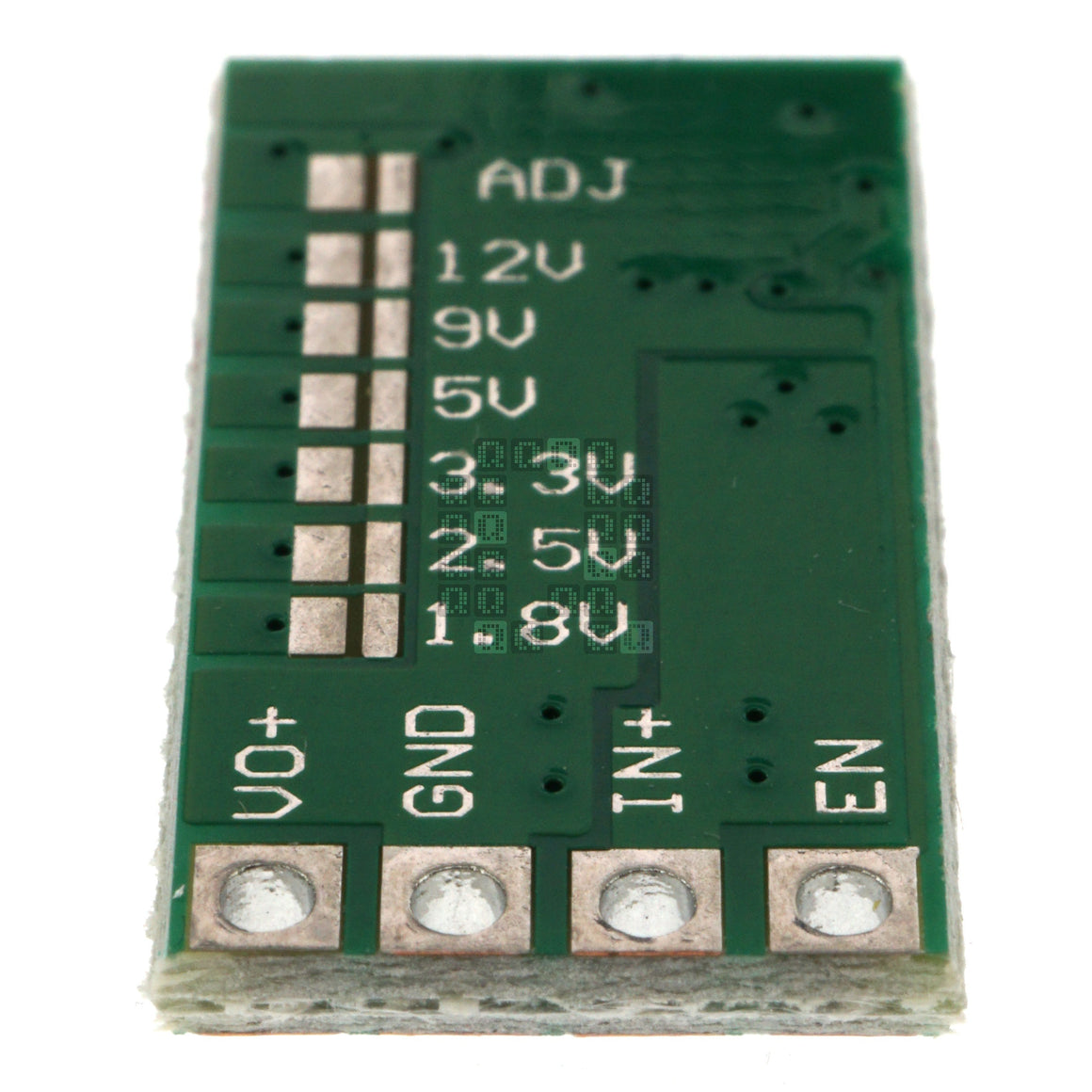

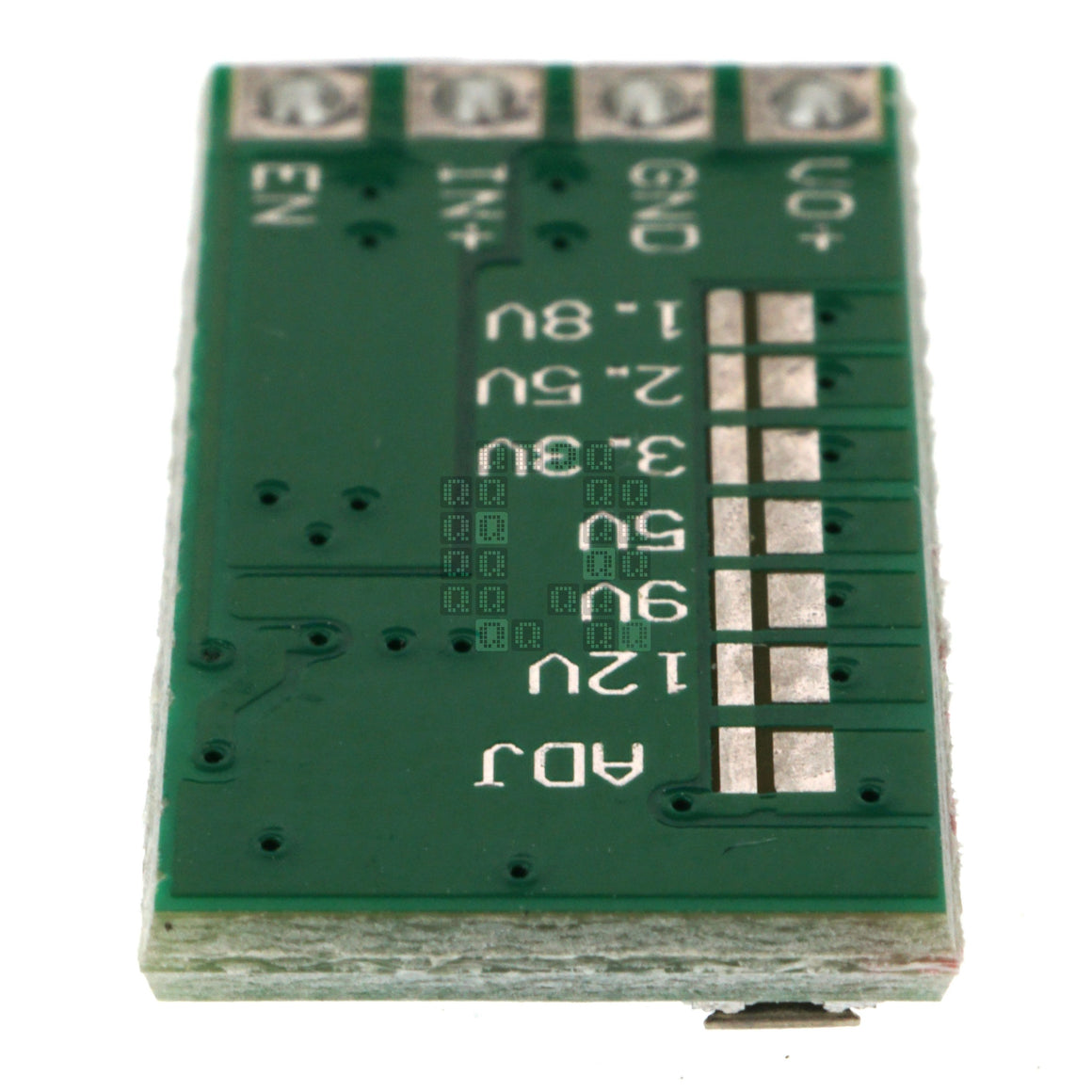

Pins	Four (4) total Enable Input (+) Common (-) Output (+)

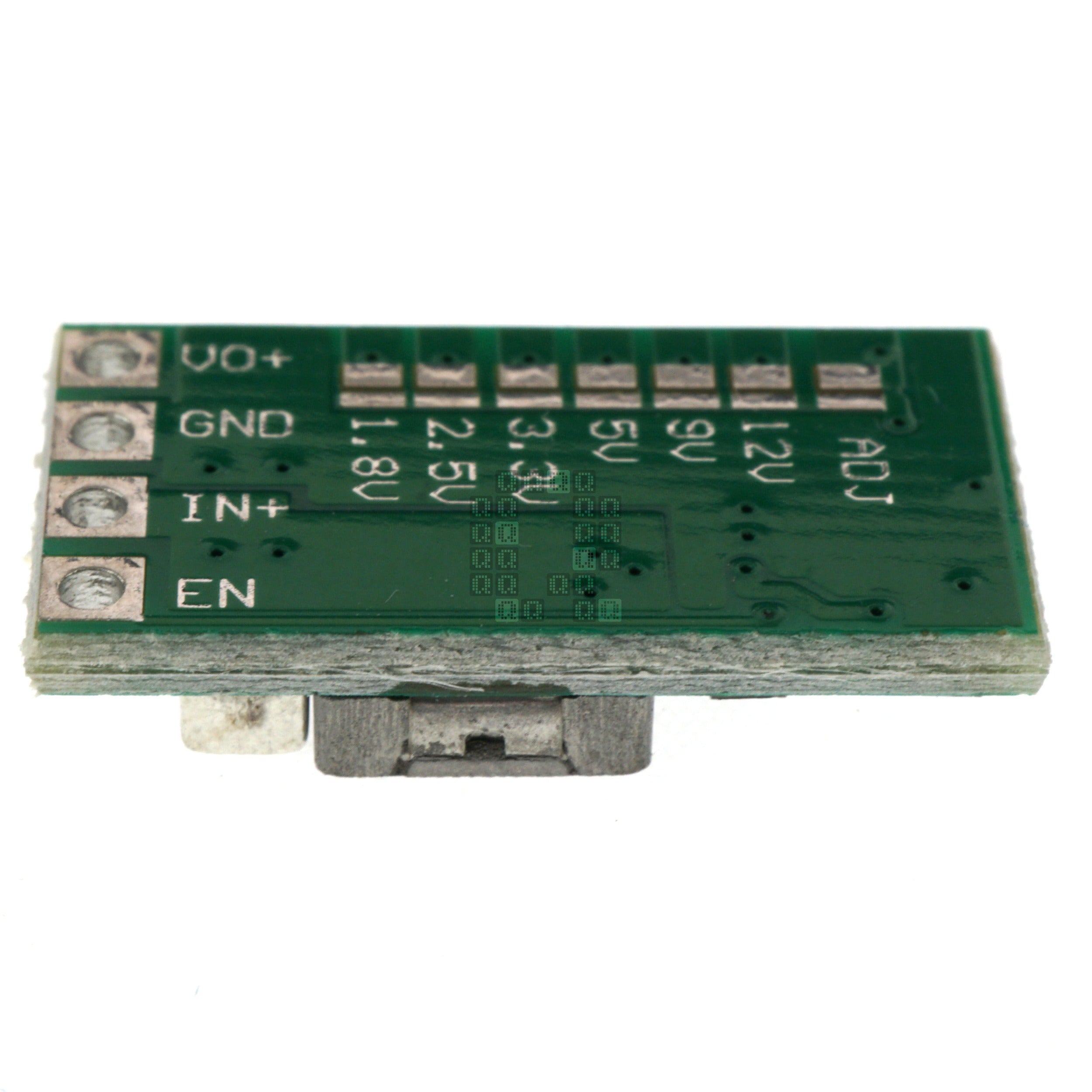

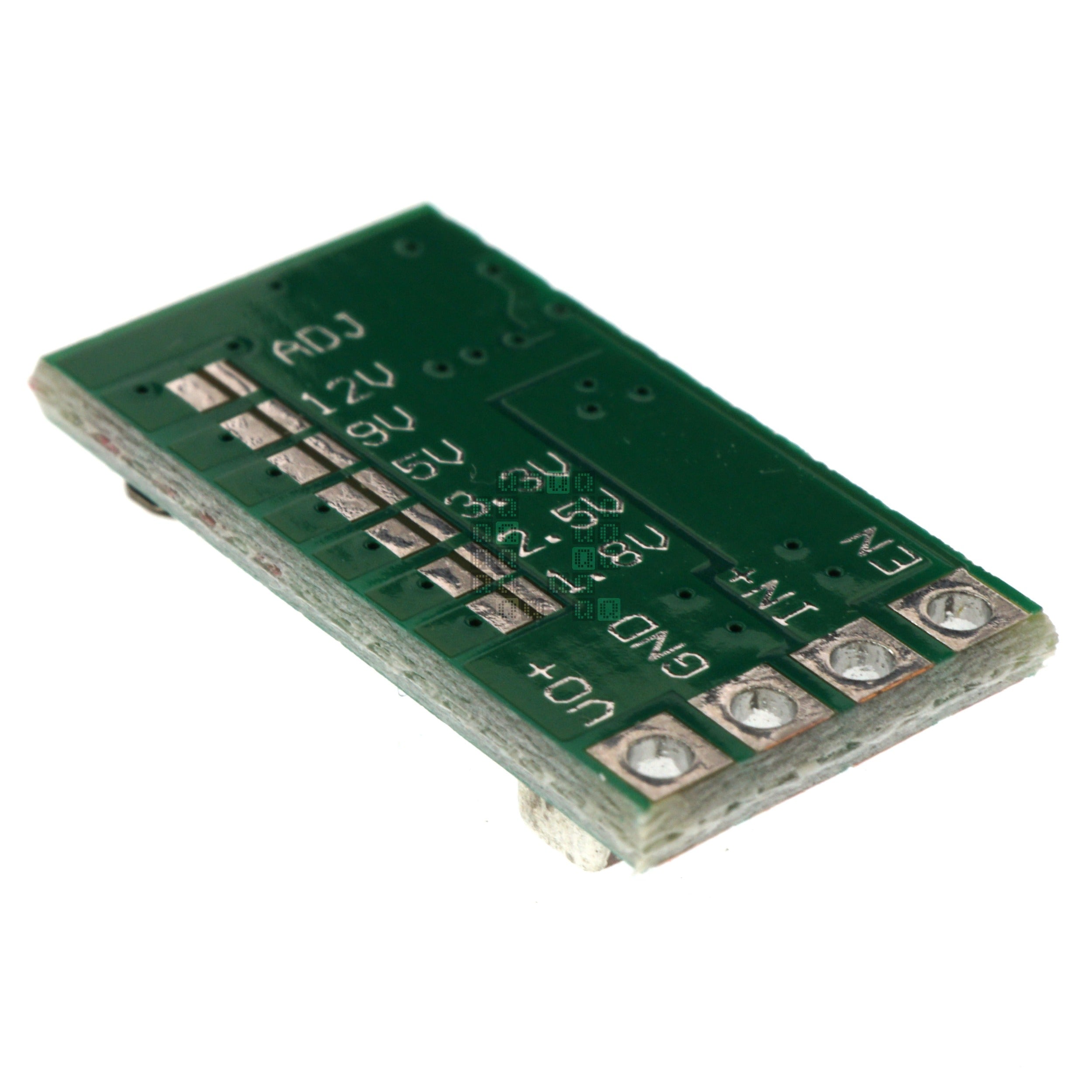

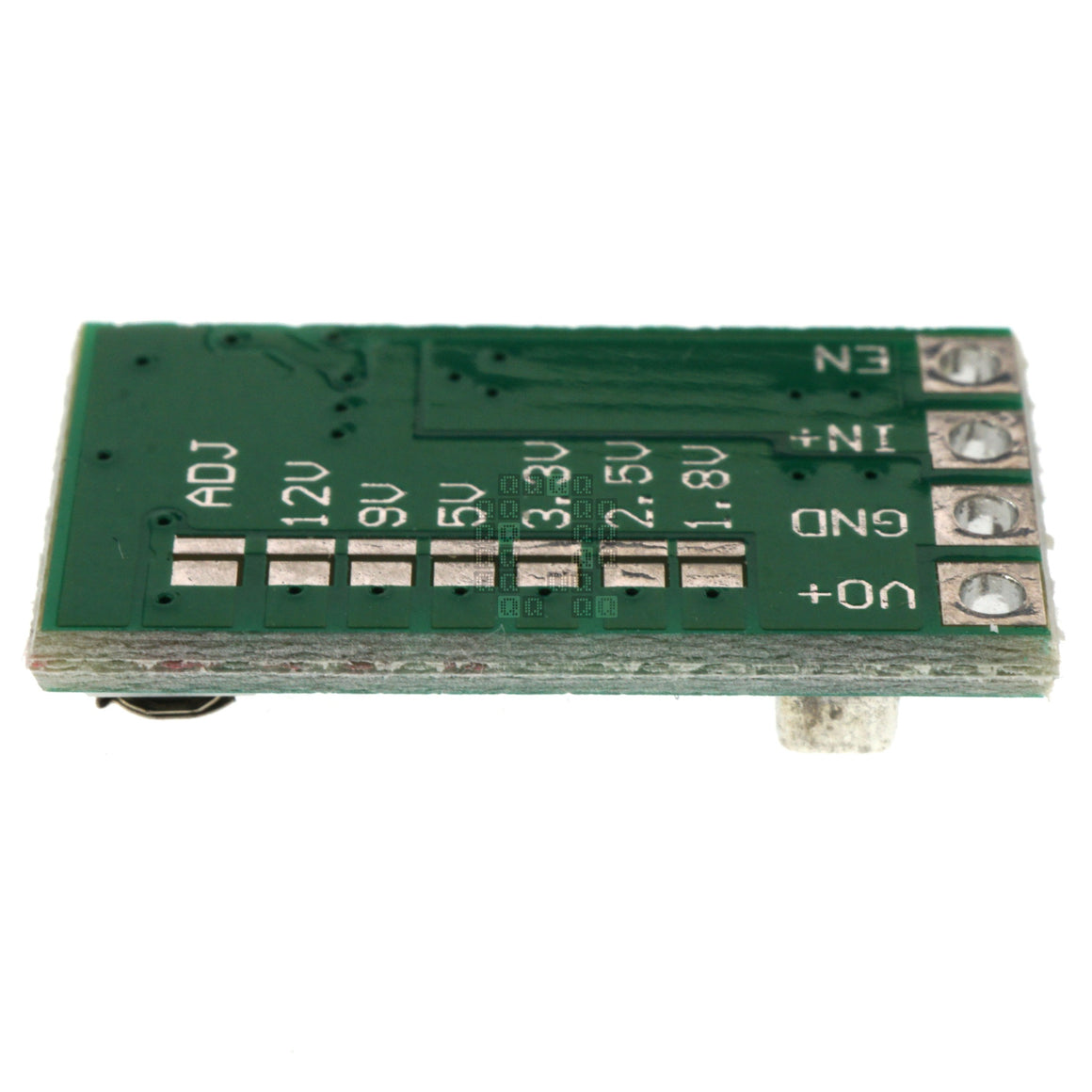

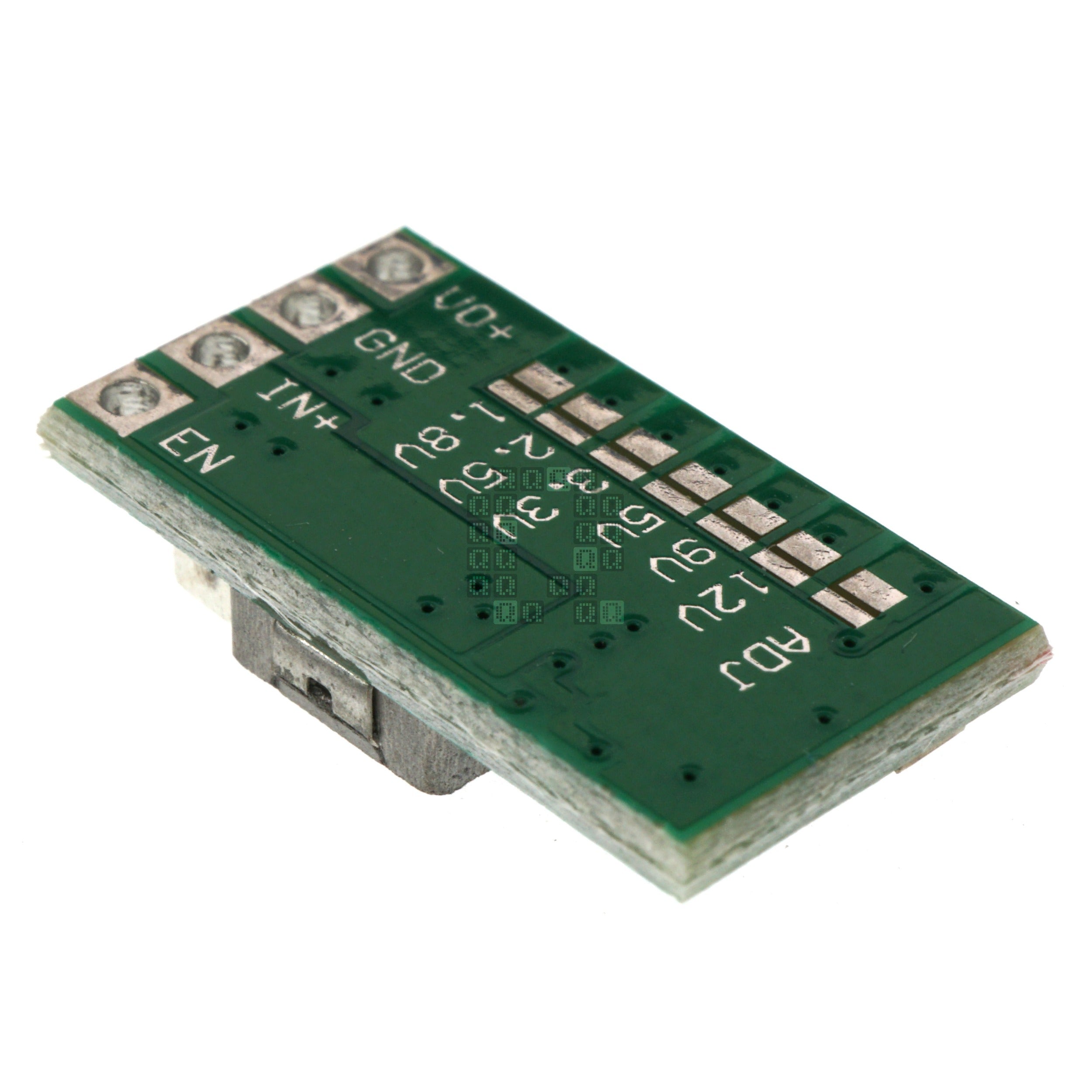

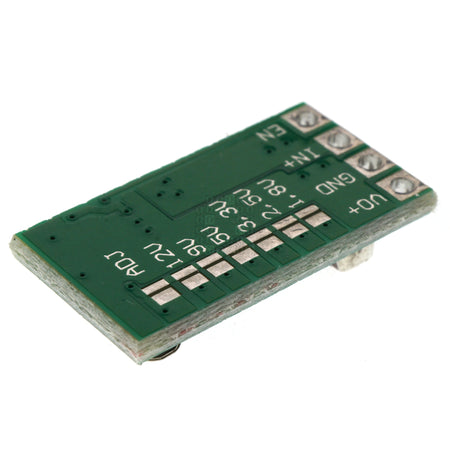

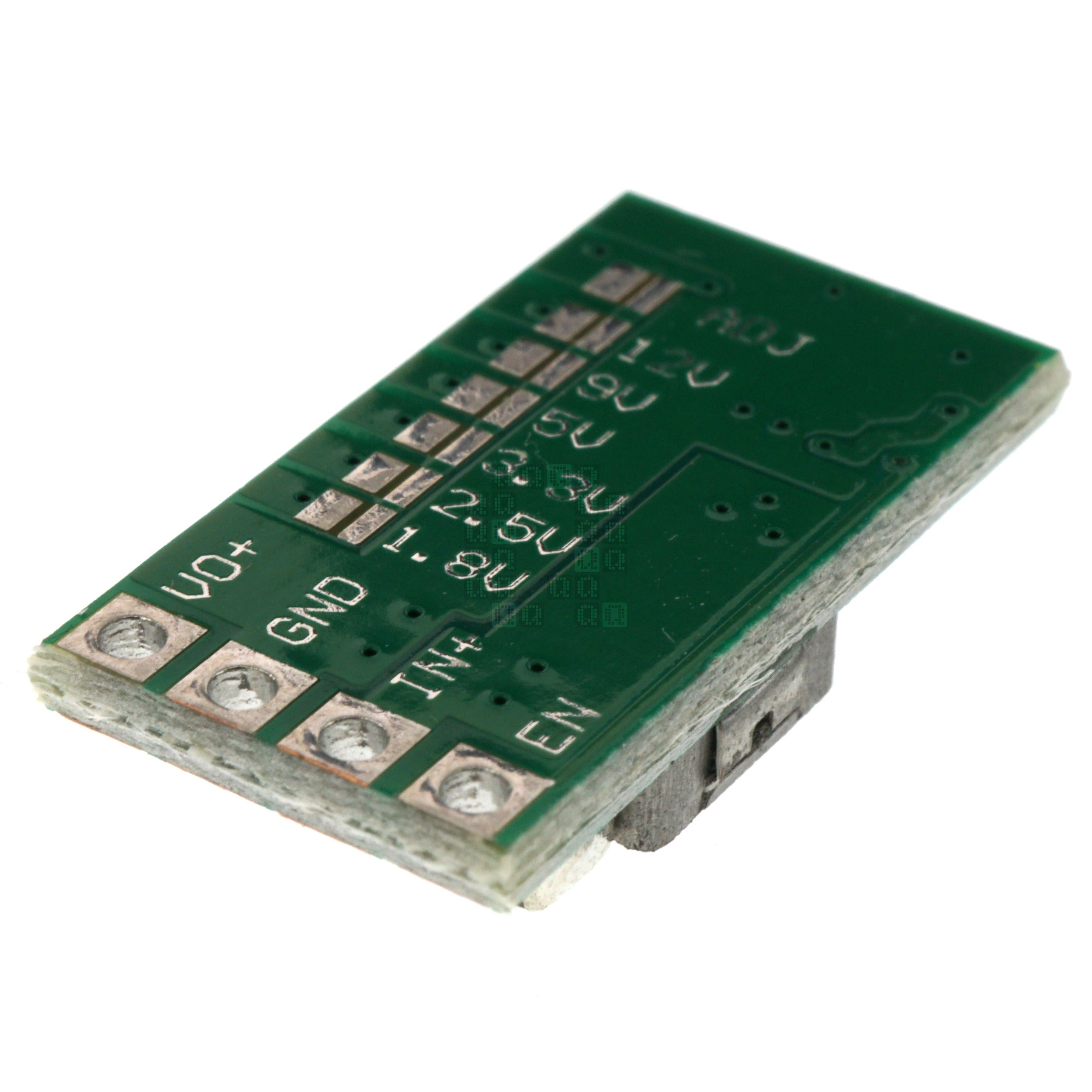

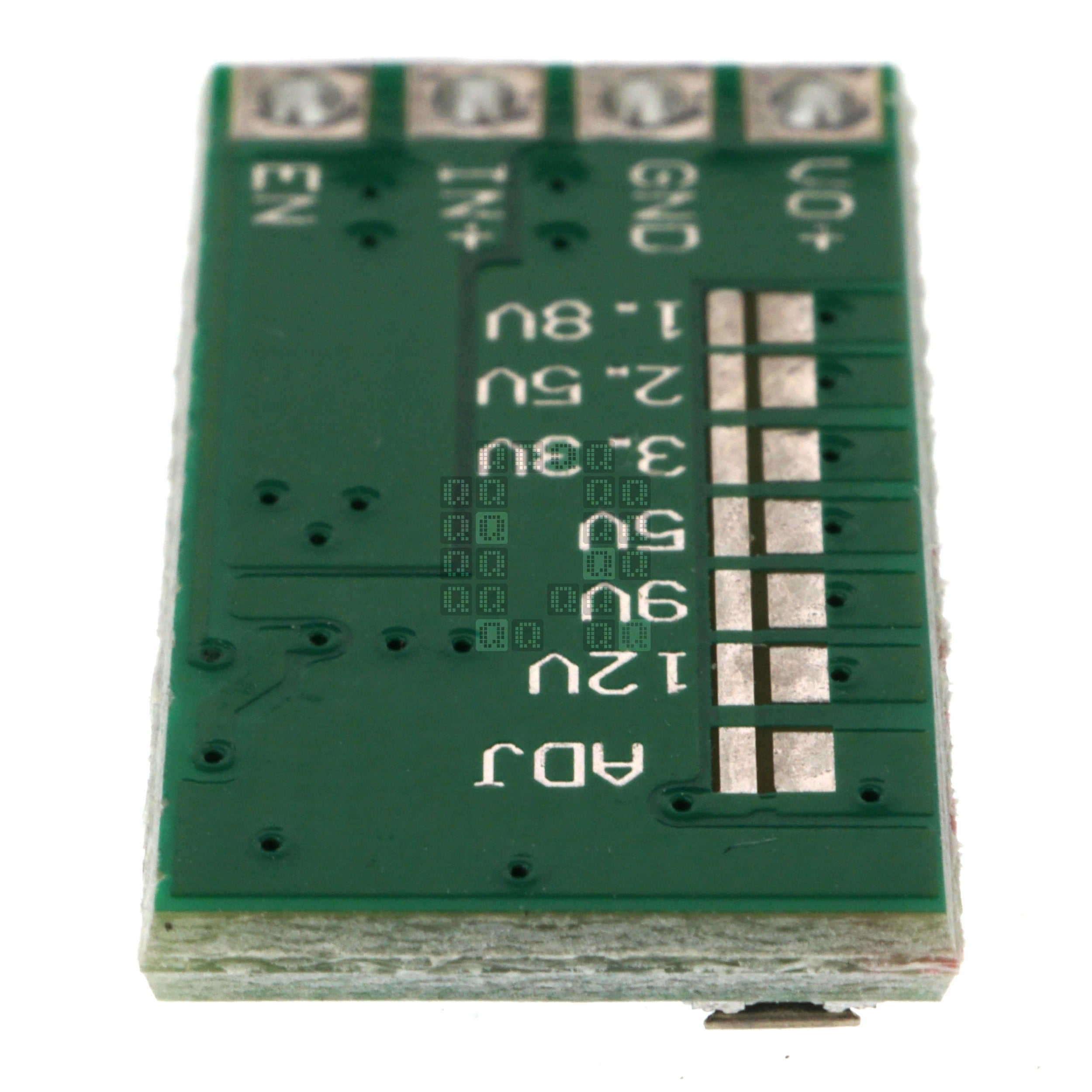

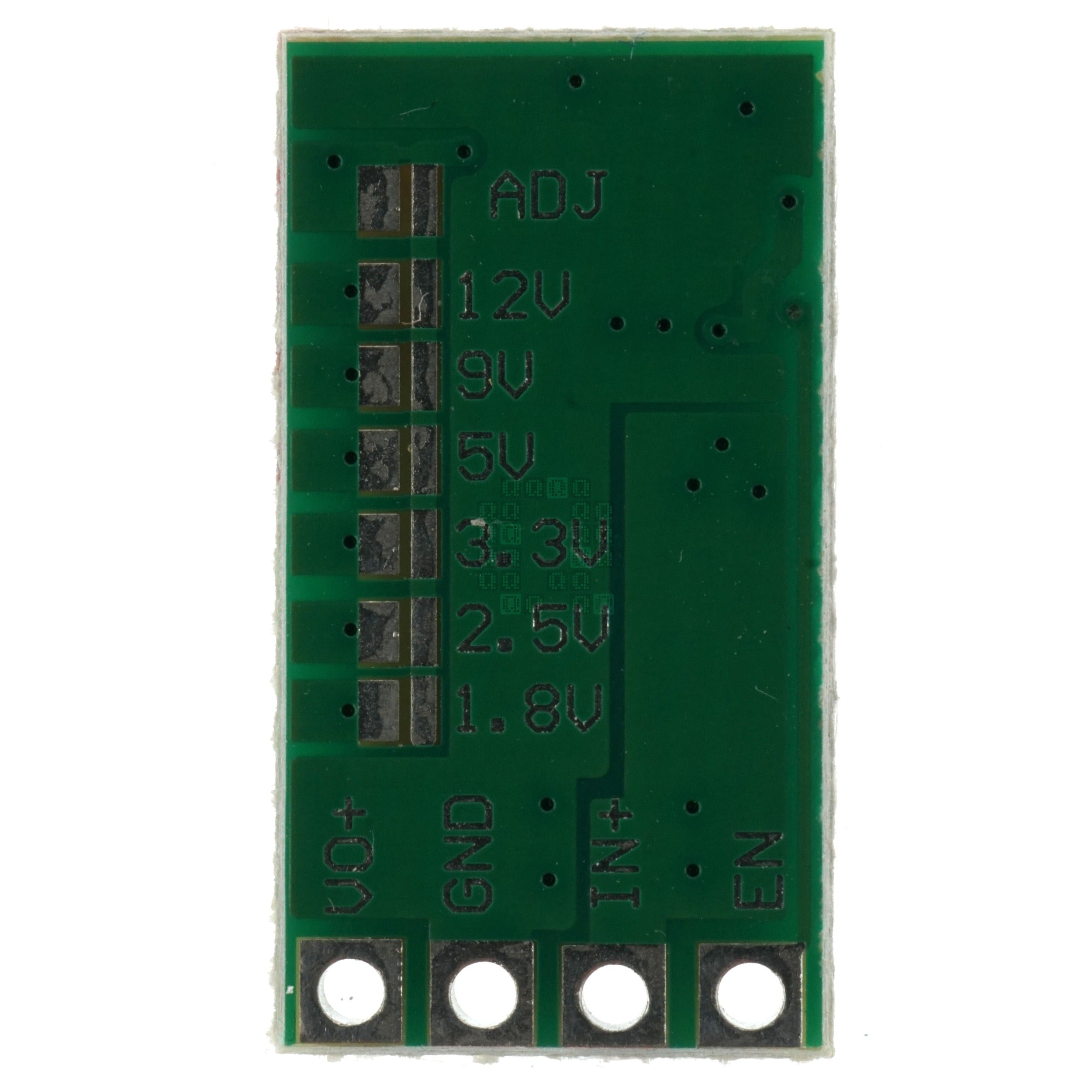

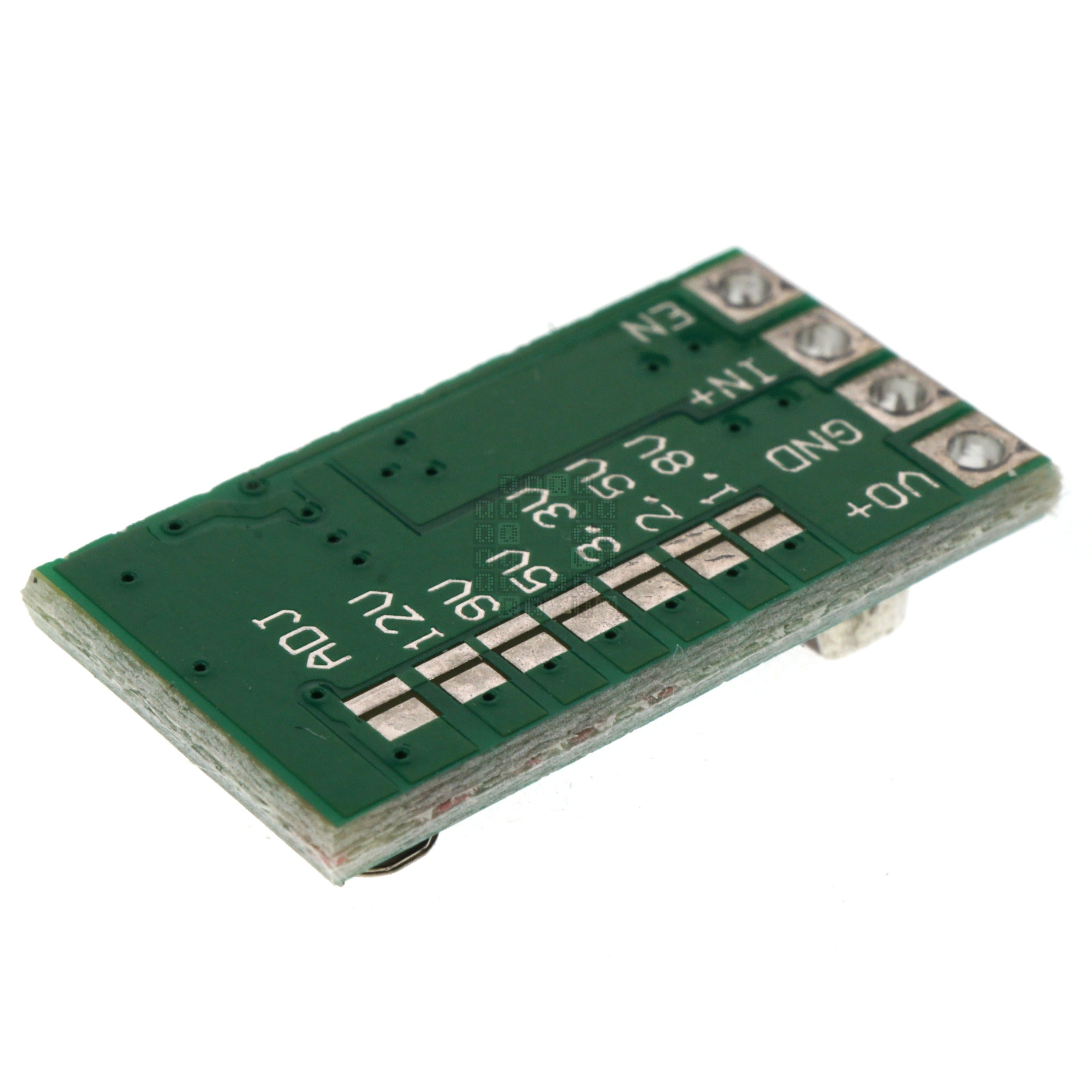

Selectable Voltages	1.8VDC 2.5VDC 3.3VDC 5VDC 9VDC 12VDC (default) Adjustable voltage by potentiometer
Output Power	3 Amps Peak 2.1A RMS
Type	Non-isolated Buck Converter

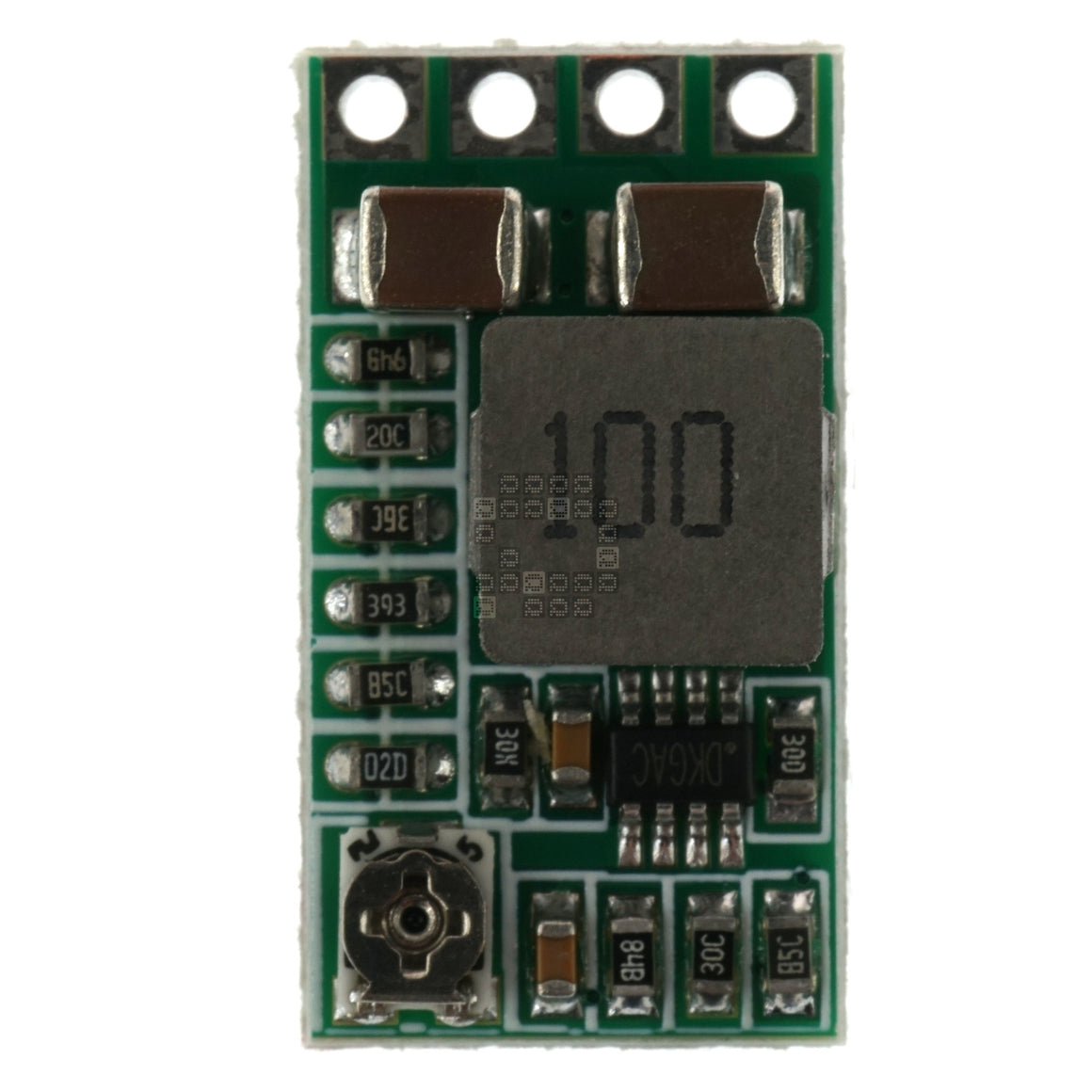

IC	8-Pin DKGAC
UPC
Country of Origin	China
Notes	New.
Location	59-02

Electrical
Amperage:

Battery System:

Contact Form:

Frequency:
Protection Type:

Terminal Type:

Voltage:

1.8VDC
2.5VDC
3.3VDC
5VDC
9VDC
12VDC
