Brand Vanguard
NGM
Manufacturer Part Number BC-108M-250
61B4D250108NCSX
Cross Reference (Fit/Form/Function)
Capacitance 108-130 uF
Working Voltage 220-250 VAC
Frequency 50/60 Hz
Power Factor 10% Max
after applying working voltage for 4 seconds
Working Temperature Range -40°C to +65°C
-40°F to +149°F
Type Start Capacitor
Aluminum, Non-Polorized

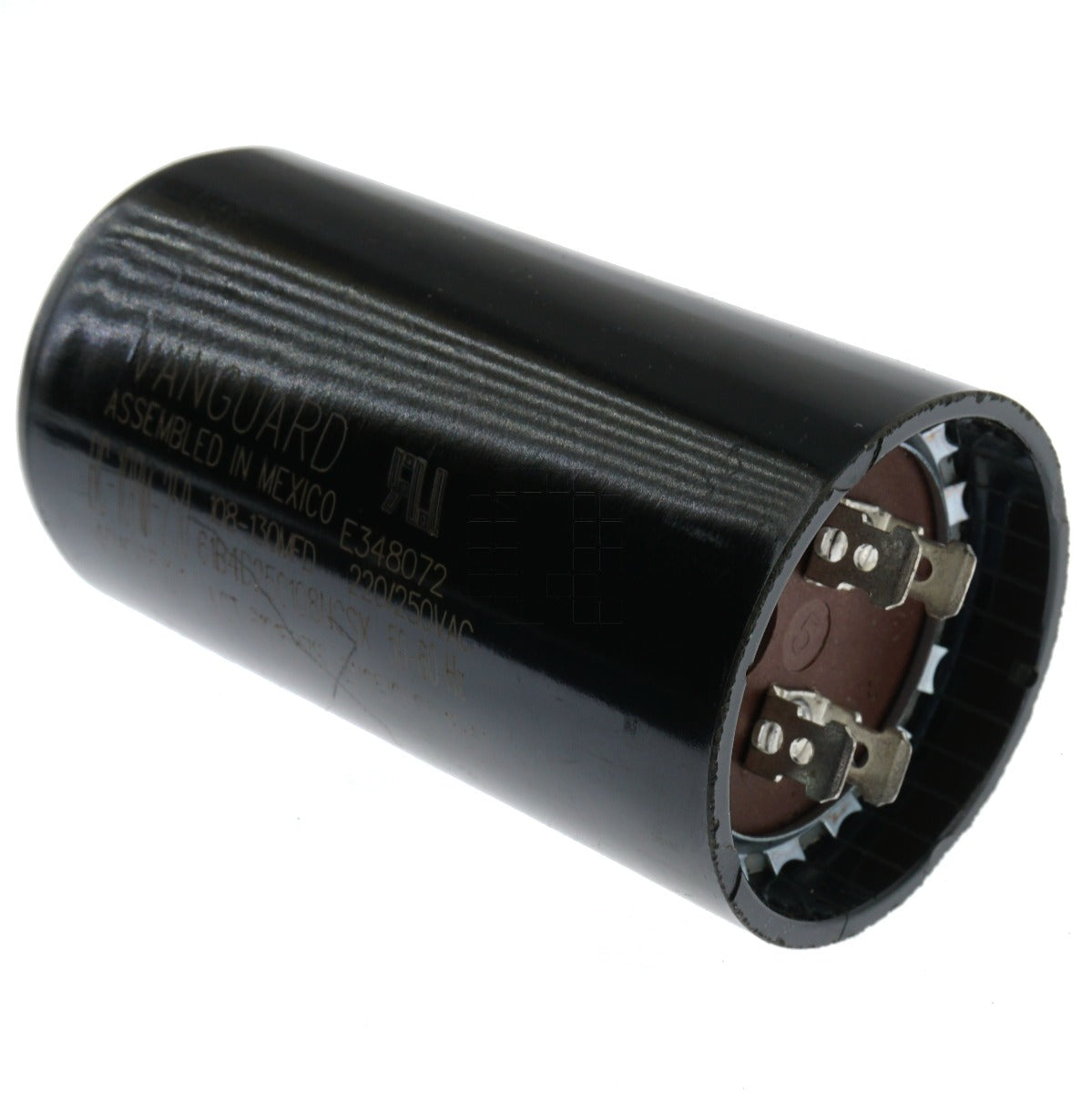

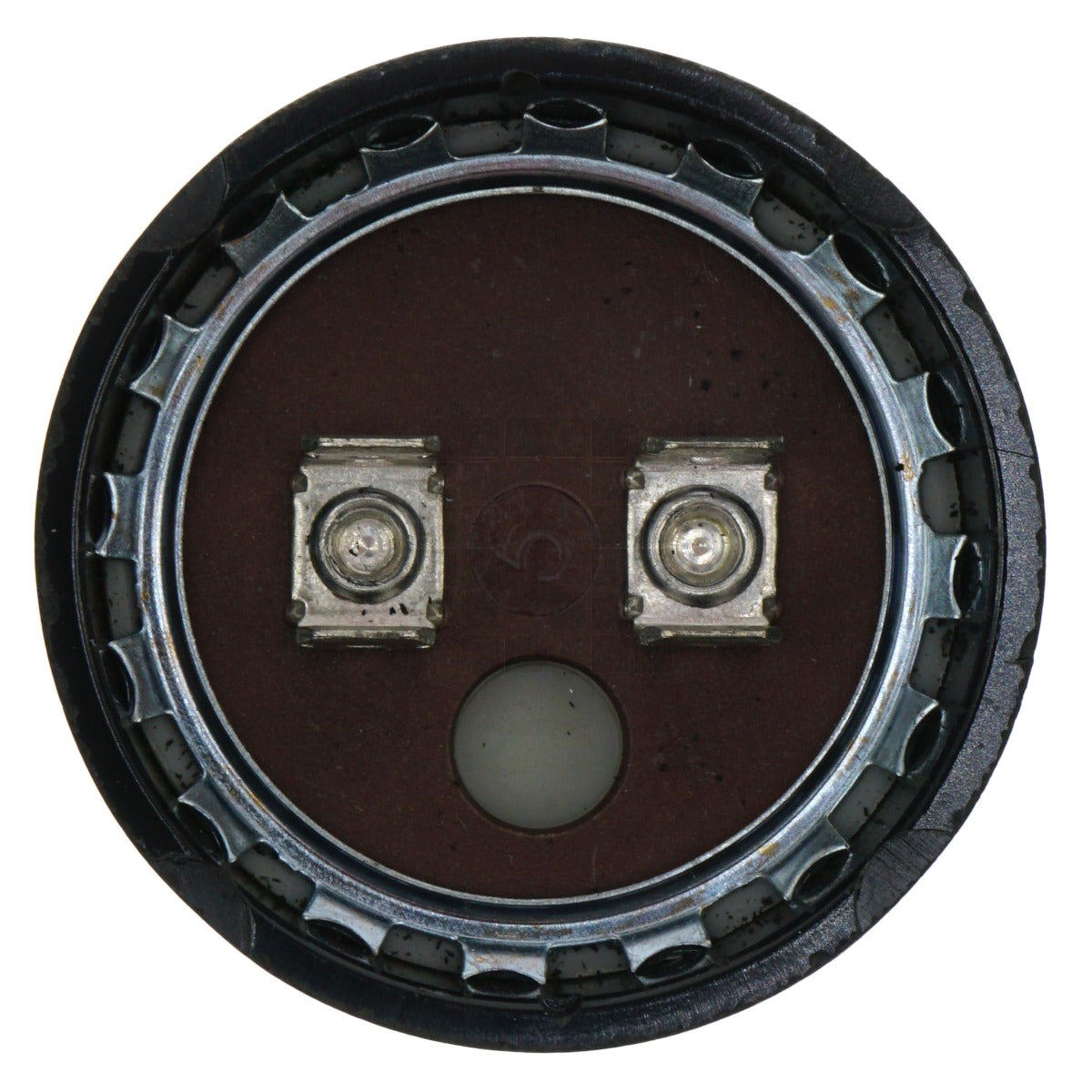

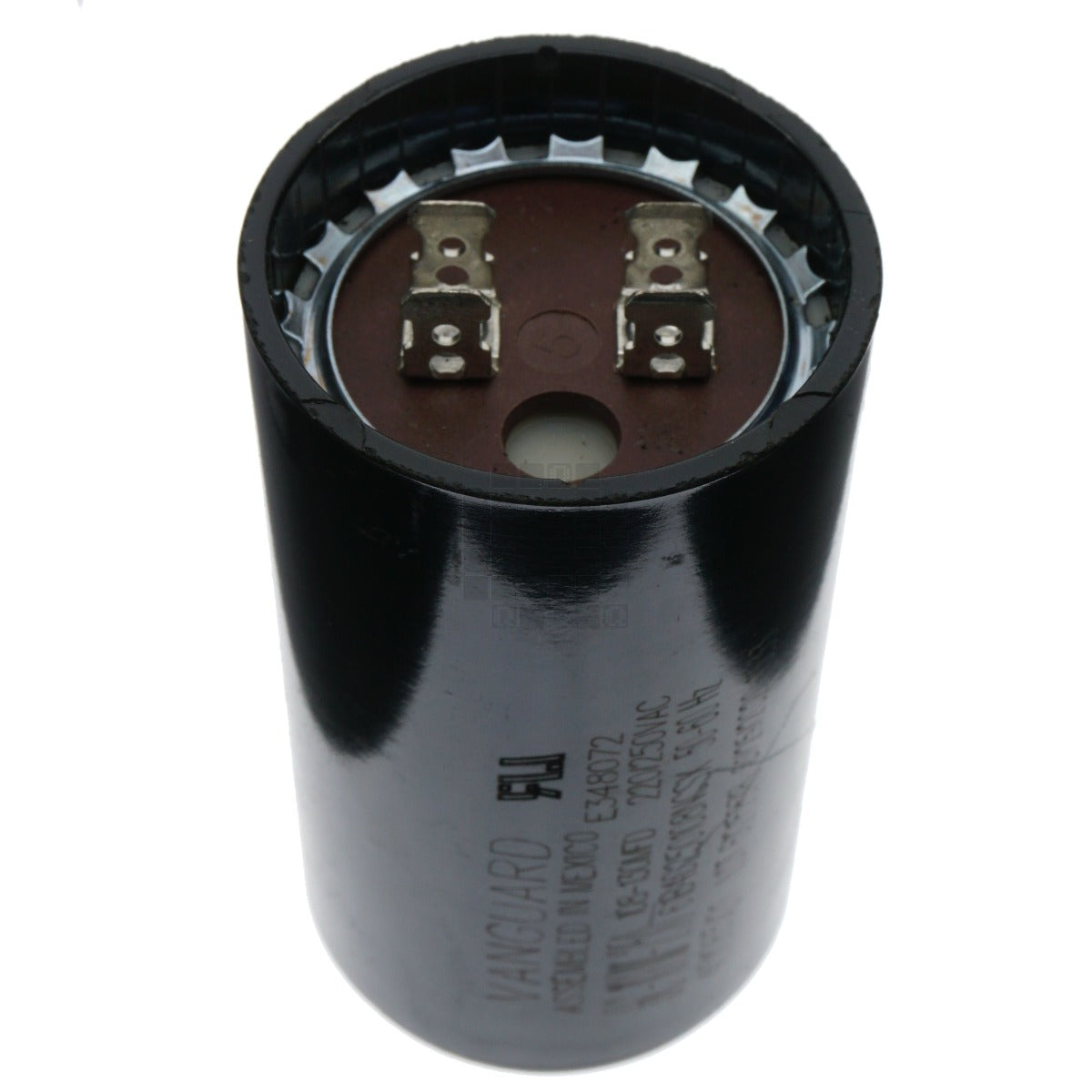

Connection 2 Posts
Two 1/4” male spade terminals on each post
Resistor None
Construction Phenolic Case
Certifications/Approvals UL Approved
Performance Specifications Type 2
Case Code 4
Distance Between Terminals 0.63"
16mm
UPC None
Product Origin (COO) Mexico

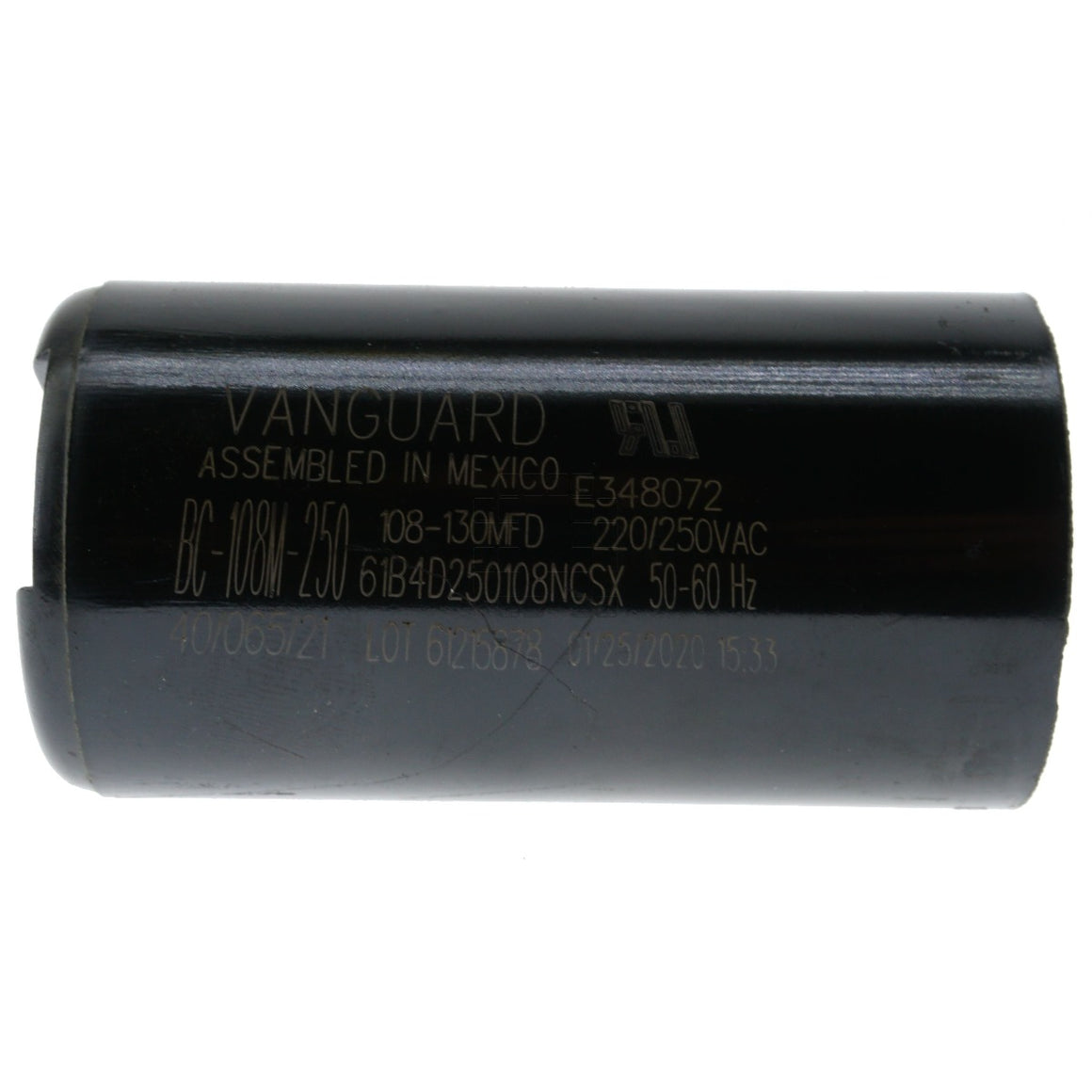

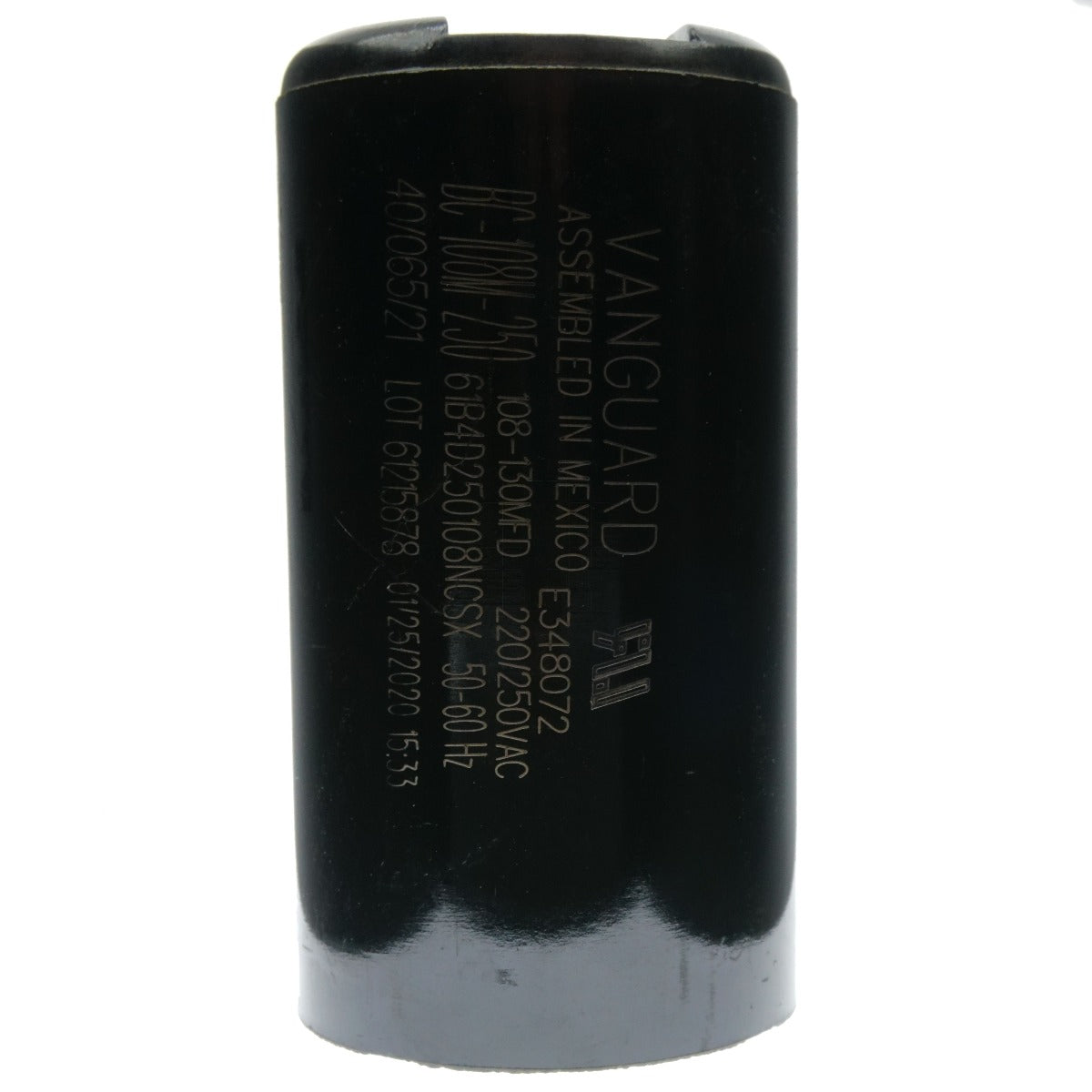

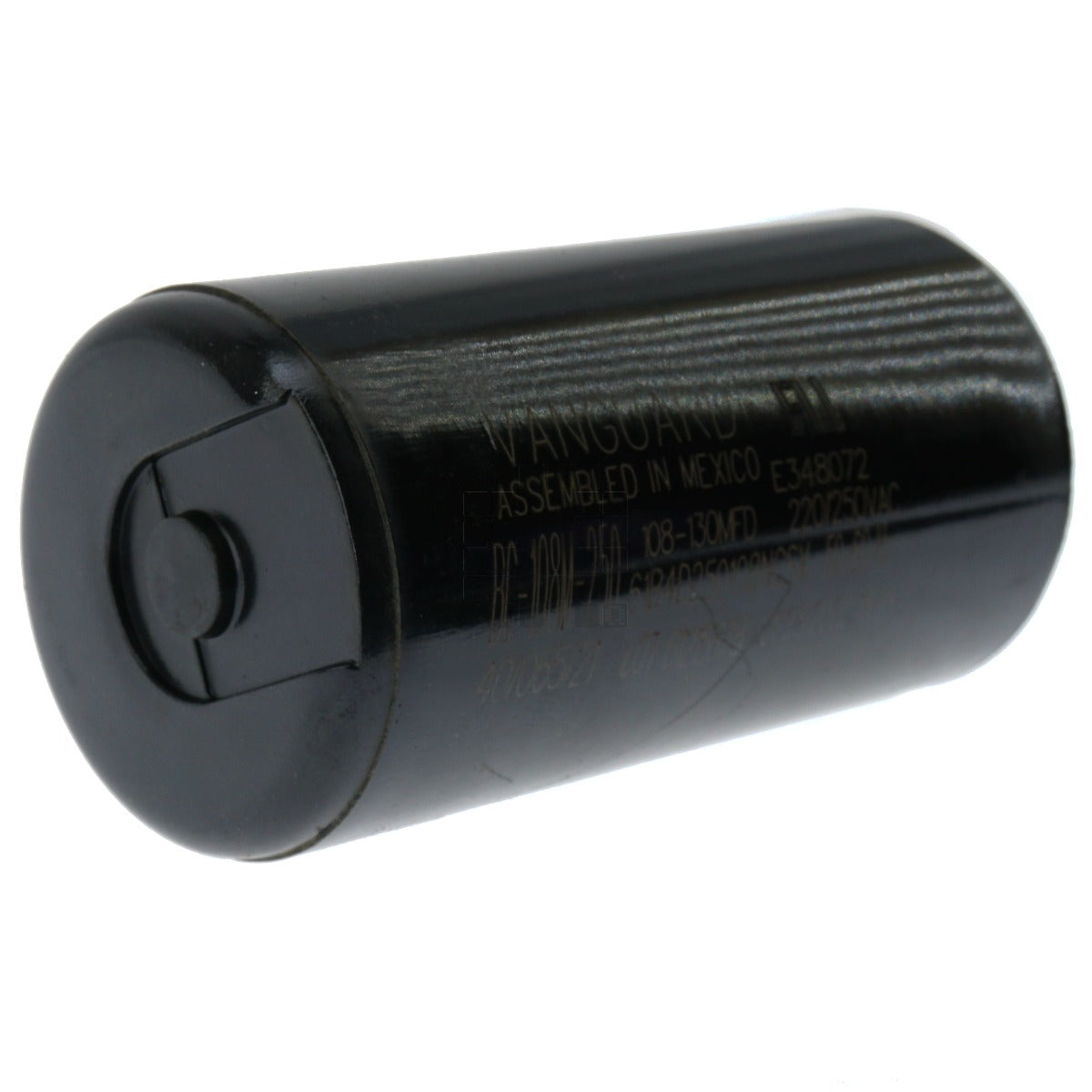

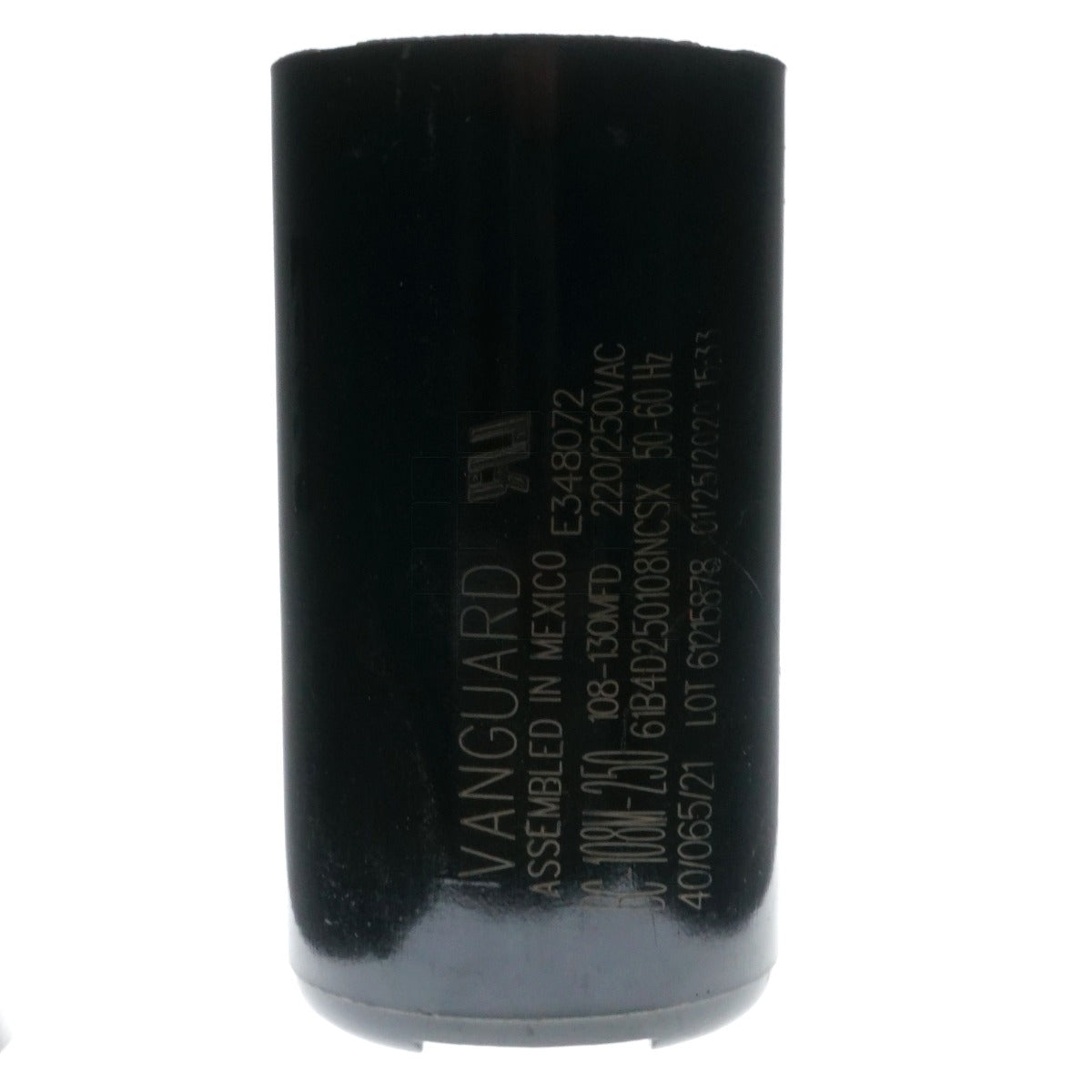

Product Label Vanguard
Assembled in Mexico

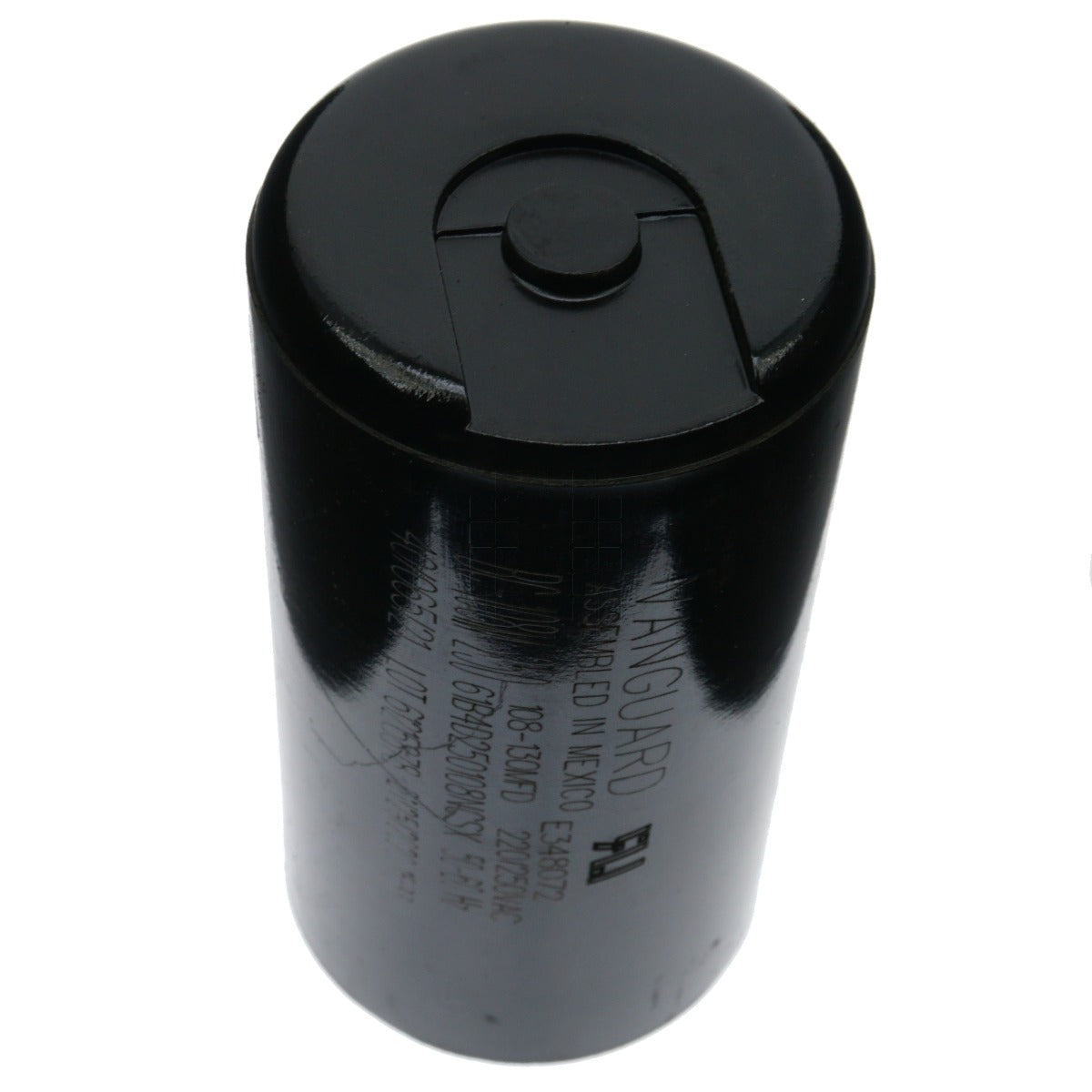

BC-108M-250 108-130MFD 220/250VAC
61B4D2500108NCSX 50-60Hz

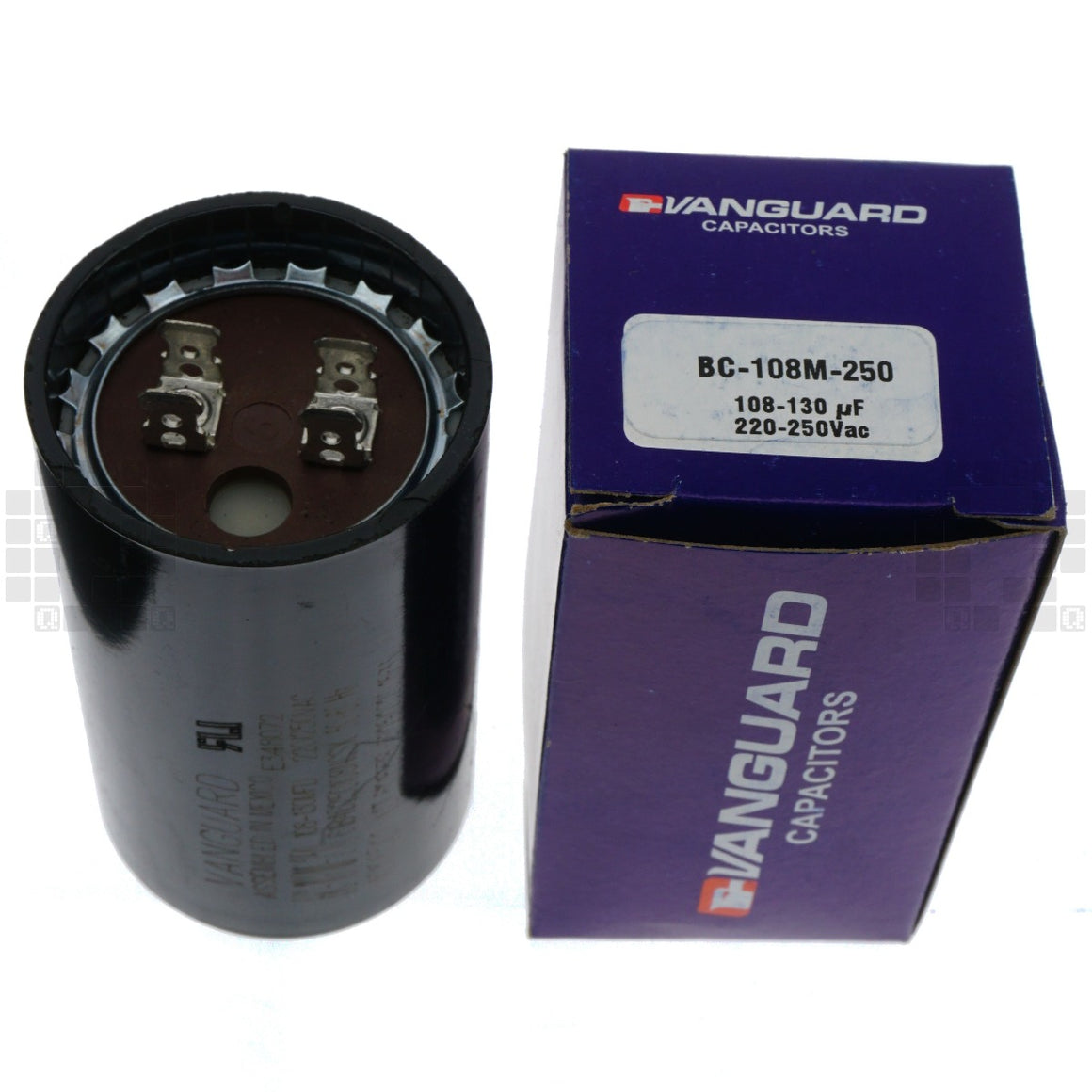

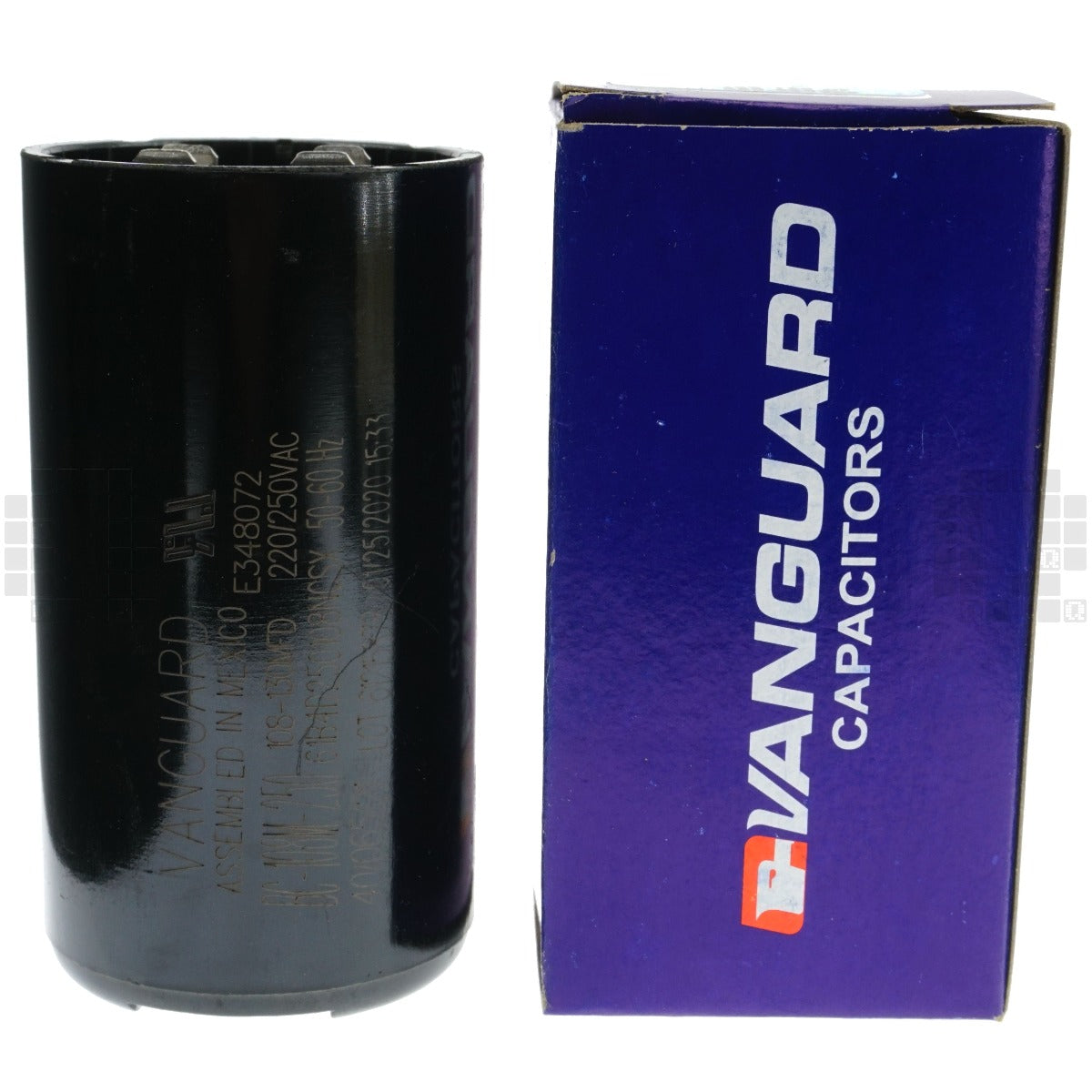

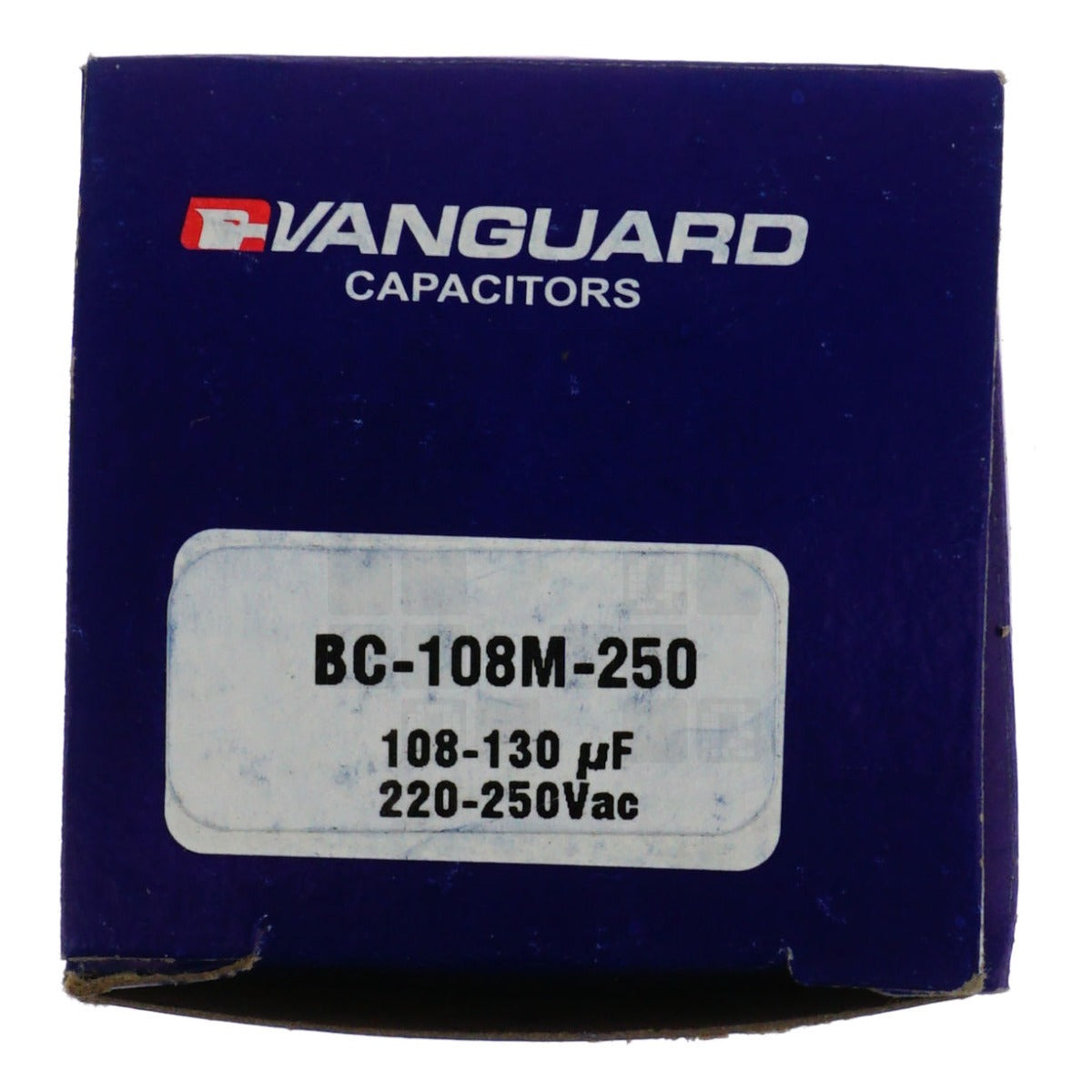

Package Label Vanguard Capacitors
BC-108M-250
108-130 uF
220-250VAC
Notes
Location
Product Color Black
Product Shape Cylinder
Product Dimensions 1.812" Diameter
3.375" High
Product Weight 5 oz
Package Dimensions (LxWxH) 1.85" x 1.85" x 3.50" Inches
Package Weight 5 oz
