Product Specifications :

Brand Vanguard
Manufacturer Part Number BC-124M-165
61B2D160124NC
61B2D160124NCSX
Cross Reference (Fit/Form/Function)
Capacitance 124-149 uF
Working Voltage 165VAC
Frequency 50/60 Hz
Working Temperature Range -40°C to +65°C
-40°F to +149°F
Type Start Capacitor

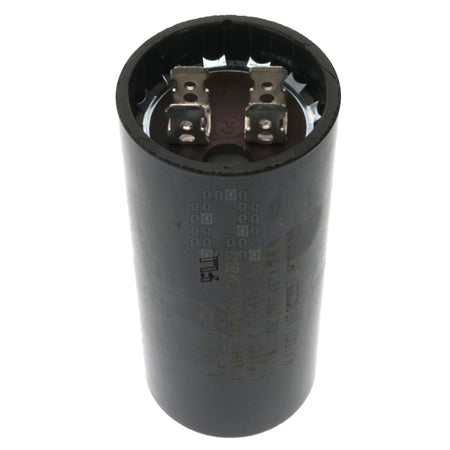

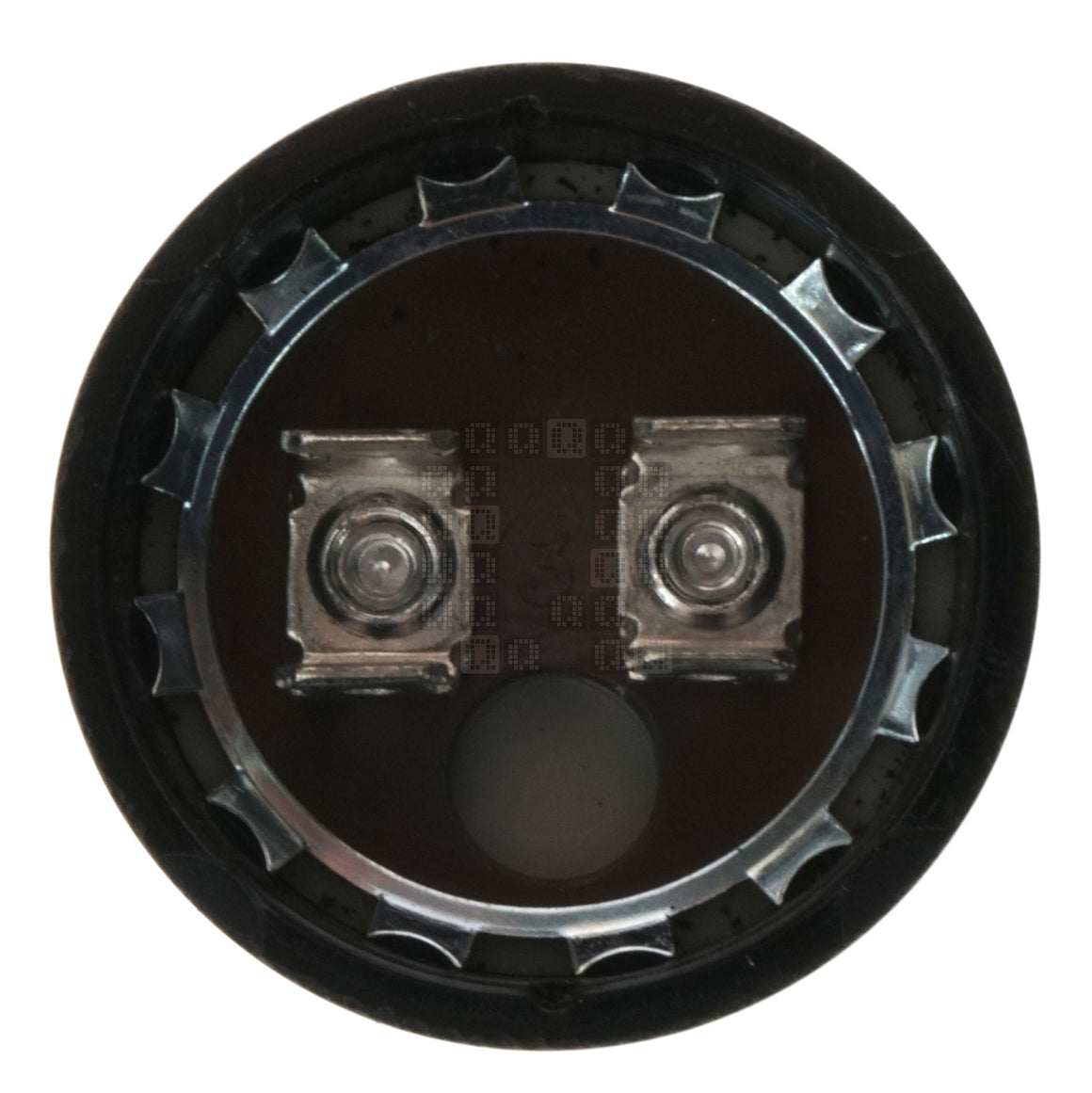

Connection 2 Posts
Two 1/4” male spade terminals on each post
Resistor None
Construction Phenolic Plastic Case
Certifications/Approvals UL Approved
UPC None
Product Origin (COO) Mexico

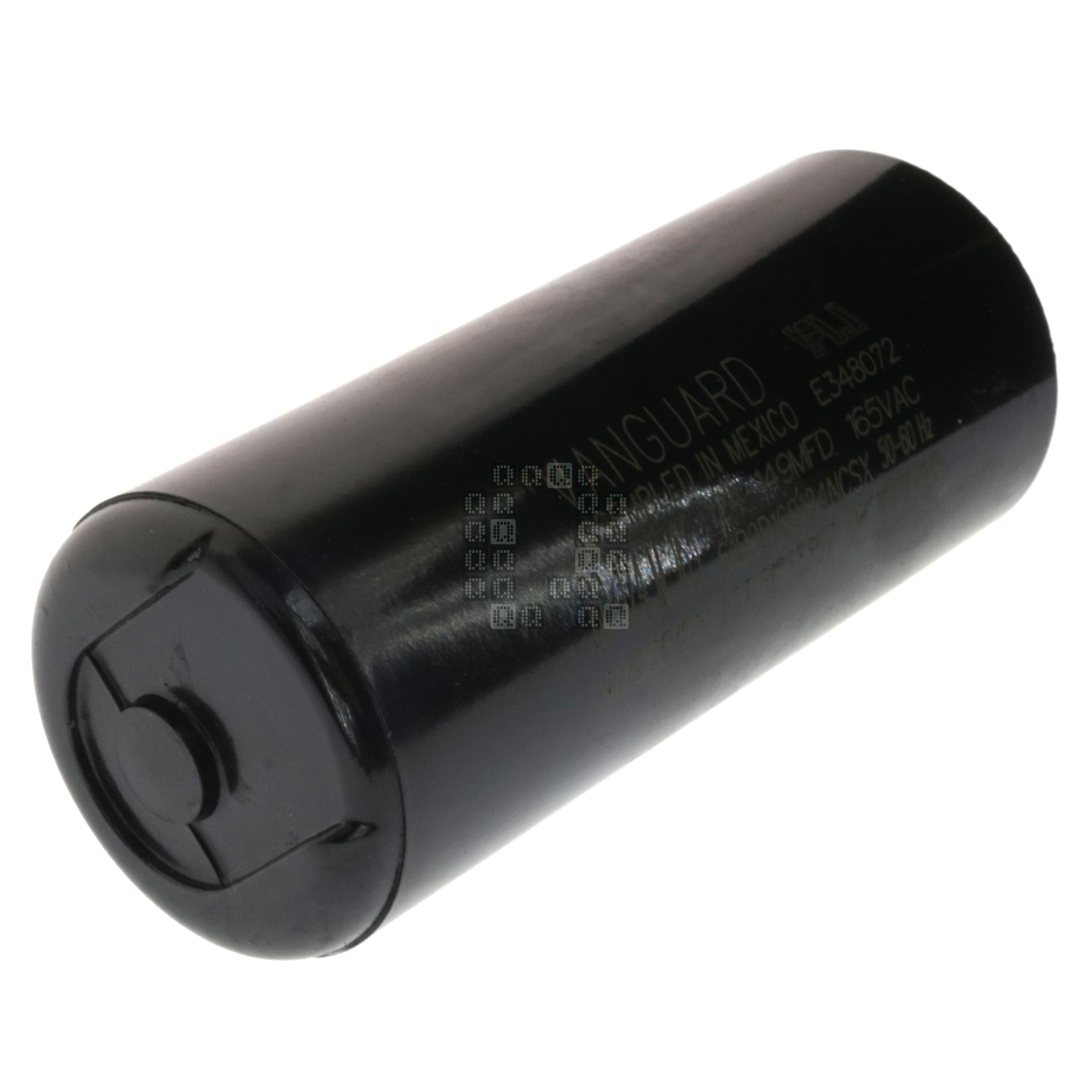

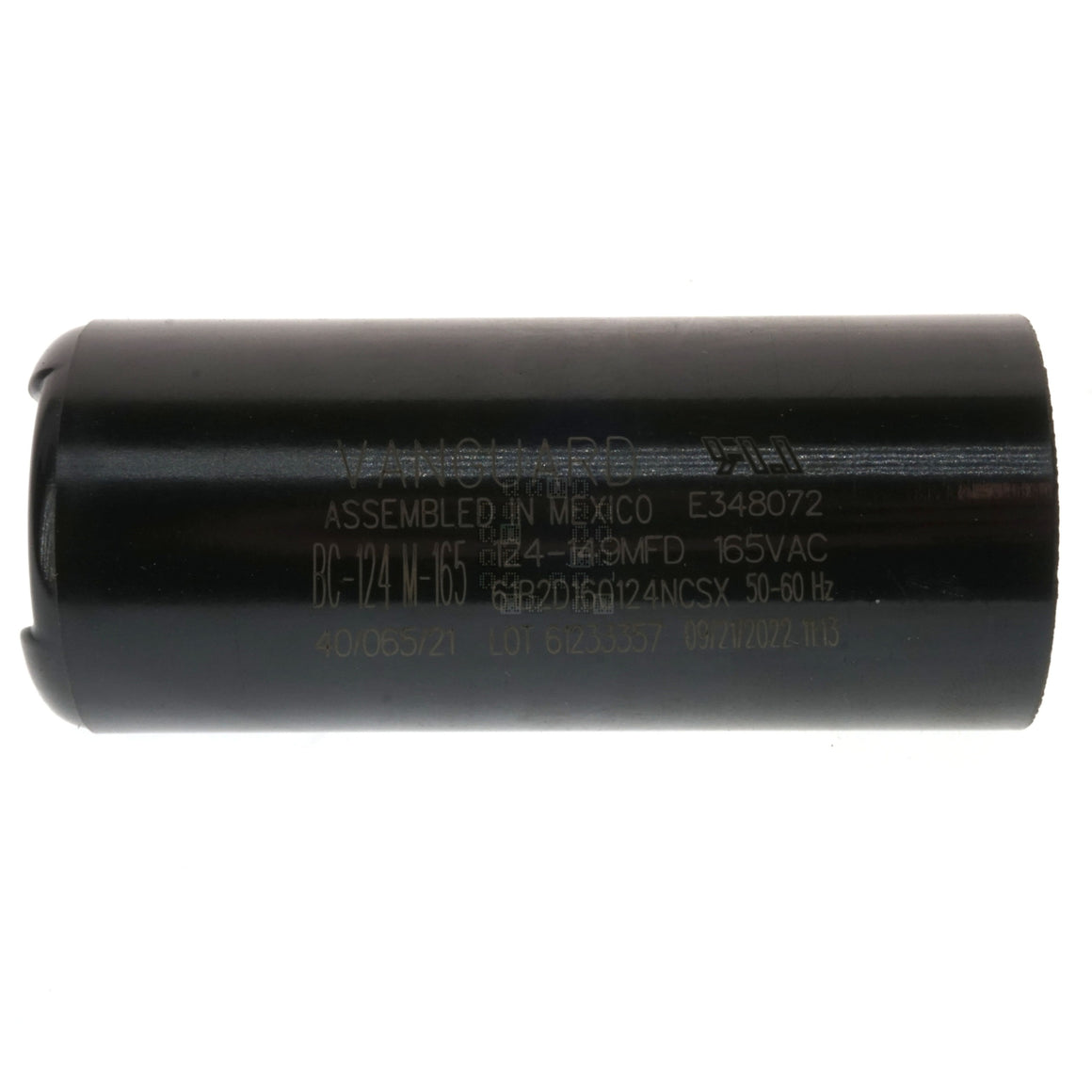

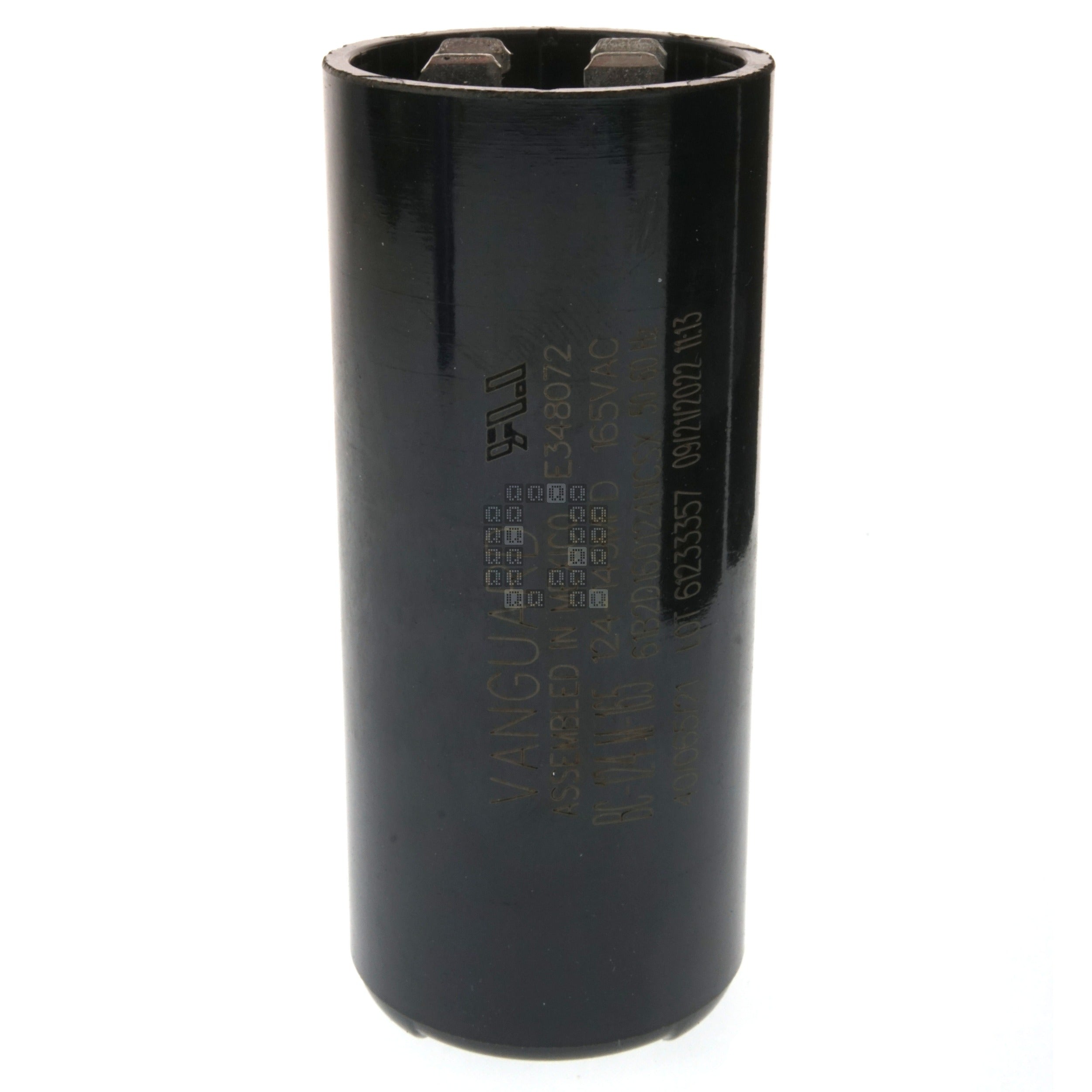

Product Label Vanguard Assembled in Mexico
BC-124M-165 124-149MFD 165VAC
61B2D160124NCSX 50/60Hz

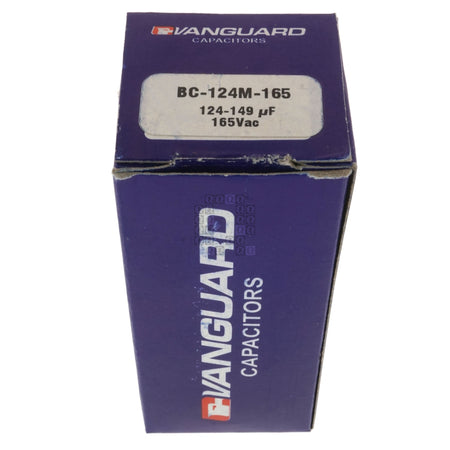

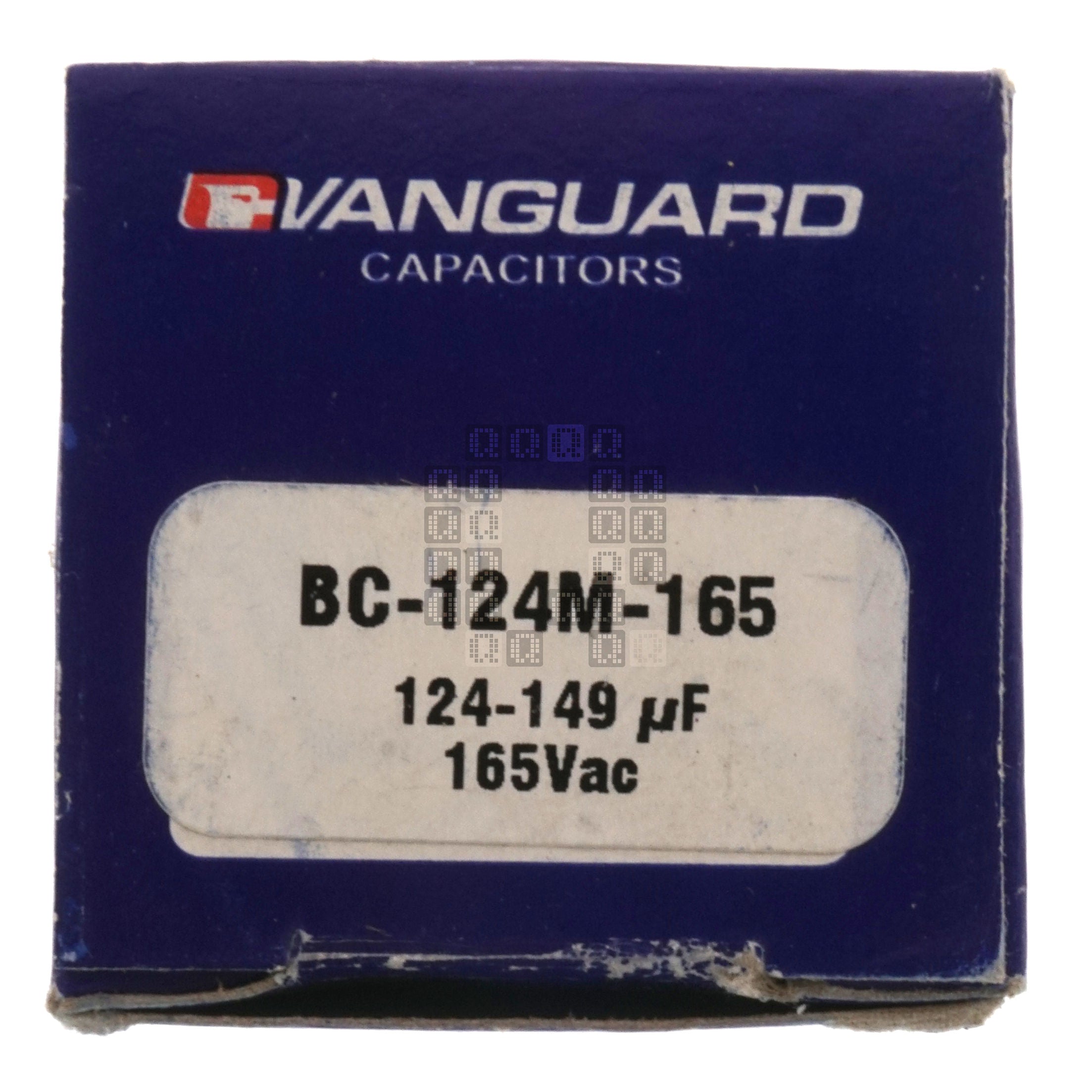

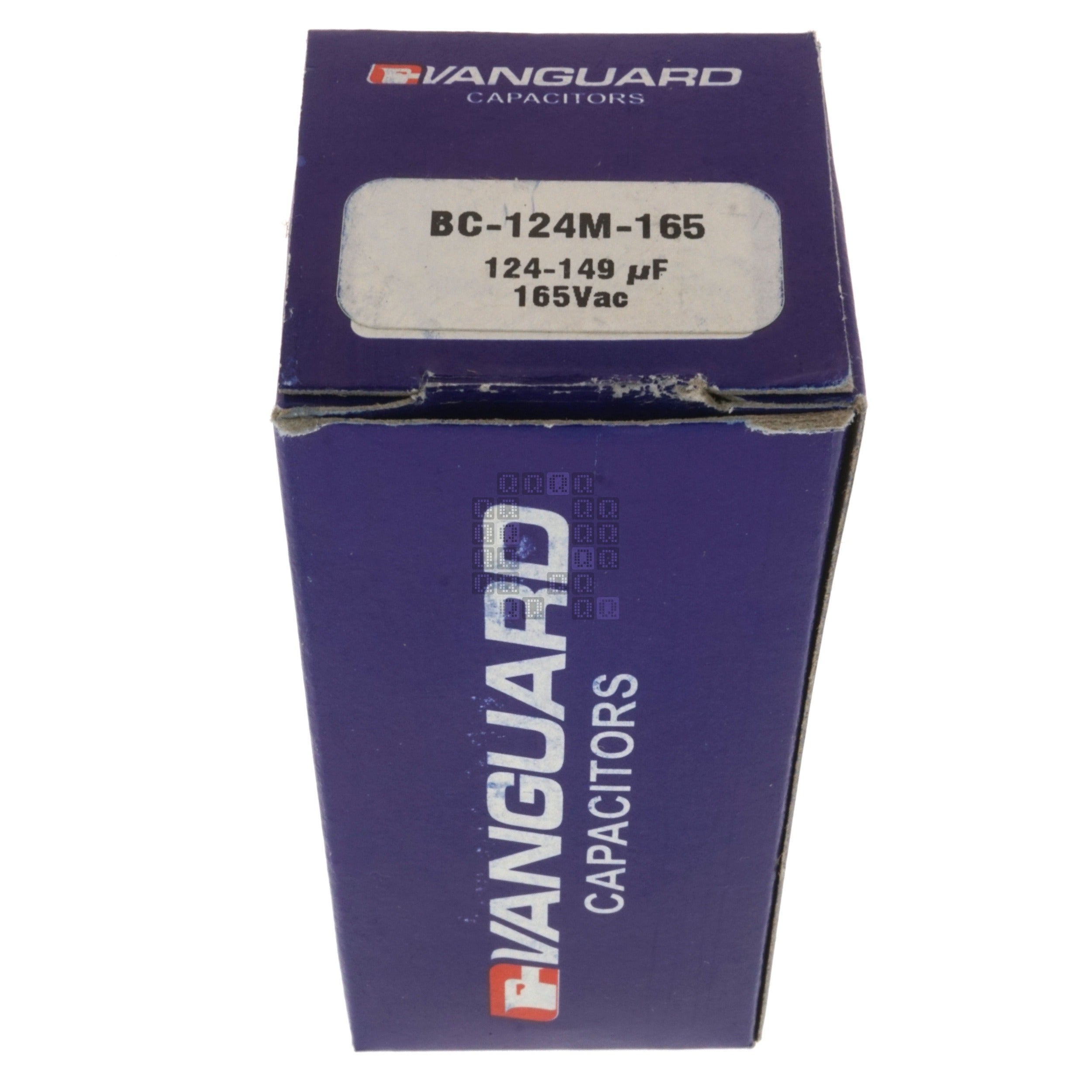

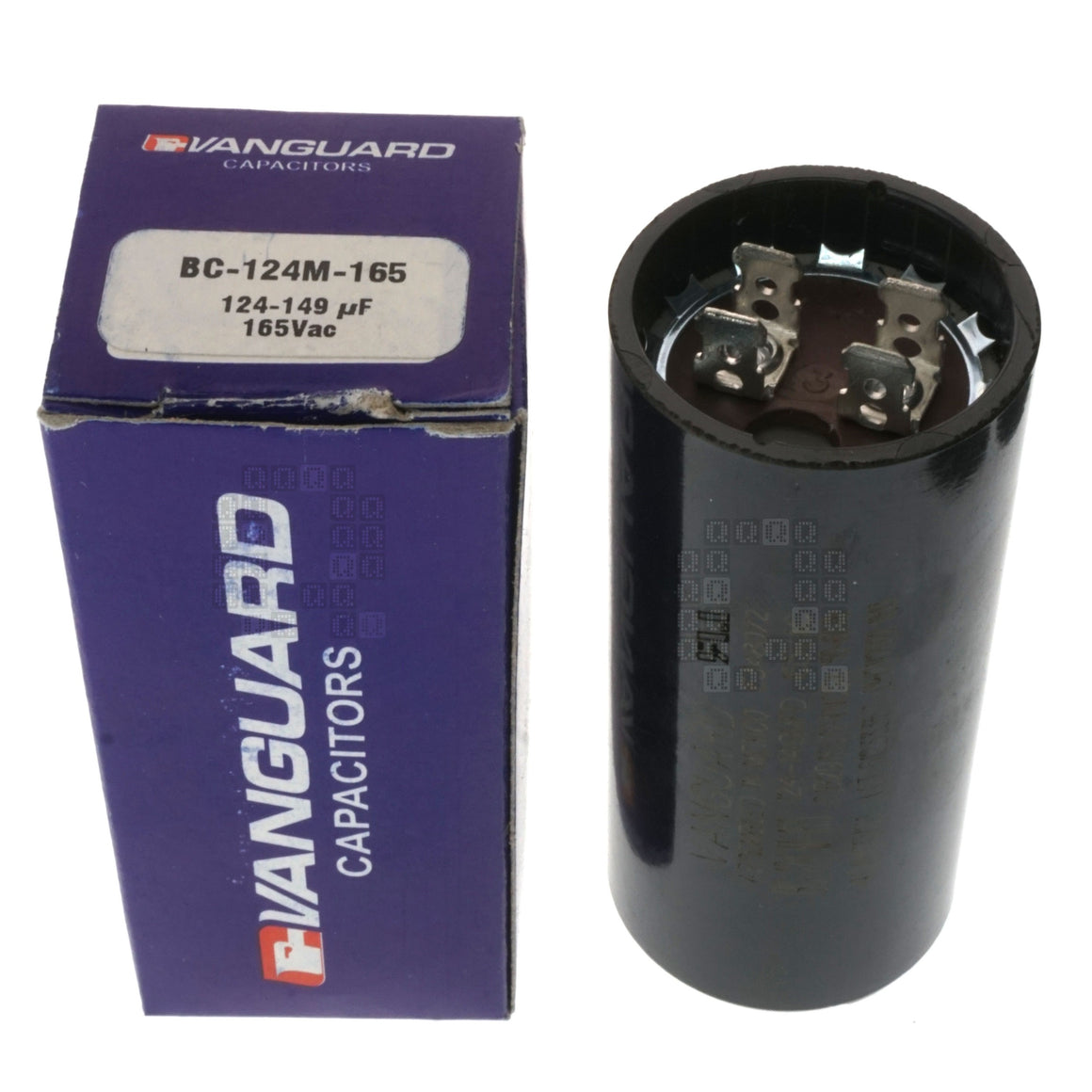

Package Label BC-124M-165
124-149 uF
165VAC
Notes

Dimensions & Weights :

Product Color Black
Product Shape Cylinder
Product Dimensions 1.437" Diameter
3.375" High
Product Weight 5 oz
0.15 kg
Package Dimensions (LxWxH) 1.53" x 1.53" x 3.5" Inches
Package Weight 6 oz
0.17 kg
