Brand Vanguard
manufactured by NGM
Manufacturer Part Number BC-130M-250
61B4D250130NC
61B4D250130NCSX
Cross Reference (Fit/Form/Function)
Capacitance 130 - 156 uF
Working Voltage 220 - 250 VAC
Frequency 50/60 Hz
Power Factor 10% Max
after applying working voltage for 4 seconds
Working Temperature Range -40°C to +65°C
-40°F to +149°F
Type Start Capacitor
Aluminum Electrolytic, Non-Polarized

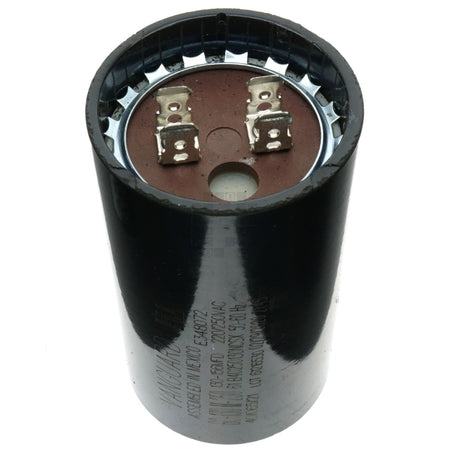

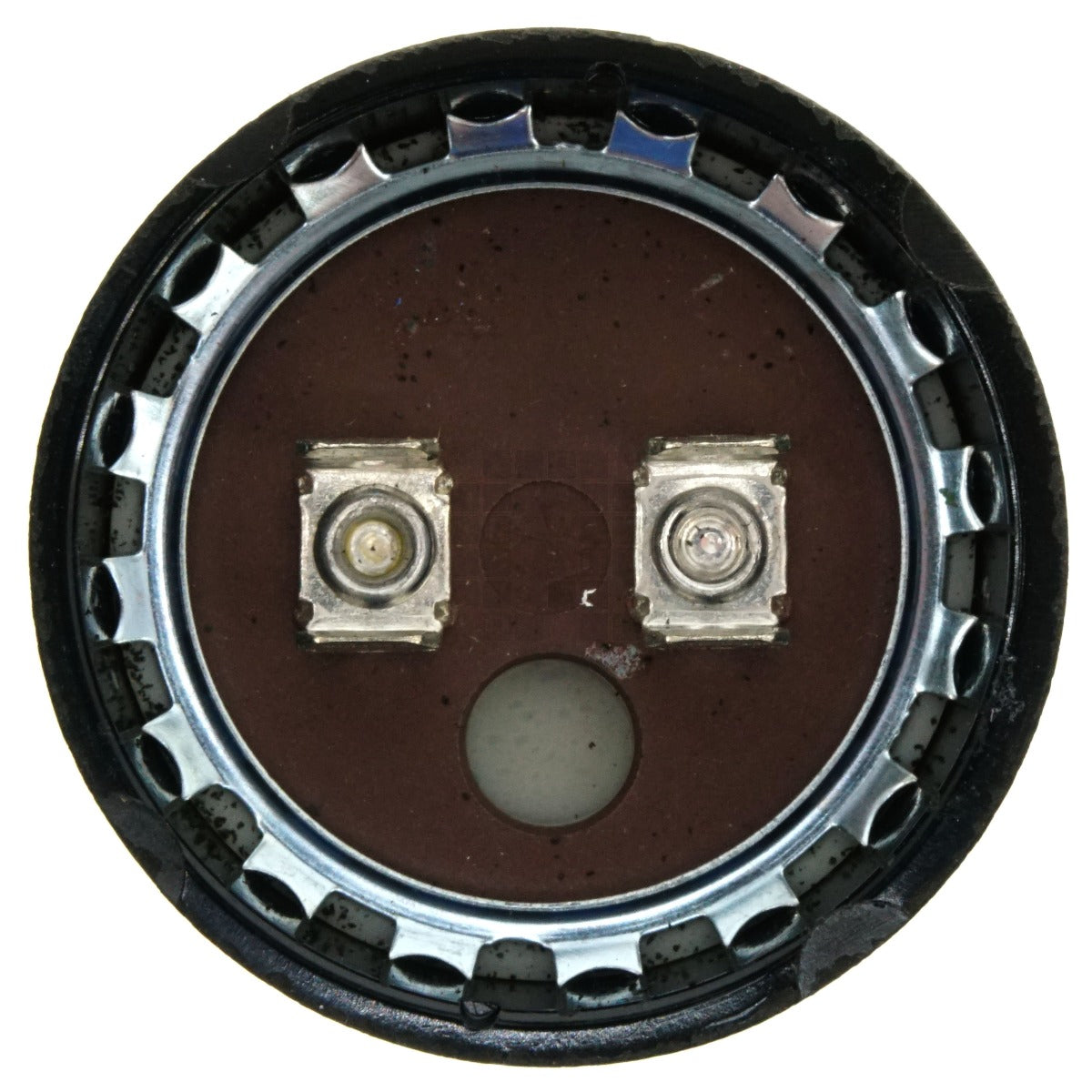

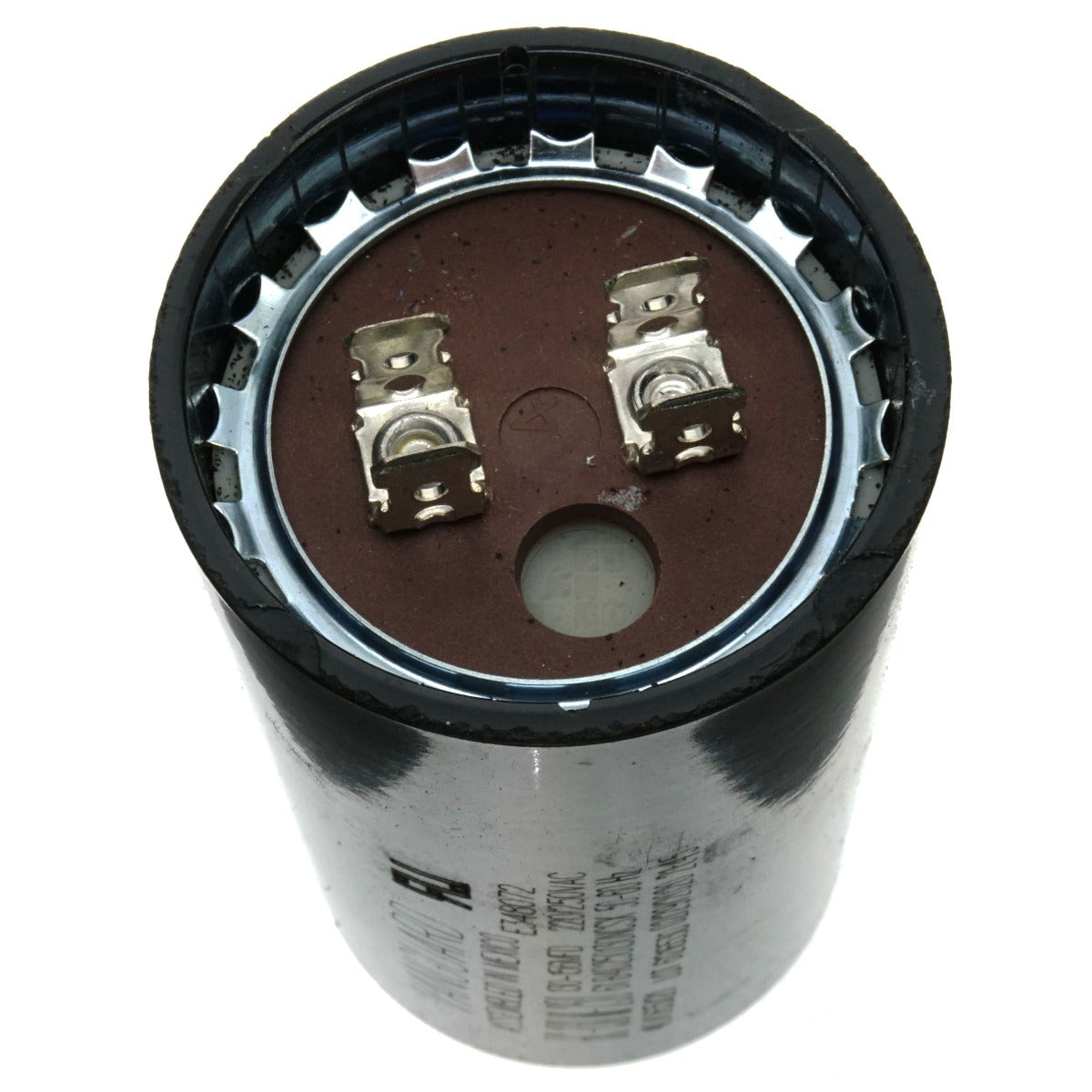

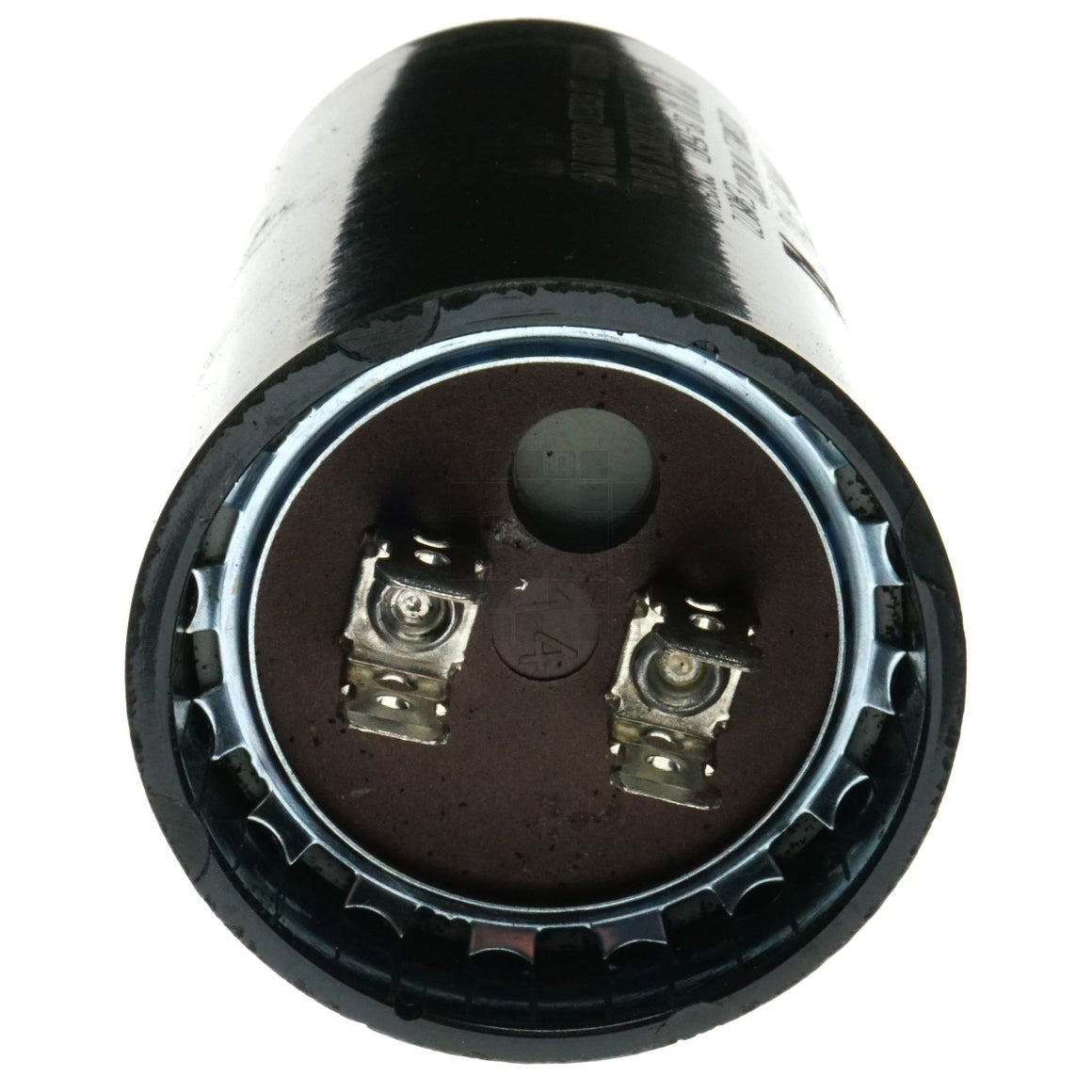

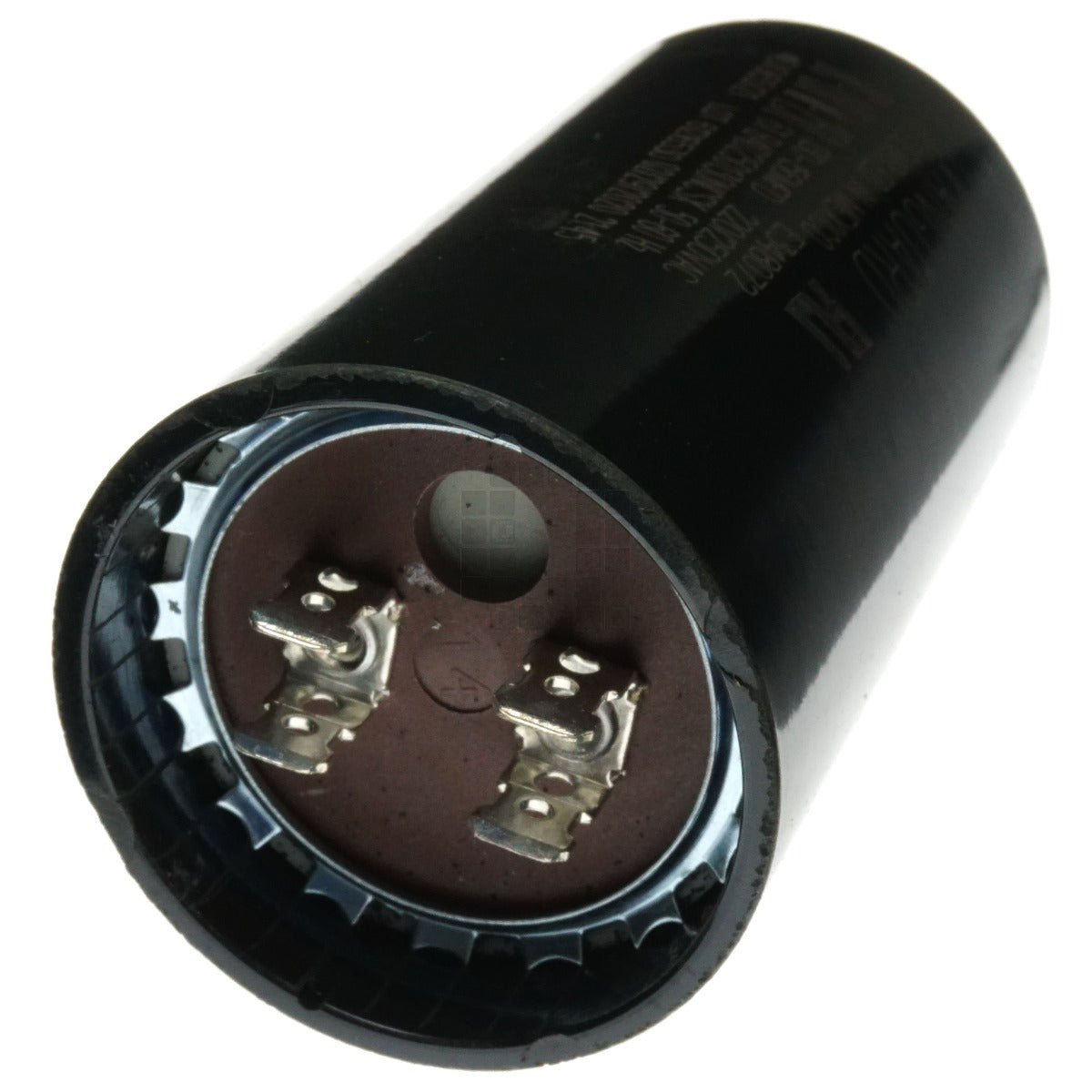

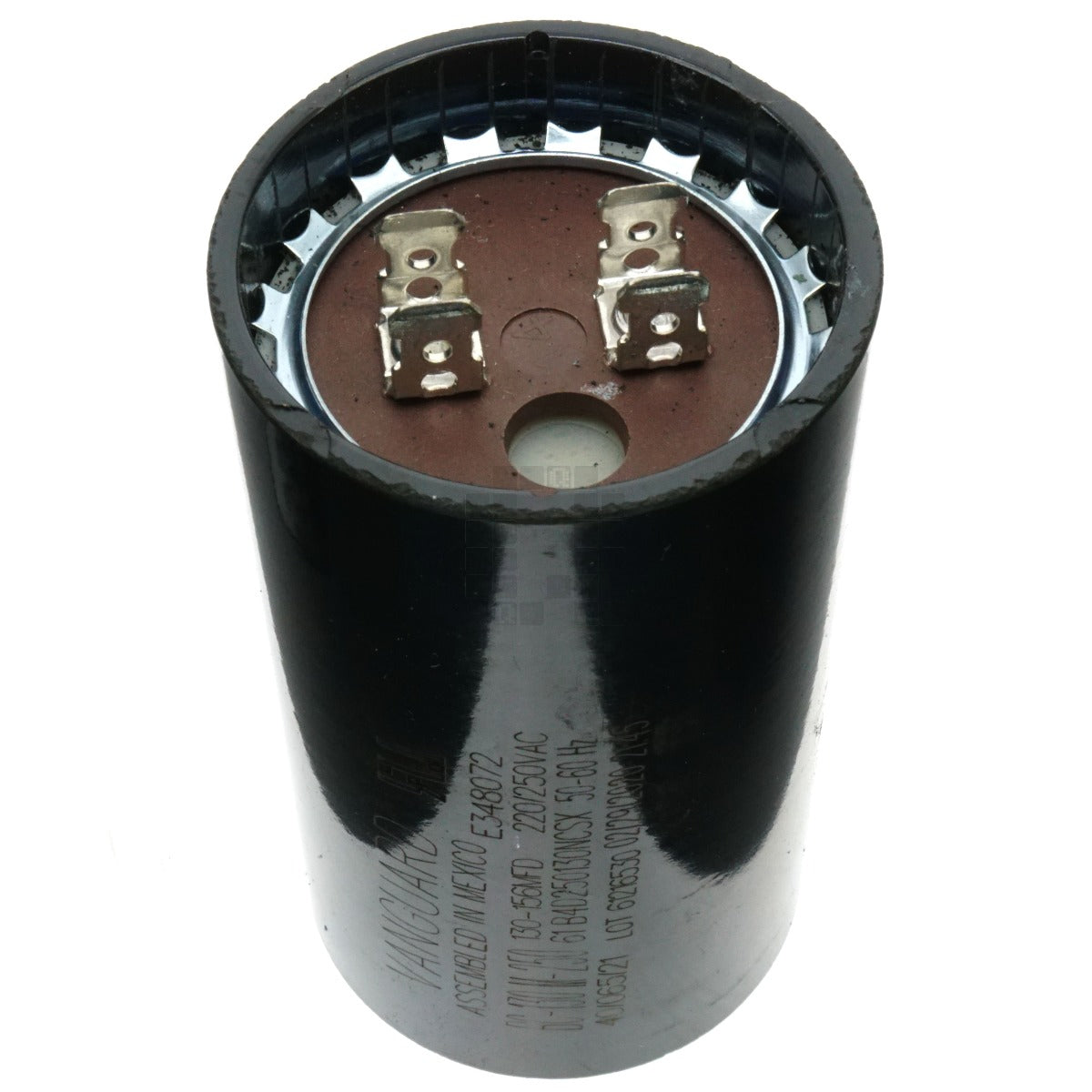

Connection 2 Posts
Two 1/4” male spade terminals on each post
Resistor None

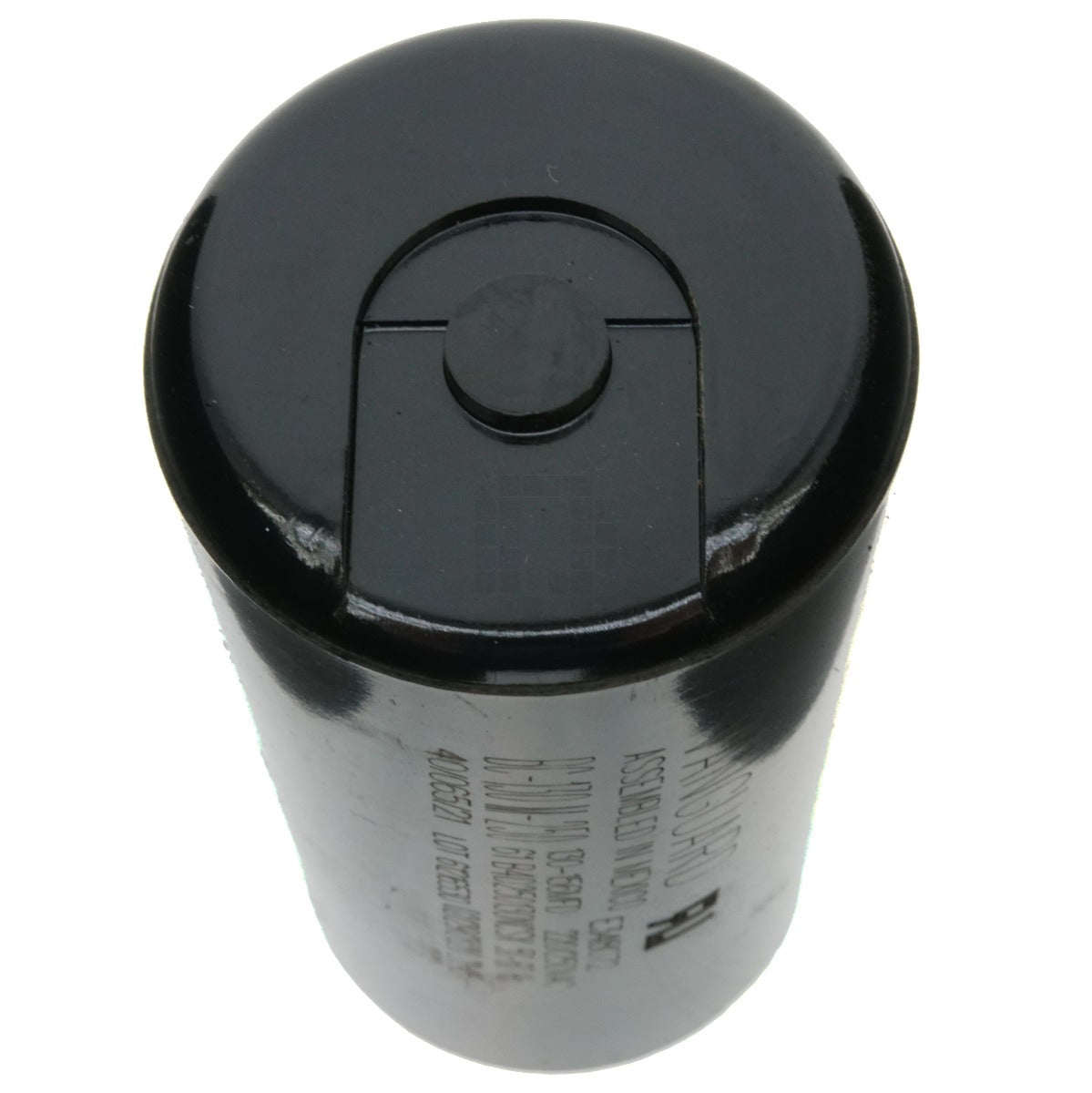

Construction Phenolic Case
Certifications/Approvals UL Approved
Performance Specifications B
Case Code 4
Distance Between Terminals 0.625"
UPC None
Product Origin (COO) Mexico

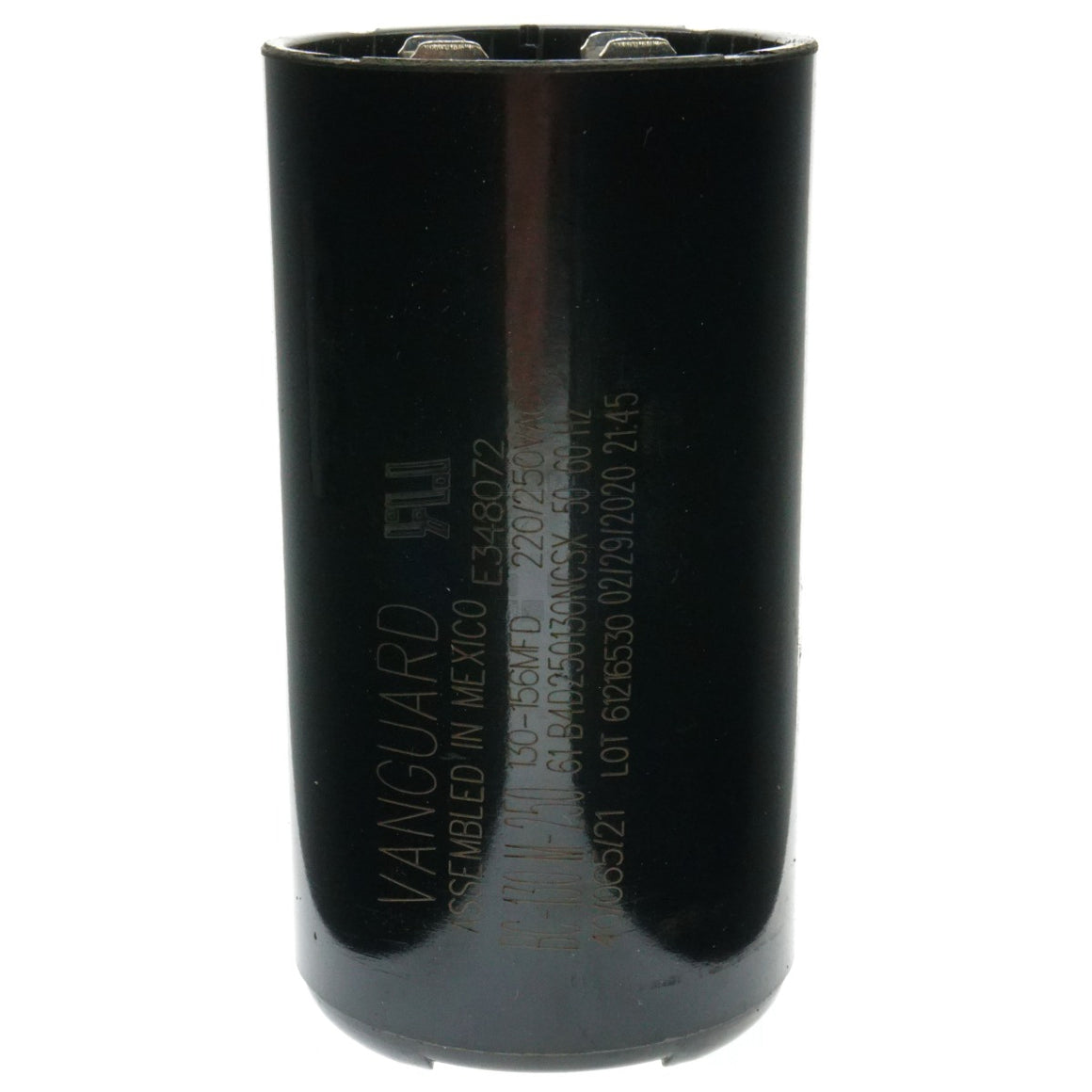

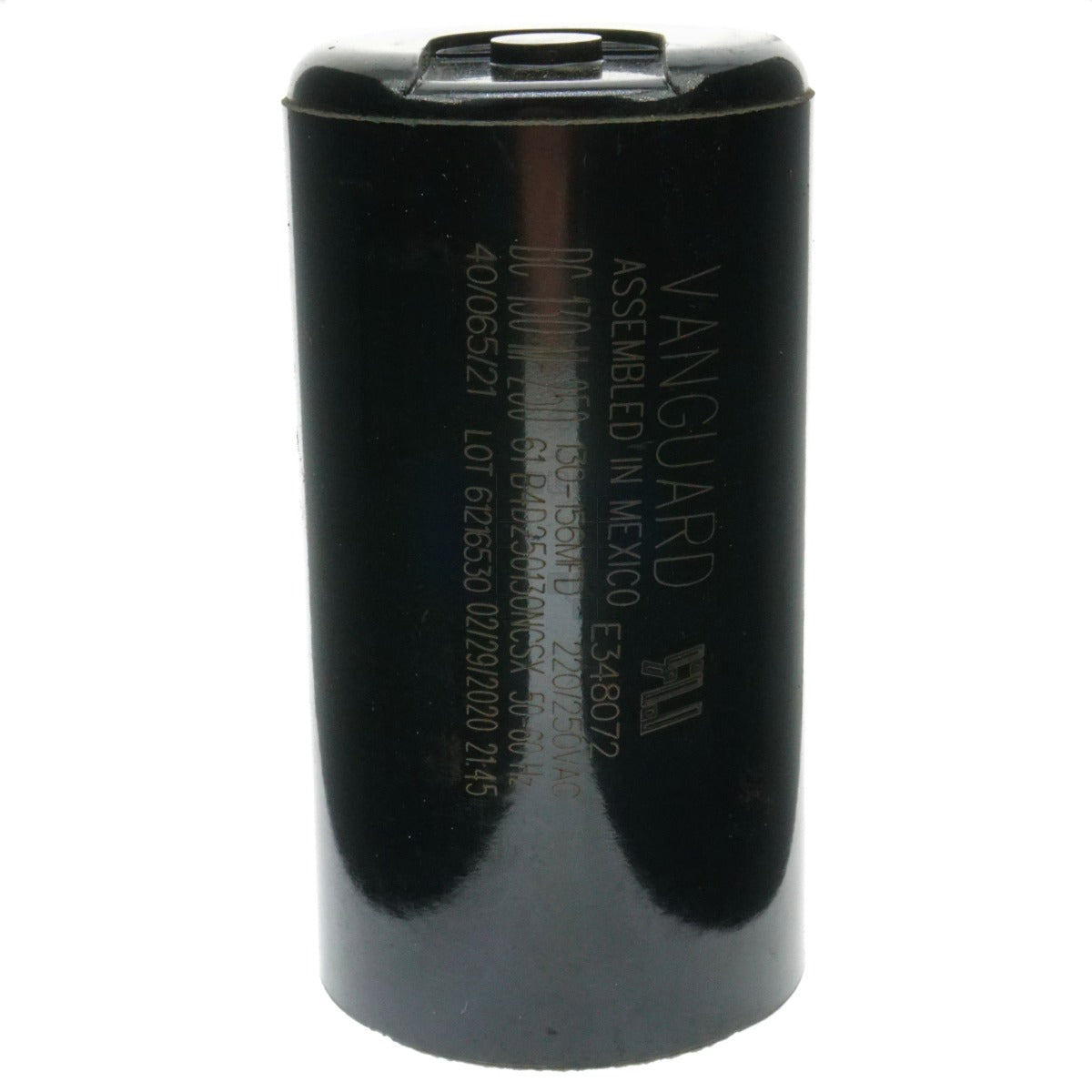

Product Label Vanguard
Assembled in Mexico
BC-130M-250 130-156MFD 220/250VAC
61B4D250130NCSX 50-60Hz

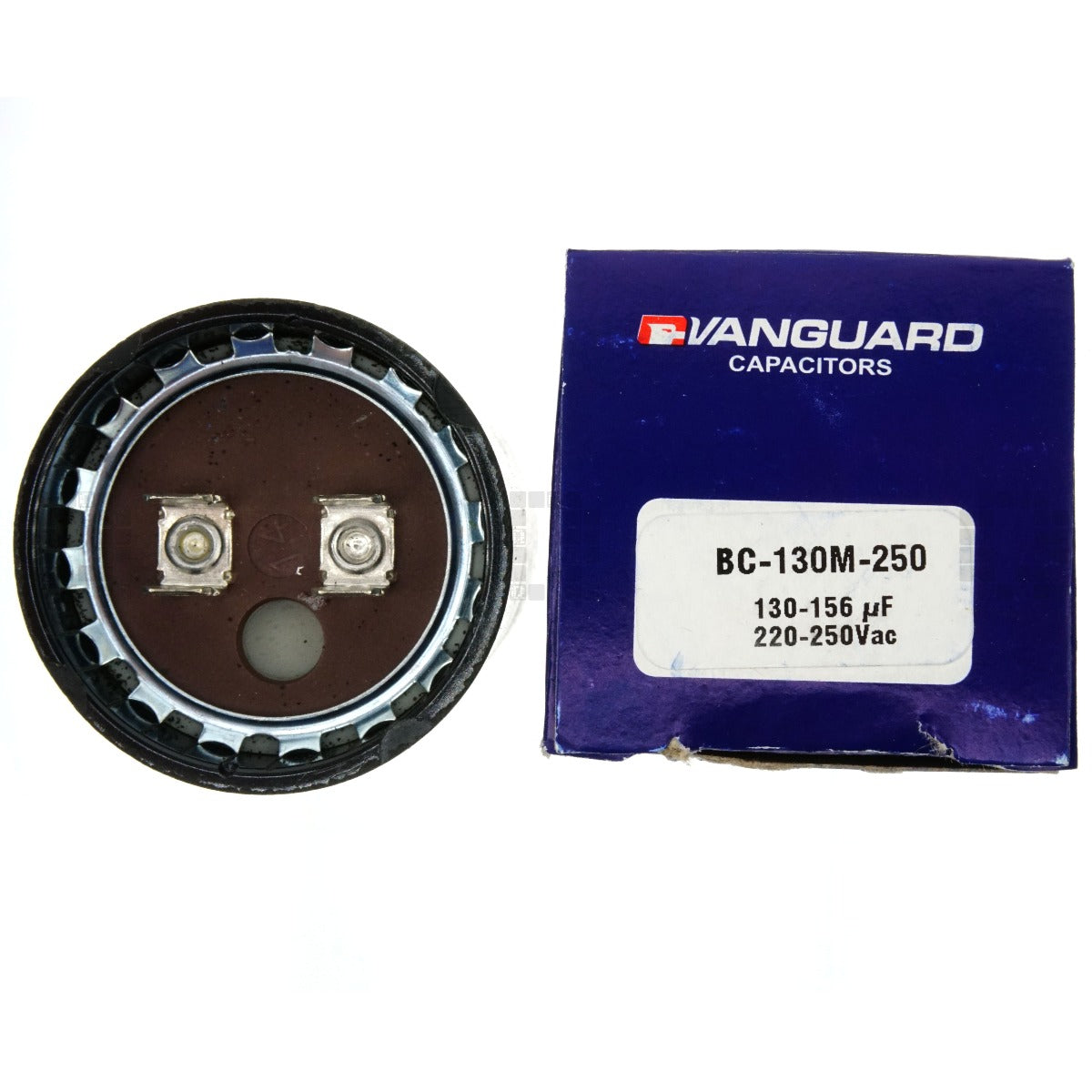

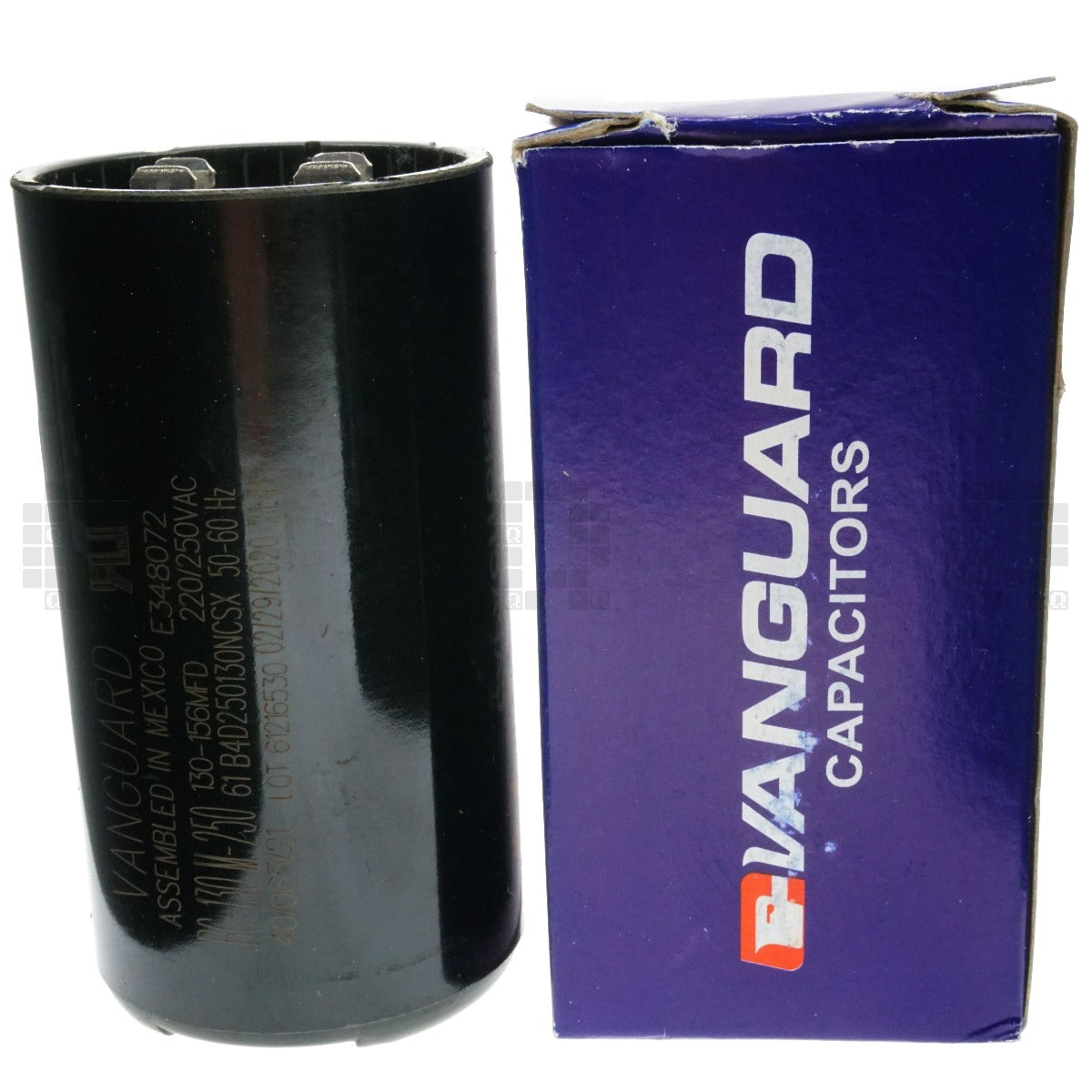

Package Label Vanguard Capacitors
BC-130M-250
130 - 156 uF
220 - 250 VAC
Notes
Location
Product Color Black
Product Shape Cylinder
Product Dimensions 1.812" Diameter
3.375" Height
Product Weight 5 oz
Package Dimensions (LxWxH) 1.85" x 1.85" x 3.51"
Package Weight 6 oz
