Brand Vanguard
manufactured by NGM
Manufacturer Part Number BC-145M-250
61B6D250145NCSX
Cross Reference (Fit/Form/Function)
Capacitance 145-175 uF
Working Voltage 220-250 VAC
Frequency 50/60 Hz
Working Temperature Range -40°C to +65°C
-40°F to +149°F
Type Start Capacitor
Aluminum, Non-Polorized
Type II

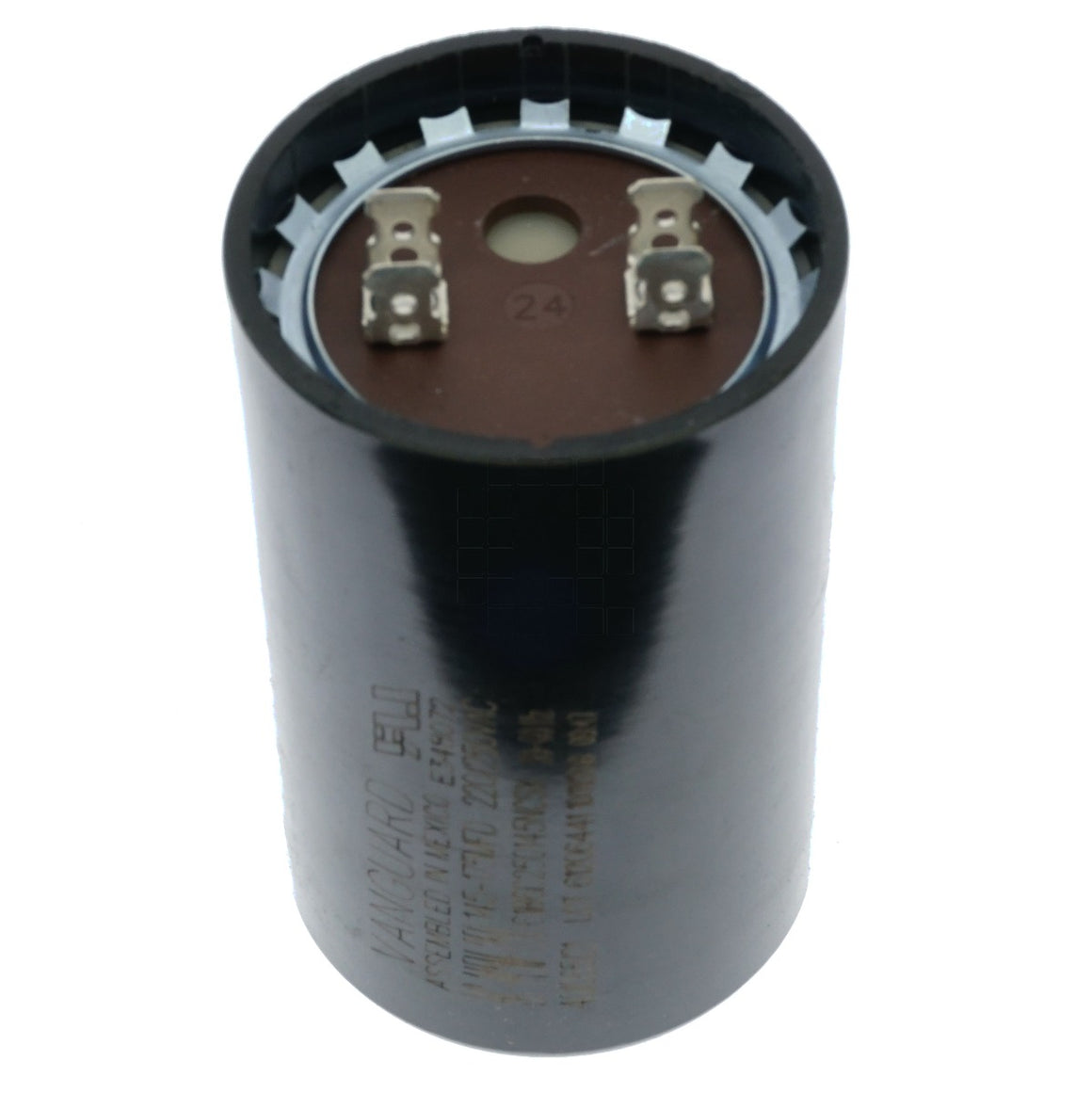

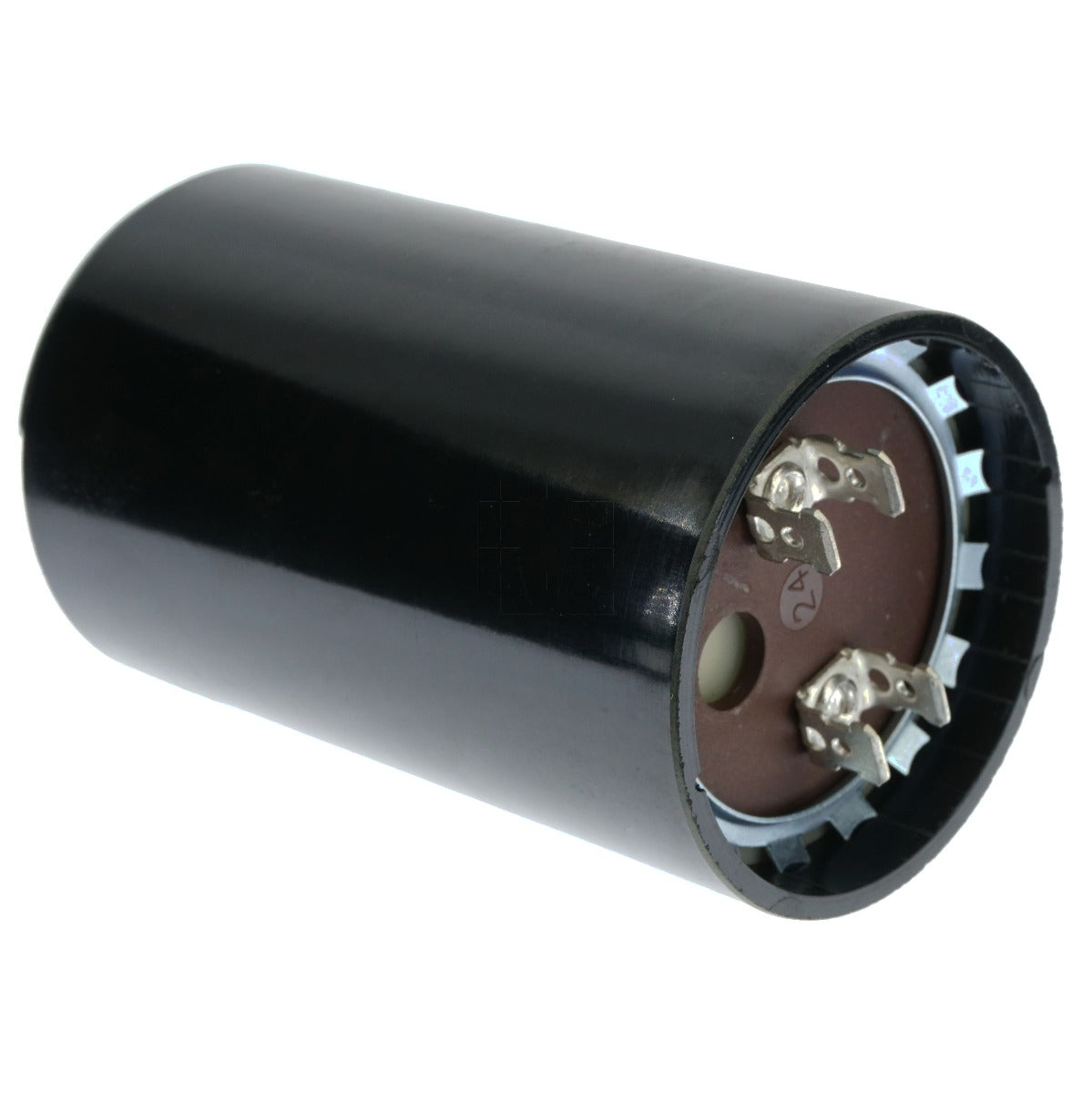

Connection 2 Posts
Two 1/4” male spade terminals on each post
Resistor None
Construction Phenolic Case
Certifications/Approvals UL, VDE, CSA & CUL Approvals
Performance Specifications
Case Code
Distance Between Terminals 0.875"
UPC None
Product Origin (COO) Mexico

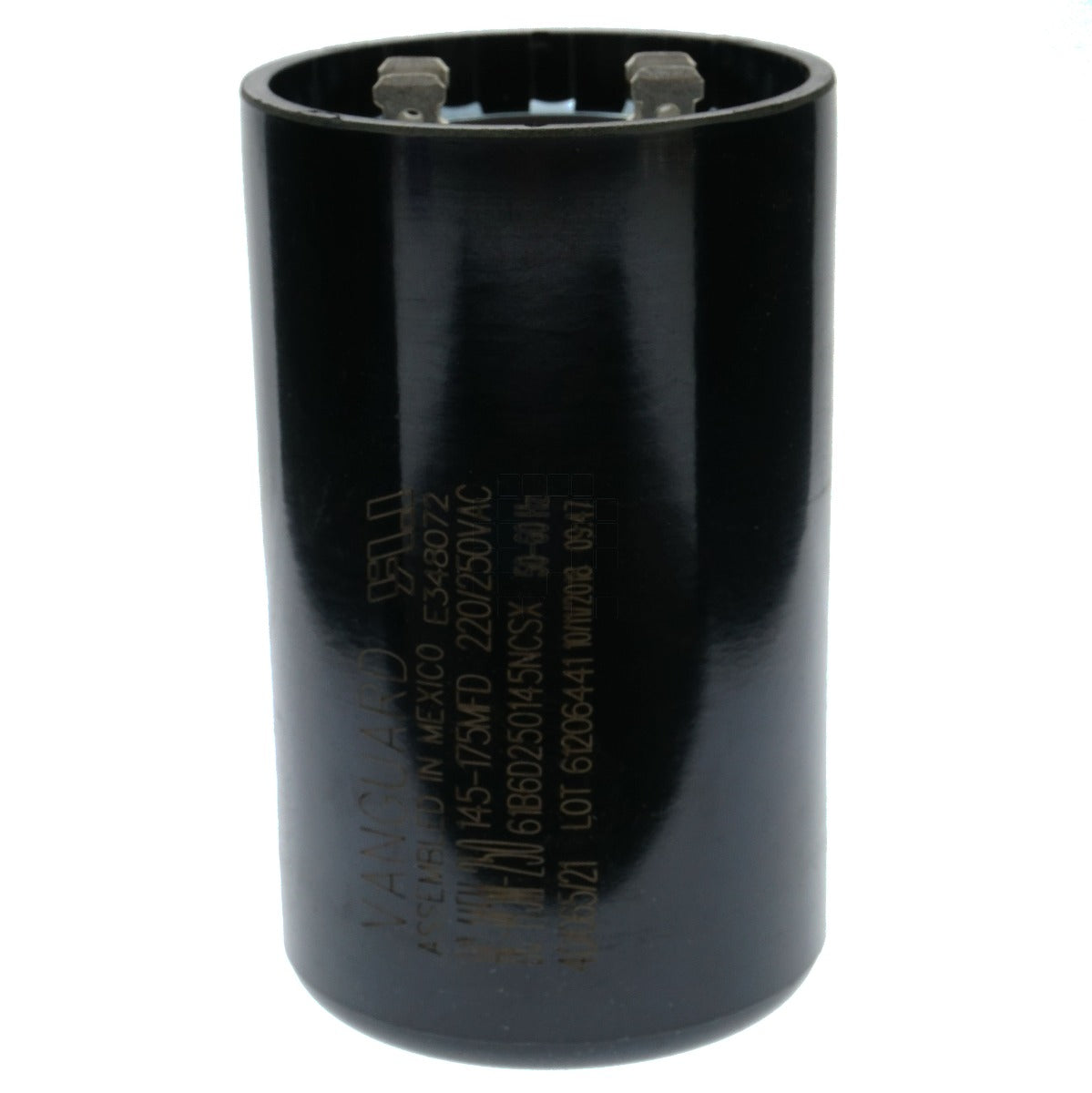

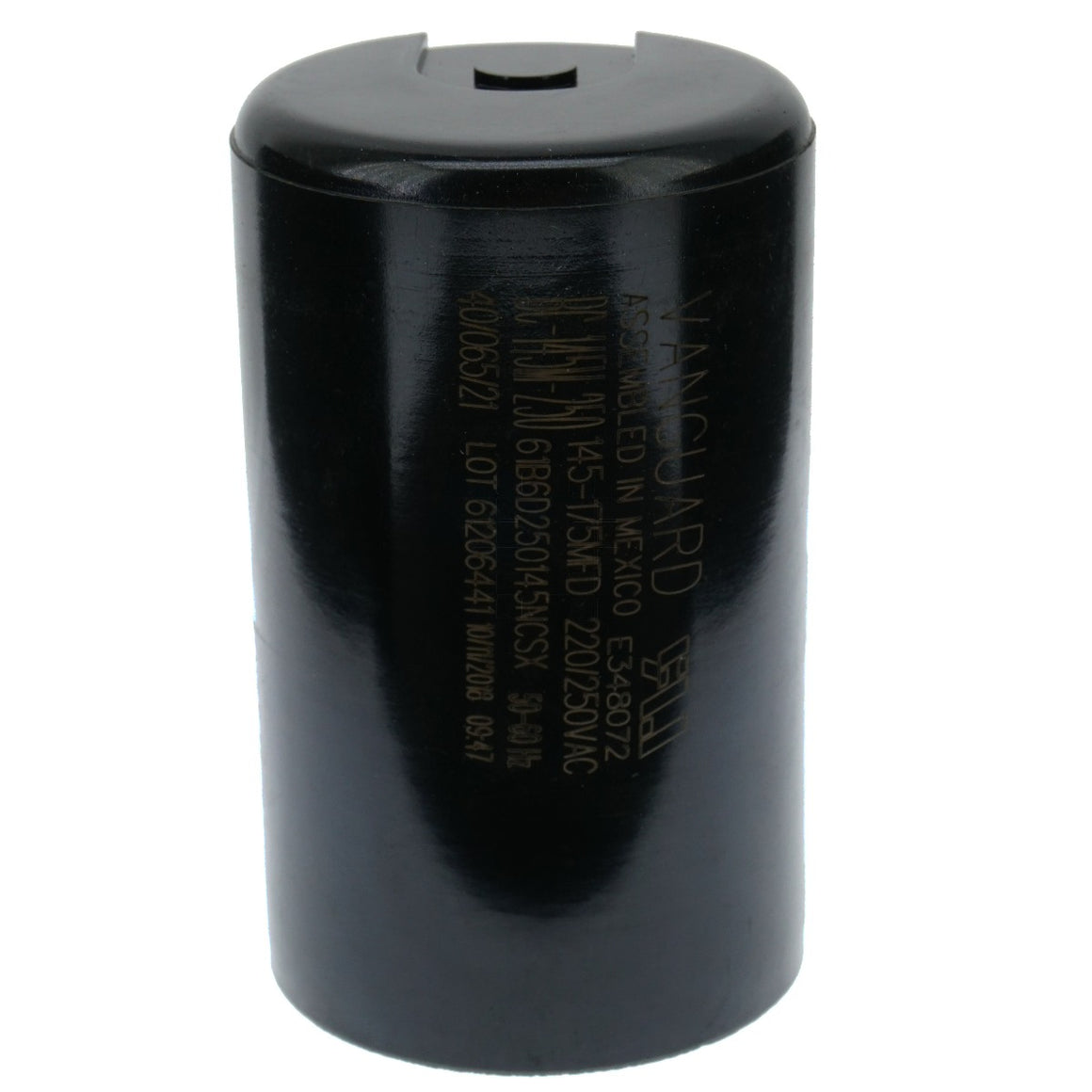

Product Label Vanguard
Assembled in Mexico
BC-145M-250 145-175MFD 220/250VAC
61B6D250145NCSX 50-60Hz

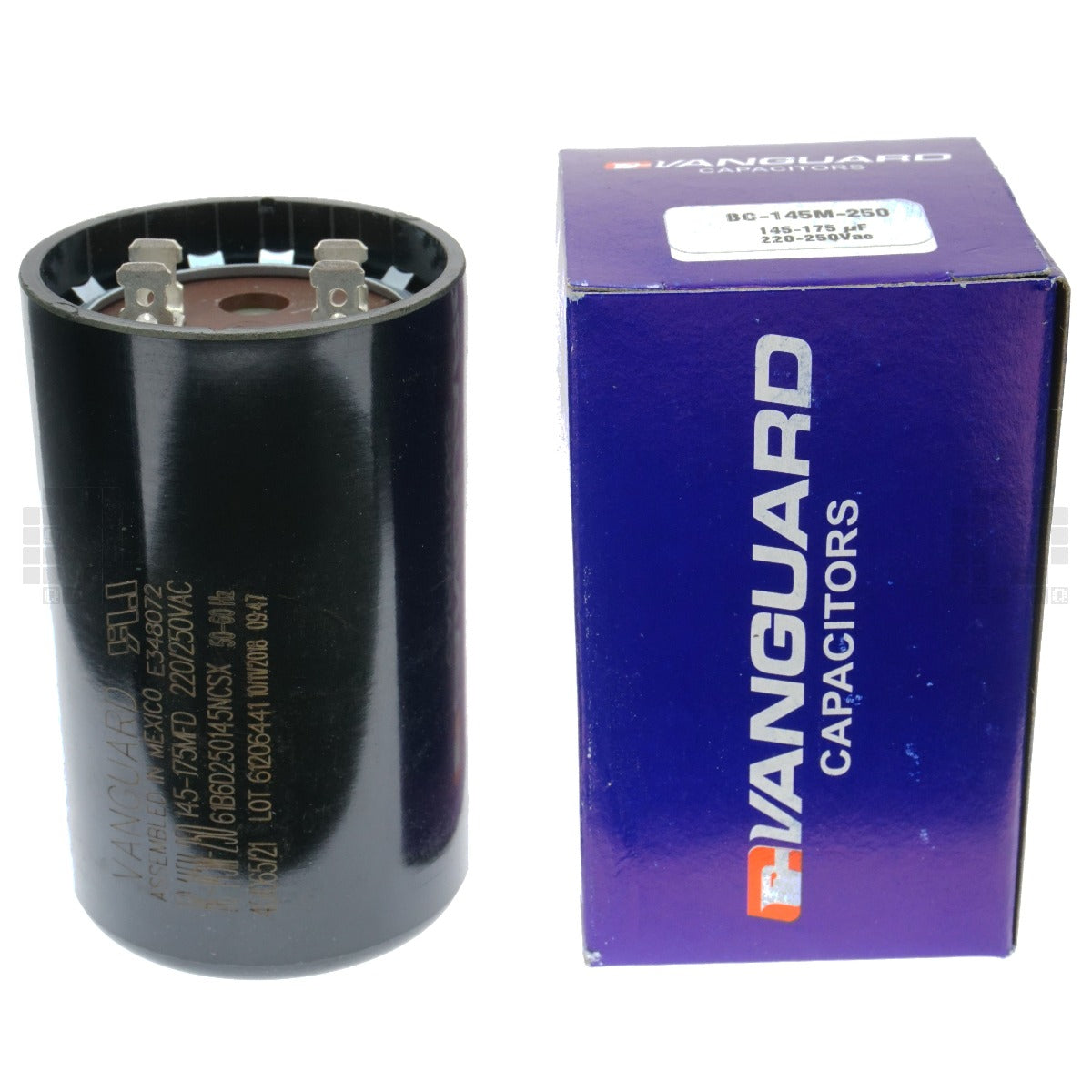

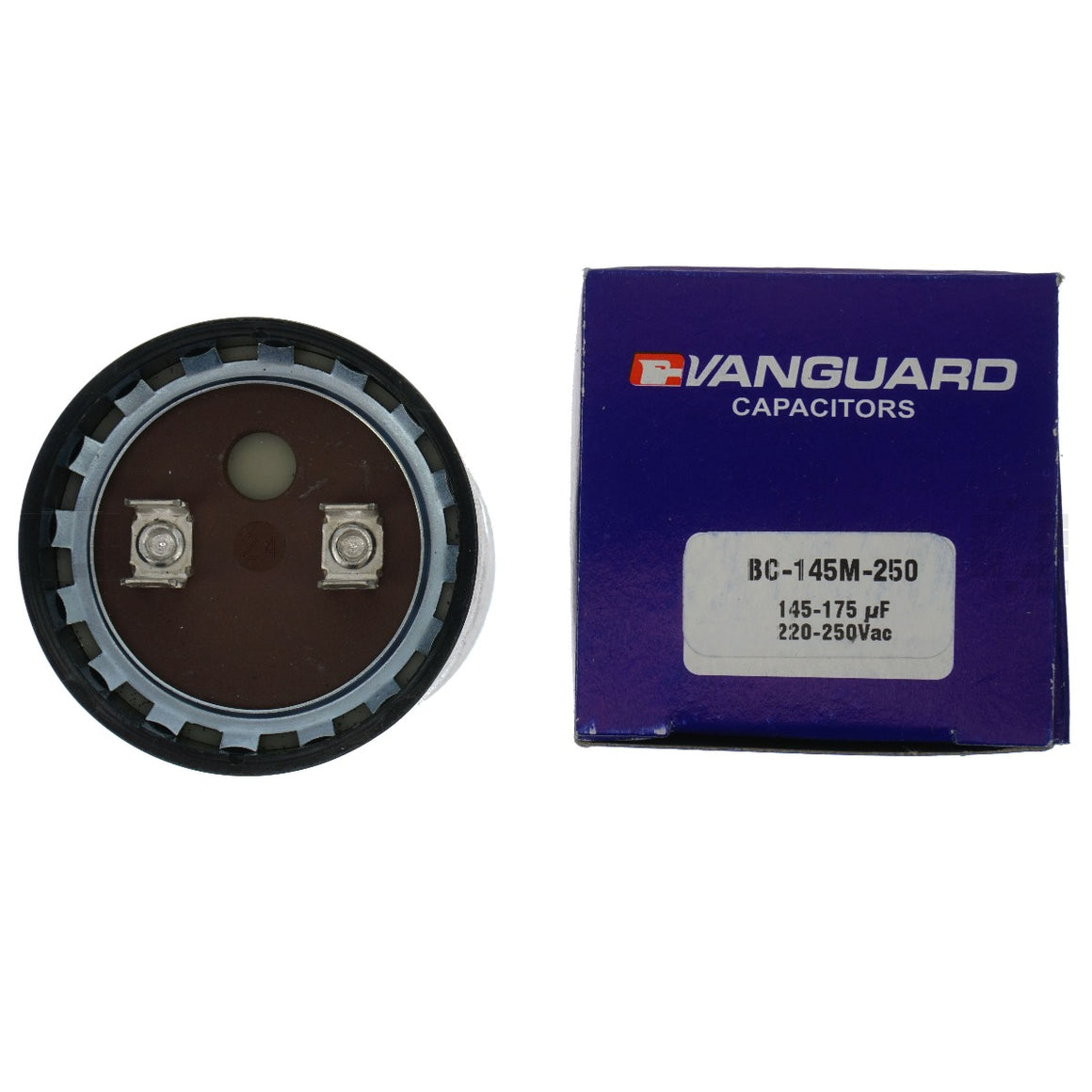

Package Label Vanguard Capacitors
BC-145M-250
145-175 uF
220-250VAC
Notes
Location
Product Color Black

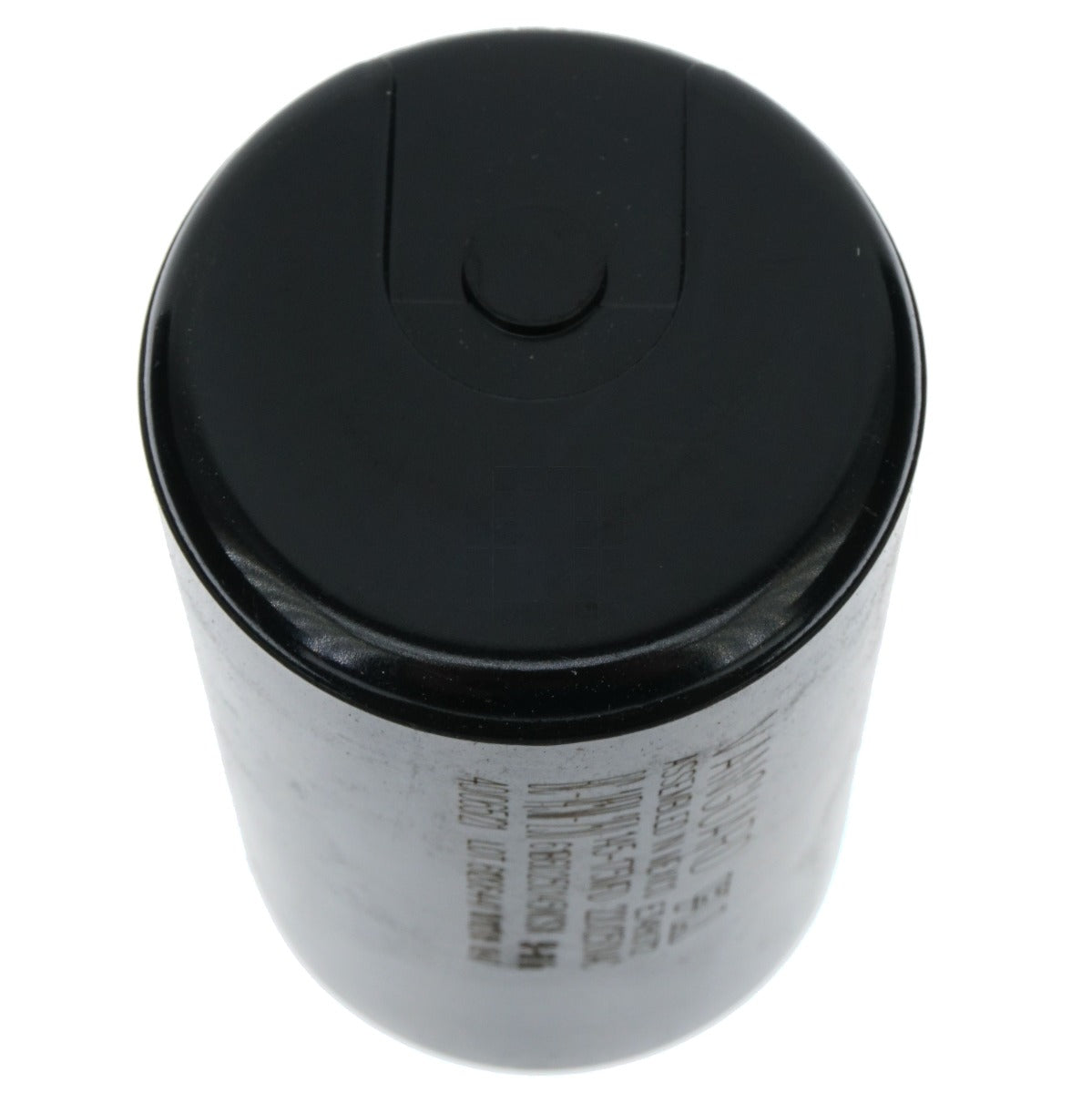

Product Shape Cylinder
Product Dimensions 2.062" Diameter
3.375" High
Product Weight 8 oz
Package Dimensions (LxWxH) 2.13" x 2.13" x 2.53"
Package Weight 8 oz
