Product Specifications :

Brand Vanguard
Manufacturer Part Number BC-161M-165
61B4D160161NC
61B4D160161NCSX
Cross Reference (Fit/Form/Function)
Capacitance 161-193 μF
Working Voltage 165 VAC
Frequency 50/60 Hz
Working Temperature Range -40°C to +65°C
-40°F to +149°F
Type Start Capacitor

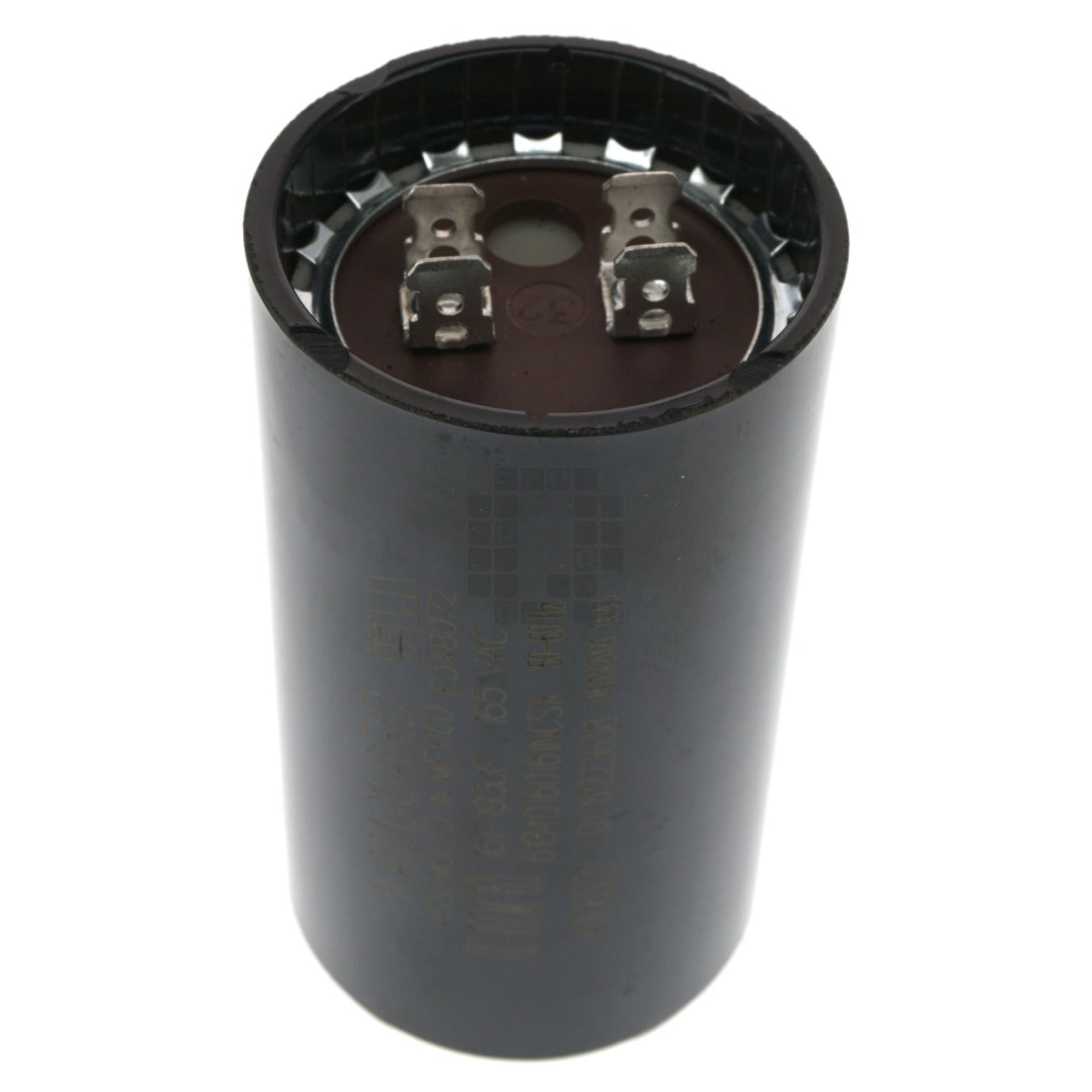

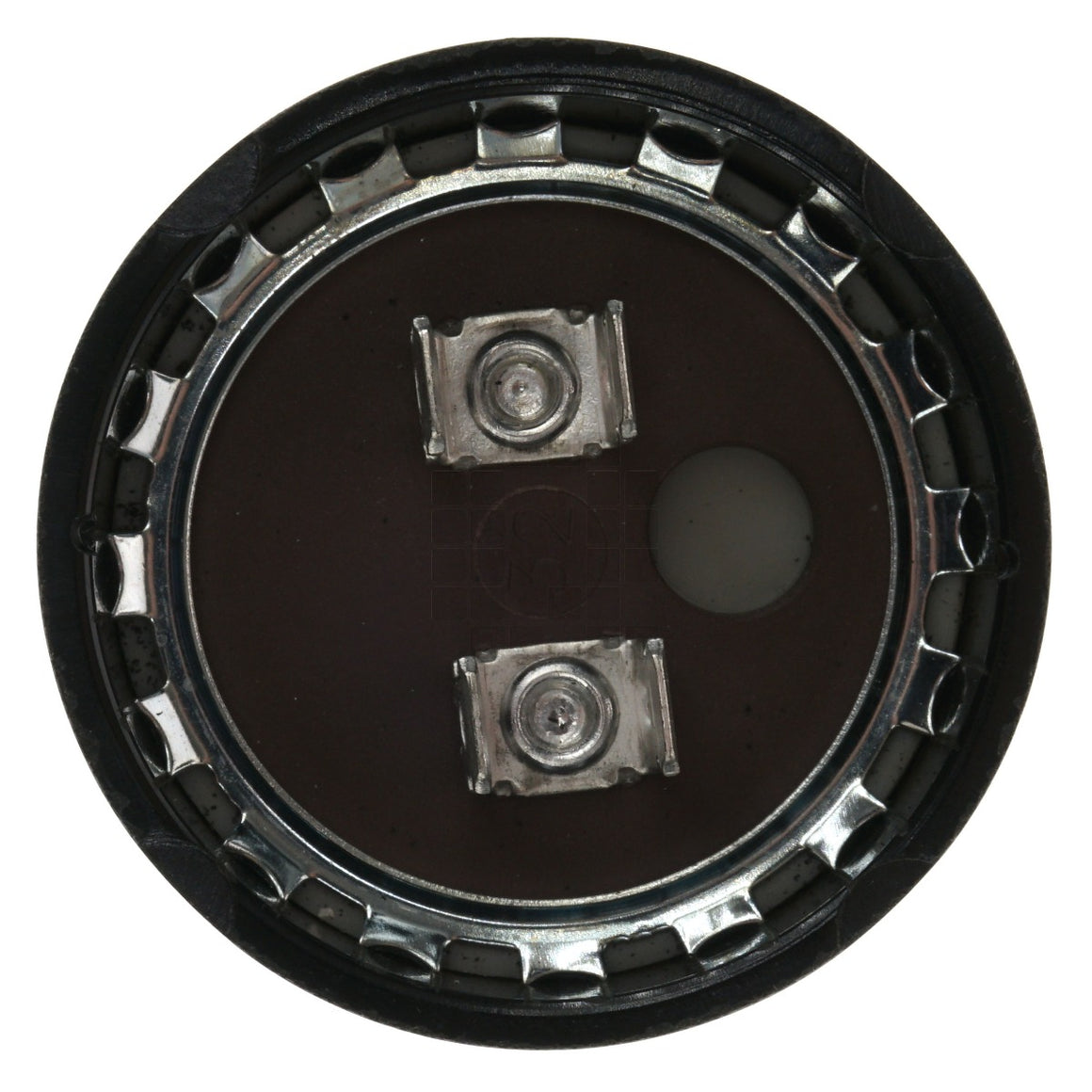

Connection 2 Posts
Two 1/4” male spade terminals on each post
Resistor None
Construction Phenolic Plastic Case
Certifications/Approvals UL Approved
Performance Specifications
Case Code
Distance Between Terminals 0.593"
UPC None
Product Origin (COO) Mexico

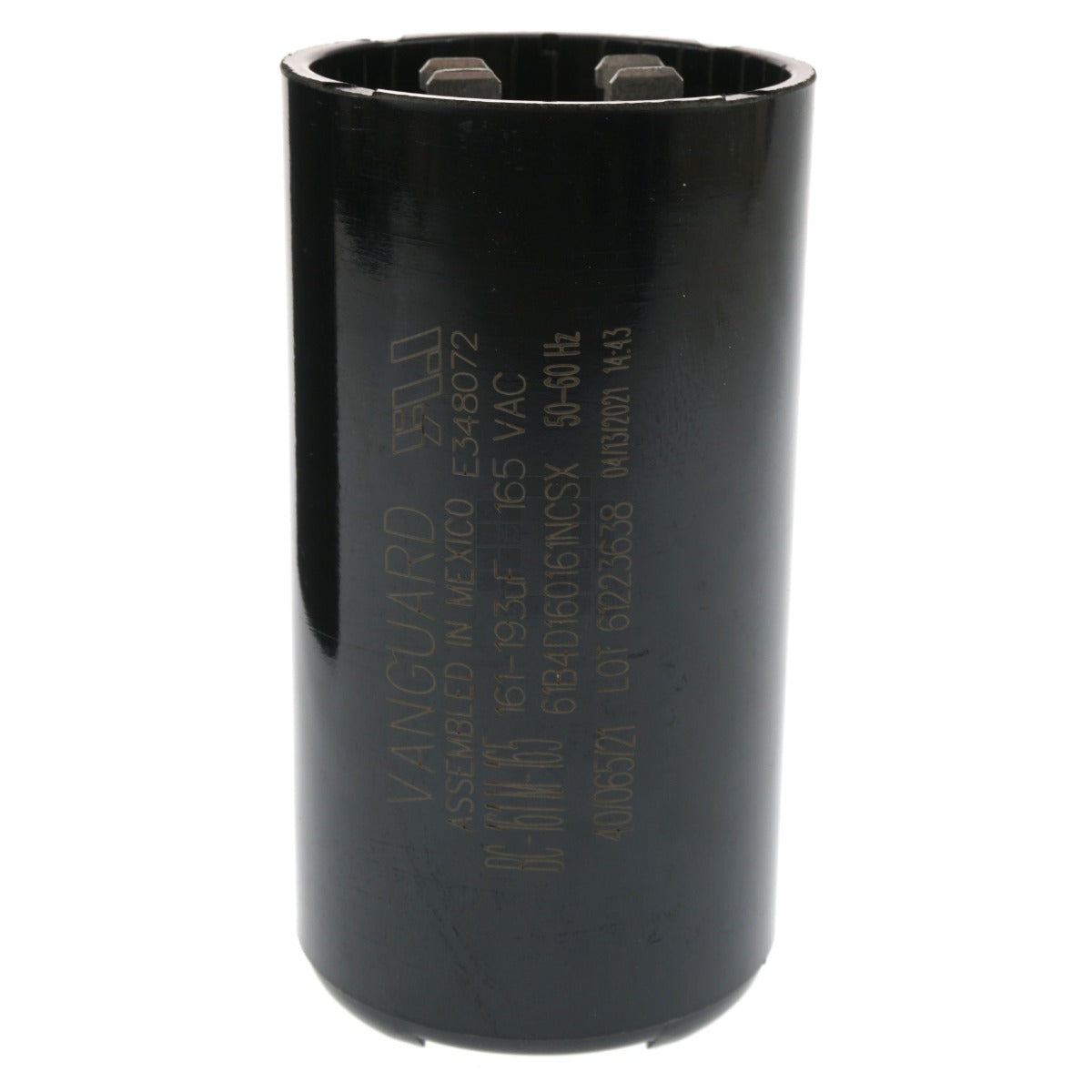

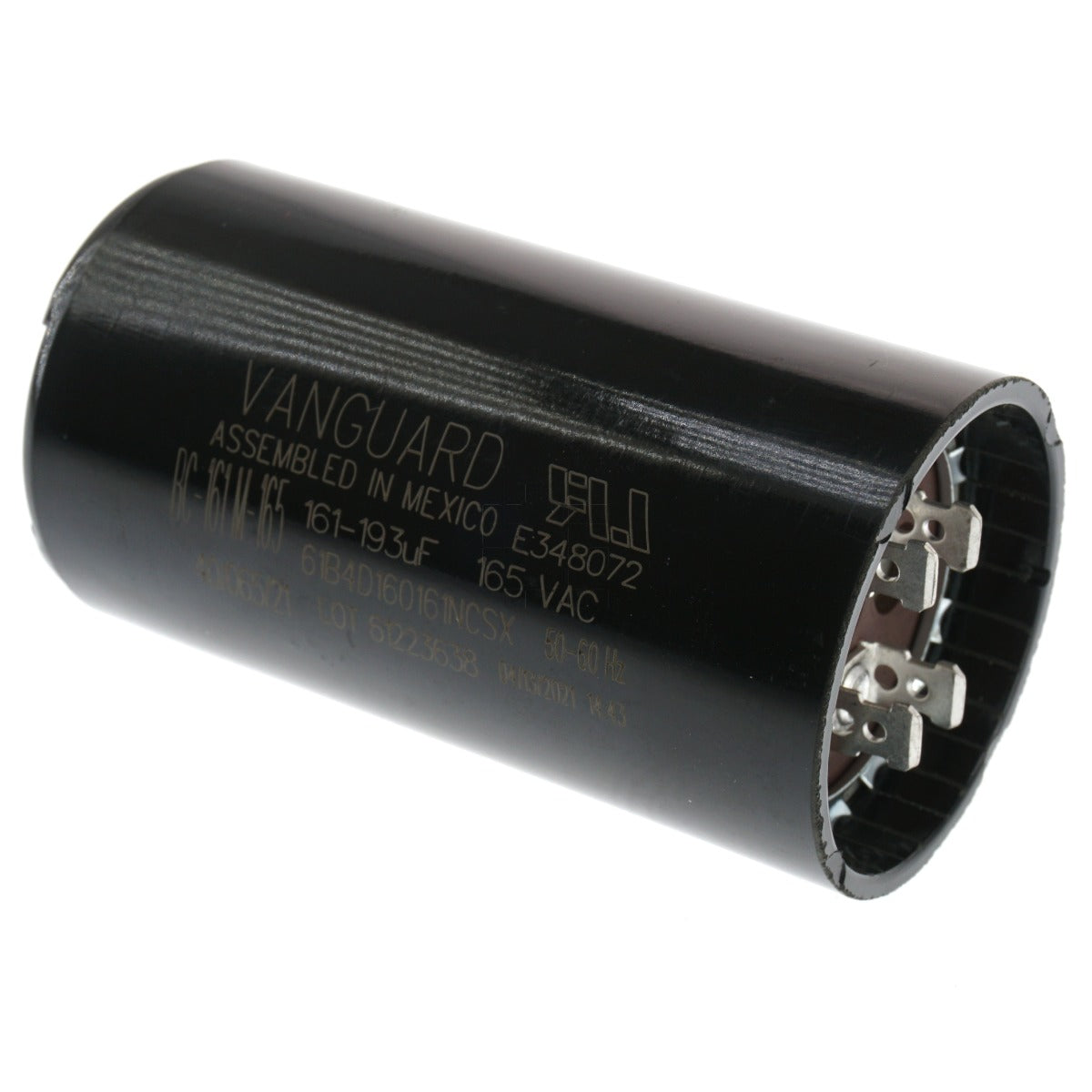

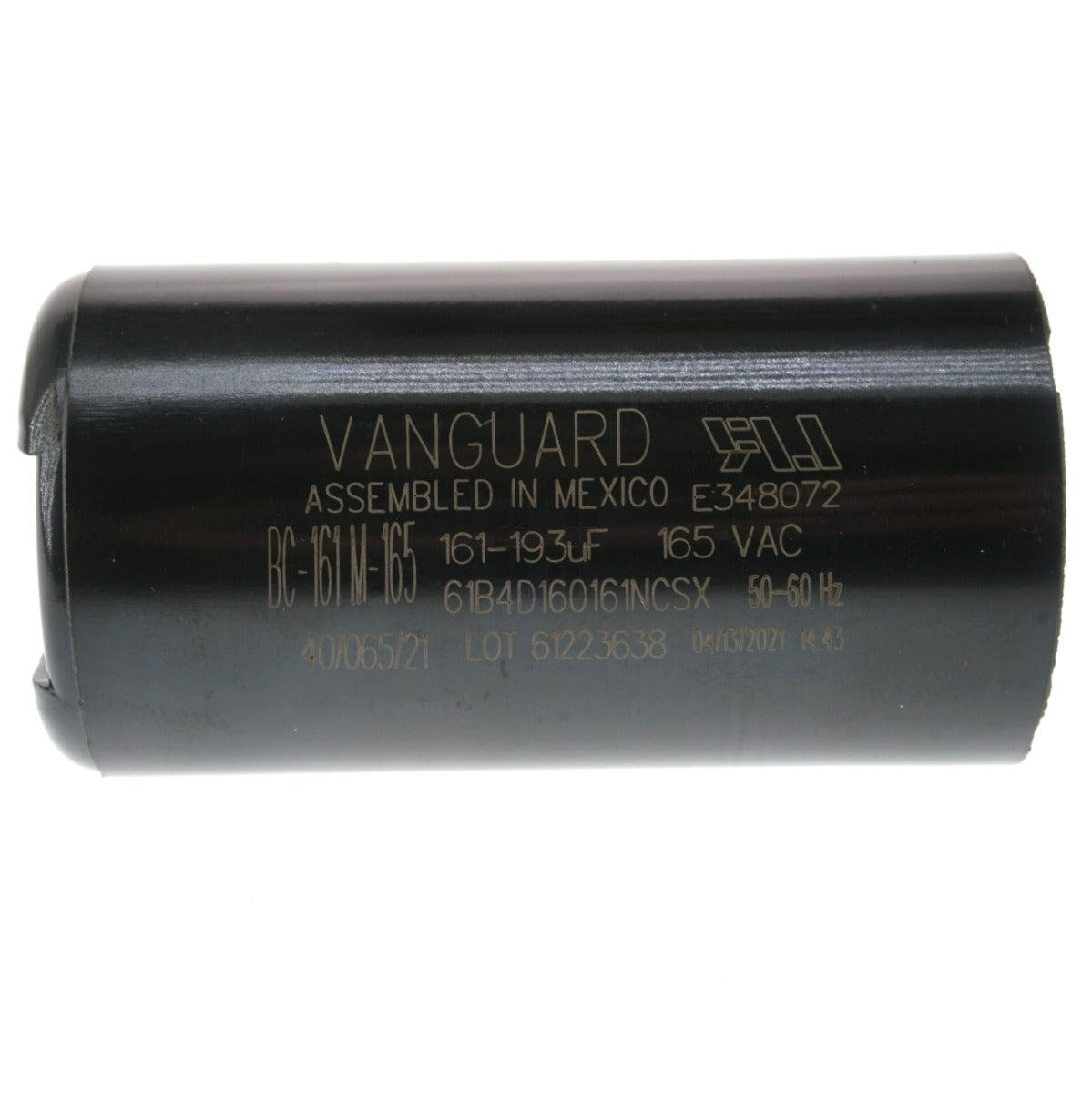

Product Label Vanguard
Assembled in Mexico

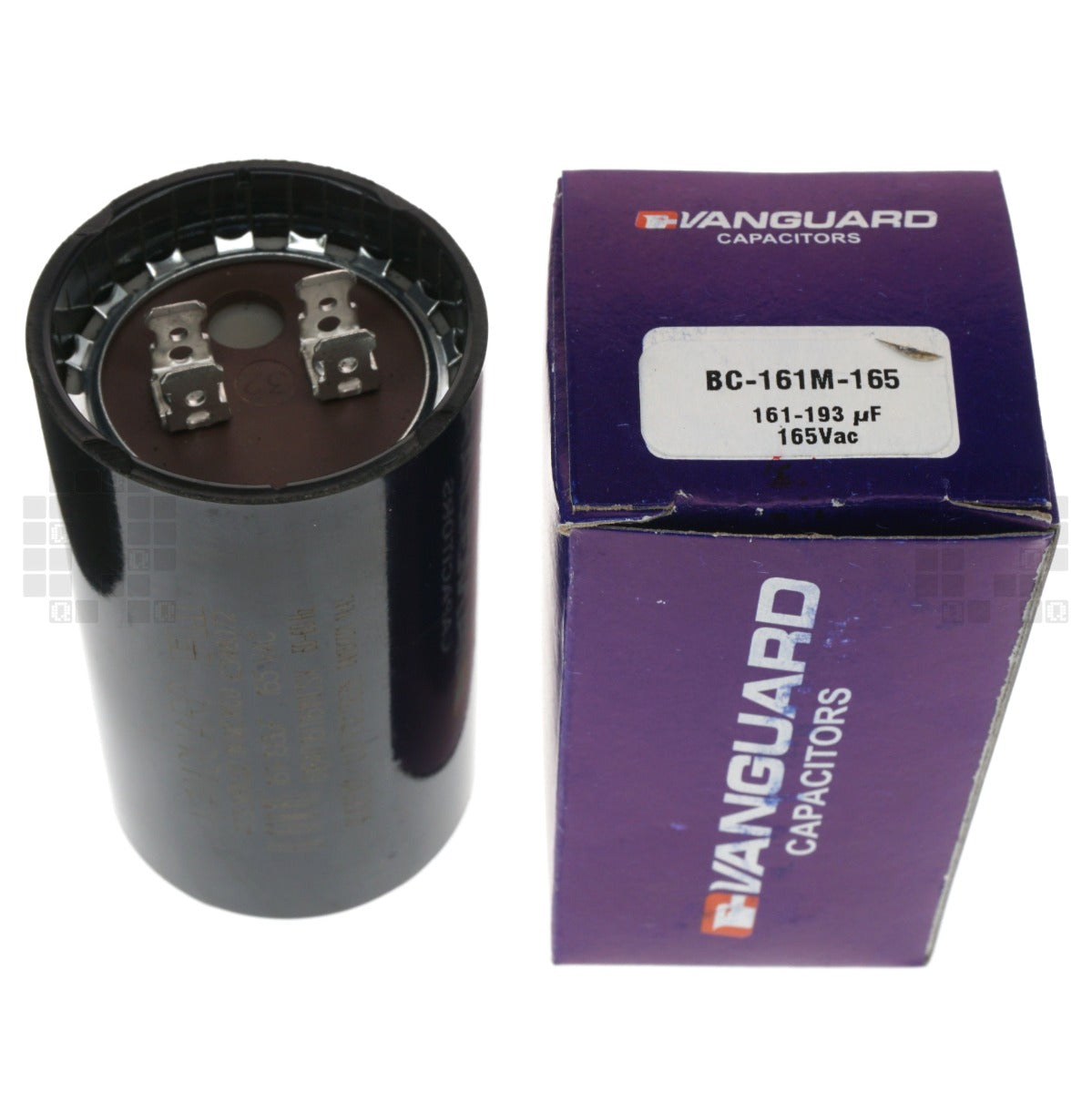

BC-161M-165 161-193uF 165VAC
61B4D160161NCSX 50-60Hz

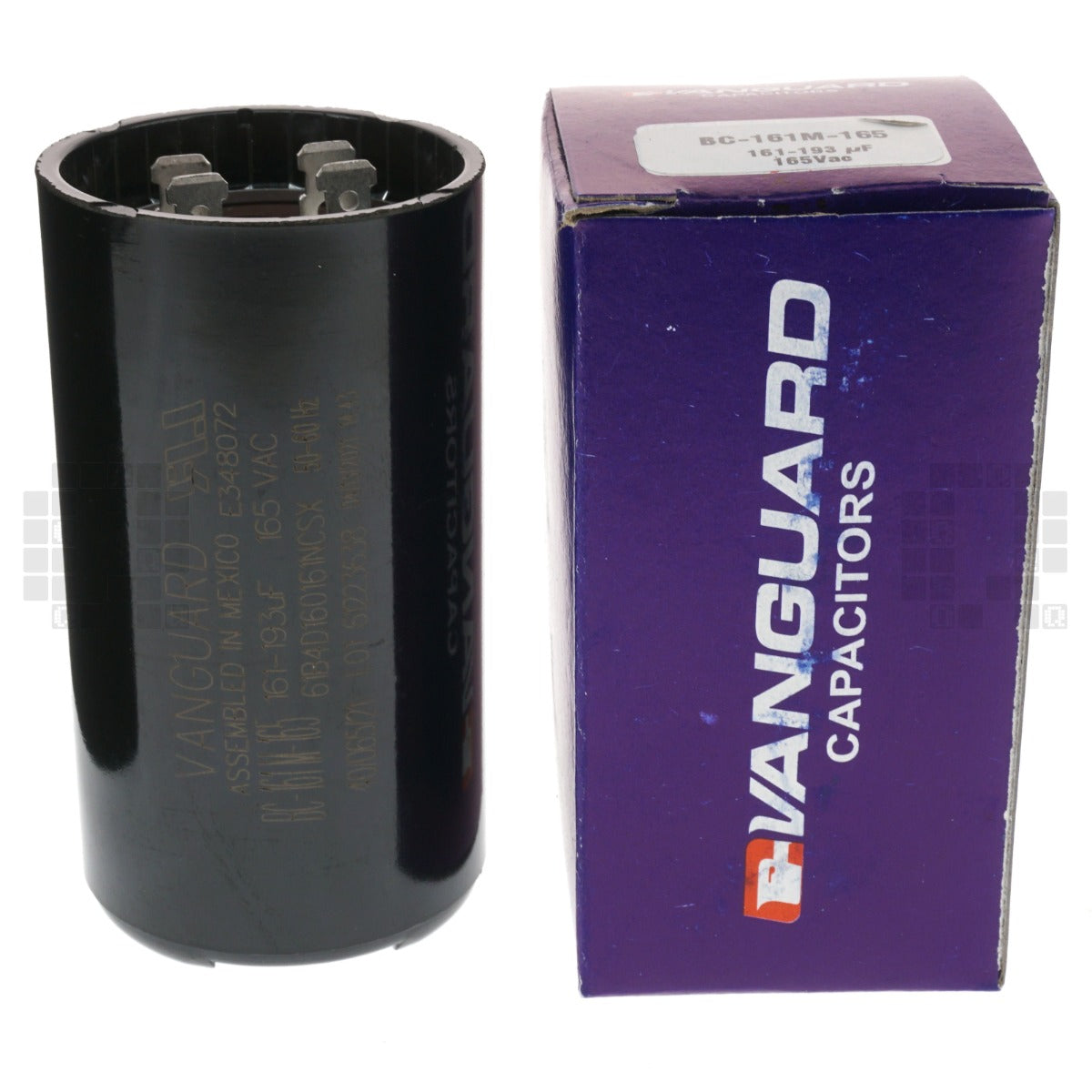

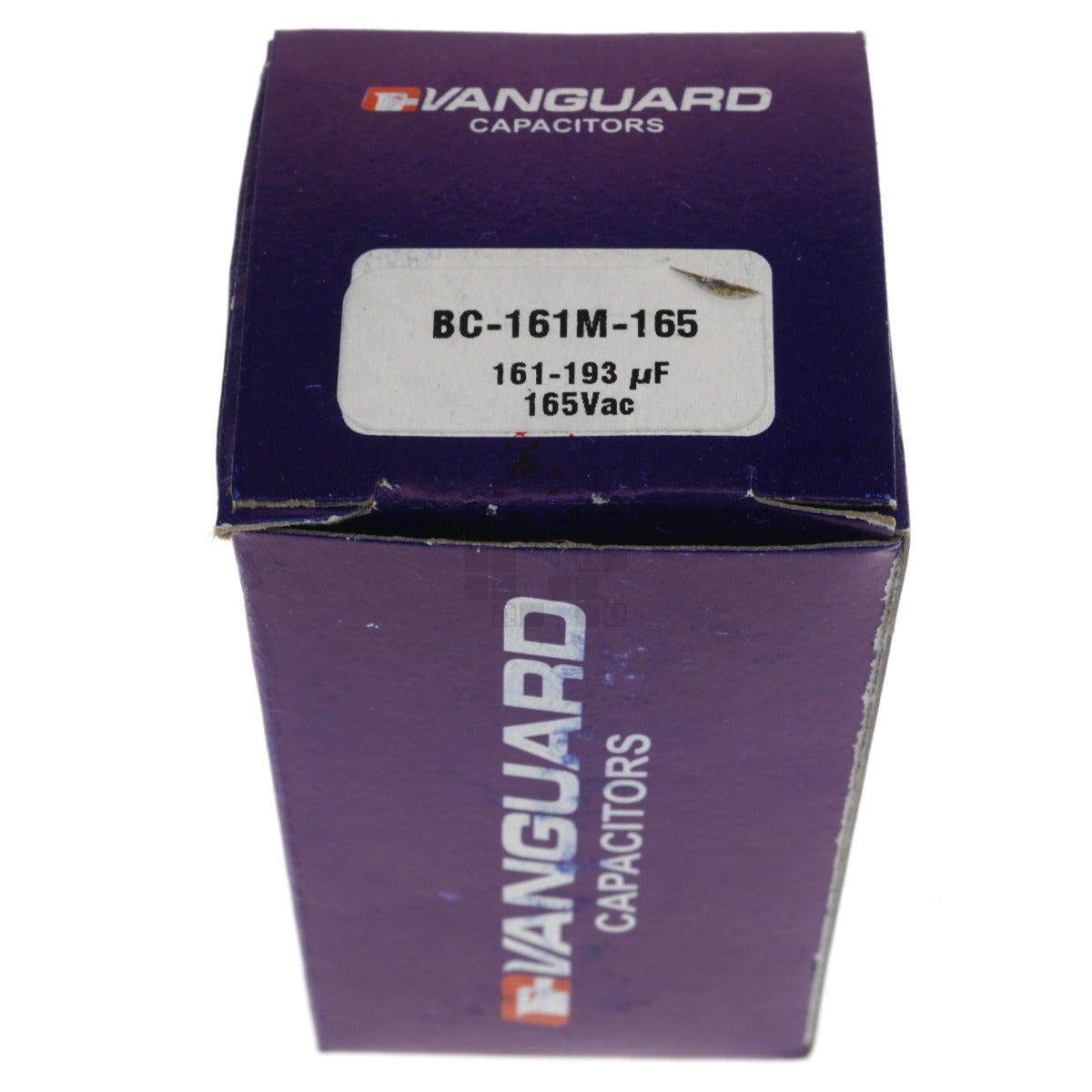

Package Label BC-161M-165
161-193 μF
165 VAC
Notes

Dimensions & Weights :

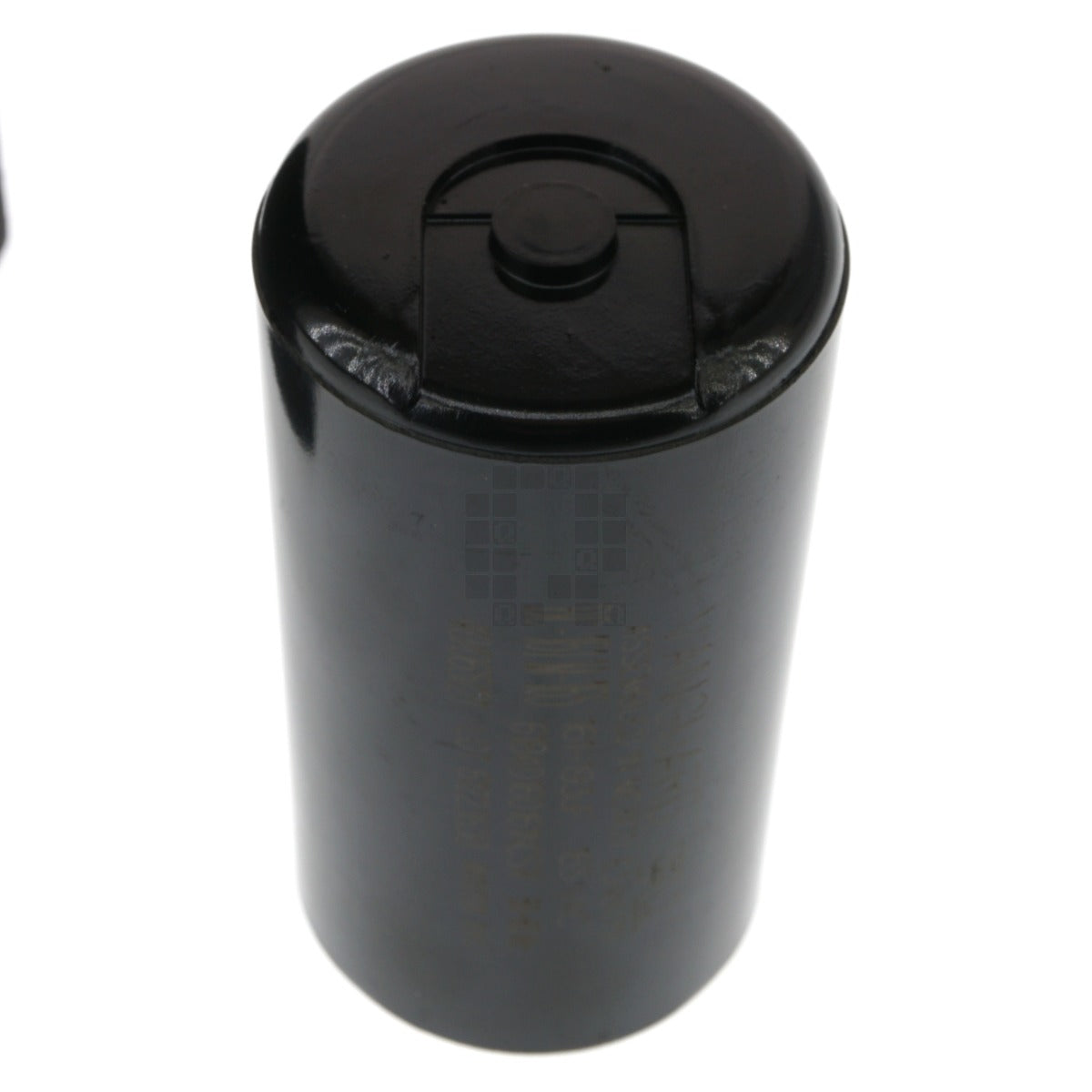

Product Color Black
Product Shape Cylinder
Product Dimensions 1.812" Diameter
3.375" Height
Product Weight 0.45 lbs
Package Dimensions (LxWxH) 1.94" x 1.94 x 3.56"
Package Weight 0.45lbs
