Brand Vanguard
manufactured by NGM
Manufacturer Part Number BC-21
61B1D120021NC
61B1D120021NCSX
Cross Reference (Fit/Form/Function)
Capacitance 21 -25 uF
Working Voltage 110 -125 VAC
Frequency 50/60 Hz
Power Factor 10% Max
after applying working voltage for 4 seconds
Working Temperature Range -40°C to +65°C
-40°F to +149°F
Type Start Capacitor
Aluminum Electrolytic, Non-Polarized

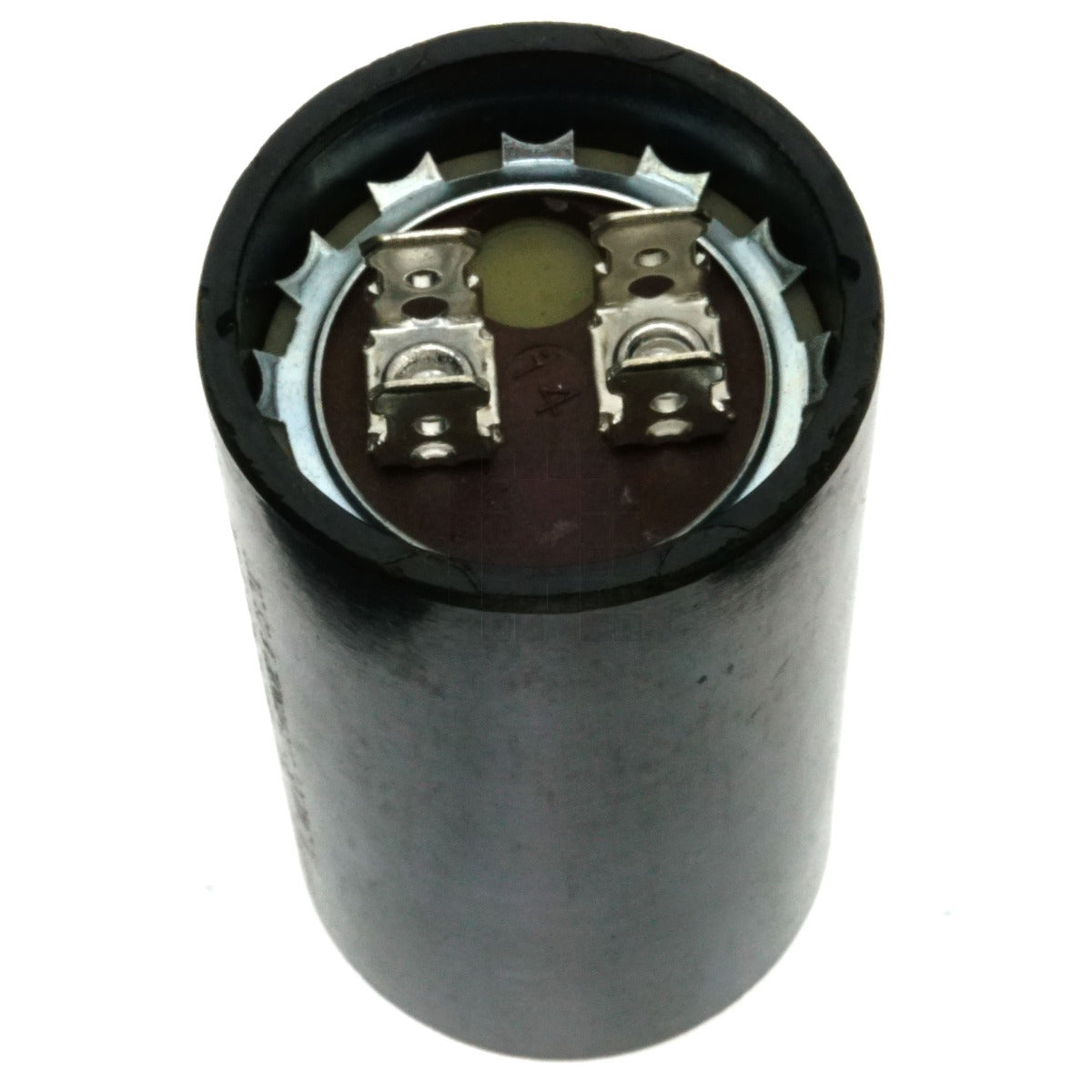

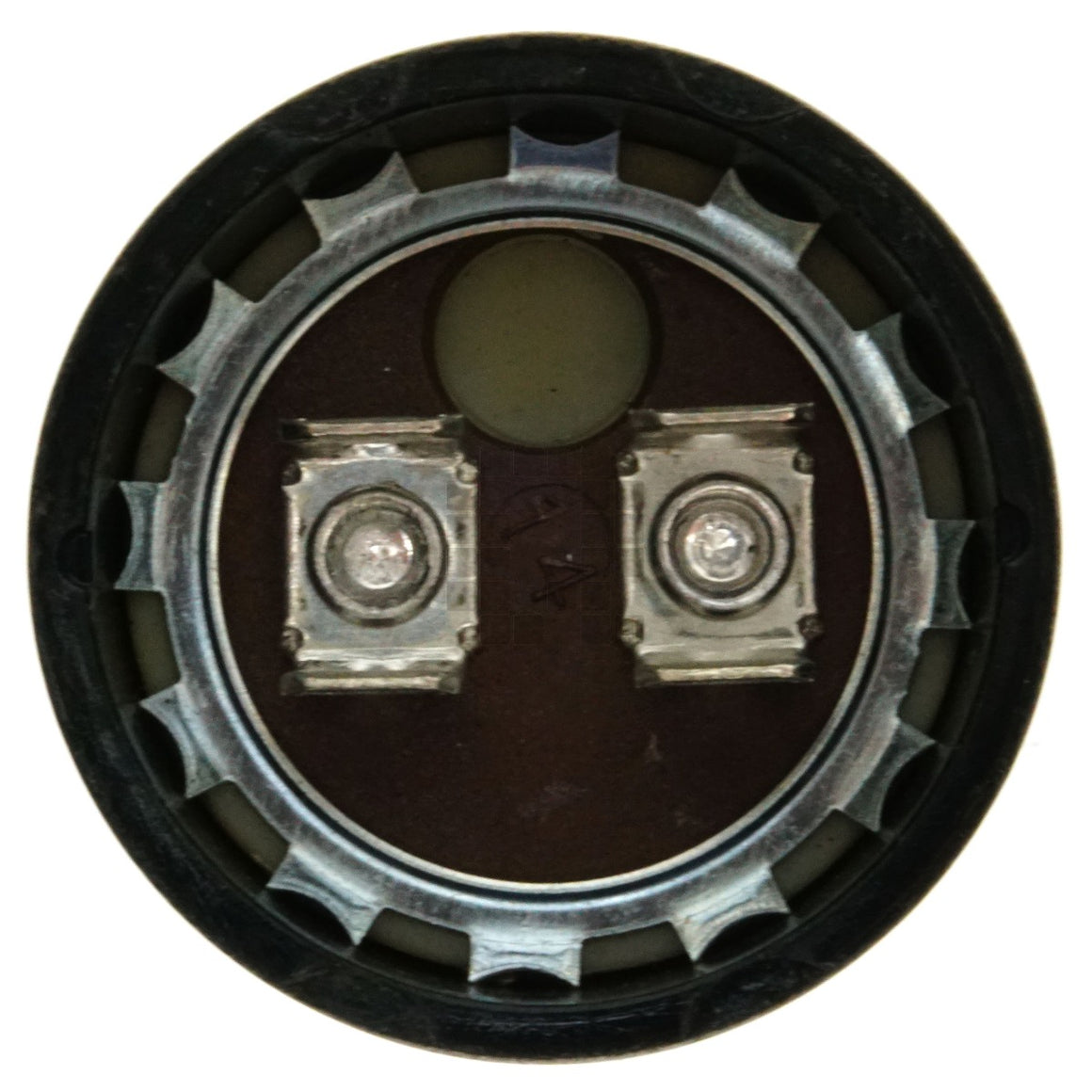

Connection 2 Posts
Two 1/4” male spade terminals on each post
Resistor None
Construction Phenolic Case
Certifications/Approvals UL Approved
Performance Specifications Type 2
Case Code 1
Distance Between Terminals 0.500"
UPC None
Product Origin (COO) Mexico
Product Label Vanguard
Assembled in Mexico
BC-21 21-25MFD 110-125VAC
61B1D120021NCSX 50/60Hz

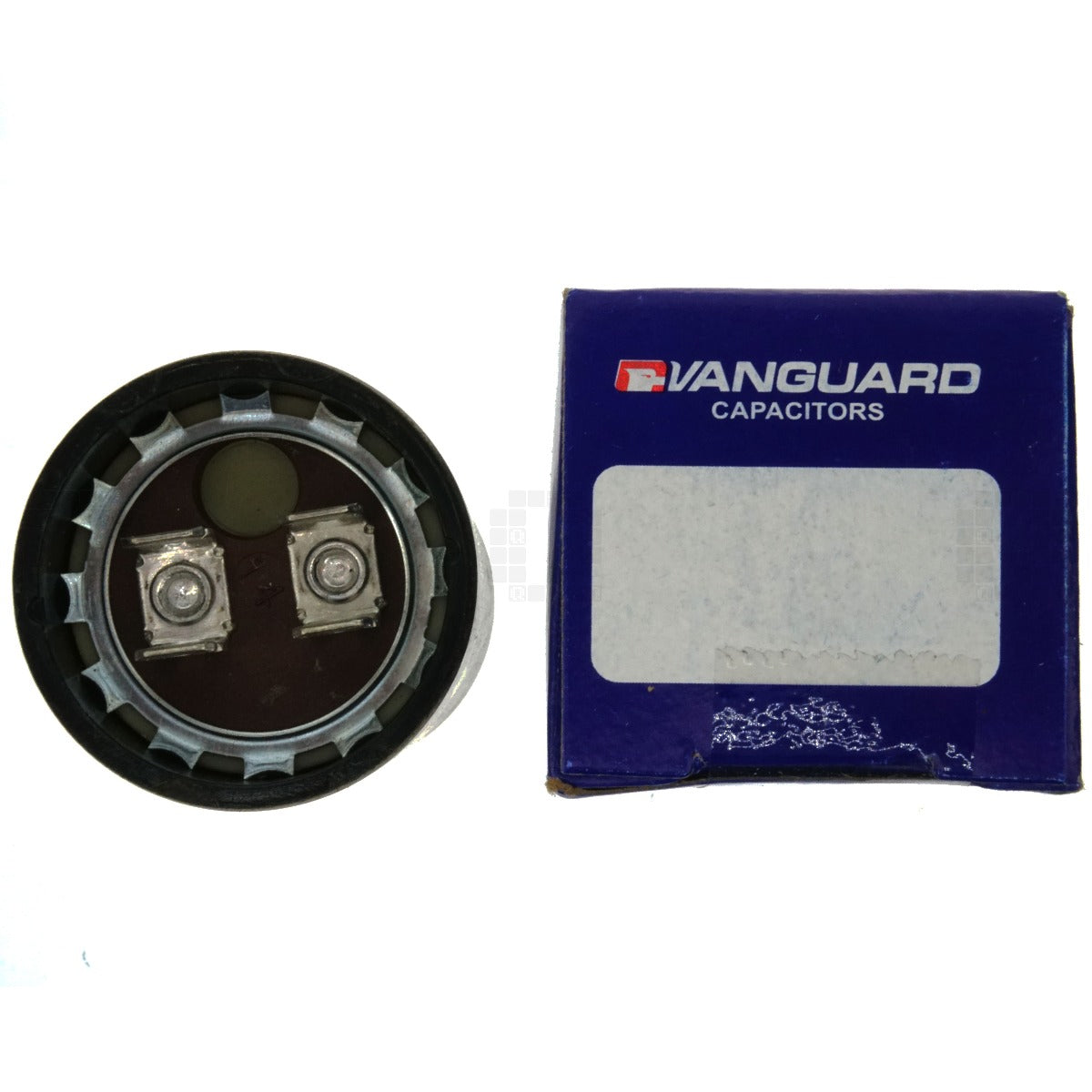

Package Label Vanguard Capacitors
BC-21
21-25 MFD
110/125VAC
Notes
Location

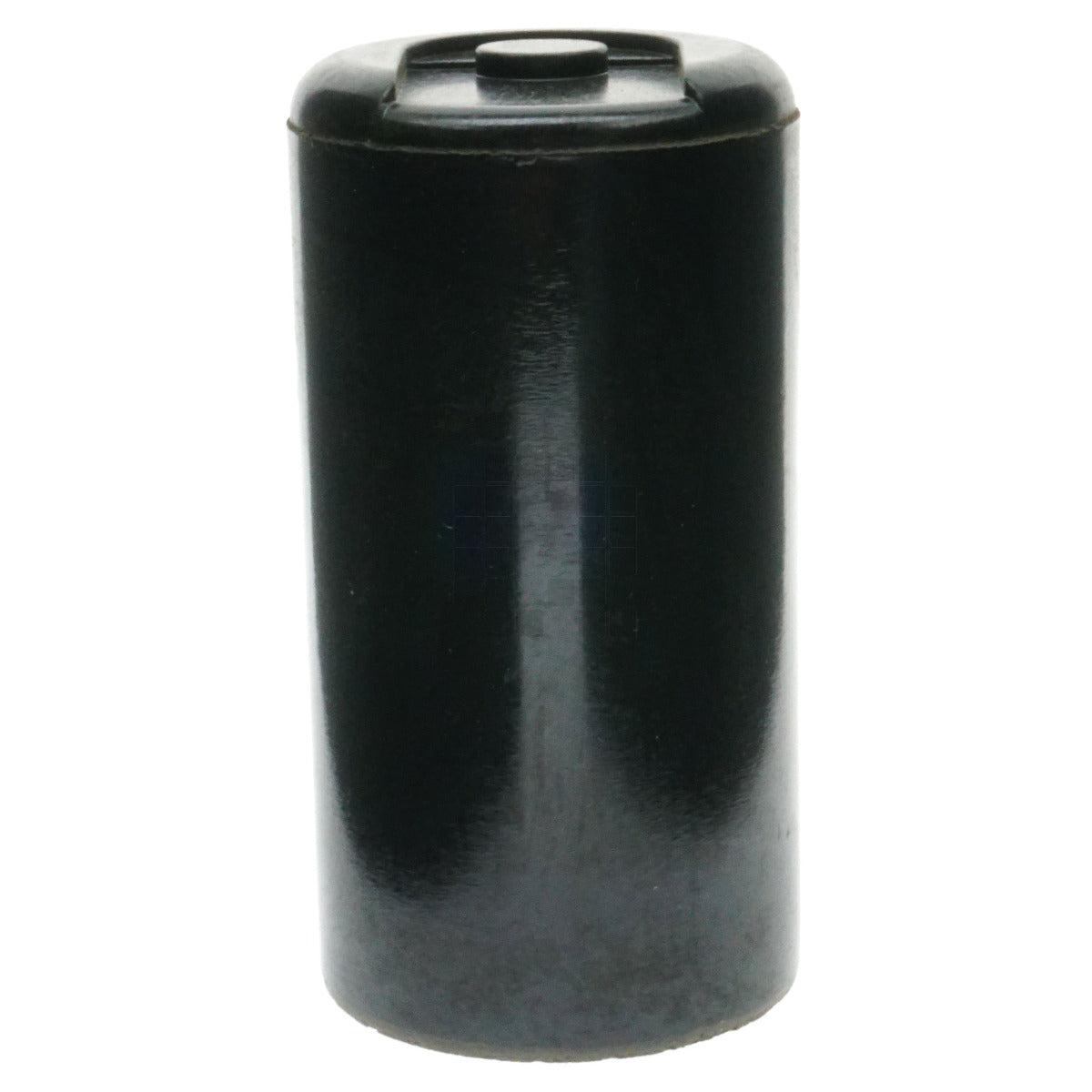

Product Color Black
Product Shape Cylinder
Product Dimensions 1.437" Diameter
2.750" Height
Product Weight 3 oz
Package Dimensions (LxWxH)
Package Weight 4 oz
