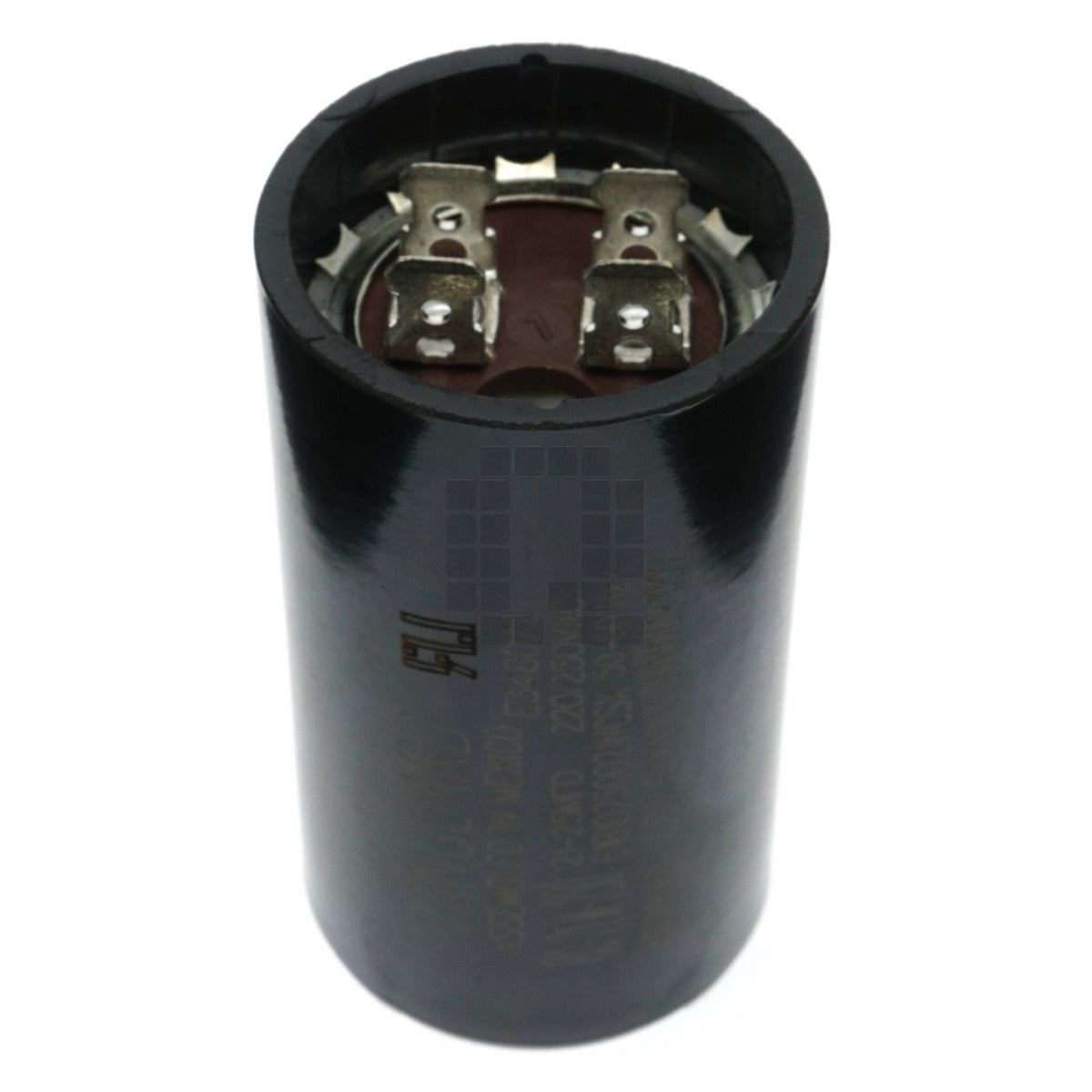

Brand Vanguard
Manufacturer Part Number BC-21M-250
61B1D250021NCSX
Cross Reference (Fit/Form/Function)
Capacitance 21 - 25 uF
Working Voltage 220 -250 VAC
Frequency 50/60 Hz
Working Temperature Range -40°C to +65°C
-40°F to +149°F
Type Start Capacitor

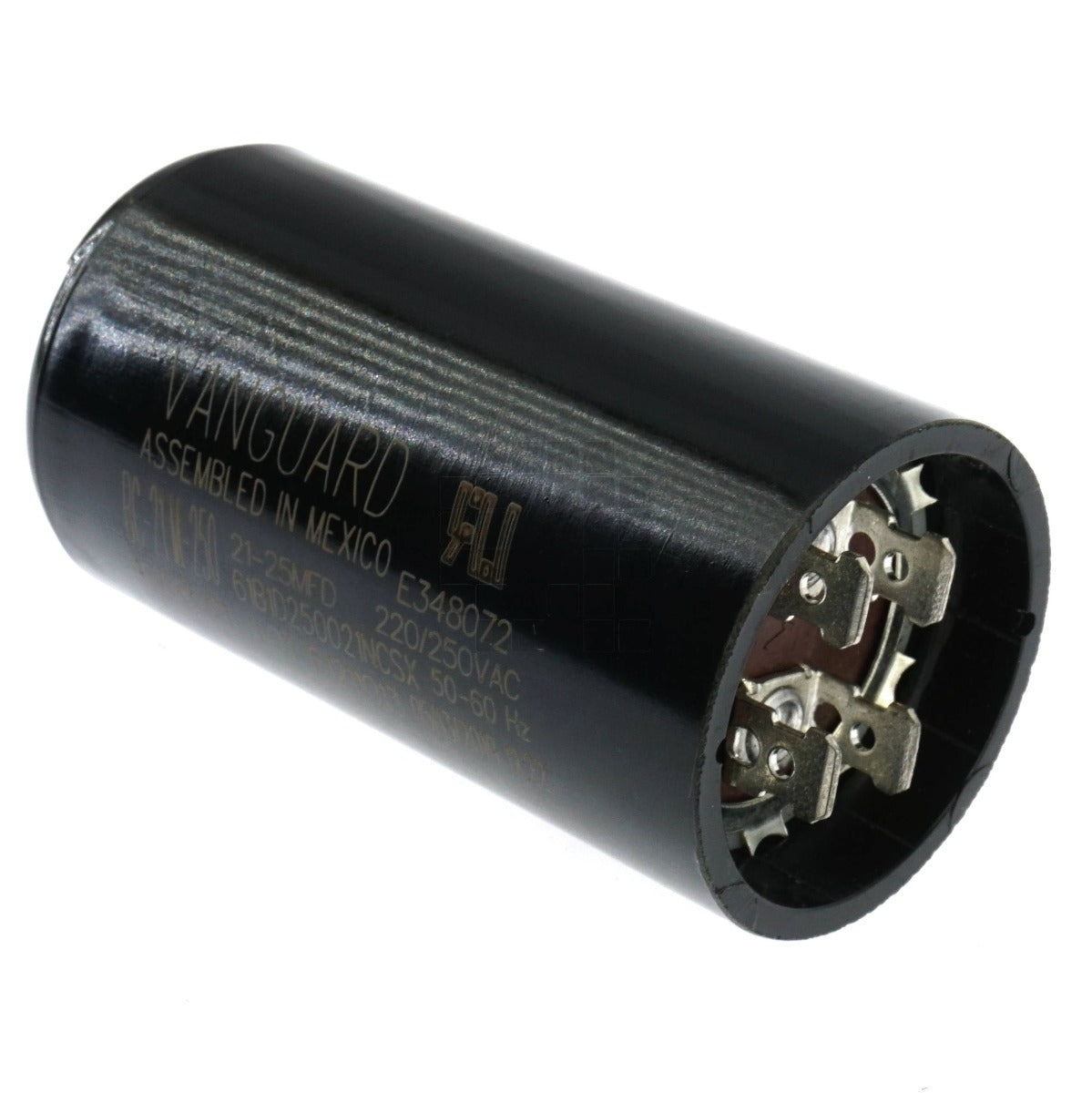

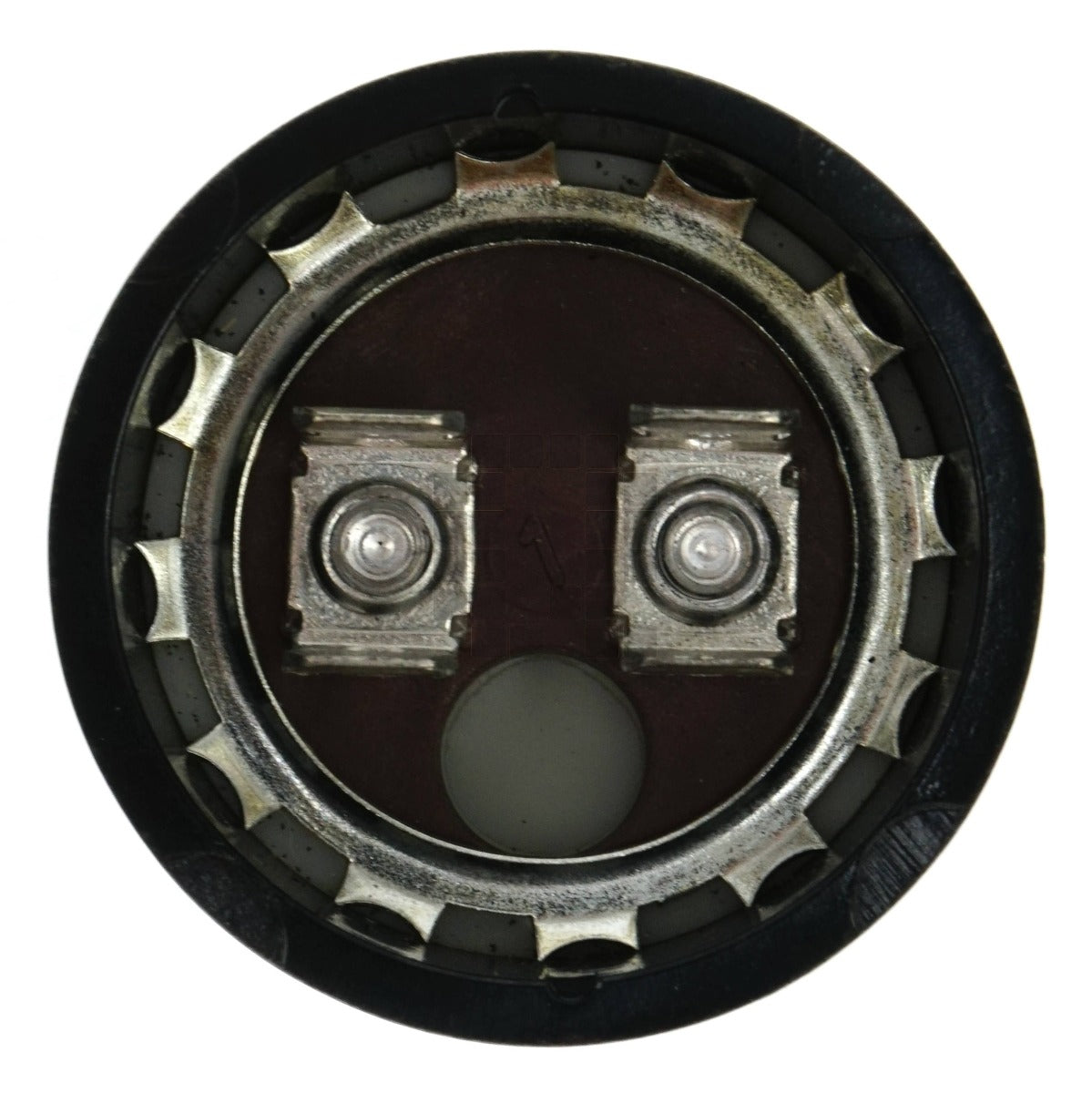

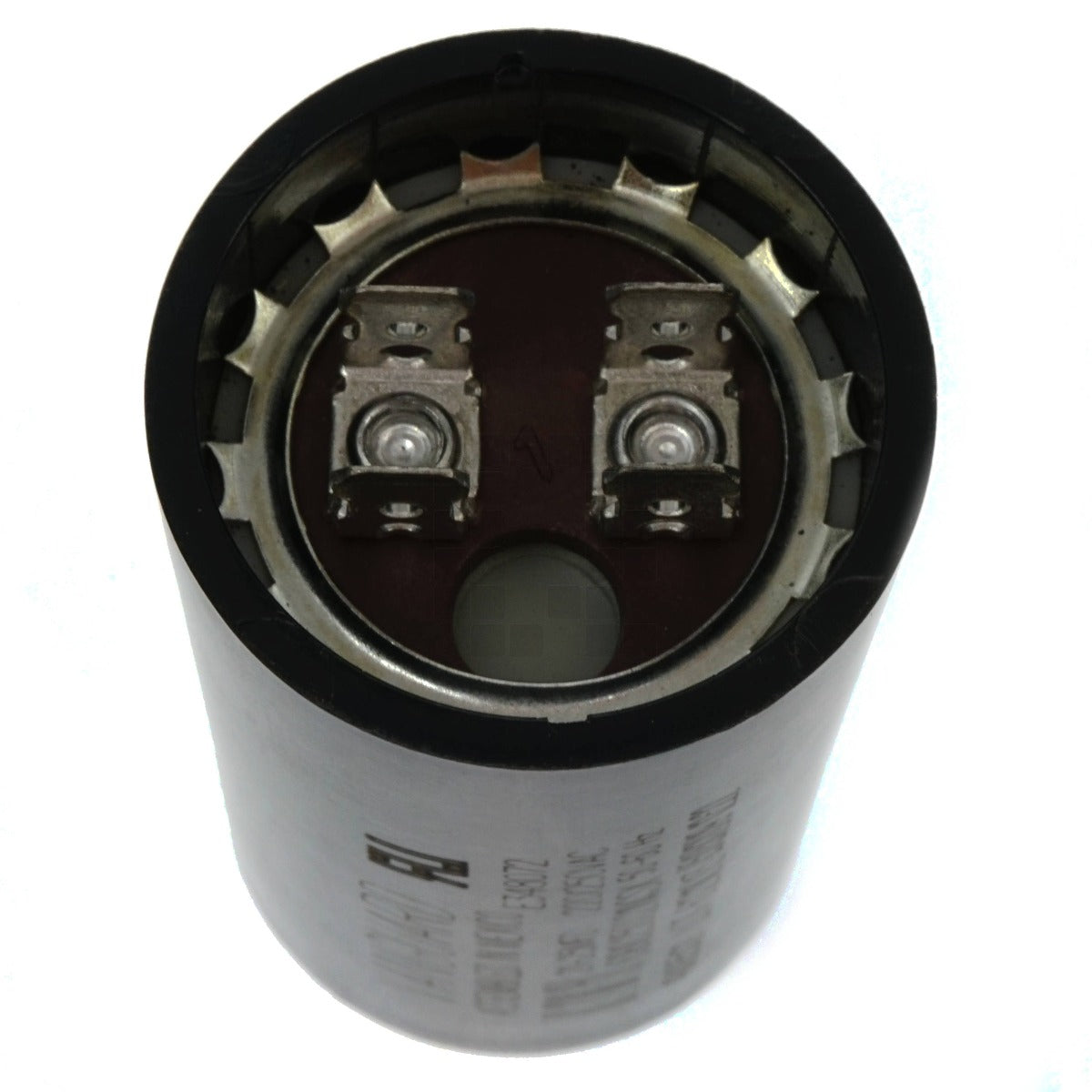

Connection 2 Posts
Two 1/4” male spade terminals on each post
Resistor None

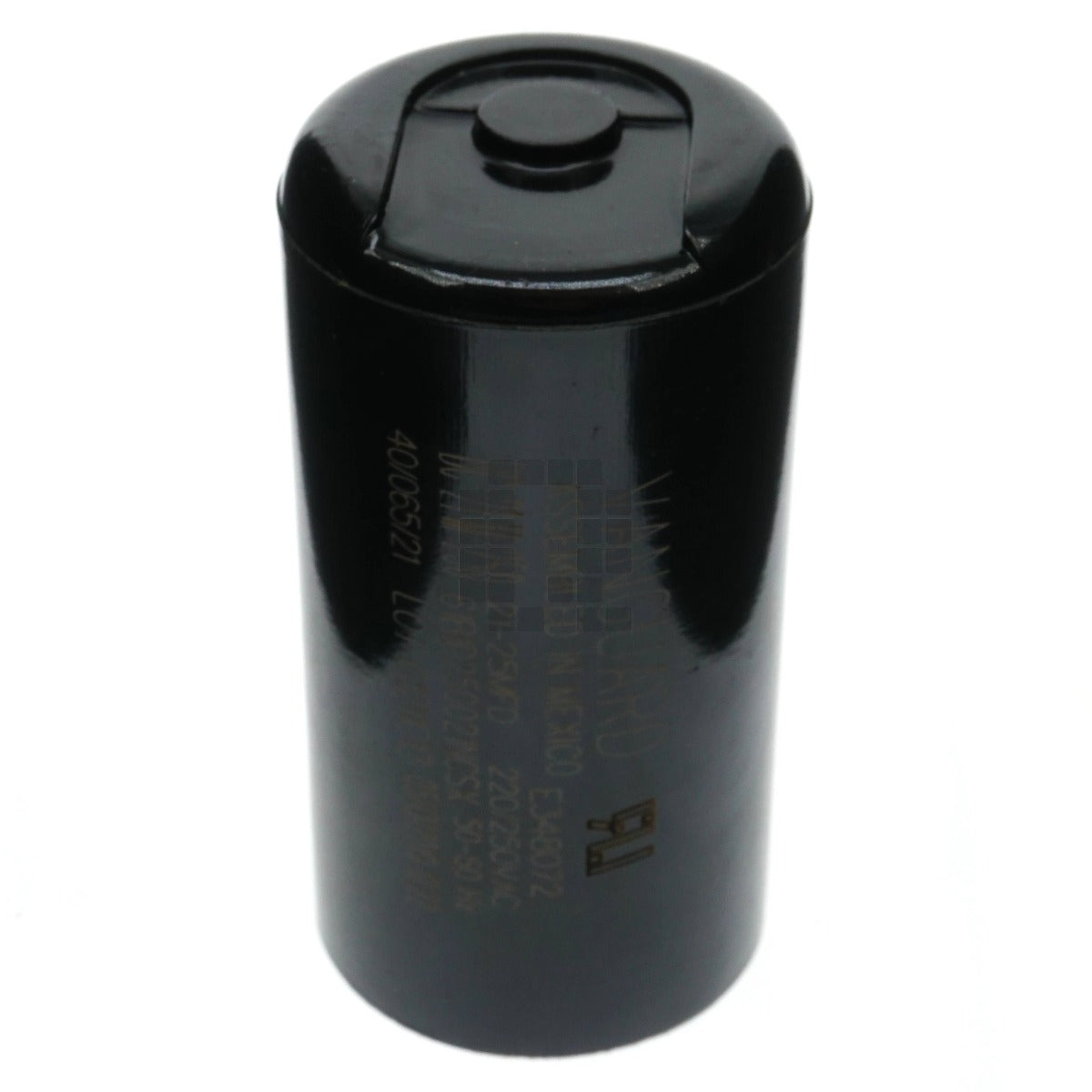

Construction Phenolic Plastic Case
Certifications/Approvals UL Approved
Performance Specifications
Case Code
Distance Between Terminals 0.50"
UPC None
Product Origin (COO) Mexico

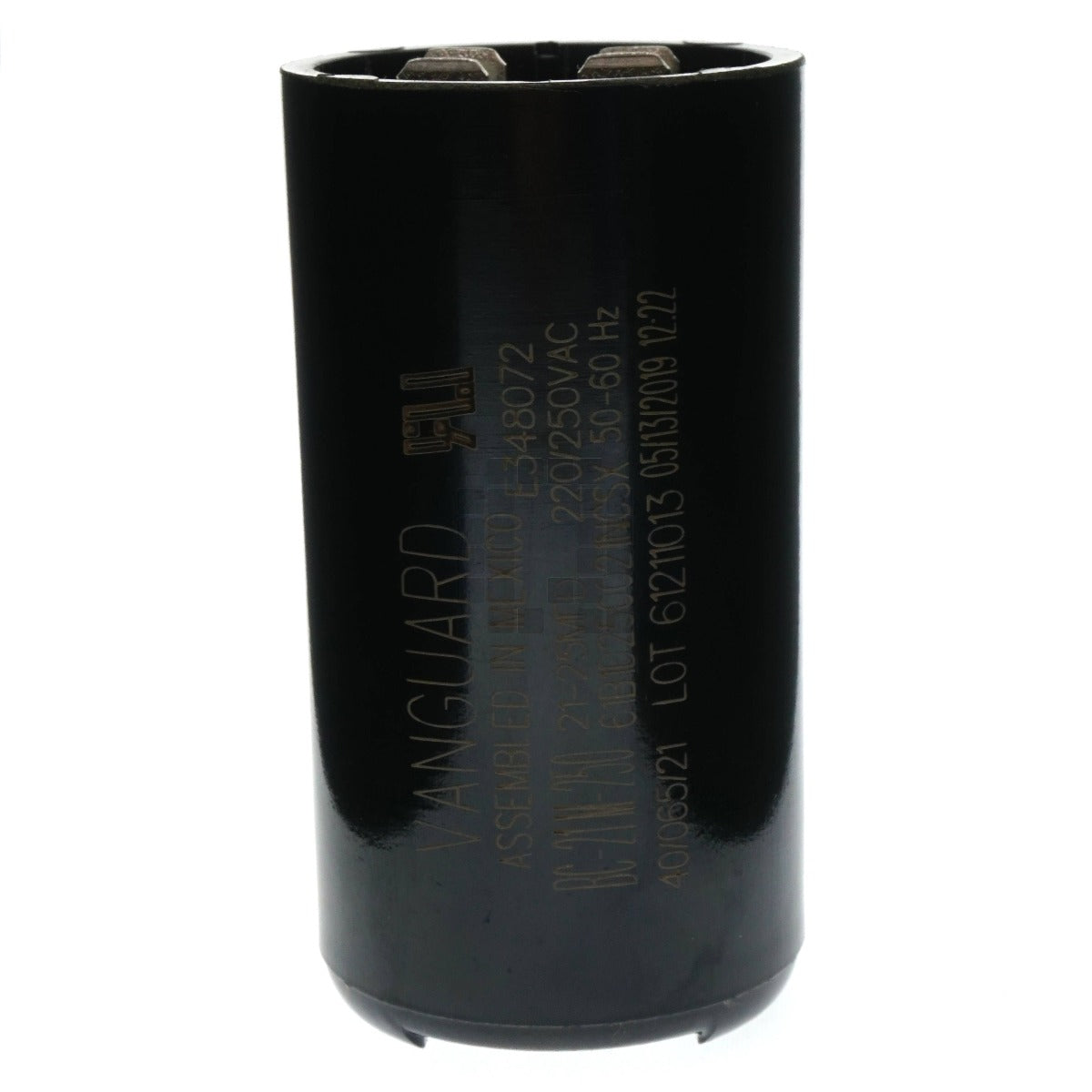

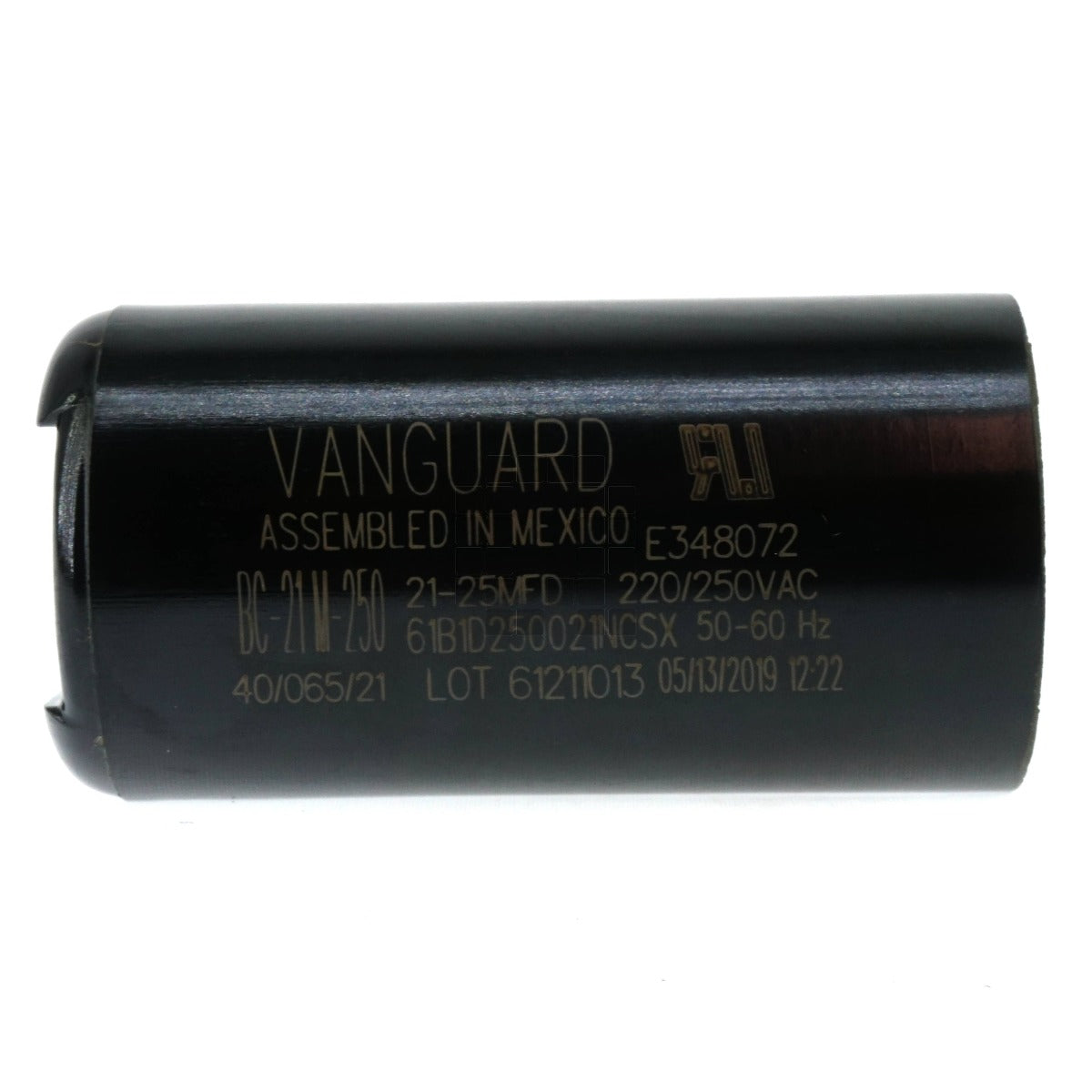

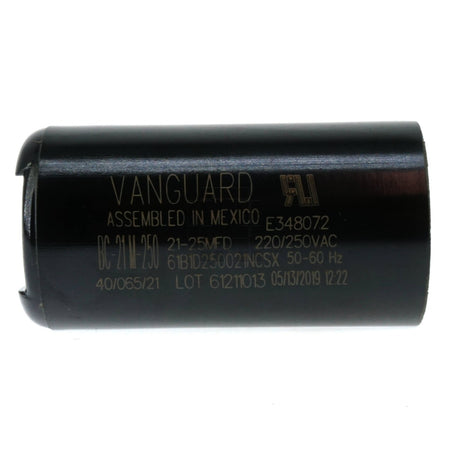

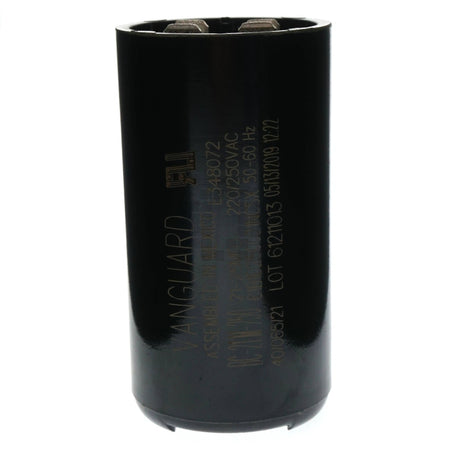

Product Label Vanguard

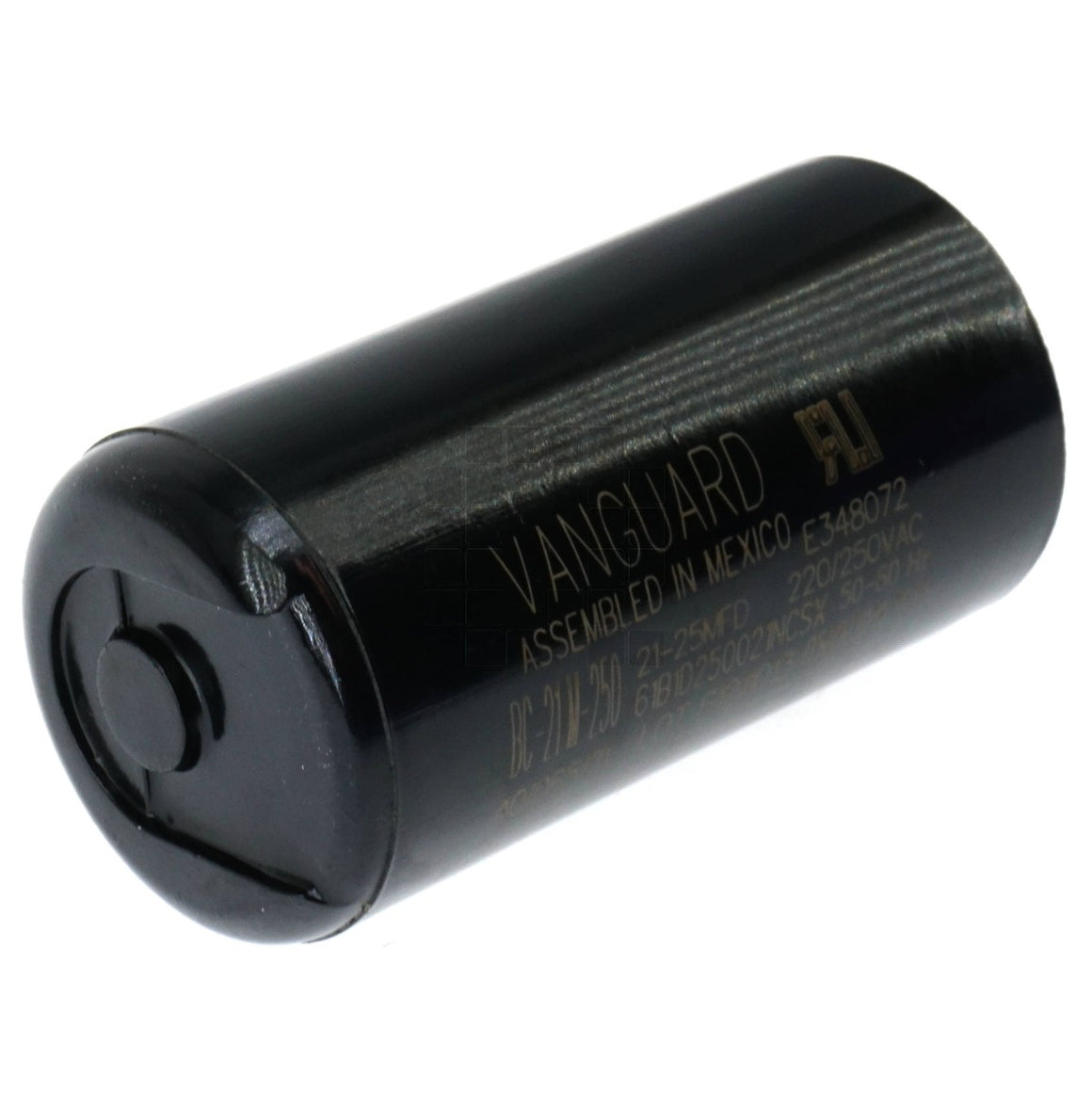

Assembled in Mexico
BC-21M-250 21-25MFD 220/250VAC
61B1D250021NCSX 50-60Hz

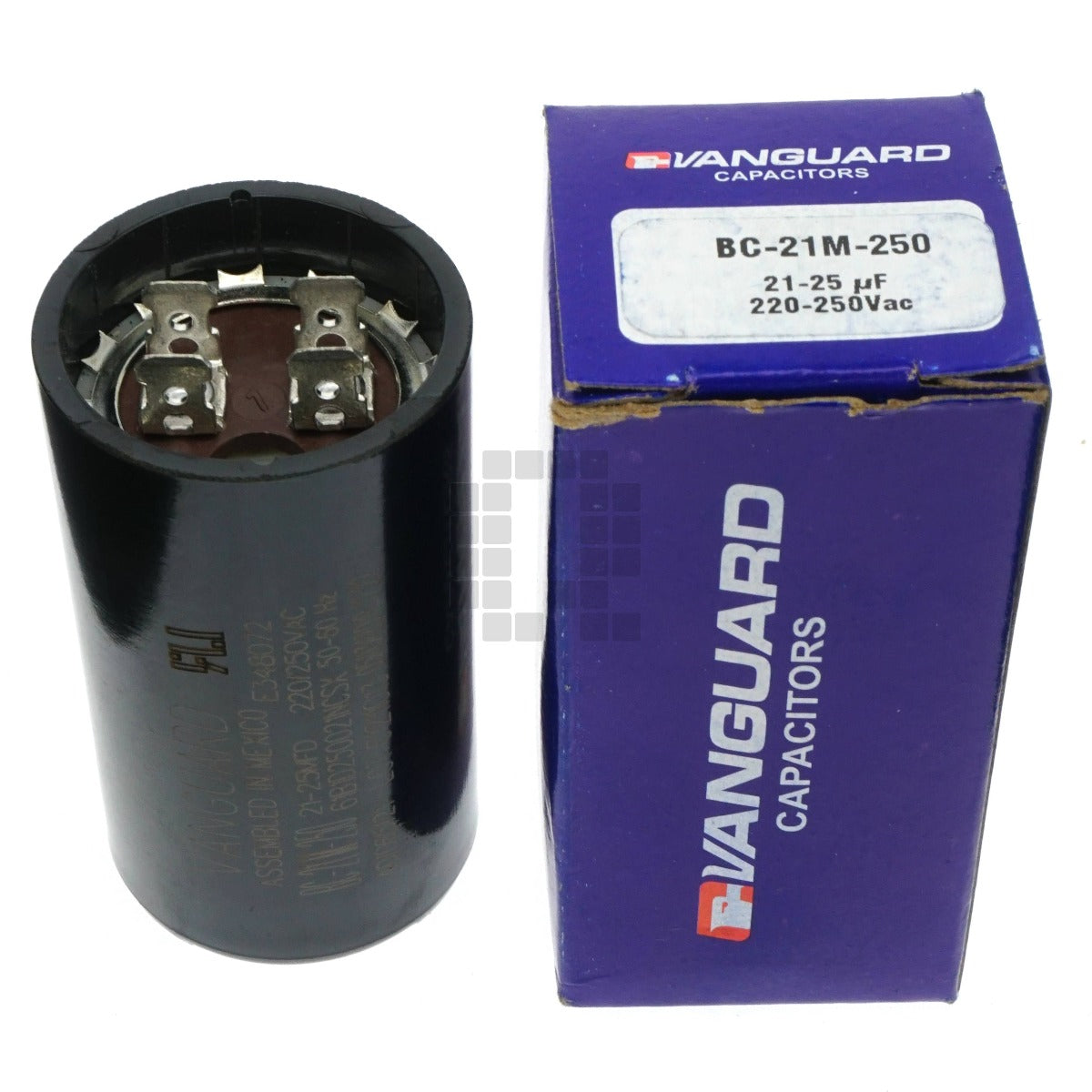

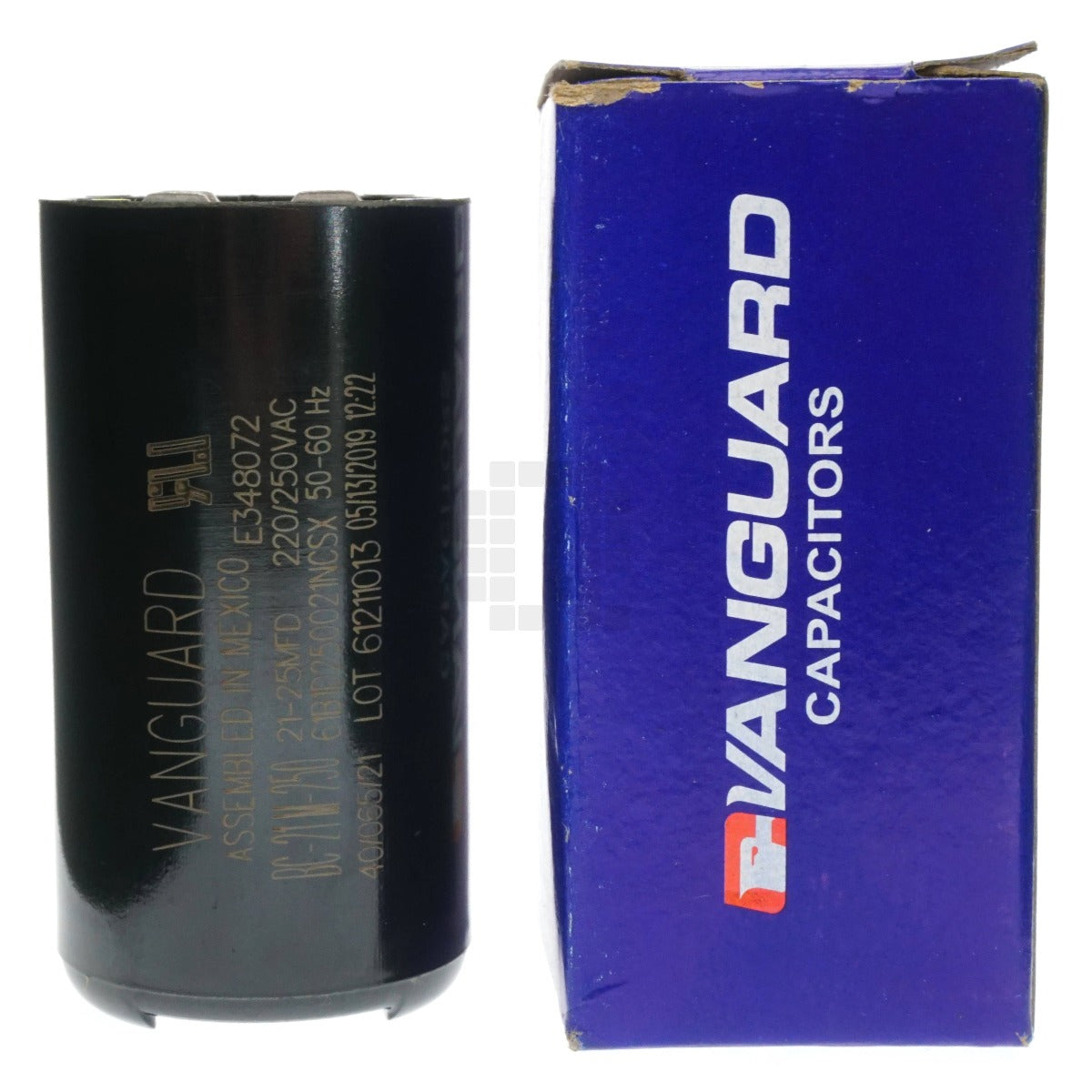

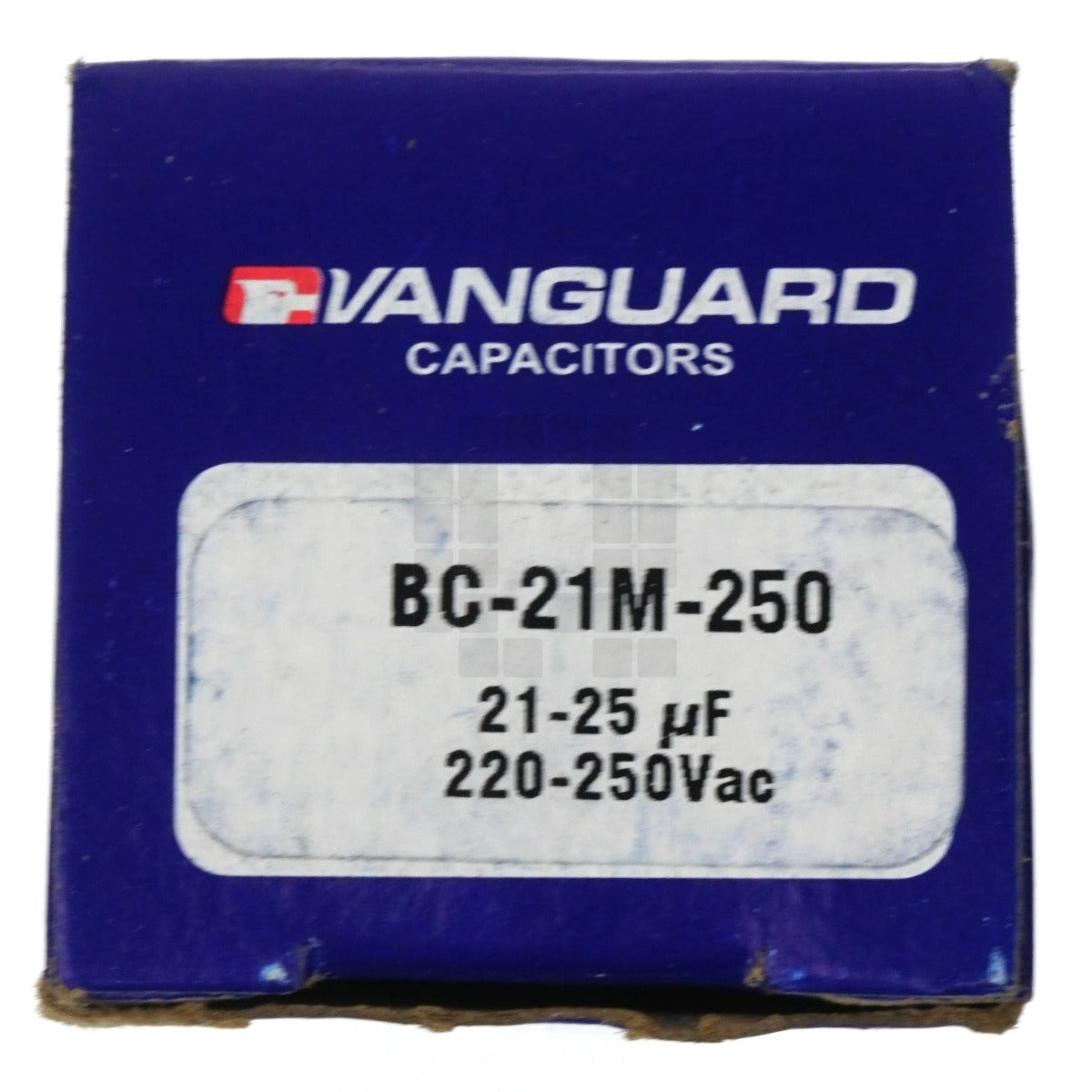

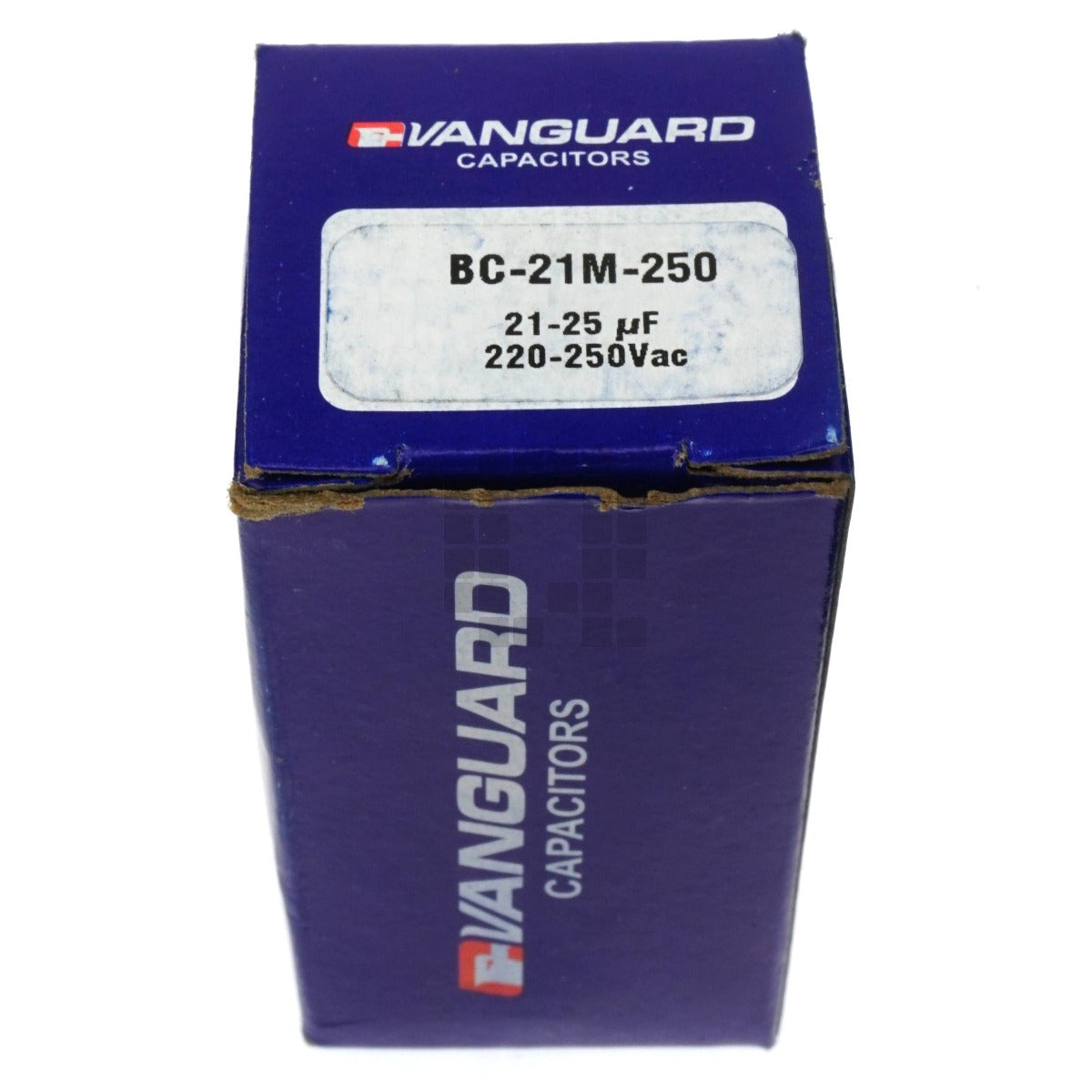

Package Label BC-21M-250
21-25 uF
220-250VAC
Notes
Product Color Black
Product Shape Cylinder
Product Dimensions 1-7/16" Diameter
2-3/4" High
Product Weight 0.20 lbs
Package Dimensions (LxWxH) 1.50" x 1.50" x 3.10"
Package Weight 0.25 lbs
