Product Specifications :

Brand Vanguard
Manufacturer Part Number BC-25M-330
61B2D330025NCSX
Cross Reference (Fit/Form/Function)
Capacitance 25-30 uF
Working Voltage 330 VAC
Frequency 50/60 Hz
Working Temperature Range -40°C to +65°C
-40°F to +149°F
Type Start Capacitor

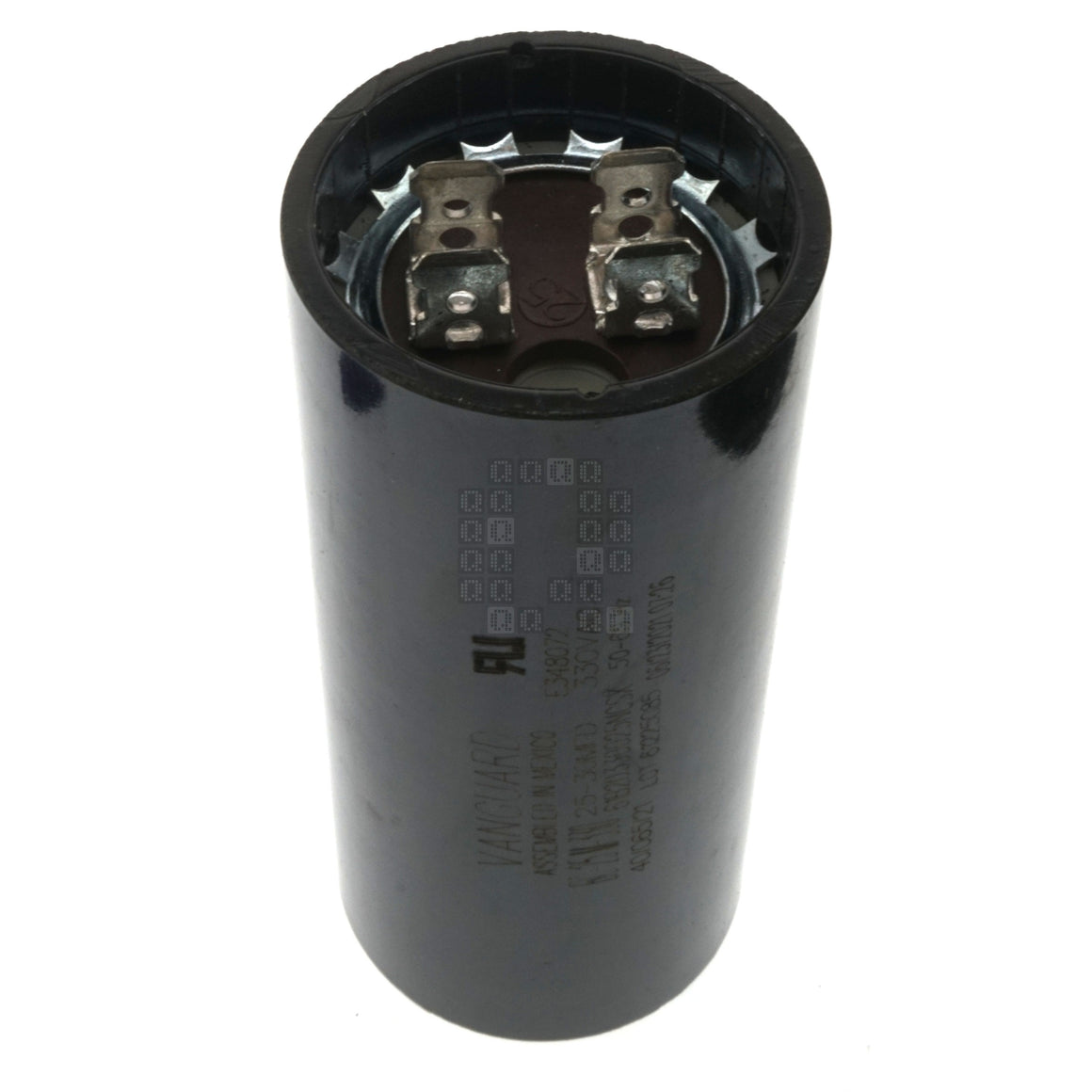

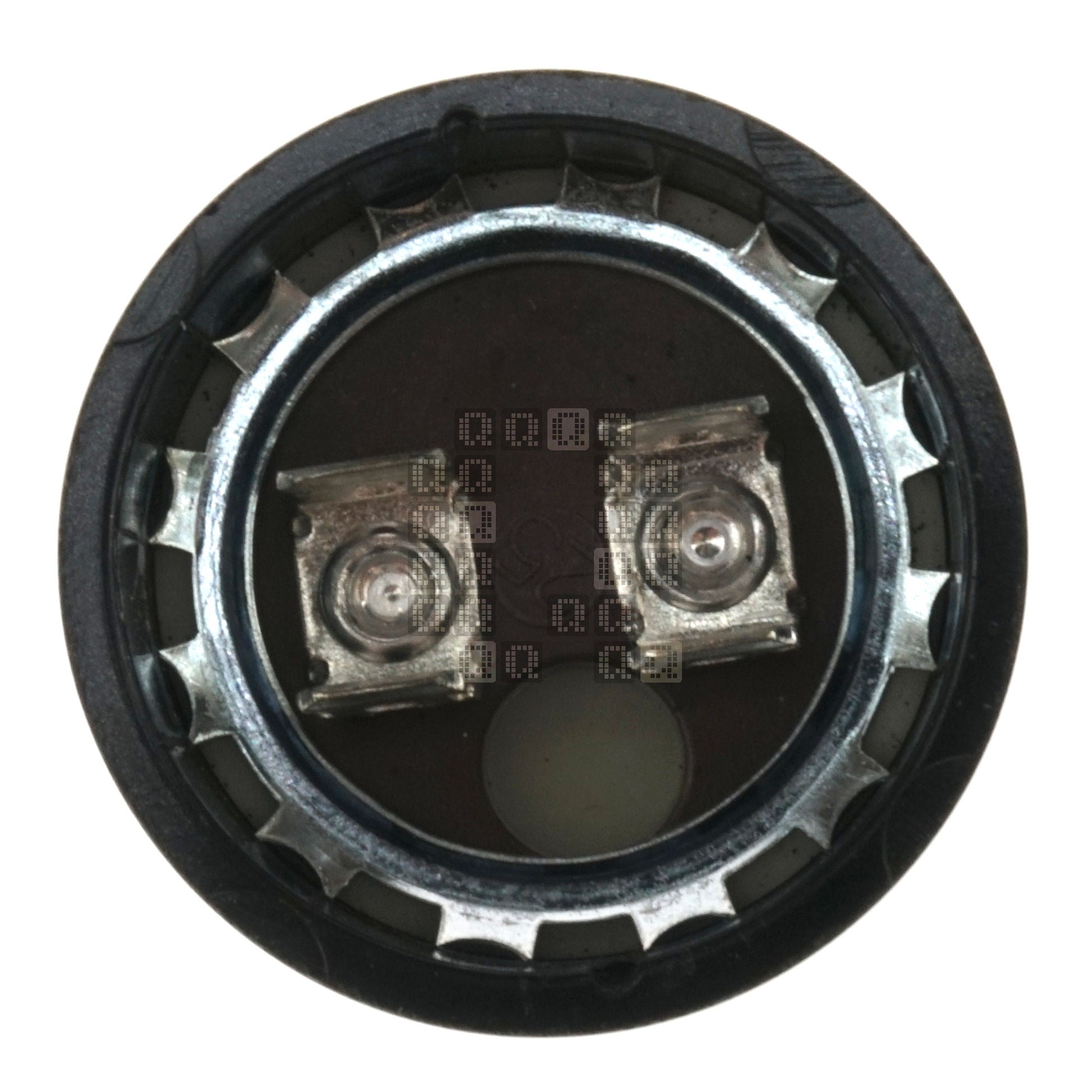

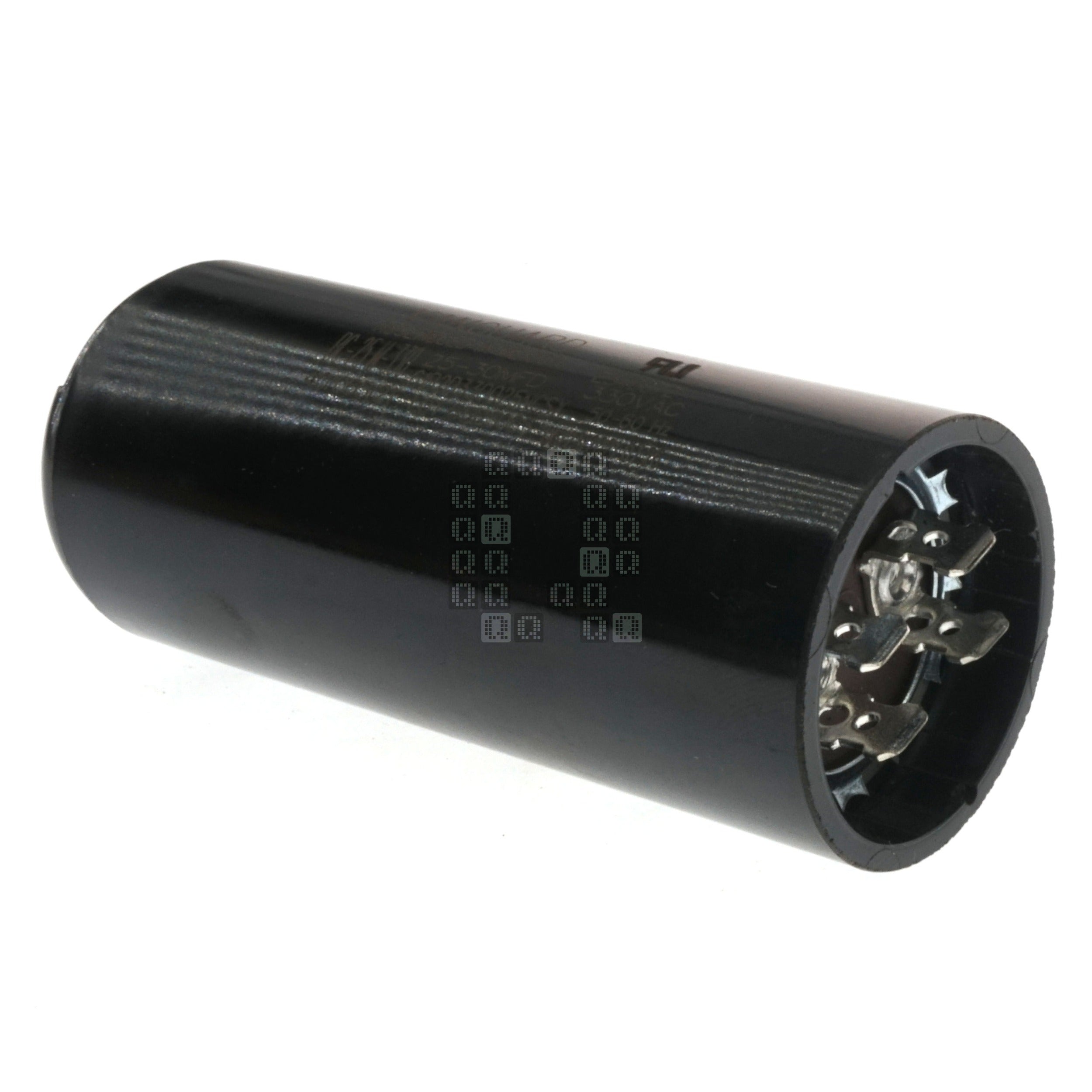

Connection 2 Posts
Two 1/4” male spade terminals on each post
Resistor None

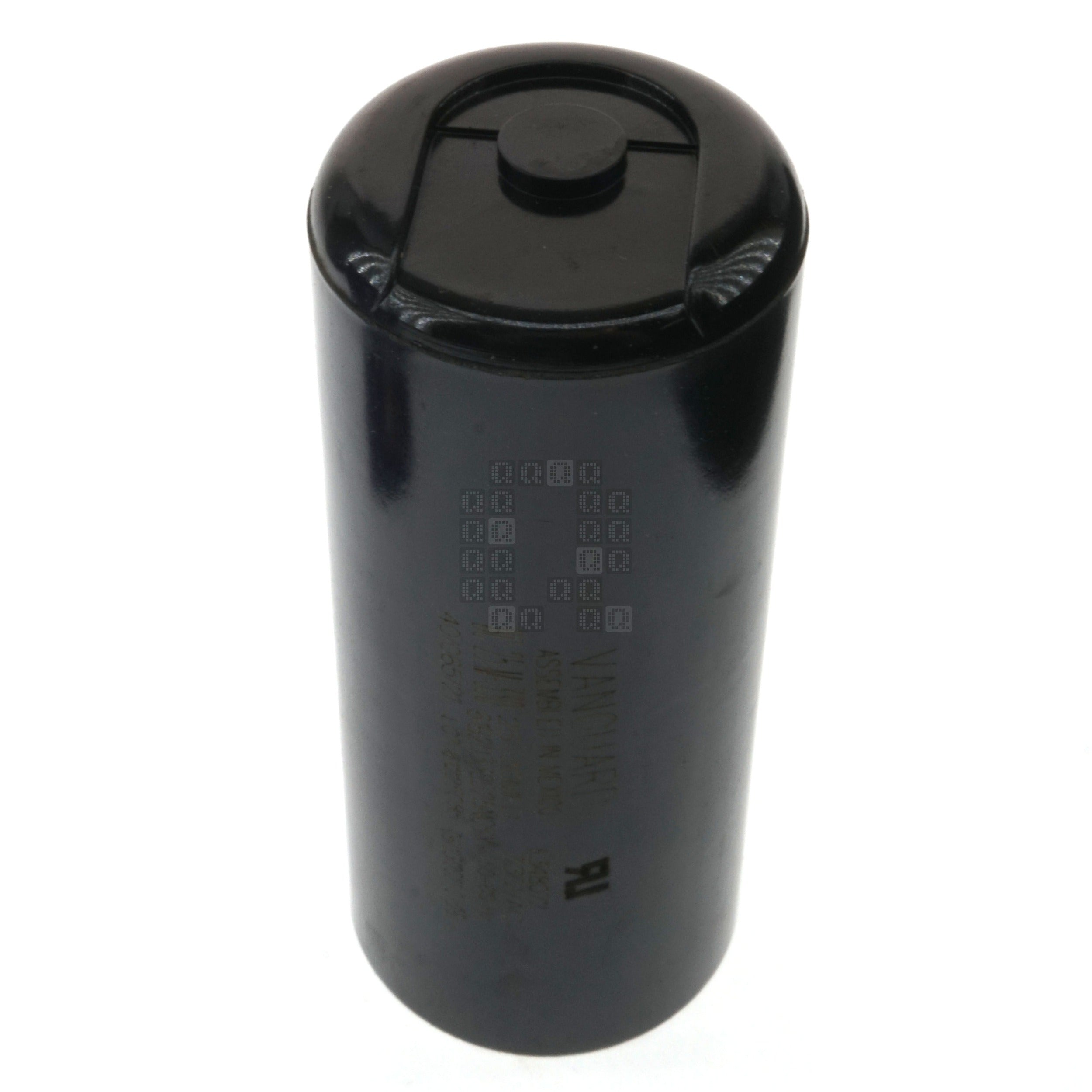

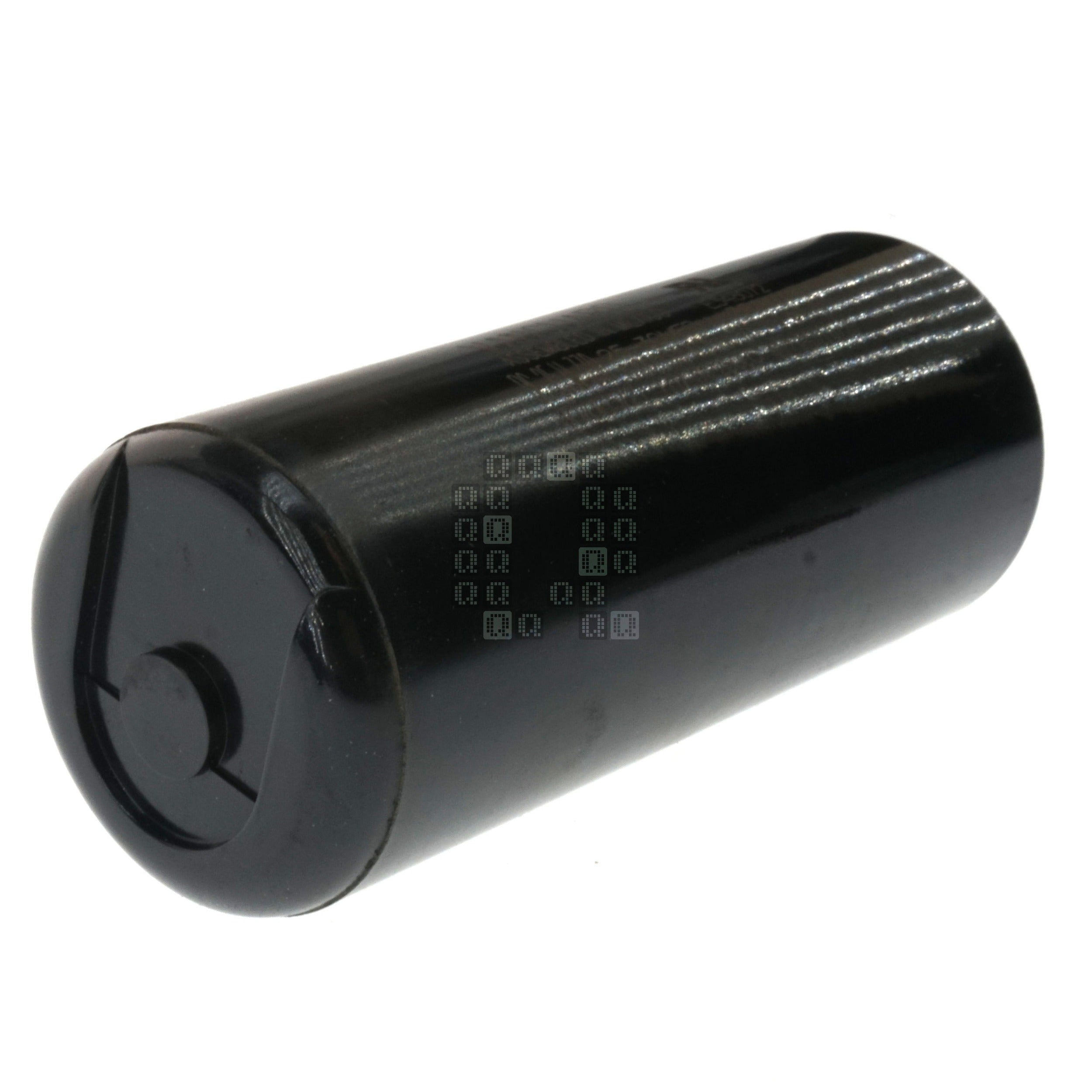

Construction Phenolic Plastic Case
Certifications/Approvals UL Approved
Performance Specifications
Case Code
Distance Between Terminals
UPC None
Product Origin (COO) Mexico

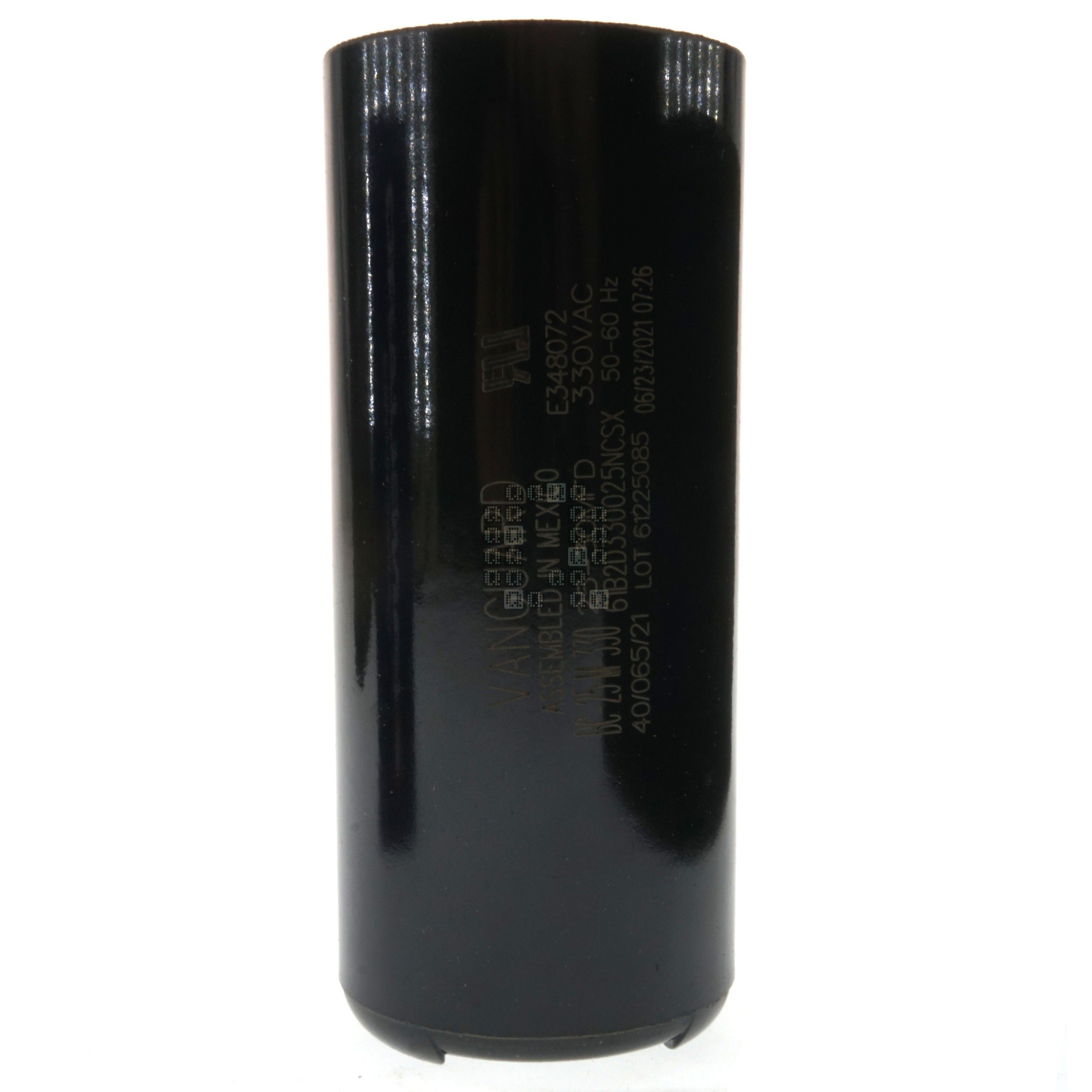

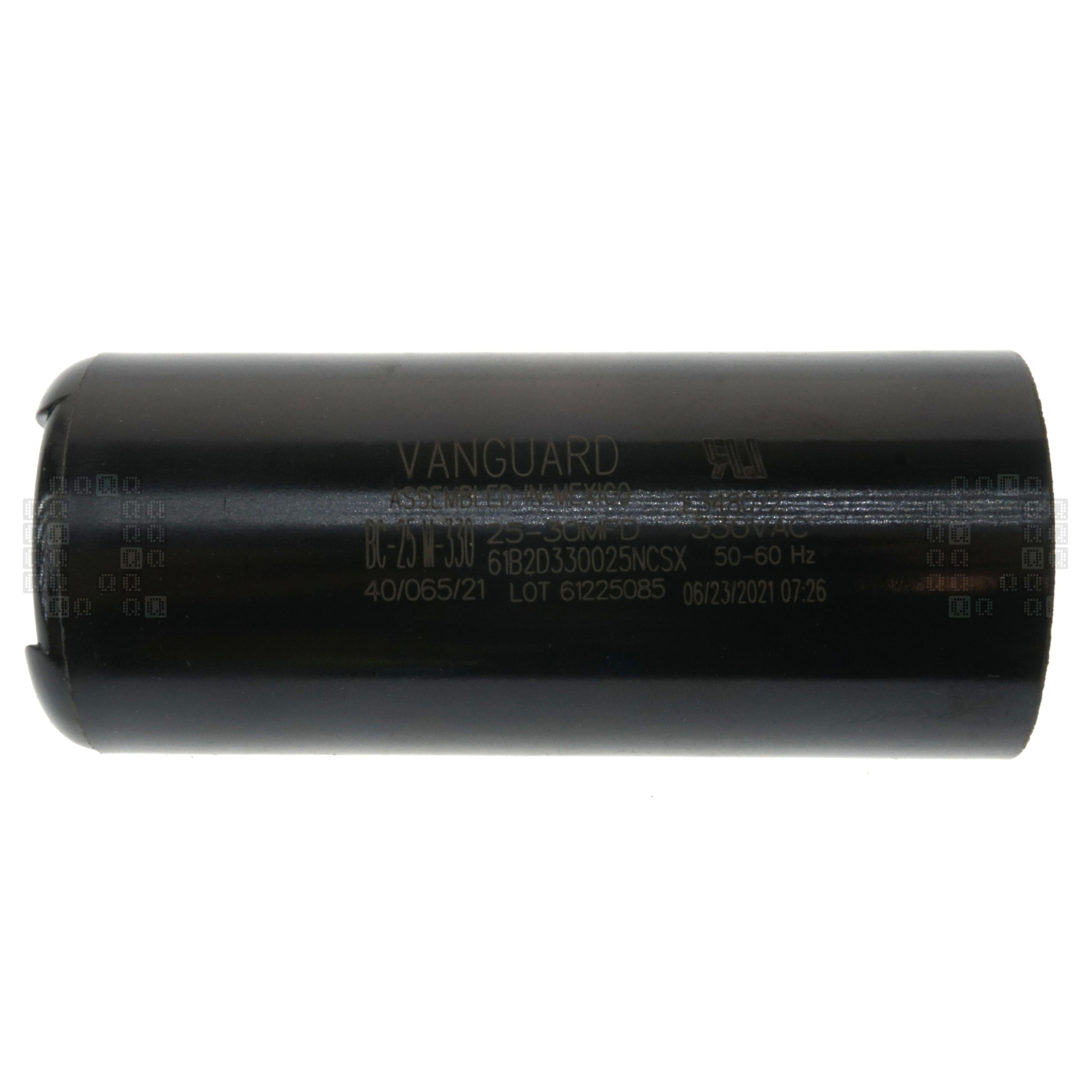

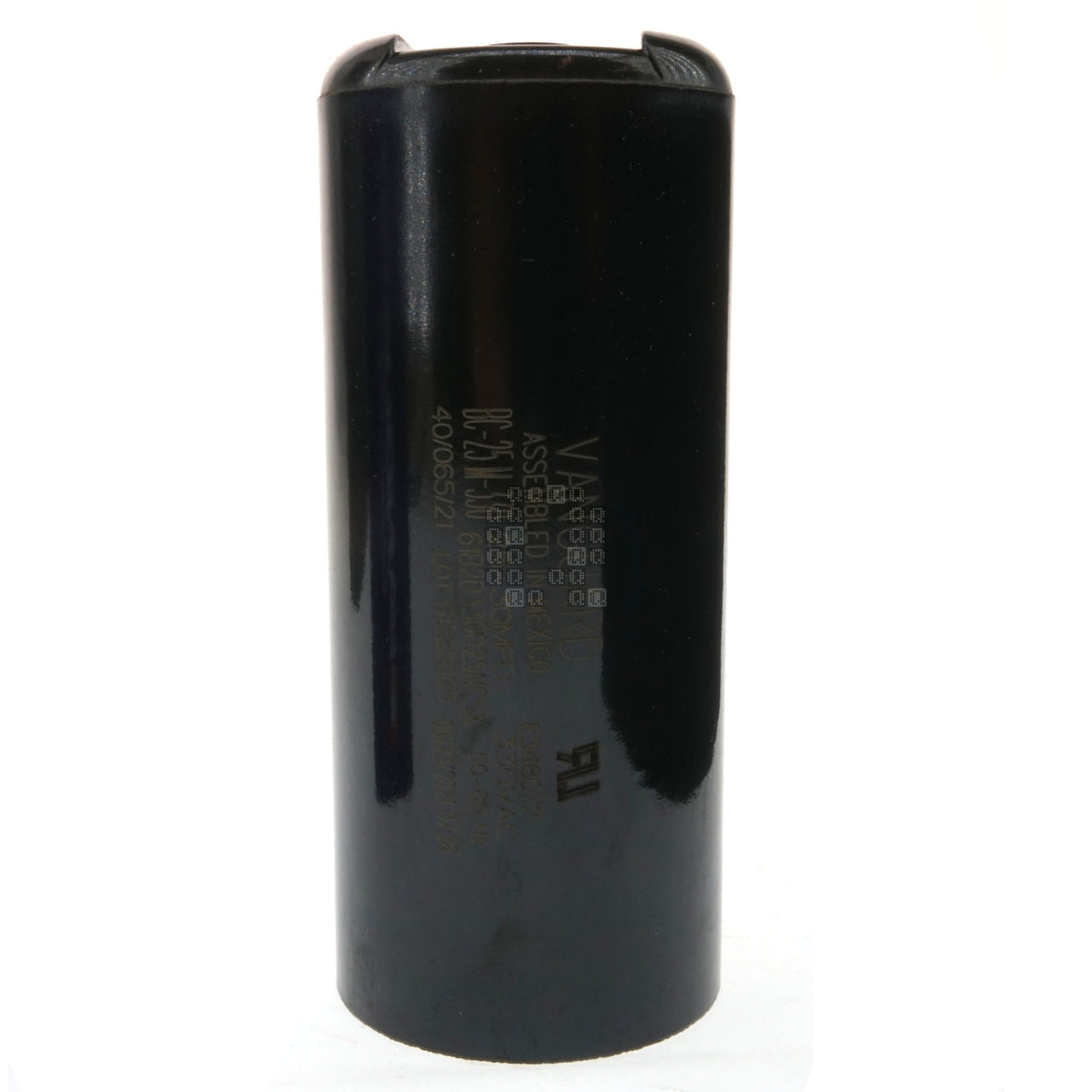

Product Label Vanguard
Assembled in Mexico
BC-25M-330 25-30 MFD 330VAC
61B2D330025NCSX 50-60Hz

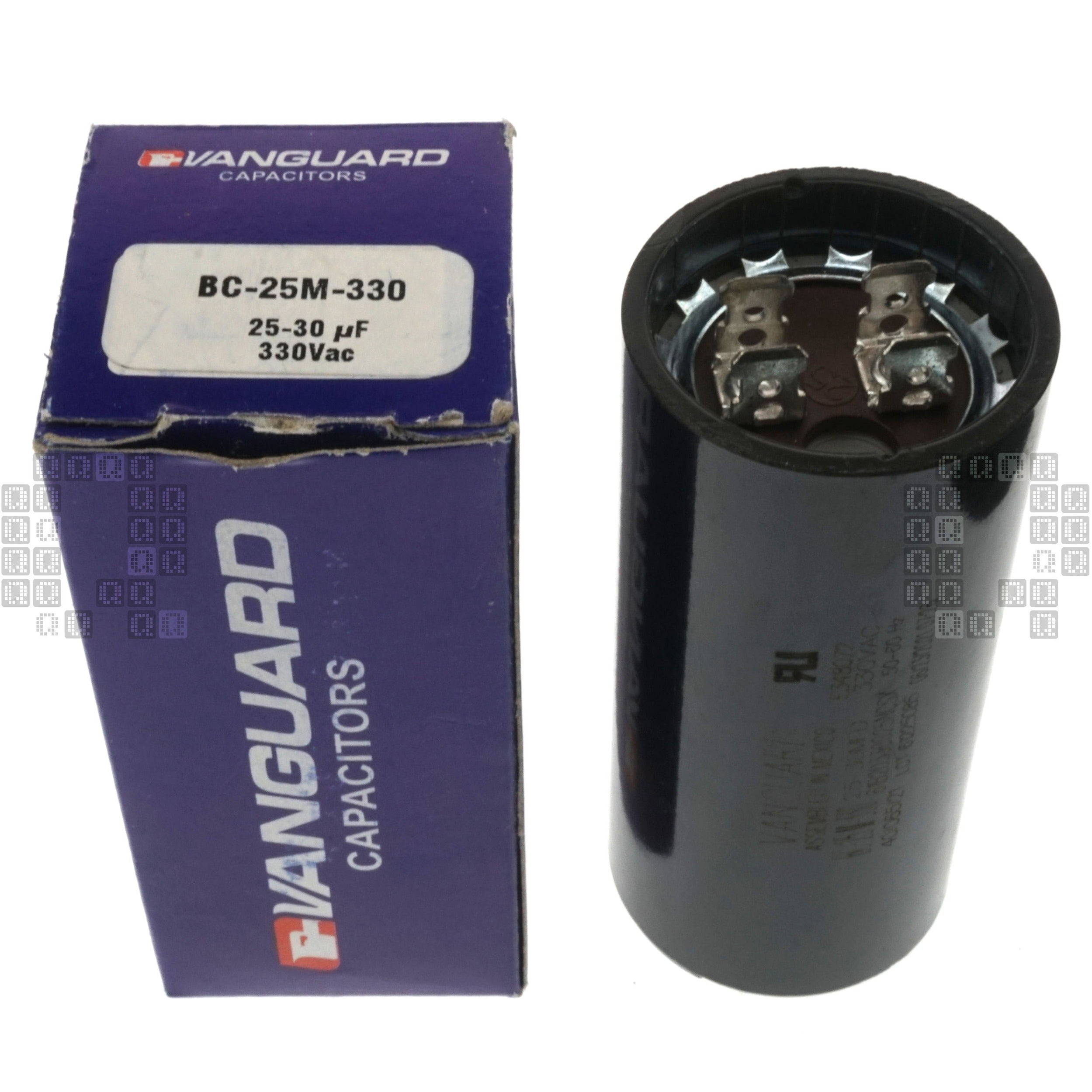

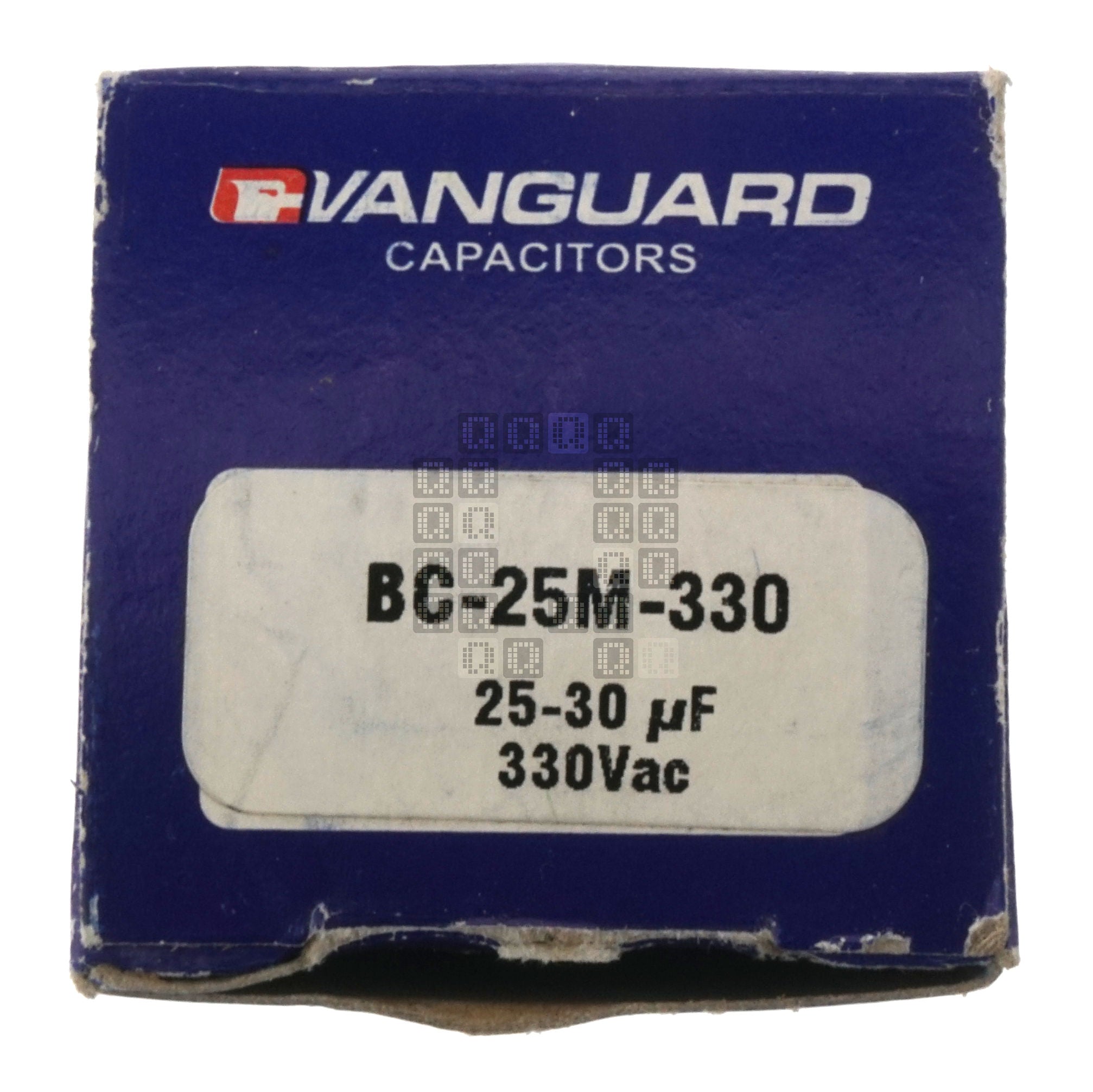

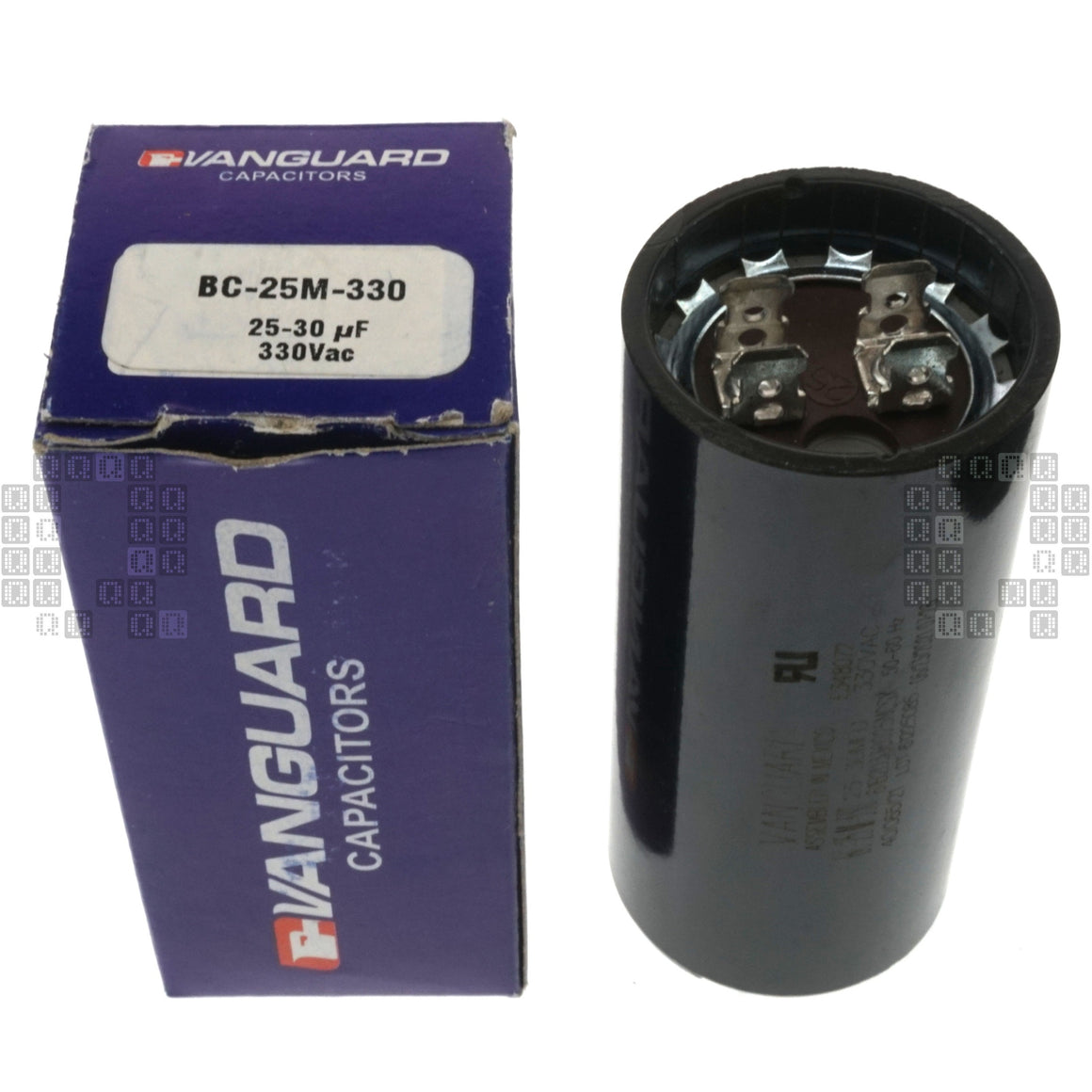

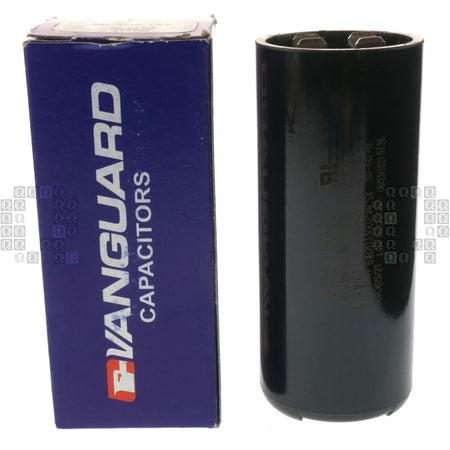

Package Label BC-25M-330
25-30 uF
330VAC
Notes

Dimensions & Weights :

Product Color Black
Product Shape Cylinder
Product Dimensions 1.437" Diameter
3.375" High
Product Weight 3 oz
0.09 kg
Package Dimensions (LxWxH) 1.50" x 1.50" x 3.50" Inches
Package Weight 4 oz
0.12 kg
