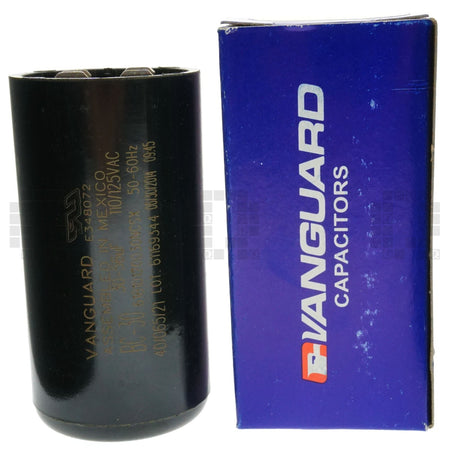

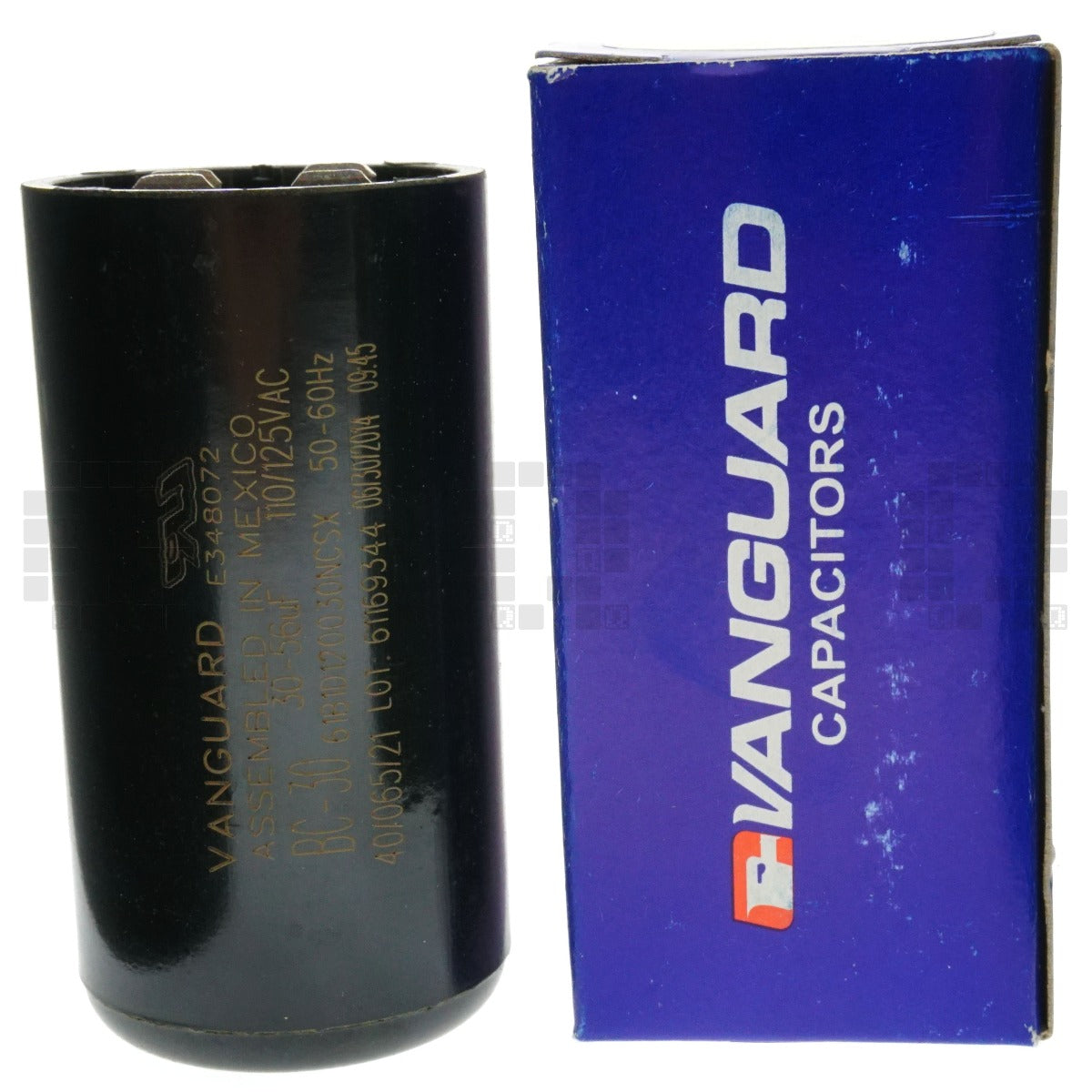

Brand Vanguard
manufactured by NGM
Manufacturer Part Number BC-30
61B1D120030NC
61B1D120030NCSX
Cross Reference (Fit/Form/Function)
Capacitance 30 - 36 uF
Working Voltage 110-125 VAC
Frequency 50/60 Hz
Power Factor 10% Max
after applying working voltage for 4 seconds
Working Temperature Range -40°C to +65°C
-40°F to +149°F
Type Start Capacitor
Aluminum Electrolytic, Non-Polarized
Connection 2 Posts
Two 1/4” male spade terminals on each post
Resistor None
Construction Phenolic Case
Certifications/Approvals UL Approved
Performance Specifications Type 2
Case Code 1
Distance Between Terminals 0.50"
UPC None
Product Origin (COO) Mexico
Product Label Vanguard
Assembled in Mexico
BC-30 30-36uF 110/125VAC
61B1D120030NCSX 50-60Hz
Package Label Vanguard Capacitors
BC-30
30-36 uF 110-125VAC
Product Color Black
Product Shape Cylinder
Product Dimensions 1.437" Diameter
2.78" High
Product Weight 3 oz
Package Dimensions (LxWxH) 1.55" x 1.52" x 3.10"
Package Weight 4 oz
