Brand Vanguard
Manufacturer Part Number BC-324
61B1D120324NCSX
Cross Reference (Fit/Form/Function)
Capacitance 324-389 uF (MFD)
Working Voltage 110-125VAC
Frequency 50/60 Hz
Working Temperature Range -40°C to +65°C
-40°F to +149°F
Type Start Capacitor

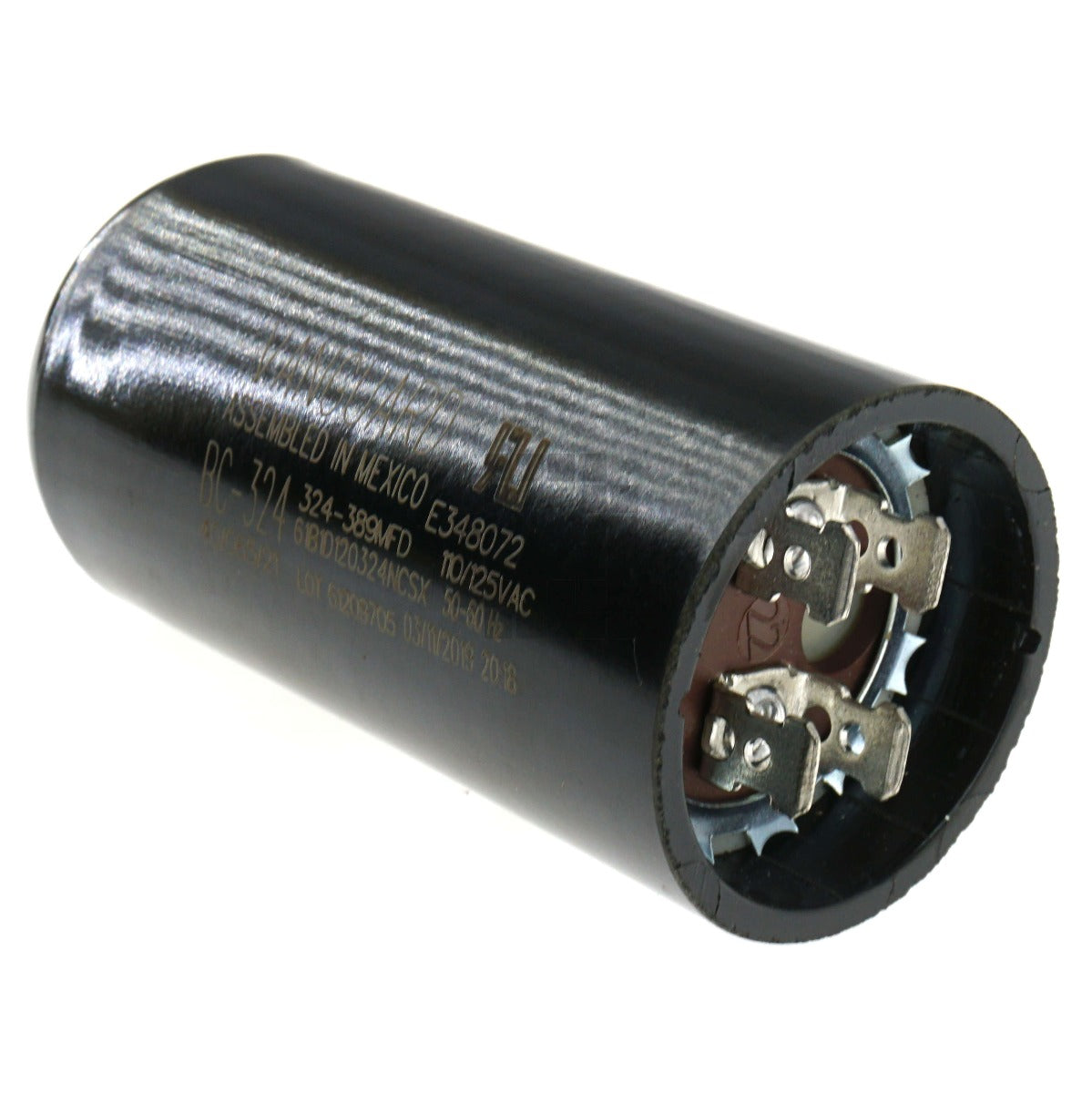

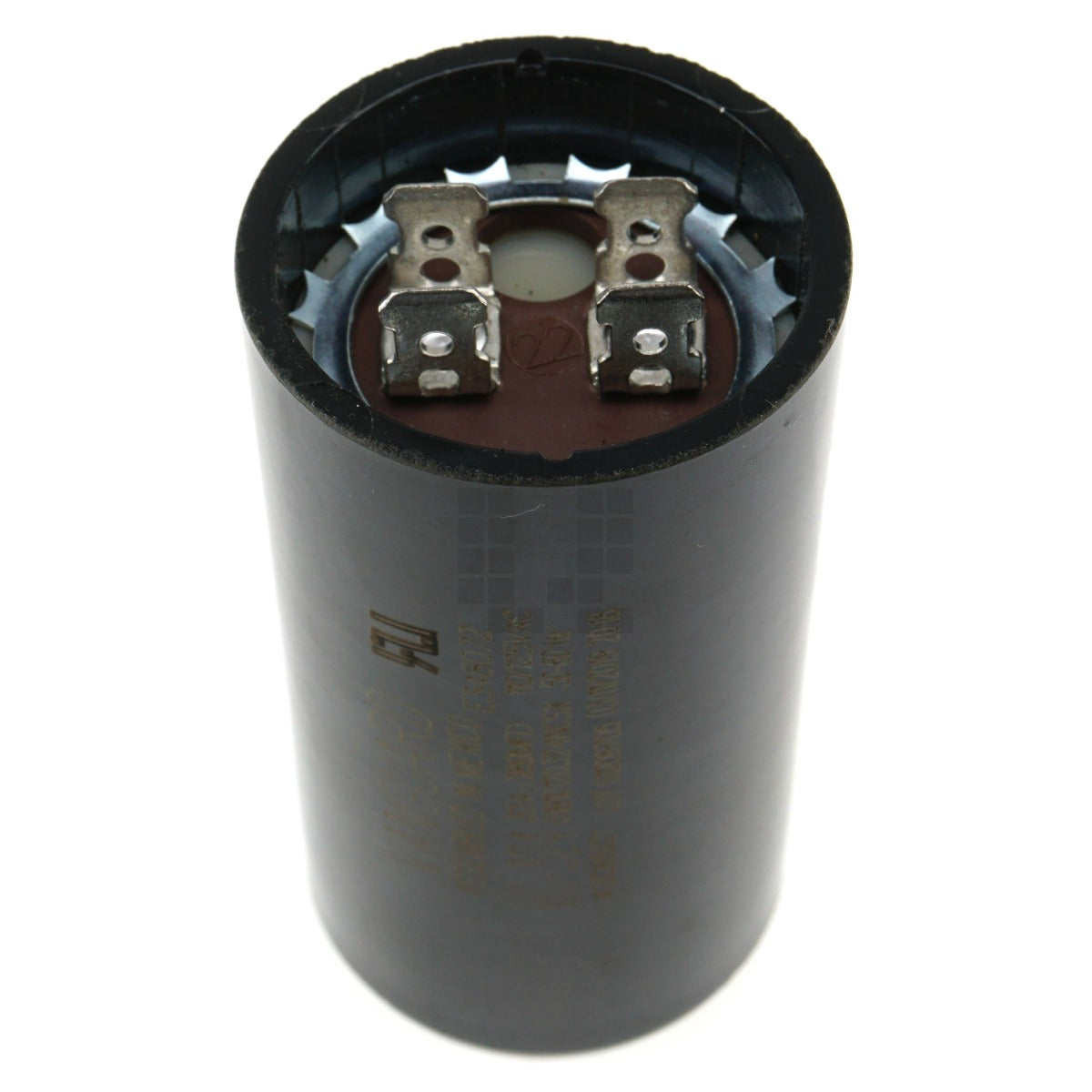

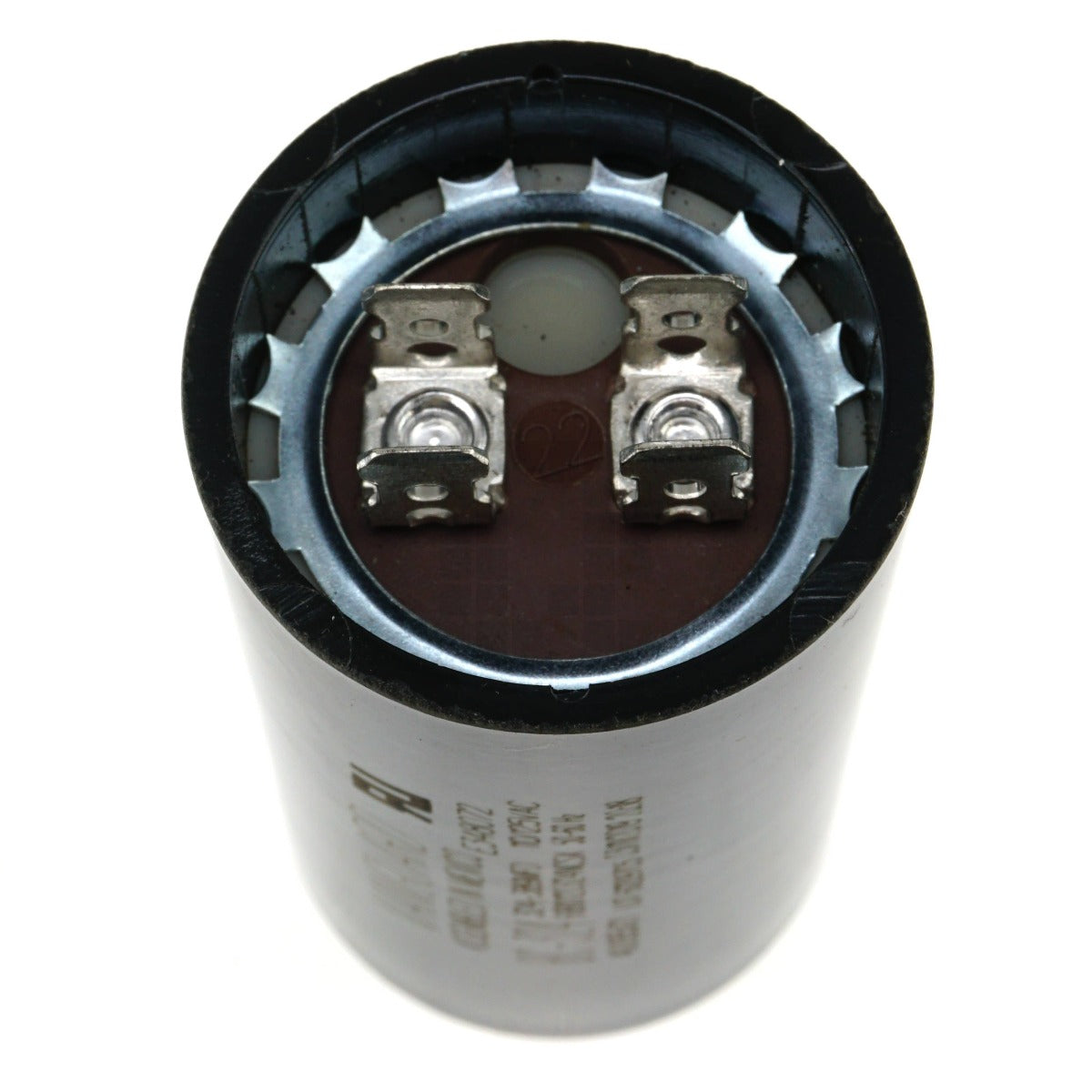

Connection 2 Posts
Two 1/4” male spade terminals on each post
Resistor None
Construction Phenolic Plastic Case
Certifications/Approvals UL Approved
Performance Specifications
Case Code
Distance Between Terminals 0.500"
UPC None
Product Origin (COO) Mexico

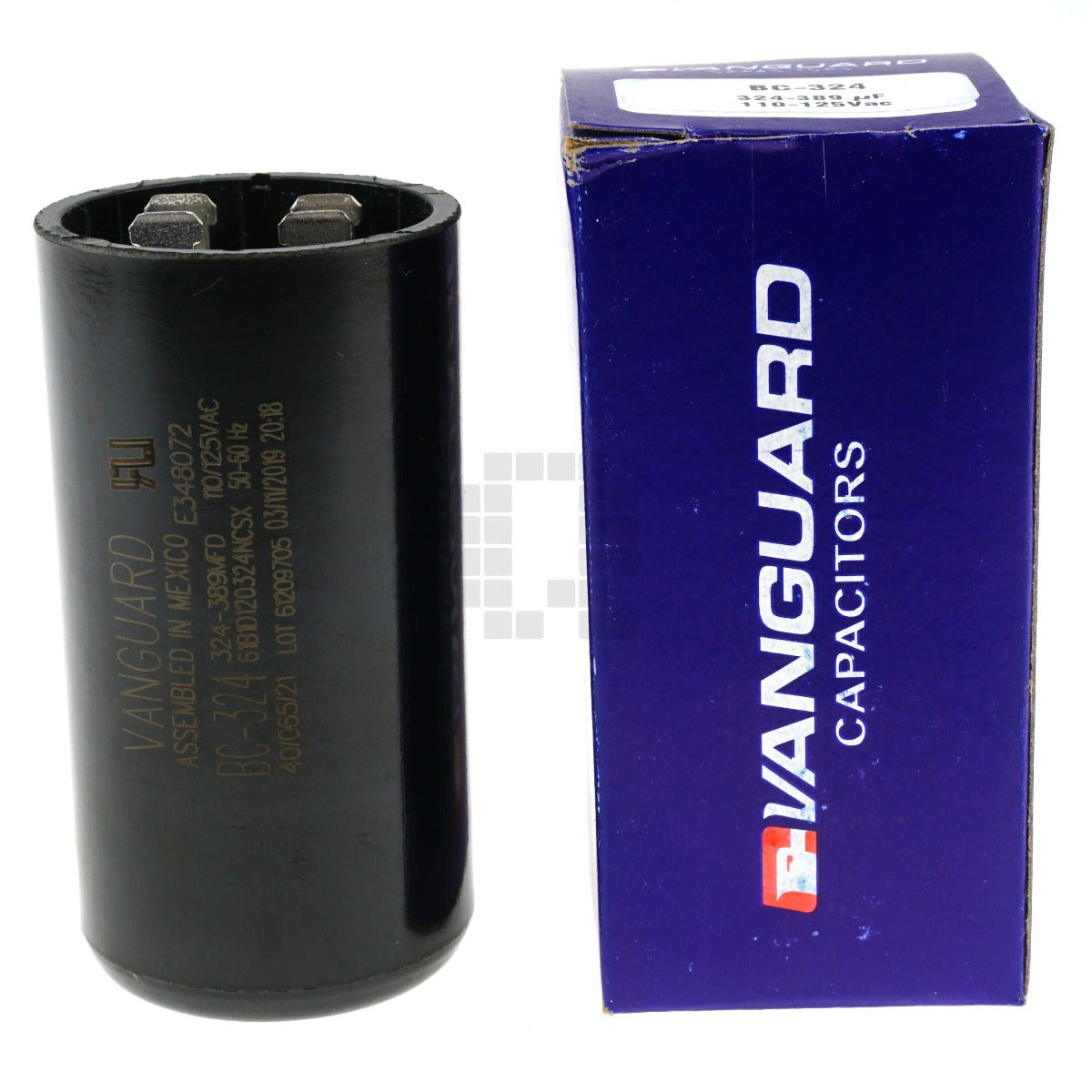

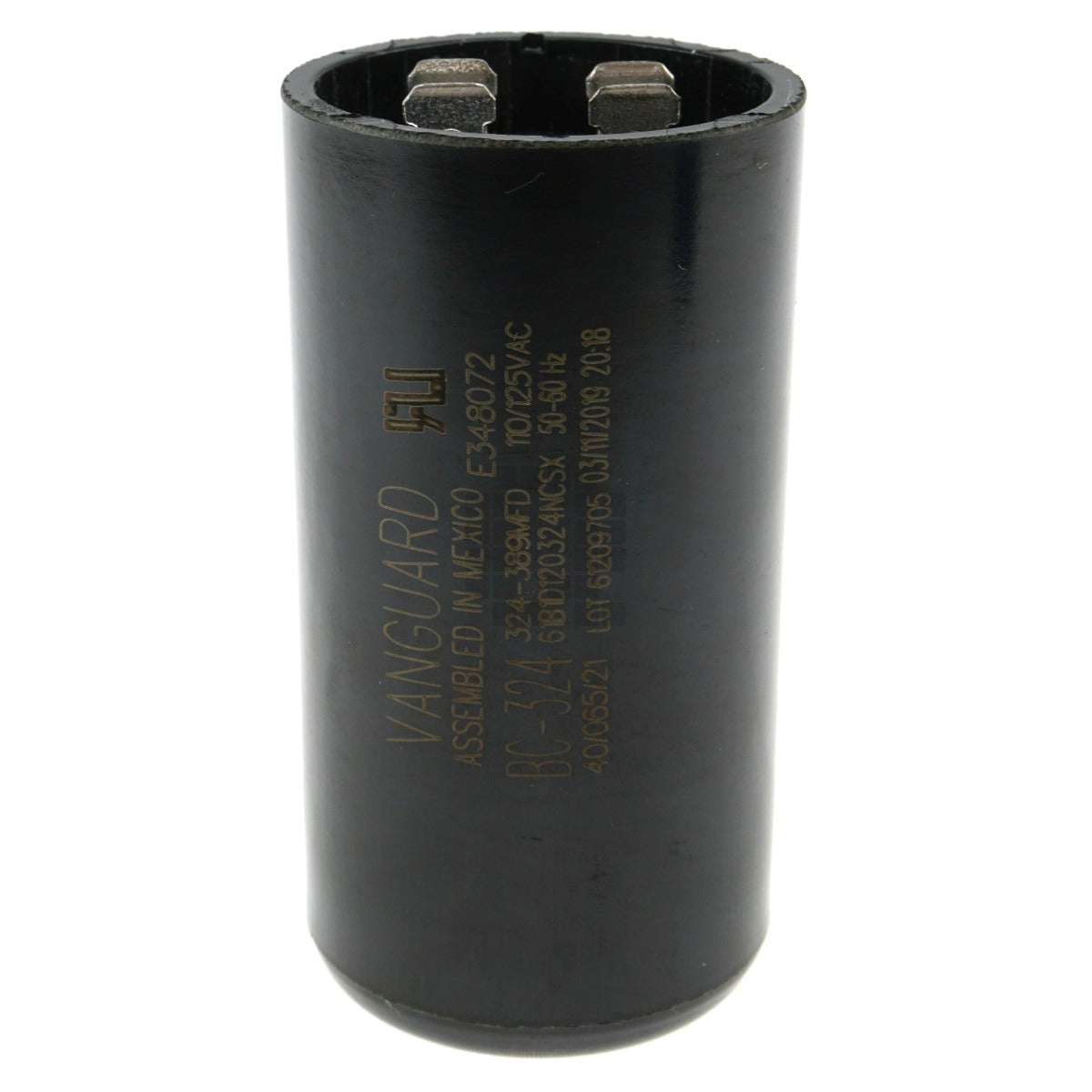

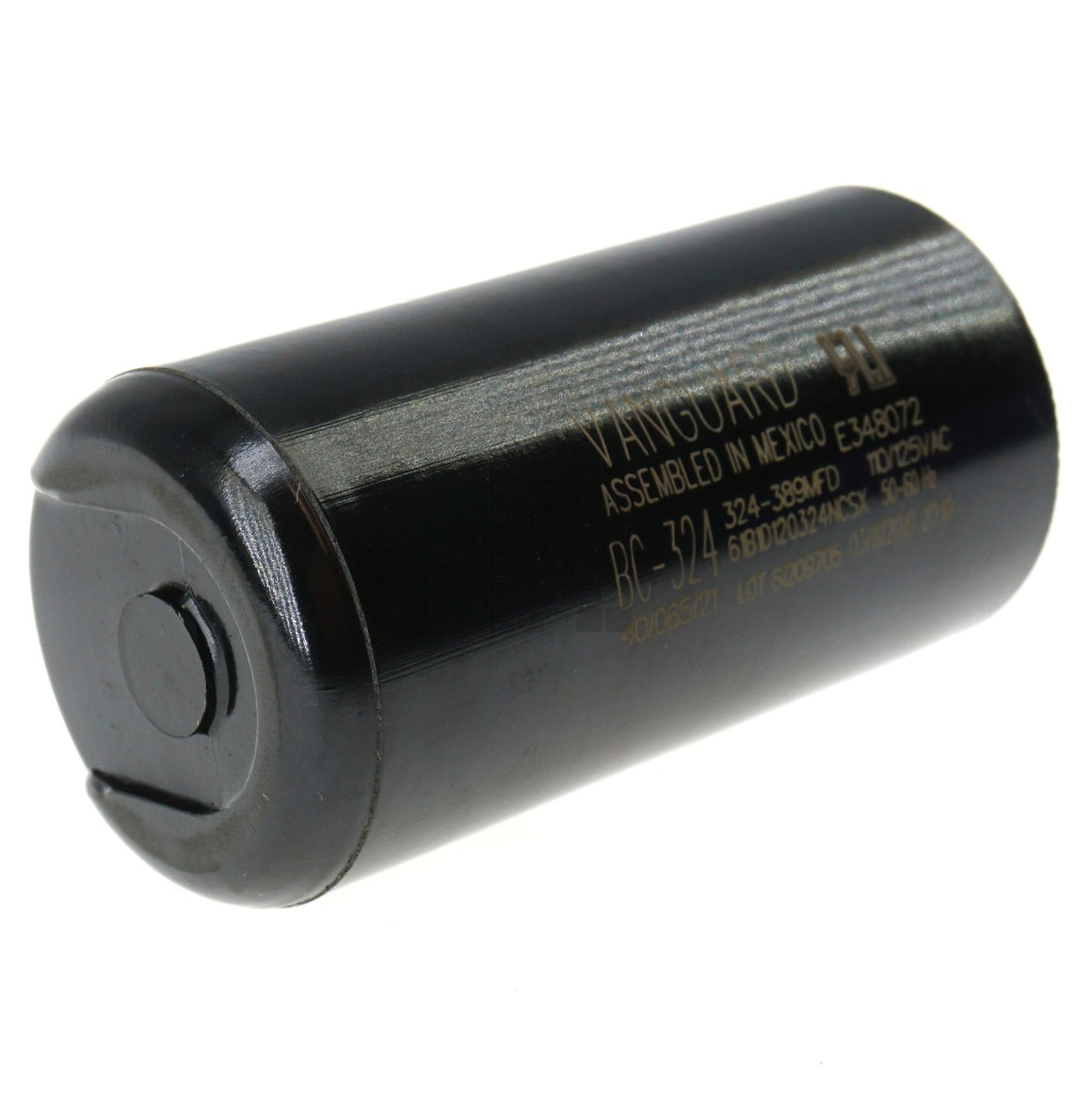

Product Label Vanguard
Assembled in Mexico
BC-324 324-389MFD 110/125VAC
61B1D120324NCSX 50-60Hz

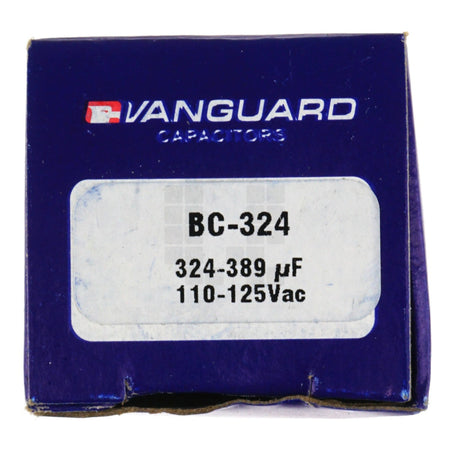

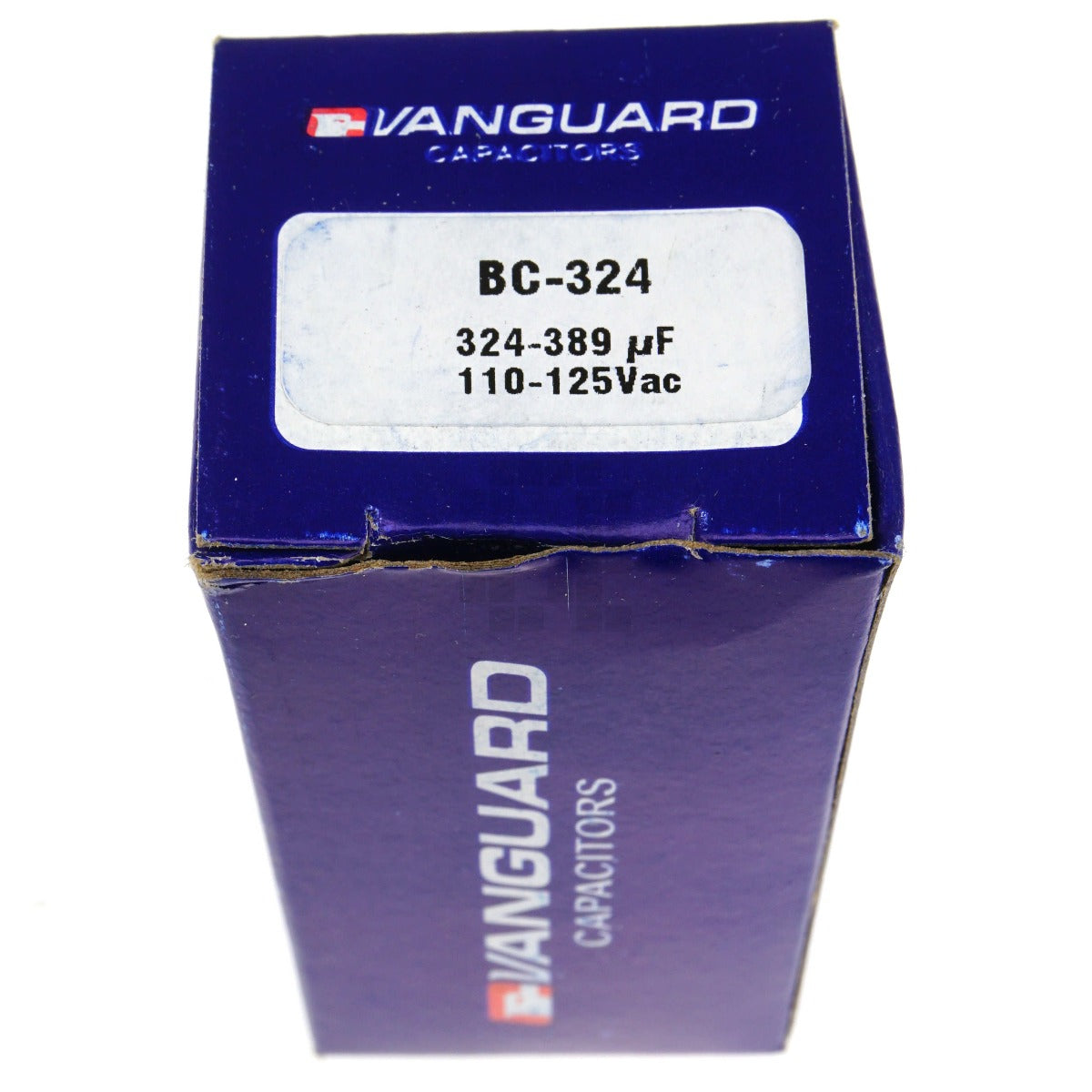

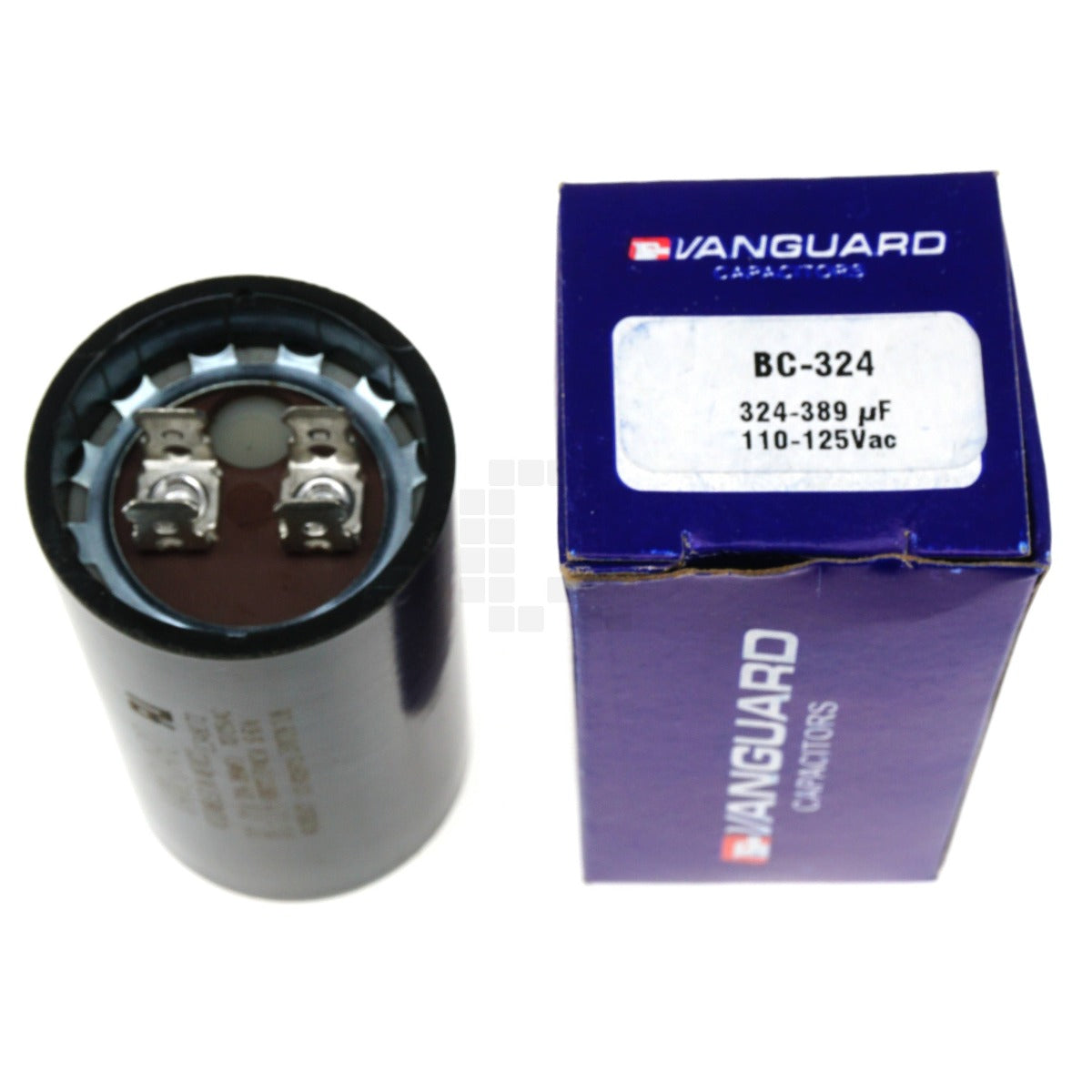

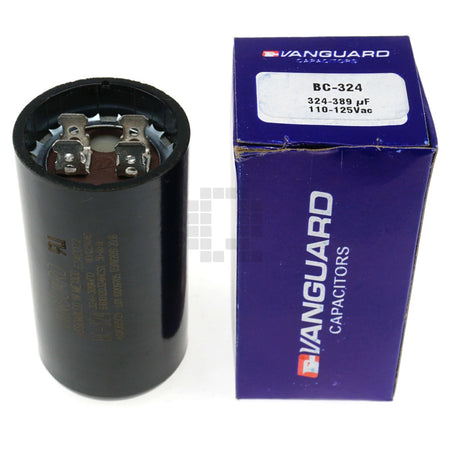

Package Label BC-324
324-389 uF
110-125VAC
Notes

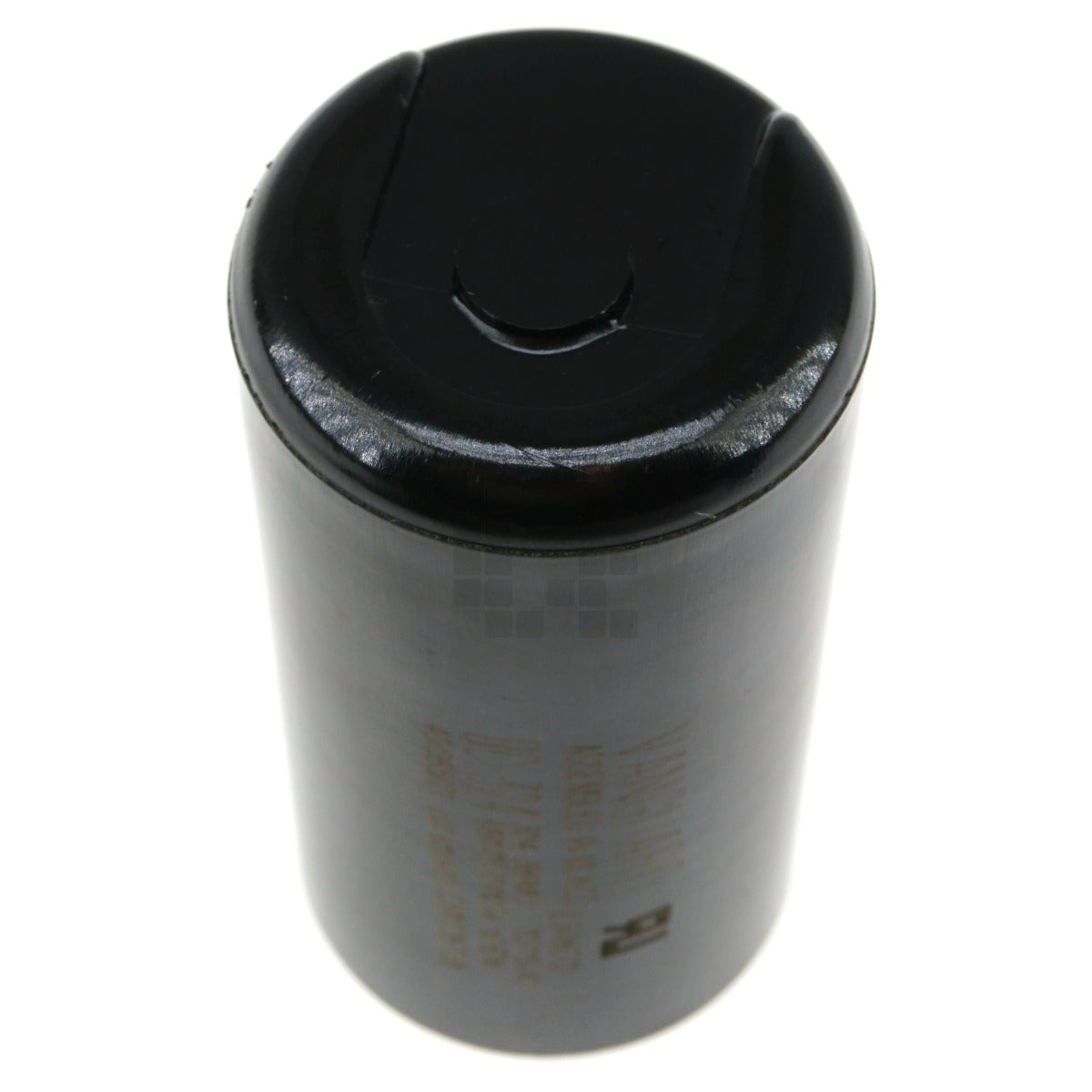

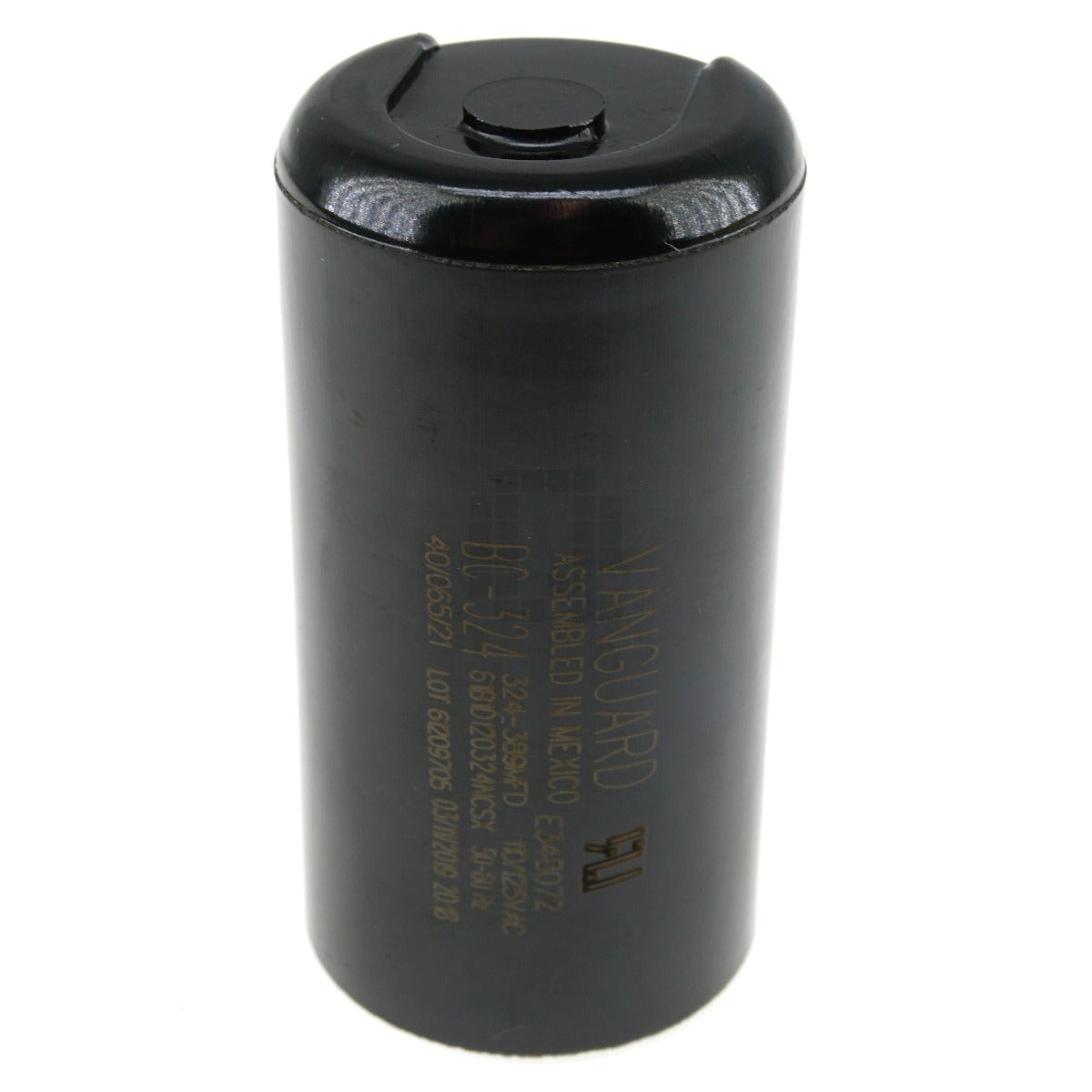

Product Color Black
Product Shape Cylinder
Product Dimensions 1.437" Diameter
2.75" High
Product Weight 3 oz
Package Dimensions (LxWxH) 1.5" x 1.5" x 3.06"
Package Weight 0.25 lbs
