Brand Vanguard
Manufacturer Part Number BC-340
61B4D120340NCSX
Cross Reference (Fit/Form/Function)
Capacitance 340-408 uF
Working Voltage 110-125 VAC
Frequency 50/60 Hz
Working Temperature Range -40°C to +65°C
-40°F to +149°F
Type Start Capacitor

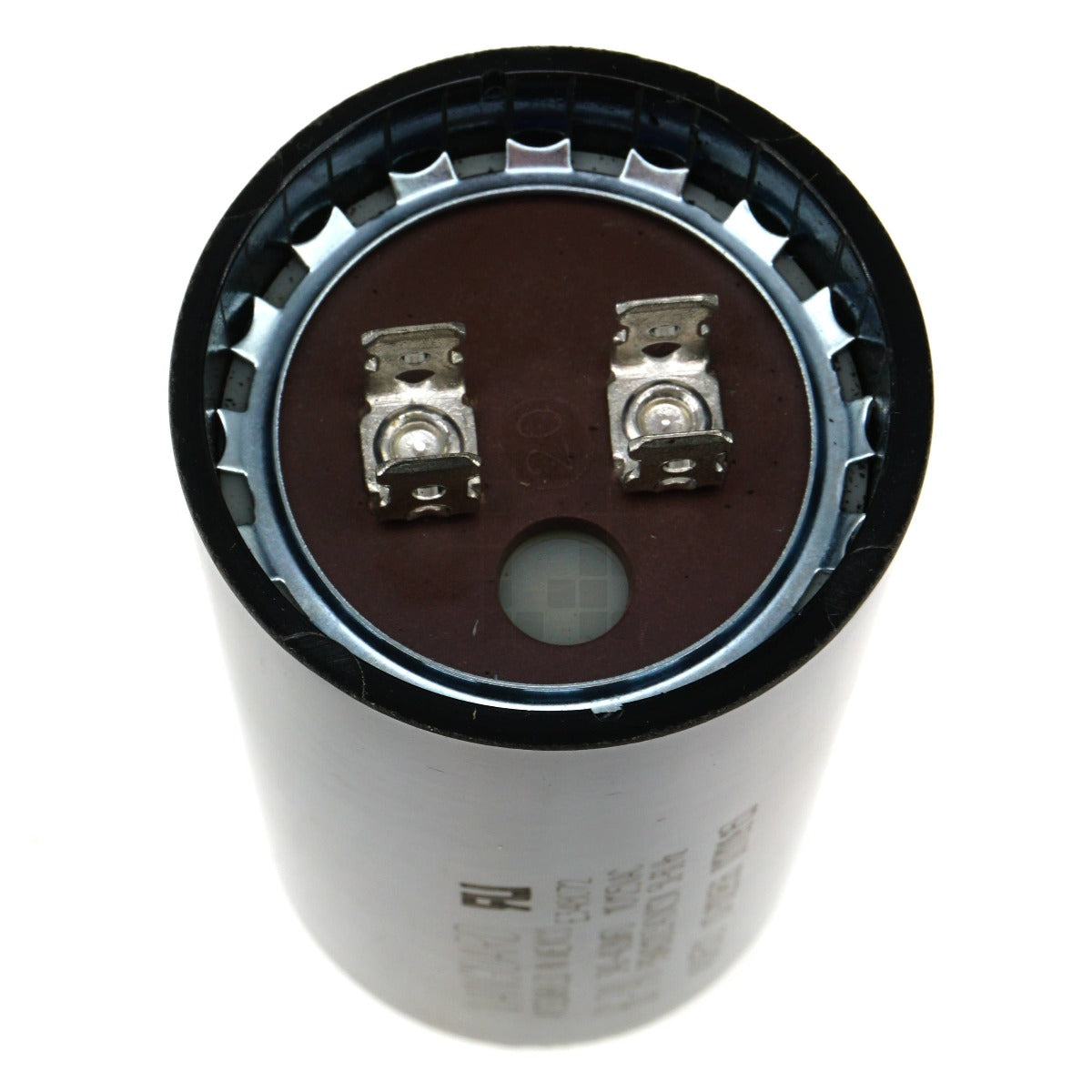

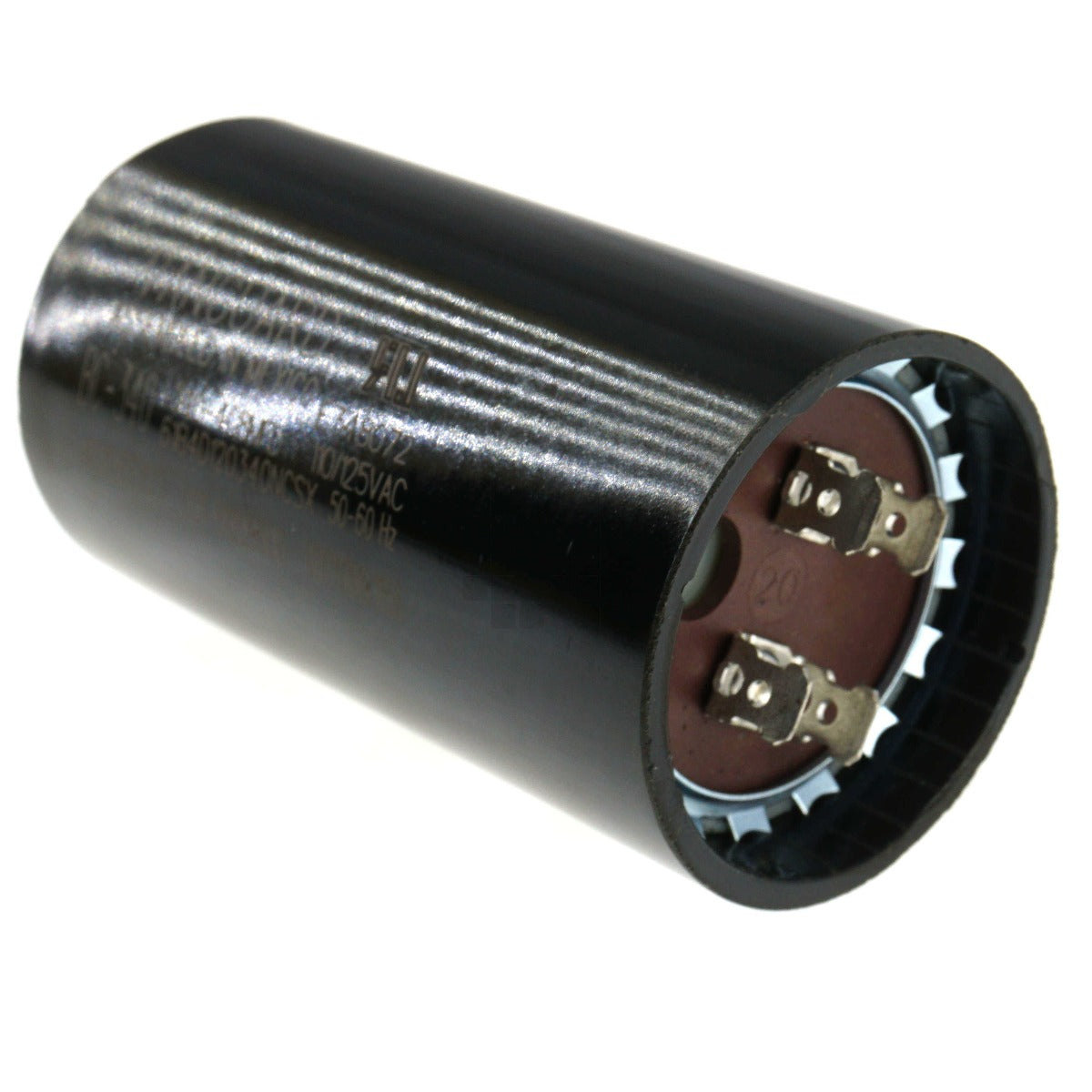

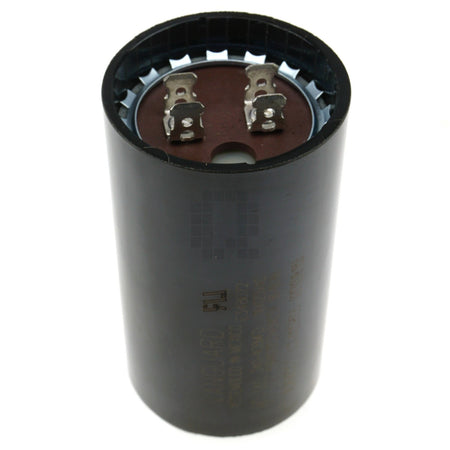

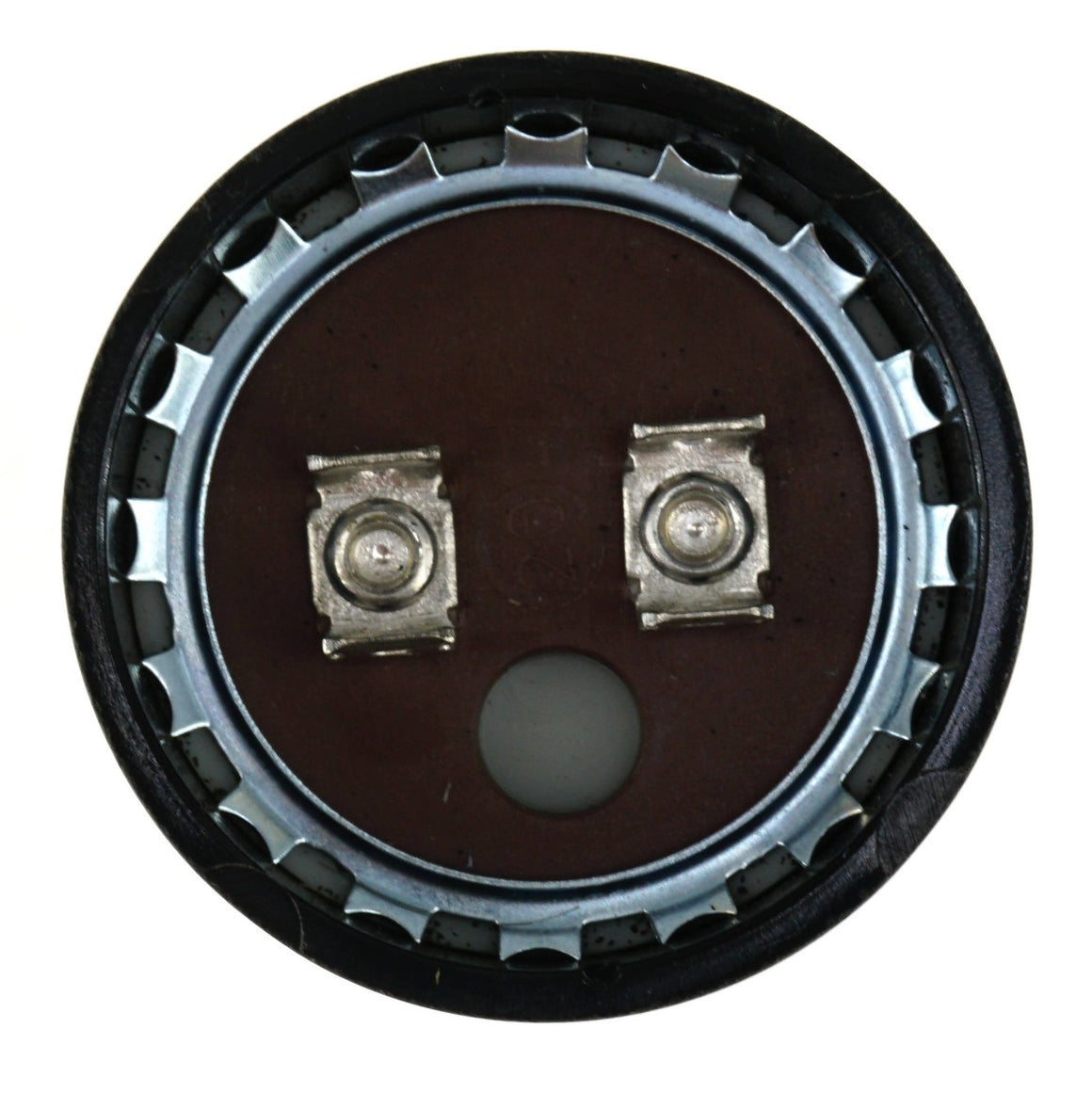

Connection 2 Posts
Two 1/4” male spade terminals on each post
Resistor None
Construction Phenolic Plastic Case
Certifications/Approvals UL Approved
Performance Specifications
Case Code
Distance Between Terminals 0.625"
UPC None
Product Origin (COO) Mexico

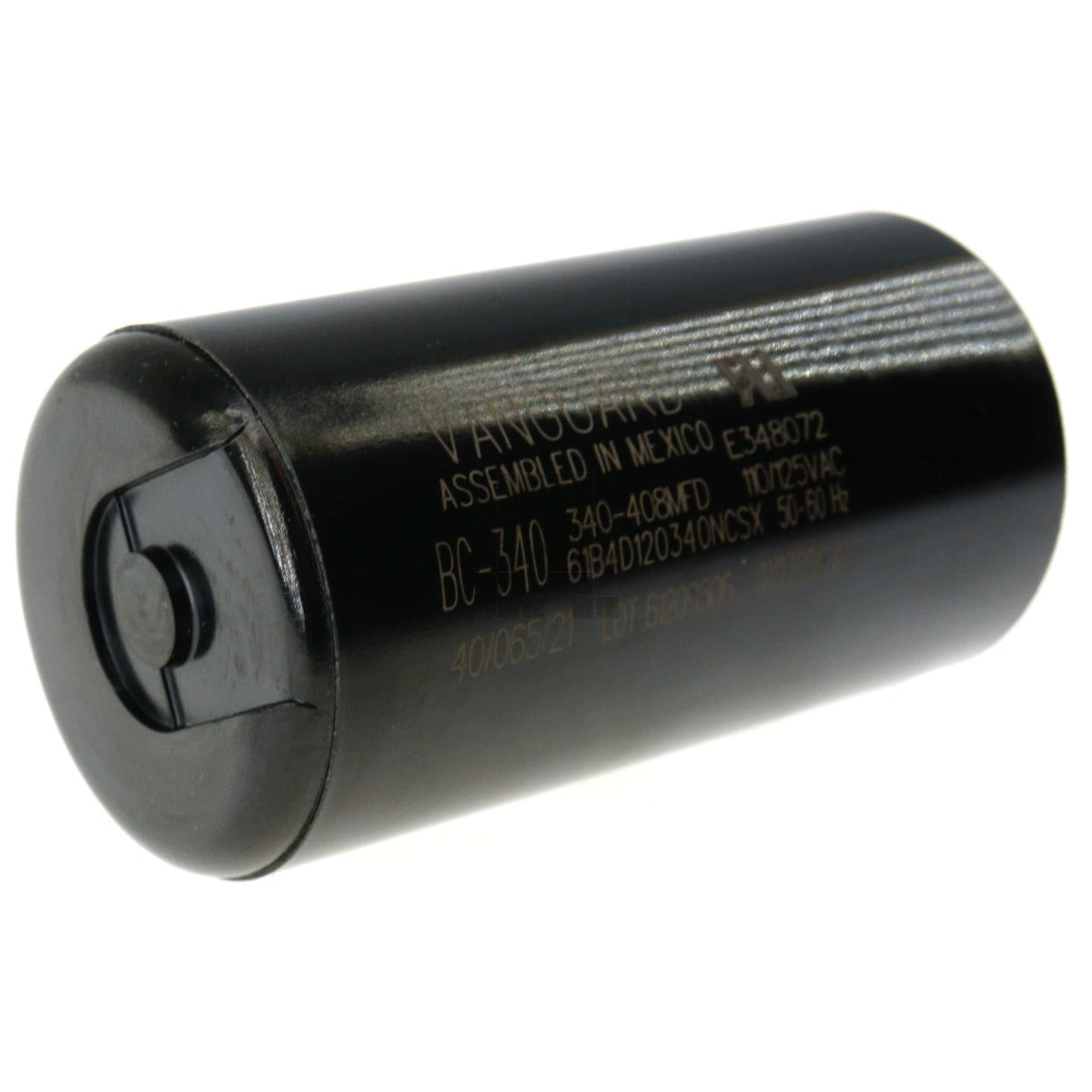

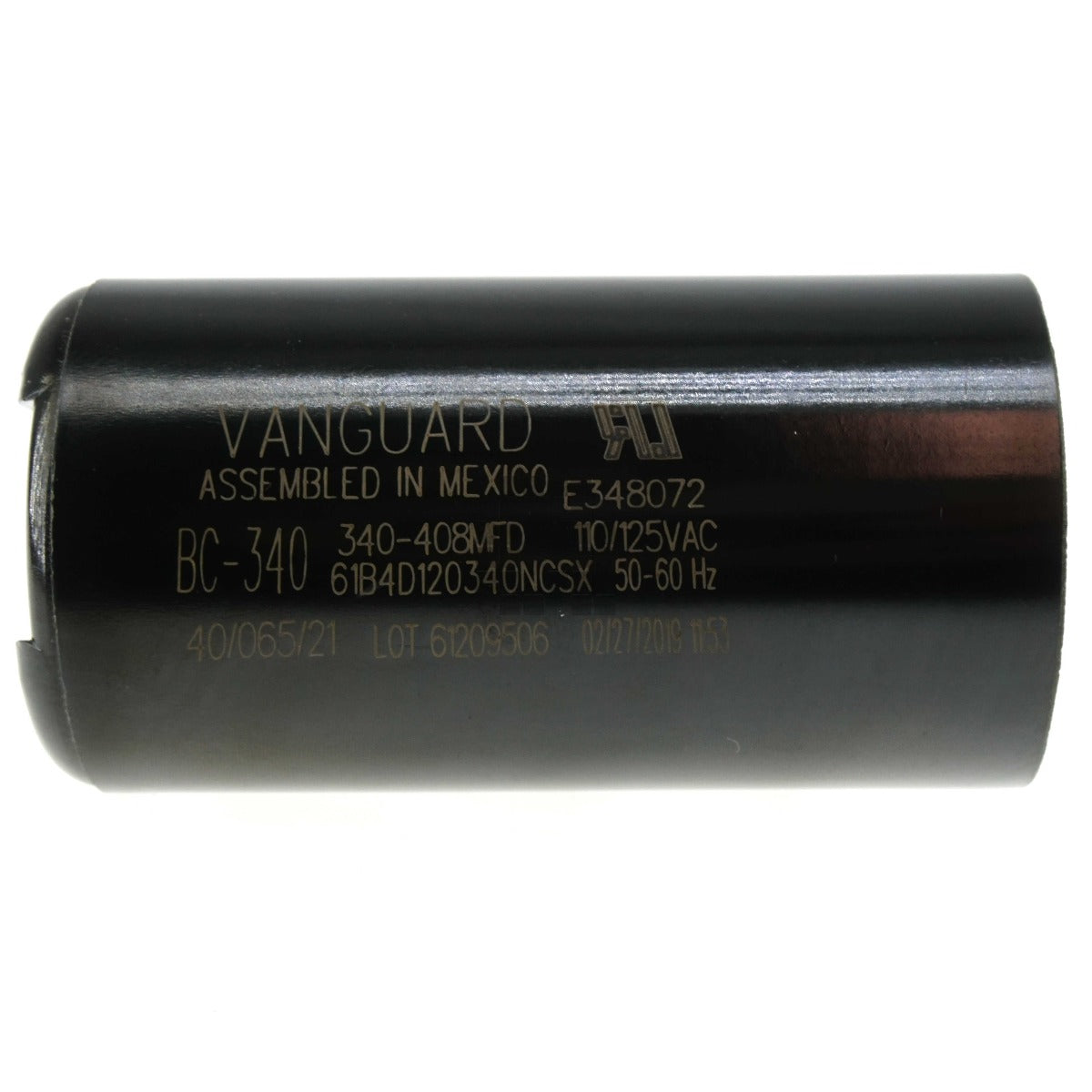

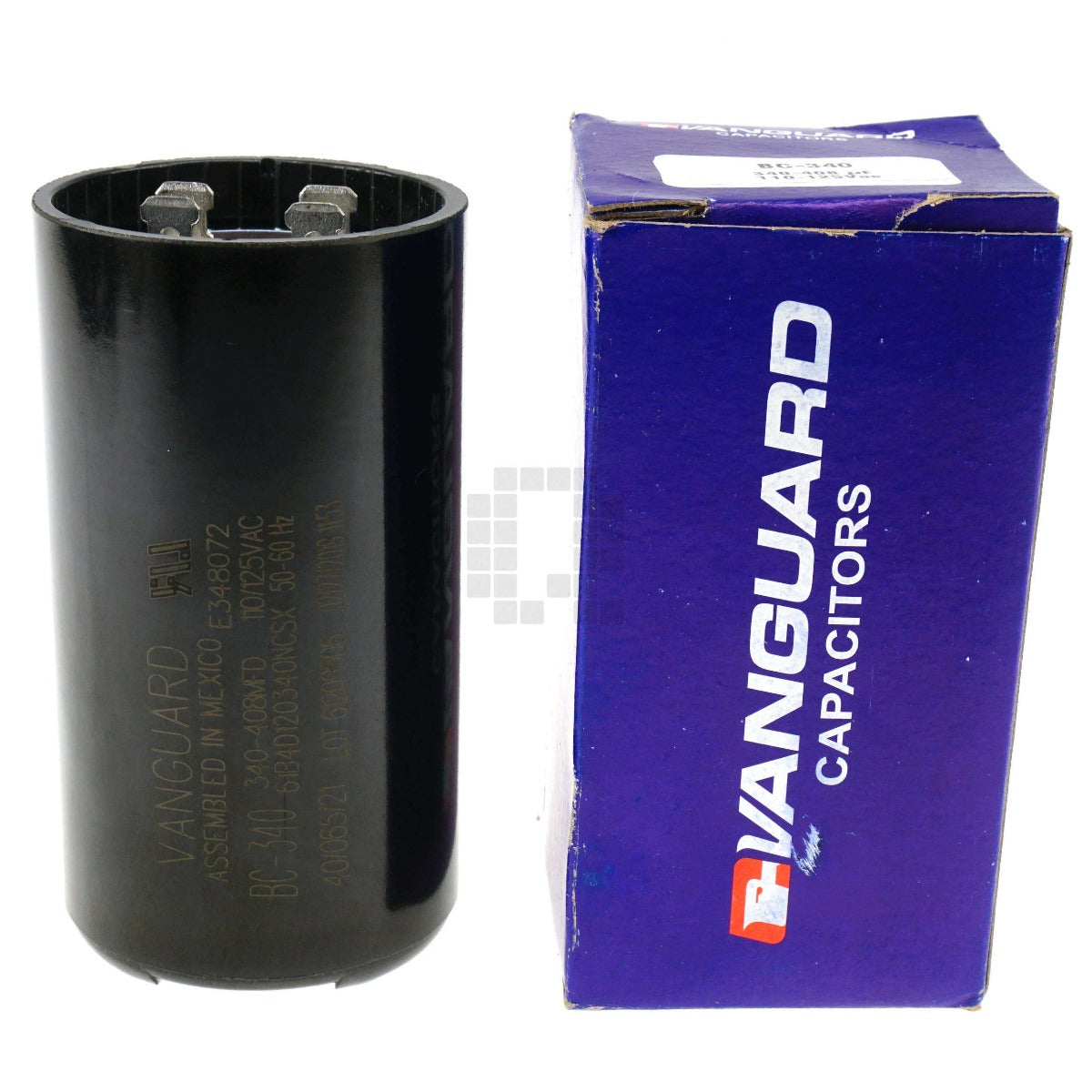

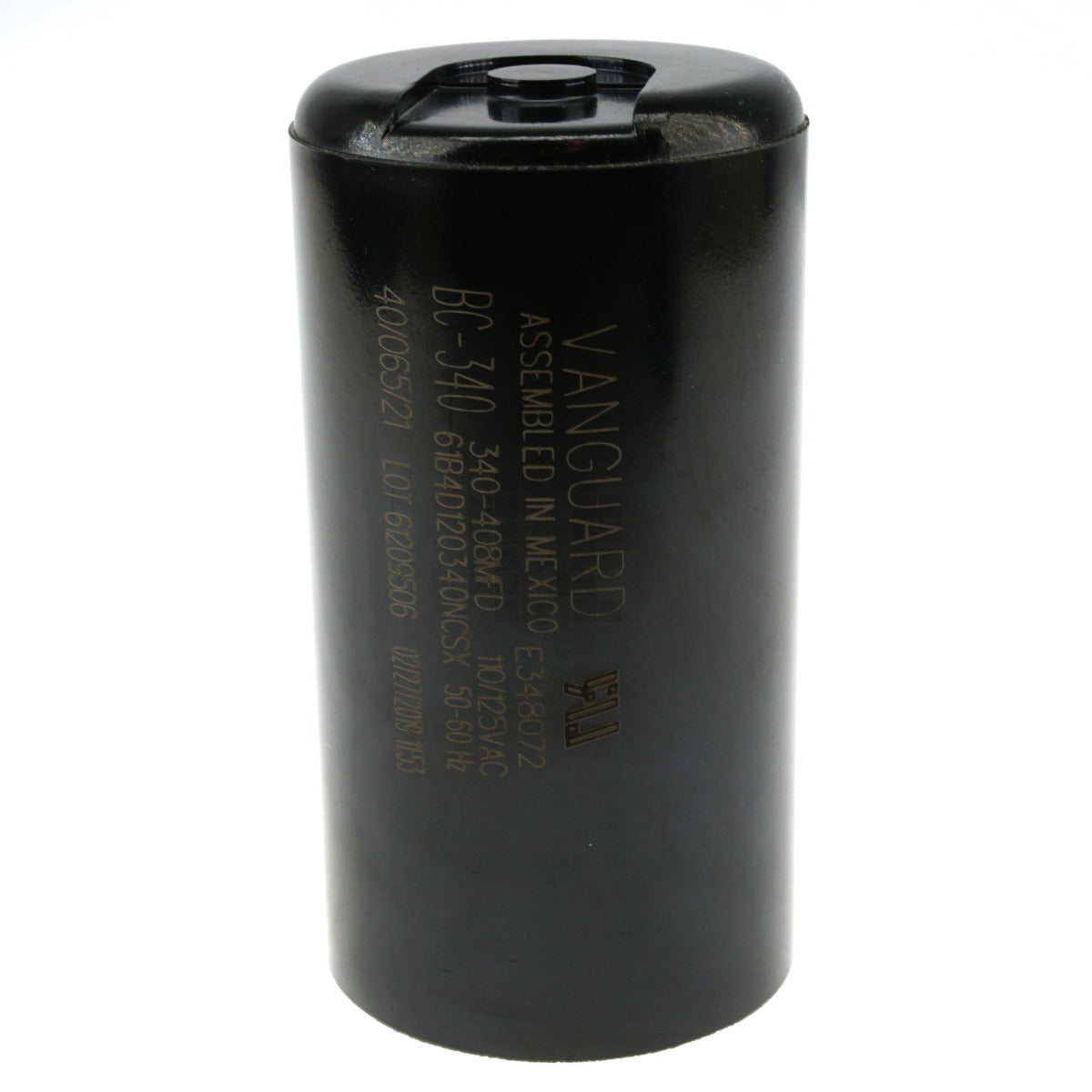

Product Label Vanguard
Assembled in Mexico
BC-340 340-408MFD 110/125VAC
61B4D120340NCSX 50-60Hz

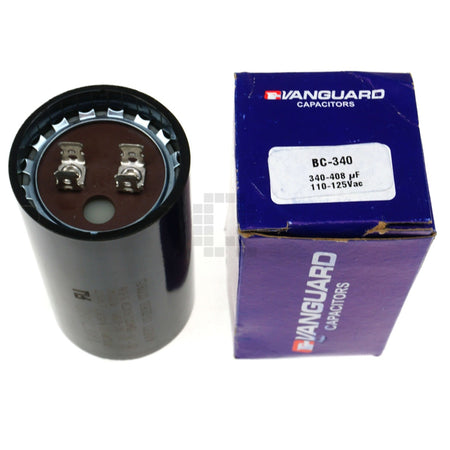

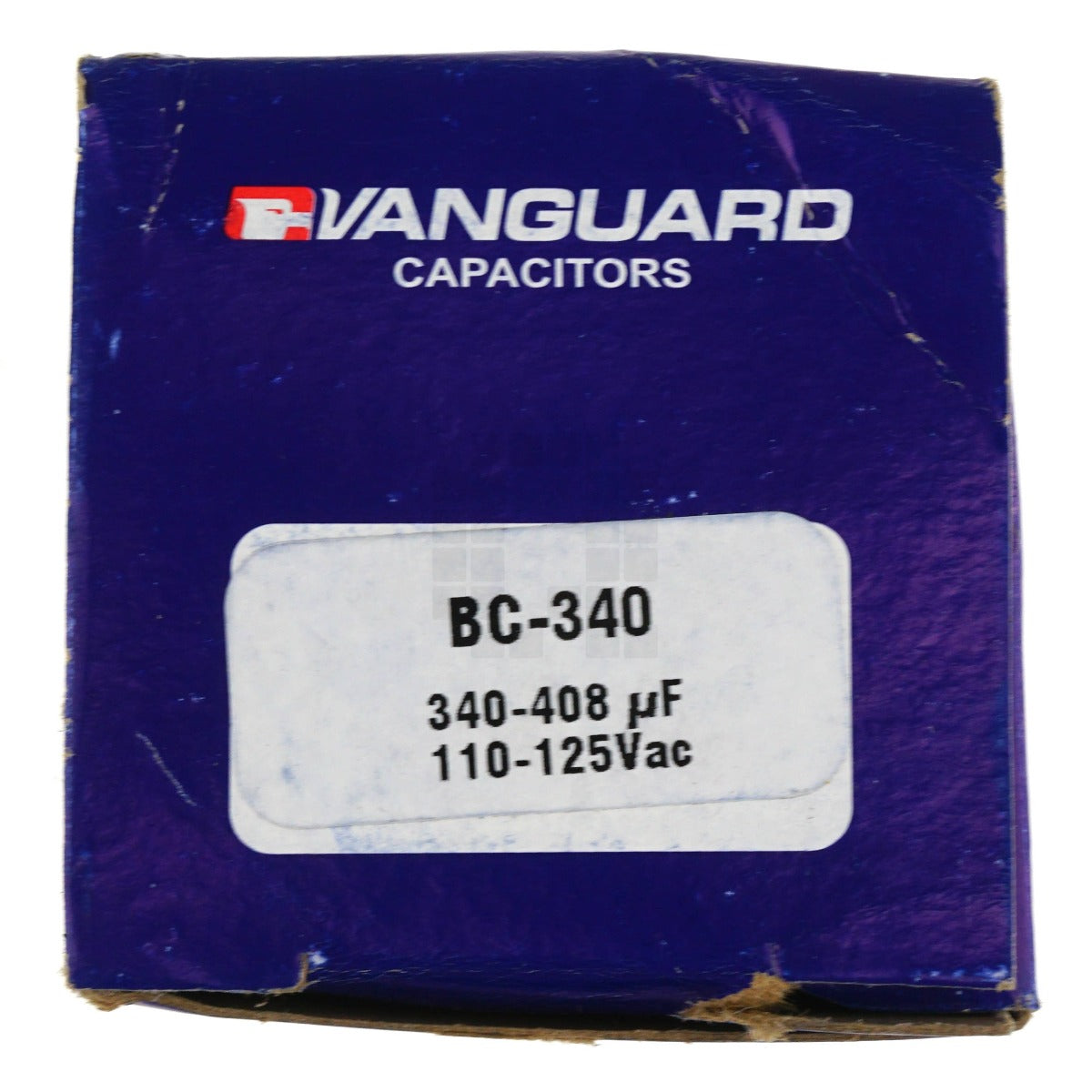

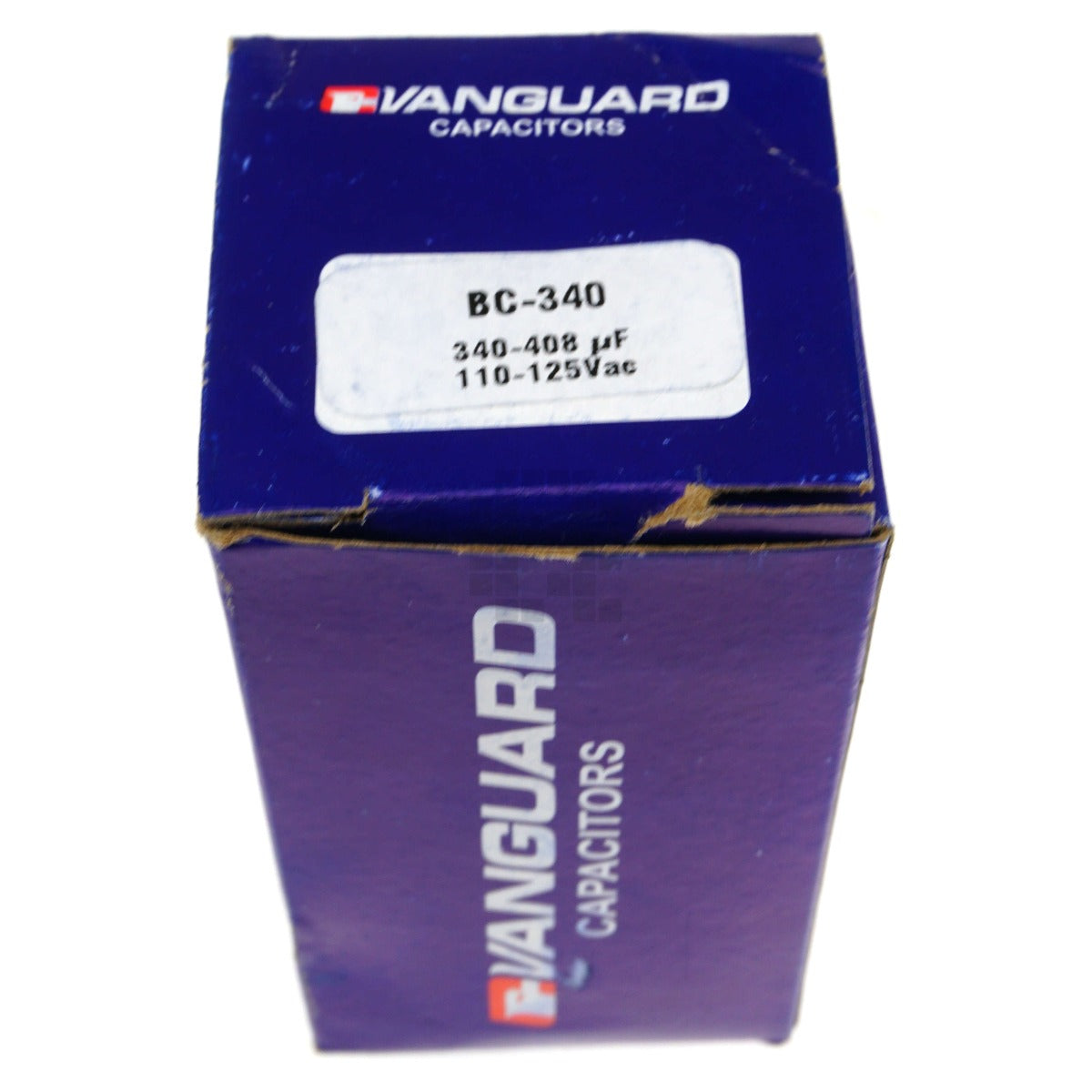

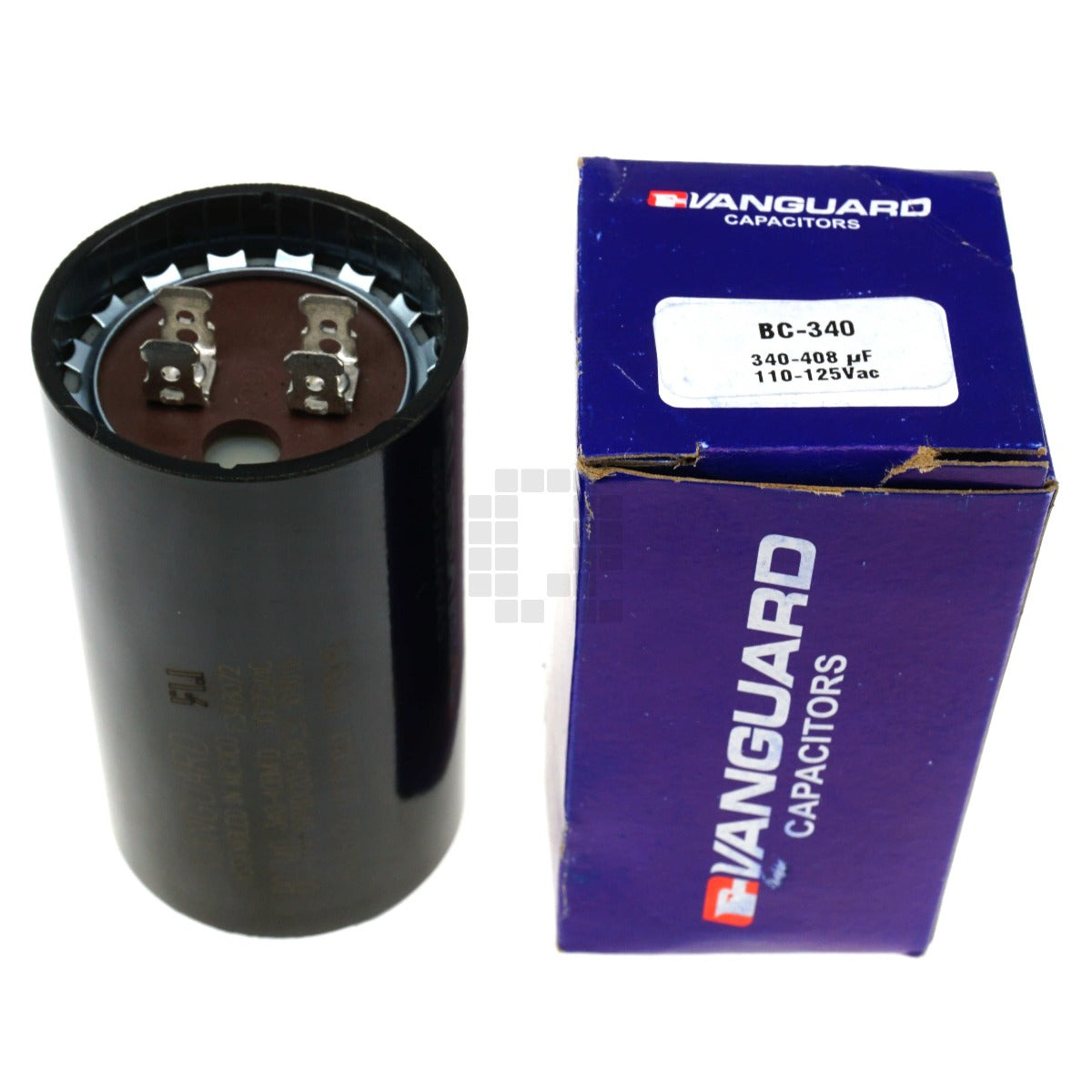

Package Label BC-340
340-408 uF
110-125VAC
Notes
Product Color Black
Product Shape Cylinder
Product Dimensions 1.812" Diameter
3.375" High
Product Weight 5 oz
Package Dimensions (LxWxH) 1.82" x 1.82" x 3.50"
Package Weight 6 oz
