Product Specifications :

Brand Vanguard
Manufacturer Part Number BC-340M-165
61B5D160340NC
61B5D160340NCSX
Cross Reference (Fit/Form/Function)
Capacitance 340-408 uF
Working Voltage 165 VAC
Frequency 50/60 Hz
Working Temperature Range -40°C to +65°C
-40°F to +149°F
Type Start Capacitor

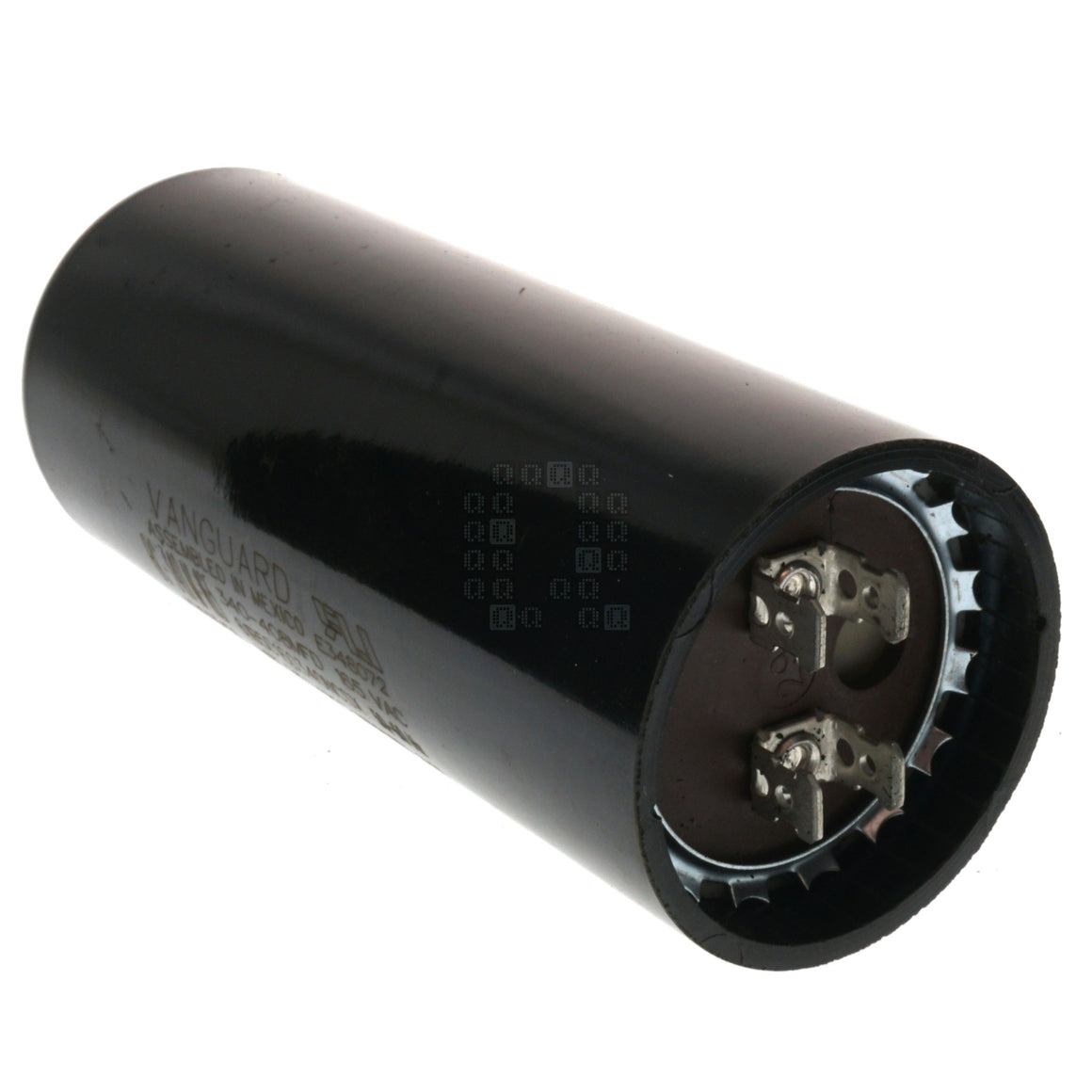

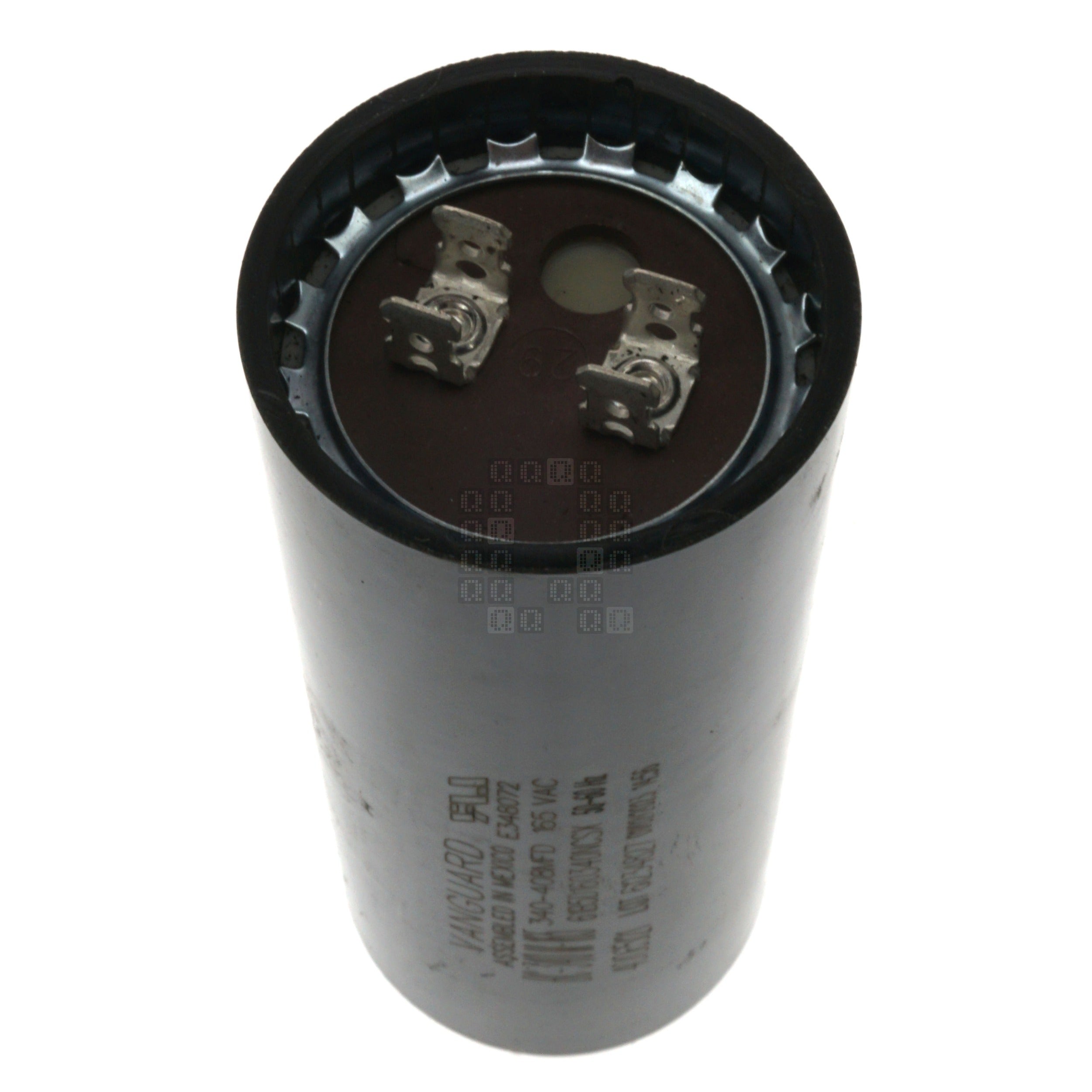

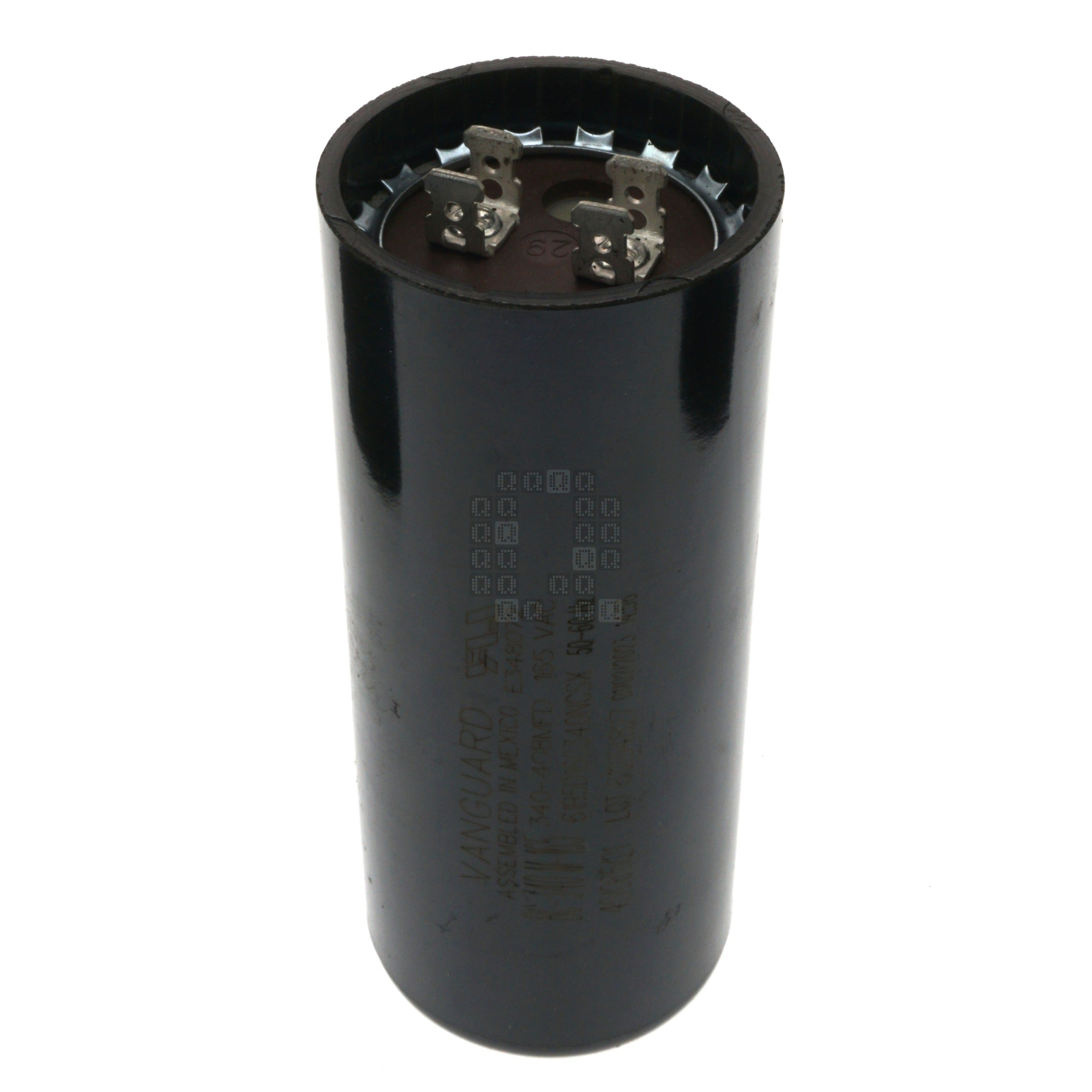

Connection 2 Posts
Two 1/4” male spade terminals on each post
Resistor None

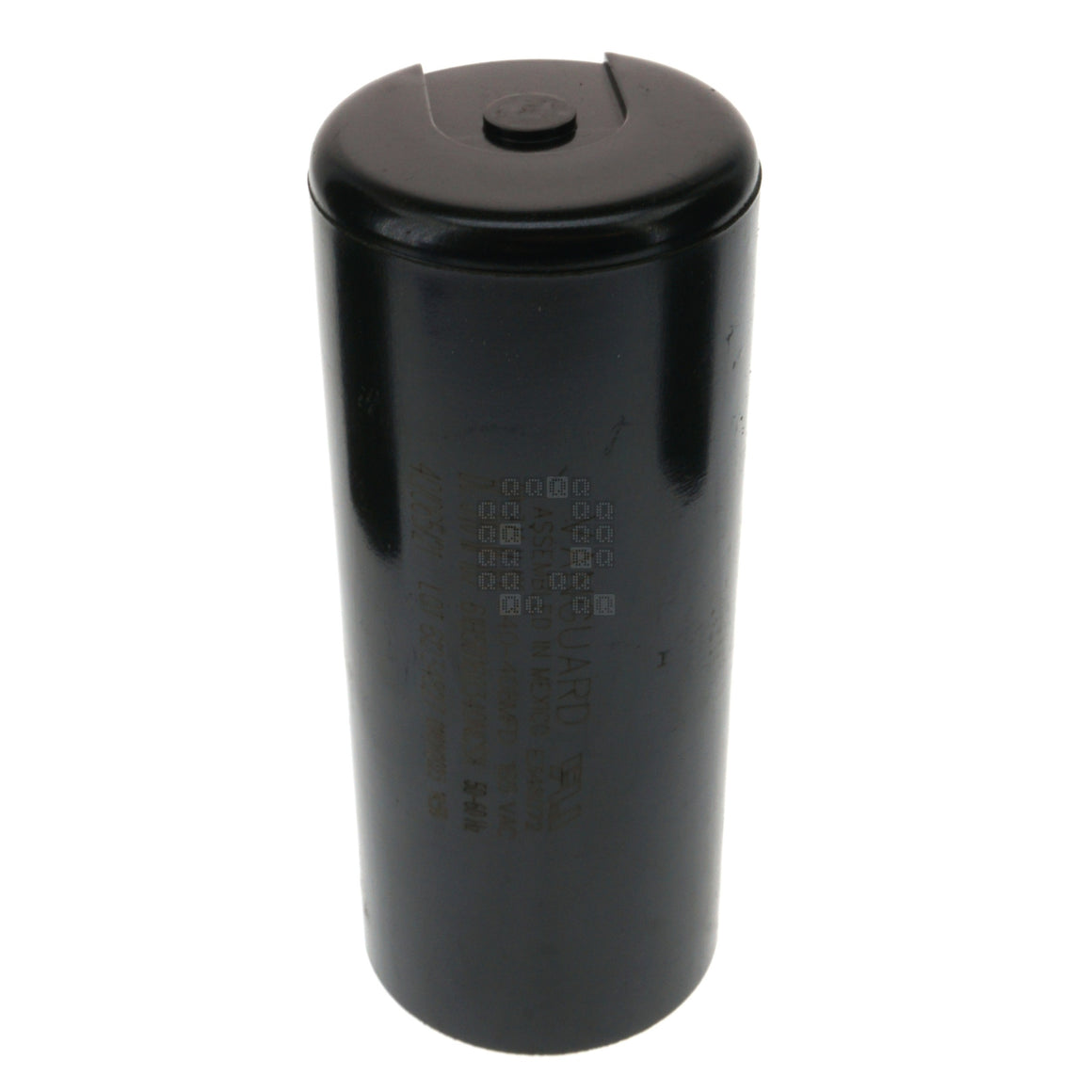

Construction Phenolic Plastic Case
Certifications/Approvals UL Approved
Performance Specifications
Case Code
Distance Between Terminals 0.625"
5/8"
UPC None
Product Origin (COO) Mexico

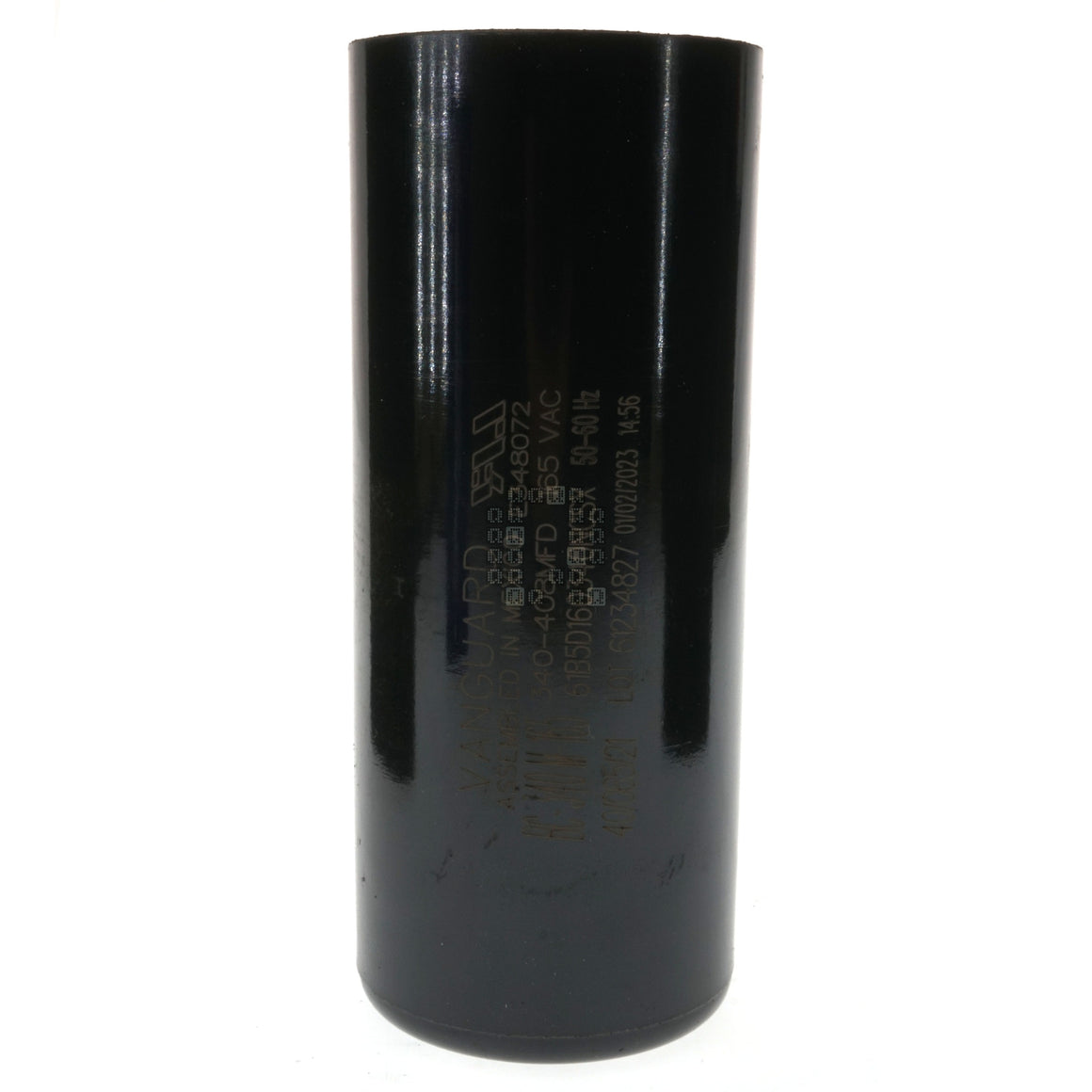

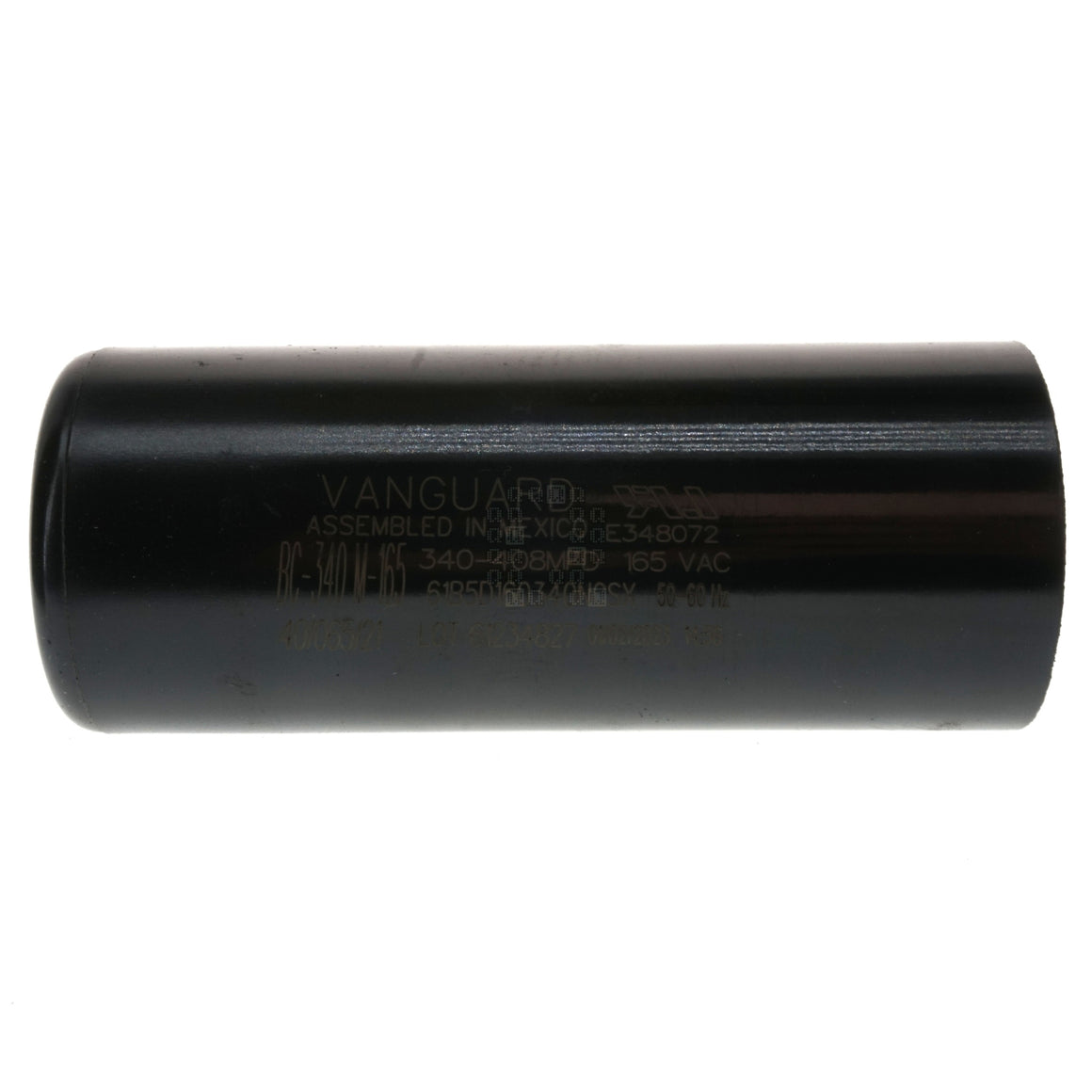

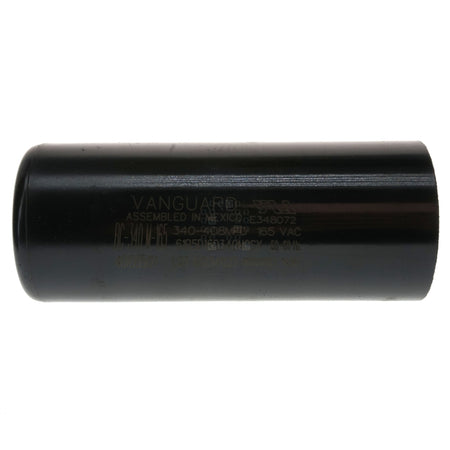

Product Label Vanguard
Assembled in Mexico
BC-340M-165 340-408MFD 165VAC
61B5D160340NCSX 50-60Hz

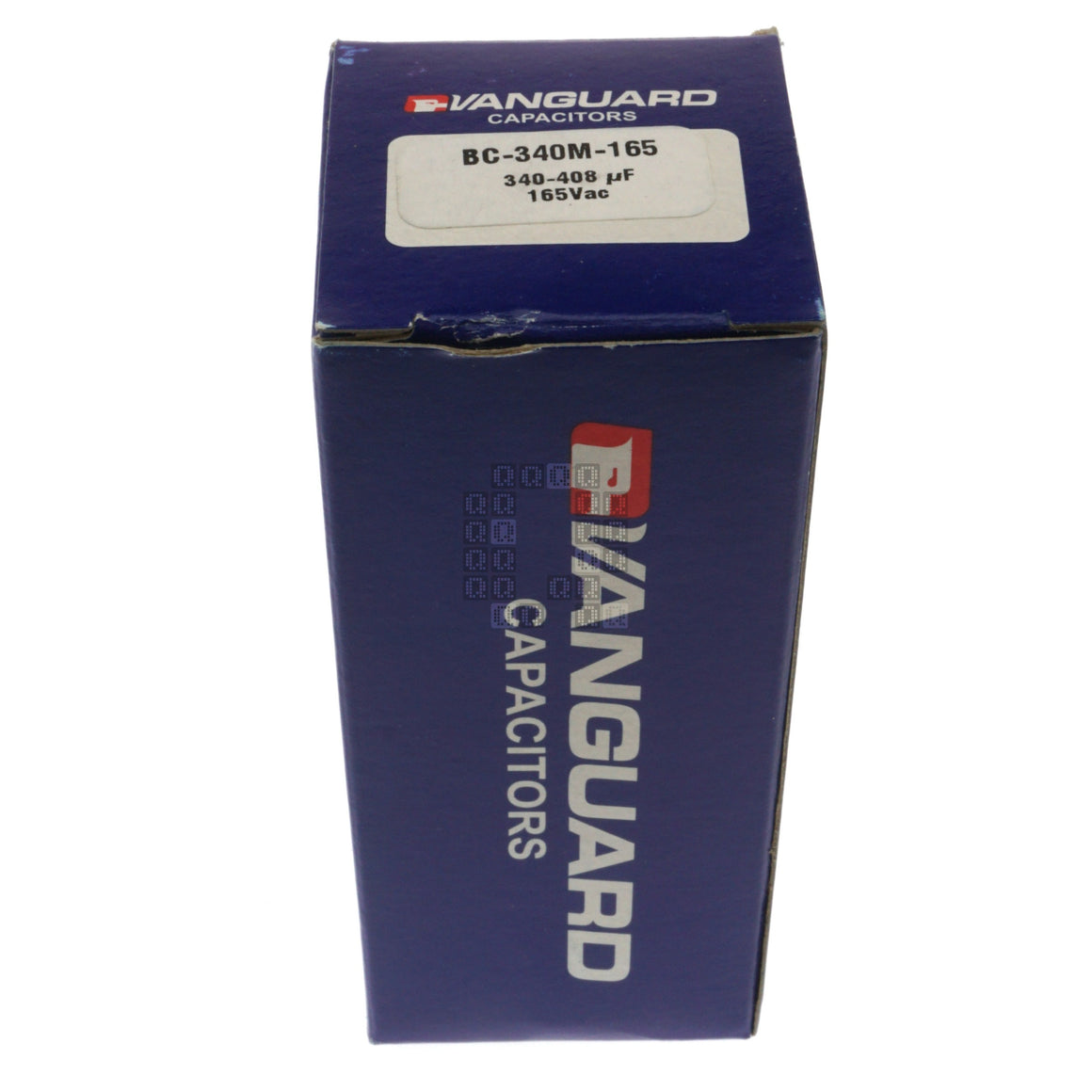

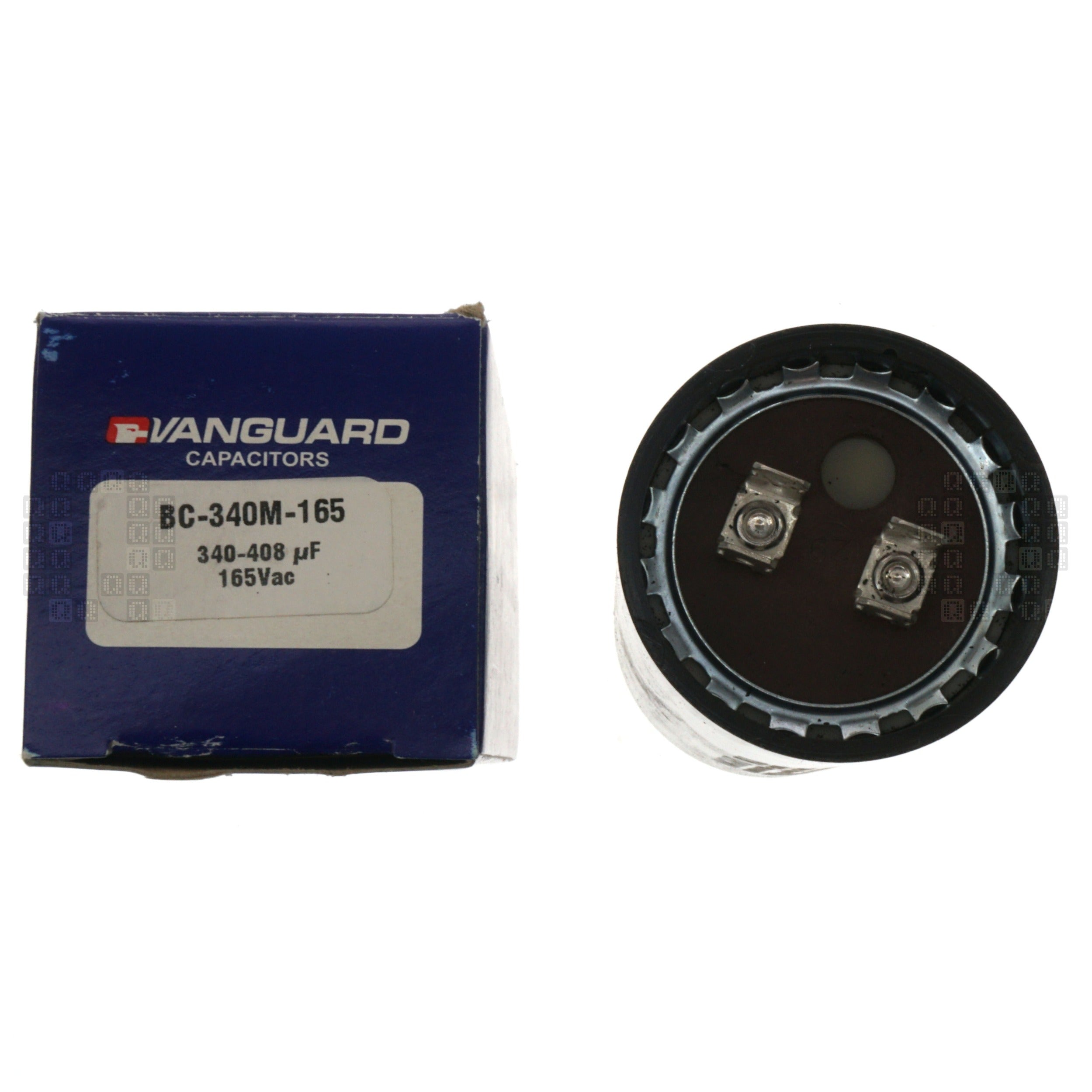

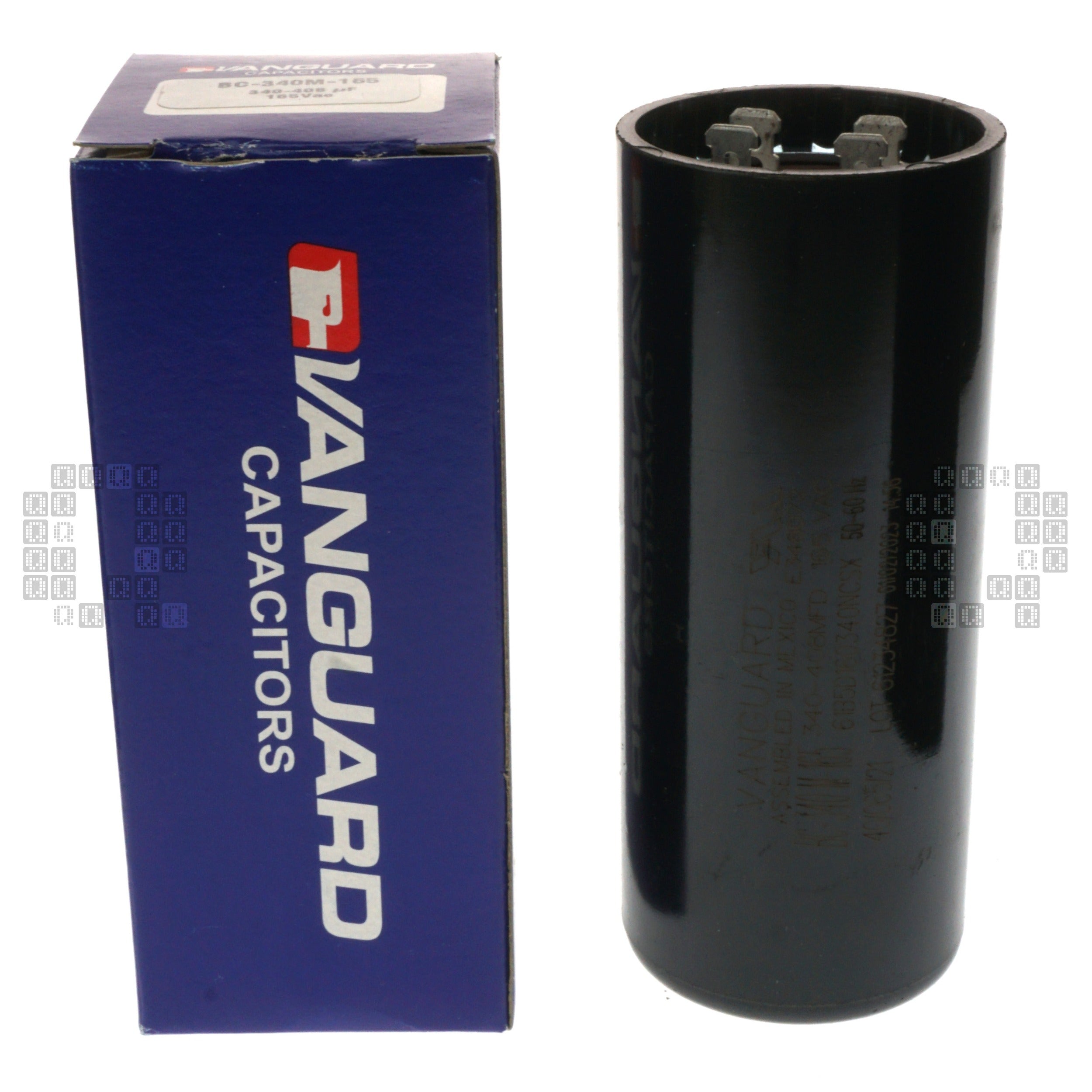

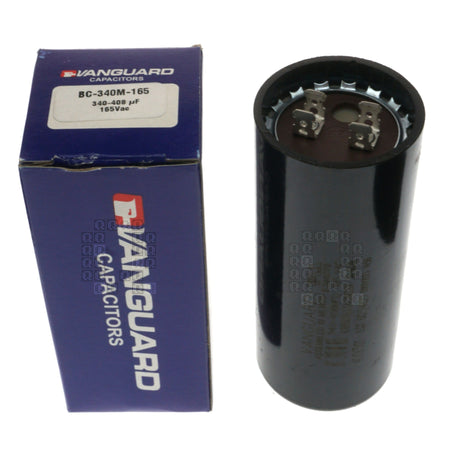

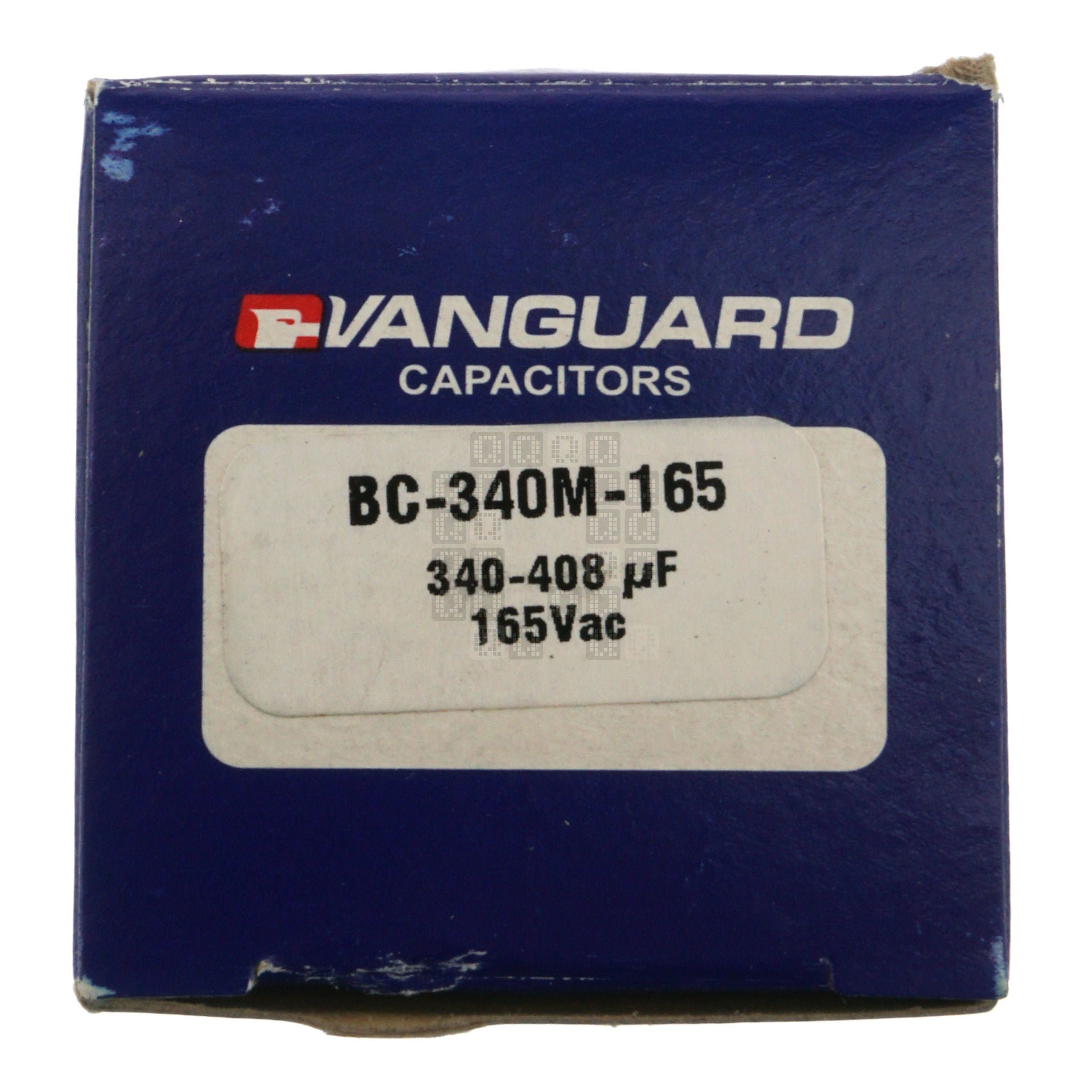

Package Label BC-340M-165
340-408 uF
165VAC
Notes

Dimensions & Weights :

Product Color Black
Product Shape Cylinder
Product Dimensions 1.812" Diameter
4.375" High
Product Weight 8 oz
Package Dimensions (LxWxH) 1.88" x 1.88" x 4.63"
Package Weight 8 oz
