Brand Vanguard
manufactured by NGM
Manufacturer Part Number BC-36
61B1D120036NC
61B1D120036NCSX
Cross Reference (Fit/Form/Function)
Capacitance 36 - 43 uF
Working Voltage 110 - 125 VAC
Frequency 50/60 Hz
Power Factor 10% Max
after applying working voltage for 4 seconds
Working Temperature Range -40°C to +65°C
-40°F to +149°F
Type Start Capacitor
Aluminum Electrolytic, Non-Polarized

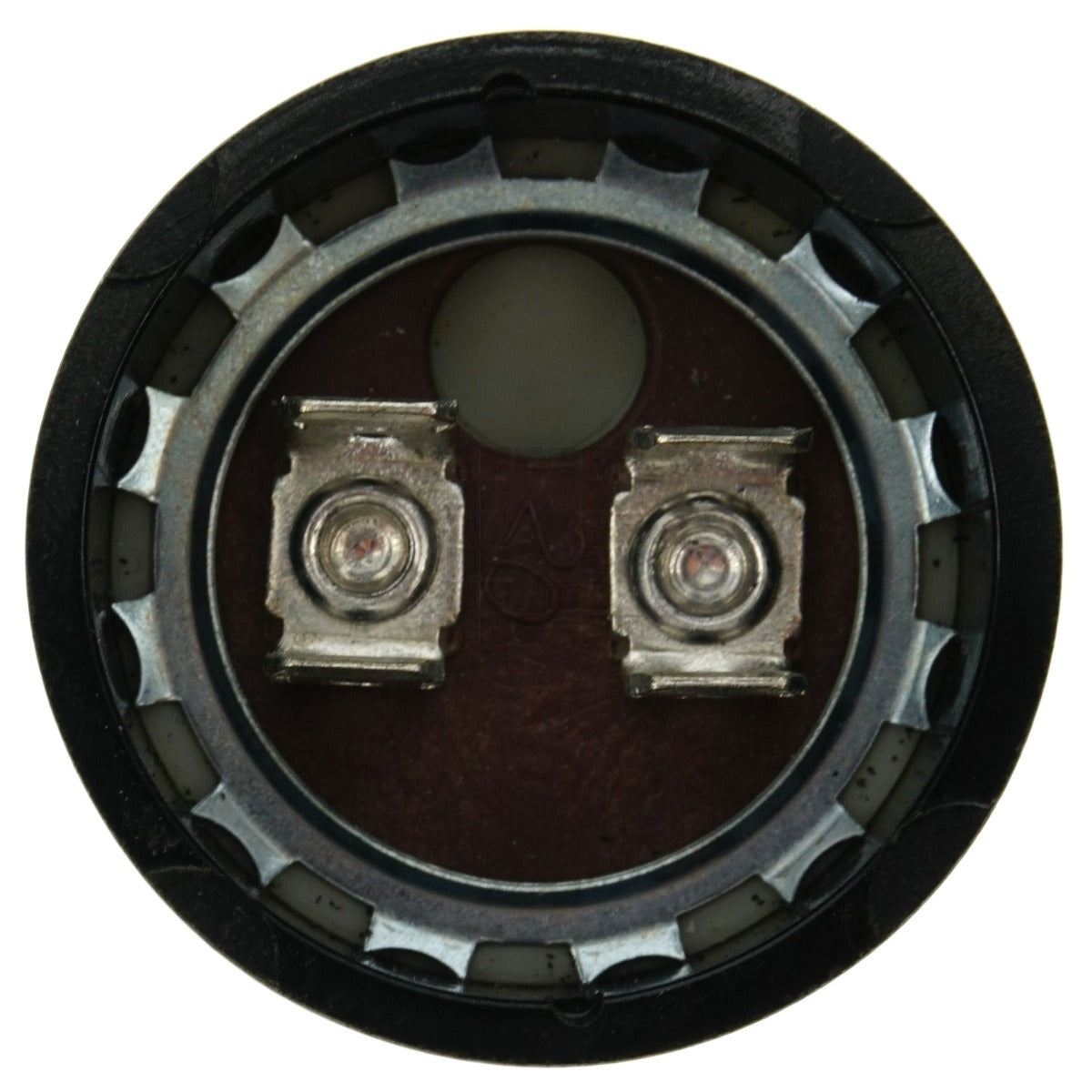

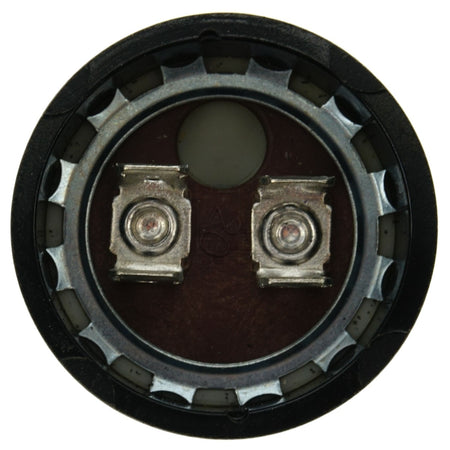

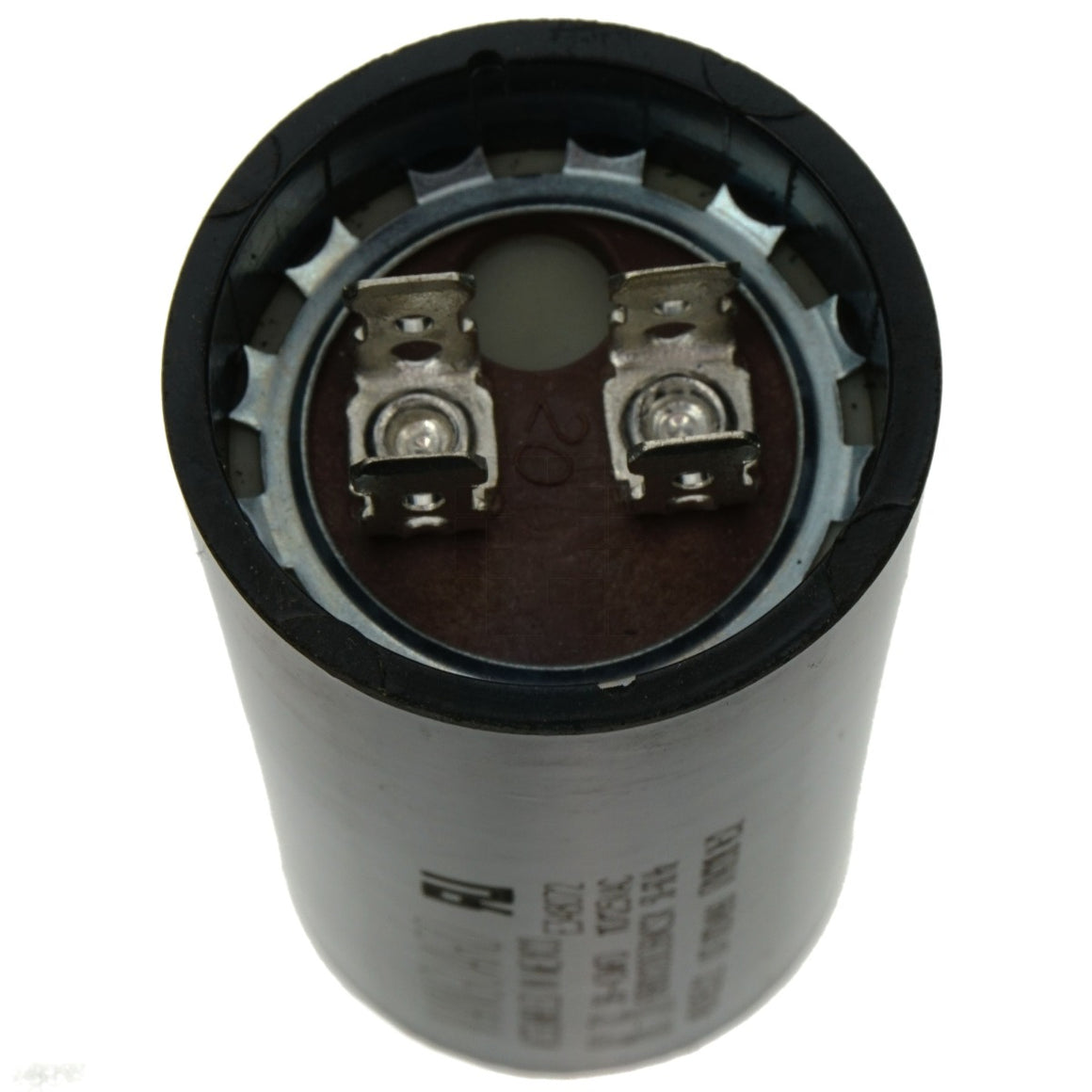

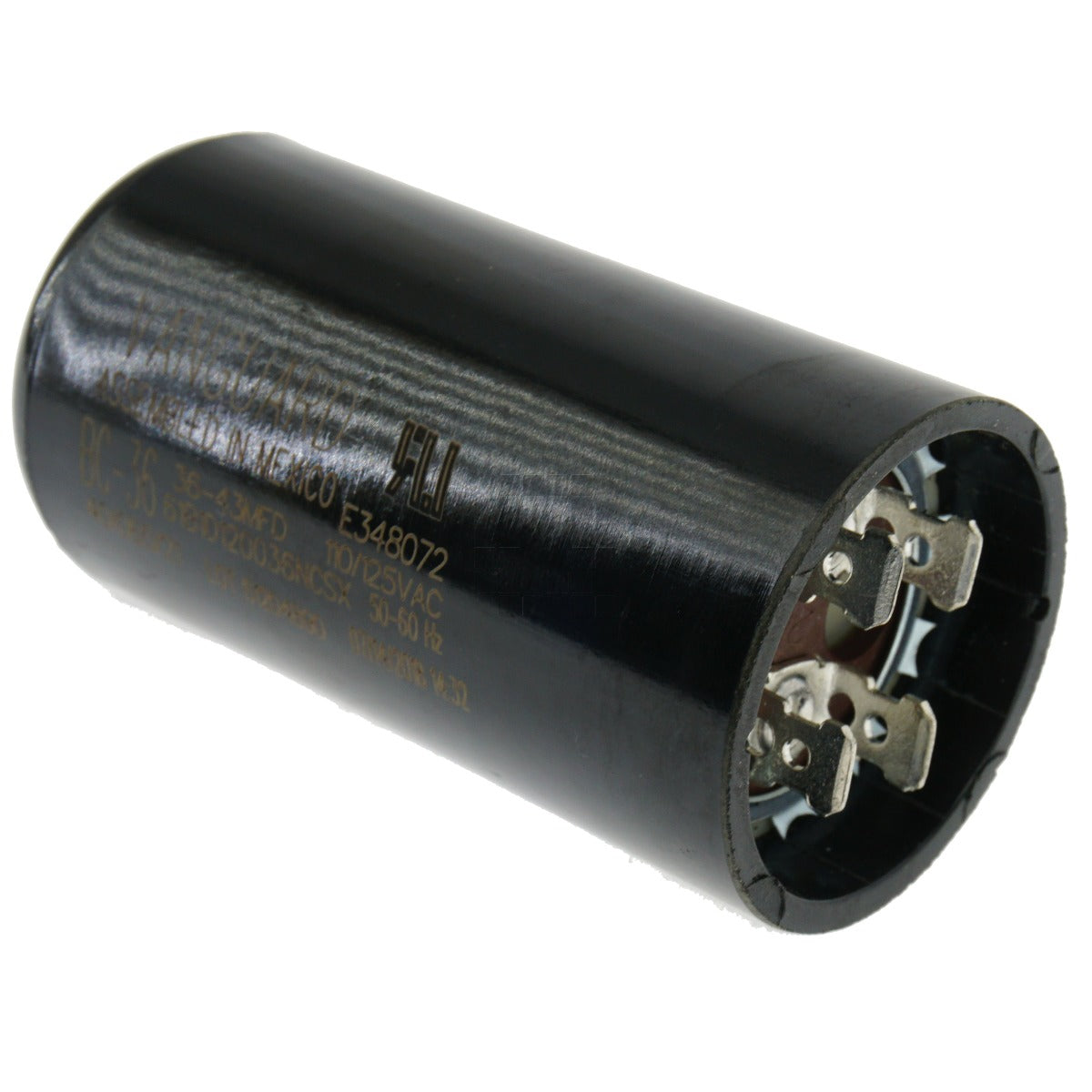

Connection 2 Posts
Two 1/4” male spade terminals on each post
Resistor None

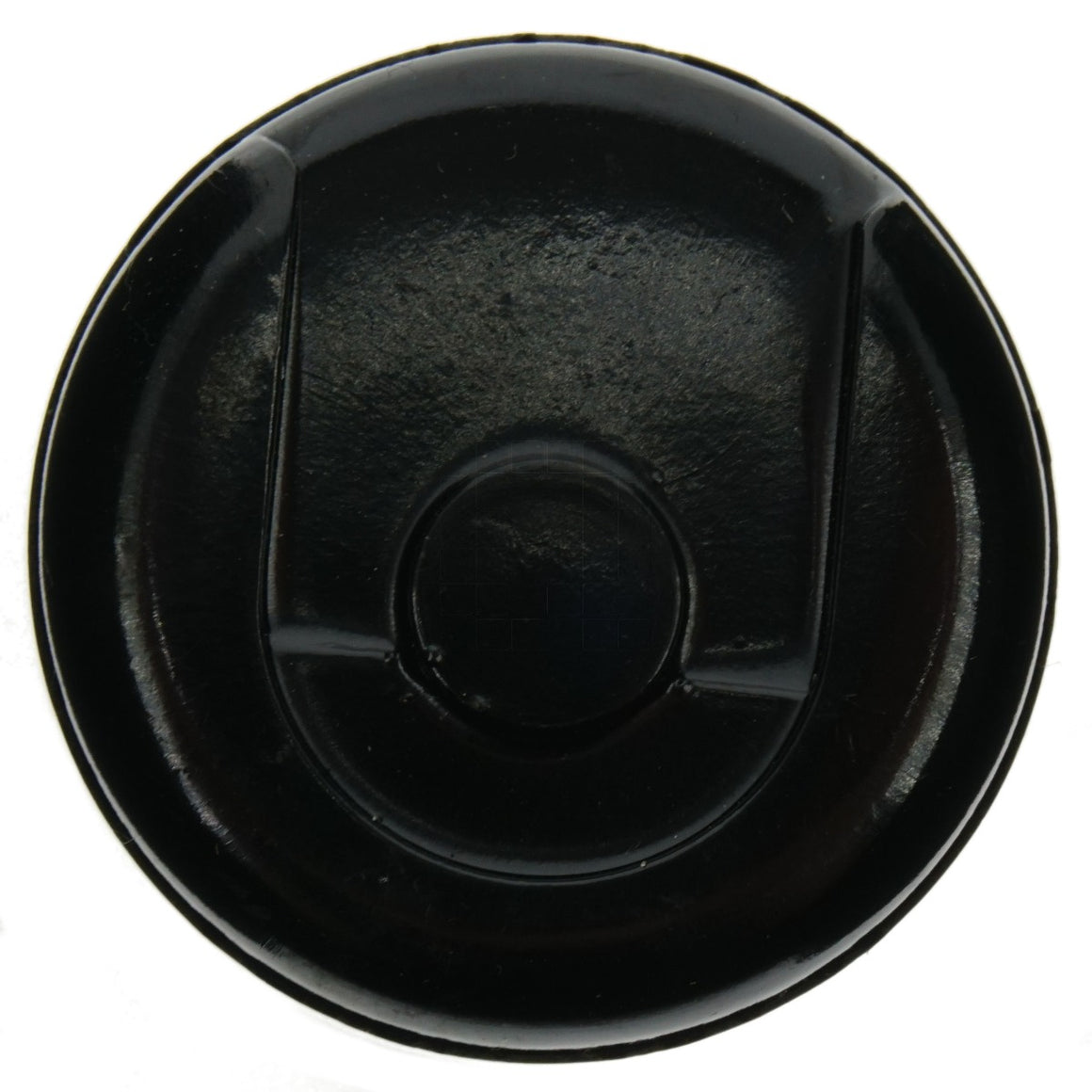

Construction Phenolic Case
Certifications/Approvals UL Approved
Performance Specifications Type 1
Case Code 1
Distance Between Terminals 0.500"
UPC None
Product Origin (COO) Mexico

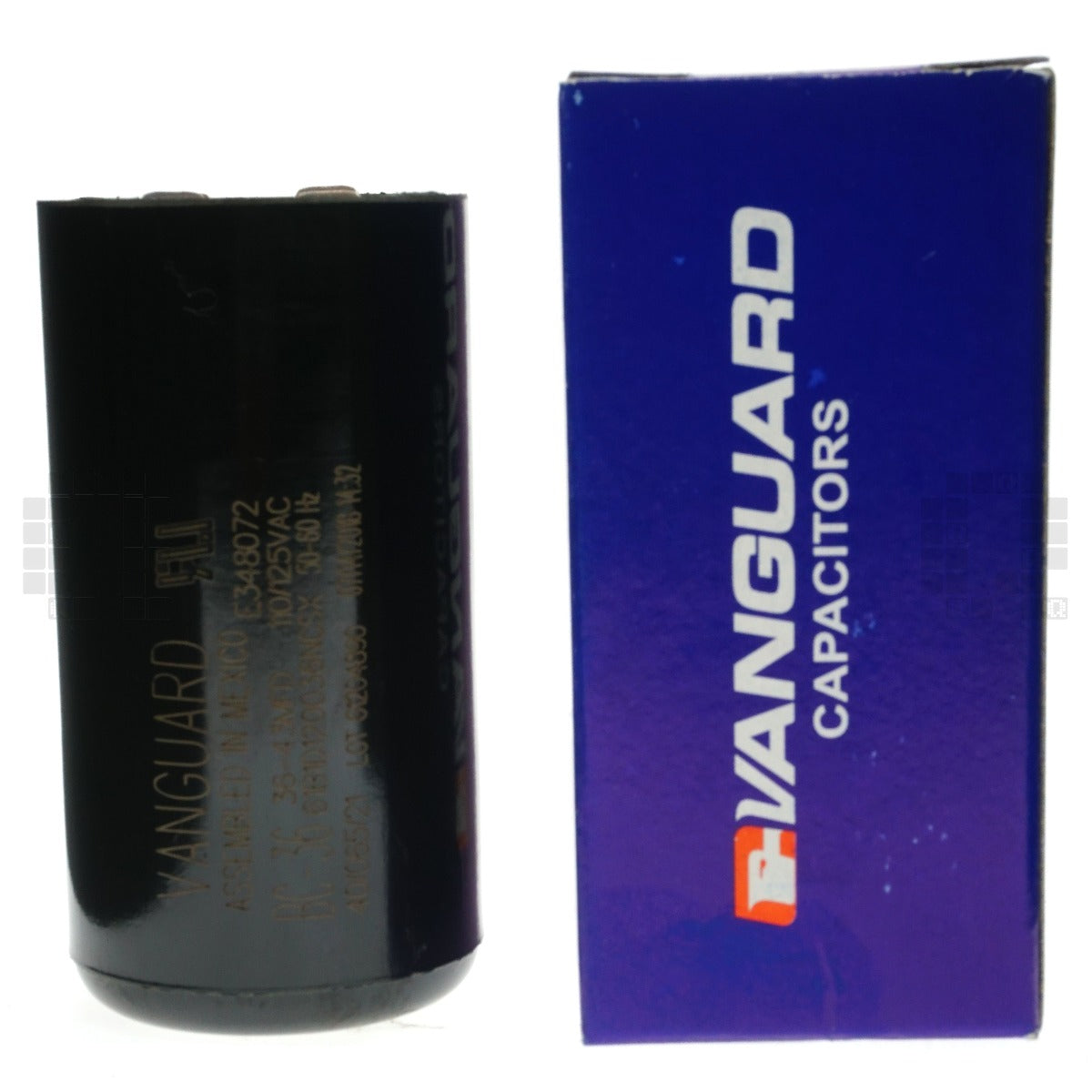

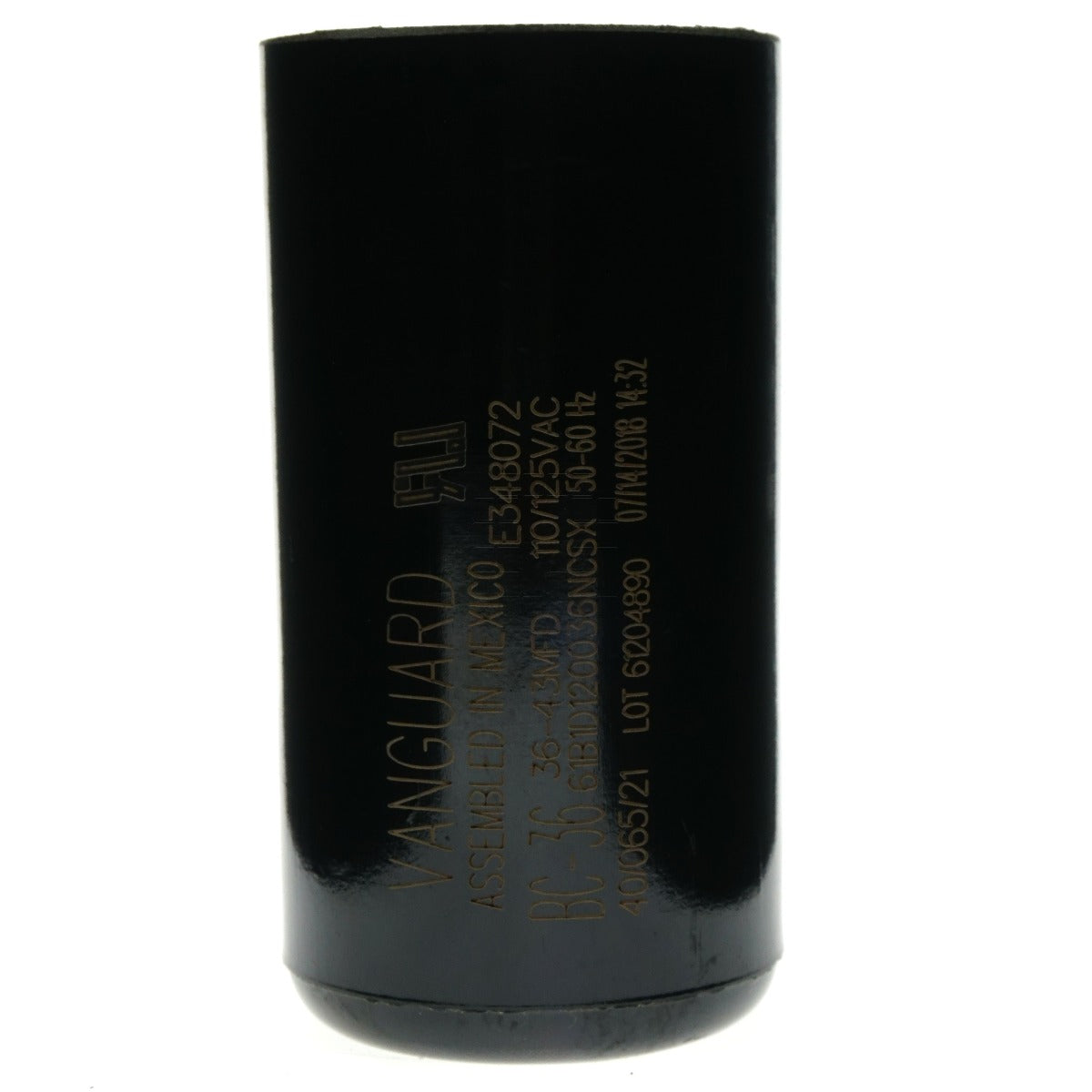

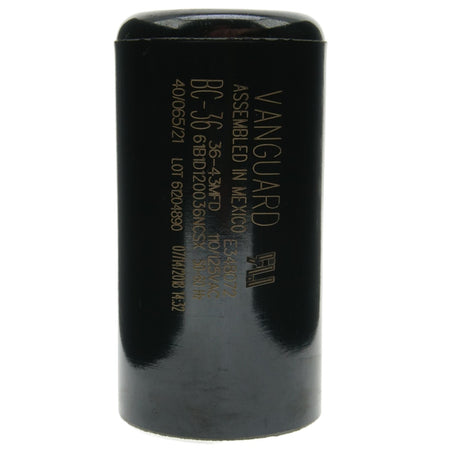

Product Label Vanguard
Assembled in Mexico

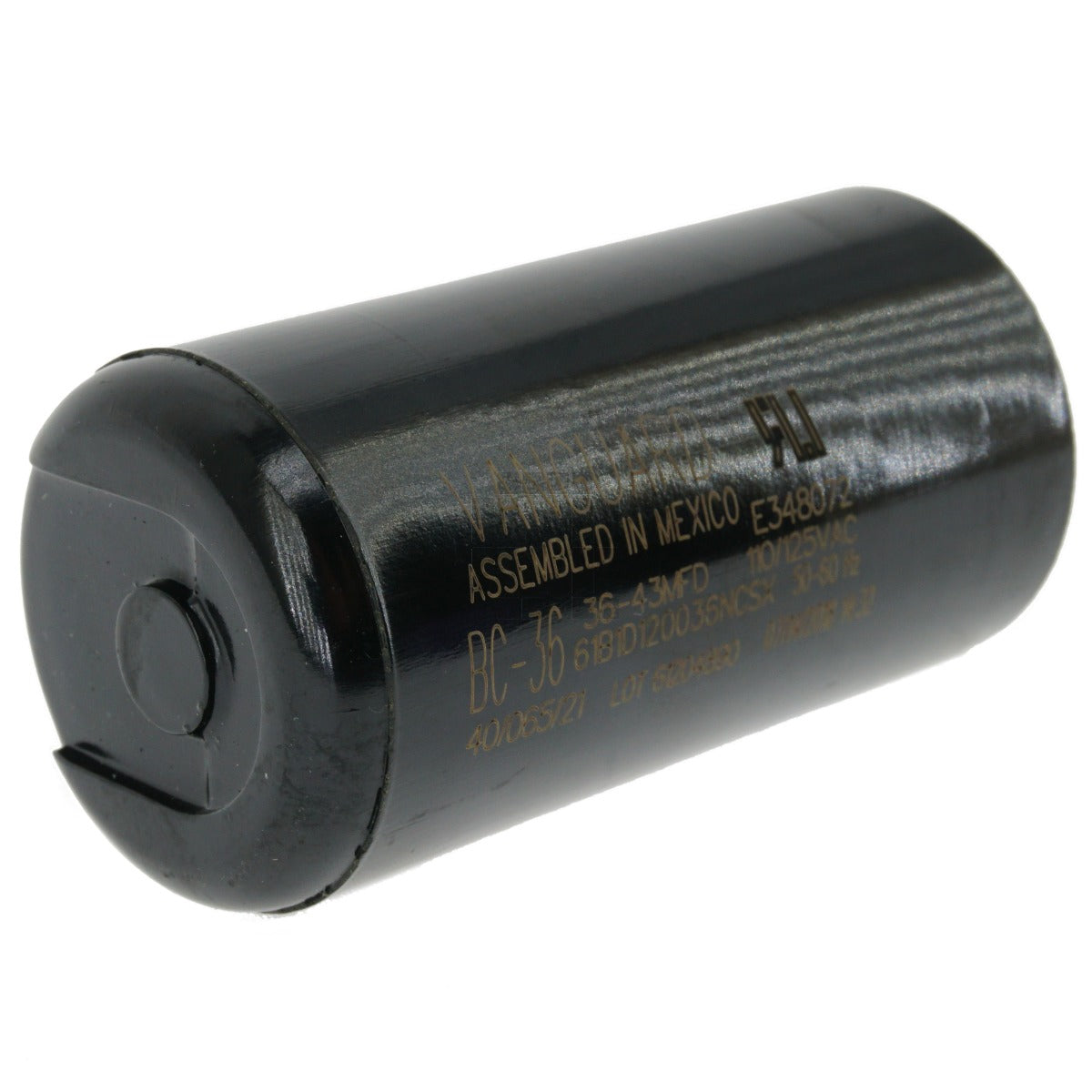

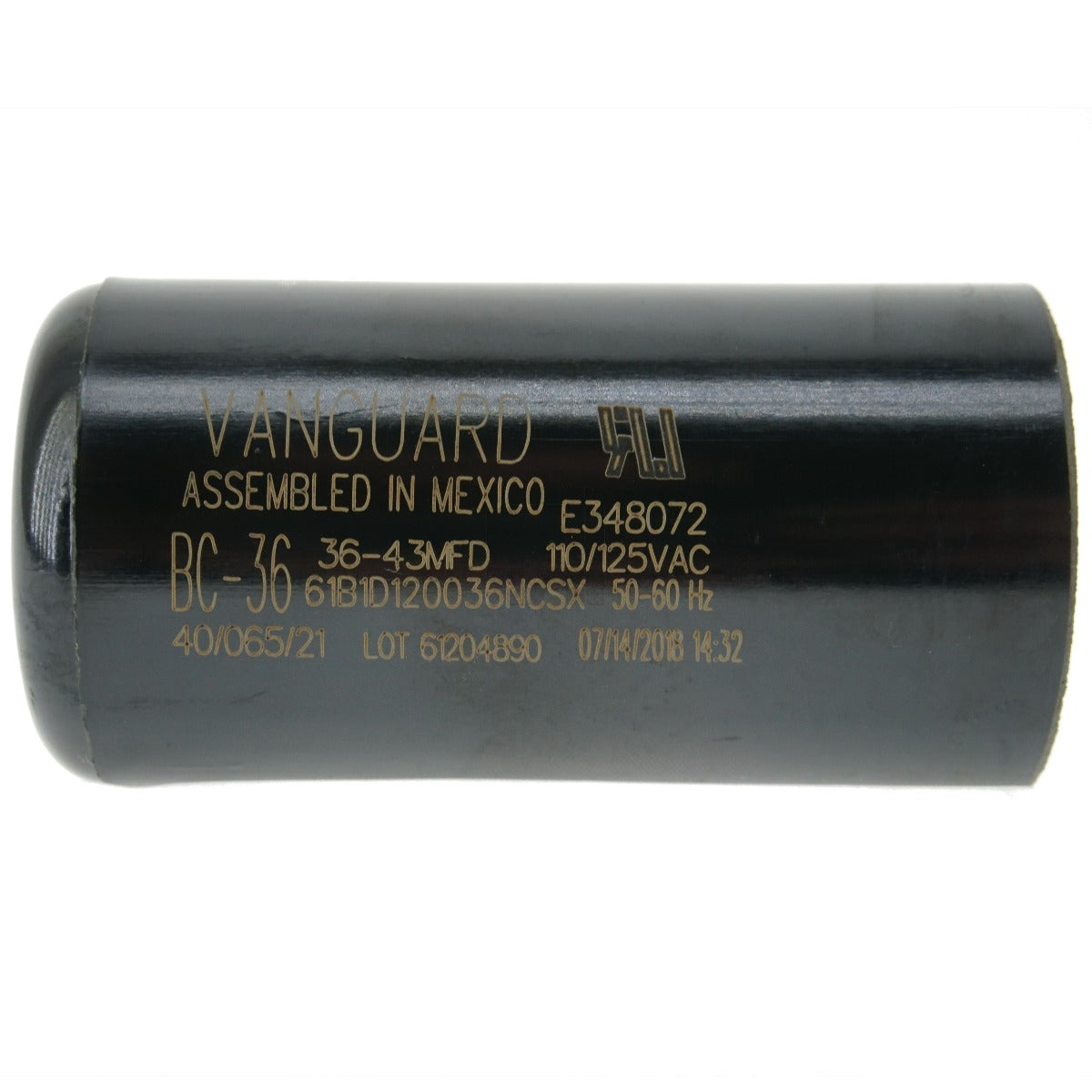

BC-36 36-43MFD 110/125VAC
61B1D120036NCSX 50-60Hz

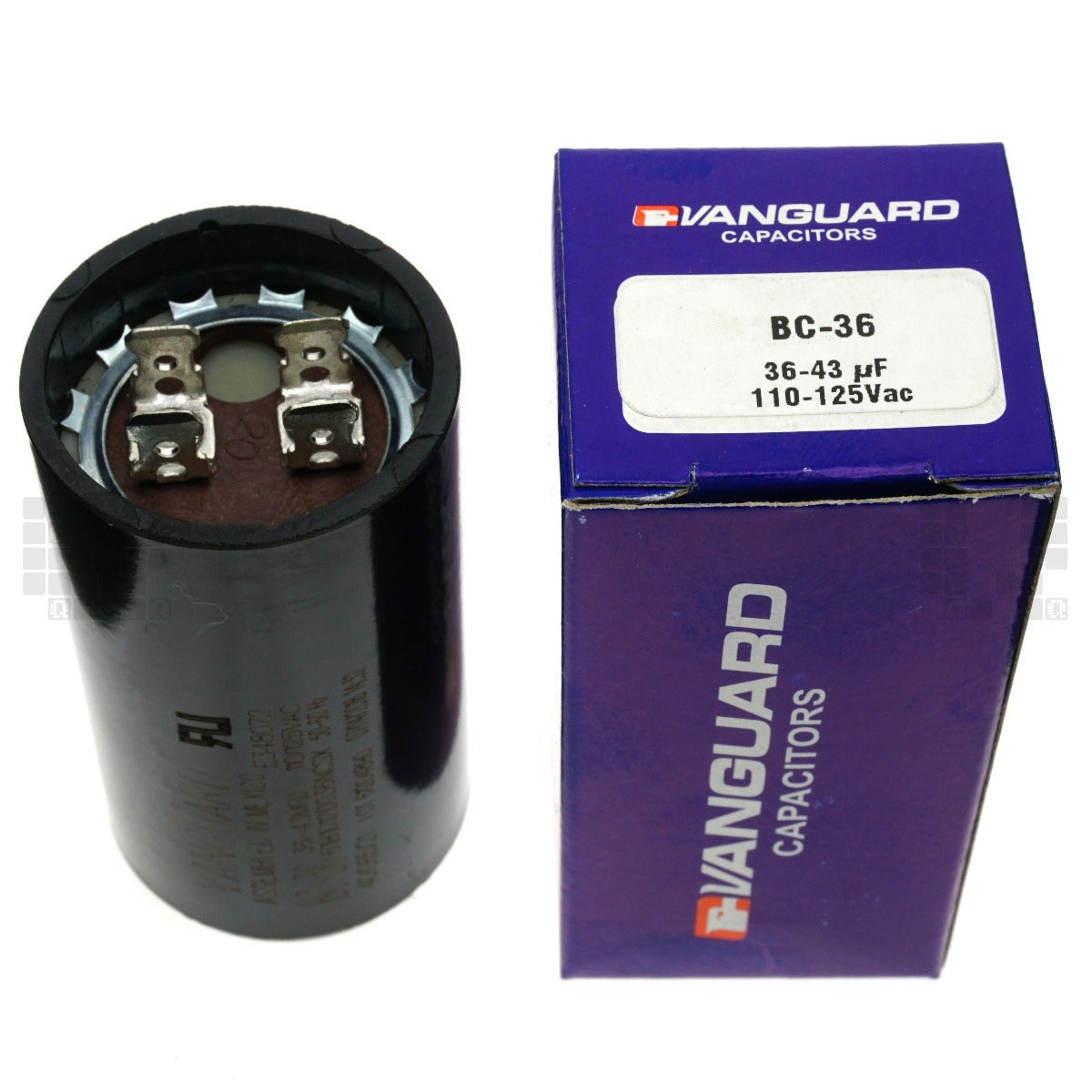

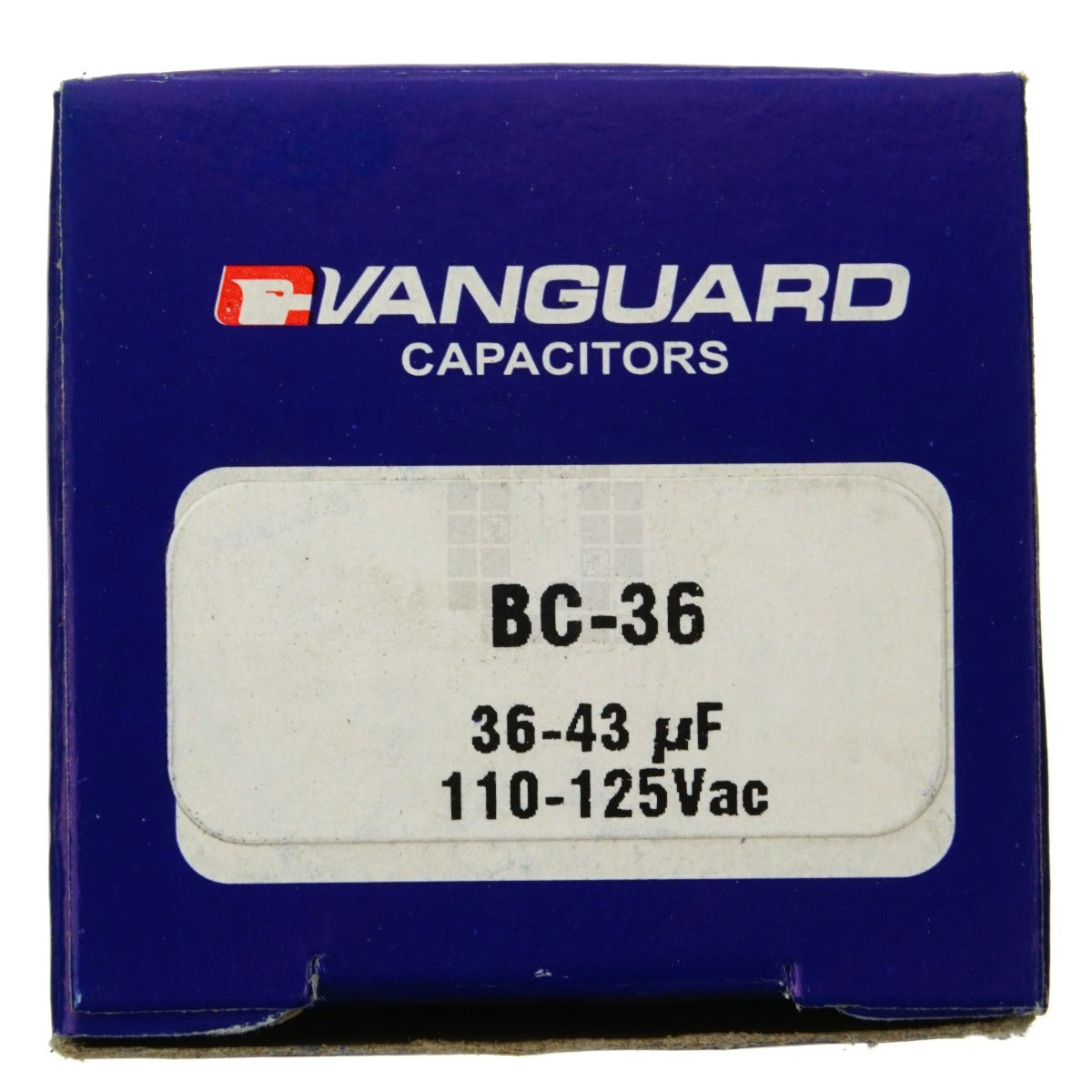

Package Label Vanguard Capacitors
BC-36
36-43 uF 110-125VAC
Notes
Location
Product Color Black

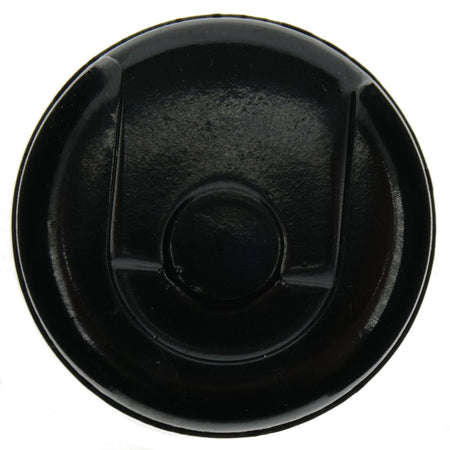

Product Shape Cylinder
Product Dimensions 1.437" Diameter
2.750" High
Product Weight 3 oz
Package Dimensions (LxWxH) 1.53" x 1.53" x 3.10"
Package Weight 4 oz
