Product Specifications :

Brand Vanguard
Manufacturer Part Number BC-36M-250-S
61B1D250036NC
61B1D250036NCSX
Cross Reference (Fit/Form/Function)
Capacitance 36 - 43 uF
Working Voltage 220 -250 VAC
Frequency 50/60 Hz
Power Factor 10% Max
after applying working voltage for 4 seconds
Working Temperature Range -40°C to +65°C
-40°F to +149°F
Type Start Capacitor
Aluminum Electrolytic, Non-Polarized

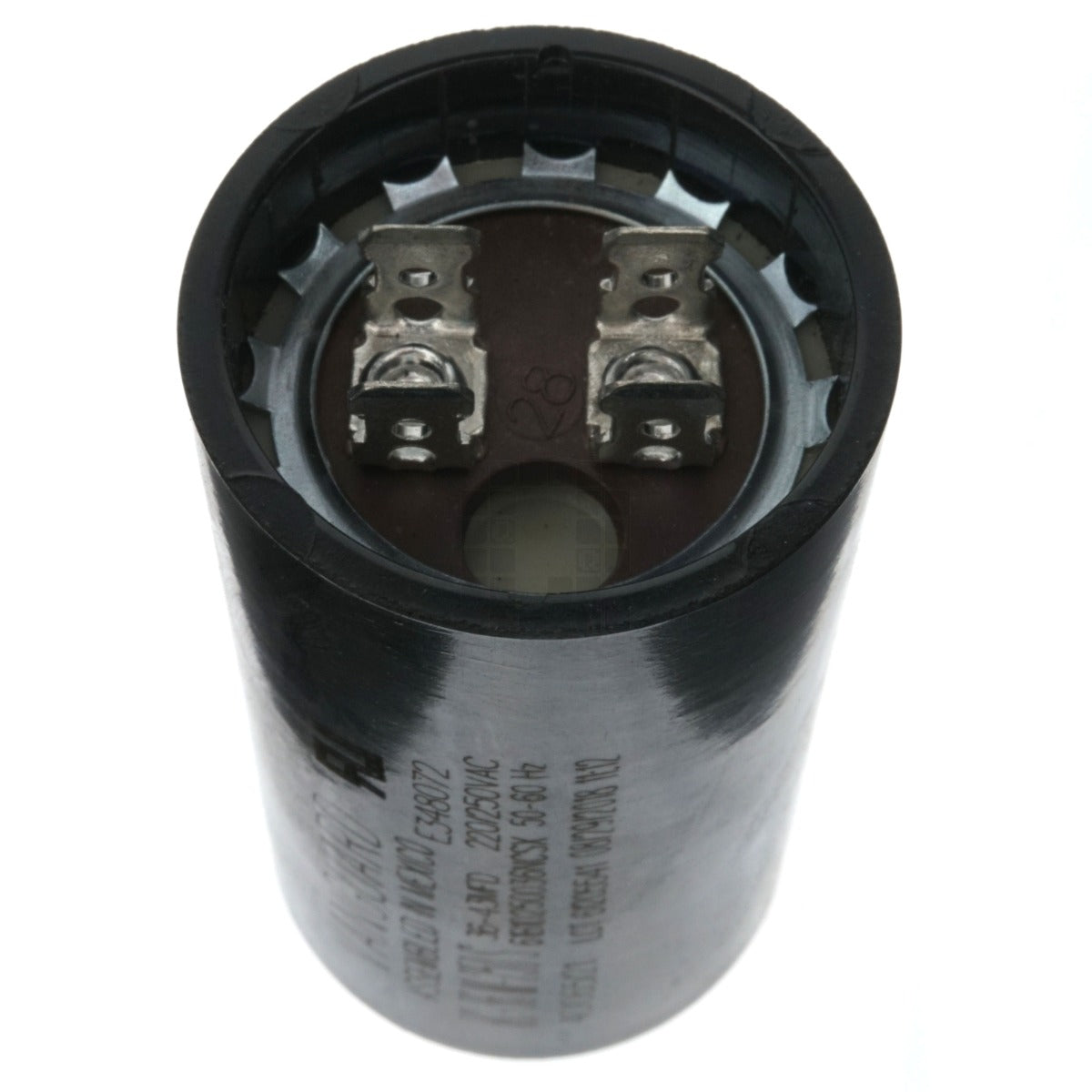

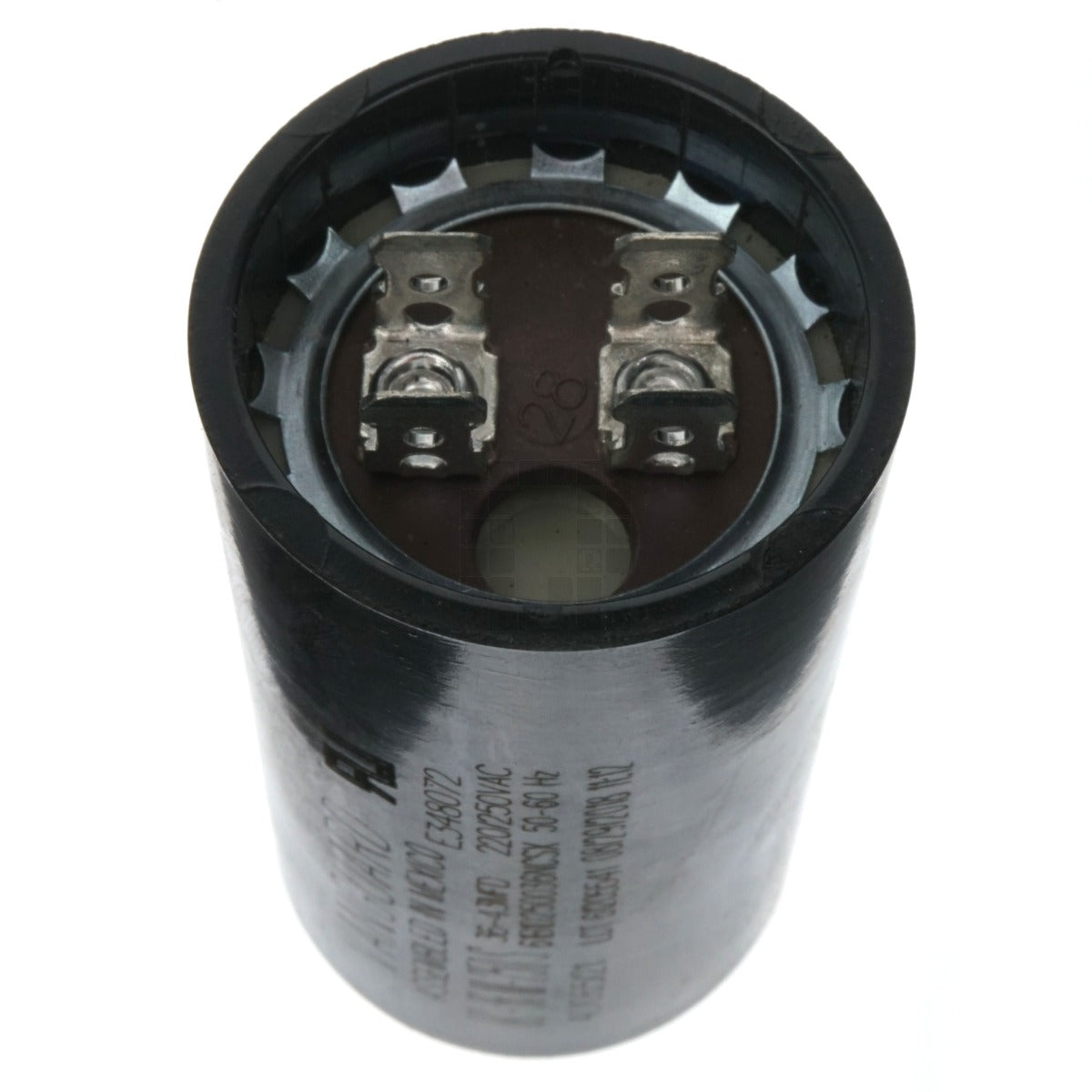

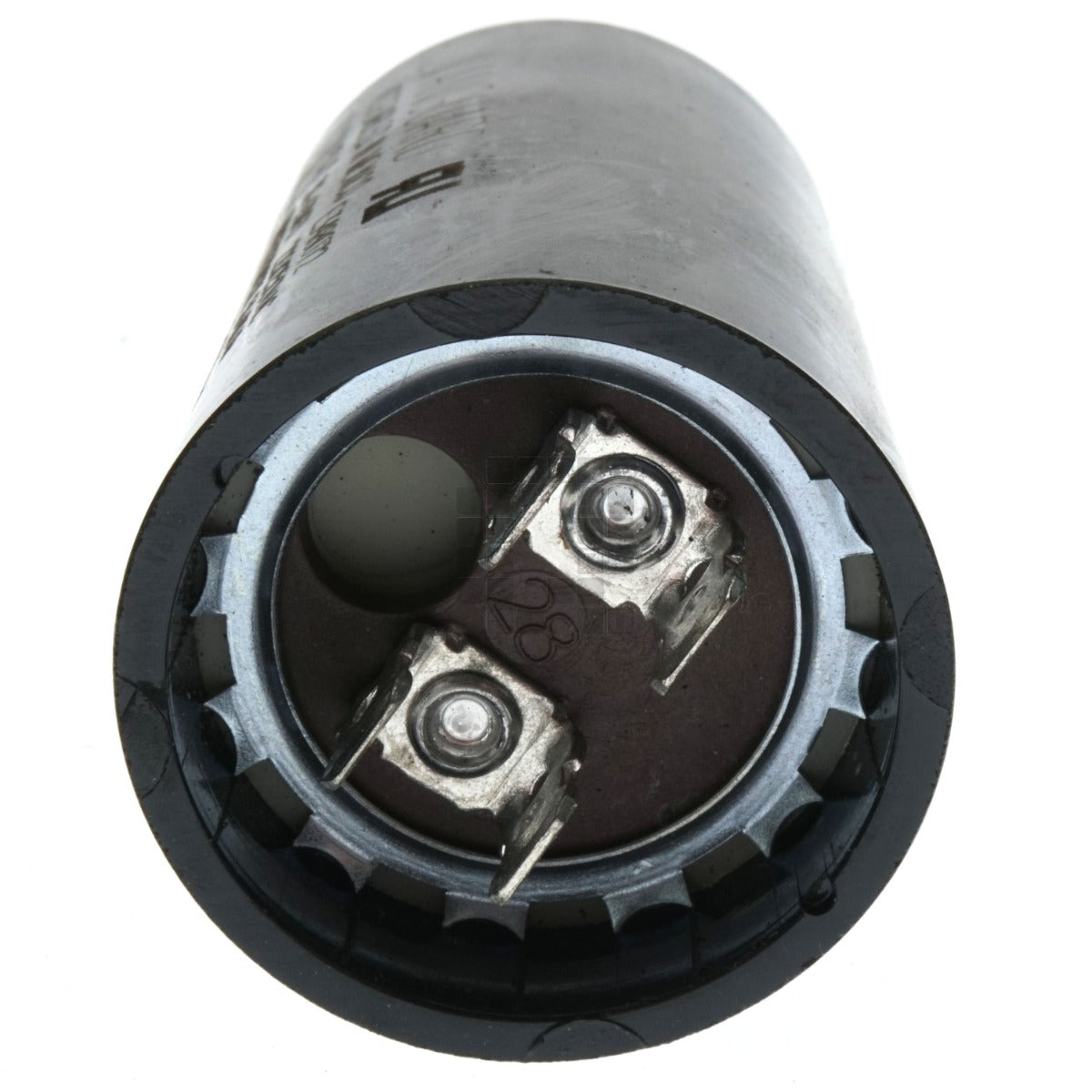

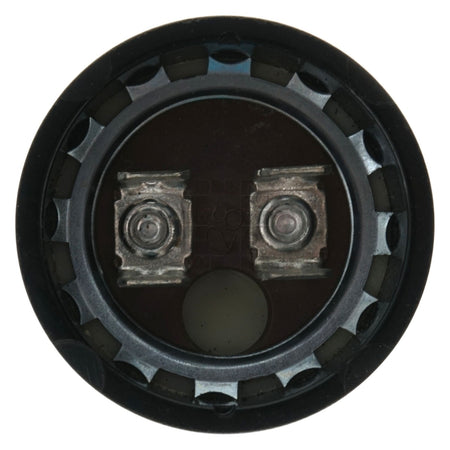

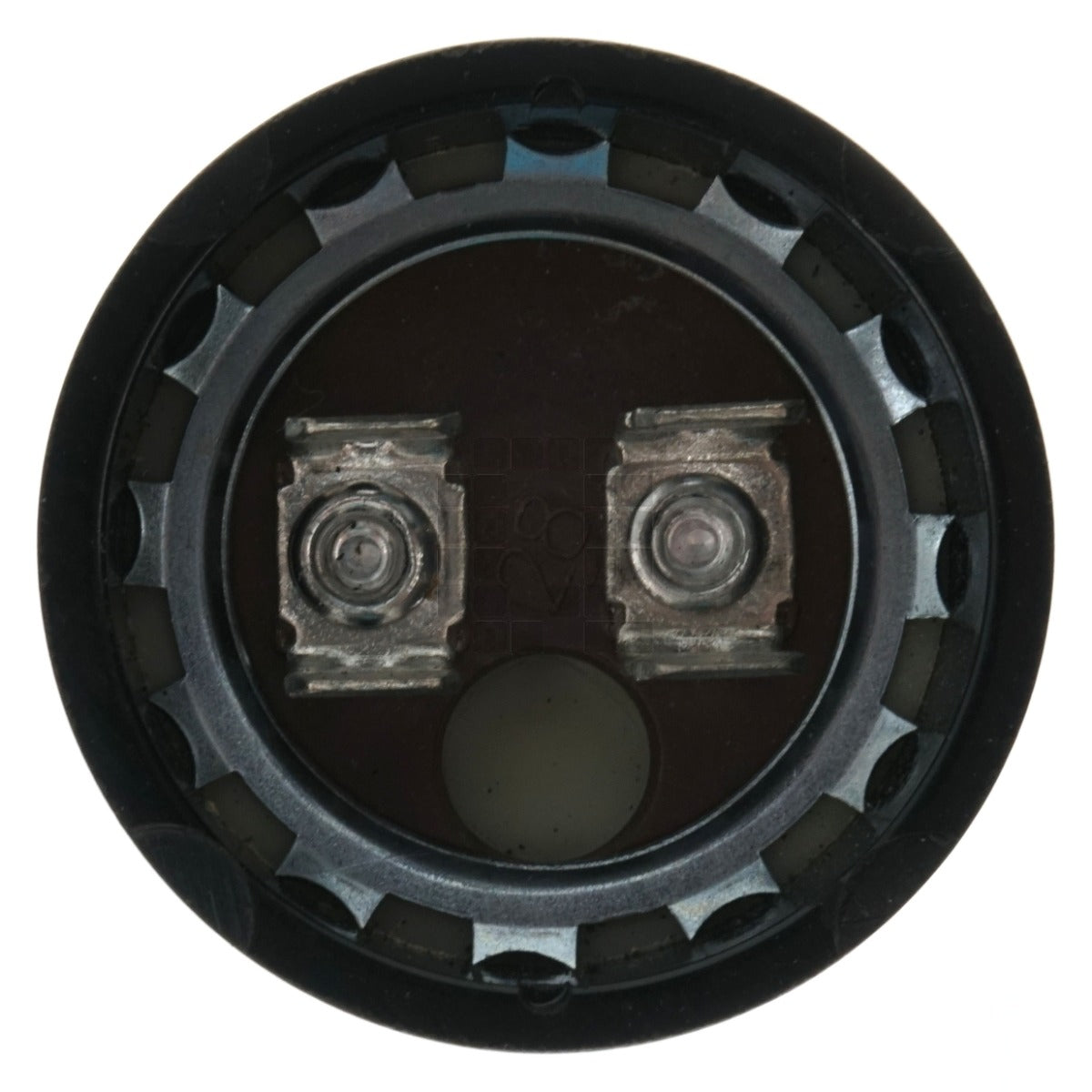

Connection 2 Posts

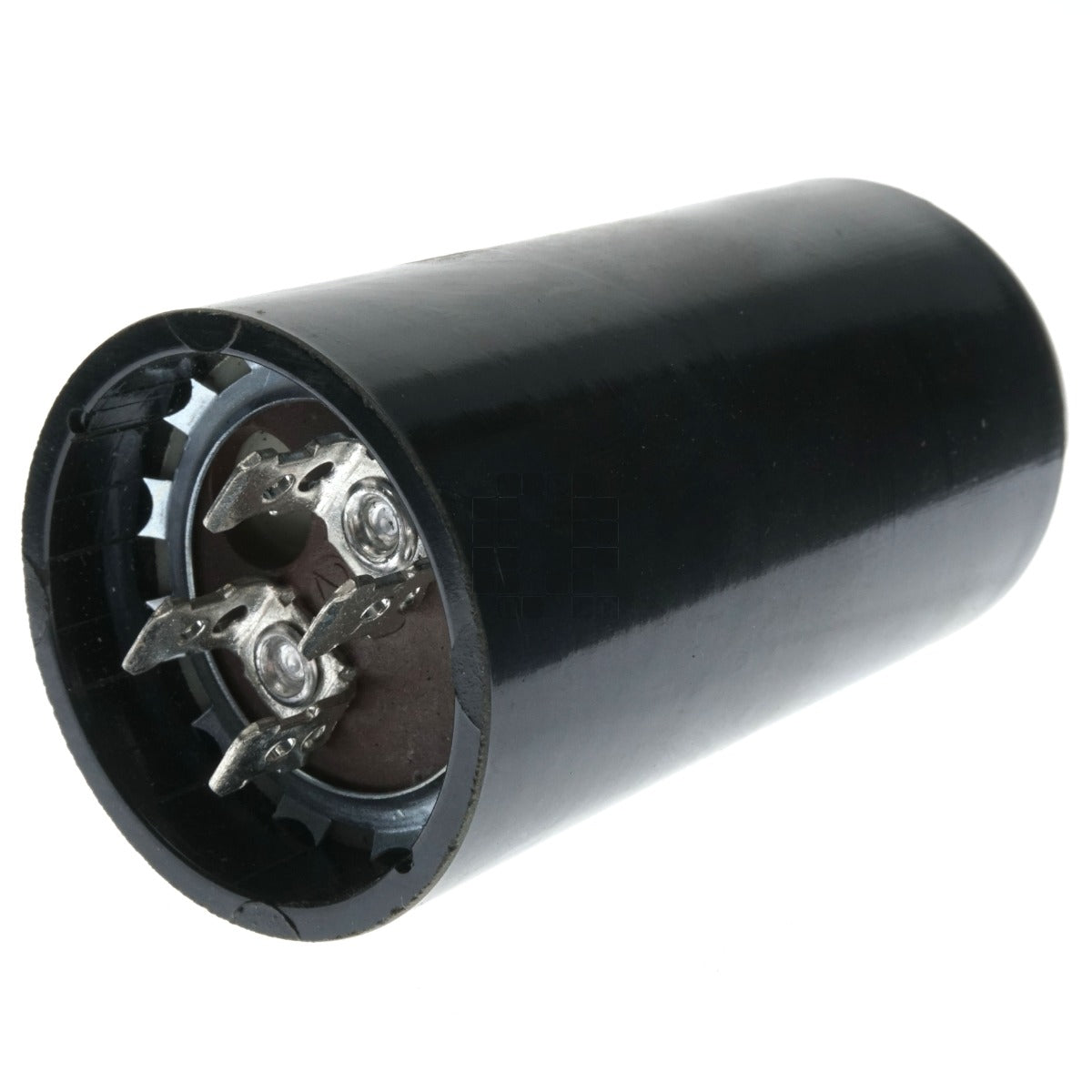

Two 1/4” male spade terminals on each post
Resistor None

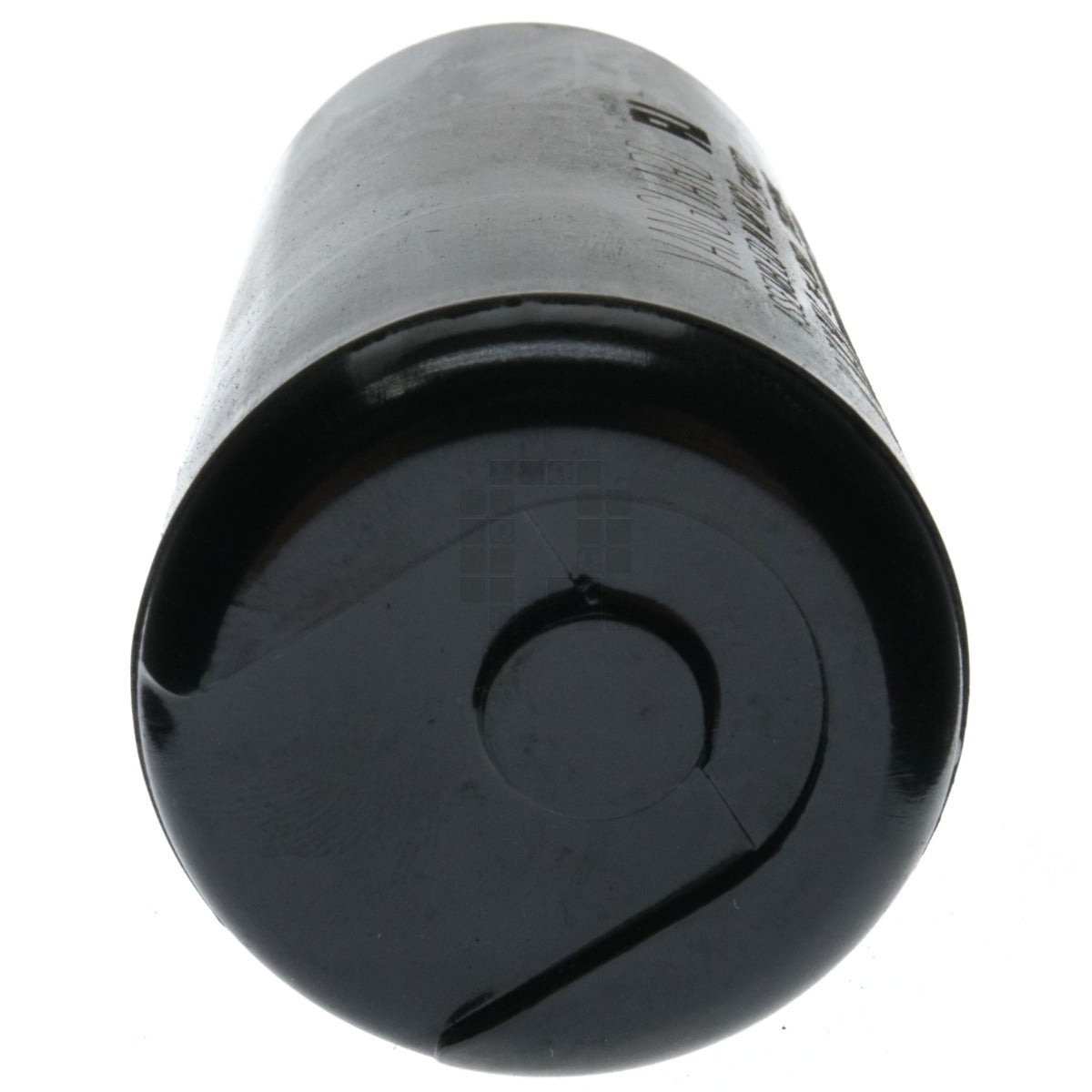

Construction Phenolic Case
Certifications/Approvals UL Approved
Performance Specifications
Case Code
Distance Between Terminals 0.50"
UPC None
Product Origin (COO) Mexico

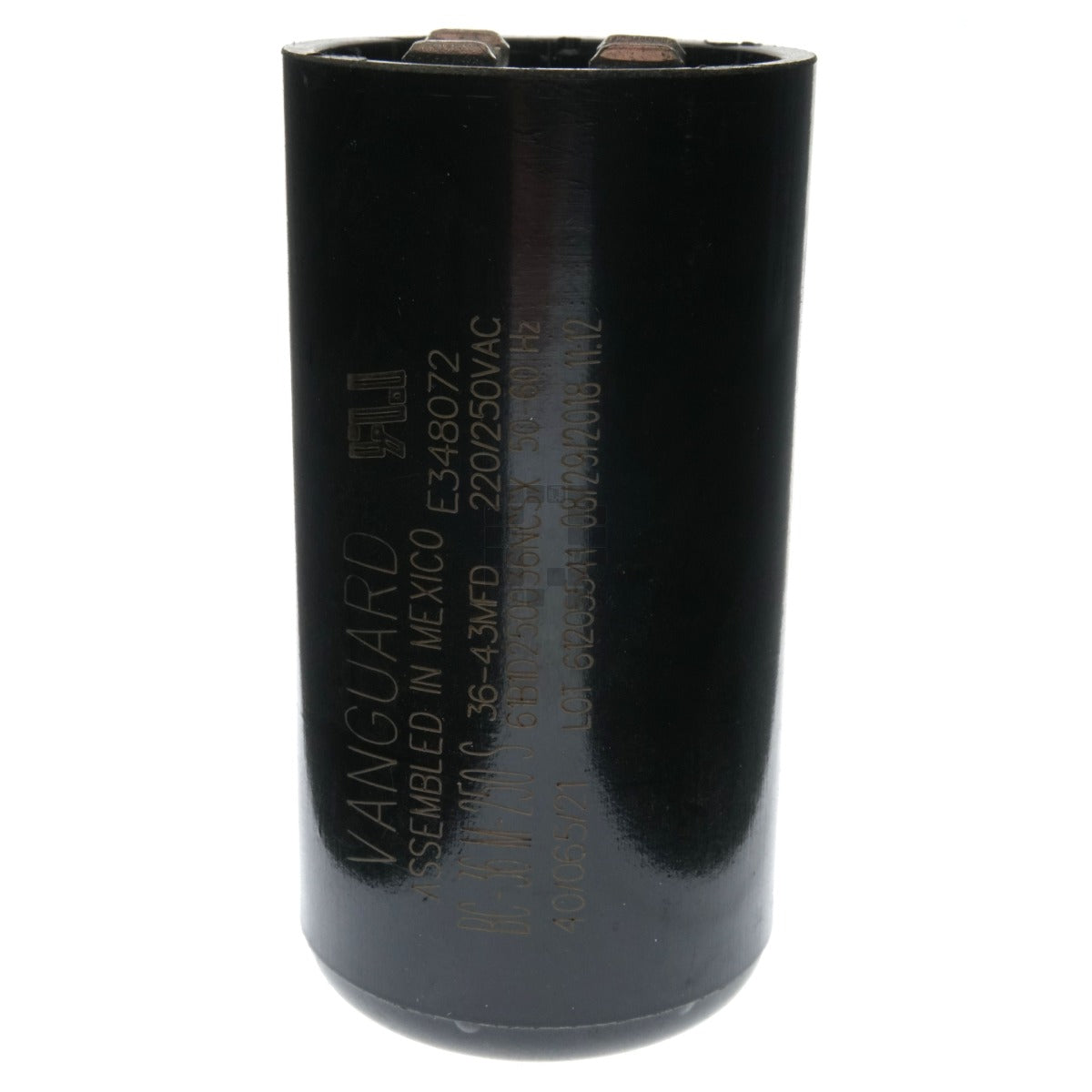

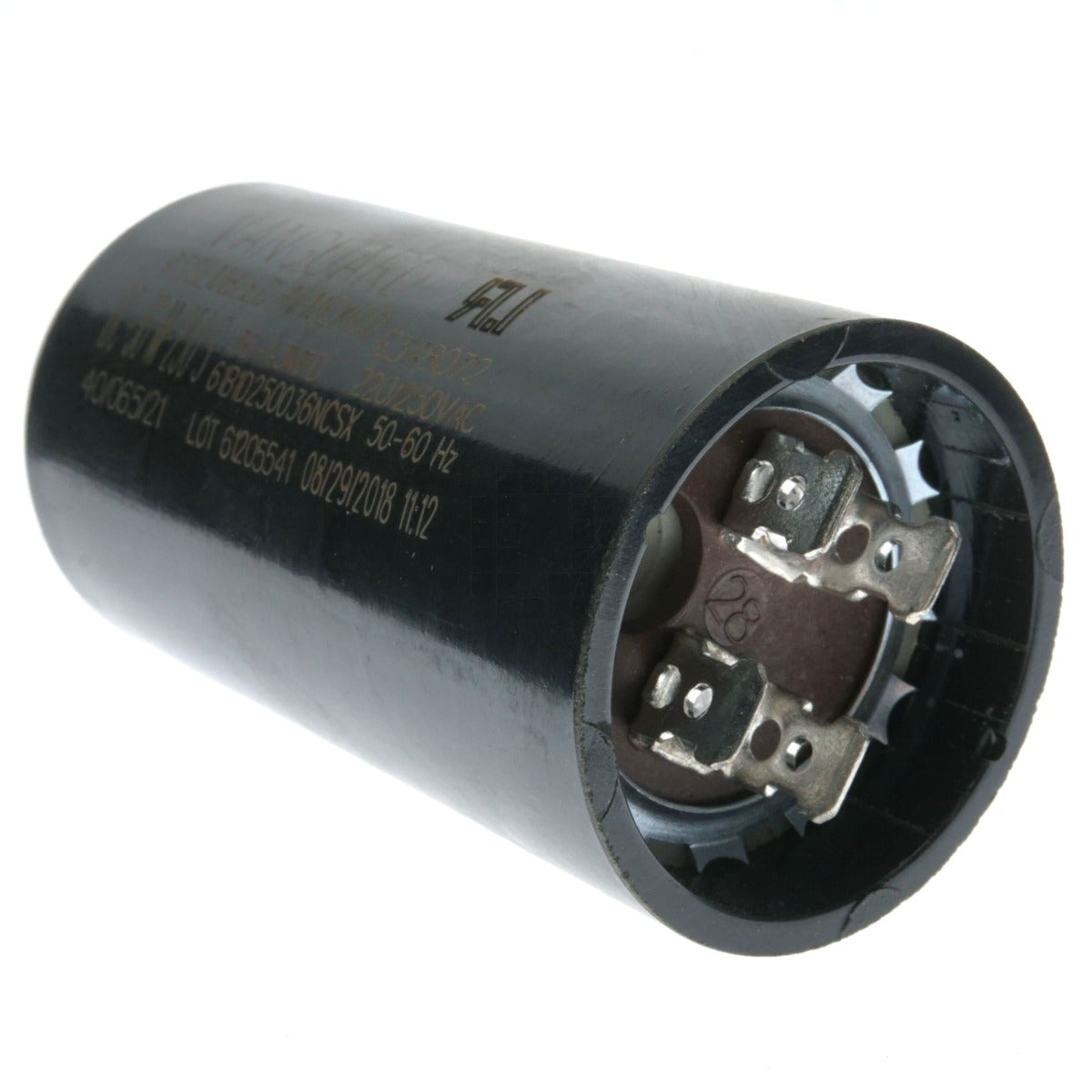

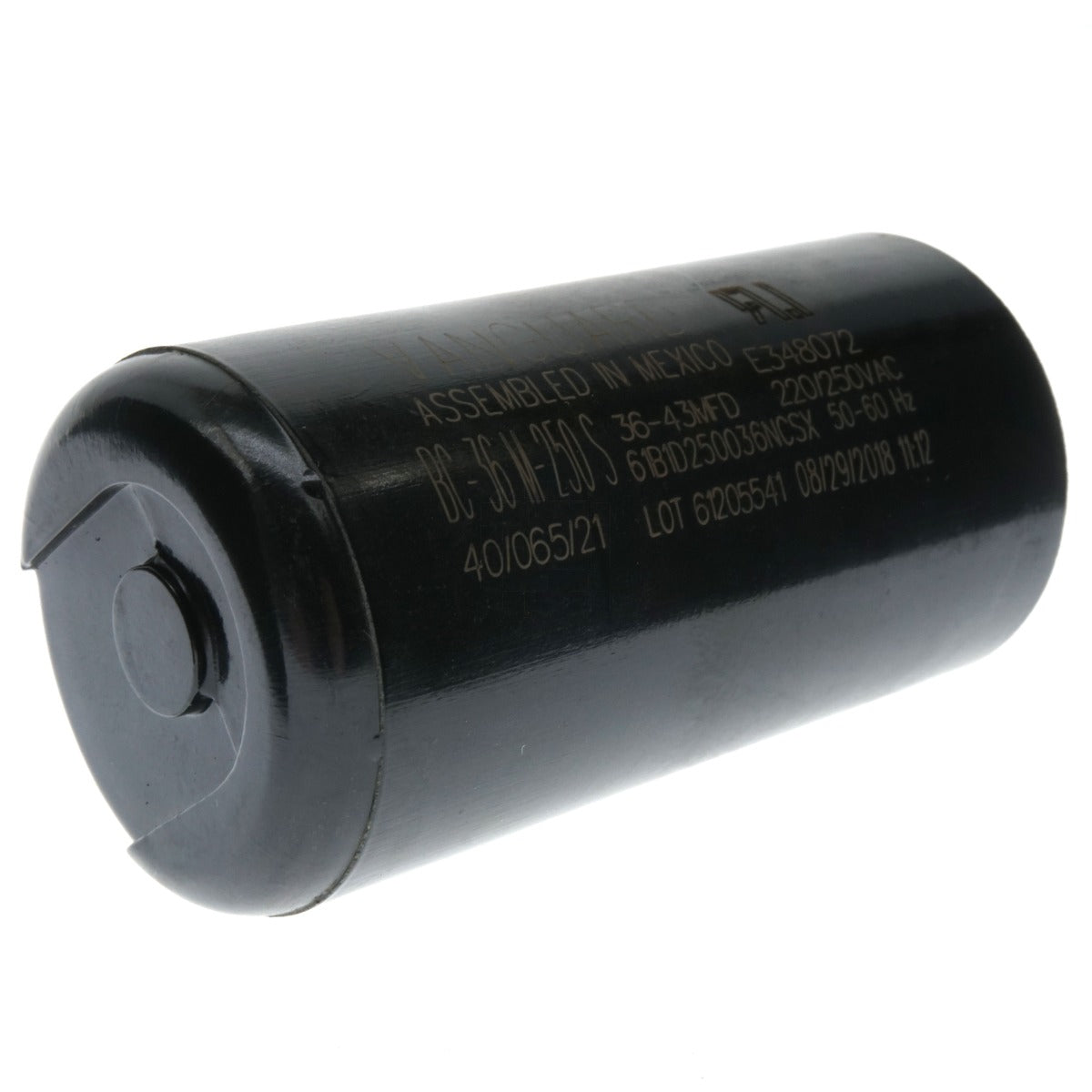

Product Label Vanguard
Assembled in Mexico
BC-36M-250-S
36-43MFD 220/250VAC
61B1D250036NCSX 50-60Hz

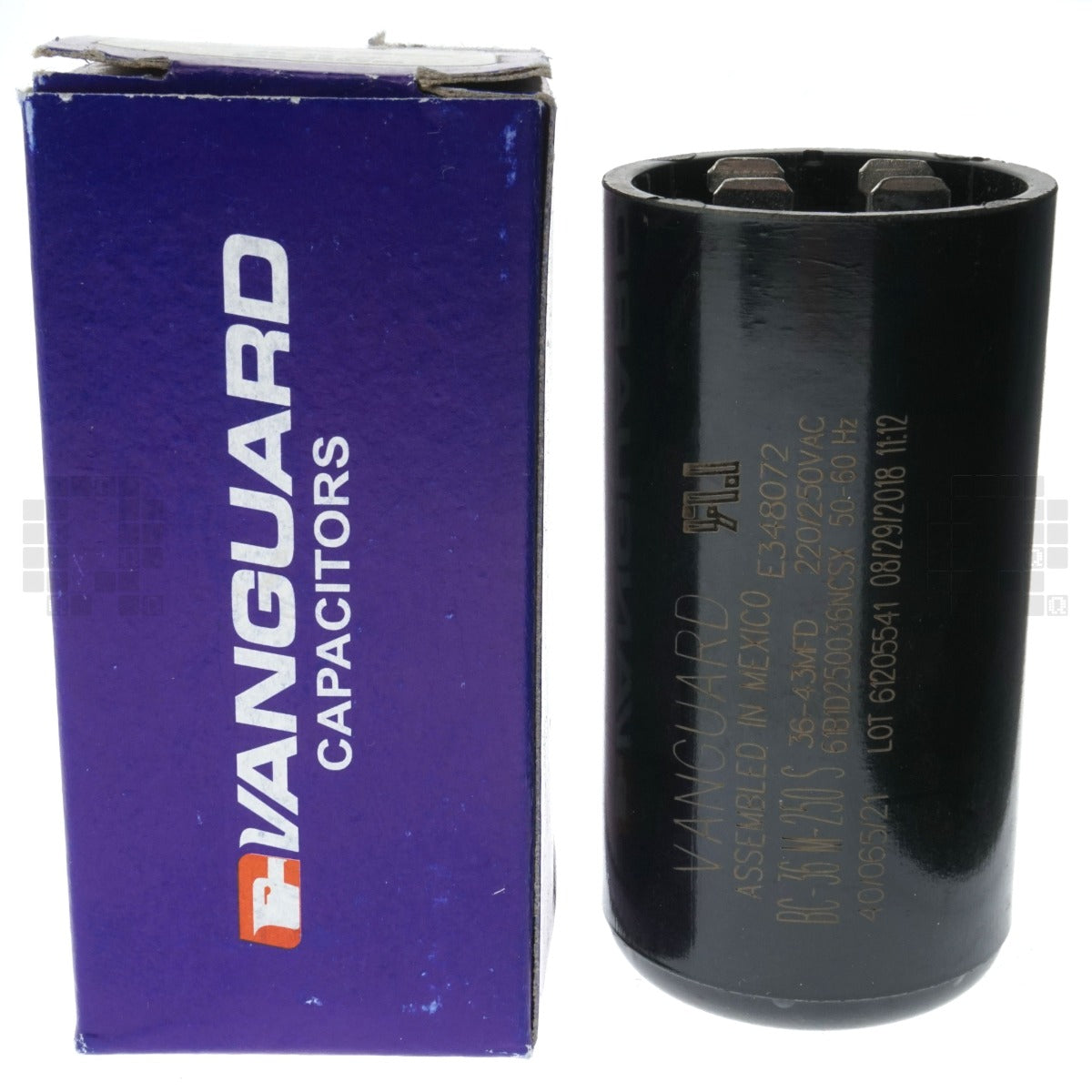

Package Label Vanguard Capacitor
BC-36M-250-S
36-43 uF 220-250VAC
Notes
Location

Dimensions & Weights :

Product Color Black
Product Shape Cylinder
Product Dimensions 1.437" Diameter
2.75" Height
Product Weight 3 oz
Package Dimensions (LxWxH) 1.50" x 1.50" x 3.13"
Package Weight 4 oz
