Product Specifications :

Brand Vanguard
Manufacturer Part Number BC-378
61B4D120378NCSX
Cross Reference (Fit/Form/Function)
Capacitance 378 - 454 uF
Working Voltage 110 - 125 VAC
Frequency 50/60 Hz
Working Temperature Range -40°C to +65°C
-40°F to +149°F
Type Start Capacitor

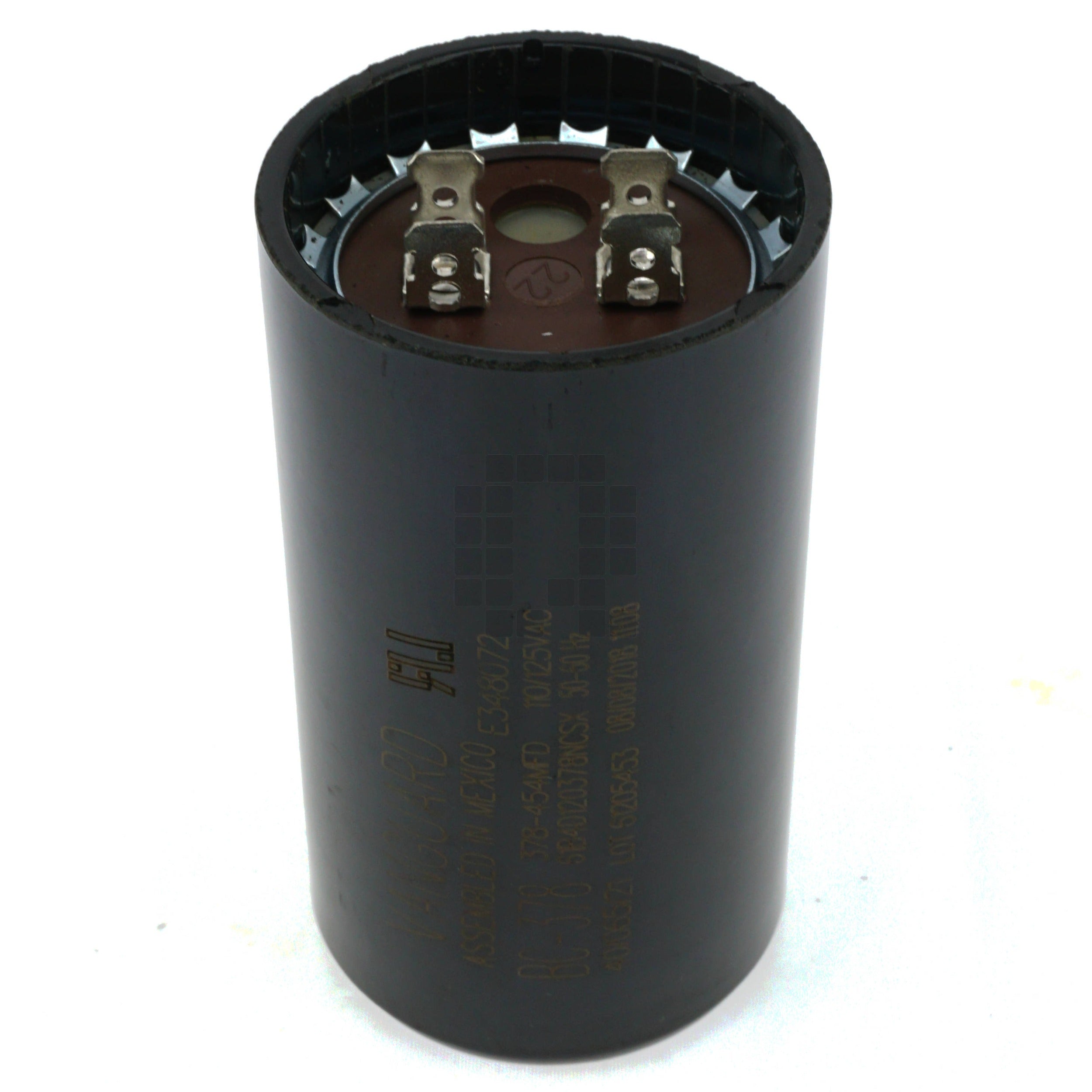

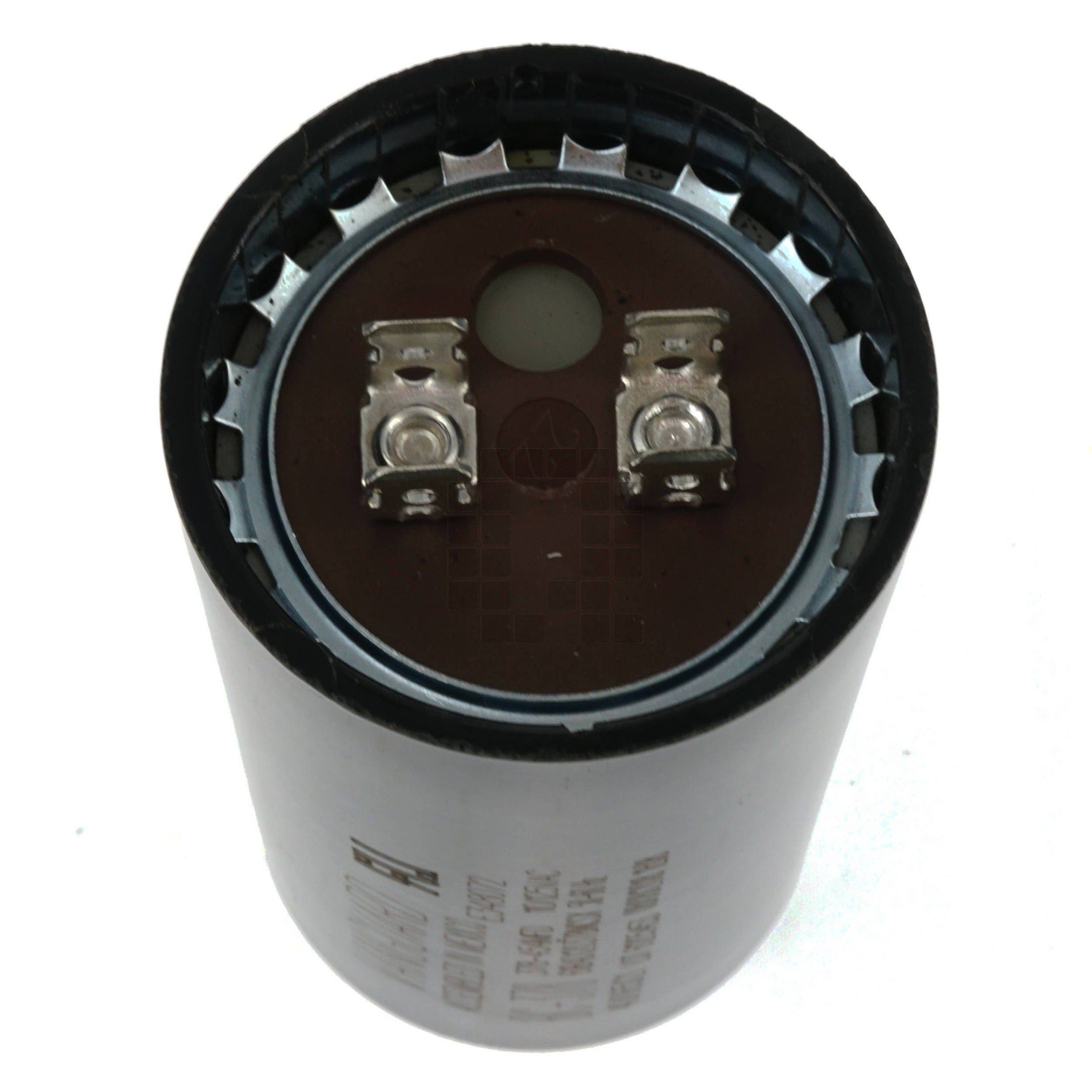

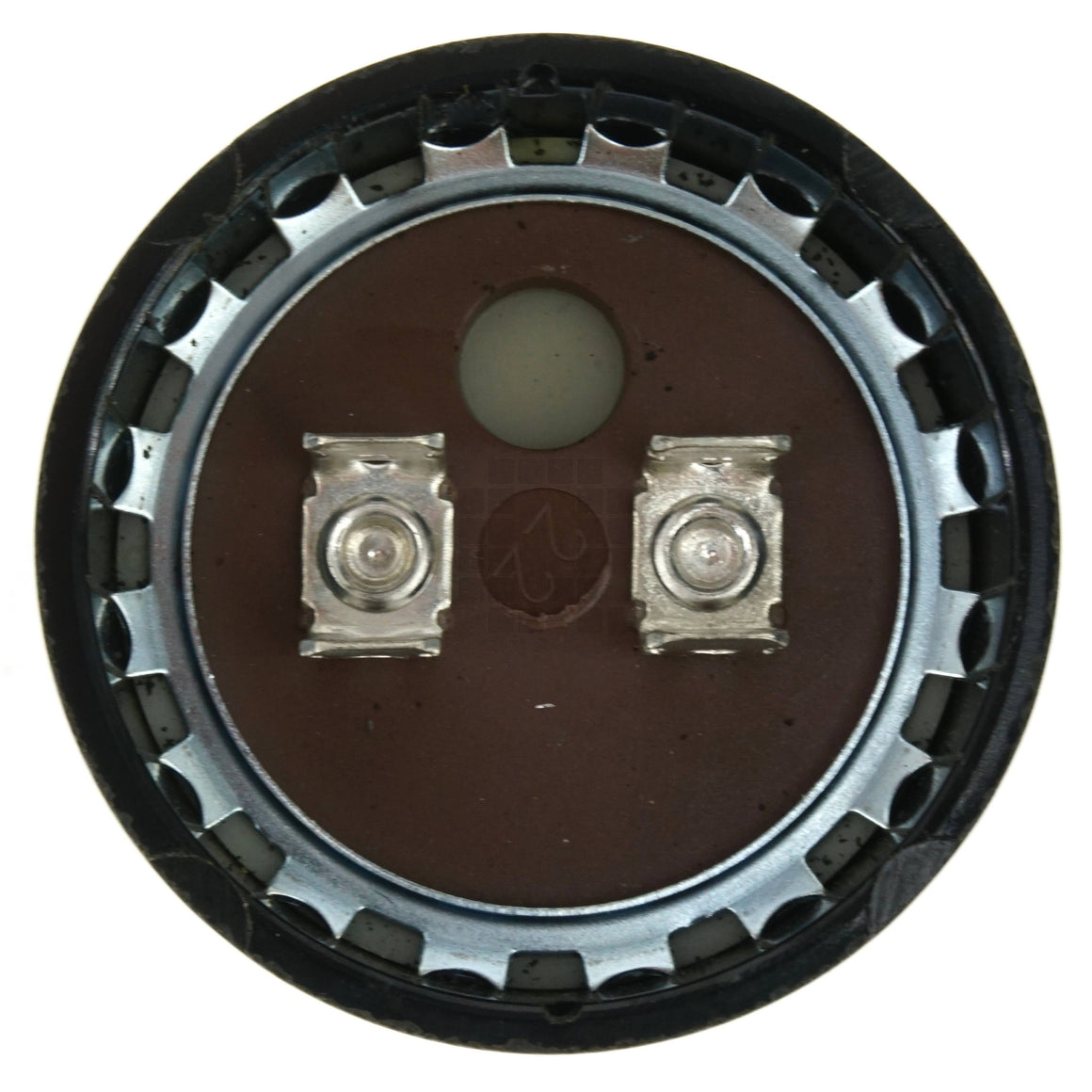

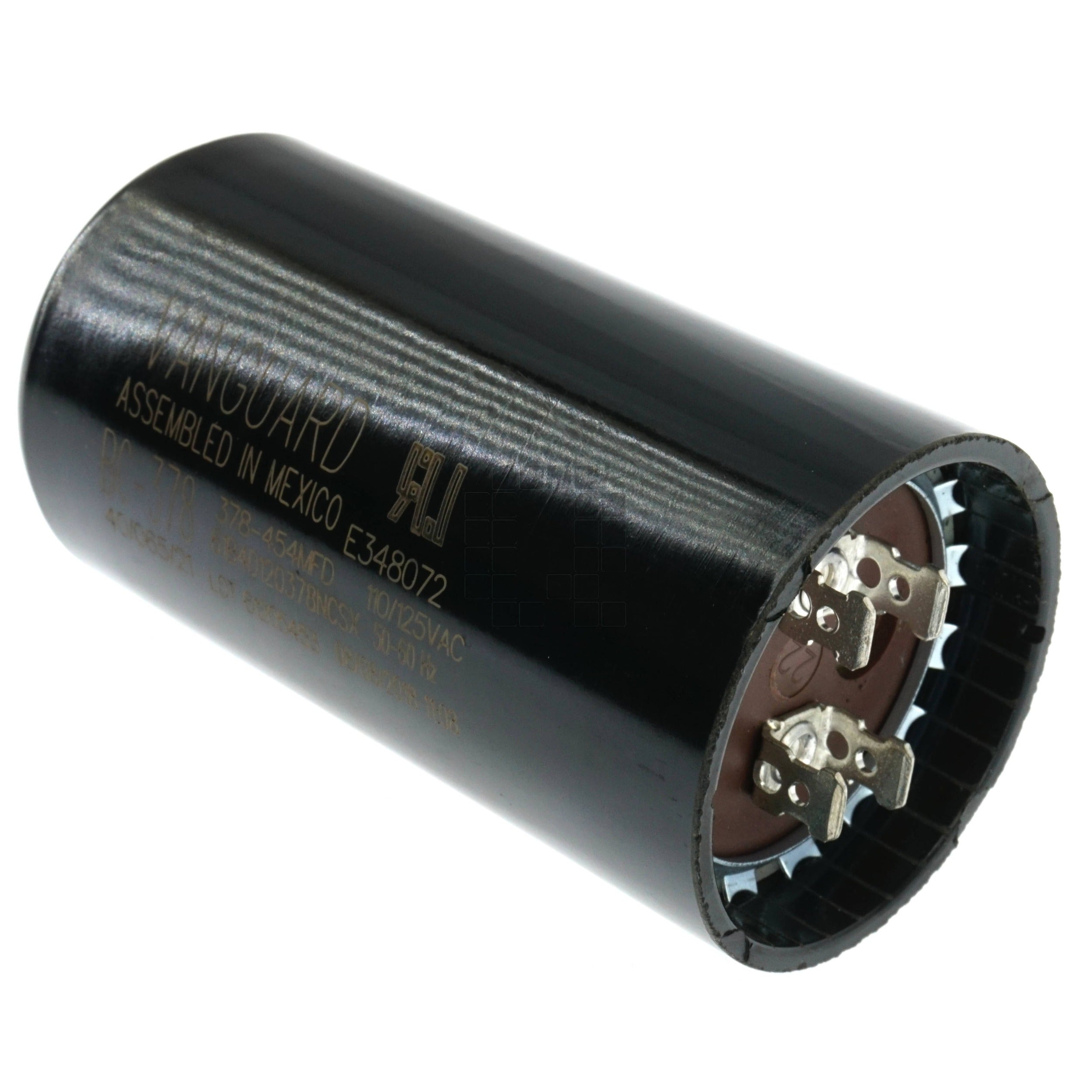

Connection 2 Posts
Two 1/4” male spade terminals on each post
Resistor None

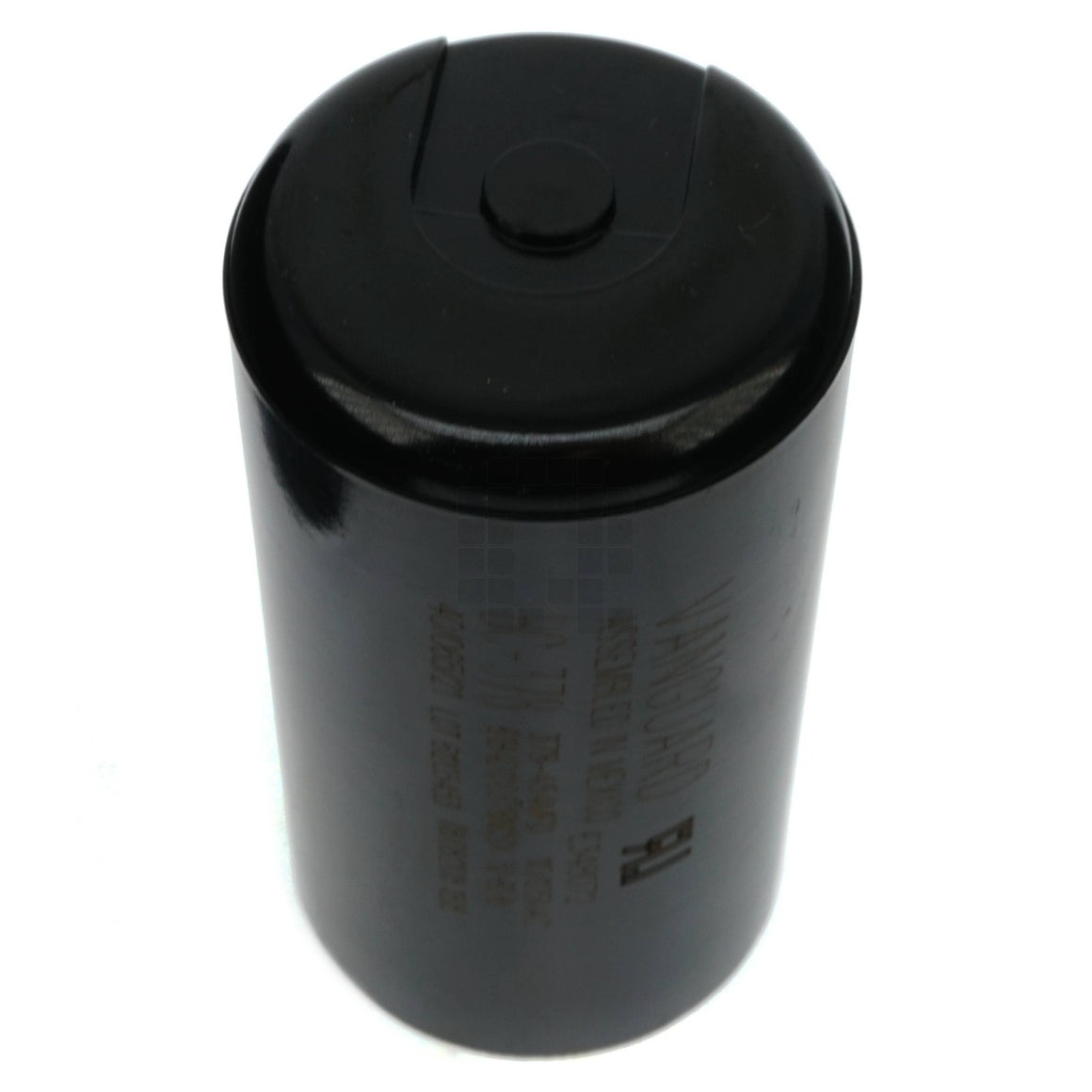

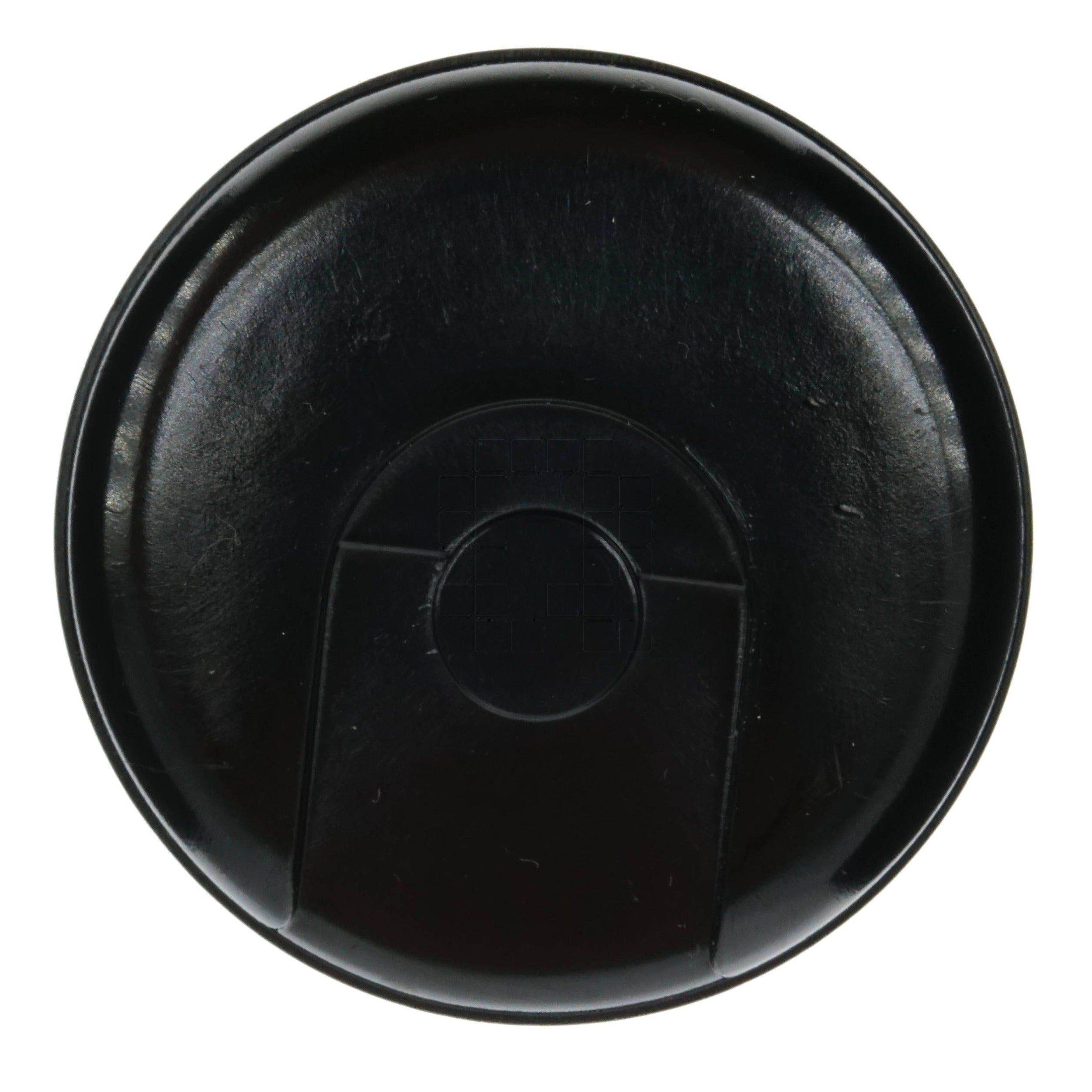

Construction Phenolic Plastic Case
Certifications/Approvals UL Approved
Performance Specifications
Case Code
Distance Between Terminals 0.625"
UPC None
Product Origin (COO) Mexico

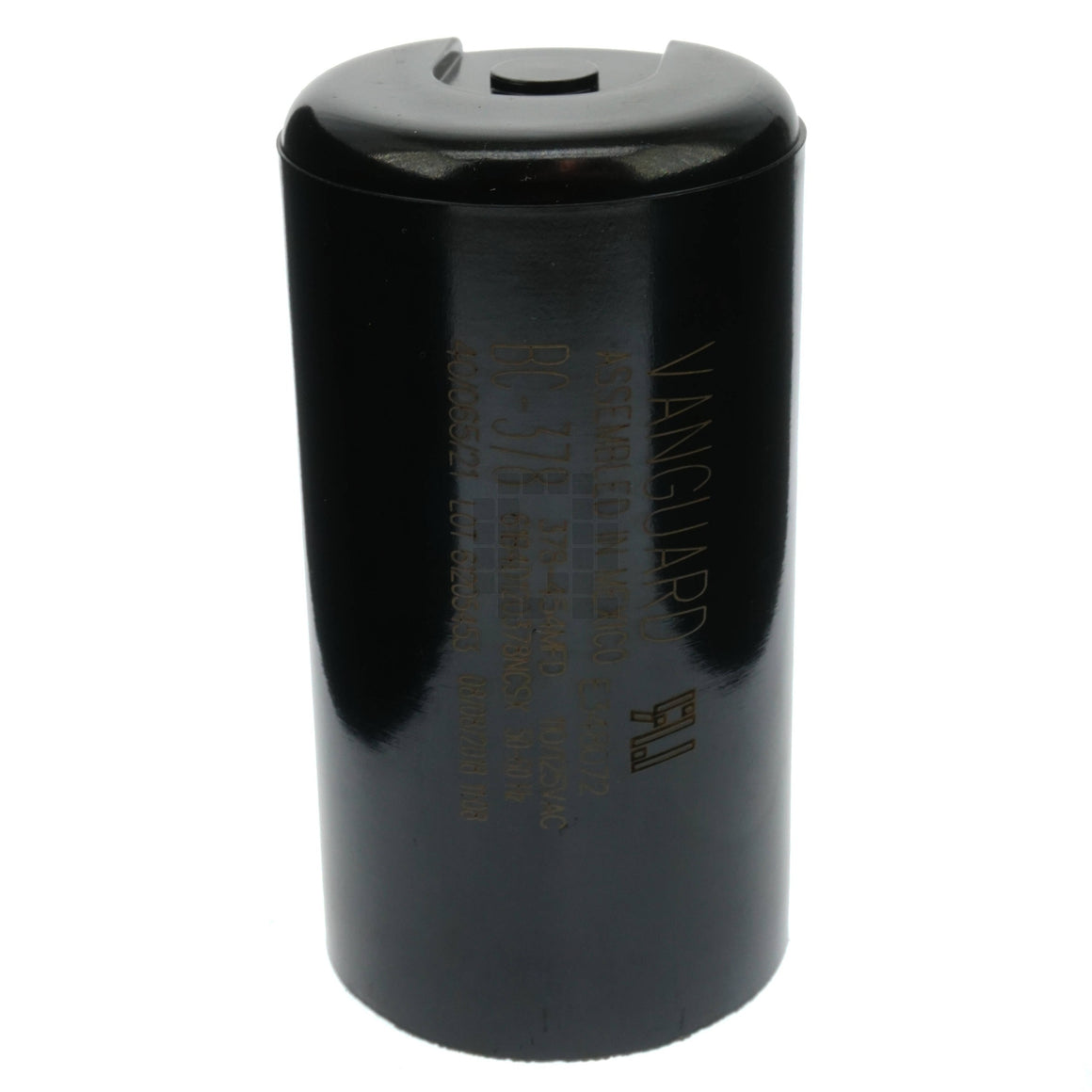

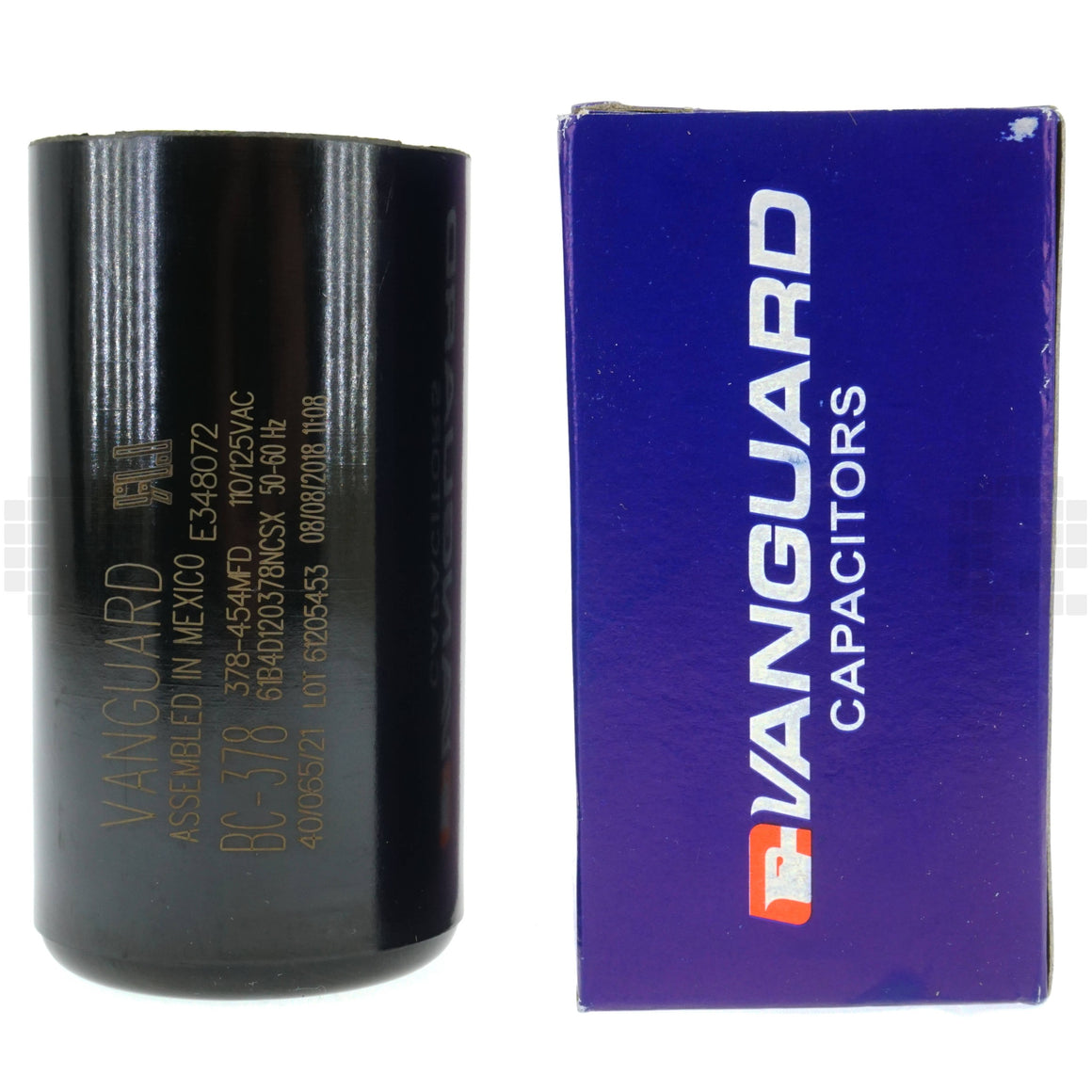

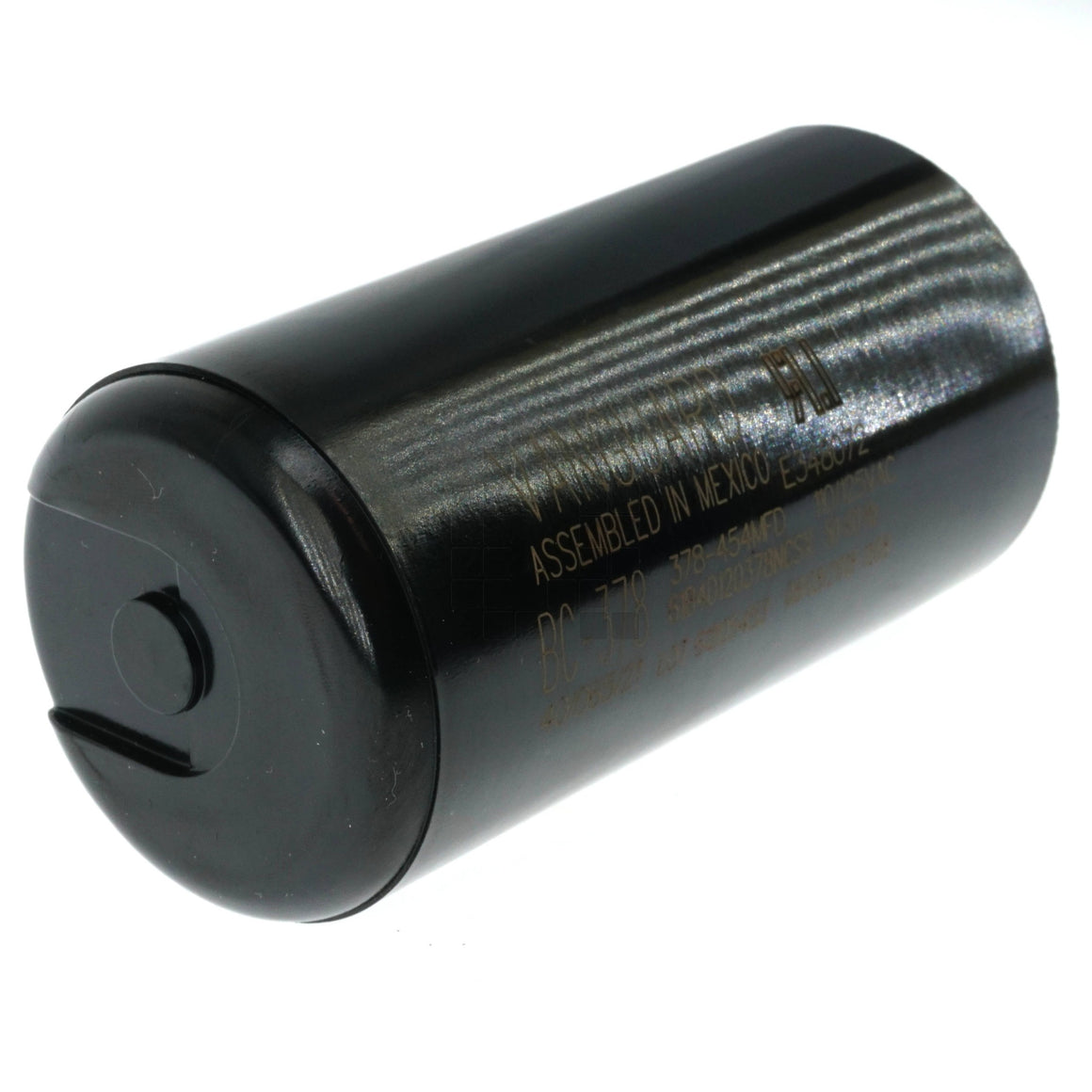

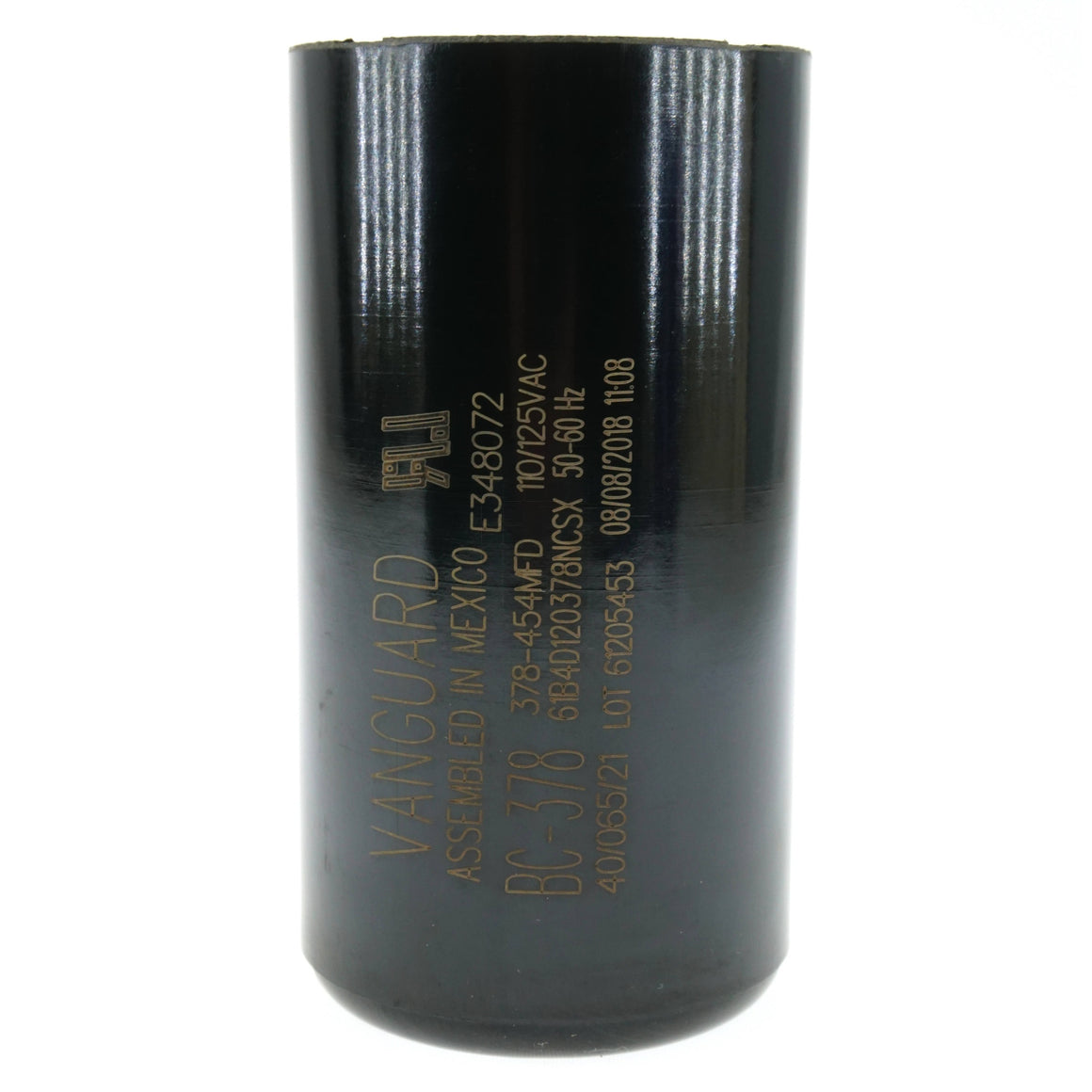

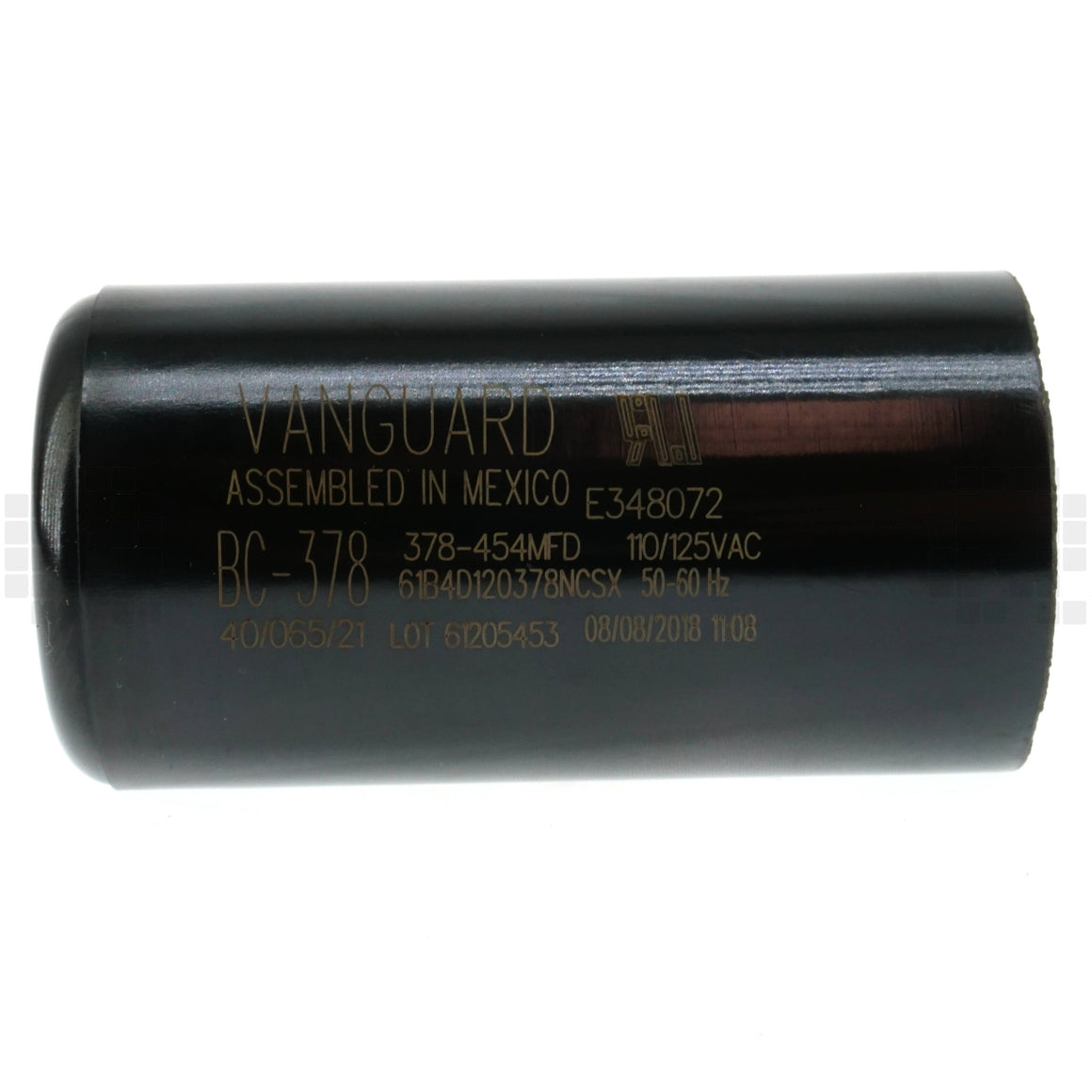

Product Label BC-378
378-454 uF
110-125 VAC

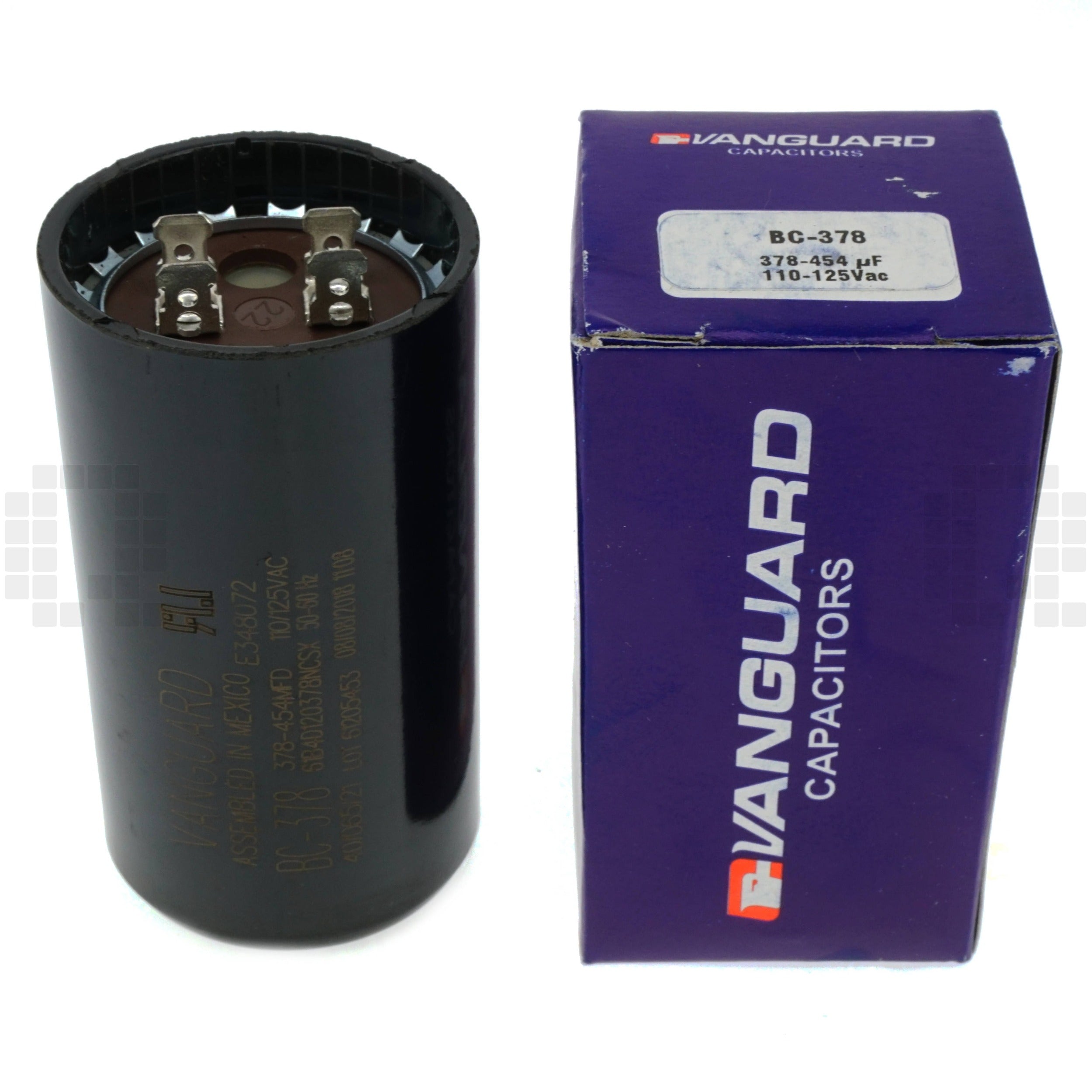

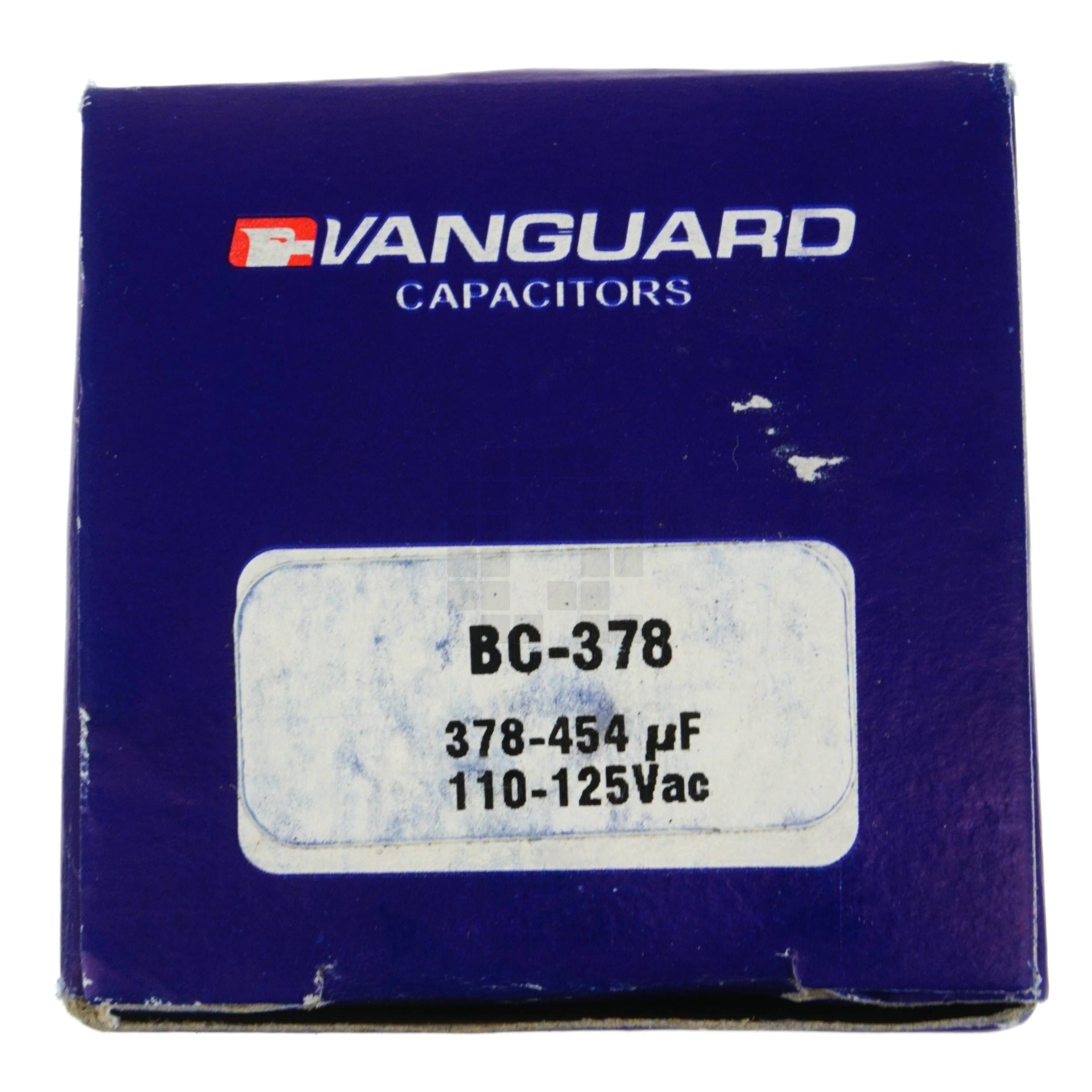

Package Label Vanguard
Assembled in Mexico
BC-378 378-454MFD 110/125VAC
61B4D120378NCSX 50-60Hz
Notes

Dimensions & Weights :

Product Color Black
Product Shape Cylinder
Product Dimensions 1-13/16" Diameter
3-3/8" High
Product Weight 0.35 lbs
Package Dimensions (LxWxH) 1.85" x 1.85" x 3.50"
Package Weight 0.40 lbs
