Product Specifications :

Brand Vanguard
Manufacturer Part Number BC-43M-250
61B2D250043NC
61B2D250043NCSX
Cross Reference (Fit/Form/Function)
Capacitance 43 - 52 uF
Working Voltage 220 - 250VAC
Frequency 50/60 Hz
Power Factor 10% Max
after applying working voltage for 4 seconds
Working Temperature Range -40°C to +65°C
-40°F to +149°F
Type Start Capacitor
Aluminum Electrolytic, Non-Polarized

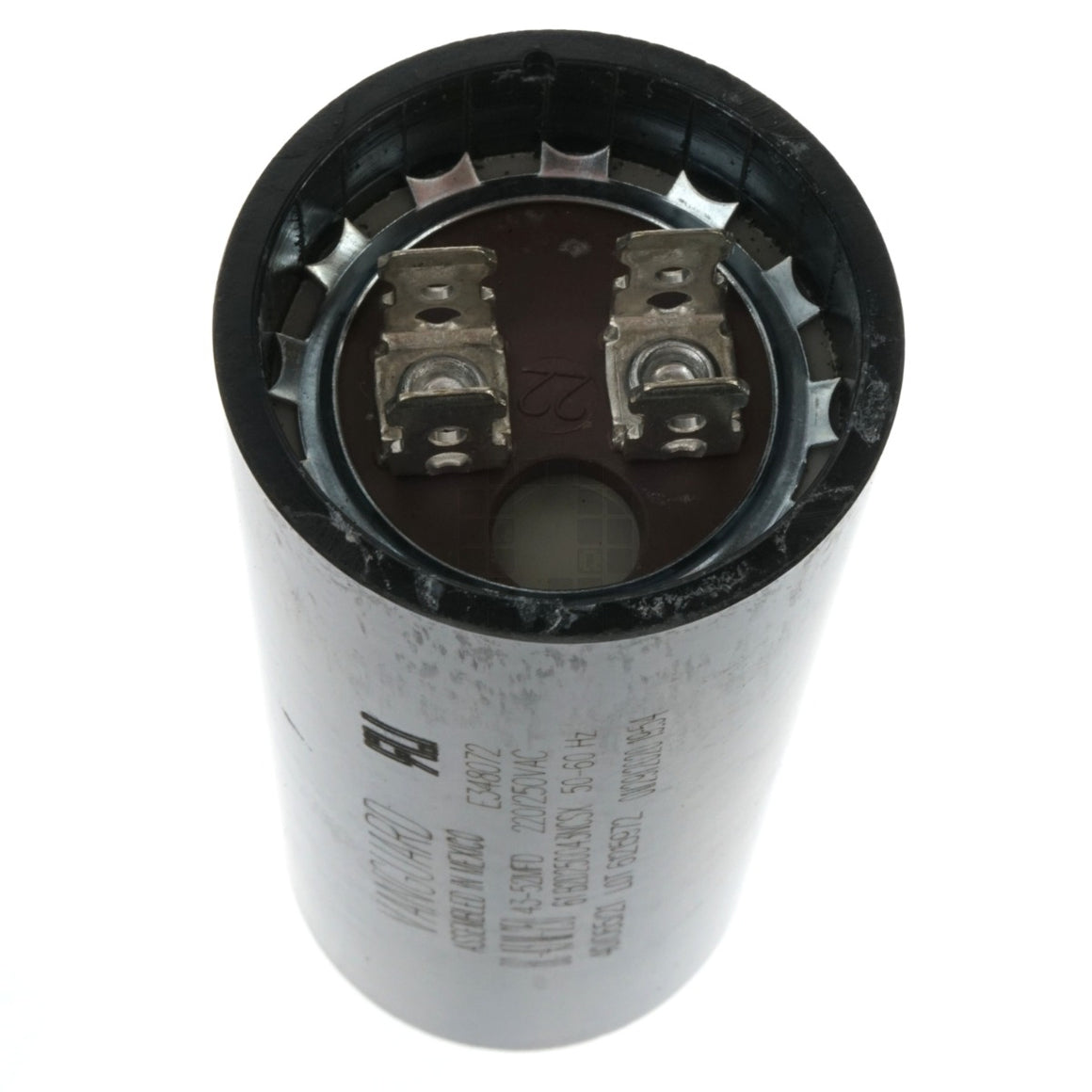

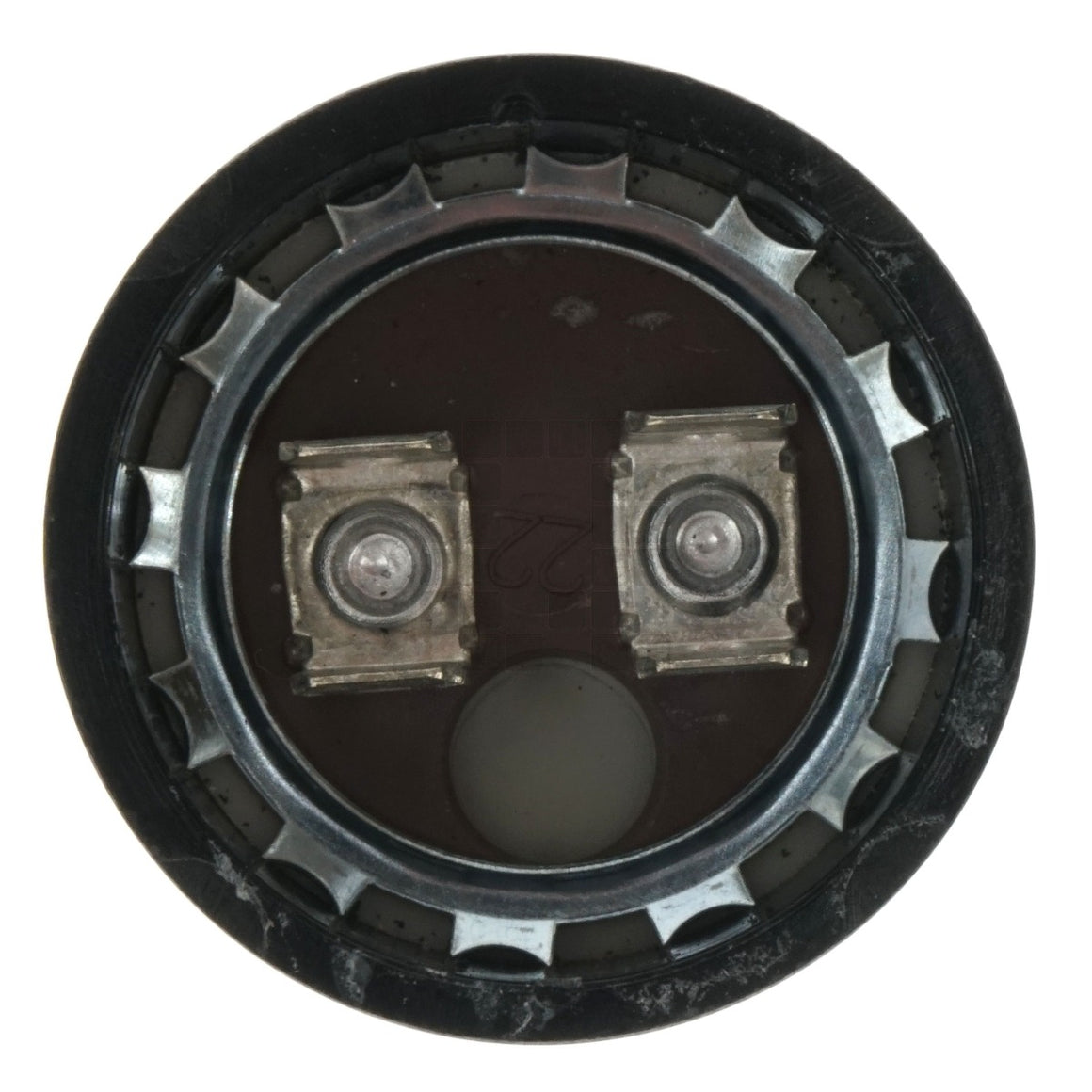

Connection 2 Posts
Two 1/4” male spade terminals on each post
Resistor None
Construction Phenolic Case
Certifications/Approvals UL Approved
Performance Specifications
Case Code
Distance Between Terminals 1/2"
UPC None
Product Origin (COO) Mexico

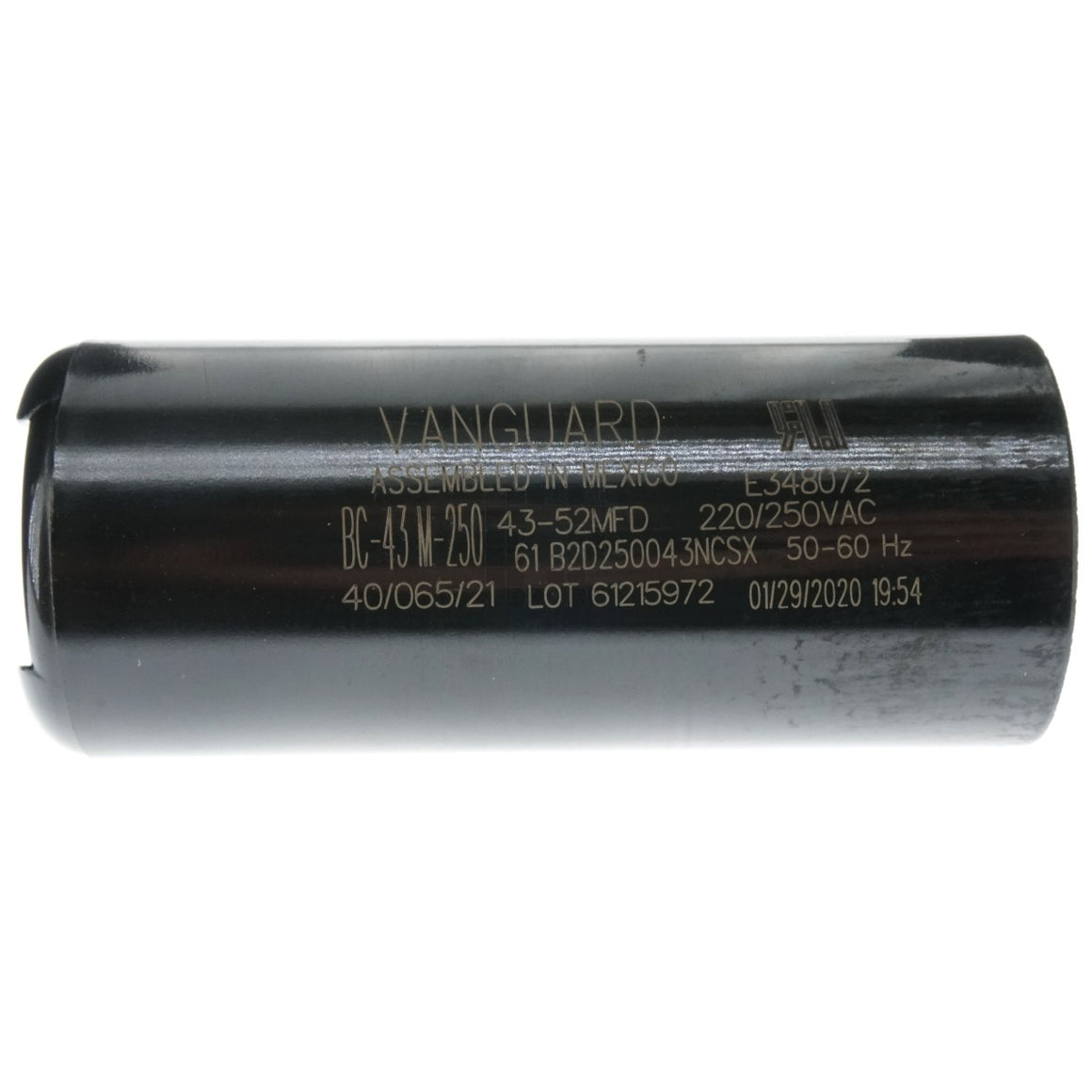

Product Label Vanguard
Assembled in Mexico

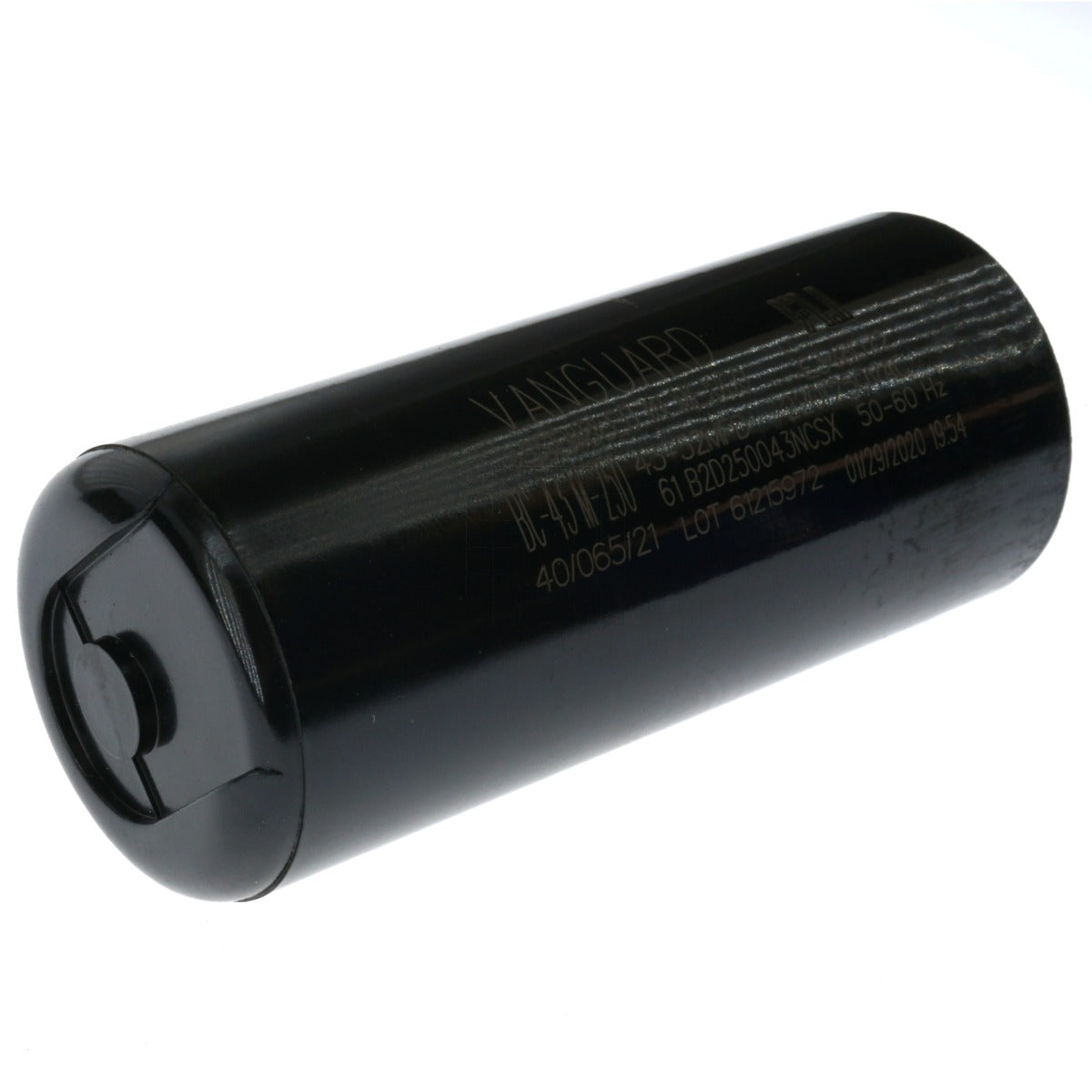

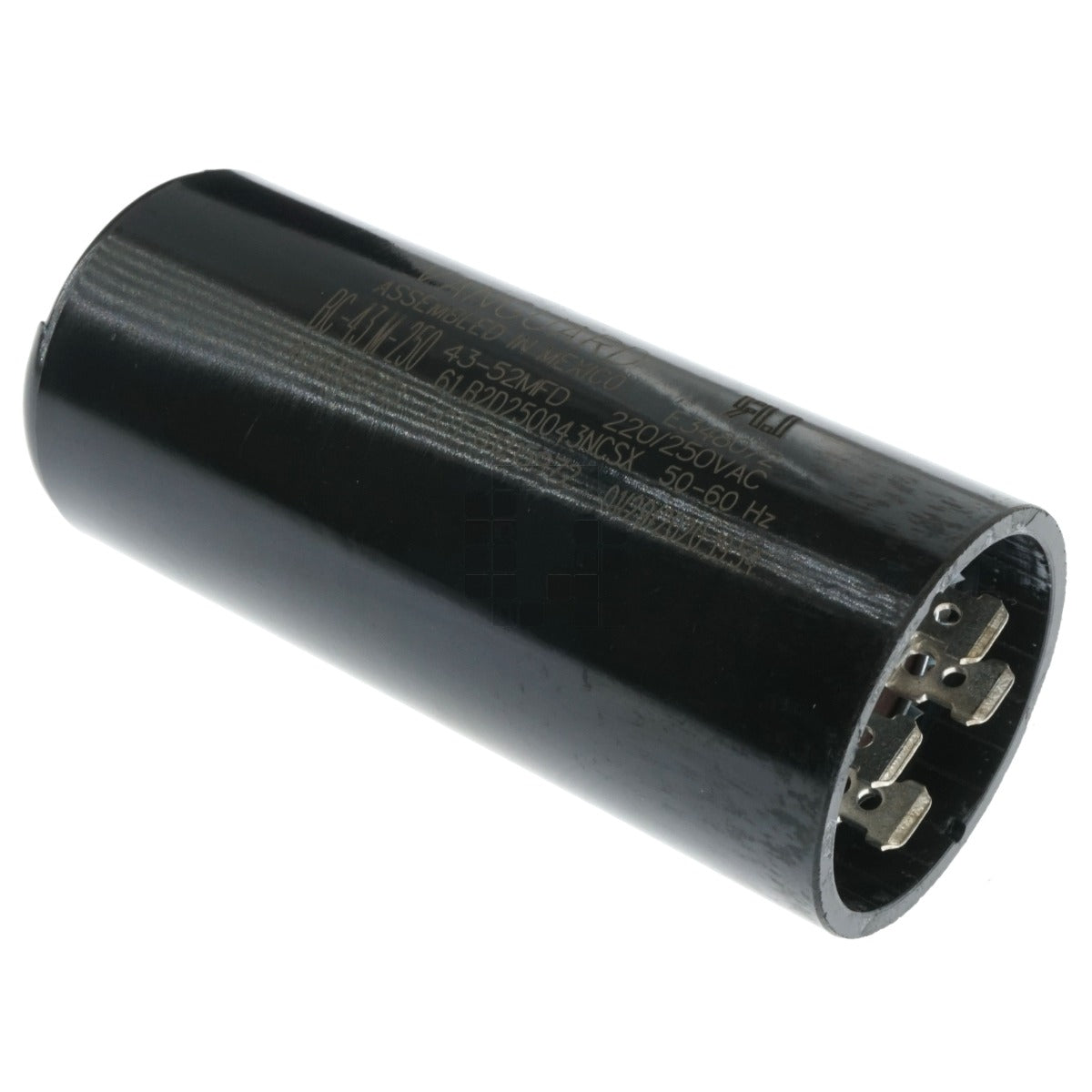

BC-43M-250 43-52MFD 220/250VAC
61B2D250043NCSX 50-60Hz

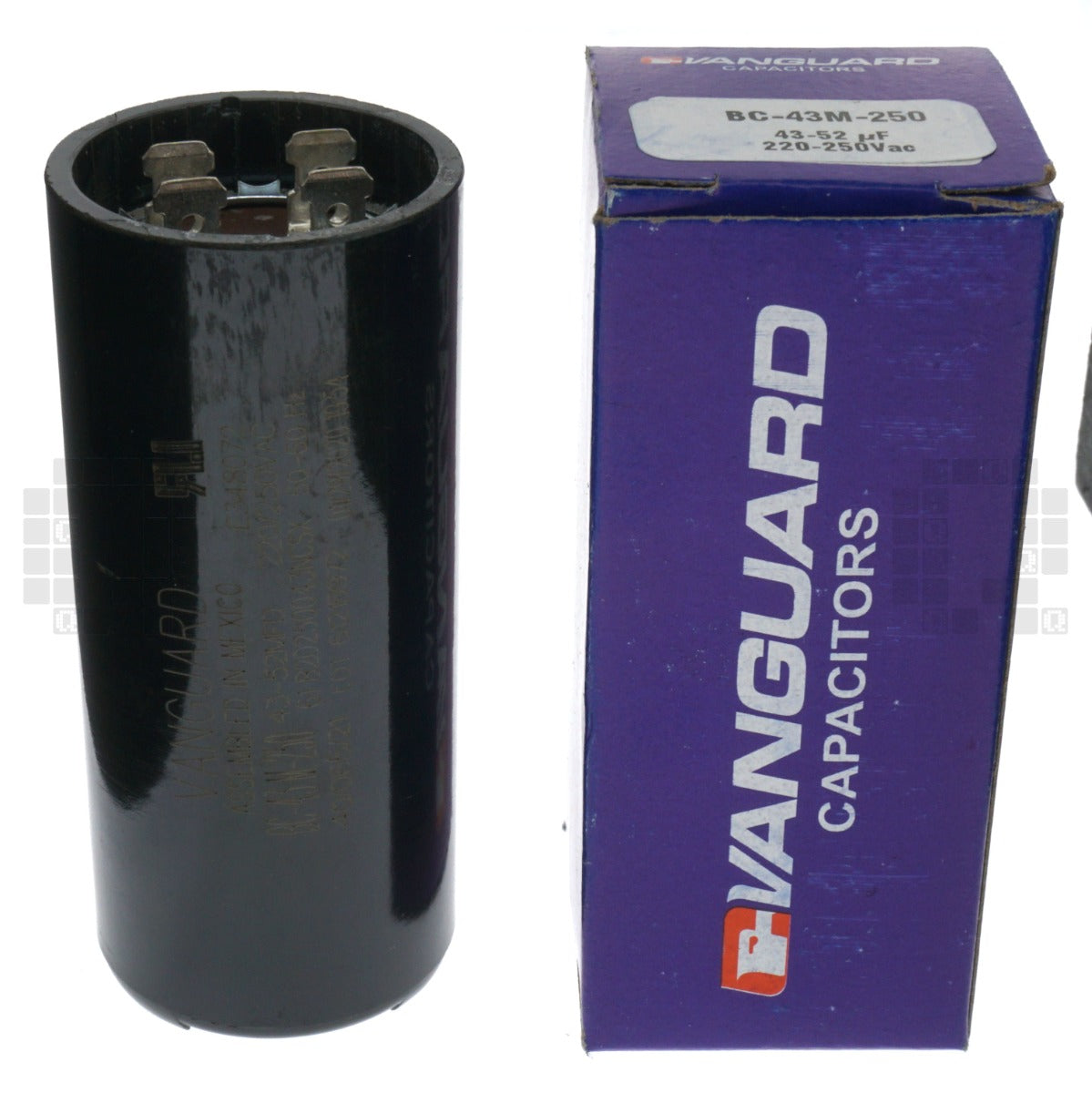

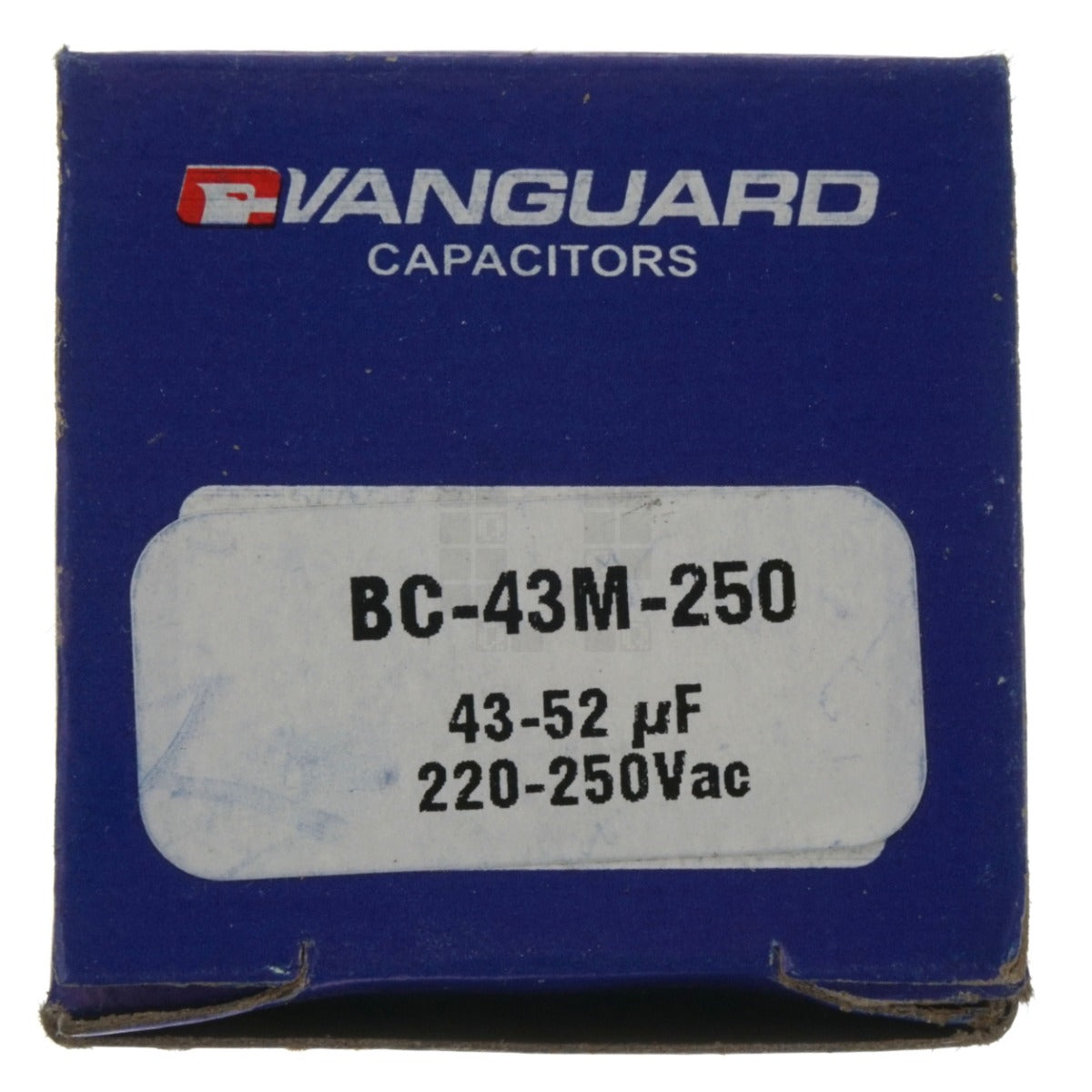

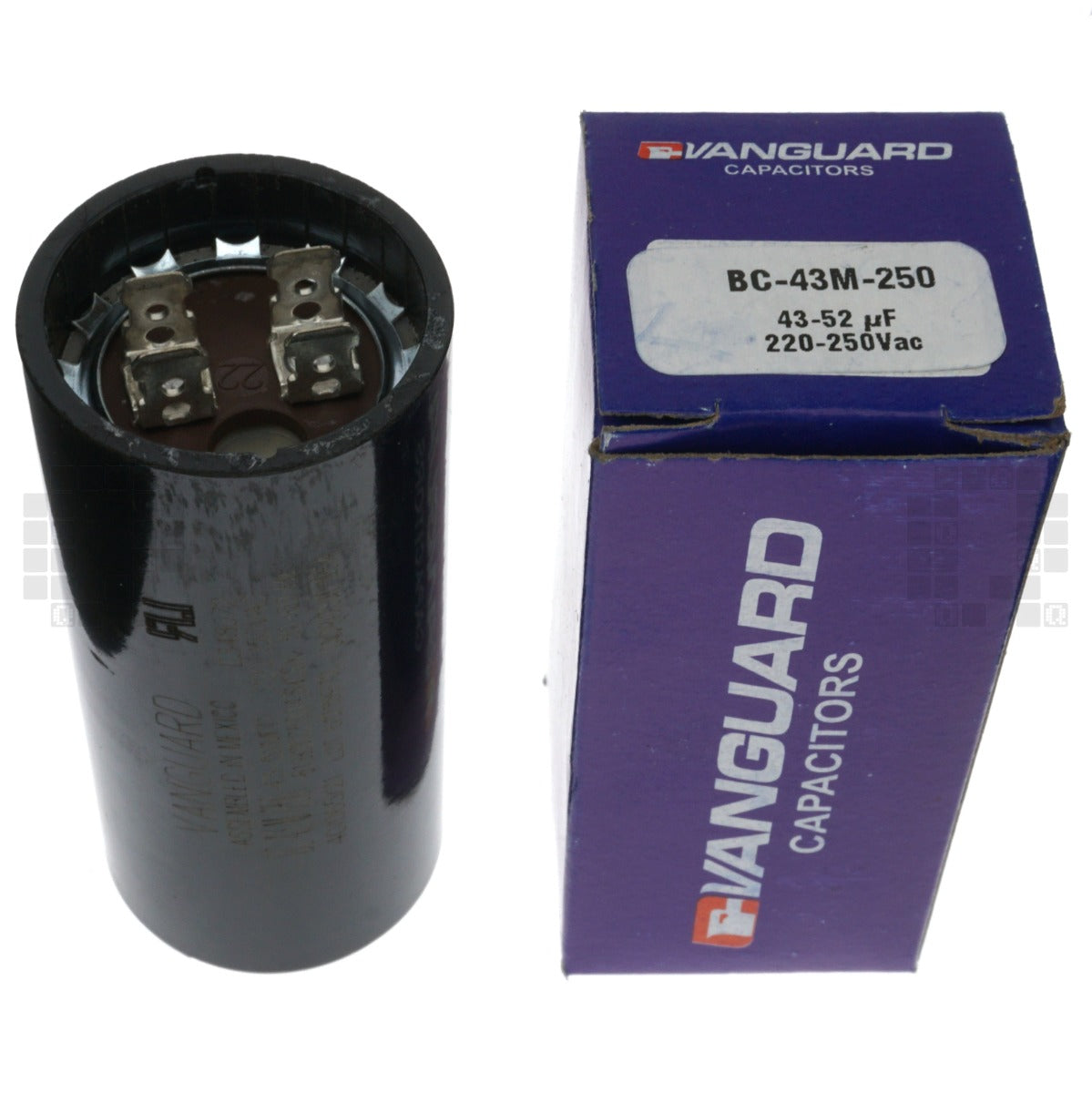

Package Label Vanguard Capacitors
BC-43M-250
43-52 uF 220-250VAC
Notes
Location

Dimensions & Weights :

Product Color Black
Product Shape Cylinder
Product Dimensions 1.437" Diameter
3.375" Height
Product Weight 4 oz
Package Dimensions (LxWxH) 1.5" x 1.5" x 3.5"
Package Weight 5oz
