Product Specifications :

Brand Vanguard
Manufacturer Part Number BC-47M-250
61B2D250047NC
61B2D250047NCSX
Cross Reference (Fit/Form/Function)
Capacitance 47 - 56 uF
Working Voltage 220 -250 VAC
Frequency 50/60 Hz
Power Factor 10% Max
after applying working voltage for 4 seconds
Working Temperature Range -40°C to +65°C
-40°F to +149°F
Type Start Capacitor
Aluminum Electrolytic, Non-Polarized

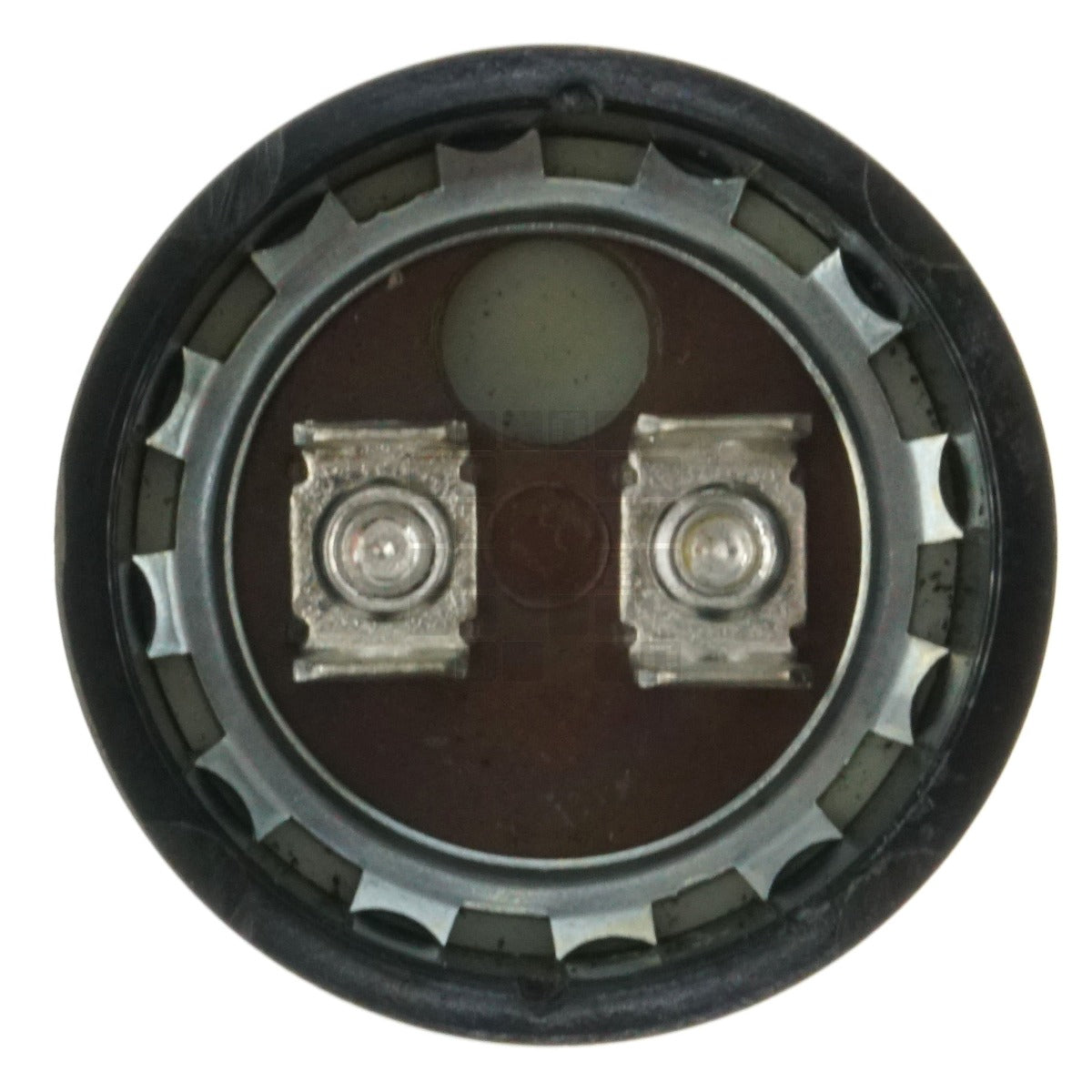

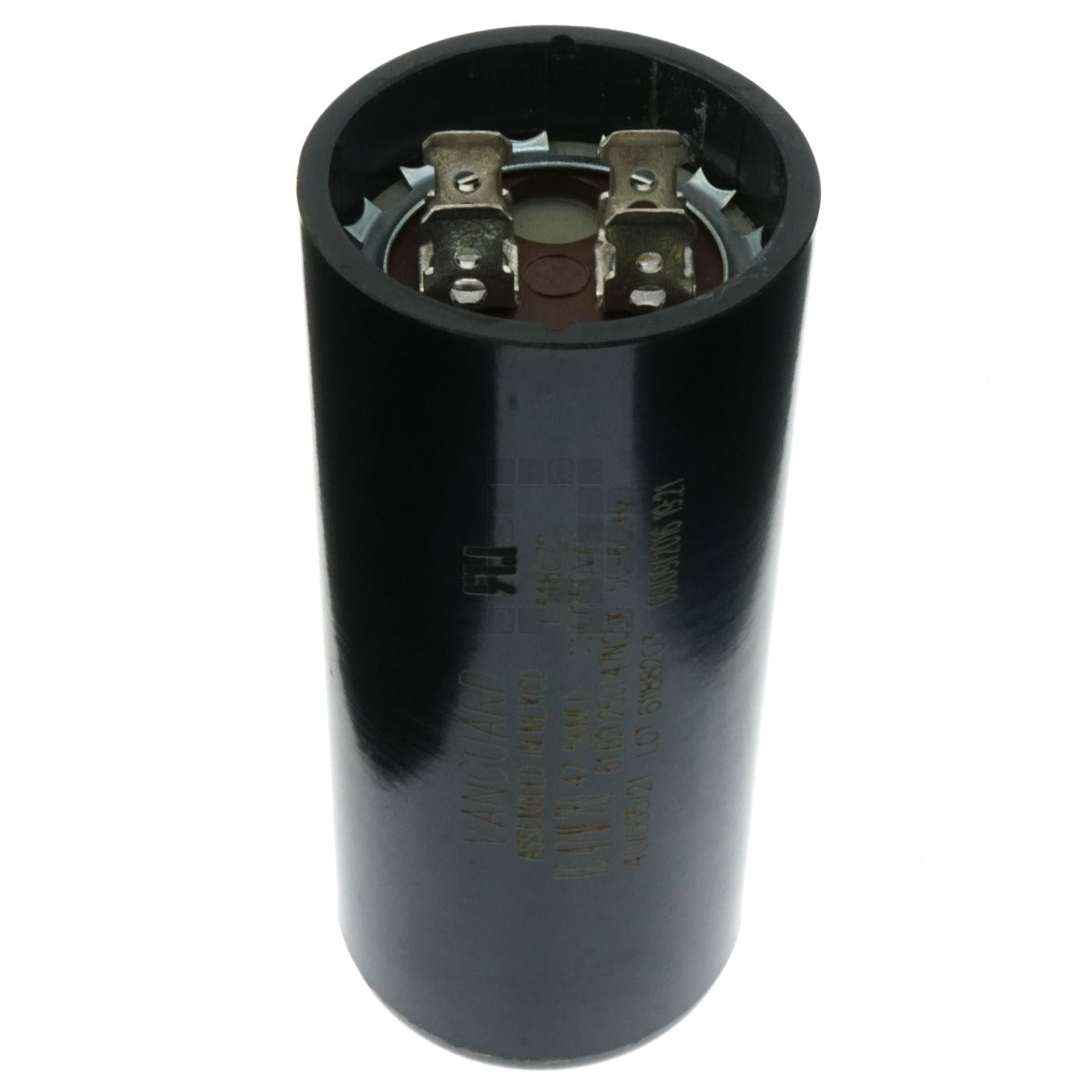

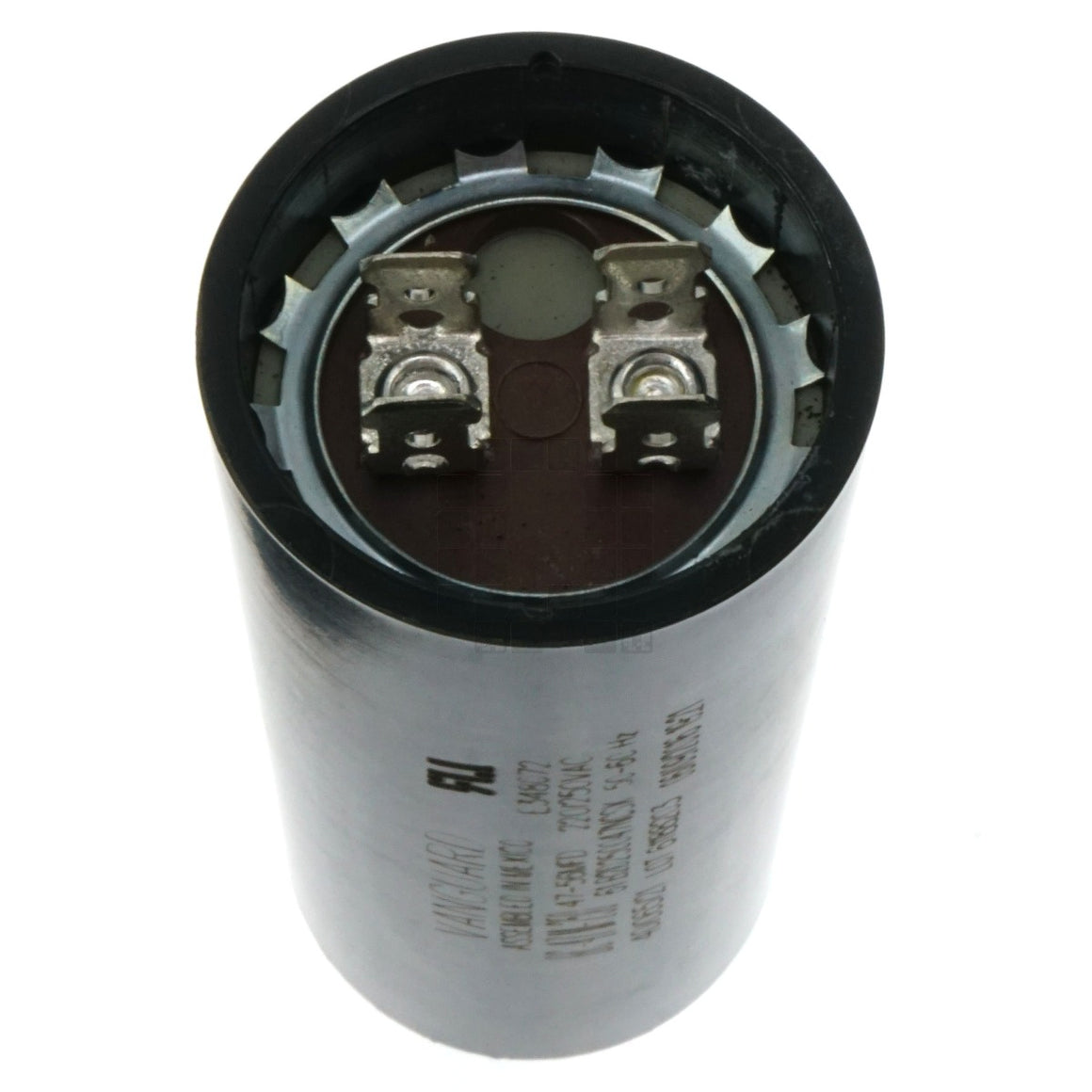

Connection 2 Posts
Two 1/4” male spade terminals on each post
Resistor None
Construction Phenolic Case
Certifications/Approvals UL Approved
Performance Specifications
Case Code
Distance Between Terminals 0.50"
UPC None
Product Origin (COO) Mexico

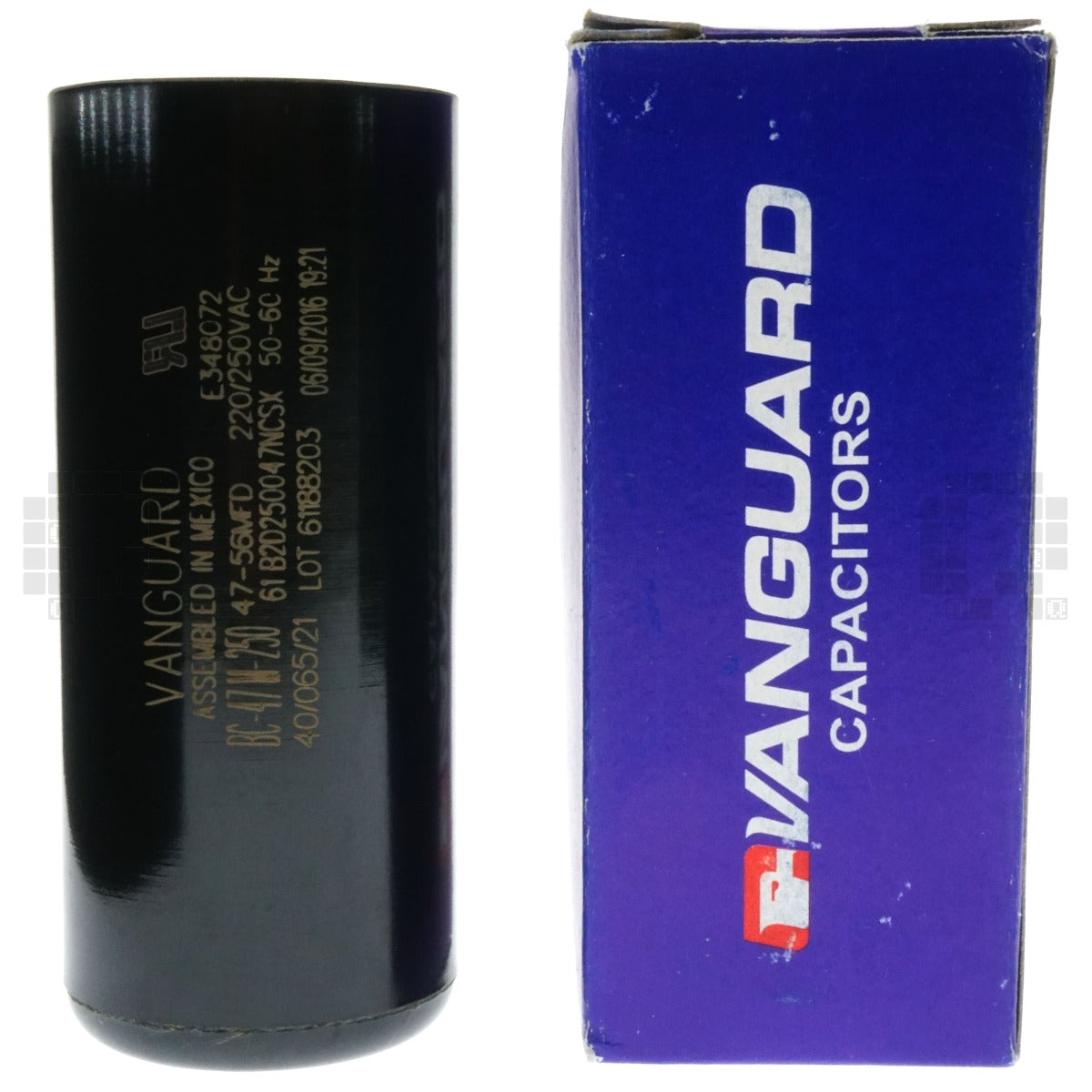

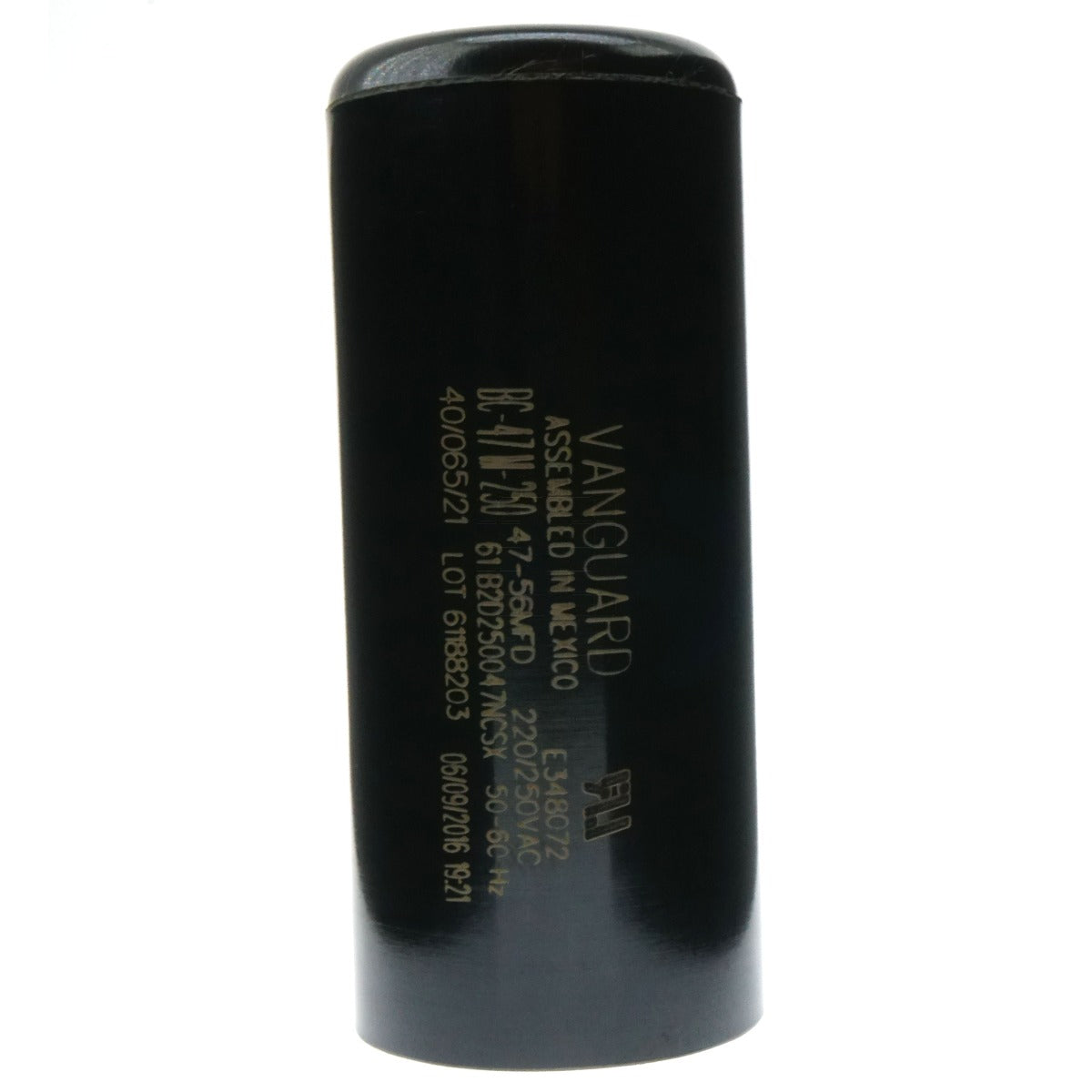

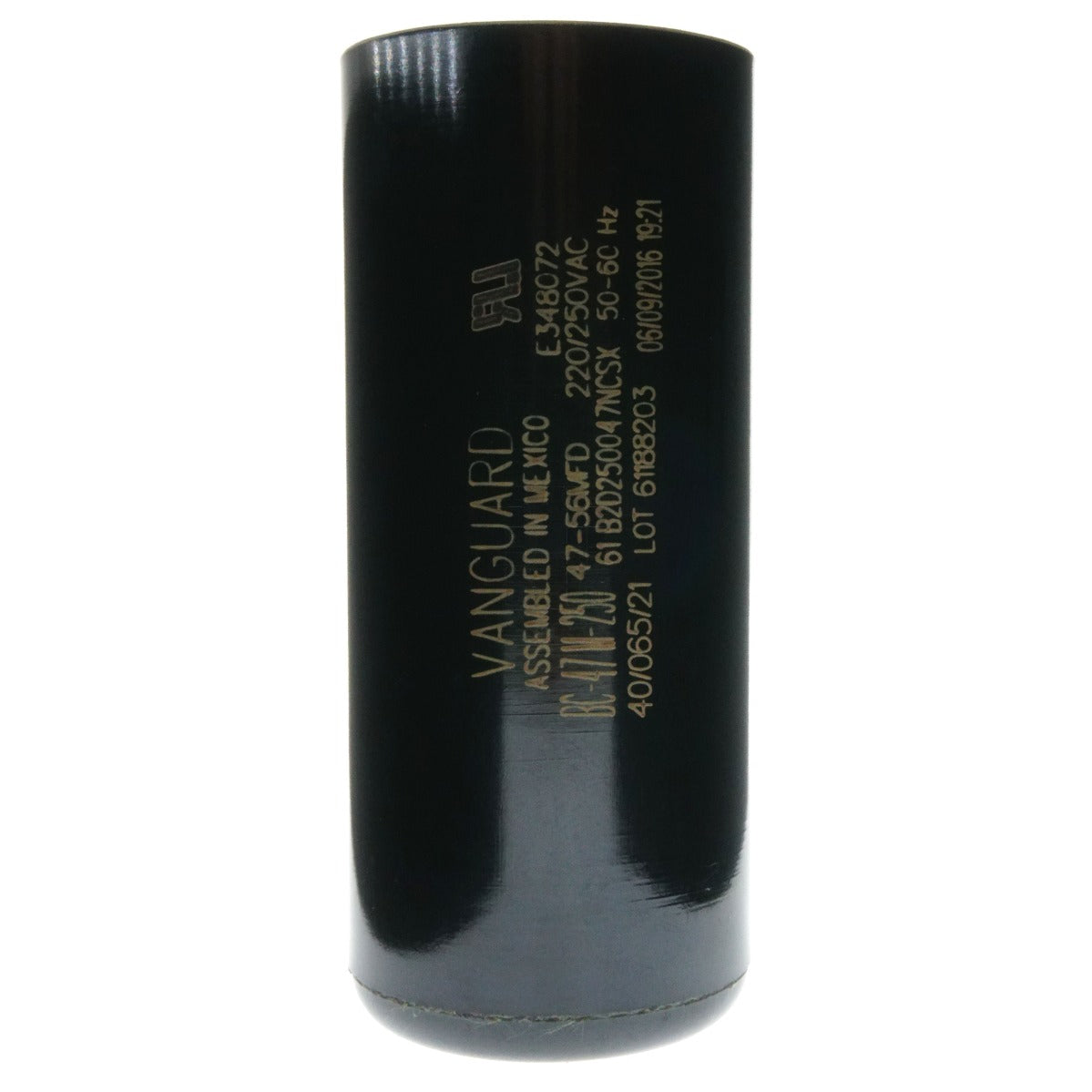

Product Label Vanguard
Assembled in Mexico E348072
BC-47M-250 47-56MFD 220/250VAC
61B2D250047NCSX 50-60Hz

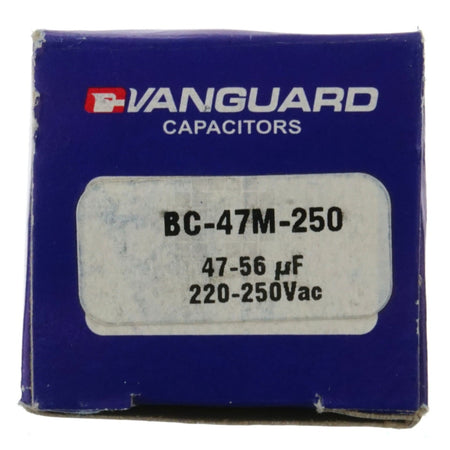

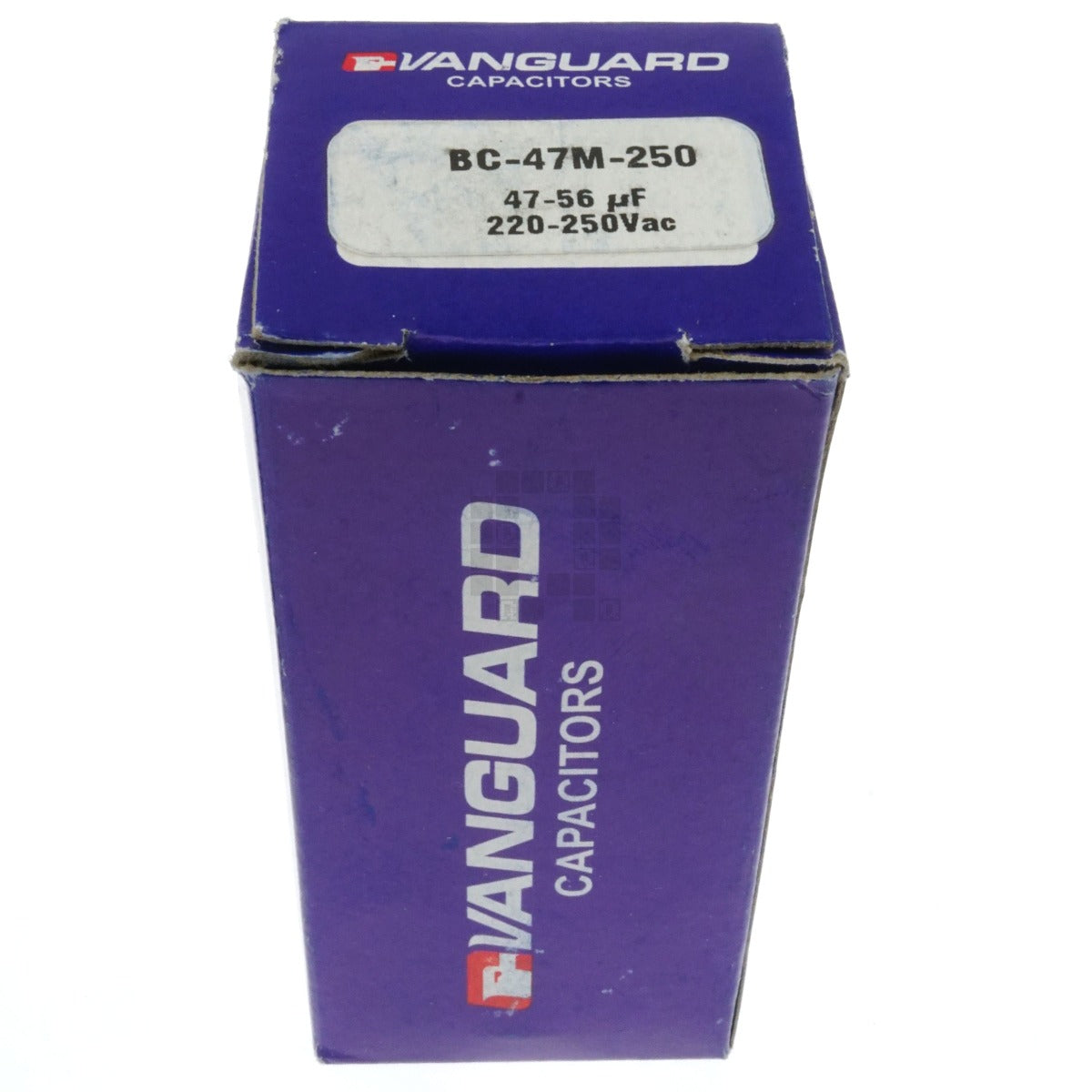

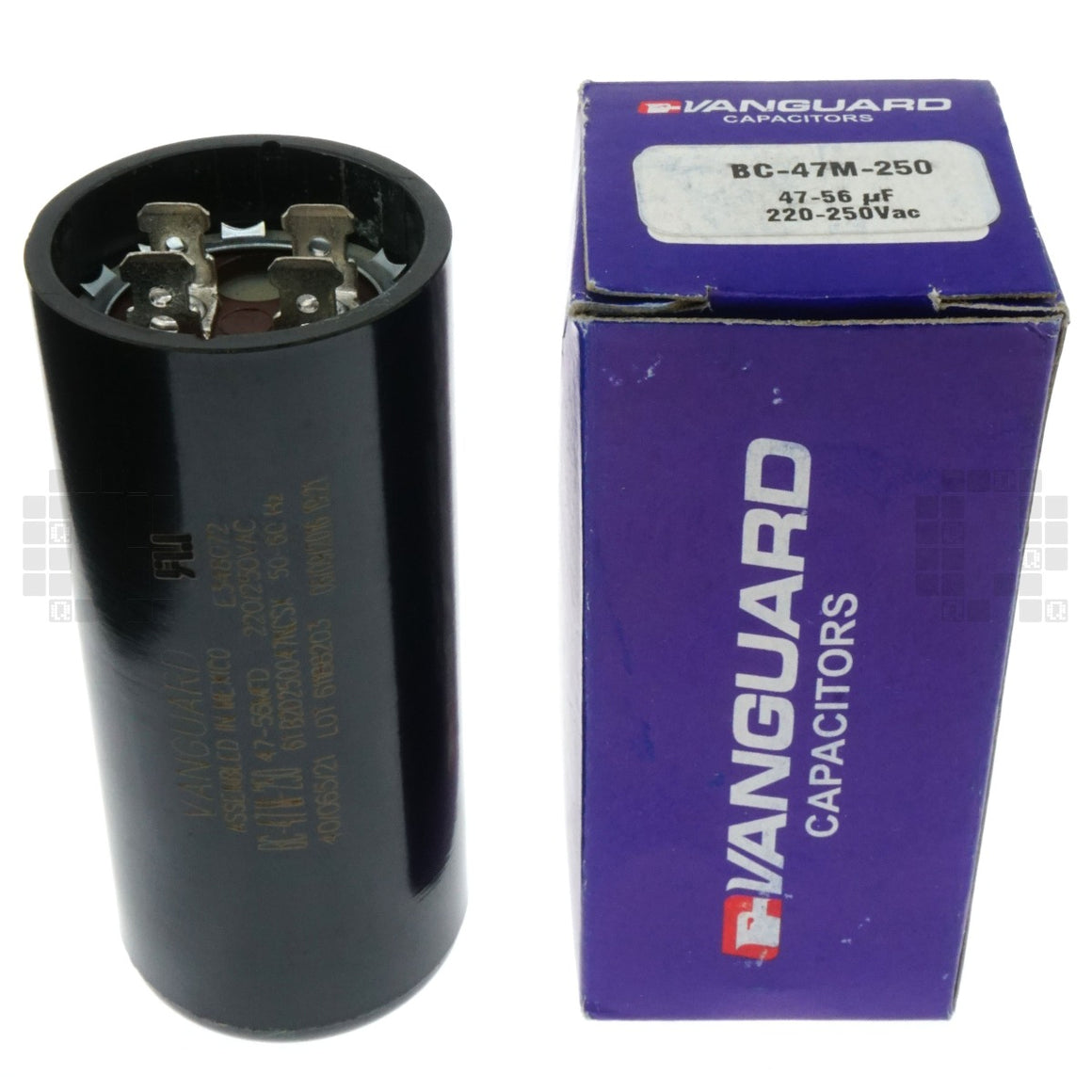

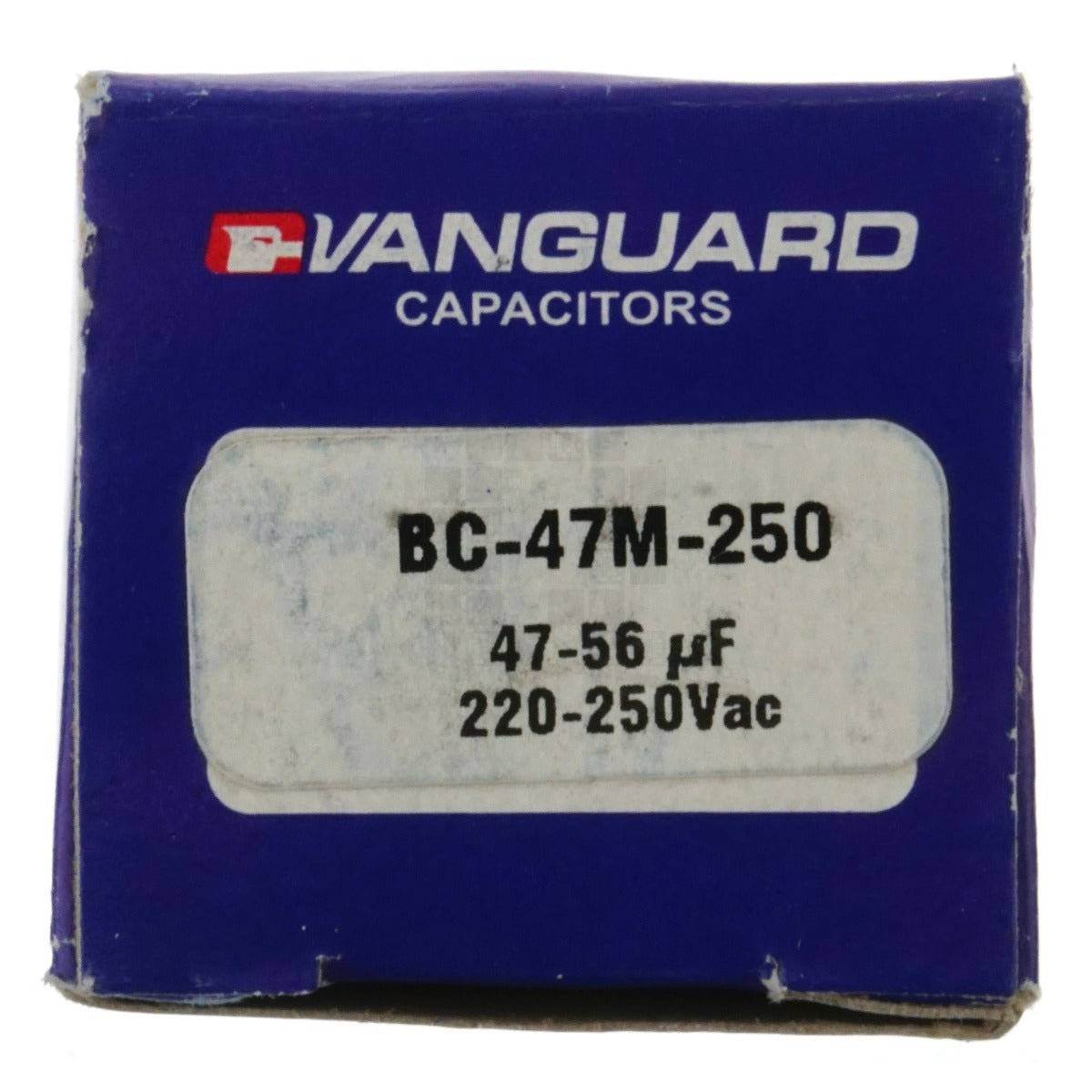

Package Label Vanguard Capacitors
BC-47M-250
47-56 uF
220-250VAC
Notes
Location

Dimensions & Weights :

Product Color Black
Product Shape Cylinder
Product Dimensions 1.437" Diameter
3.375" Height
Product Weight 0.25 lbs
Package Dimensions (LxWxH) 1.53" x 1.53" x 3.50"
Package Weight 0.25 lbs
