Product Specifications :

Brand Vanguard
Manufacturer Part Number BC-53M-250
61B2D250053NC
61B2D250053NCSX
Cross Reference (Fit/Form/Function)
Capacitance 53 - 64uF
Working Voltage 220 - 250 VAC
Frequency 50/60 Hz
Power Factor 10% Max
after applying working voltage for 4 seconds
Working Temperature Range -40°C to +65°C
-40°F to +149°F
Type Start Capacitor
Aluminum Electrolytic, Non-Polarized

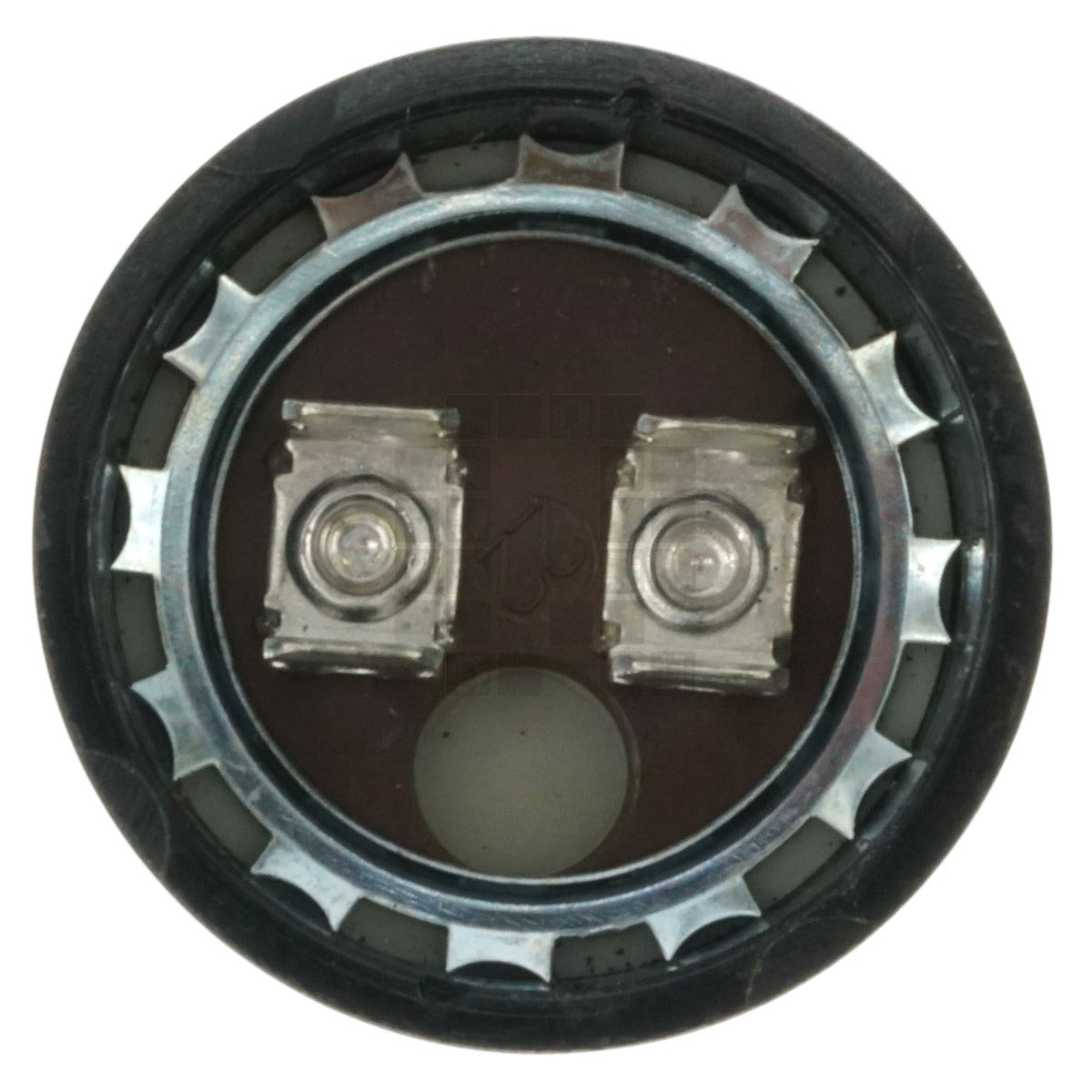

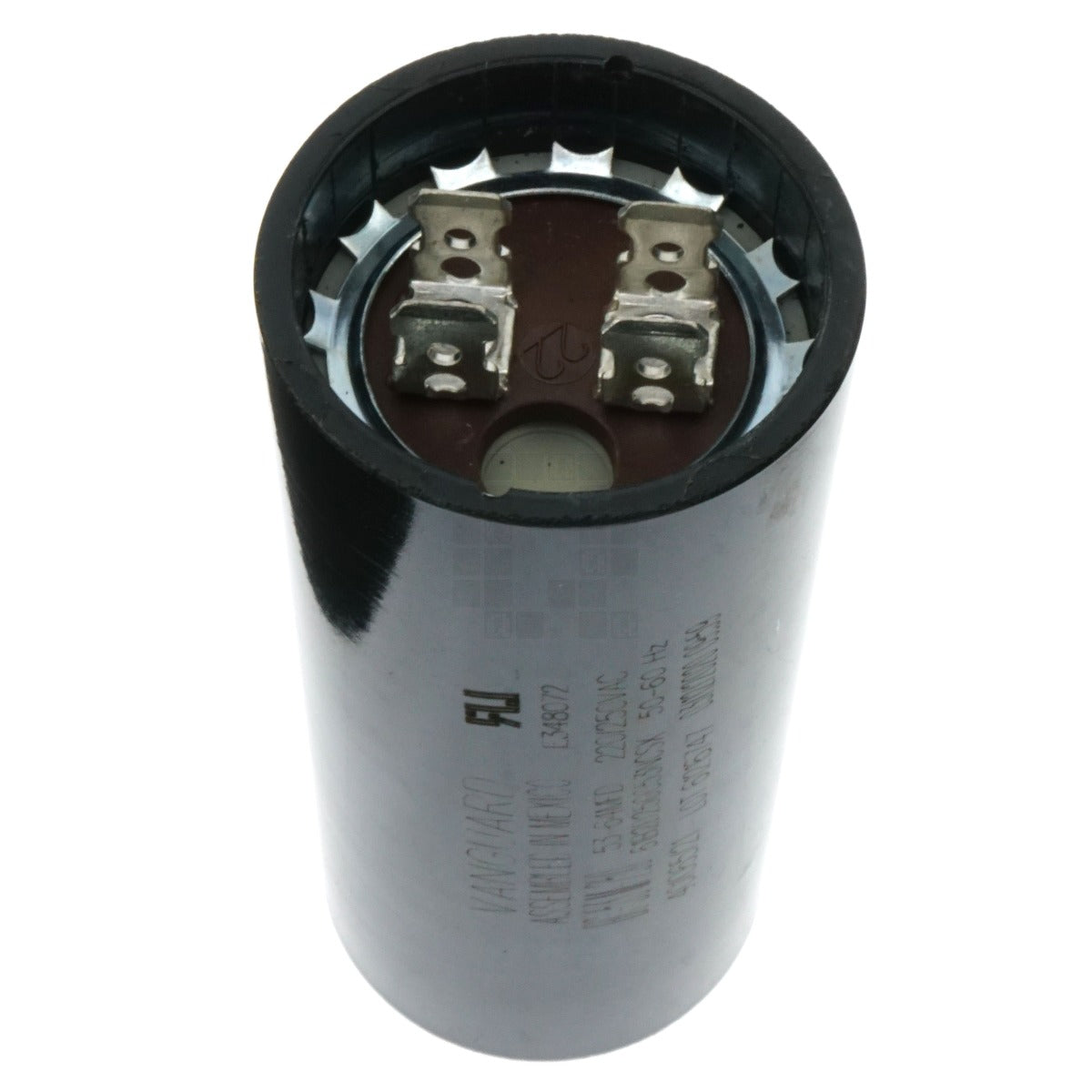

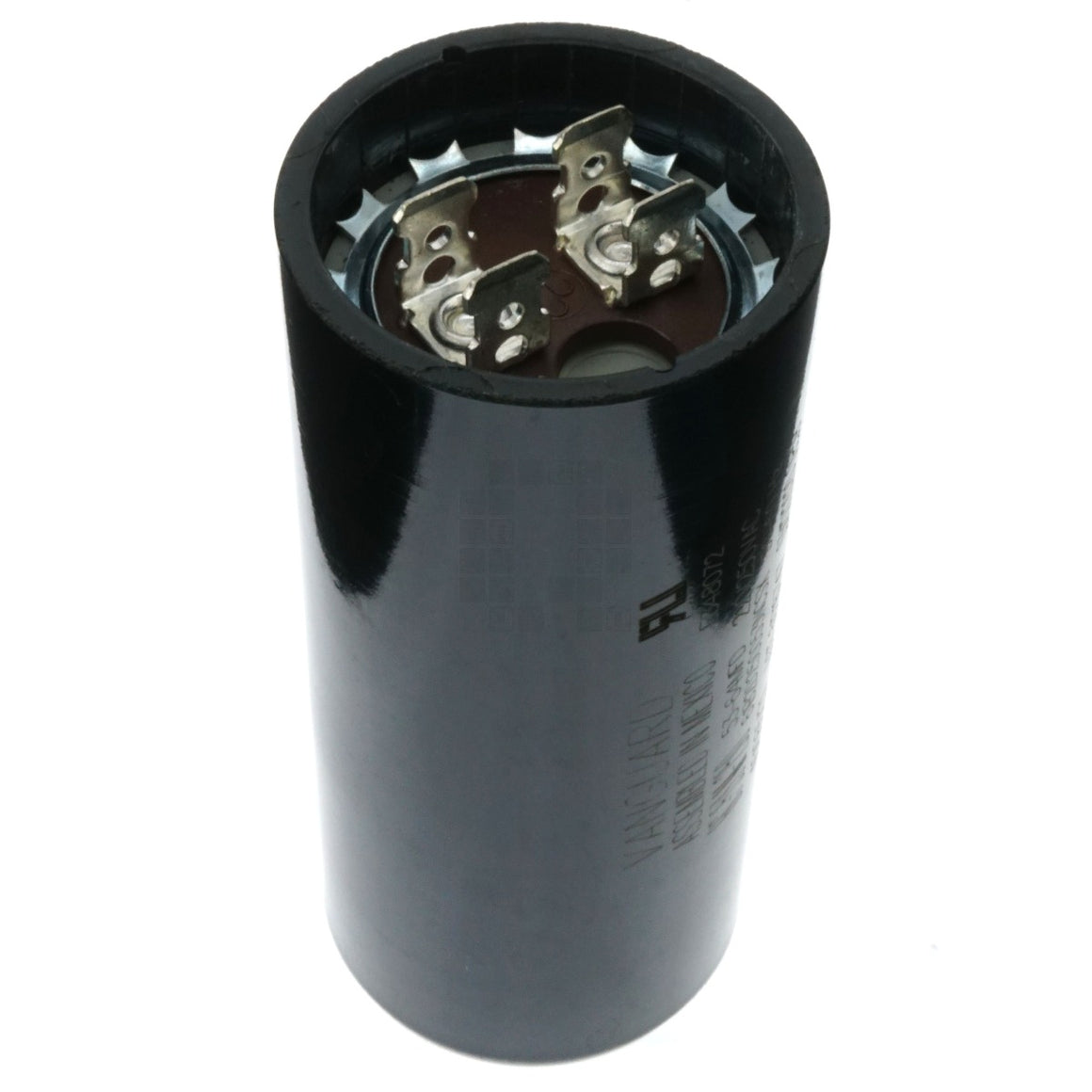

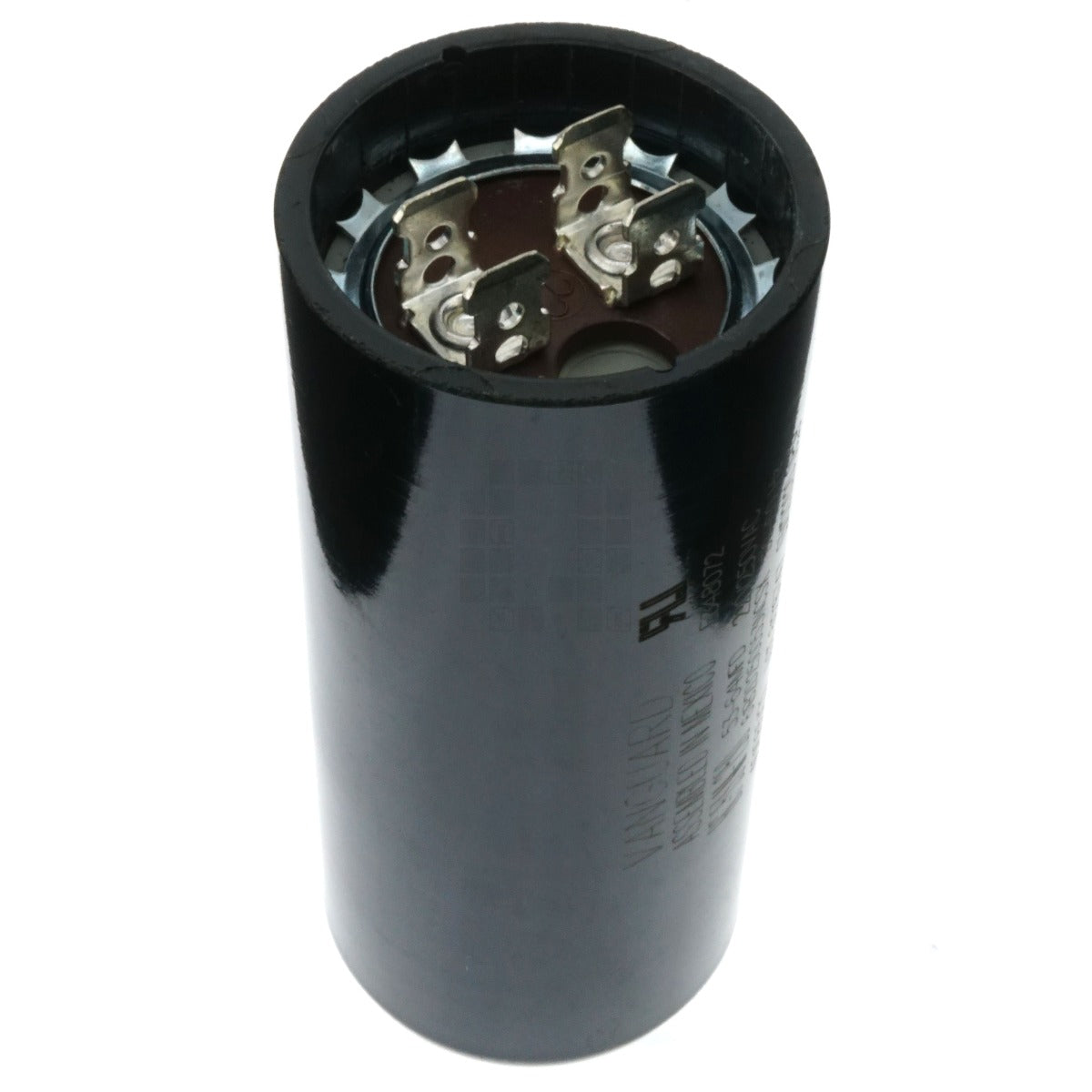

Connection 2 Posts
Two 1/4” male spade terminals on each post
Resistor None

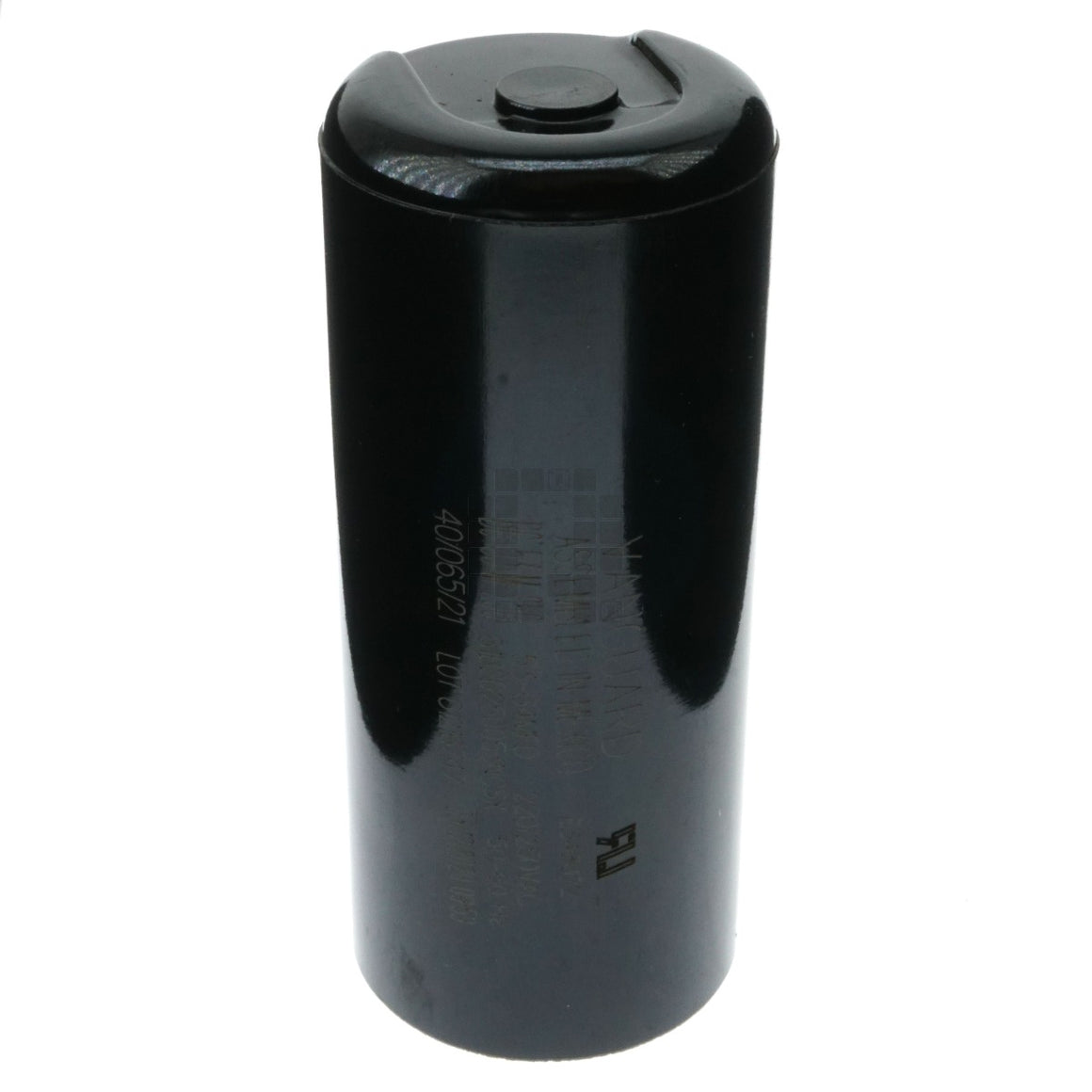

Construction Phenolic Case
Certifications/Approvals UL Approved
Performance Specifications
Case Code
Distance Between Terminals 0.50"
UPC None
Product Origin (COO) Mexico

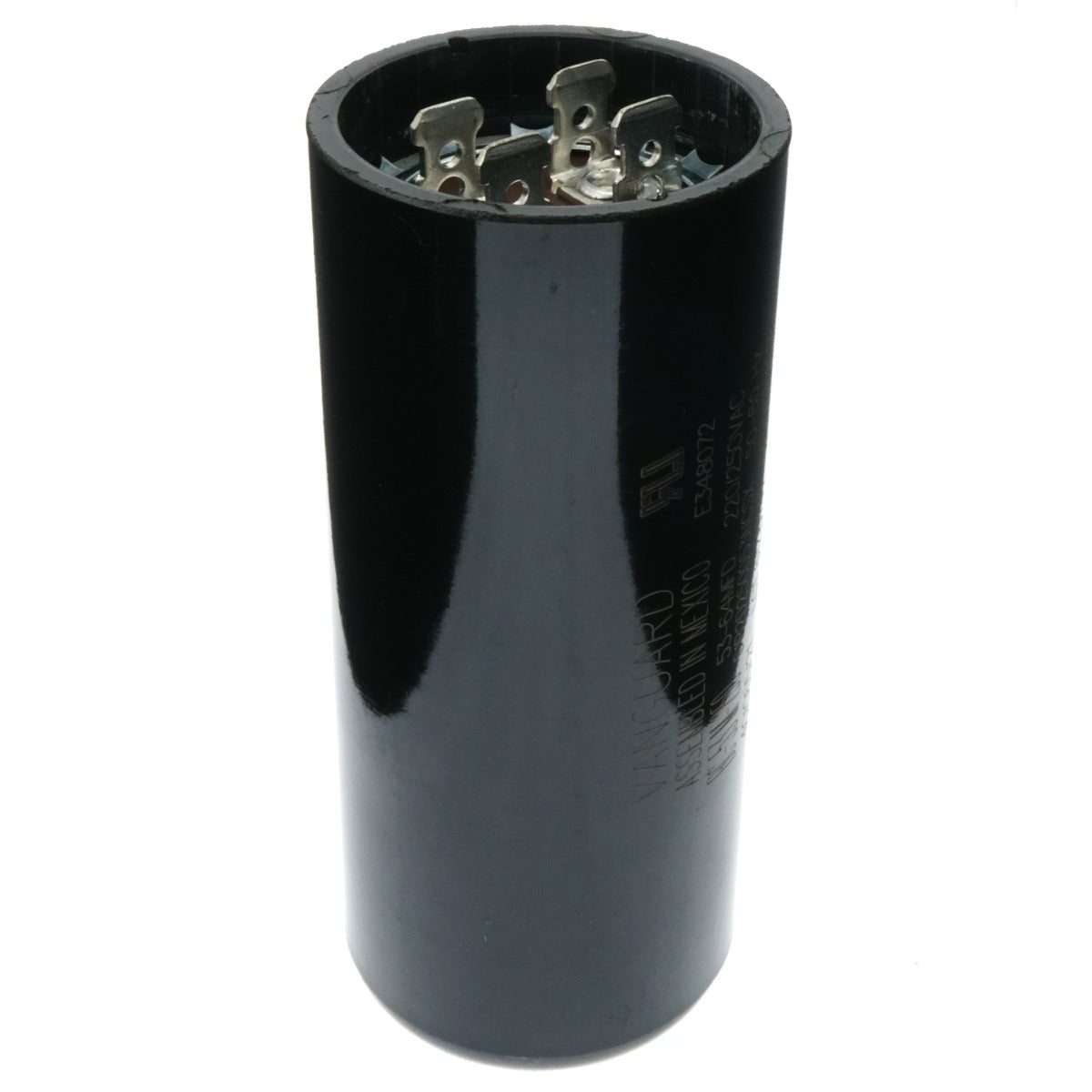

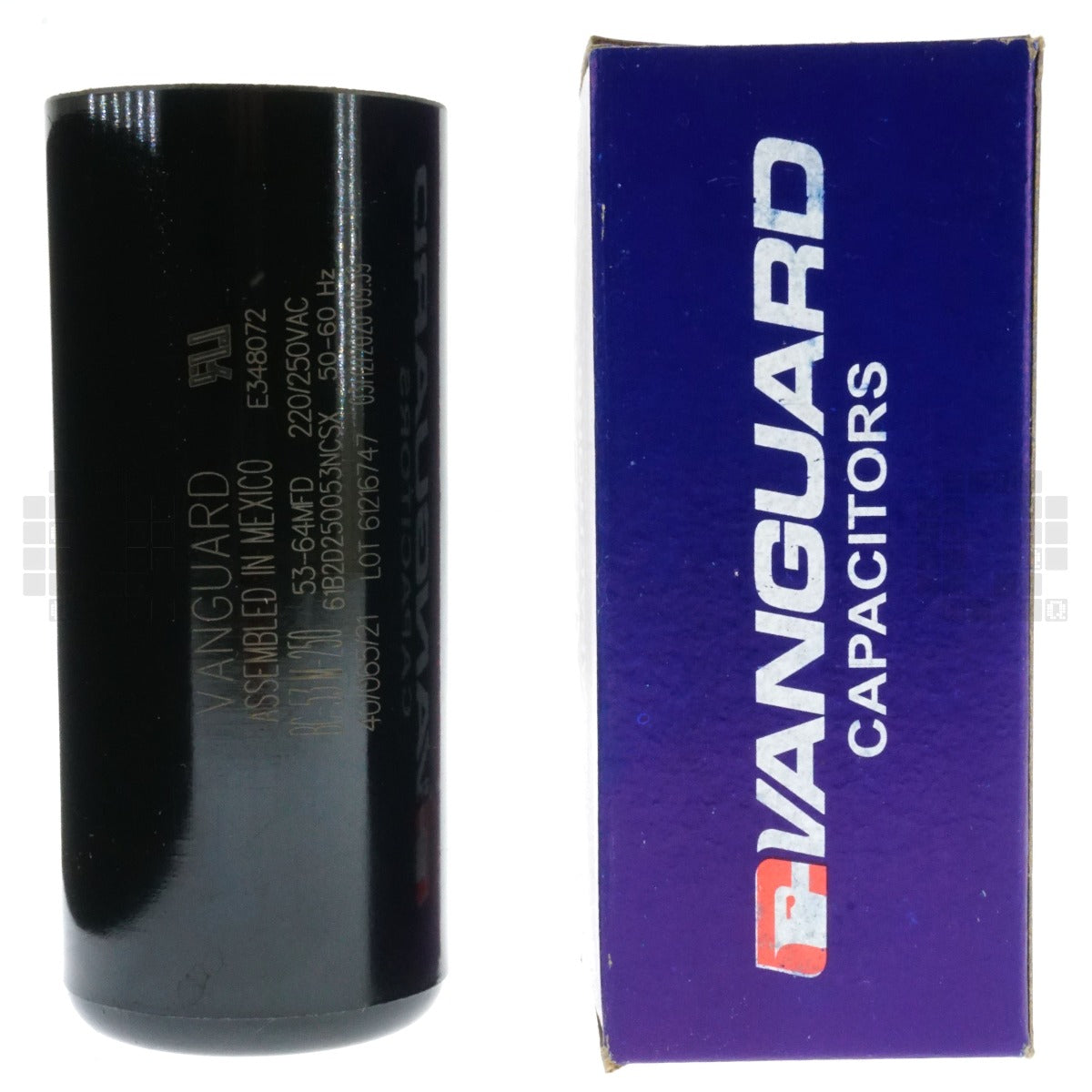

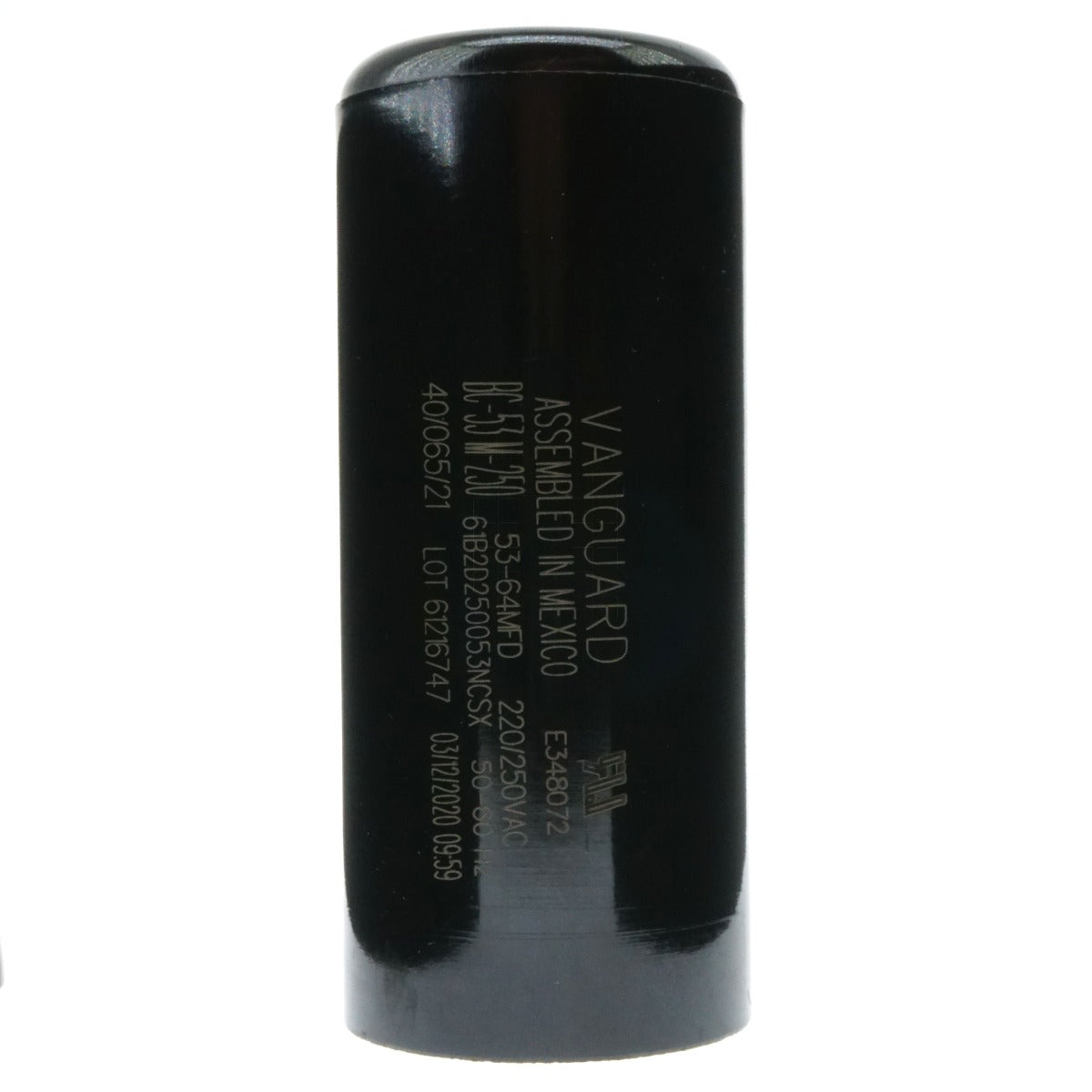

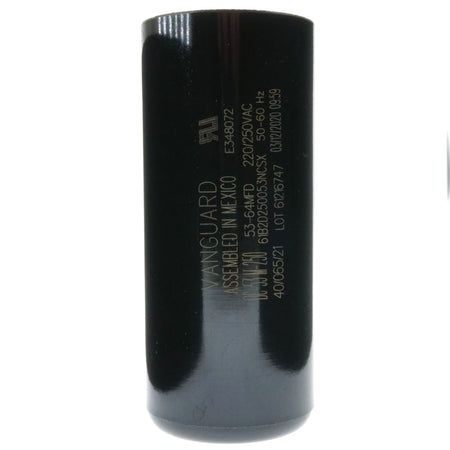

Product Label Vanguard
Assembled in Mexico E348072
BC-53M-250 53-64MFD 220/250VAC
61B2D250053NCSX 50-60Hz

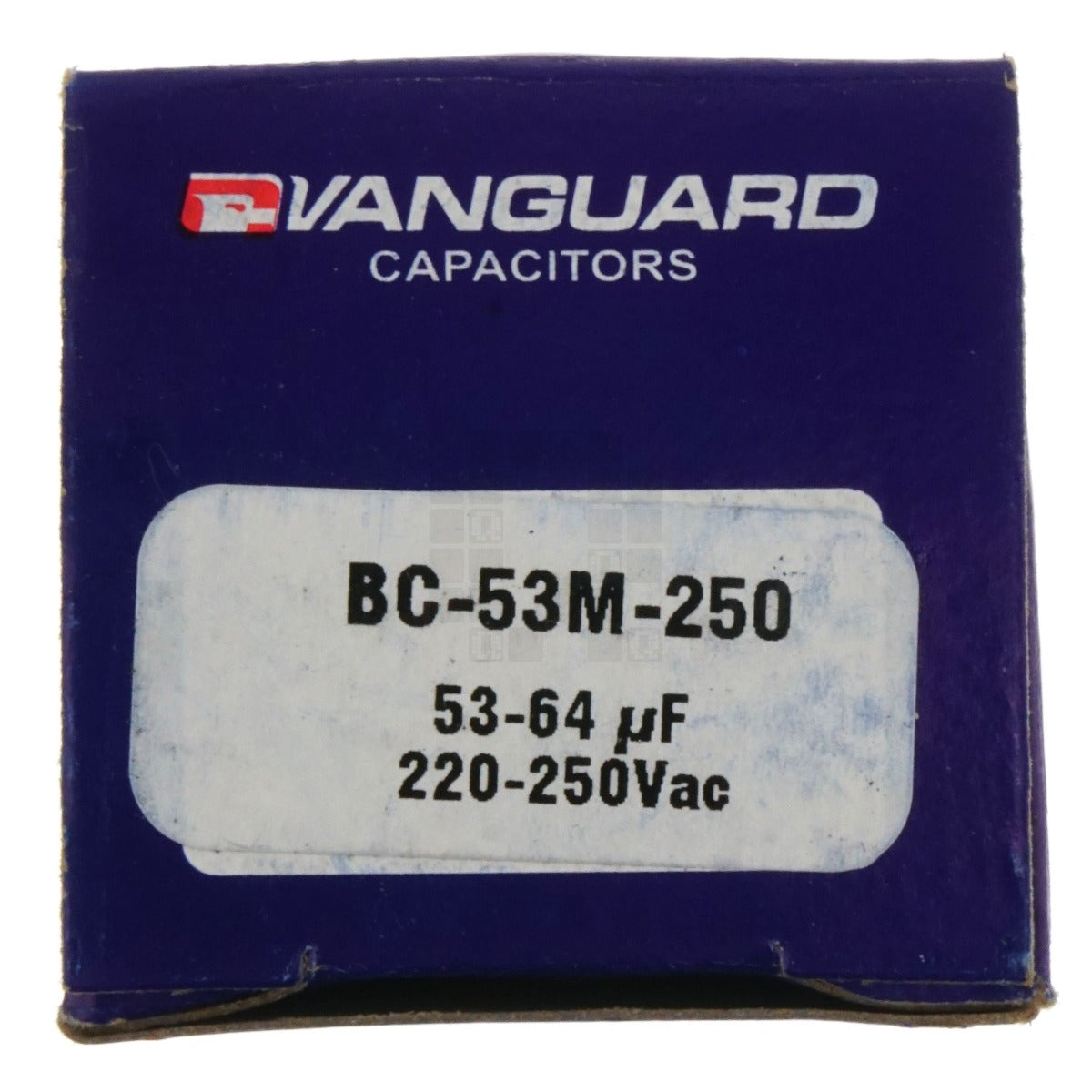

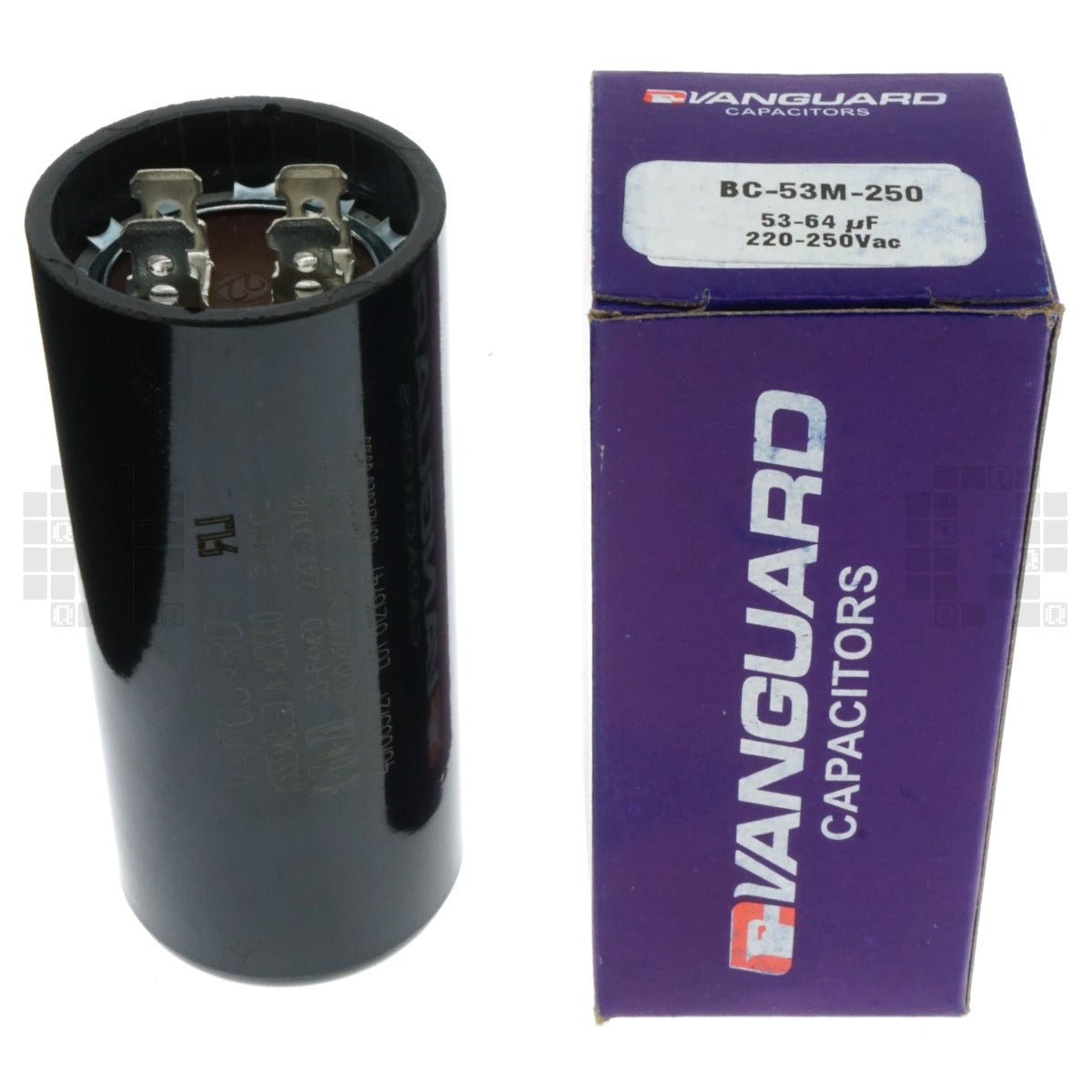

Package Label Vanguard Capacitors
BC-53M-250
53 - 64 uF
220 - 250VAC
Notes
Location

Dimensions & Weights :

Product Color Black
Product Shape Cylinder
Product Dimensions 1.437" Diameter
3.375" Height
Product Weight 4 oz
Package Dimensions (LxWxH) 1.51" x 1.51" x 3.50"
Package Weight 0.30 lbs
