Brand Vanguard
Manufacturer Part Number BC-54M-330
61B4D330053NCSX
Cross Reference (Fit/Form/Function)
Capacitance 53 - 64 uF
Working Voltage 330 VAC
Frequency 50/60 Hz
Working Temperature Range -40°C to +65°C
-40°F to +149°F
Type Start Capacitor

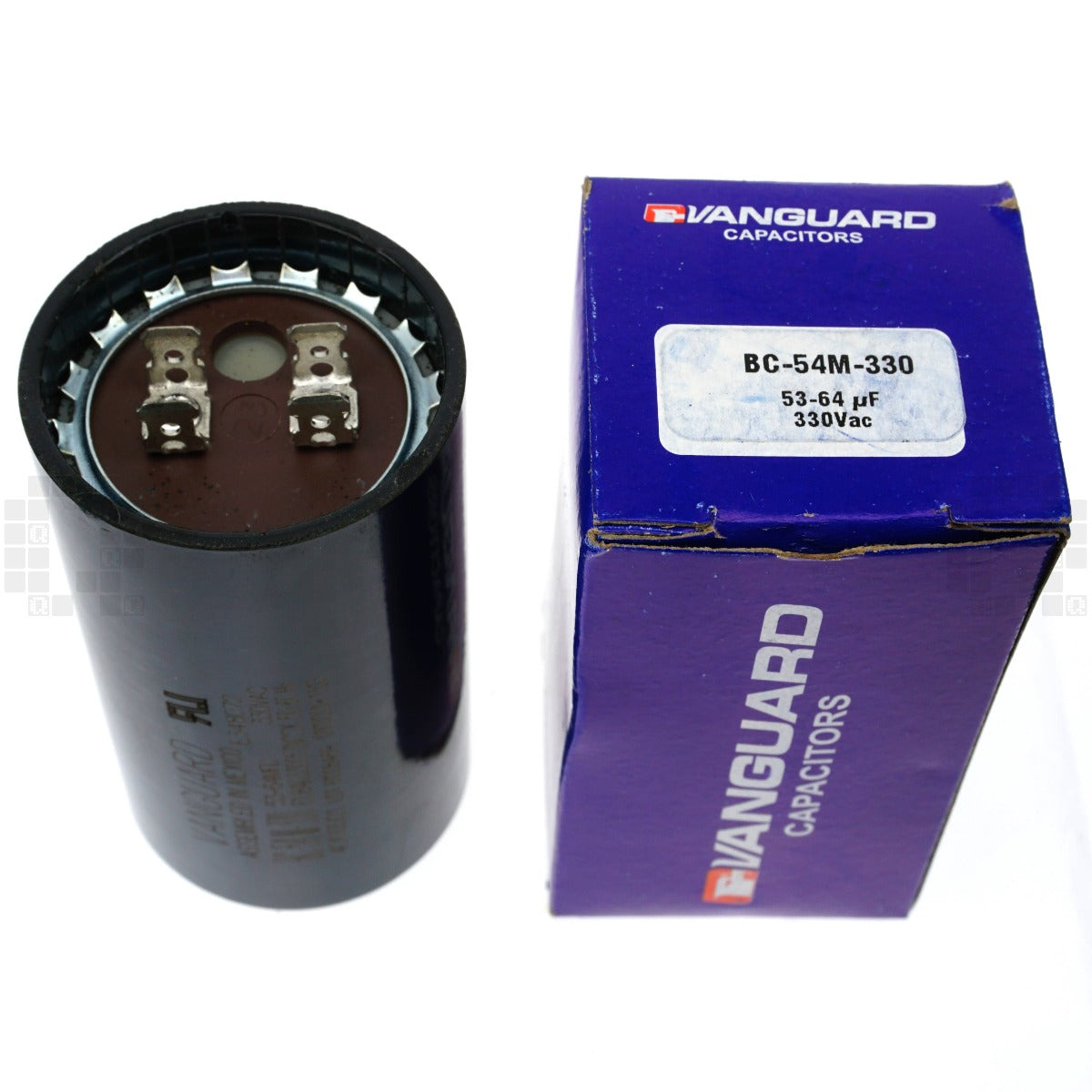

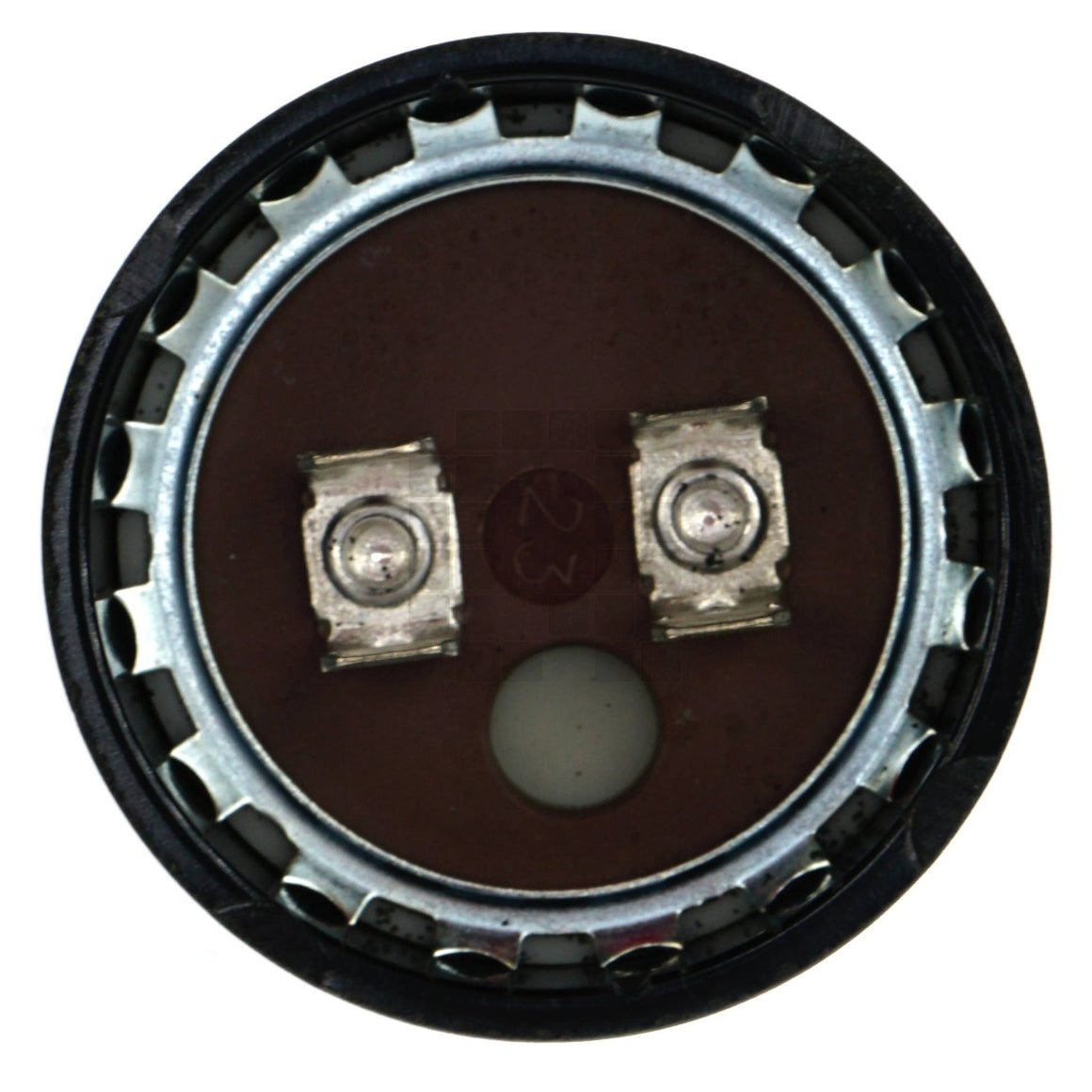

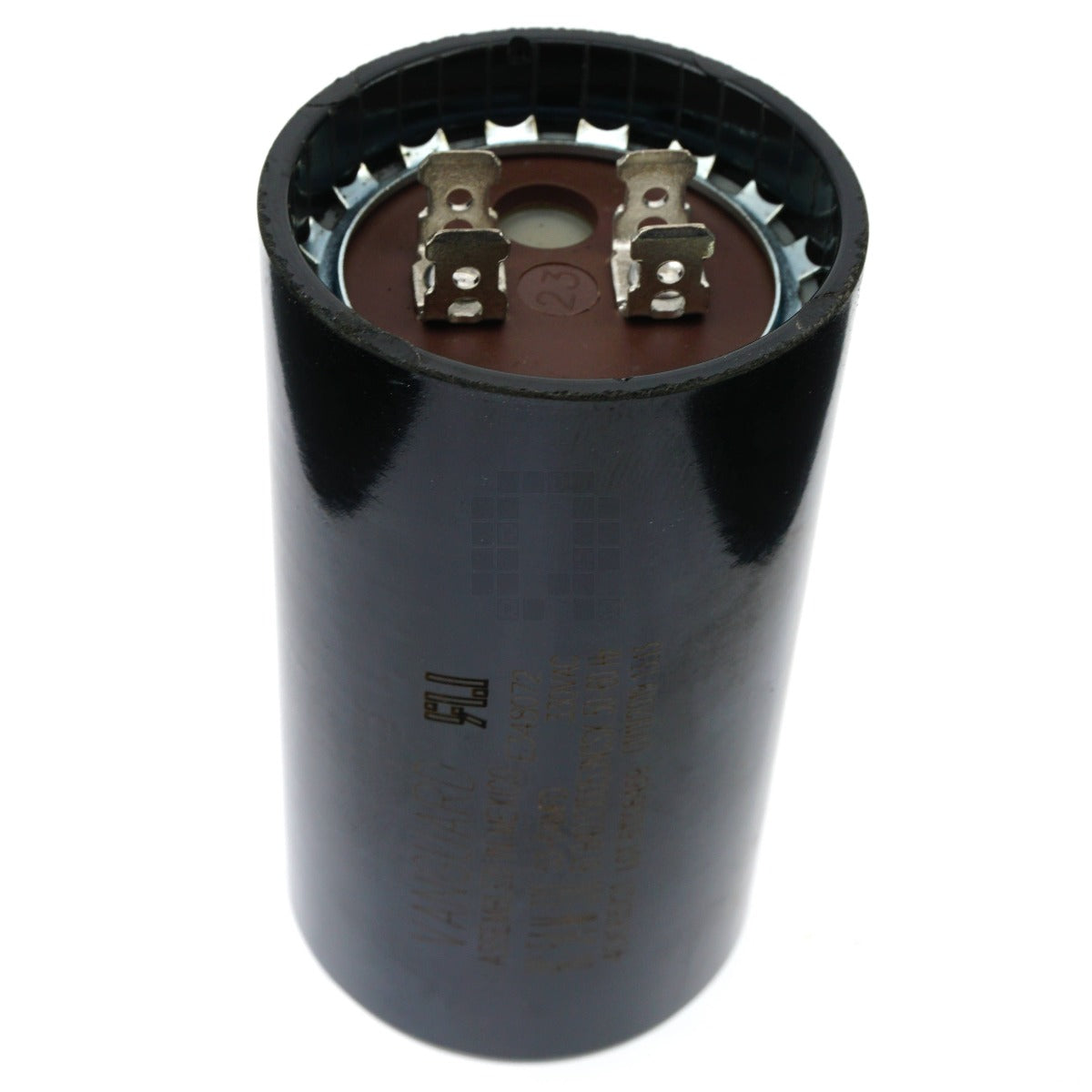

Connection 2 Posts
Two 1/4” male spade terminals on each post
Resistor None

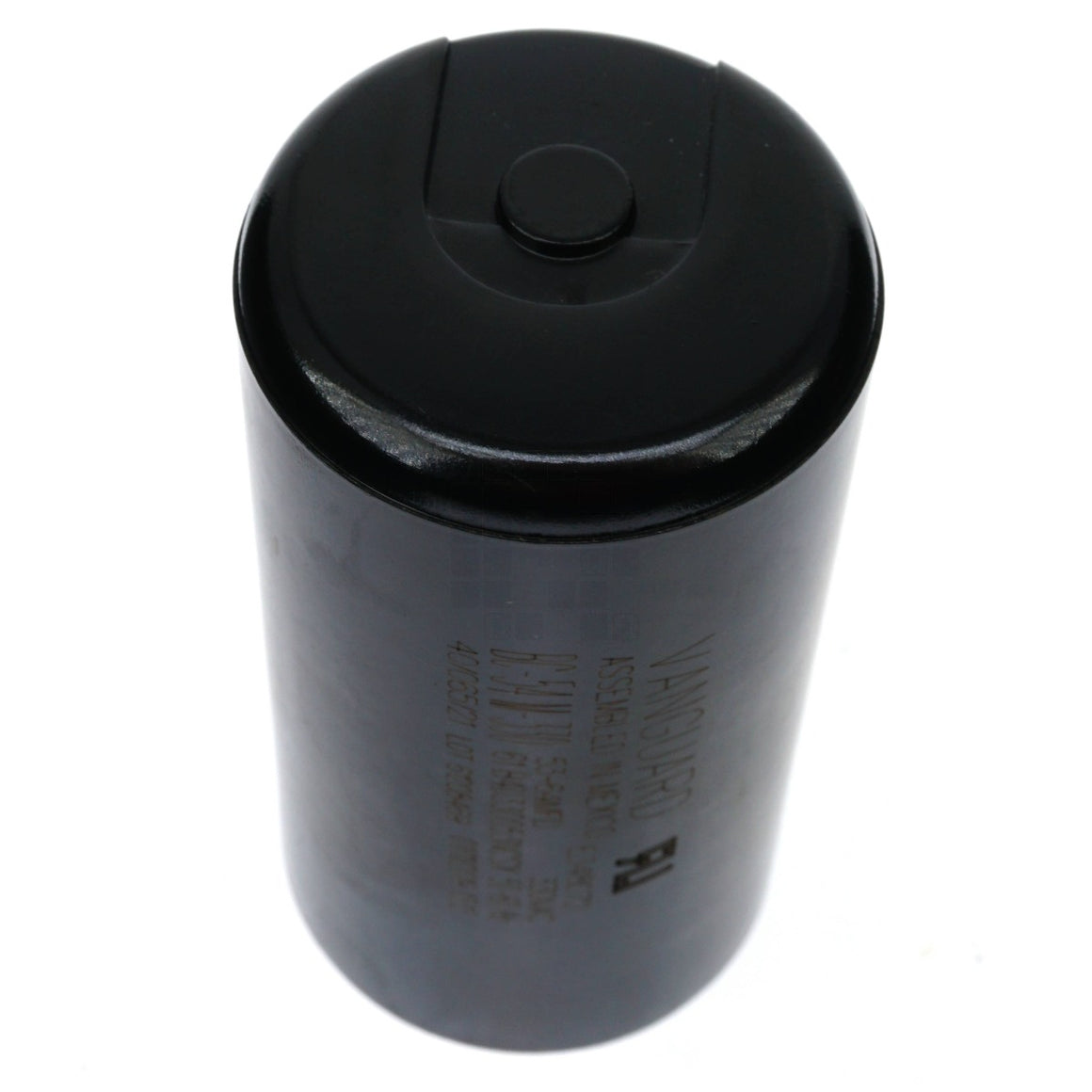

Construction Phenolic Plastic Case
Certifications/Approvals UL Approved
Performance Specifications
Case Code
Distance Between Terminals 0.625"
UPC None
Product Origin (COO) Mexico

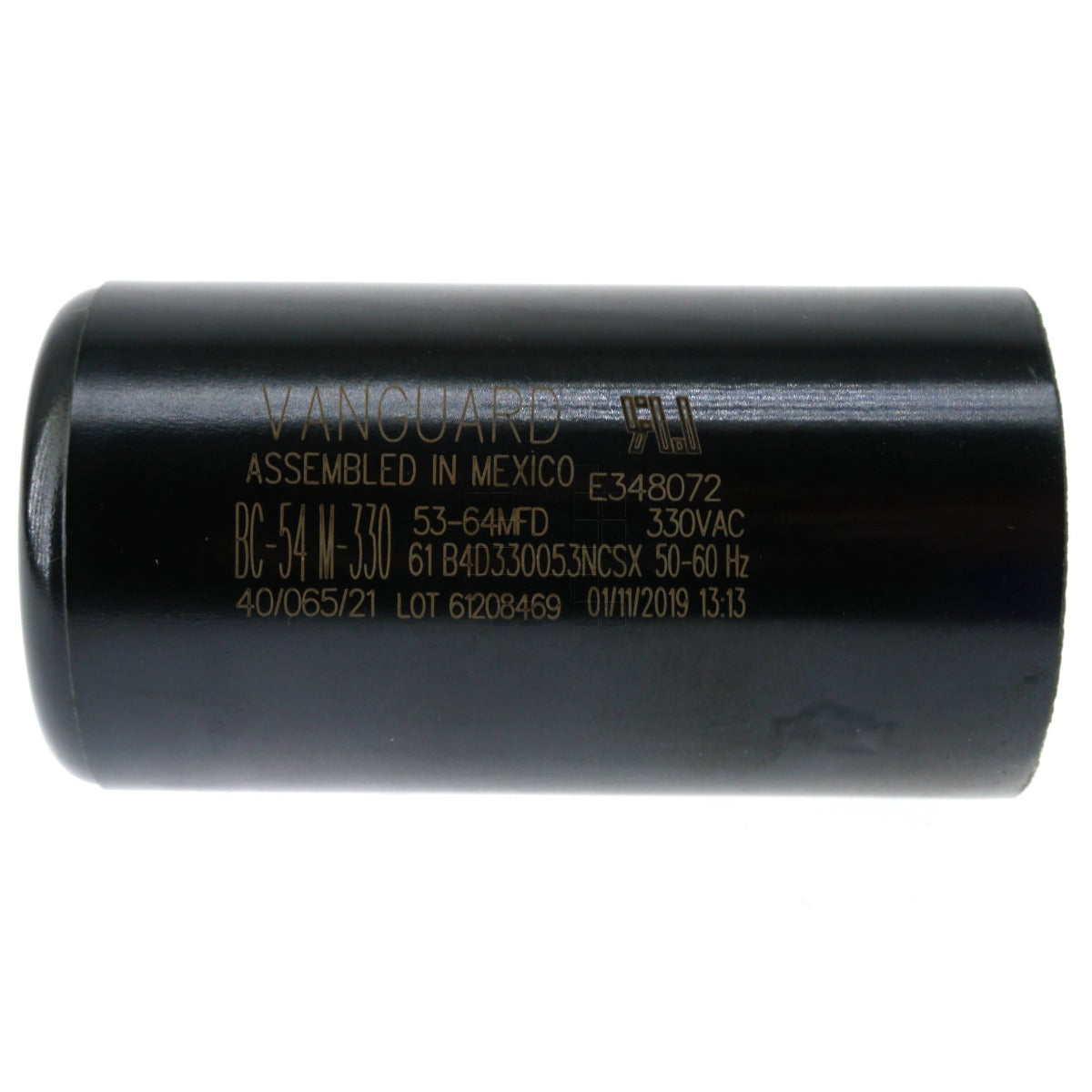

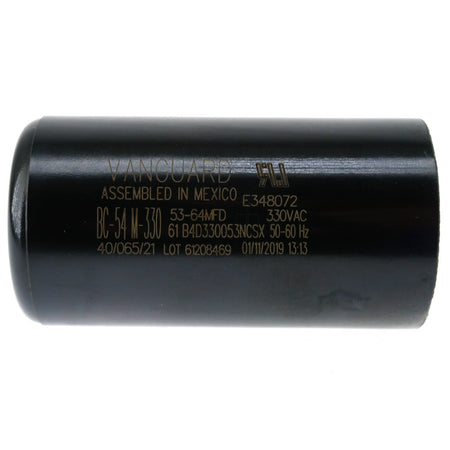

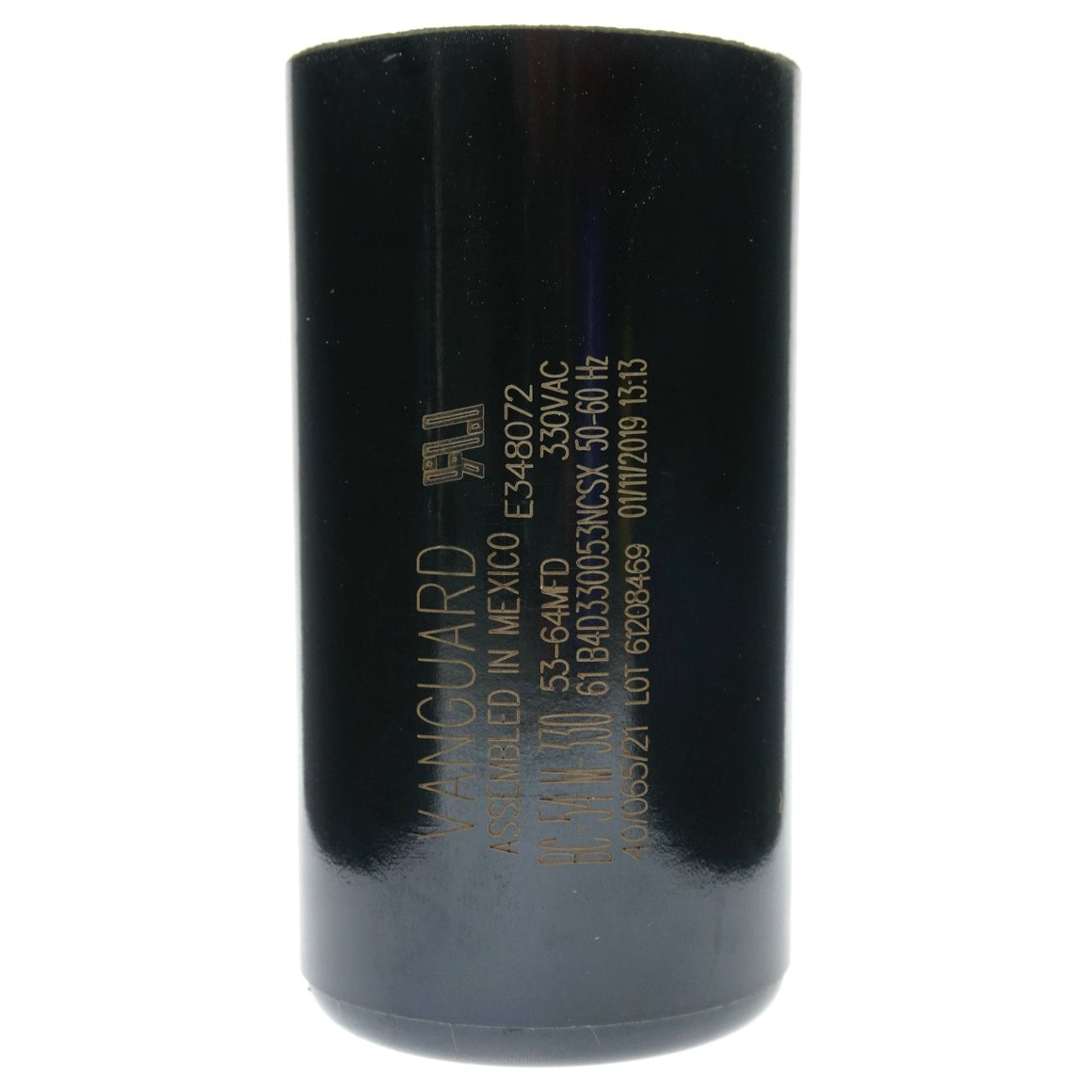

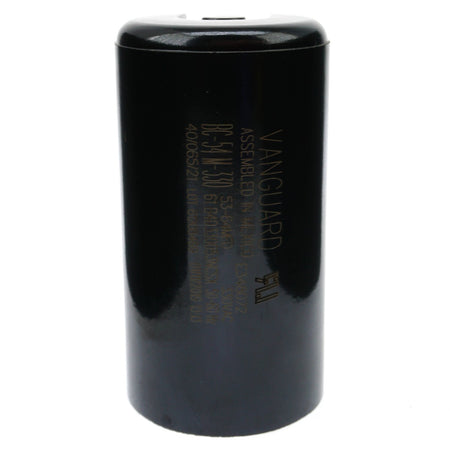

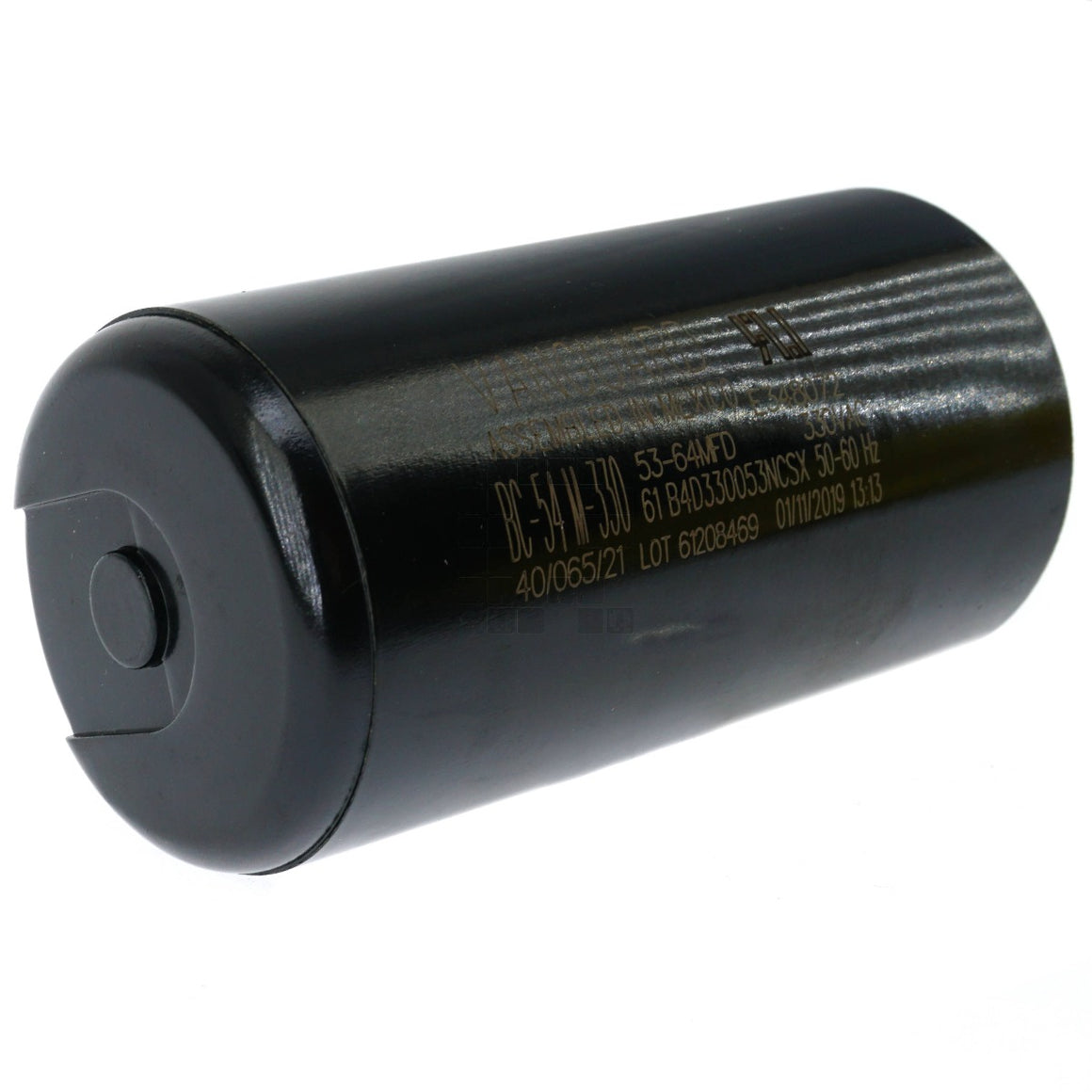

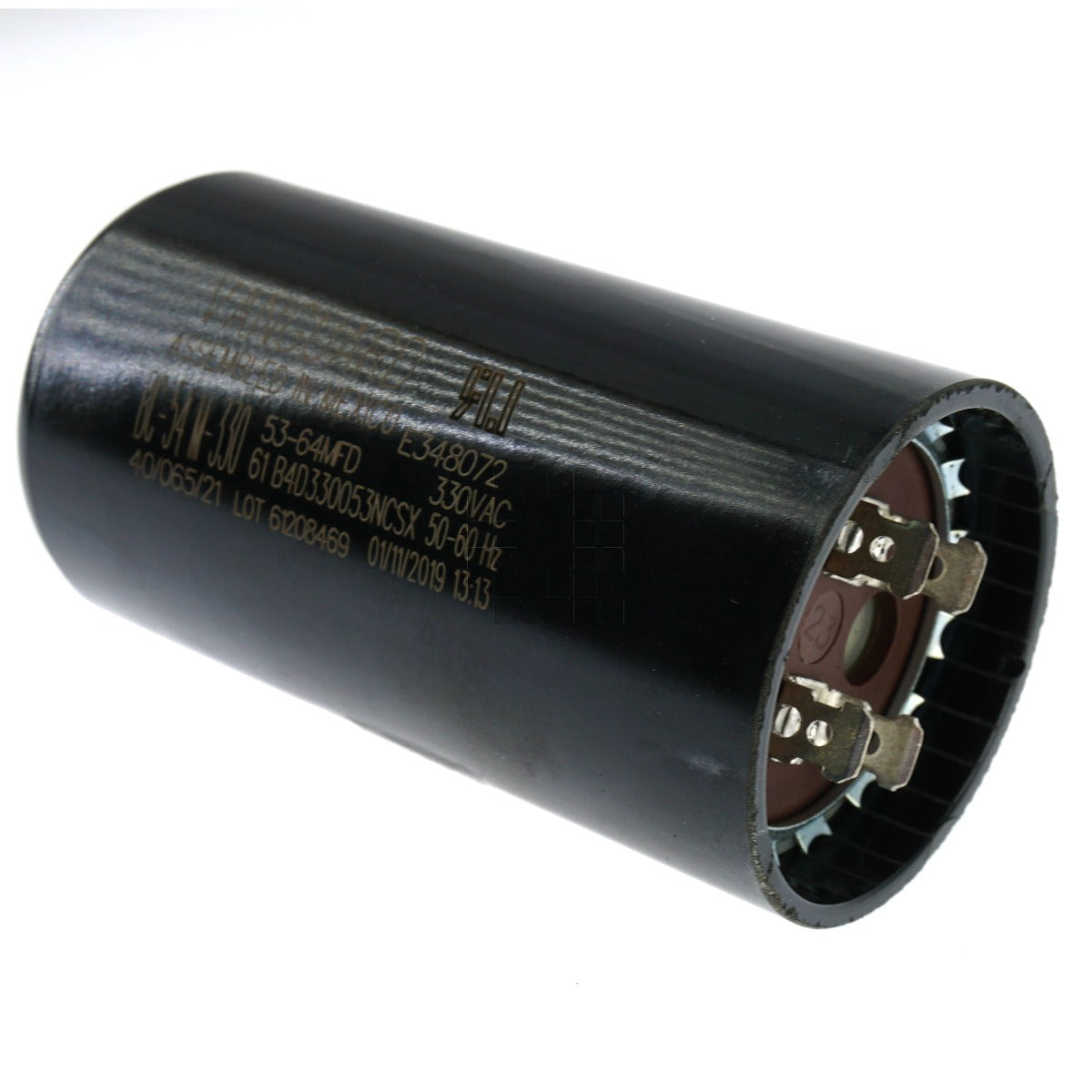

Product Label Vanguard
Assembled in Mexico
BC-54M-330 53-64MFD 330VAC
61B4D330053NCSX 50-60Hz

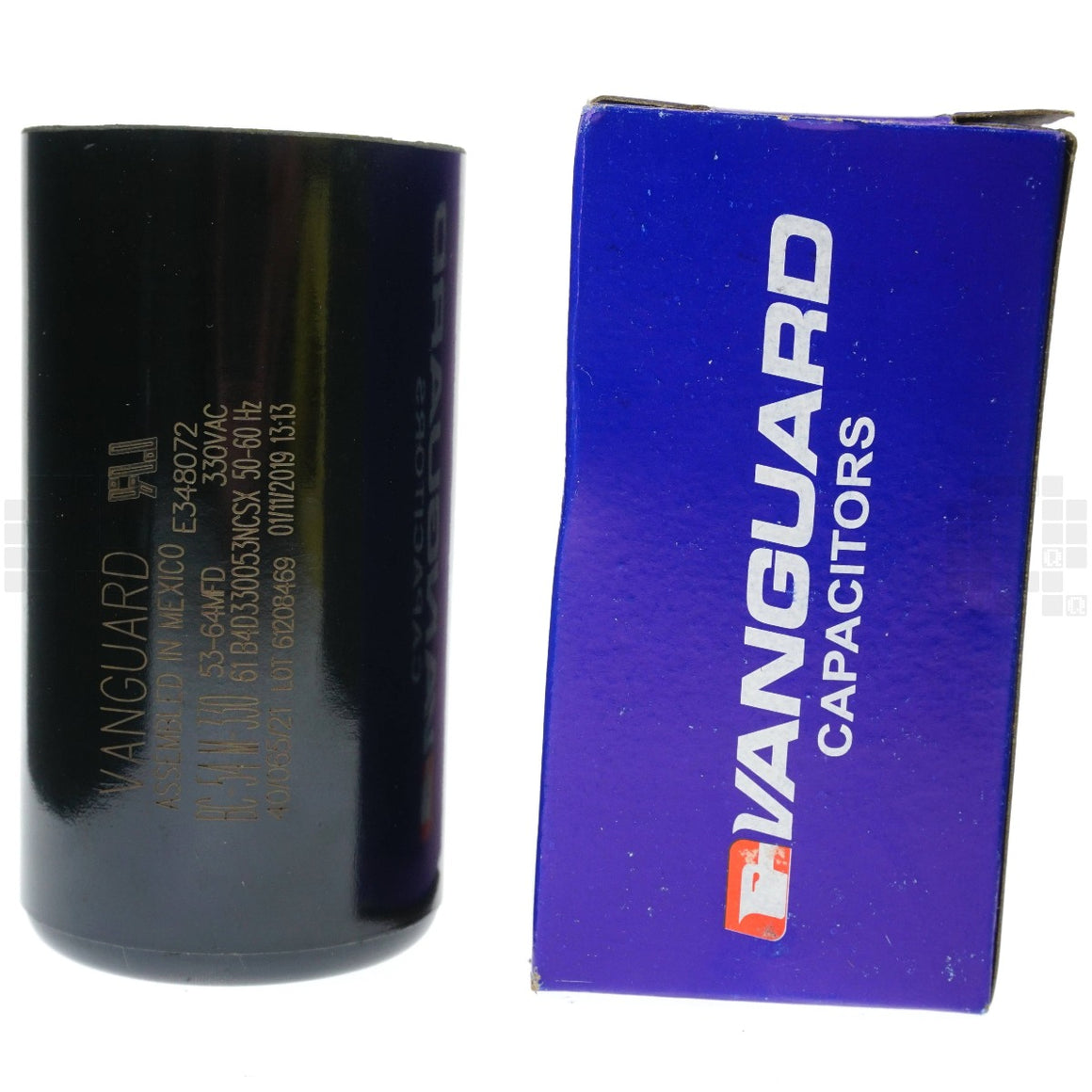

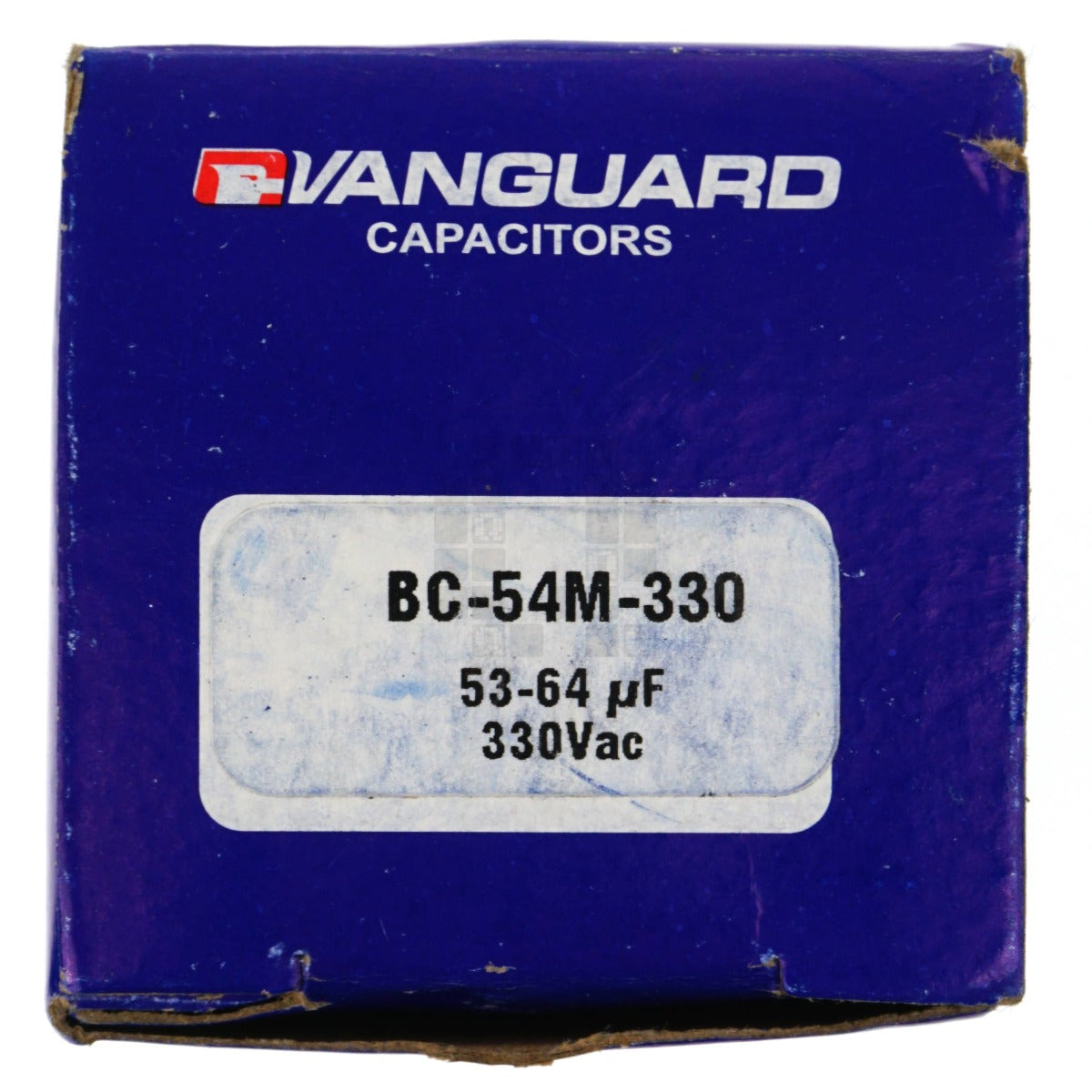

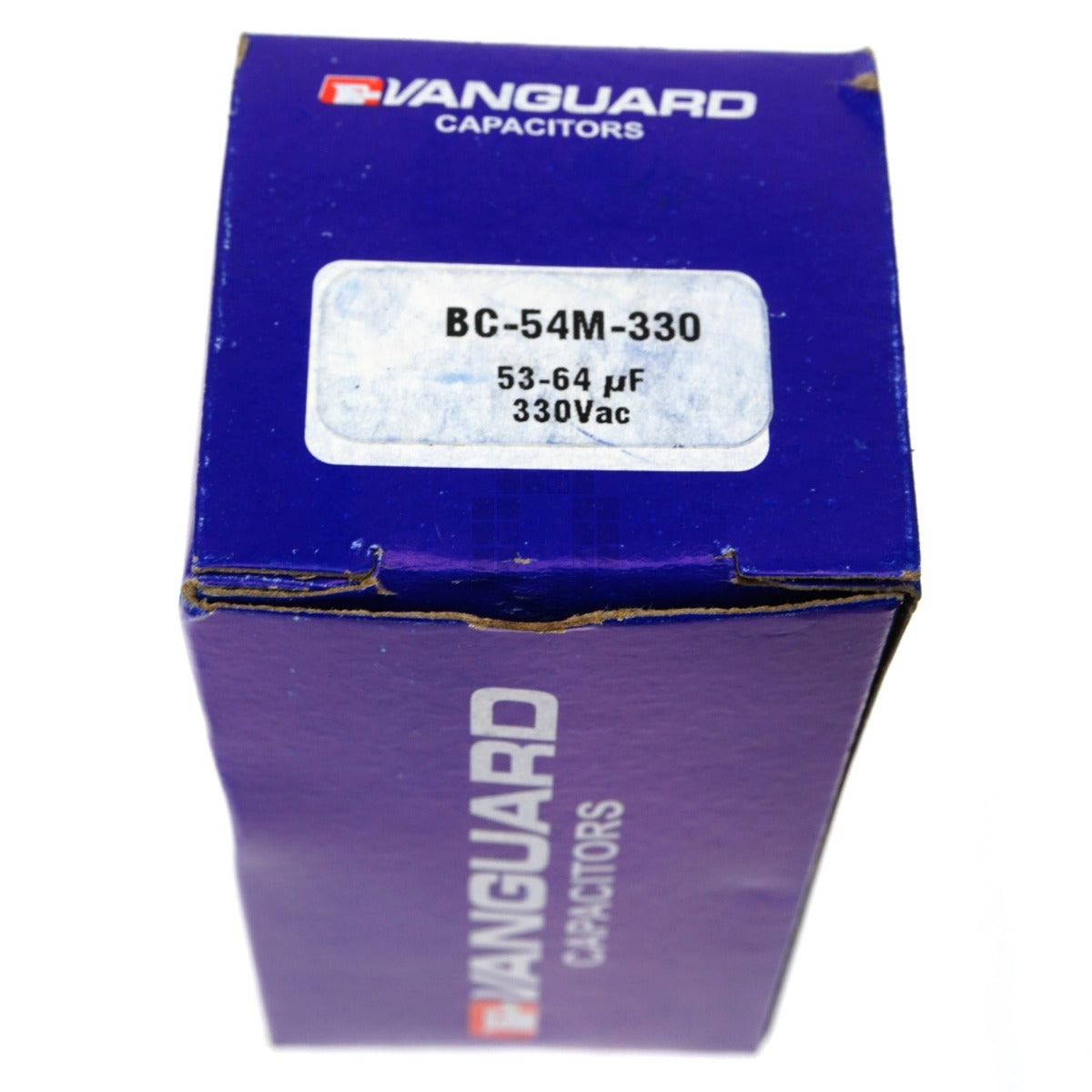

Package Label BC-54M-330
53-64 uF
330VAC
Notes

Product Color Black

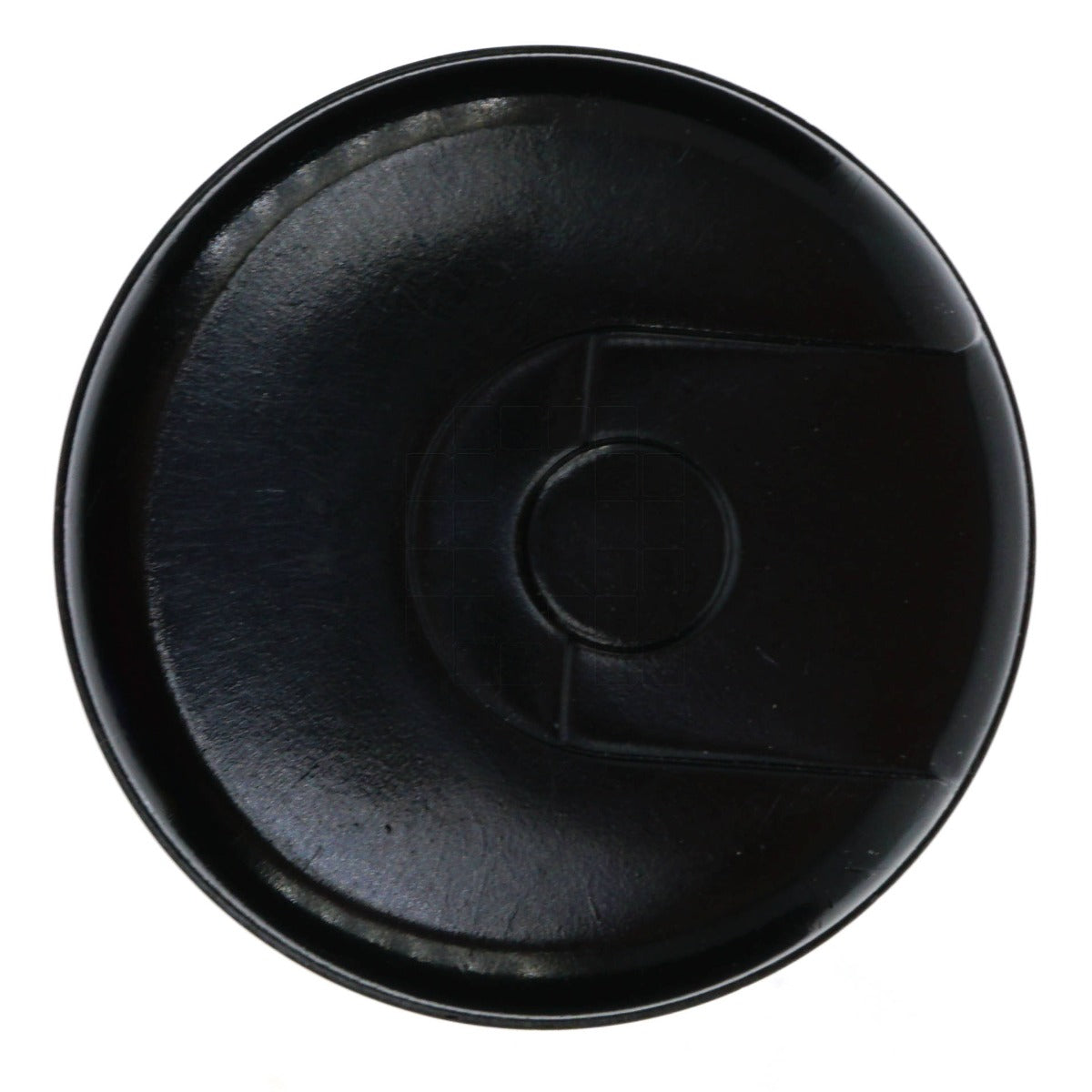

Product Shape Cylinder
Product Dimensions 1.812" Diameter
3.375" High
Product Weight 5 oz
Package Dimensions (LxWxH) 1.85" x 1.85" x 3.50 Inches
Package Weight 6 oz
