Brand Vanguard
Manufacturer Part Number BC-590-S
61B4D120590NCSX
Cross Reference (Fit/Form/Function)
Capacitance 590 - 708 uF
Working Voltage 110-125 VAC
Frequency 50/60 Hz
Working Temperature Range -40°C to +65°C
-40°F to +149°F
Type Start Capacitor

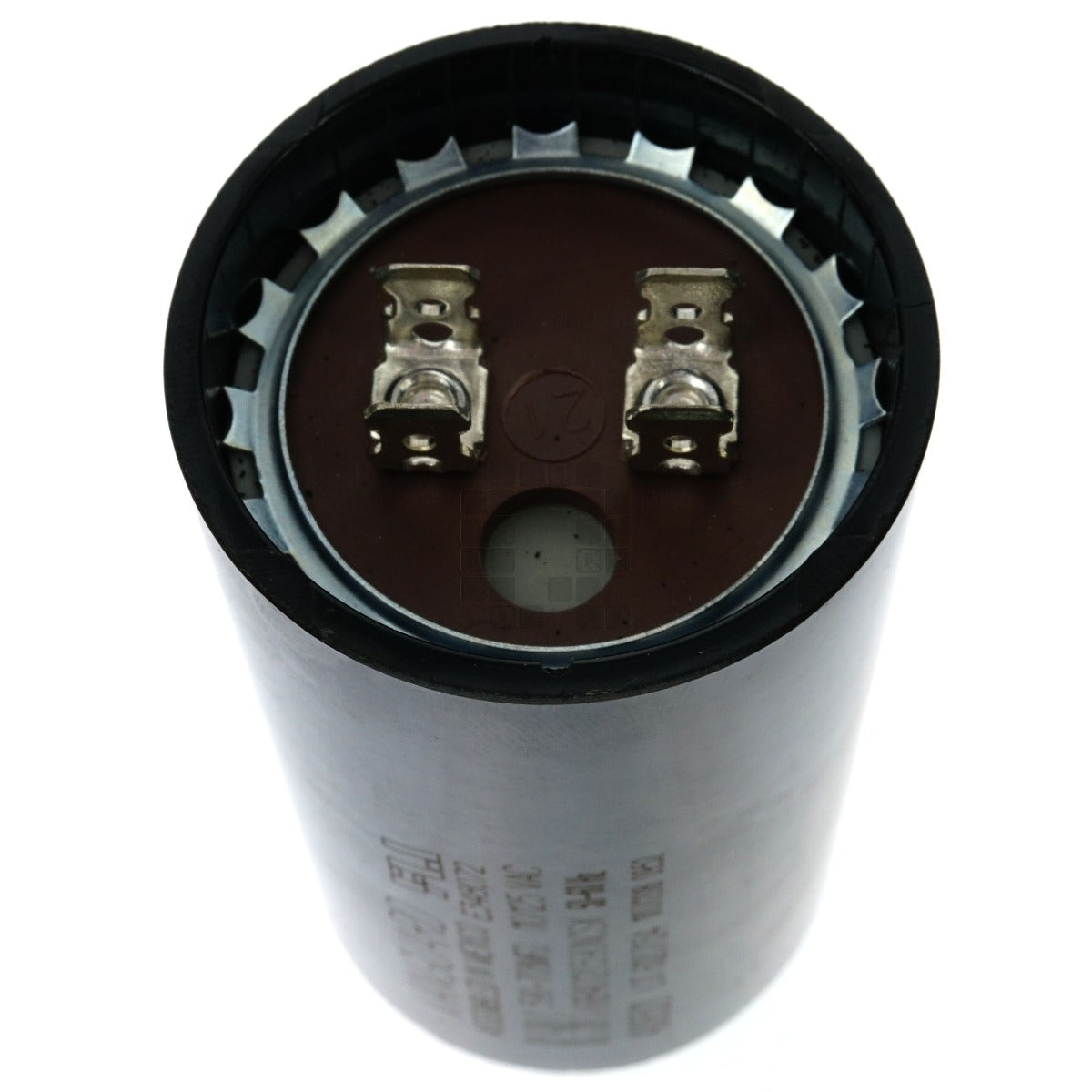

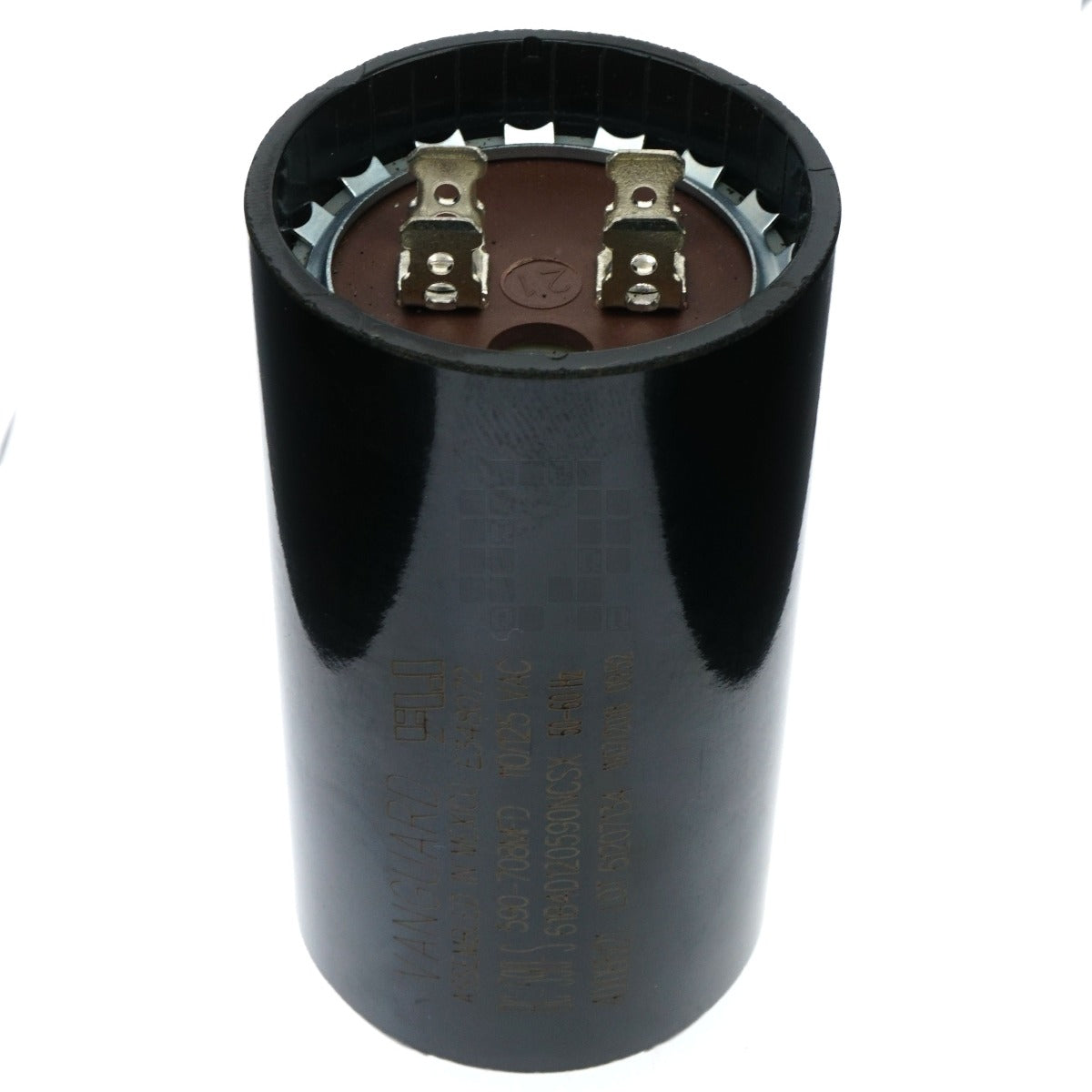

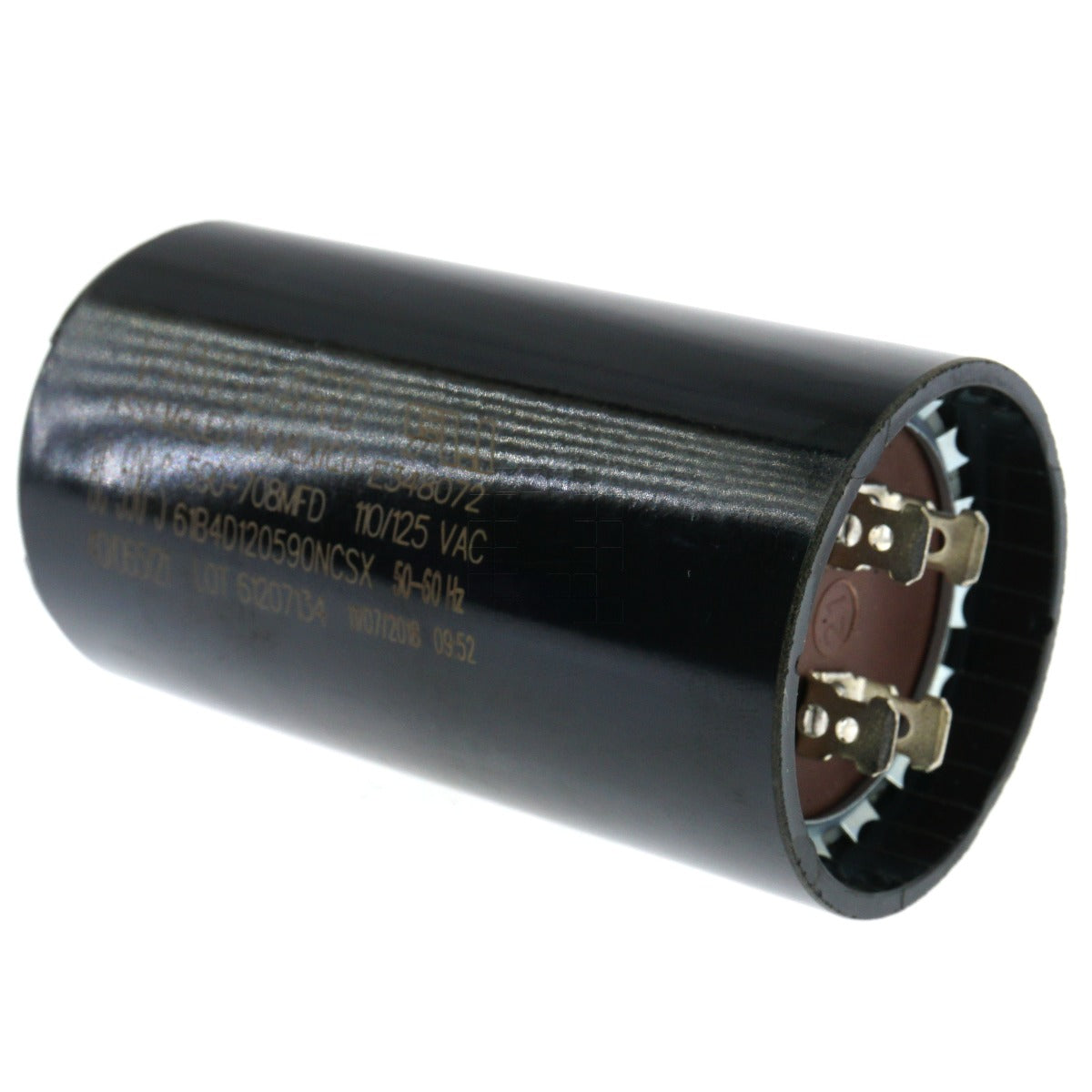

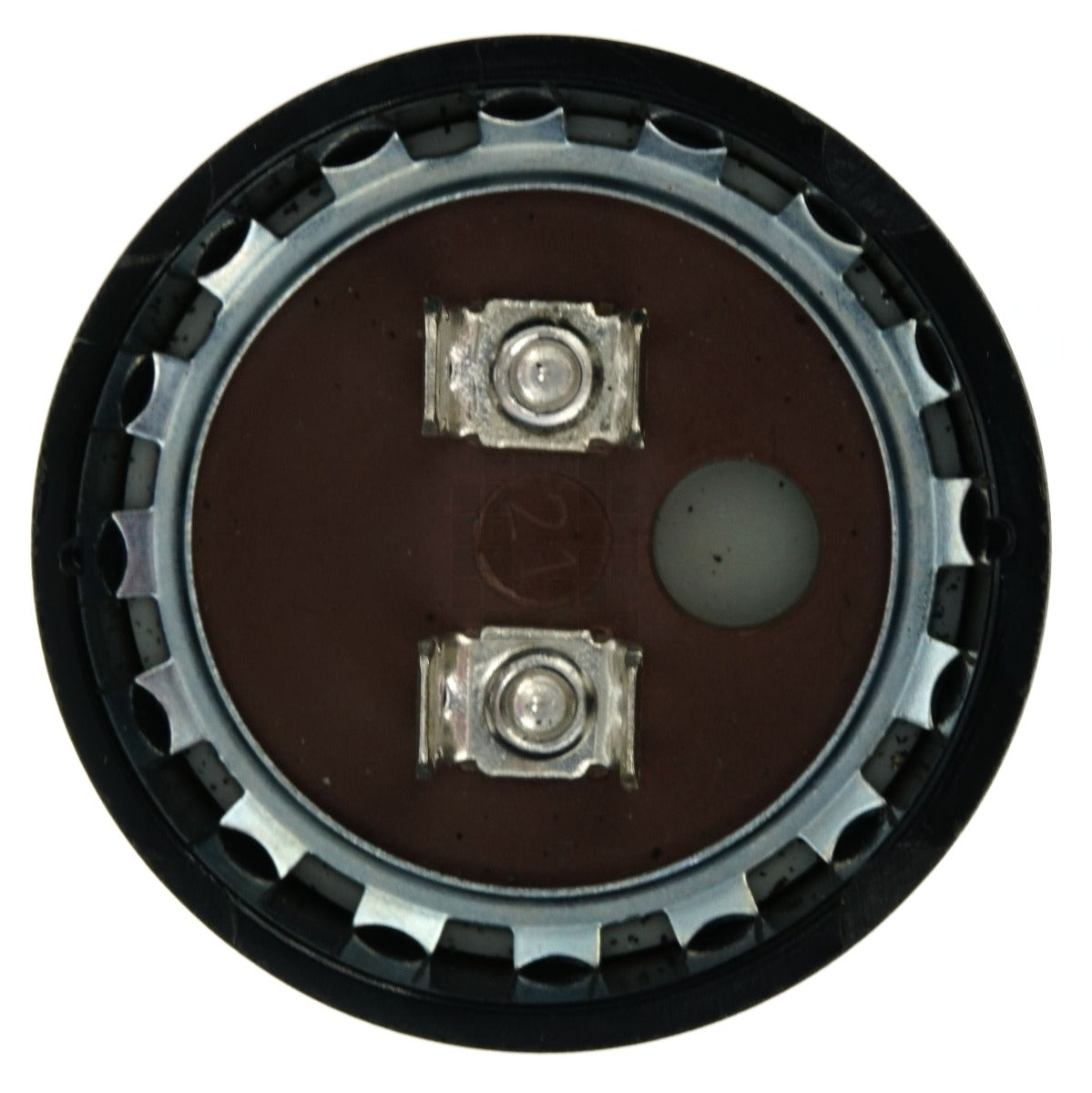

Connection 2 Posts
Two 1/4” male spade terminals on each post
Resistor None
Construction Phenolic Plastic Case
Certifications/Approvals UL Approved
Performance Specifications
Case Code
Distance Between Terminals 0.625"
UPC None
Product Origin (COO) Mexico

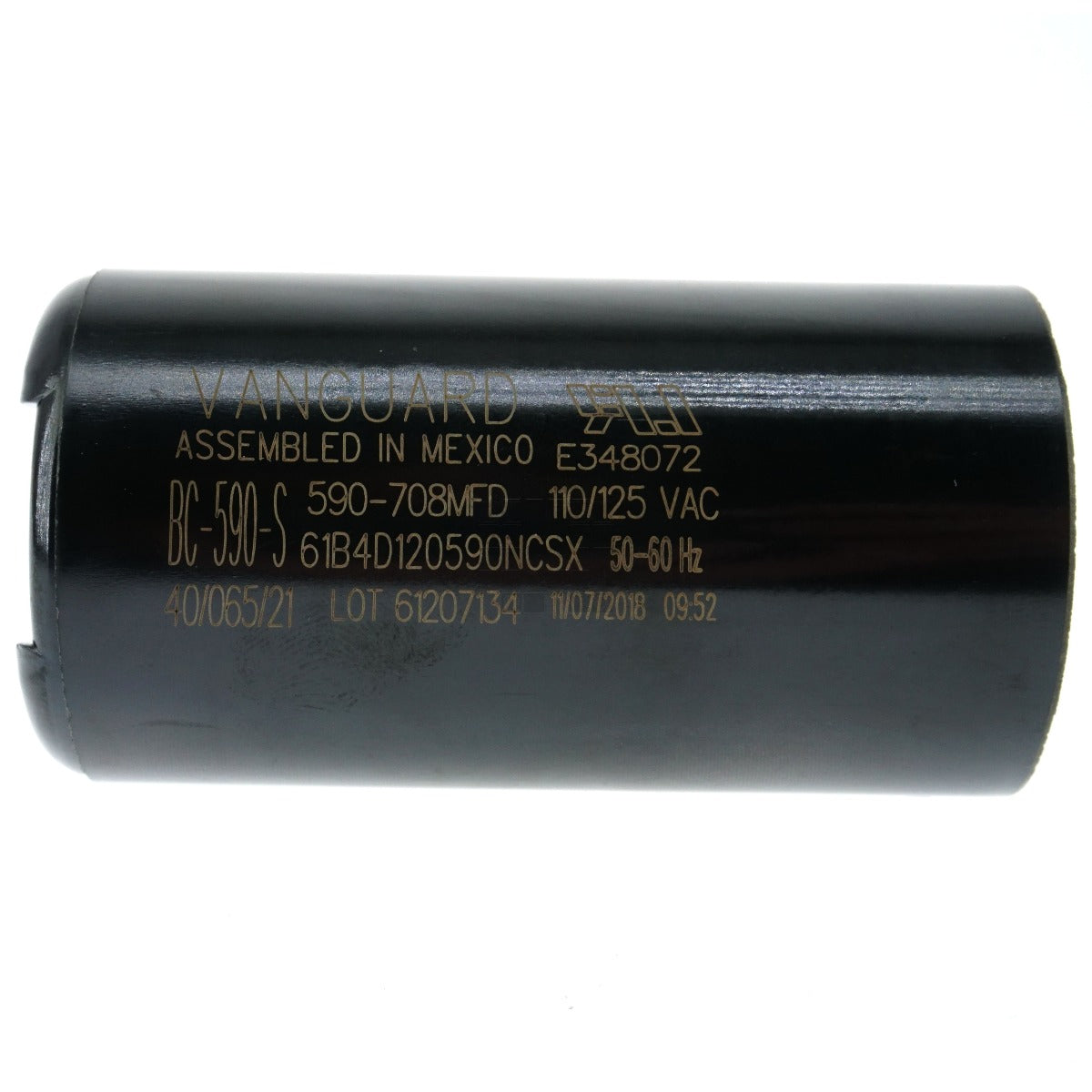

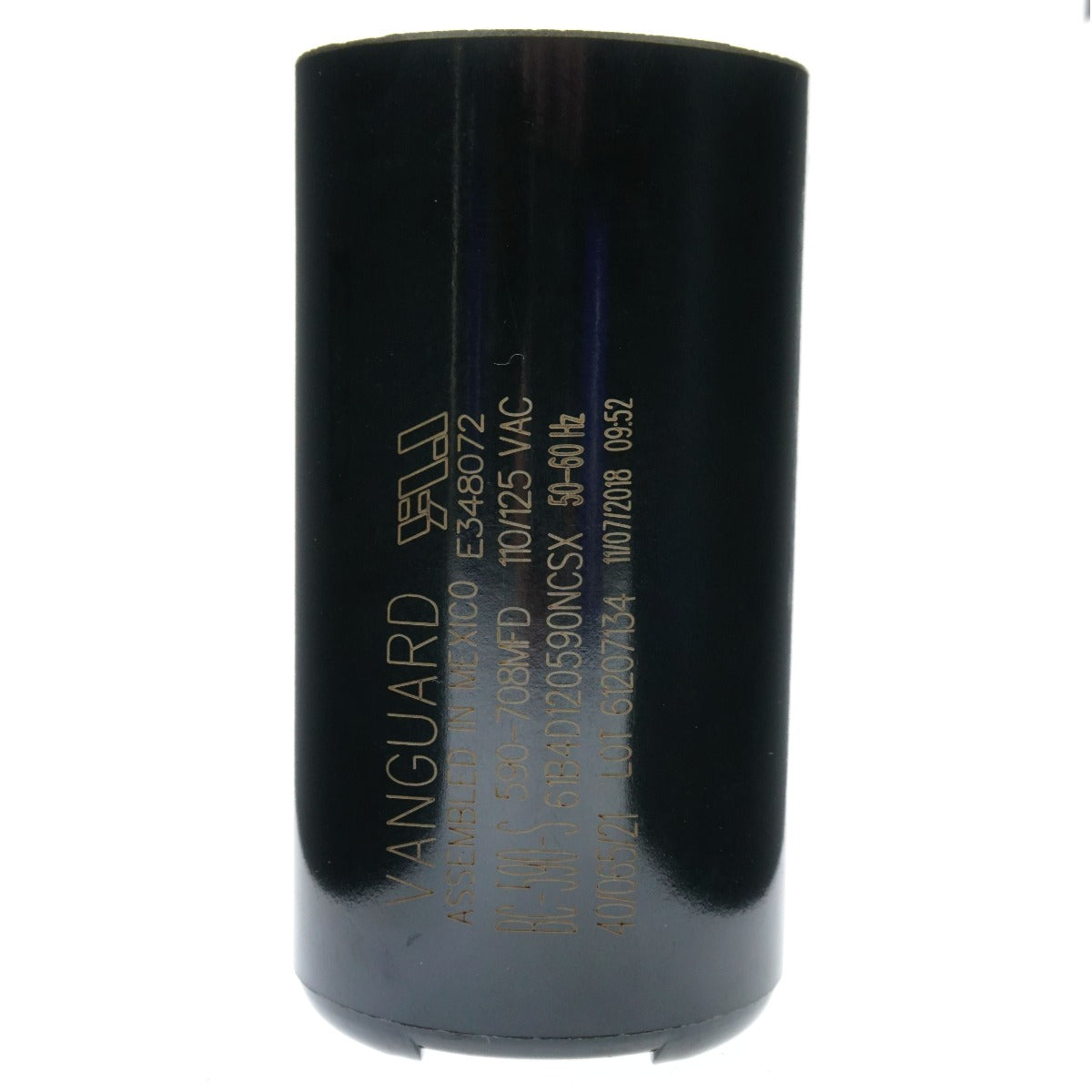

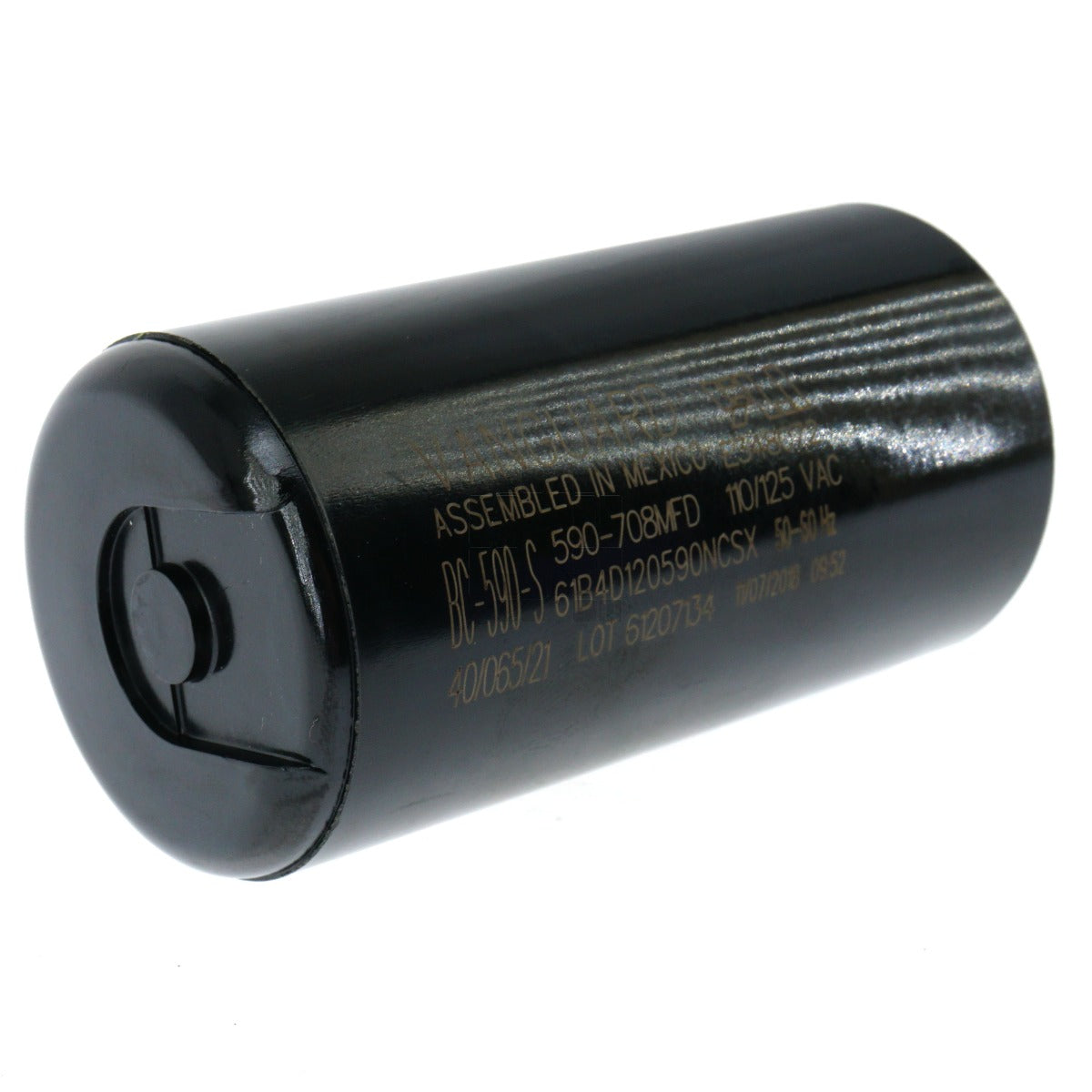

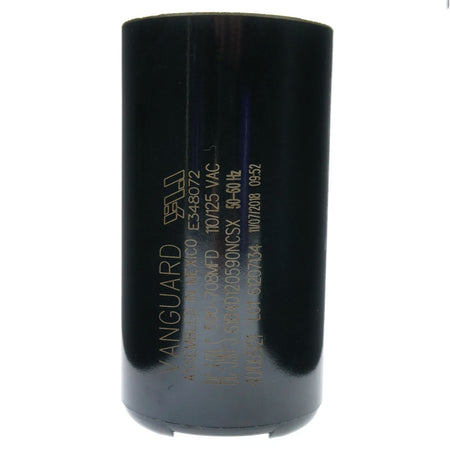

Product Label Vanguard
Assembled in Mexico
BC-590-S 590-708MFD 110/125VAC
61B4D120590NCSX 50-60Hz

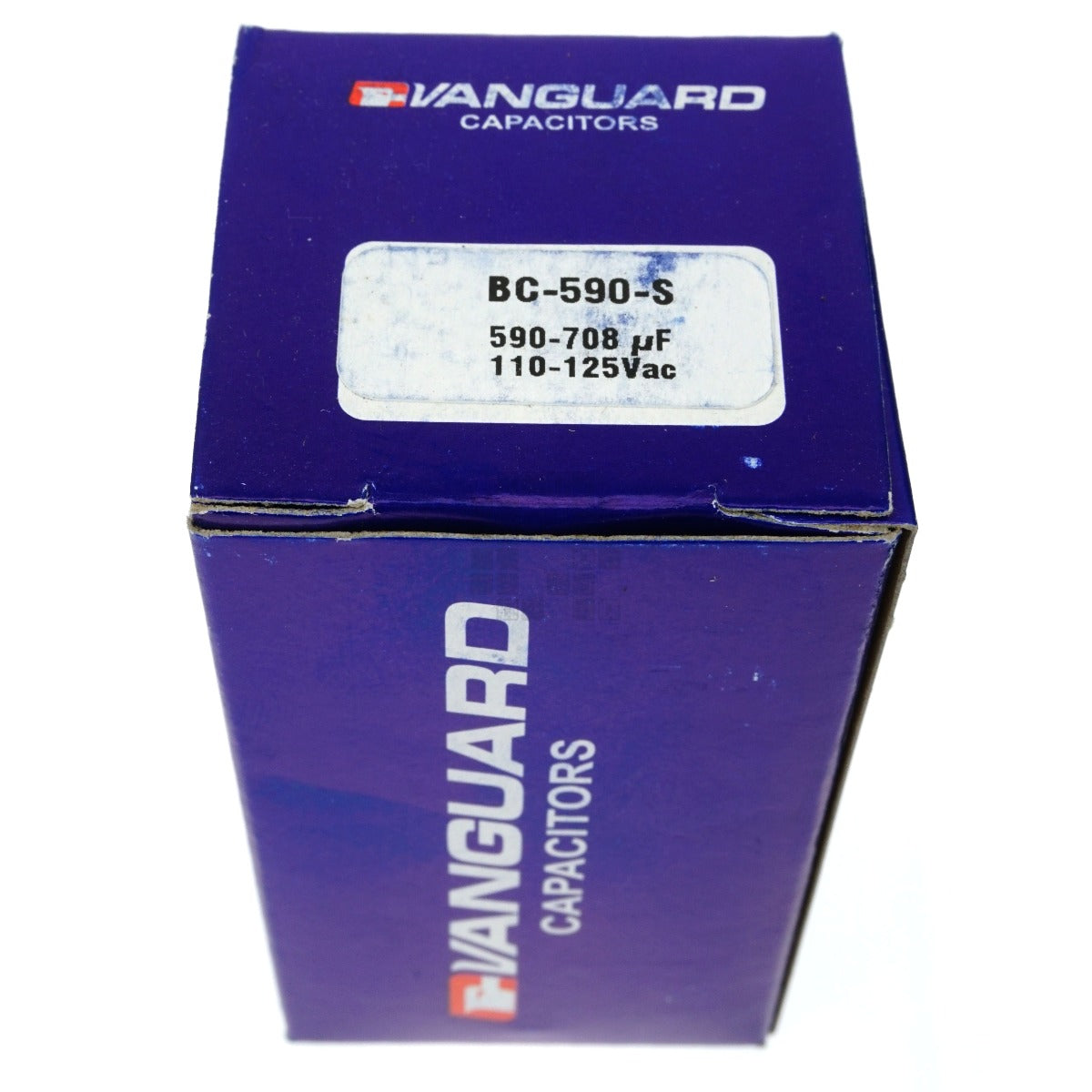

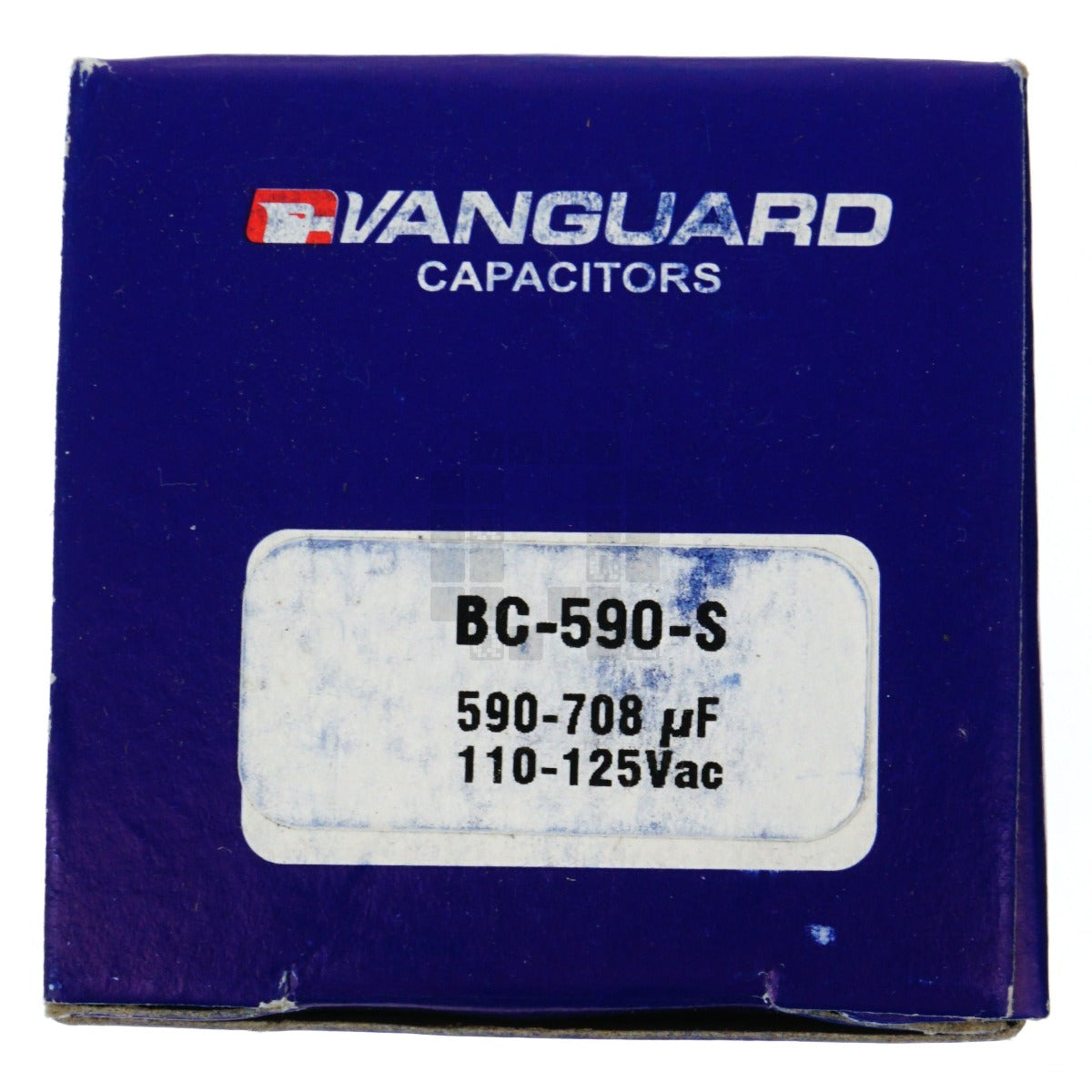

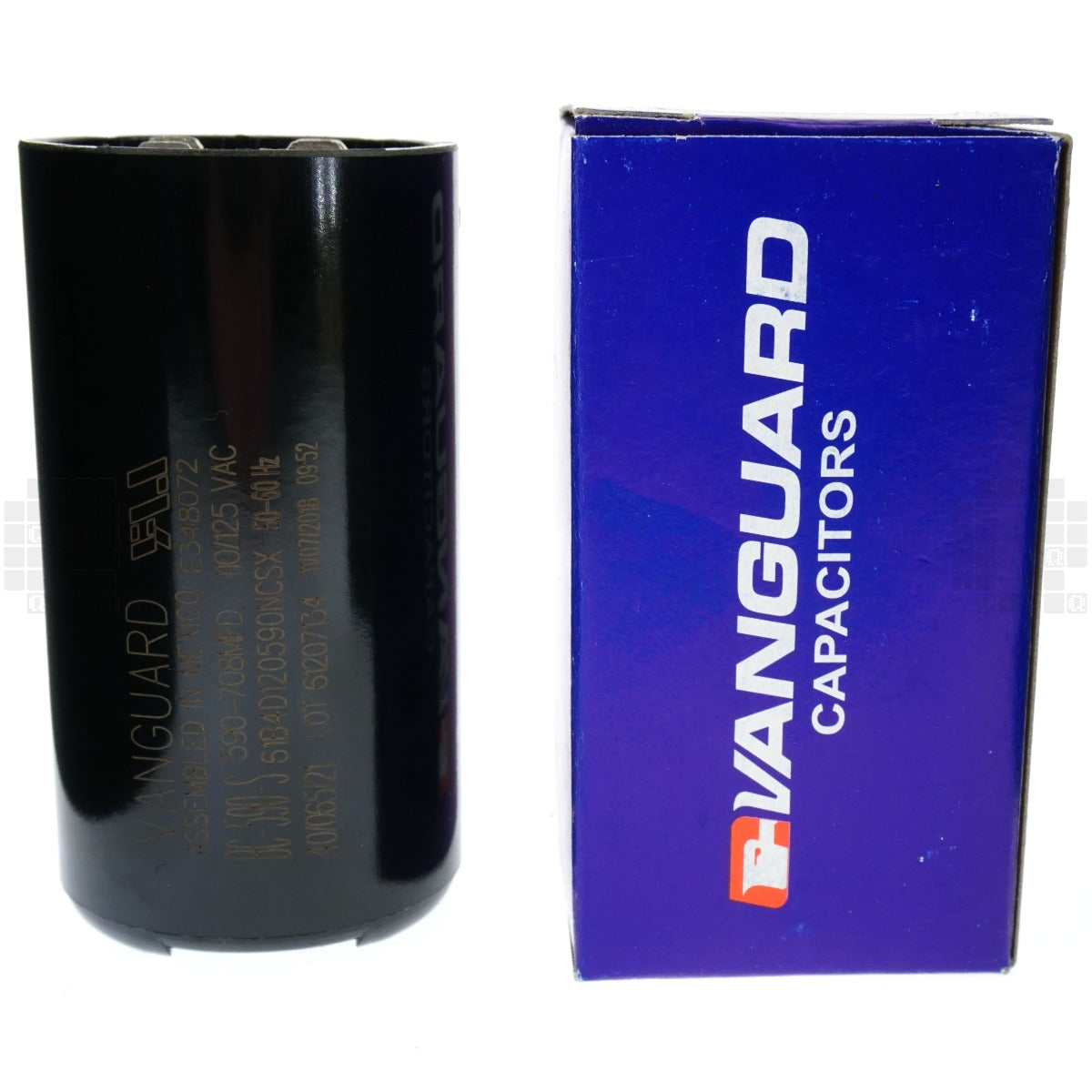

Package Label BC-590-S
590-708 uF
110-125VAC
Notes
Location
Product Color Black
Product Shape Cylinder
Product Dimensions 1.812" Diameter
3.375" High
Product Weight 6 oz
Package Dimensions (LxWxH) 1.88" x 1.88" x 3.50"
Package Weight 8 oz
