Product Specifications :

Brand Vanguard
Manufacturer Part Number BC-64M-250
61B4D250064NC
61B4D250064NCSX
Cross Reference (Fit/Form/Function)
Capacitance 64 - 77 uF
Working Voltage 220 - 250 VAC
Frequency 50/60 Hz
Power Factor 10% Max
after applying working voltage for 4 seconds
Working Temperature Range -40°C to +65°C
-40°F to +149°F
Type Start Capacitor
Aluminum Electrolytic, Non-Polarized

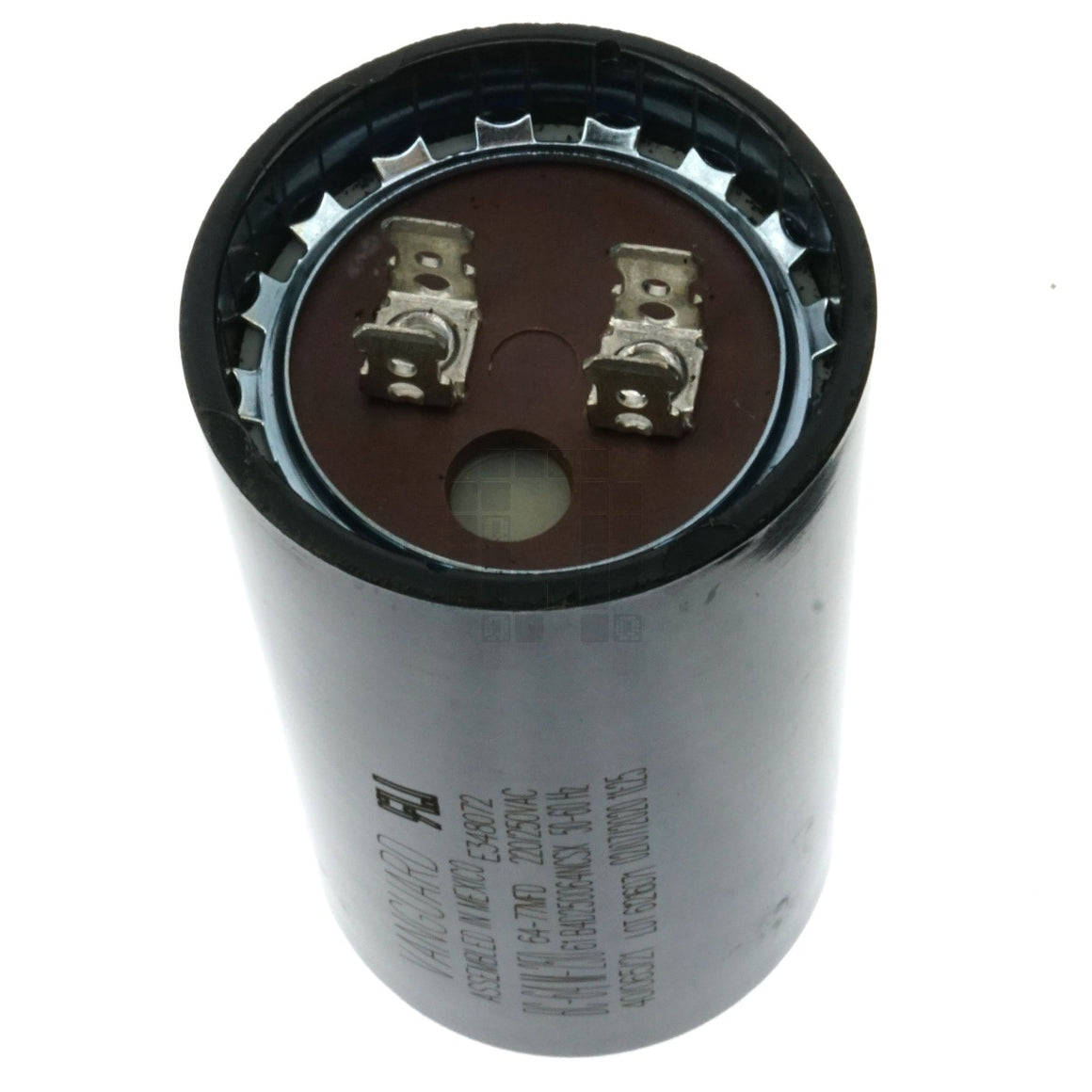

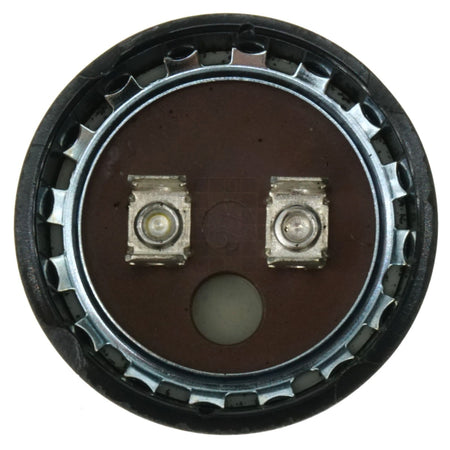

Connection 2 Posts
Two 1/4” male spade terminals on each post
Resistor None
Construction Phenolic Case
Certifications/Approvals UL Approved
Performance Specifications
Case Code
Distance Between Terminals 0.625"
UPC None
Product Origin (COO) Mexico

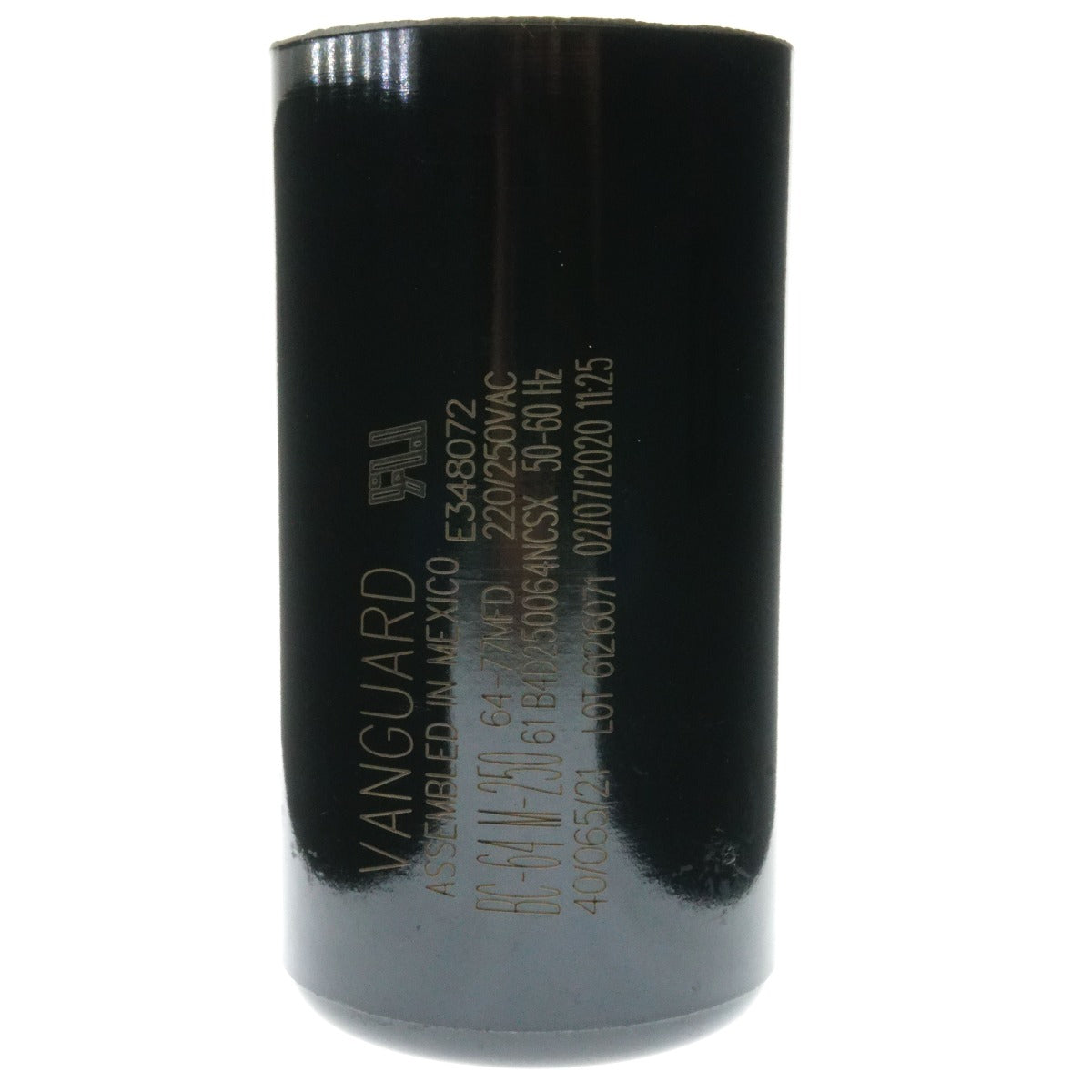

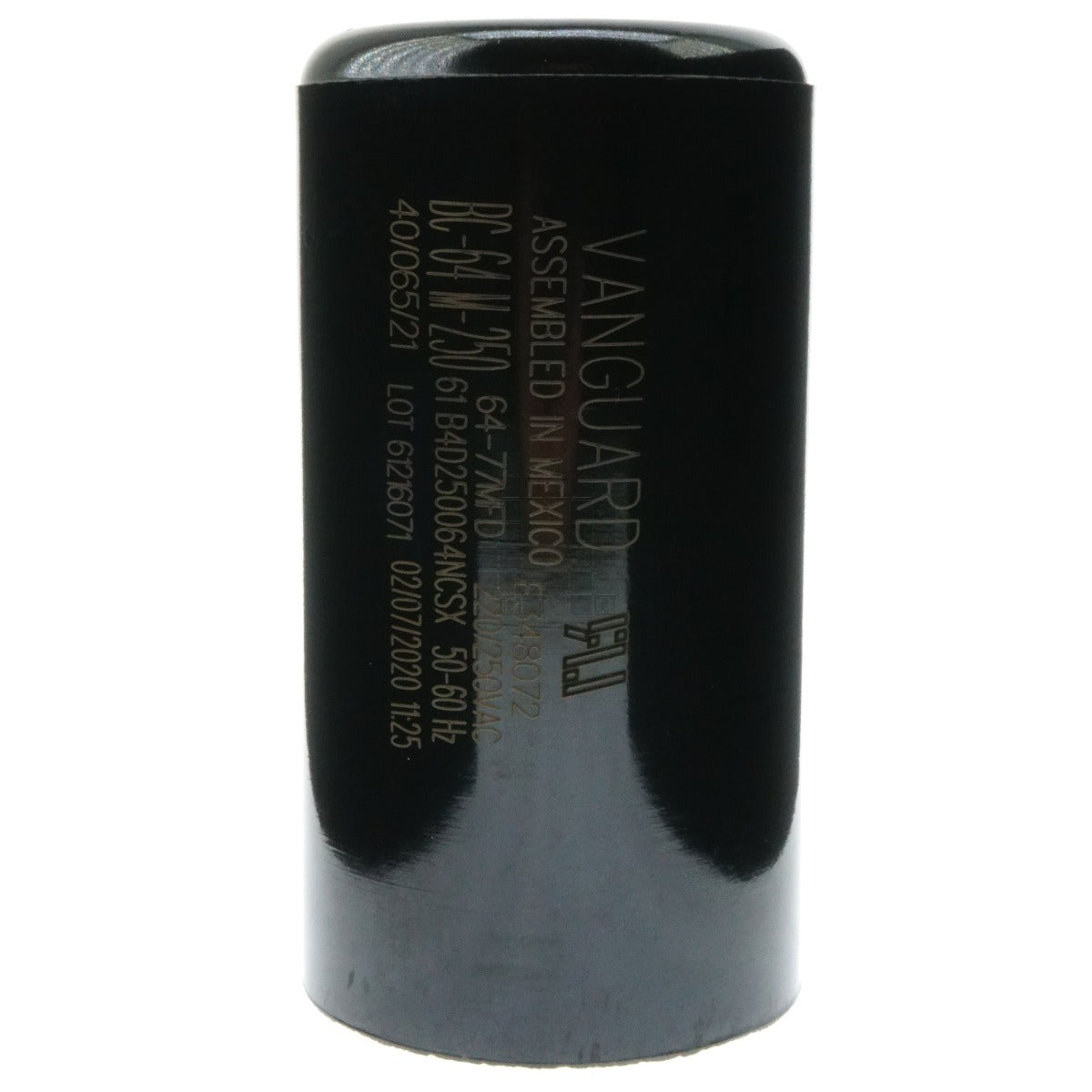

Product Label Vanguard
Assembled in Mexico
BC-64M-250 64-77MFD 220/250VAC
61B4D250064NCSX 50/60Hz

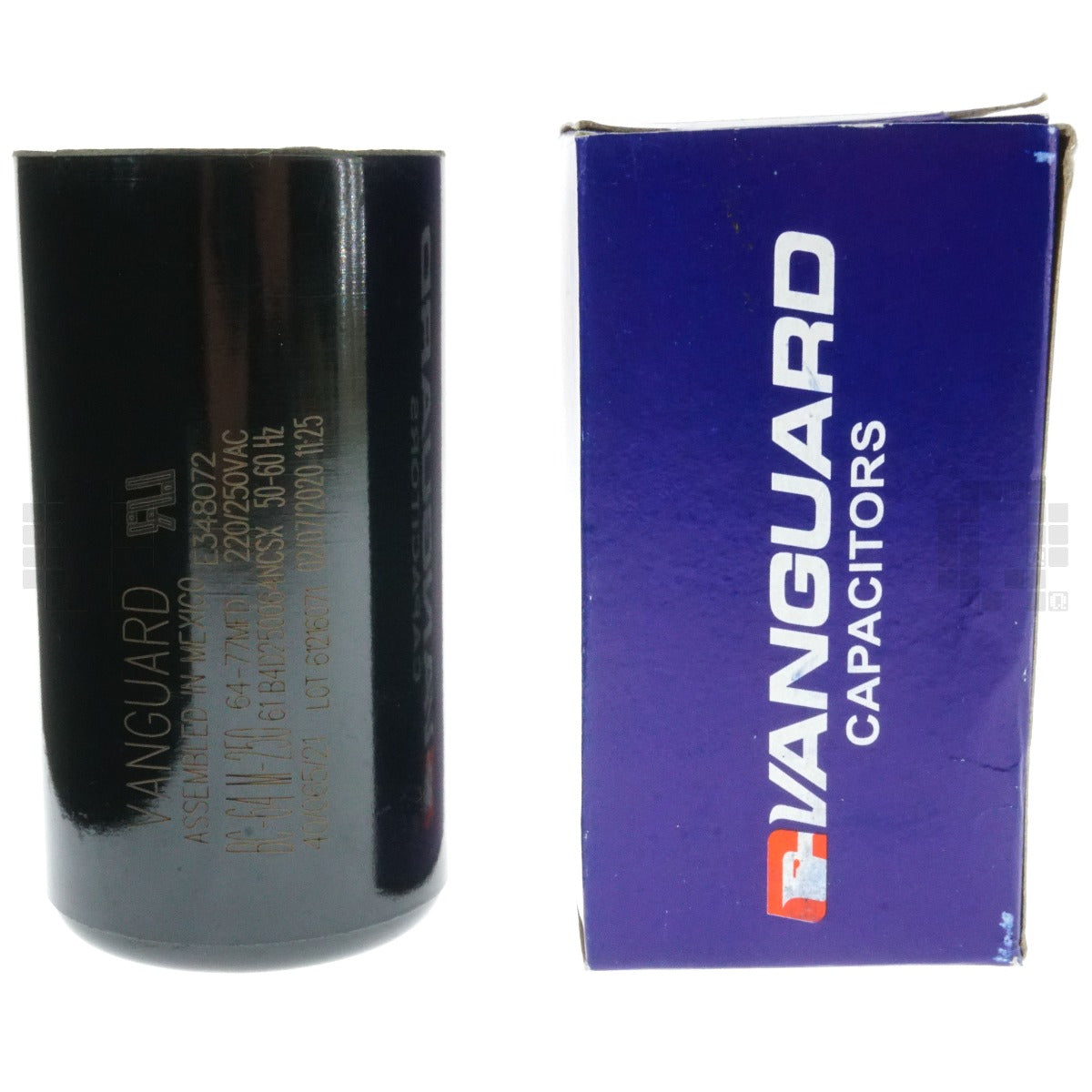

Package Label Vanguard Capacitors
BC-64M-250
64 - 77 uF
220-250VAC
Notes
Location

Dimensions & Weights :

Product Color Black
Product Shape Cylinder
Product Dimensions 1.812" Diameter
3.38" Height
Product Weight 5 oz
Package Dimensions (LxWxH) 1.85" x 1.85" x 3.50"
Package Weight 6 oz
