Brand Vanguard
manufactured by NGM
Manufacturer Part Number BC-75
61B1D120072EC
61B1D120072ECSX
Cross Reference (Fit/Form/Function)
Capacitance 72 - 88 uF
Working Voltage 110/125 VAC
Frequency 50/60 Hz
Power Factor 10% Max
after applying working voltage for 4 seconds
Working Temperature Range -40°C to +65°C
-40°F to +149°F
Type Start Capacitor
Aluminum Electrolytic, Non-Polarized

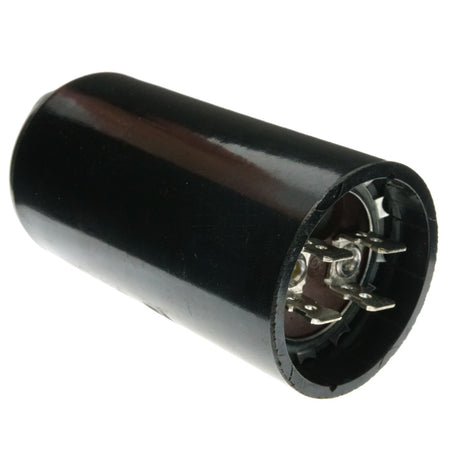

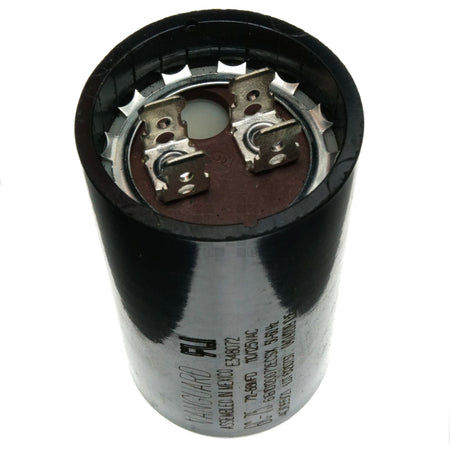

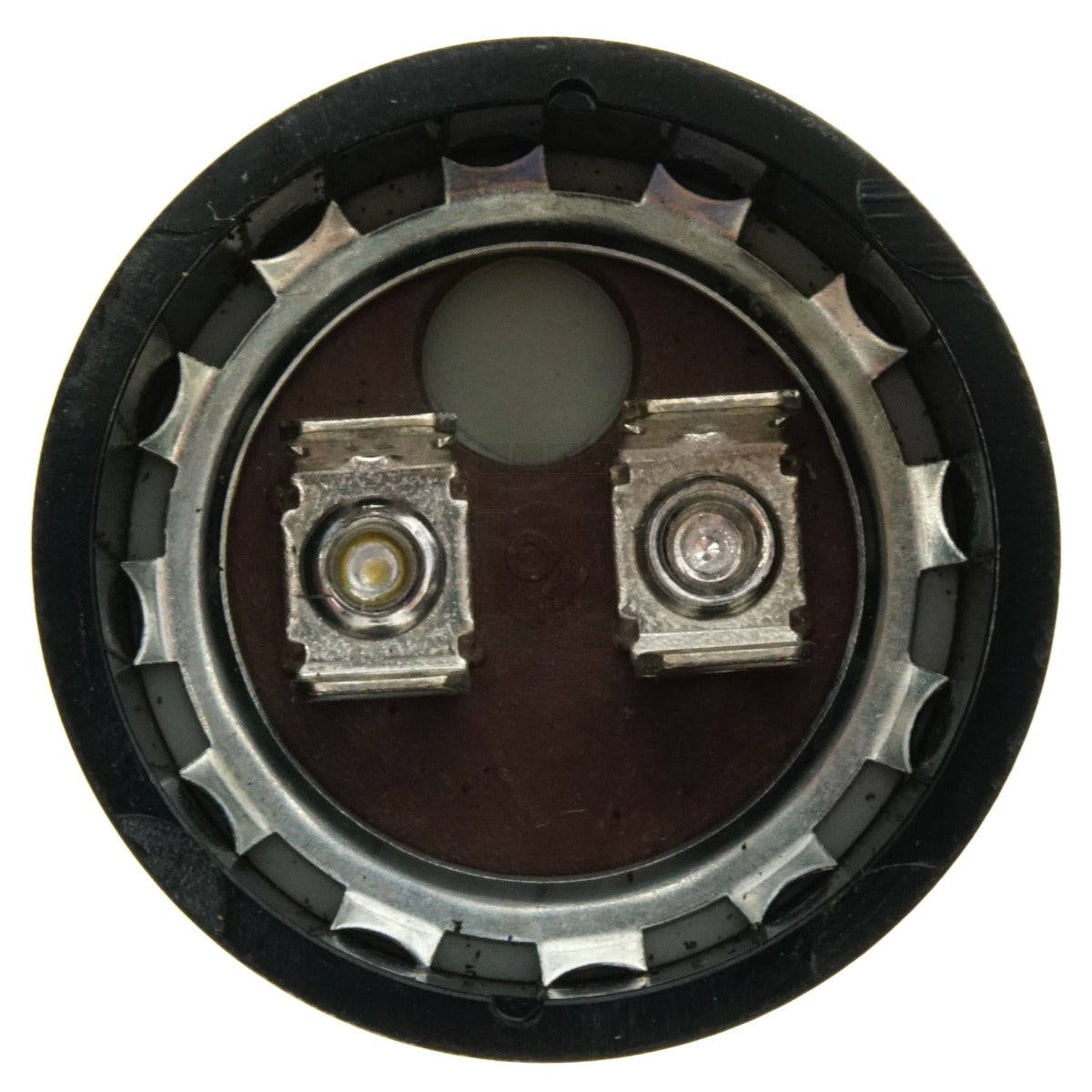

Connection 2 Posts
Two 1/4” male spade terminals on each post
Resistor None
Construction Phenolic Case
Certifications/Approvals UL Approved
Performance Specifications Type 2
Case Code 1
Distance Between Terminals 0.500"
UPC None
Product Origin (COO) Mexico

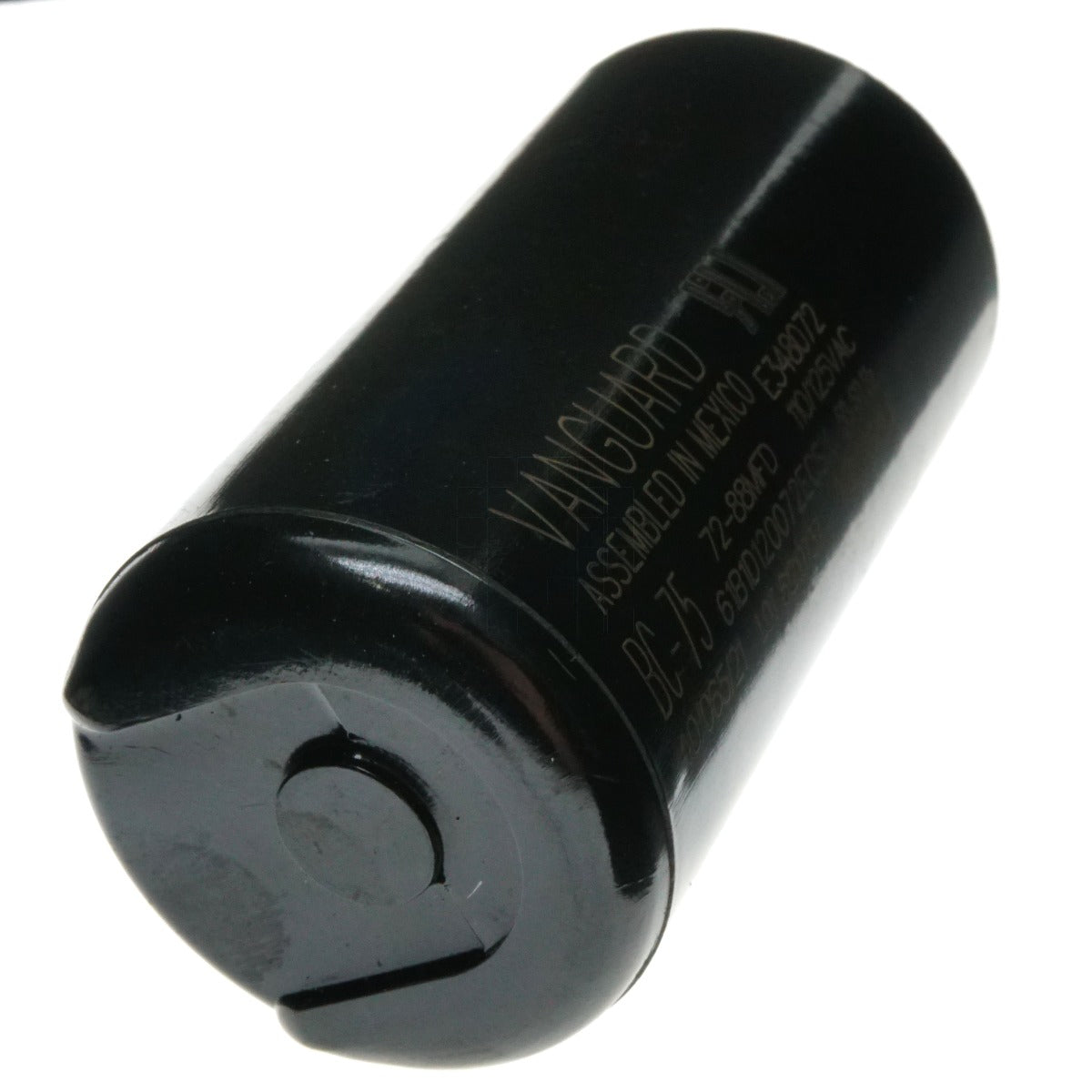

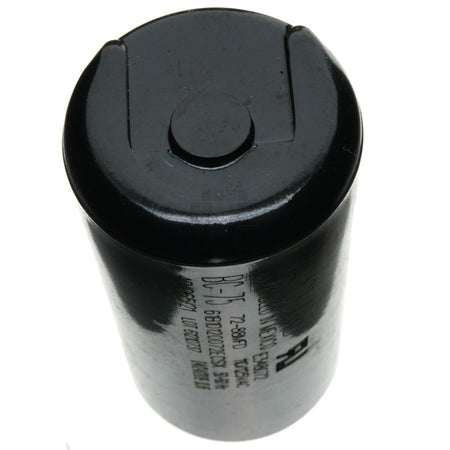

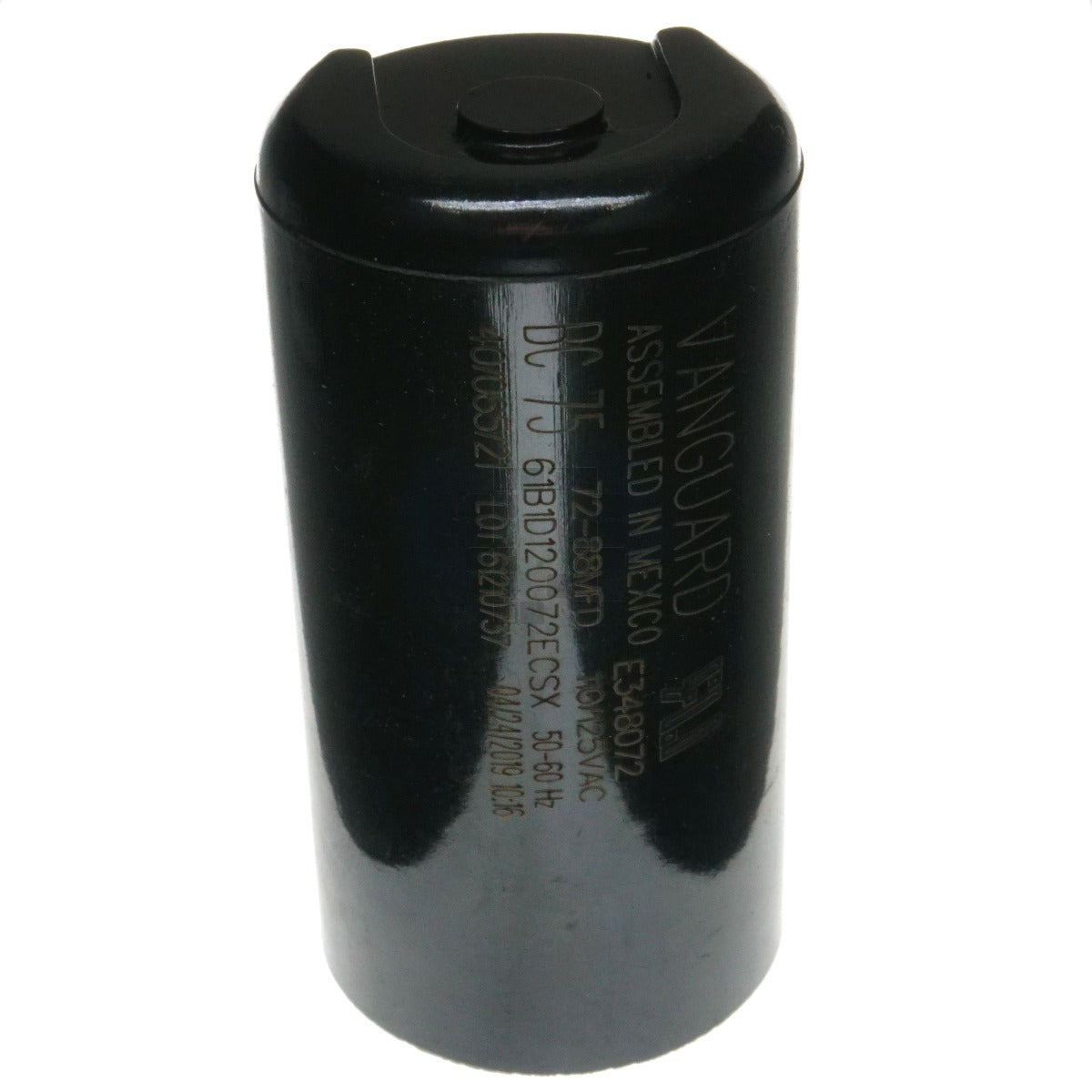

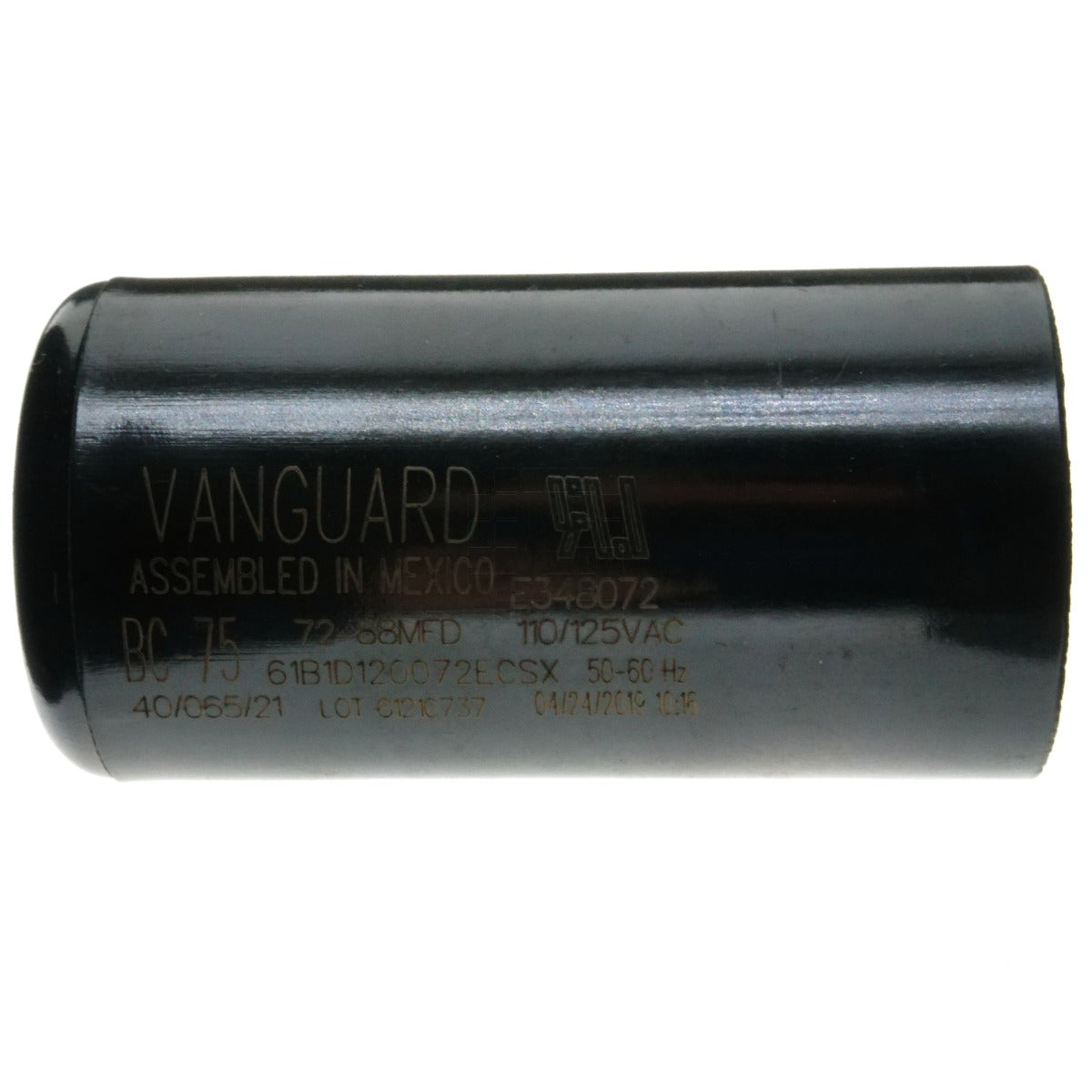

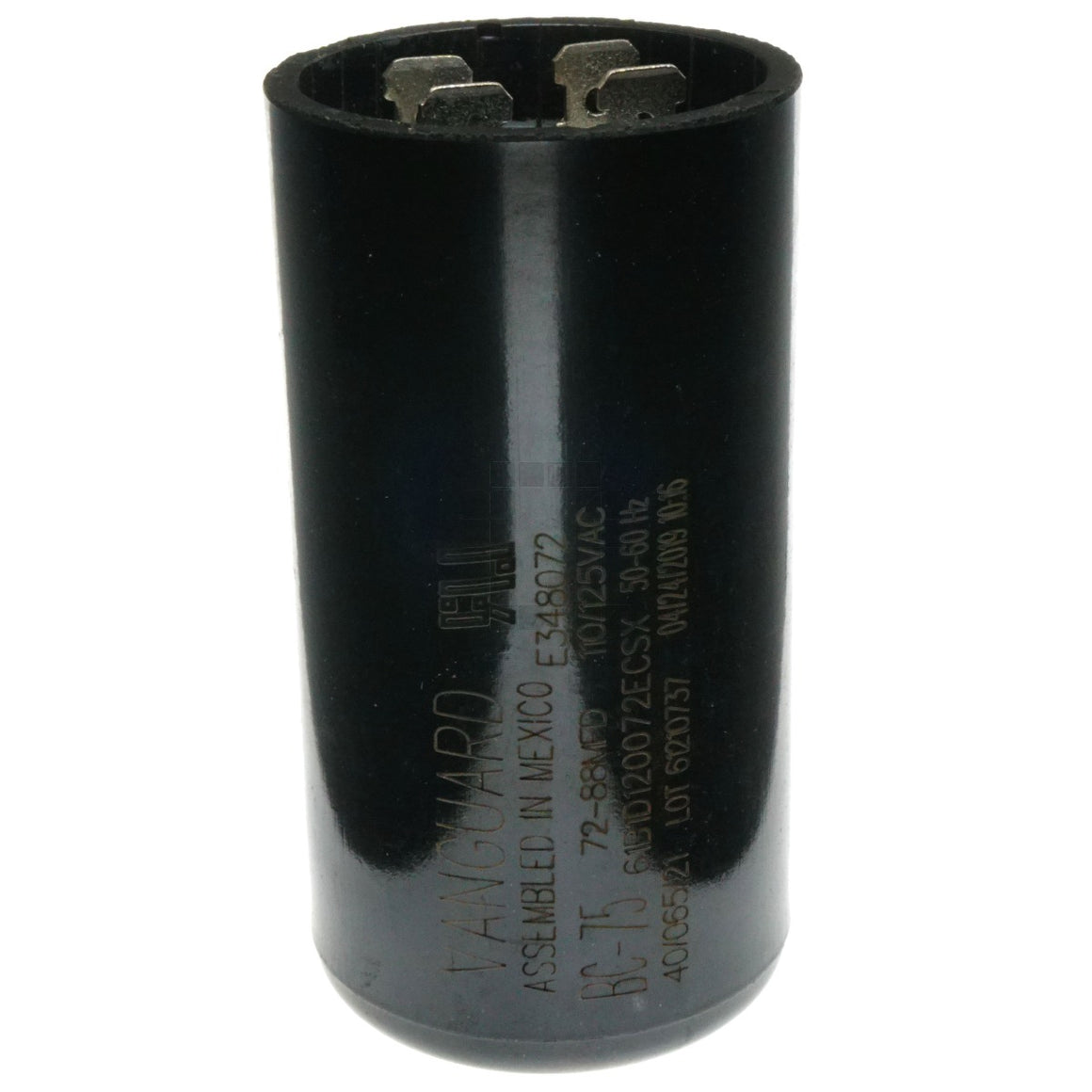

Product Label Vanguard
Assembled in Mexico
BC-75 72-88 MFD 110/125VAC
61B1D120072ECSX 50-60Hz

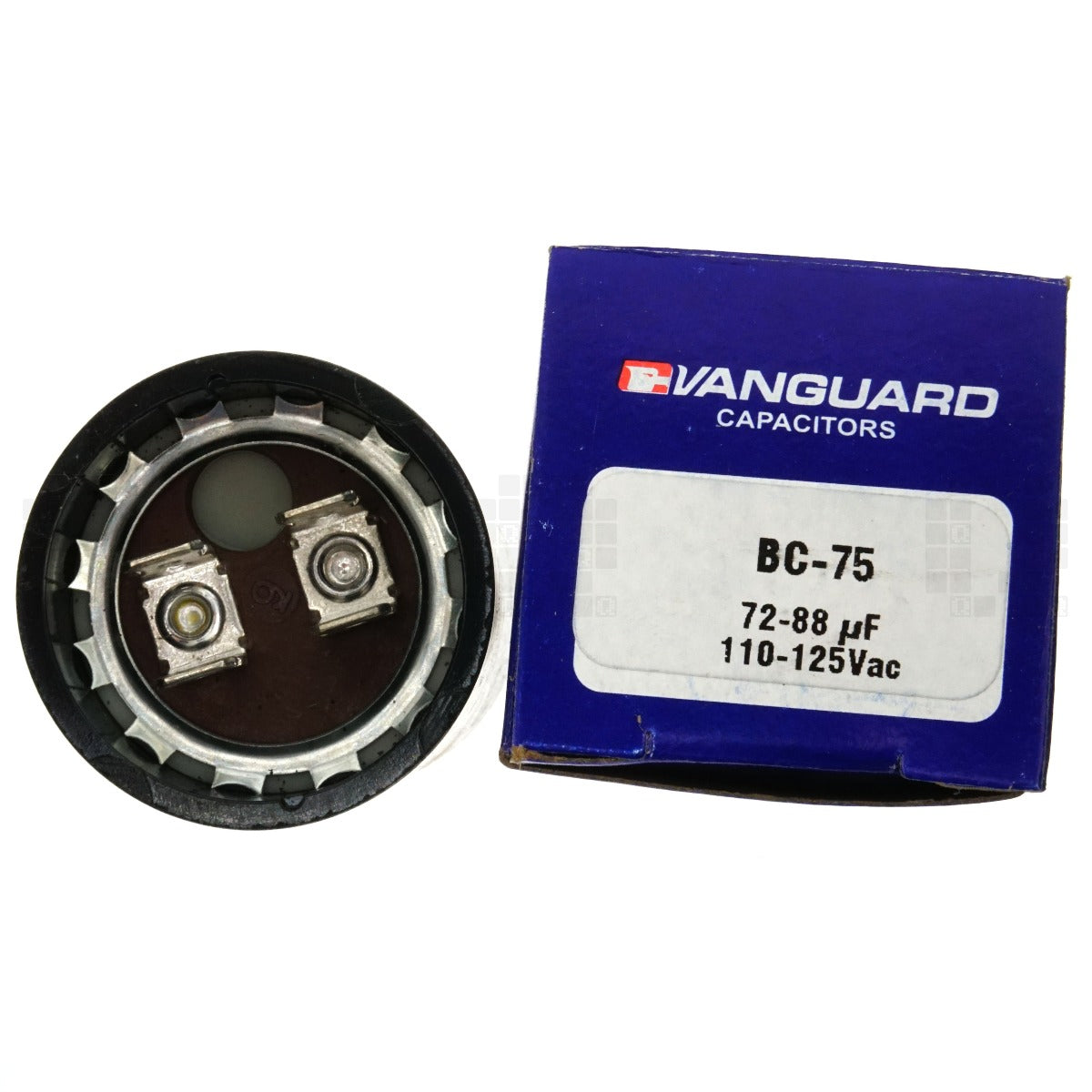

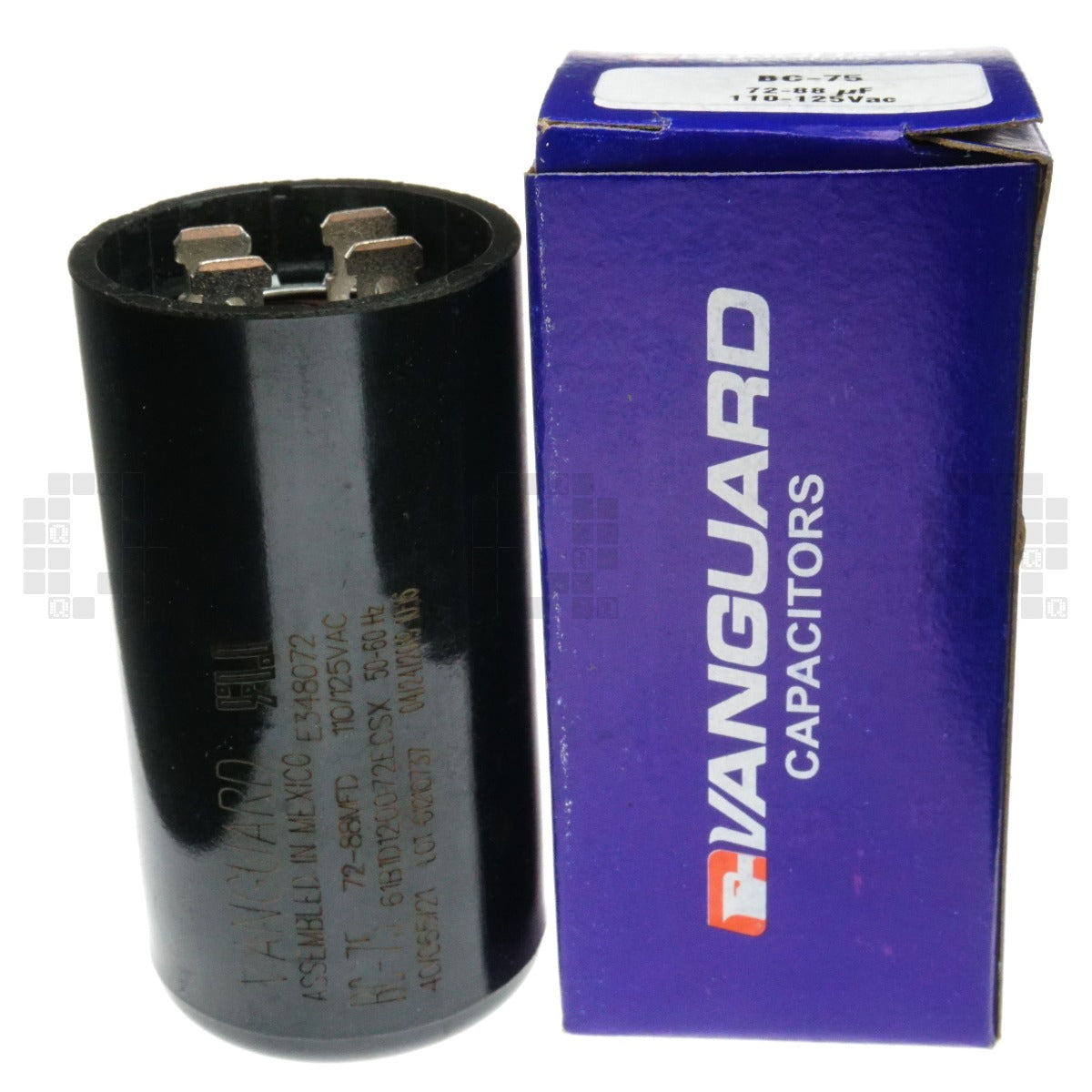

Package Label Vanguard Capacitors
BC-75
72-88 uF
110-125VAC
Notes
Location
Product Color Black
Product Shape Cylinder

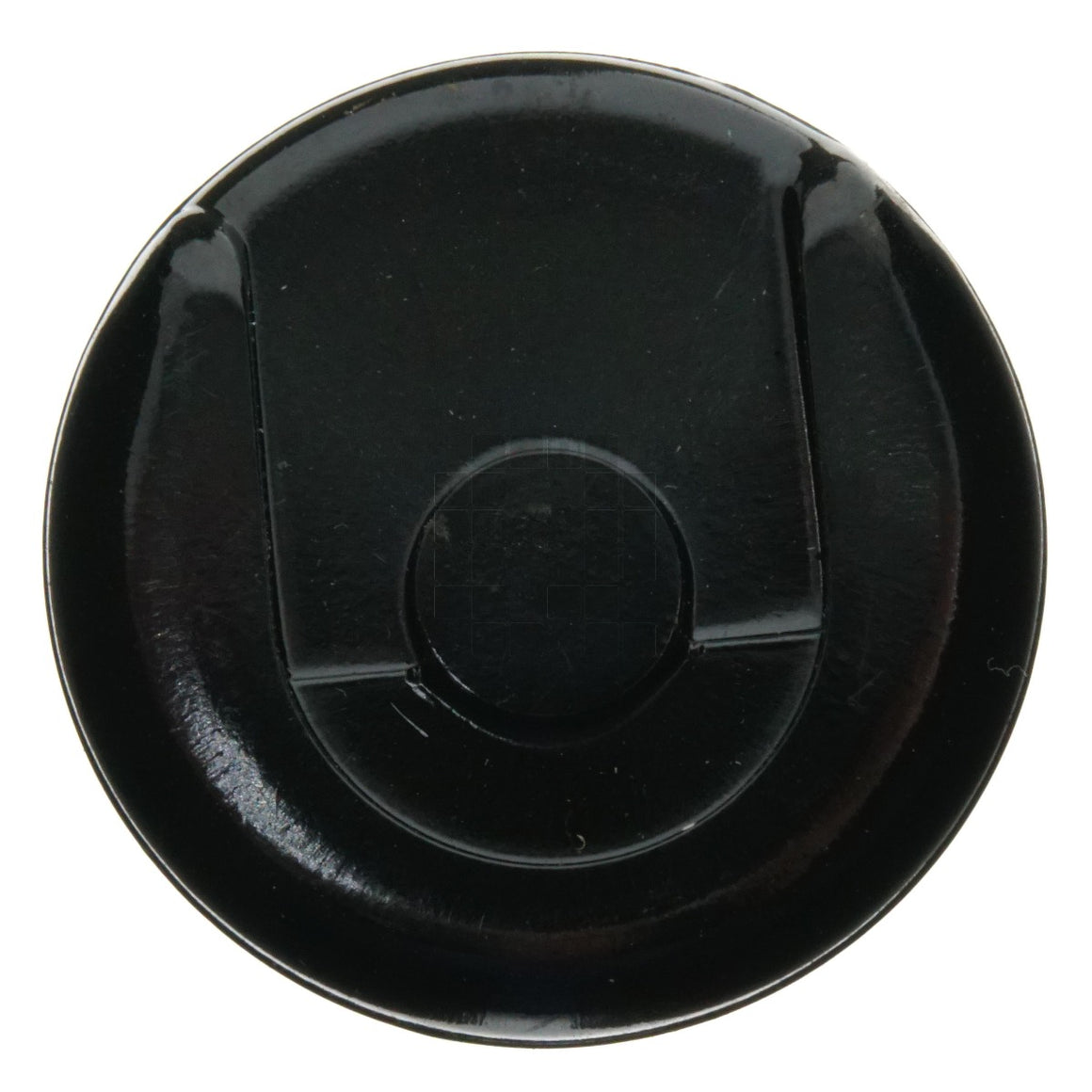

Product Dimensions 1.437" Diameter
2.75" Height
Product Weight 3 oz
Package Dimensions (LxWxH) 1.53" x 1.53" x 3.13"
Package Weight 4 oz
