Brand Vanguard
Manufacturer Part Number BC-88M-250
61B4D250088NCSX
Cross Reference (Fit/Form/Function)
Capacitance 88 - 106 uF
Working Voltage 220 - 250 VAC
Frequency 50/60 Hz
Working Temperature Range -40°C to +65°C
-40°F to +149°F
Type Start Capacitor

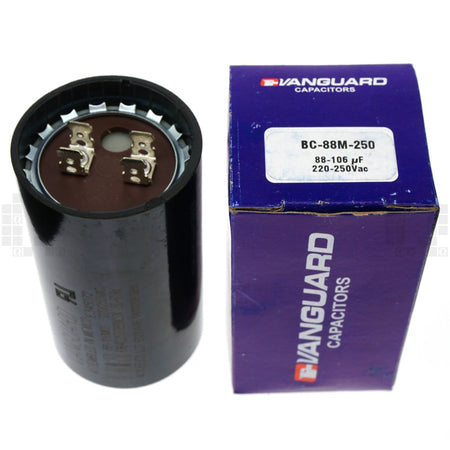

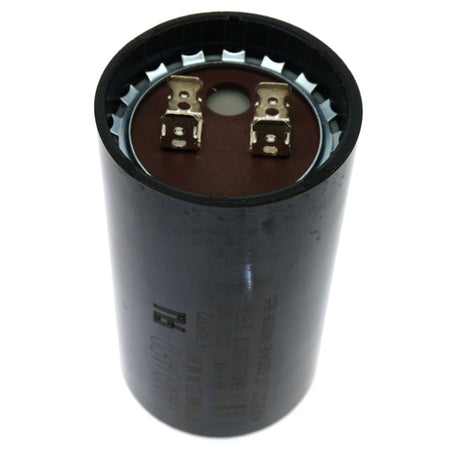

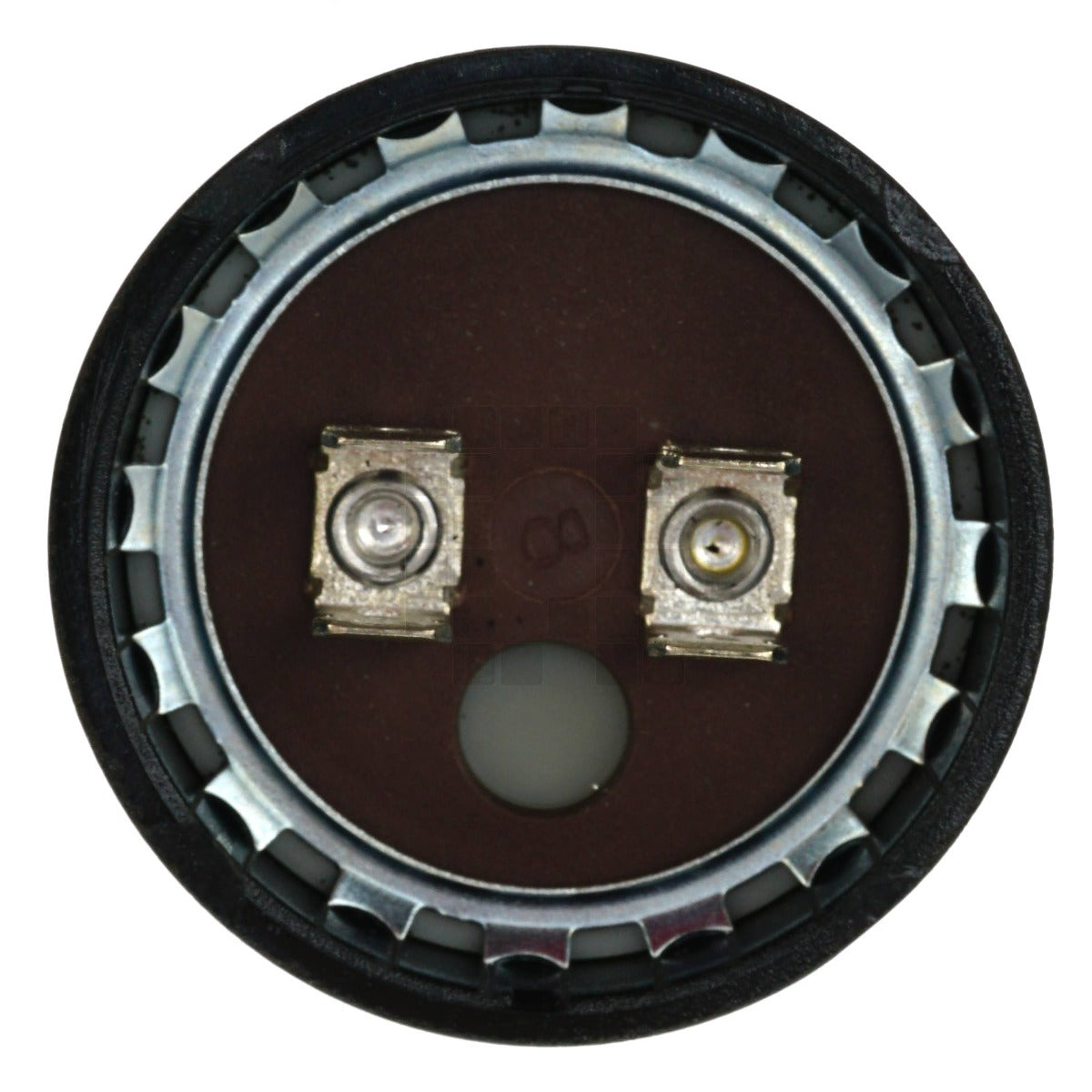

Connection 2 Posts
Two 1/4” male spade terminals on each post
Resistor None
Construction Phenolic Plastic Case
Certifications/Approvals UL Approved
Performance Specifications
Case Code
Distance Between Terminals 0.625"
UPC None
Product Origin (COO) Mexico

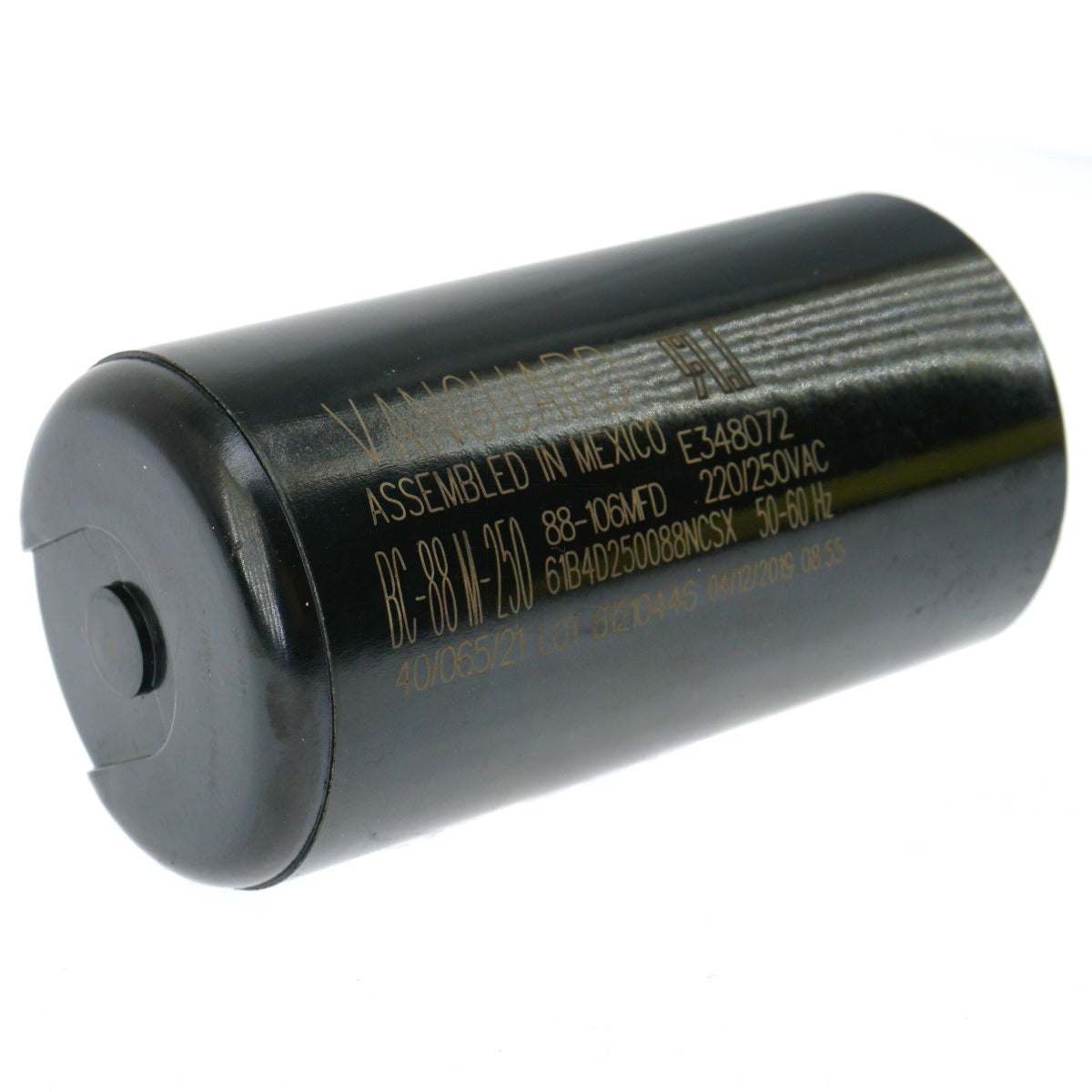

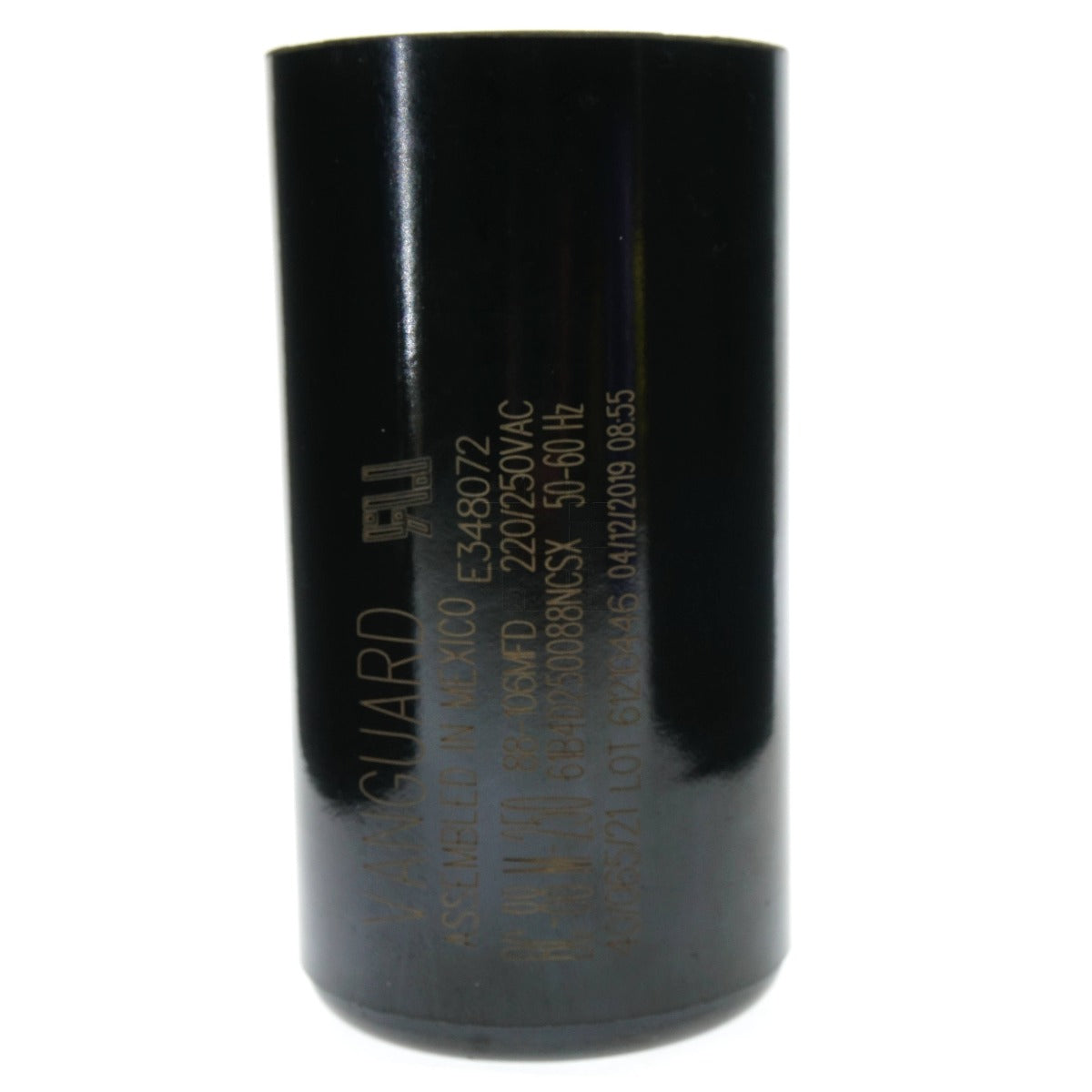

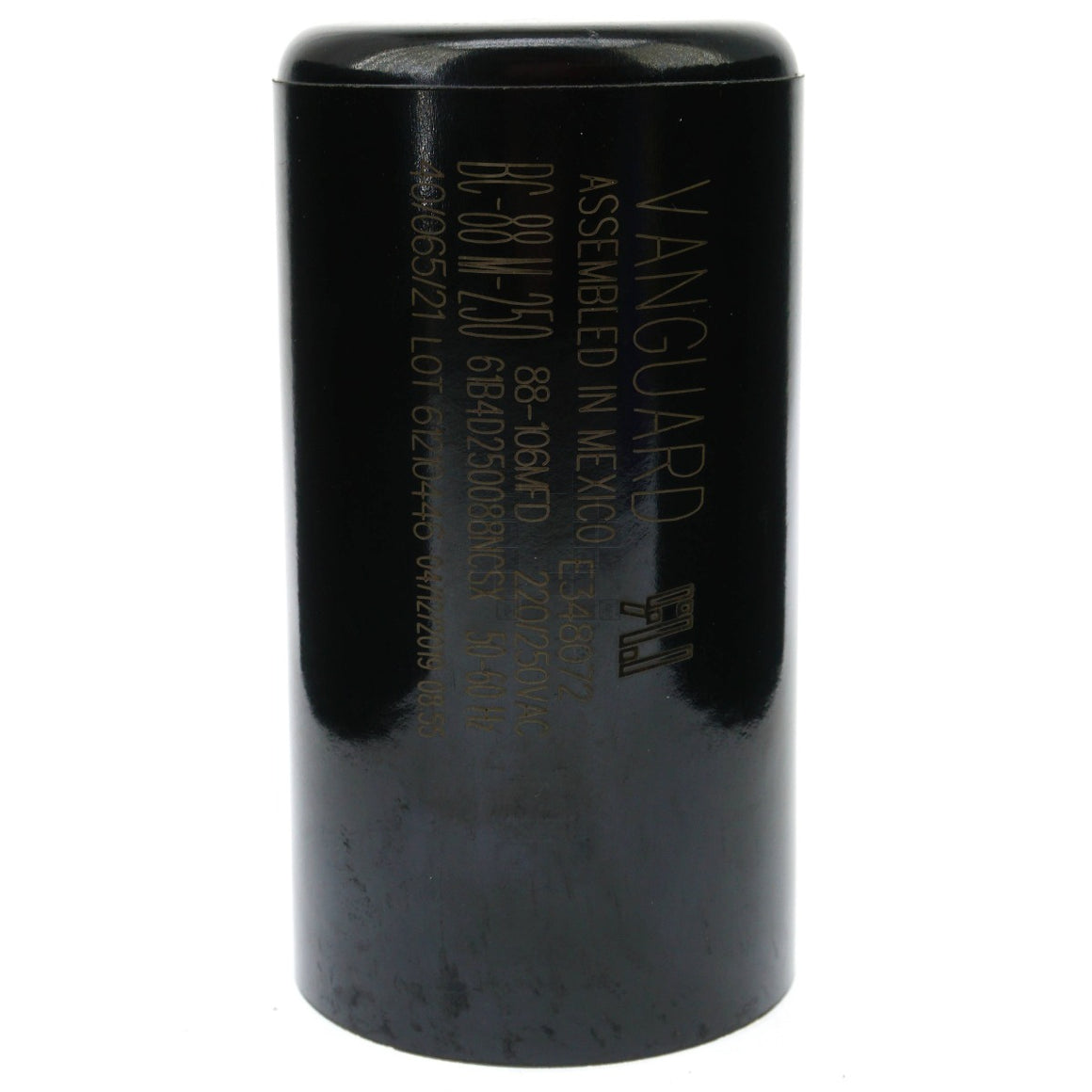

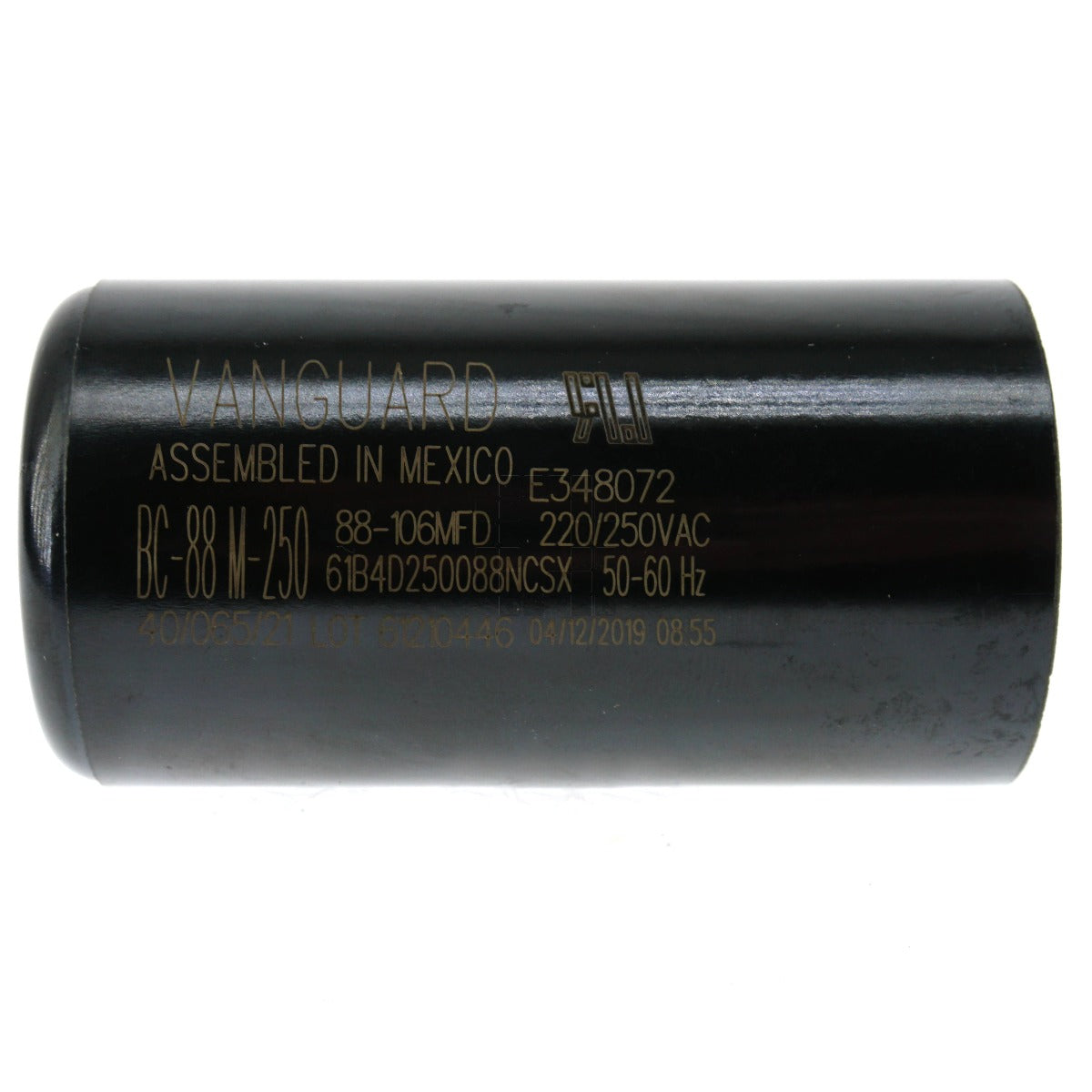

Product Label Vanguard
Assembled in Mexico
BC-88M-250 88-106MFD 220/250VAC
61B4D250088NCSX 50-60Hz

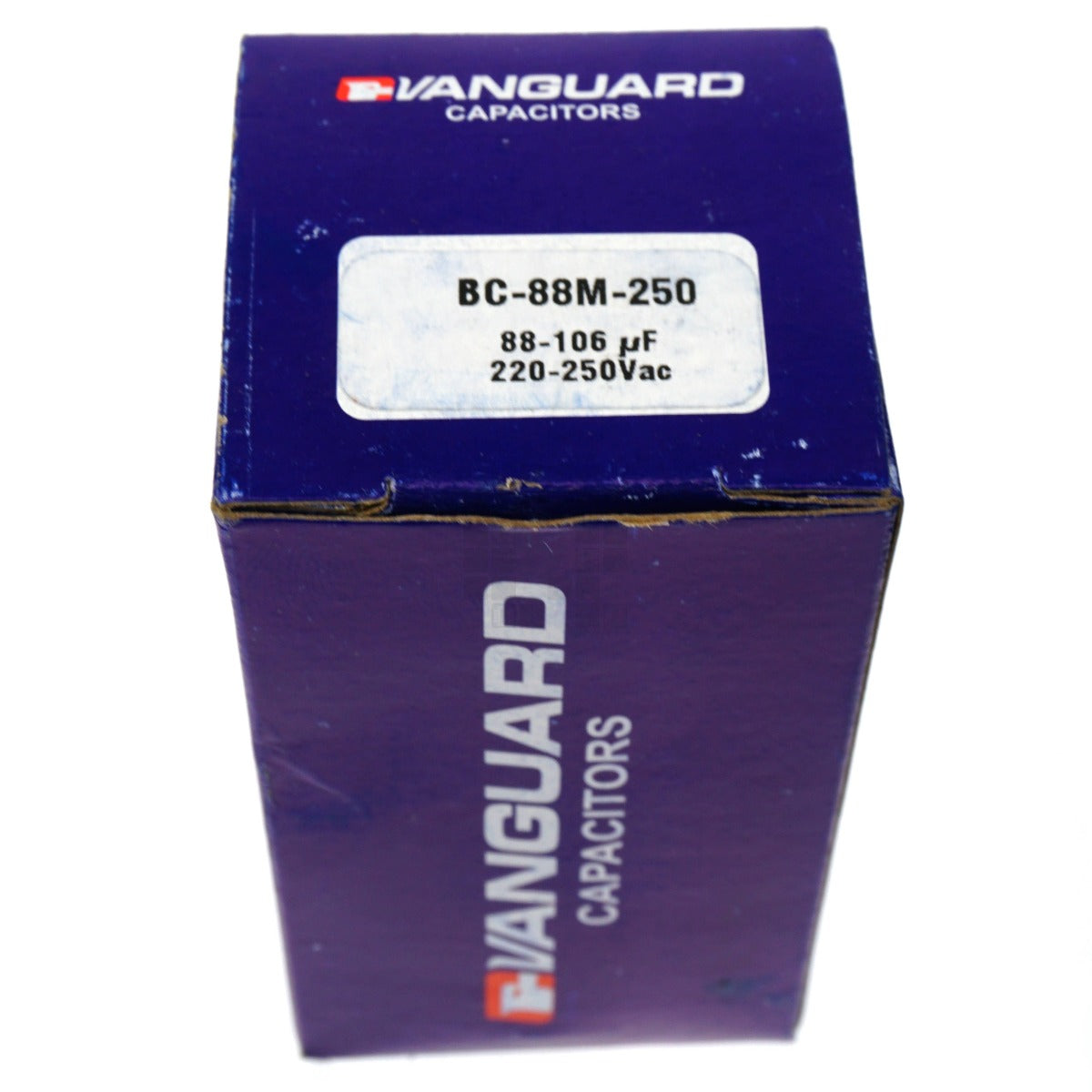

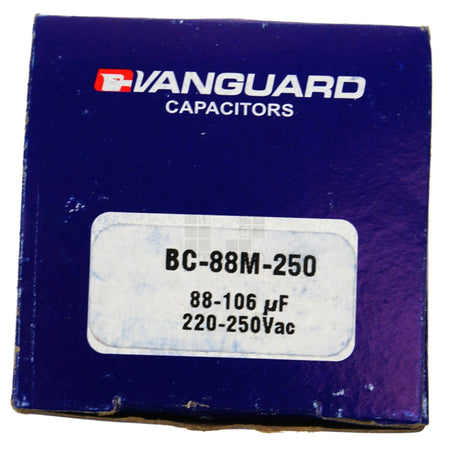

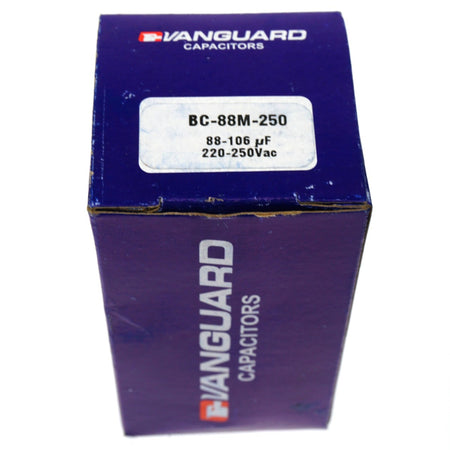

Package Label BC-88M-250
88-106 uF
220-250VAC
Notes
Product Color Black
Product Shape Cylinder
Product Dimensions 1.812" Diameter
3.375" High
Product Weight 5 oz
Package Dimensions (LxWxH) 1.85" x 1.85" x 3.50" Inches
Package Weight 6 oz
