Brand Vanguard
Manufacturer Part Number OV-10-370
325P106H37A23A4ZSX
Cross Reference (Fit/Form/Function)
Capacitance 10.0 uF +/-6%
Working Voltage 370 VAC
Frequency 50/60 Hz
Working Temperature Range +70°C
Type Run Capacitor

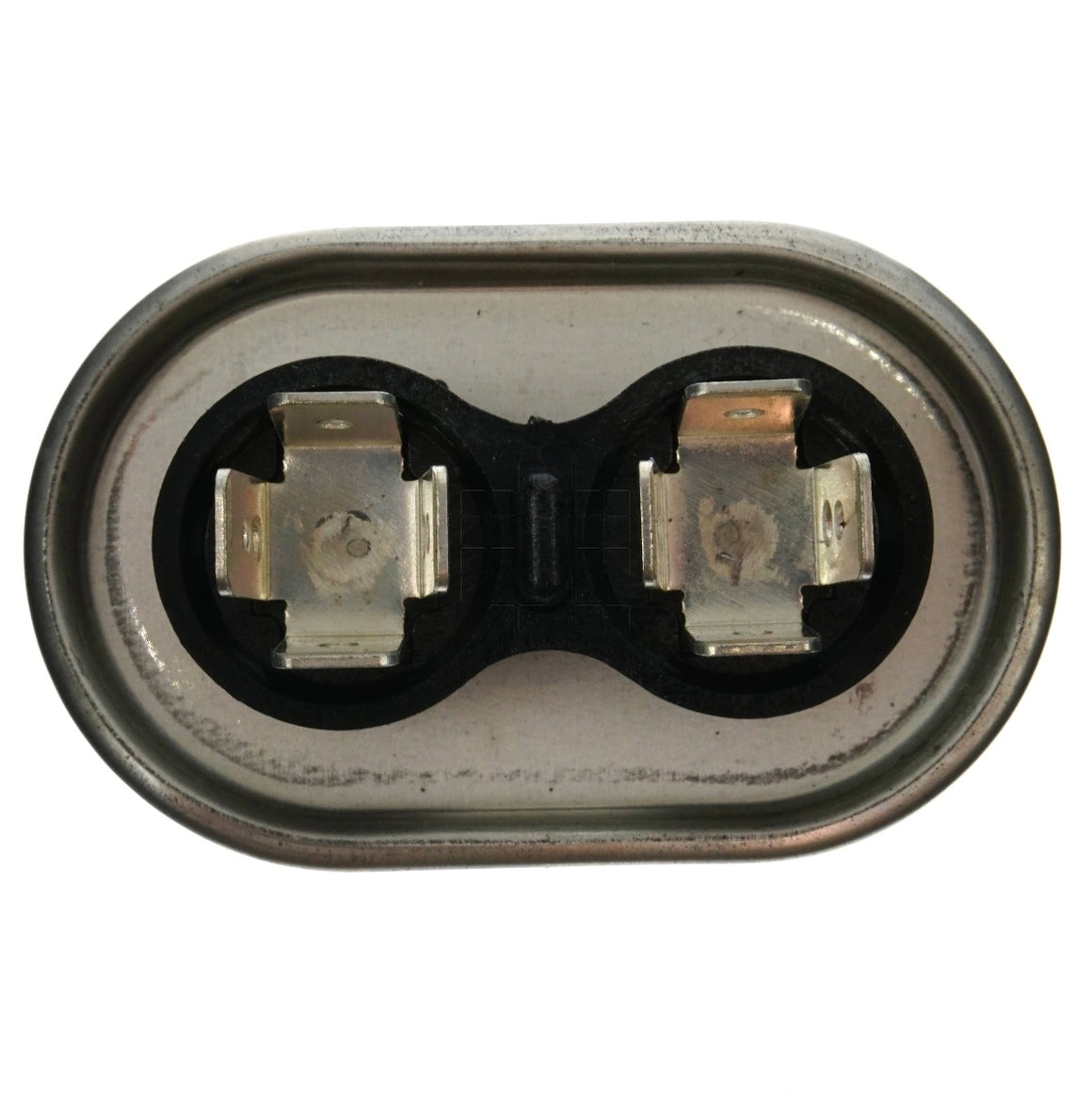

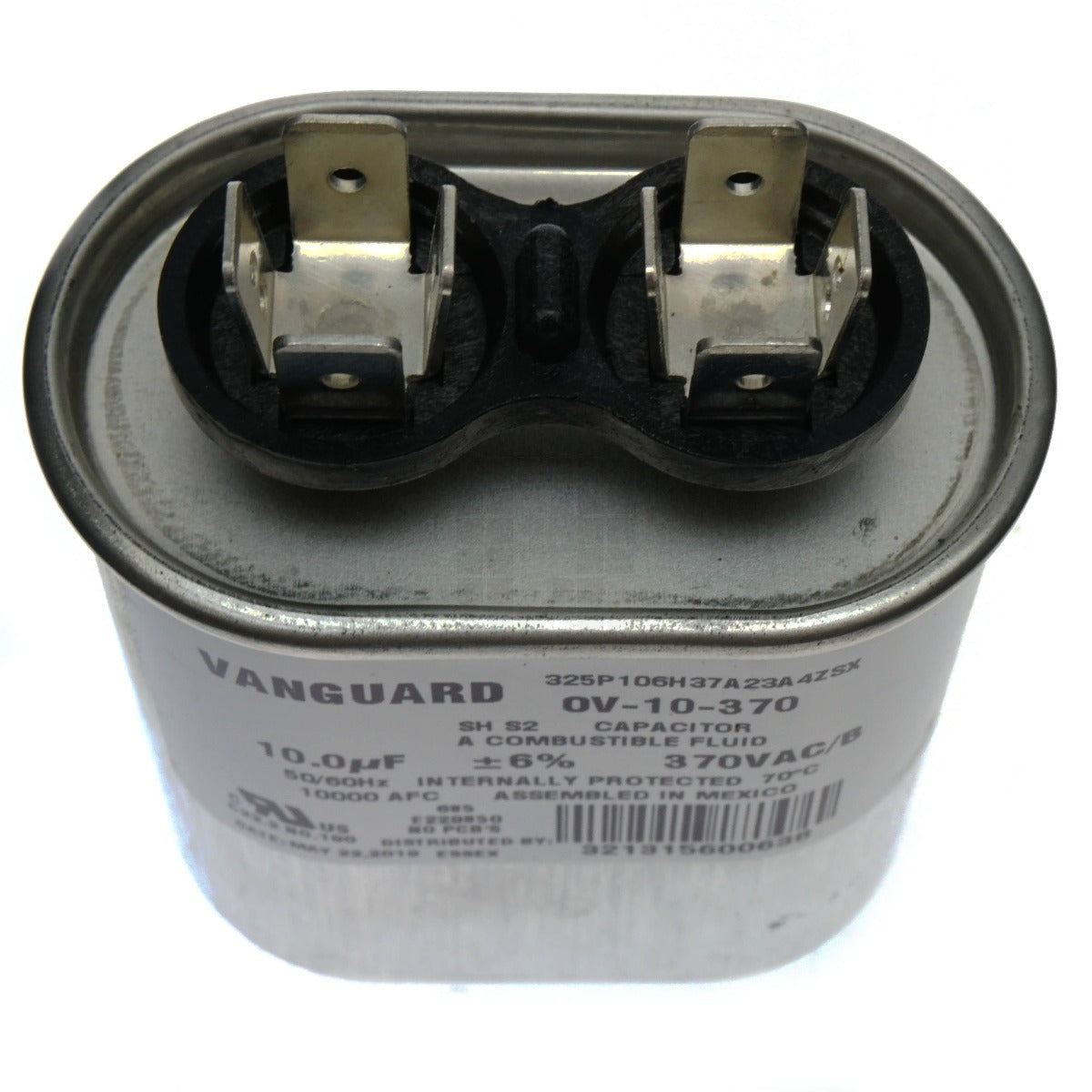

Connection 2 Posts
Four 1/4” male spade terminals on each post
Resistor None

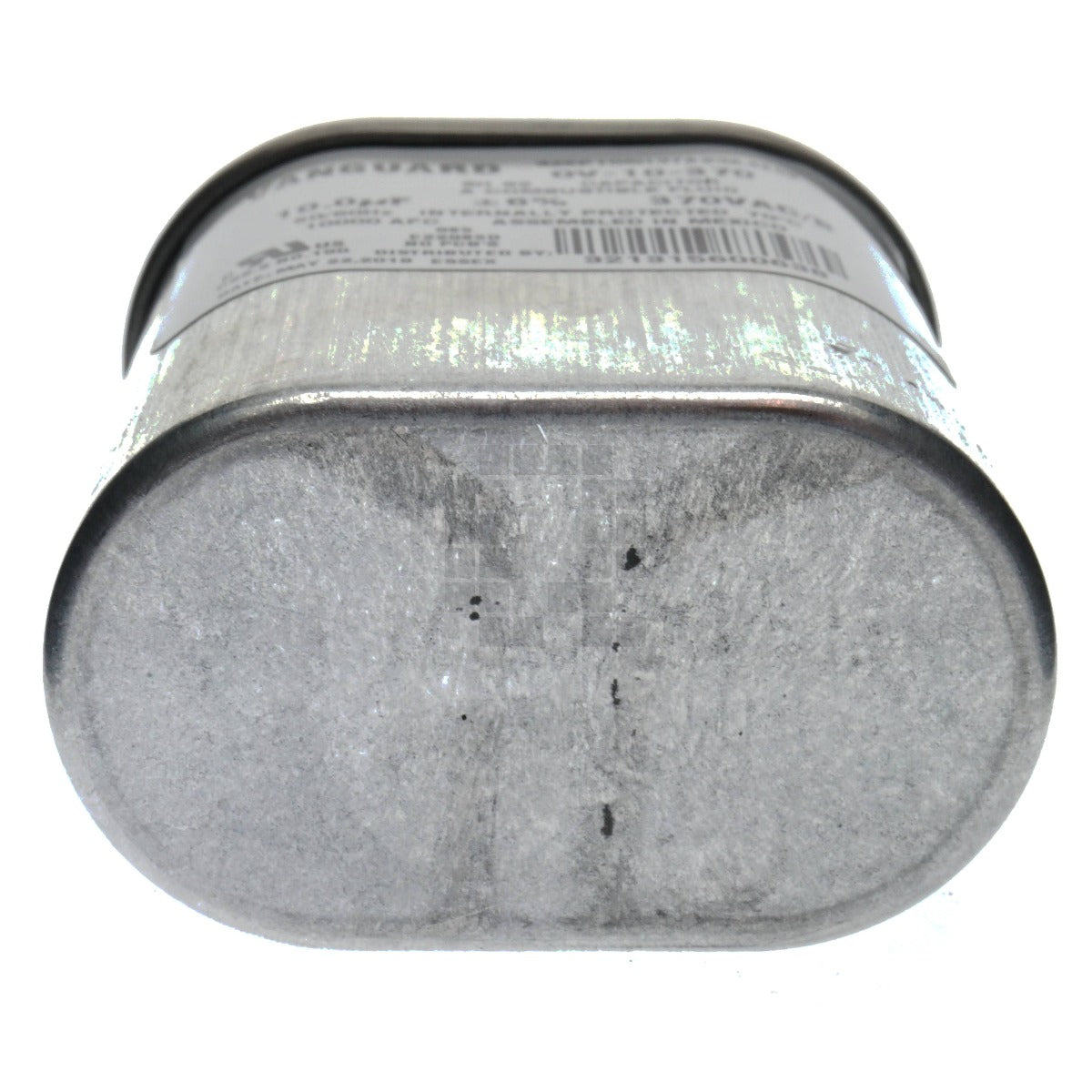

Construction Aluminum Case
Certifications/Approvals UL Approved
Performance Specifications
Case Code
Distance Between Terminals
UPC None
Product Origin (COO) Mexico

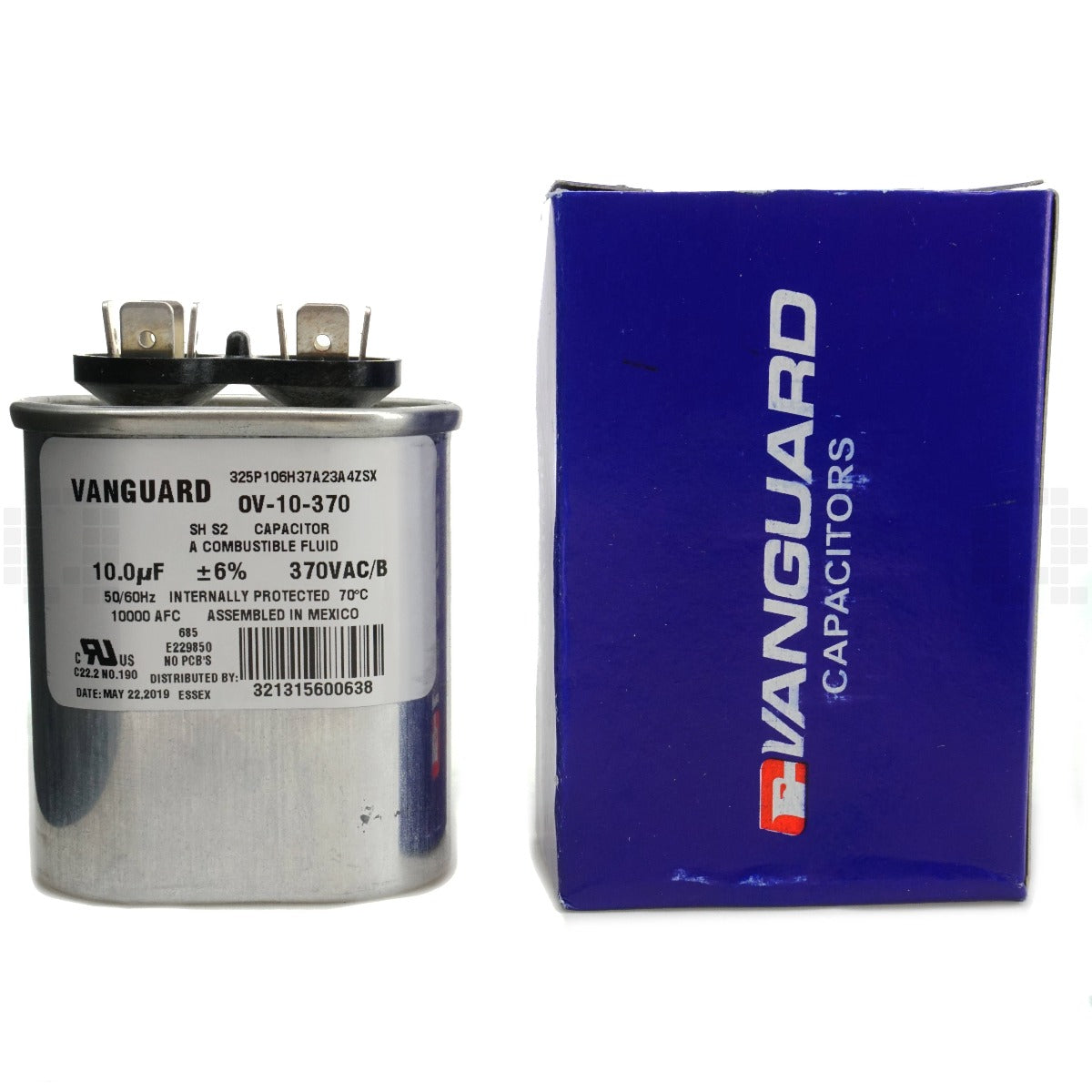

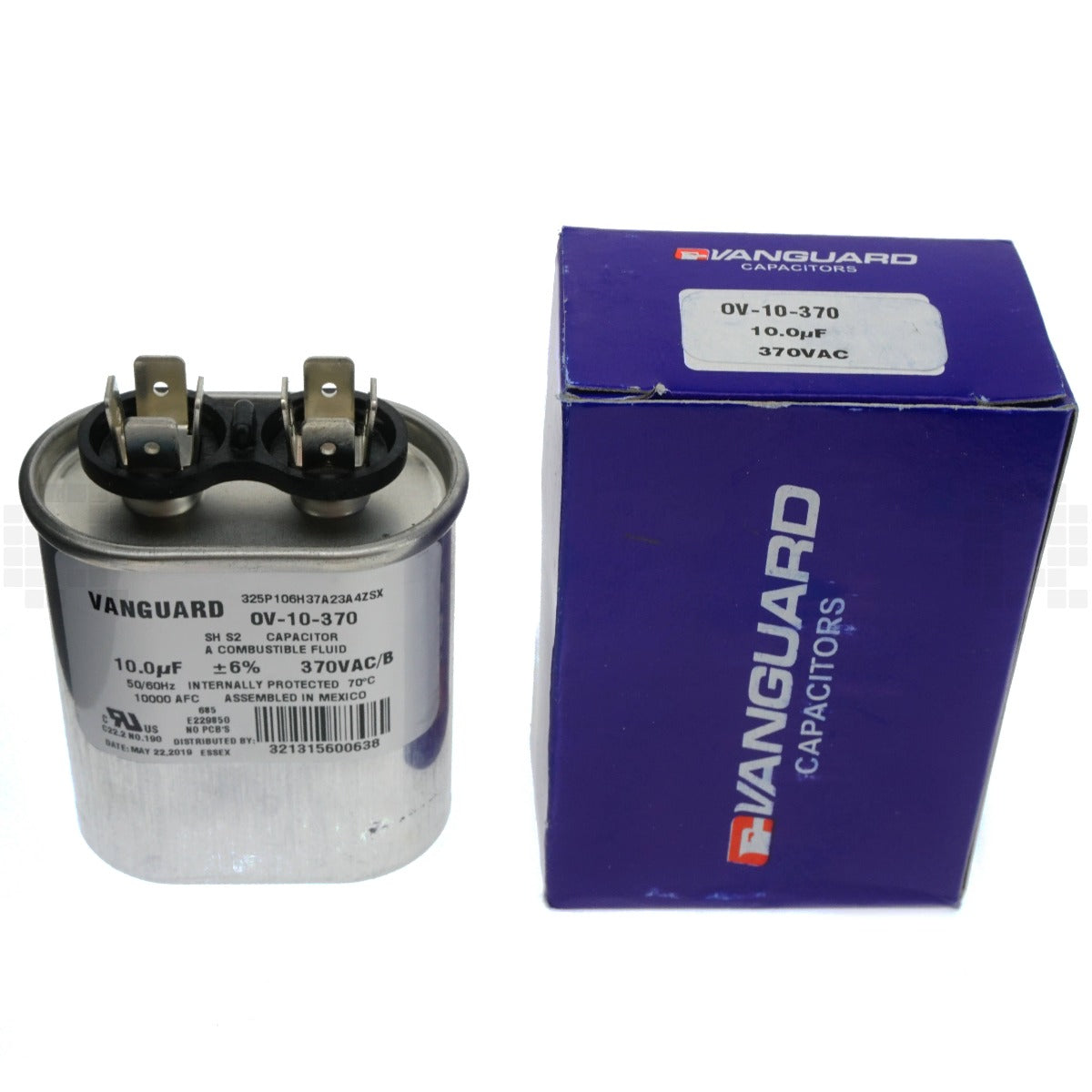

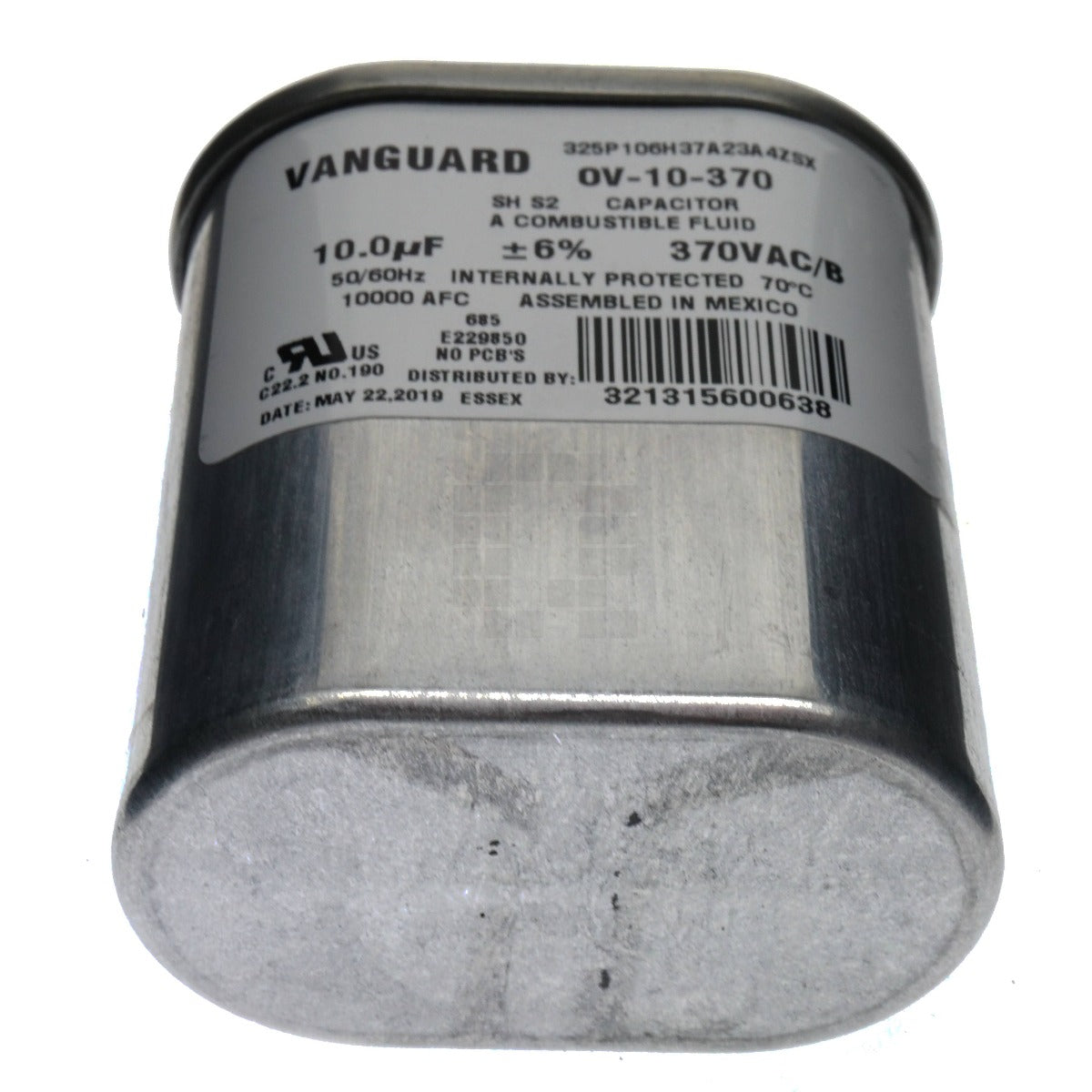

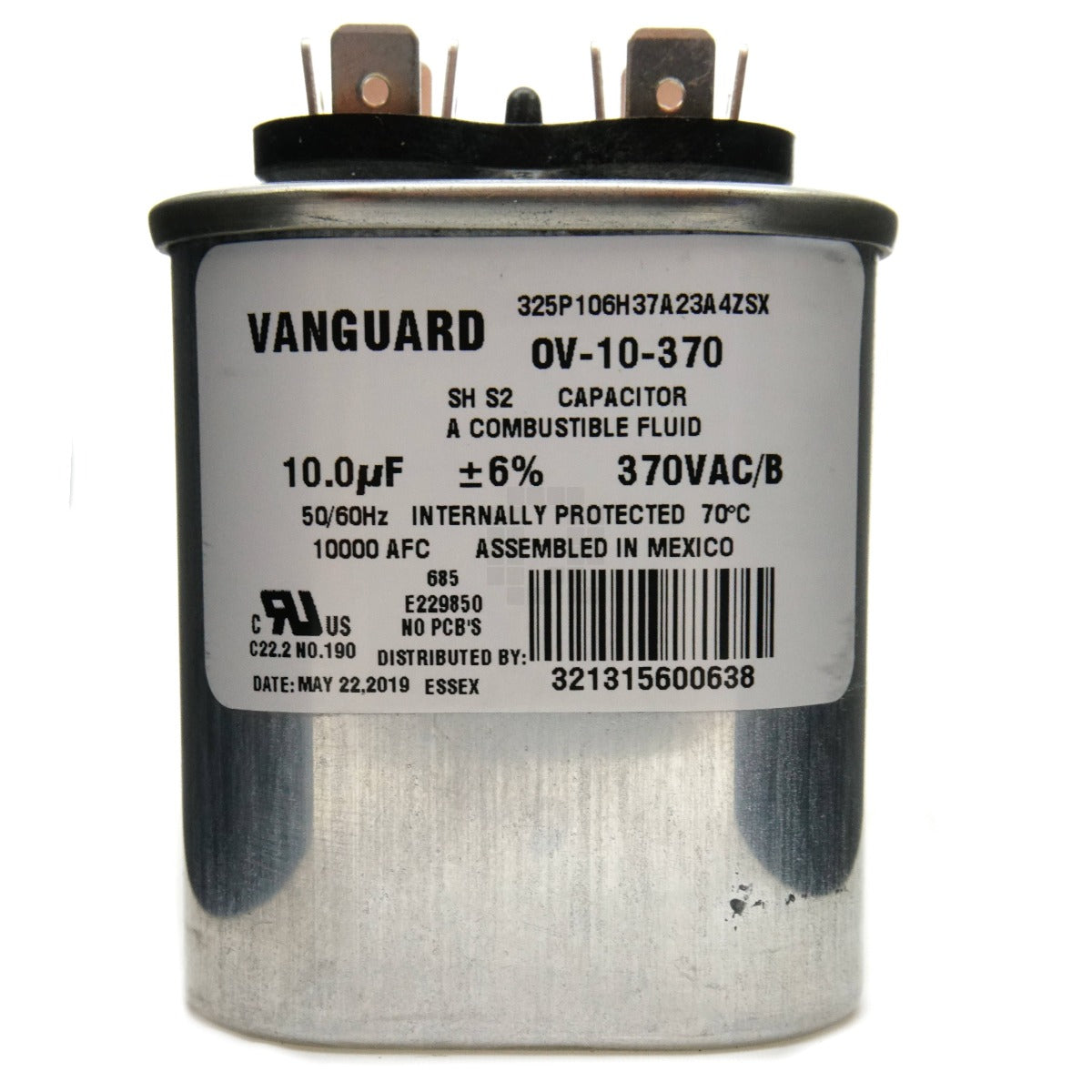

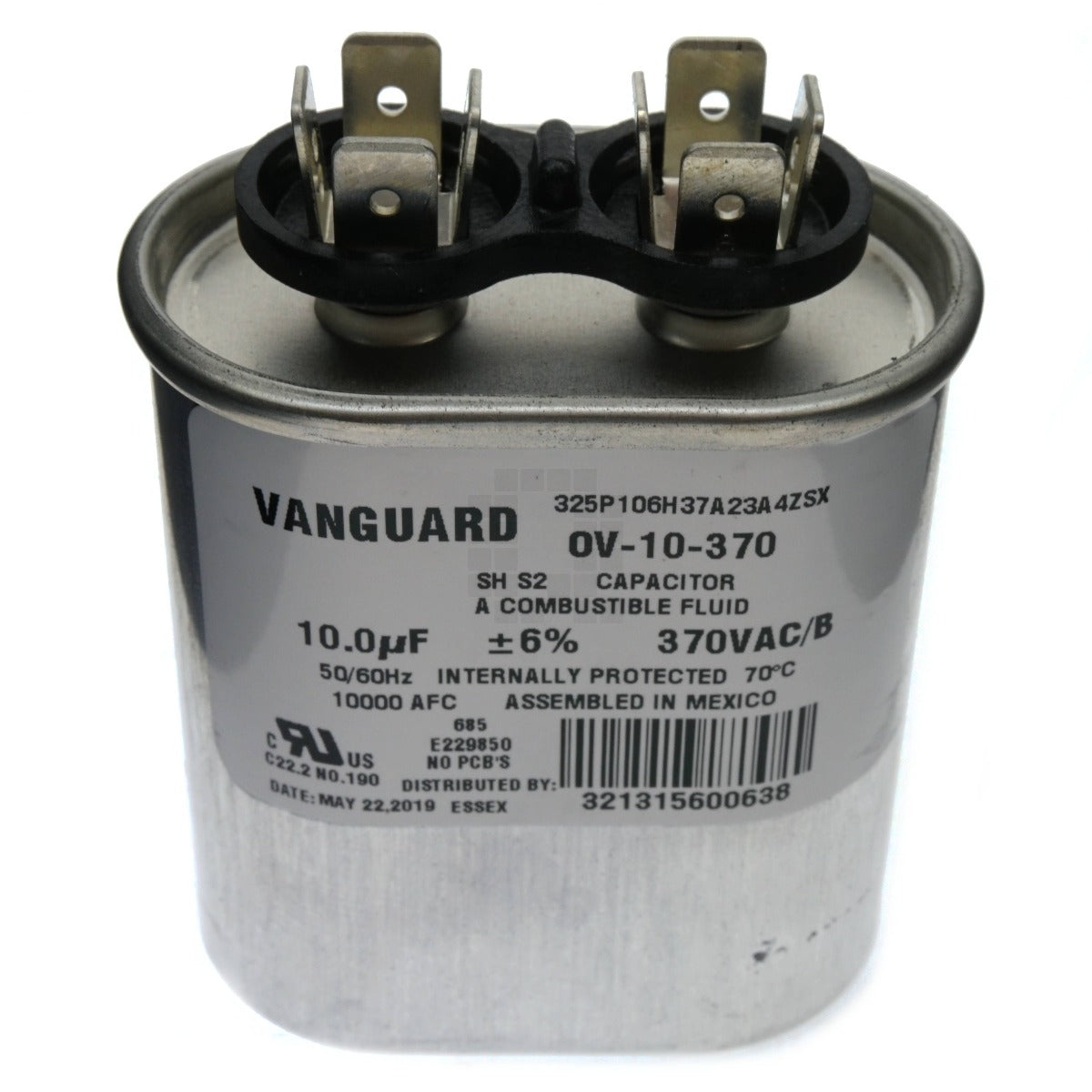

Product Label Vanguard 325P106H37A23A4ZSX
SH S2 Capacitor
A Combustible Fluid
10.0 uF +/-6% 370VAC/B
50/60Hz Internally Protected 70°CV
10000 AFC Assembled in Mexico
No PCBs

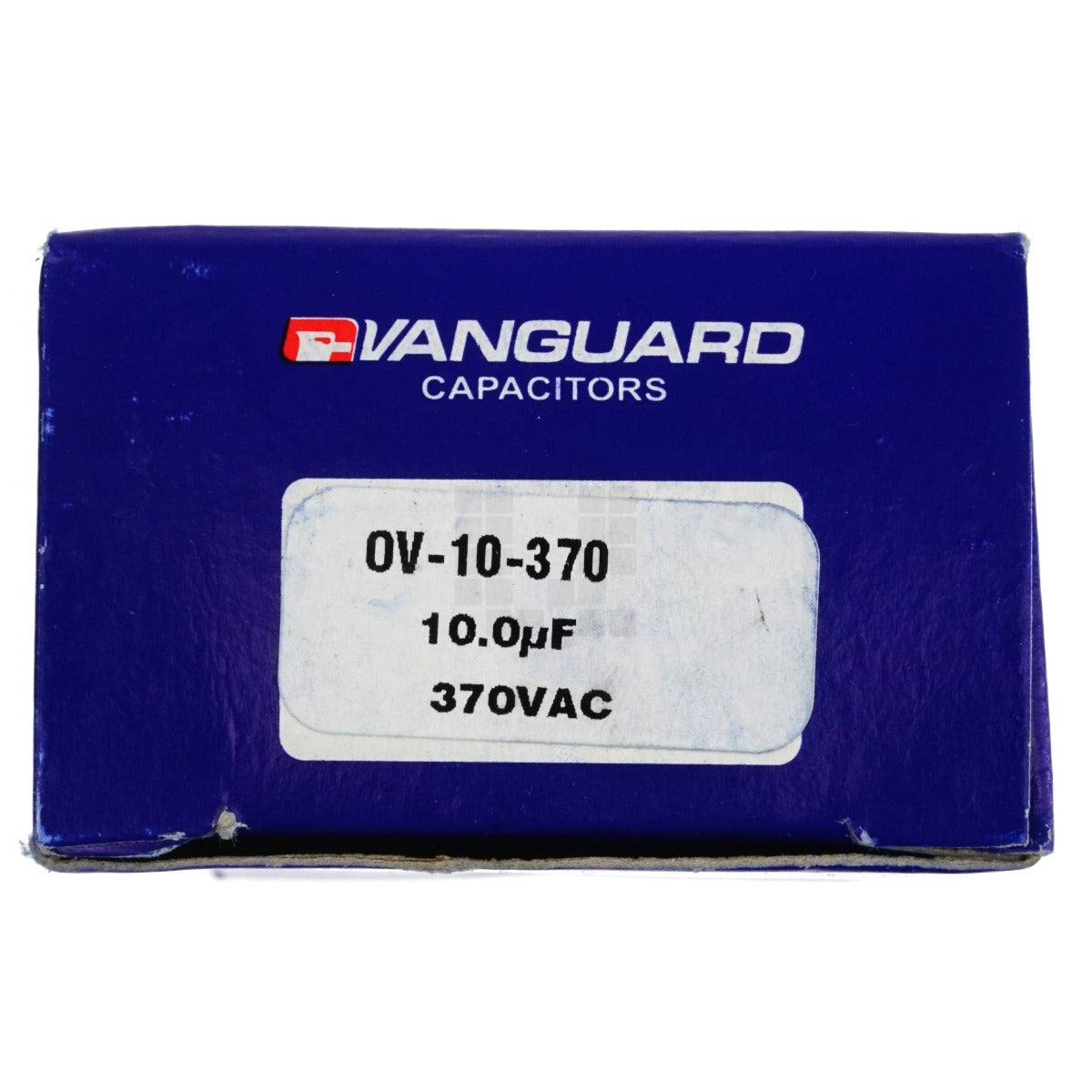

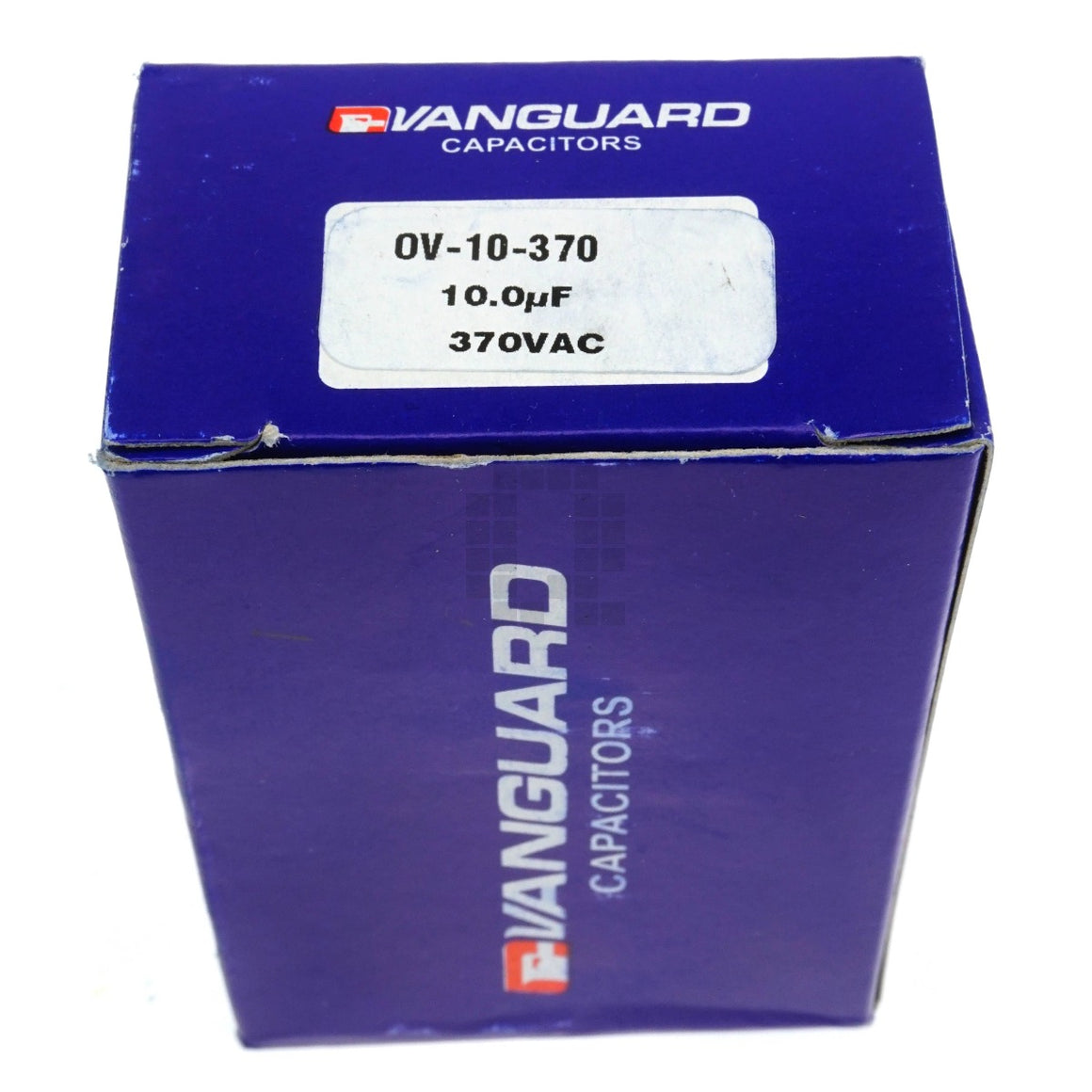

Package Label OV-10-370
10.0uF
370VAC
Notes An occasional dent in the aluminum housing may be present due to shipping and handling. This is a commercial part and cosmetic damage IS NOT considered a valid reason for a return.
Product Color Silver
Product Shape Oval
Product Dimensions 2-5/32" Width
1-5/16" Depth
2-7/8" High
Product Weight 0.25 lbs
Package Dimensions (LxWxH) 1.25" x 1.40" x 3.38"
Package Weight 0.30 lbs
