Brand Vanguard
Manufacturer Part Number OV-15-370
325P156H37A30A4ZSX
Cross Reference (Fit/Form/Function)
Capacitance 15.0 uF +/-6%
Working Voltage 370 VAC
Frequency 50/60 Hz
Working Temperature Range +70°C
Type Run Capacitor

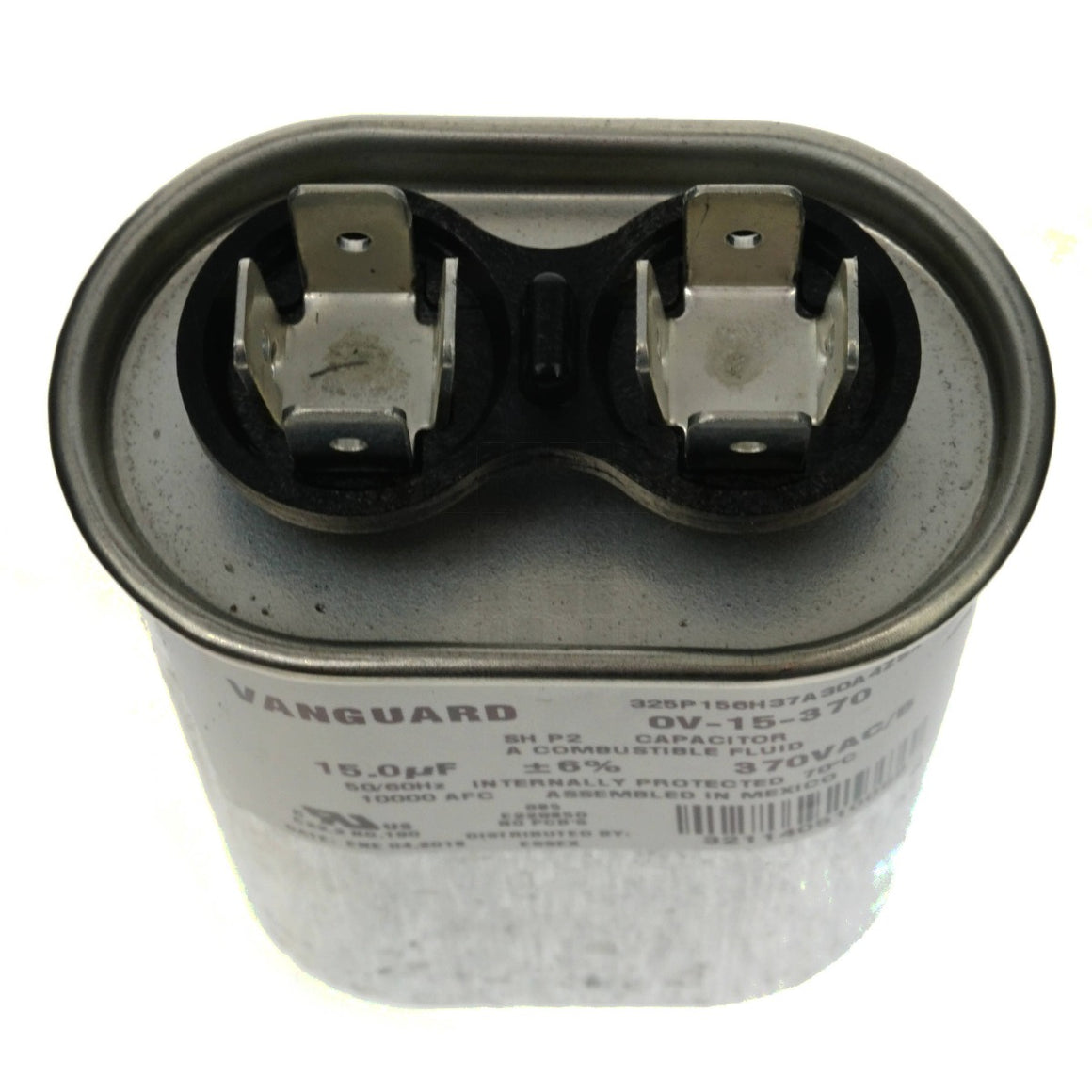

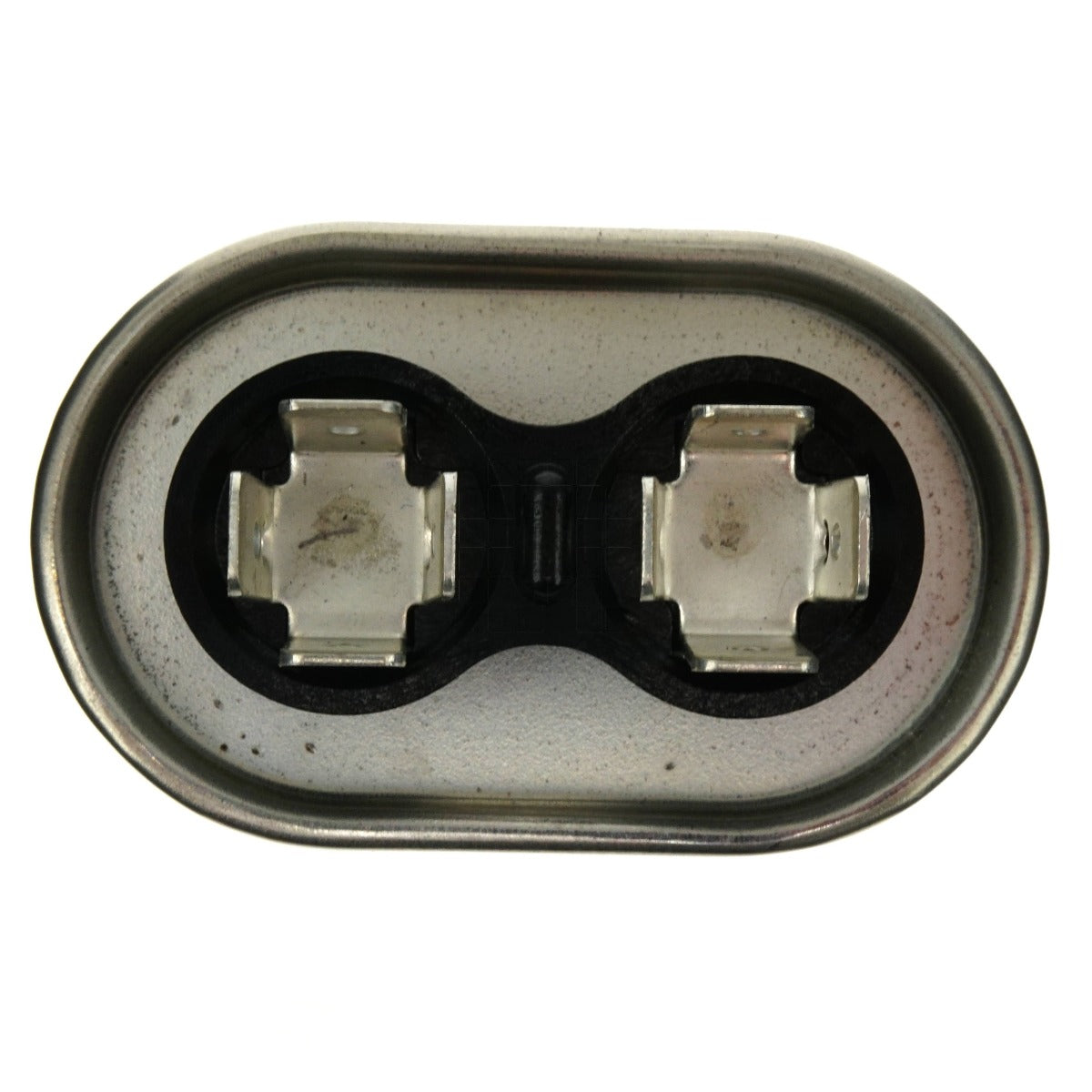

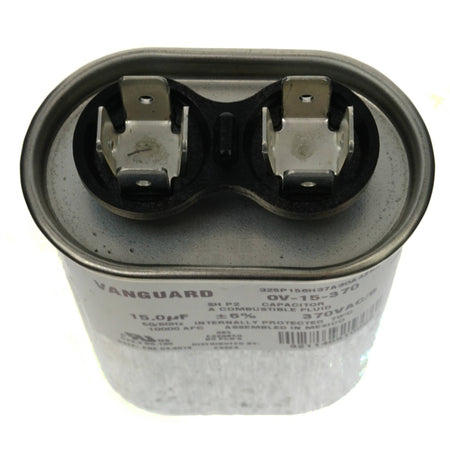

Connection 2 Posts
Four 1/4” male spade terminals on each post
Resistor None

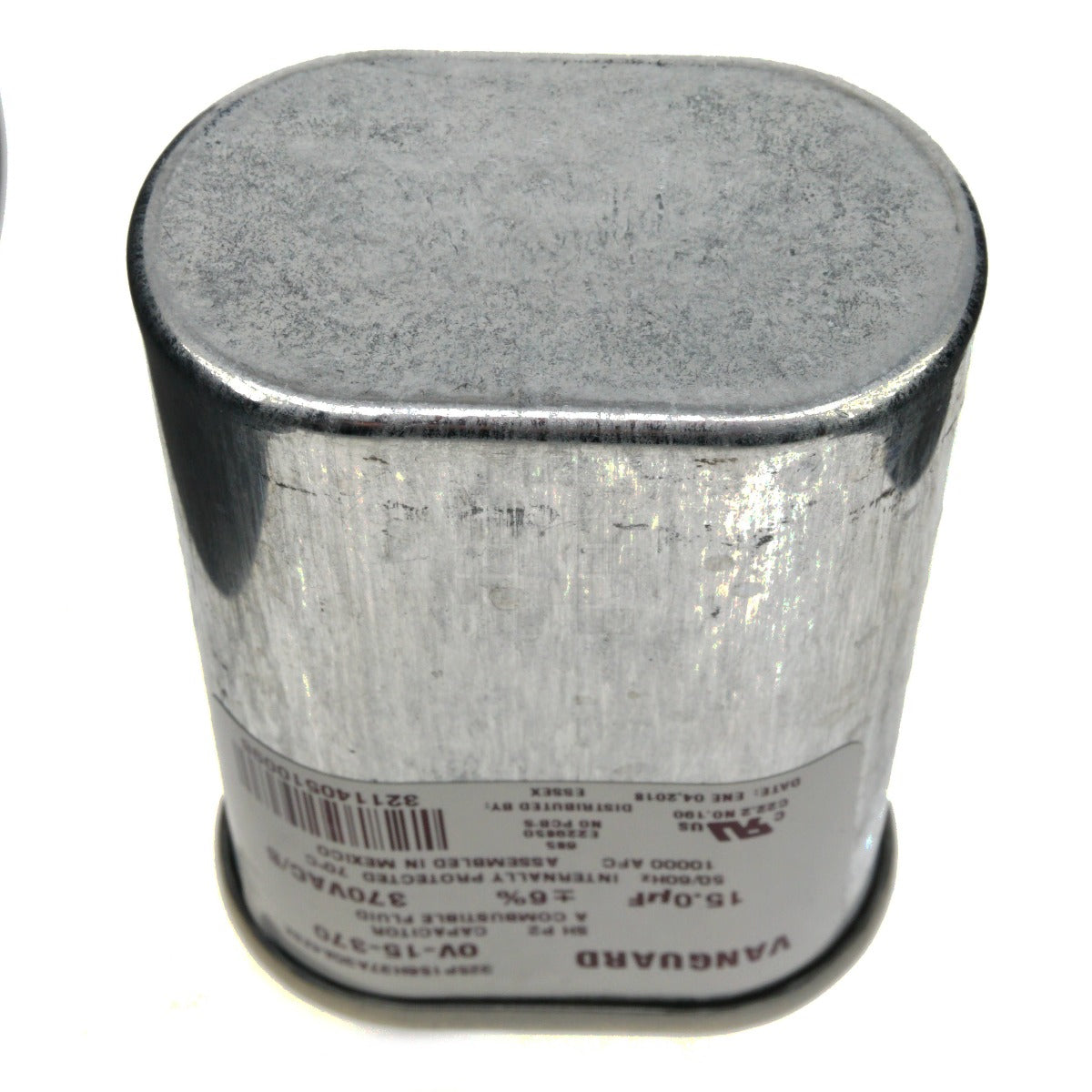

Construction Aluminum Case
Certifications/Approvals UL Approved
Performance Specifications
Case Code
Distance Between Terminals 0.812"
UPC None
Product Origin (COO) Mexico

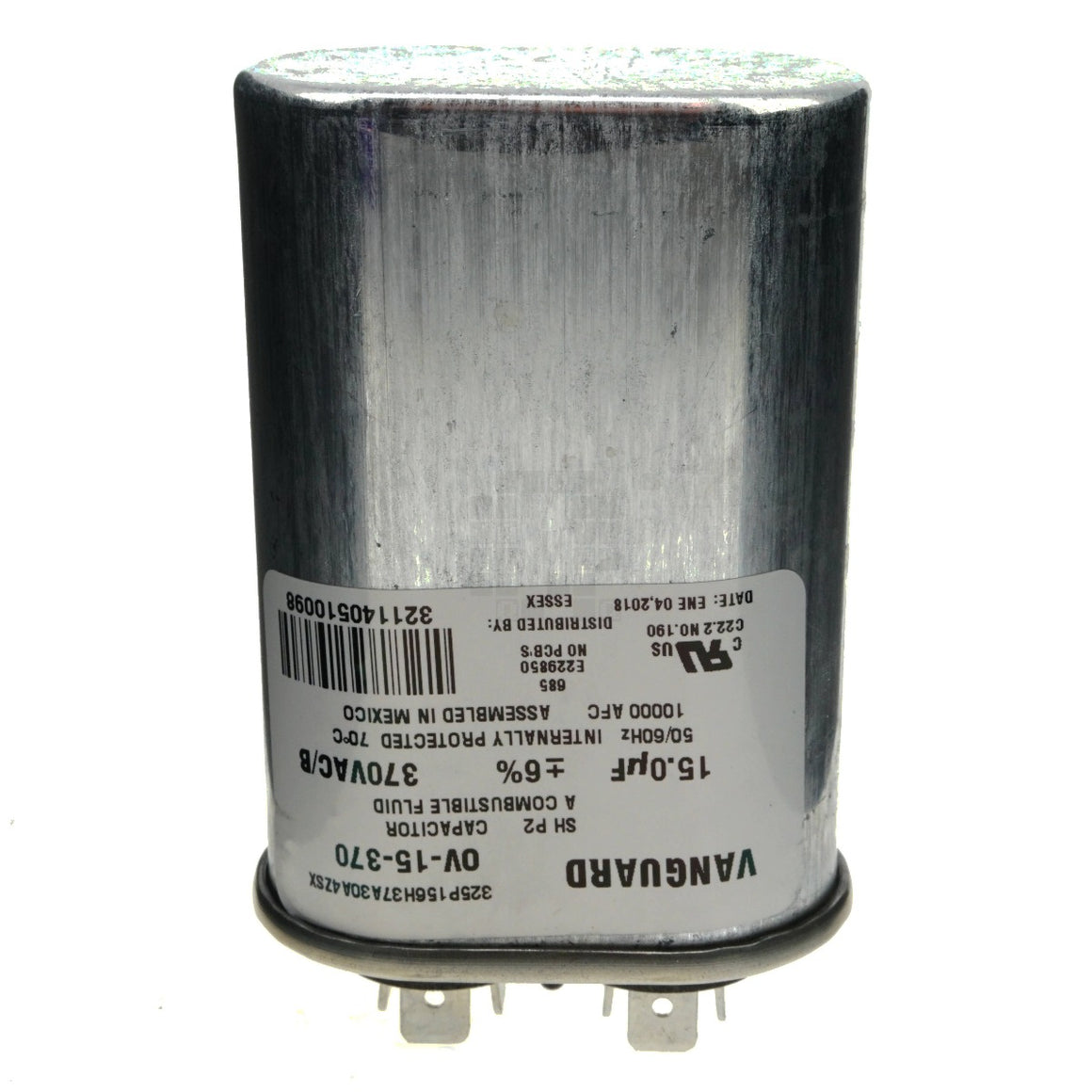

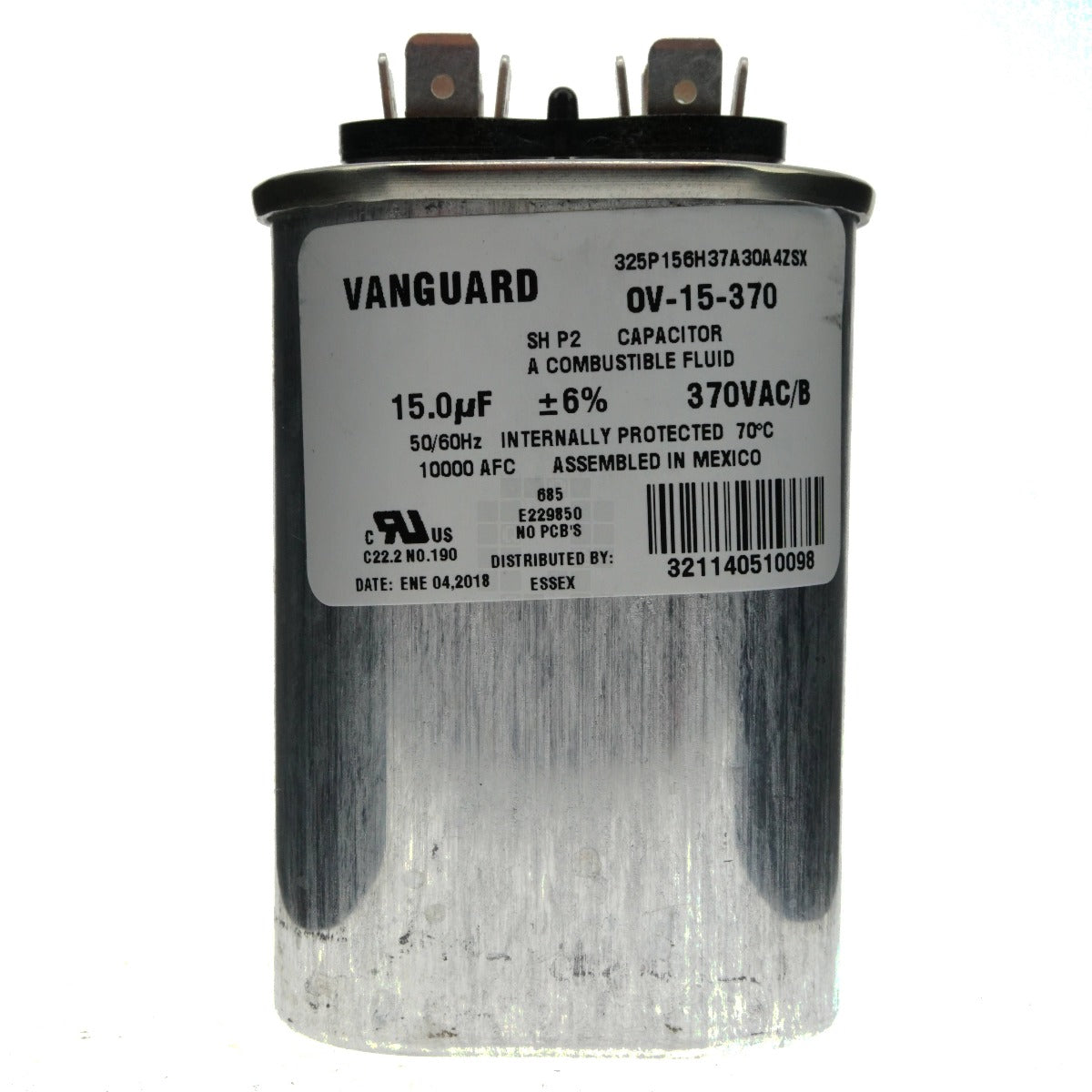

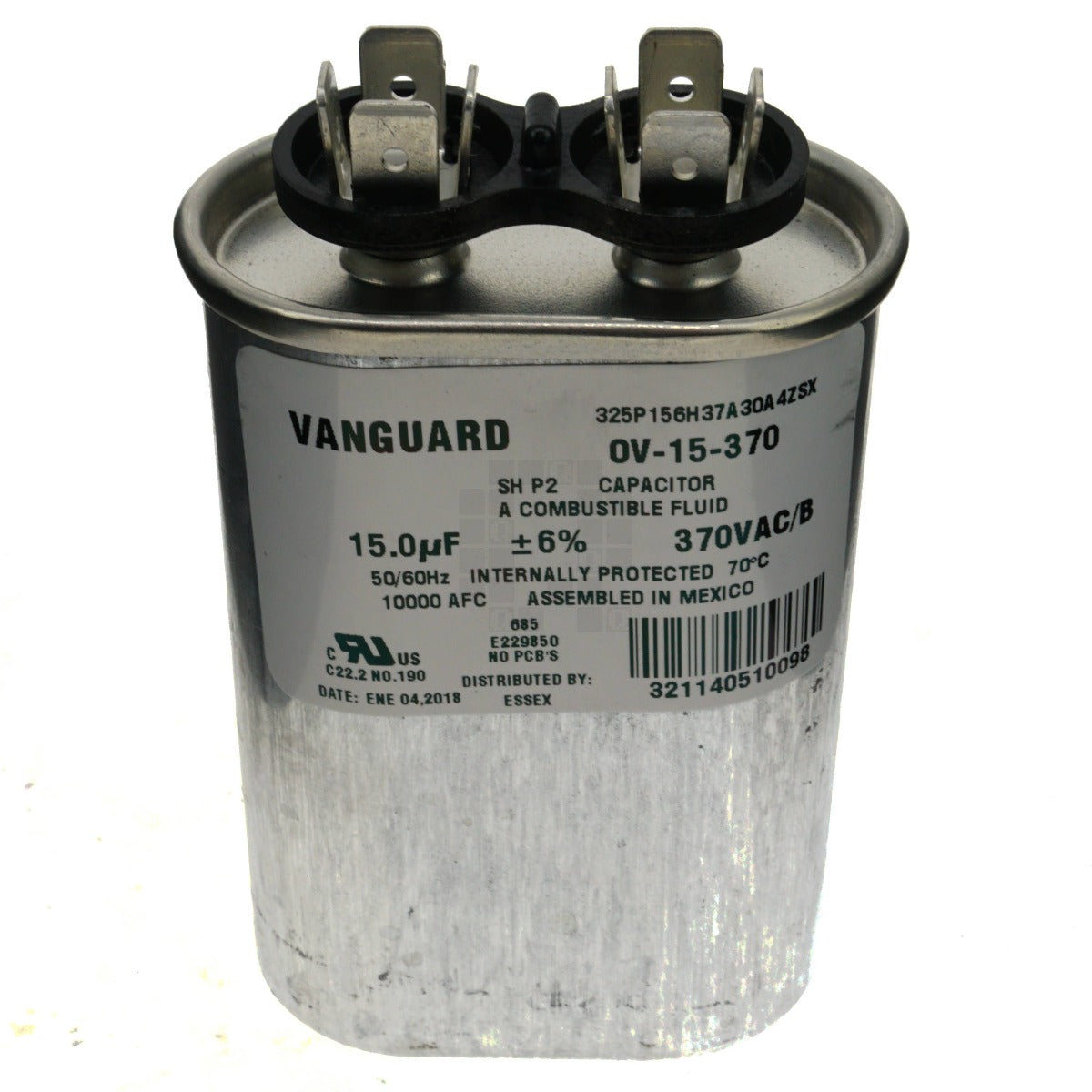

Product Label Vanguard 325P156H37A30A4ZSX
SH P2 Capacitor
A Combustible Fluid
15.0 uF +/-6% 370VAC/B
50/60Hz Internally Protected 70°C
10000 AFC Assembled in Mexico
No PCB's

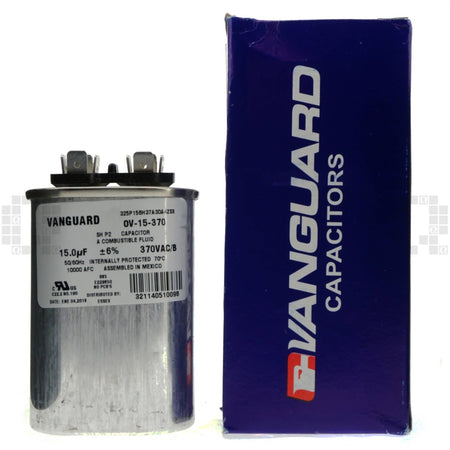

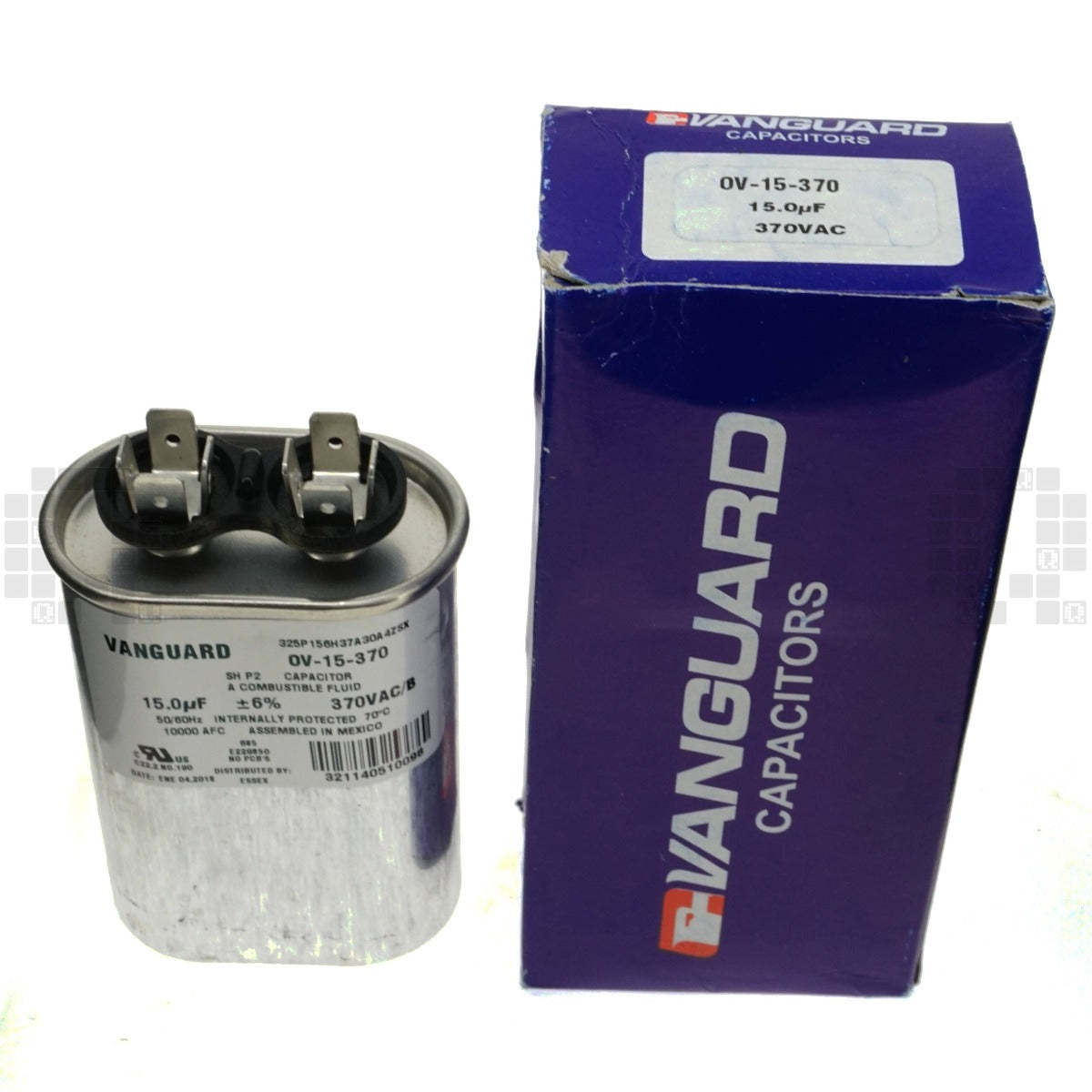

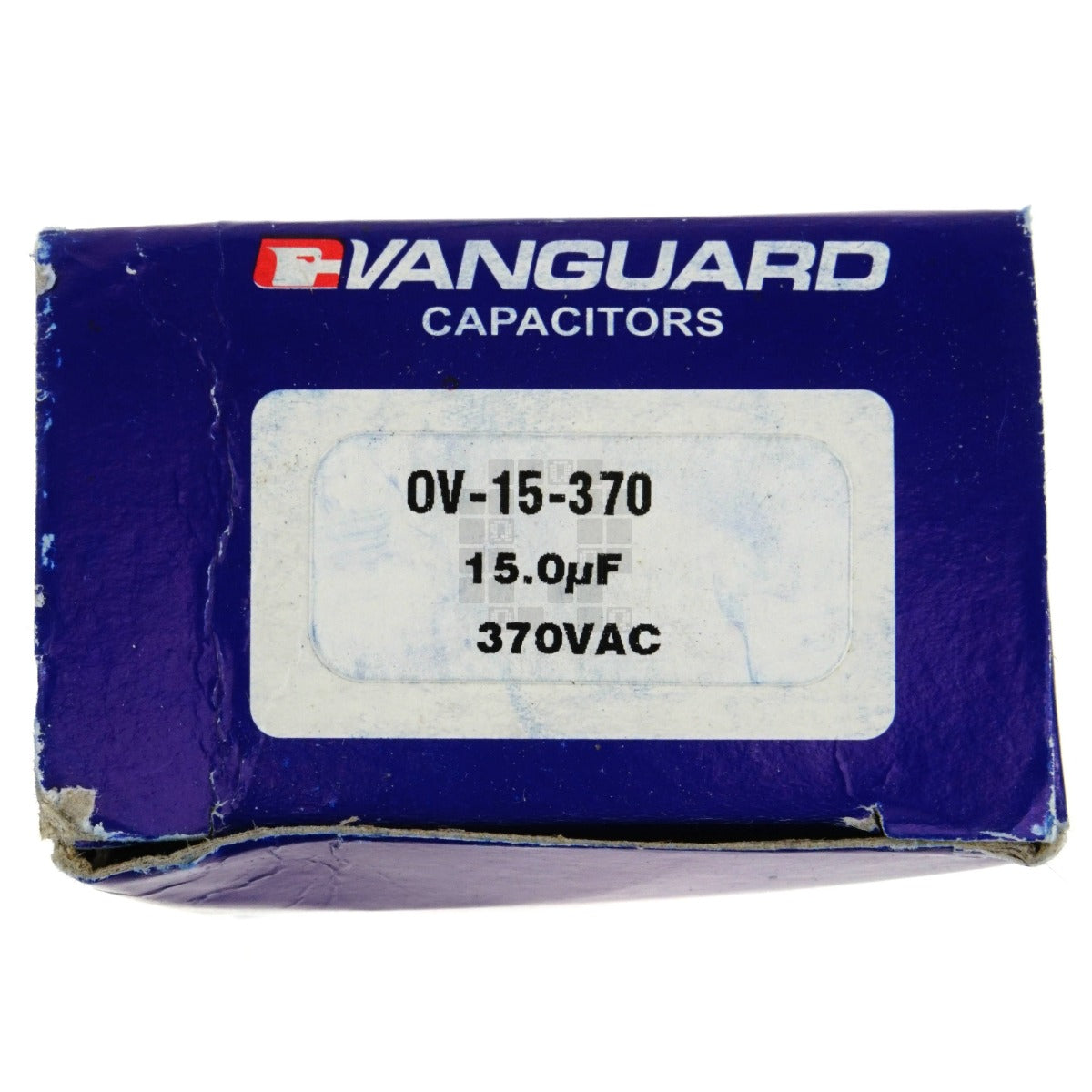

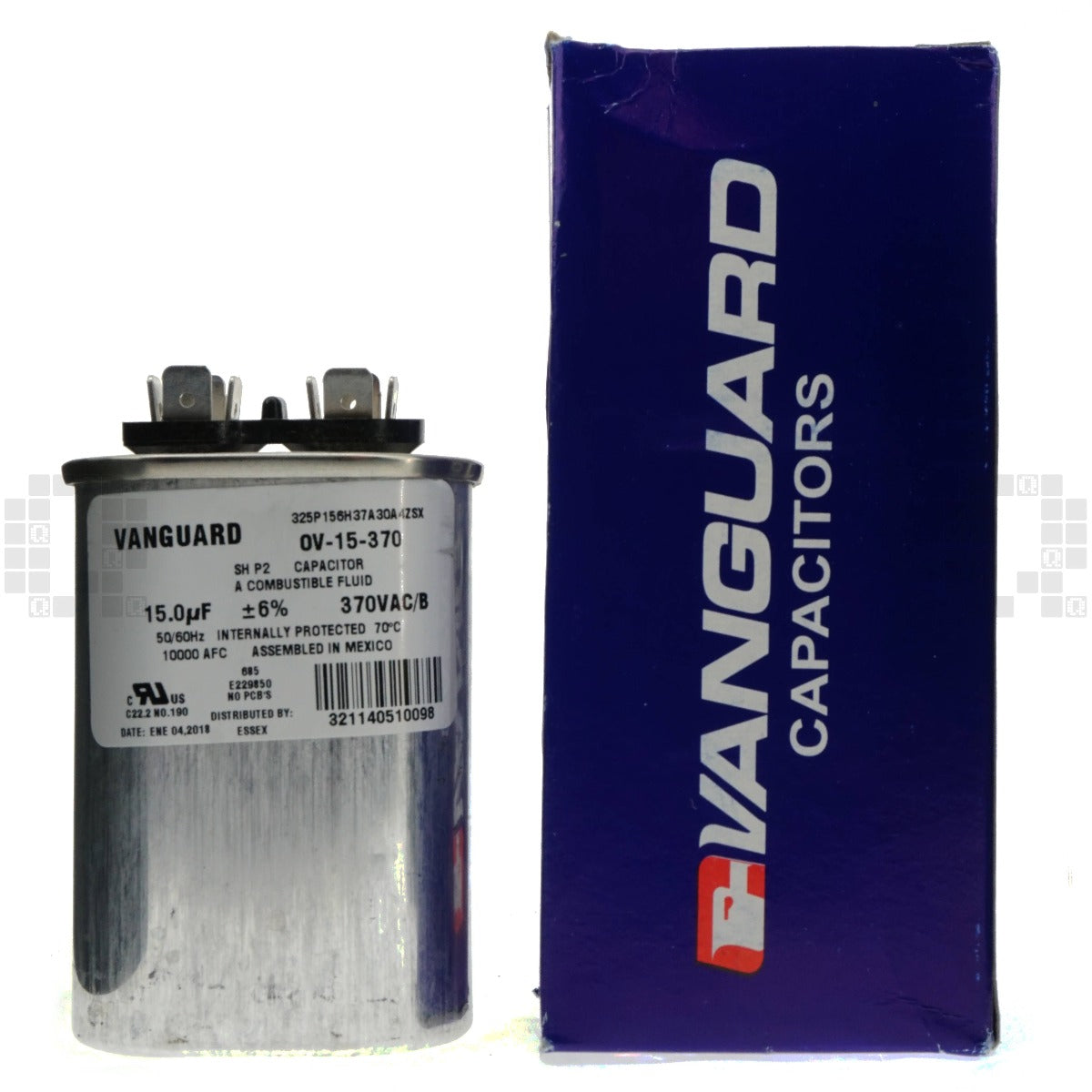

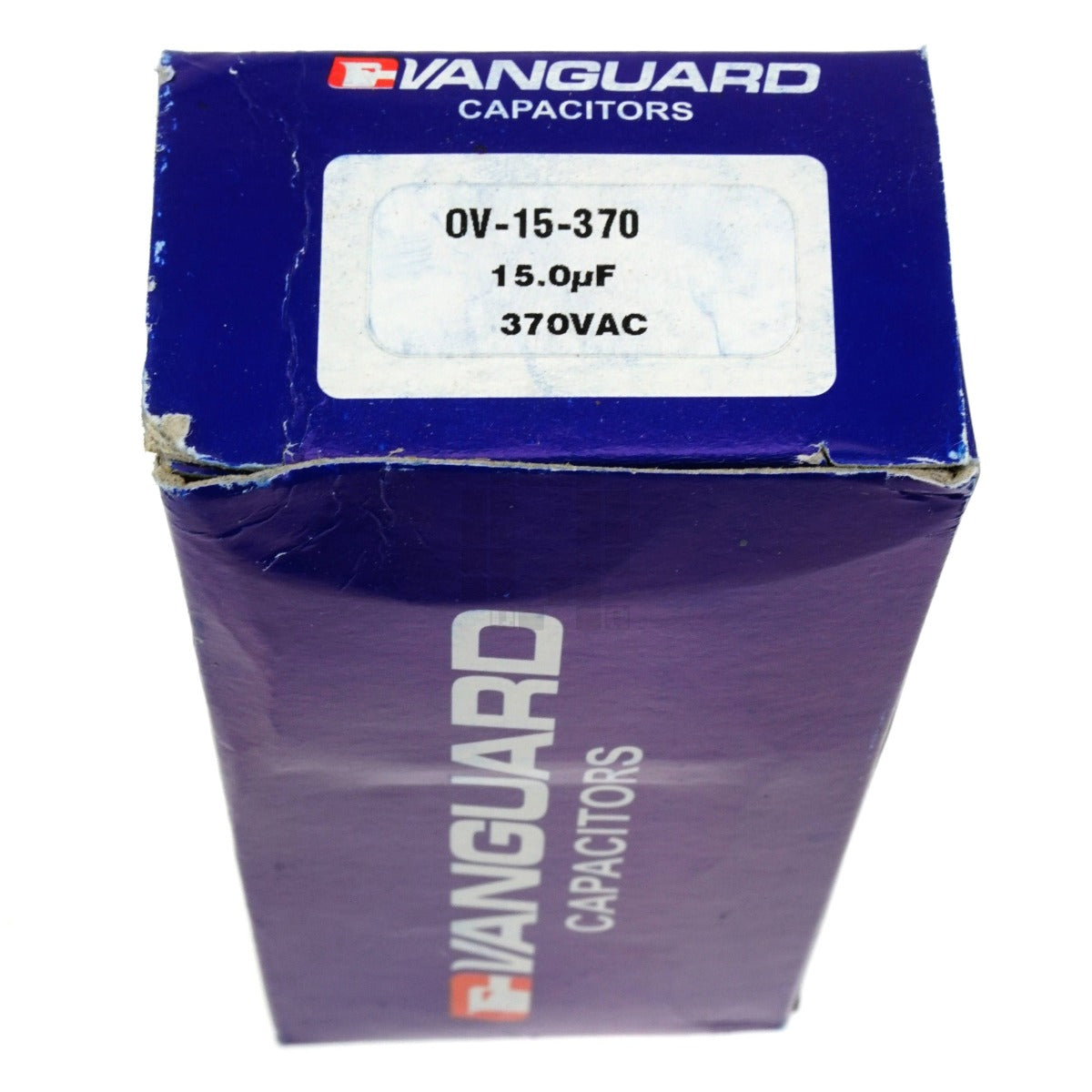

Package Label OV-15-370
15.0 uF
370VAC
Notes An occasional dent in the aluminum housing may be present due to shipping and handling. This is a commercial part and cosmetic damage IS NOT considered a valid reason for a return.
Product Color Silver

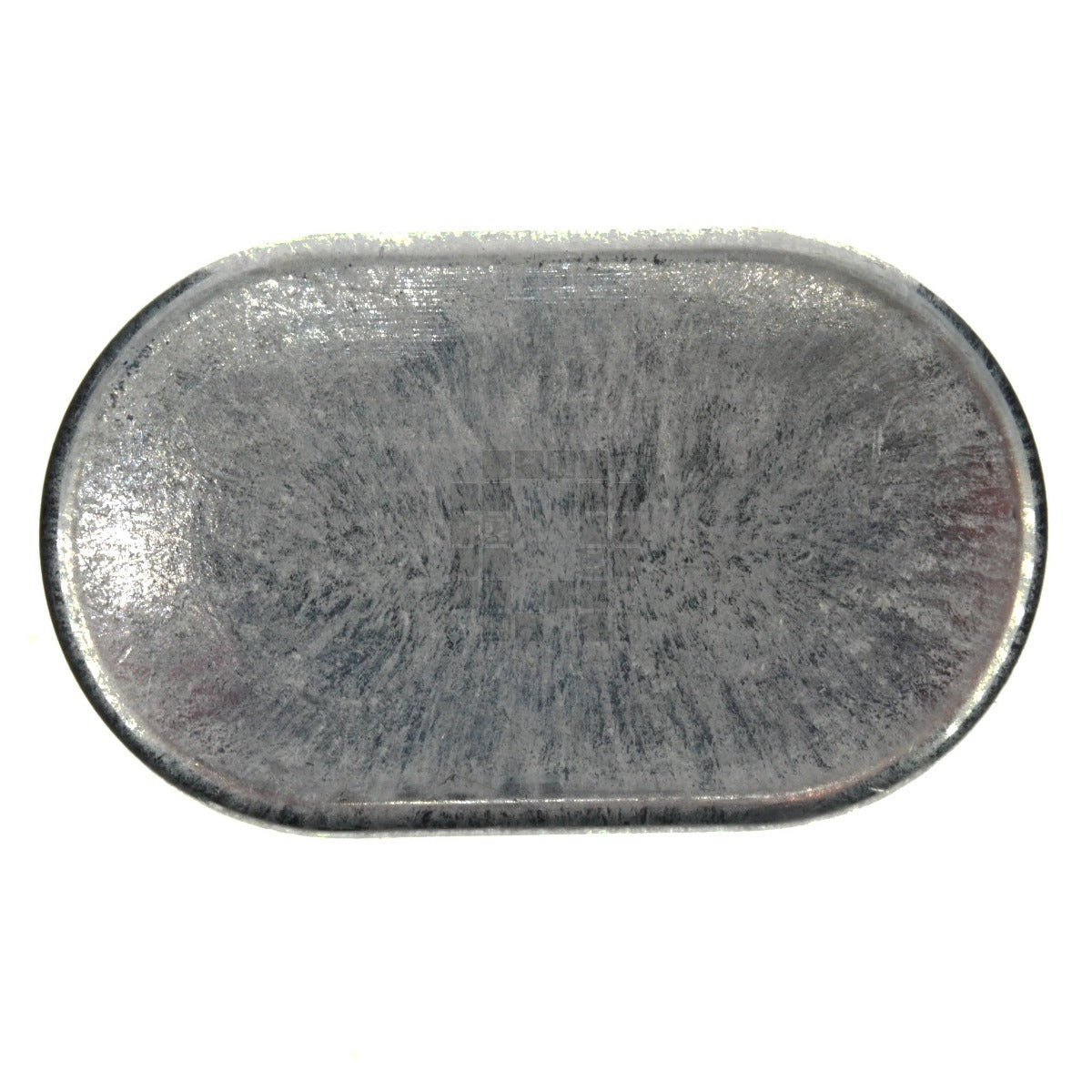

Product Shape Oval
Product Dimensions 2-5/32" Width
3" Height
1-5/16" Depth
Product Weight 5 oz
Package Dimensions (LxWxH) 2.25" x 1.44" x 5.00"
Package Weight 6 oz
