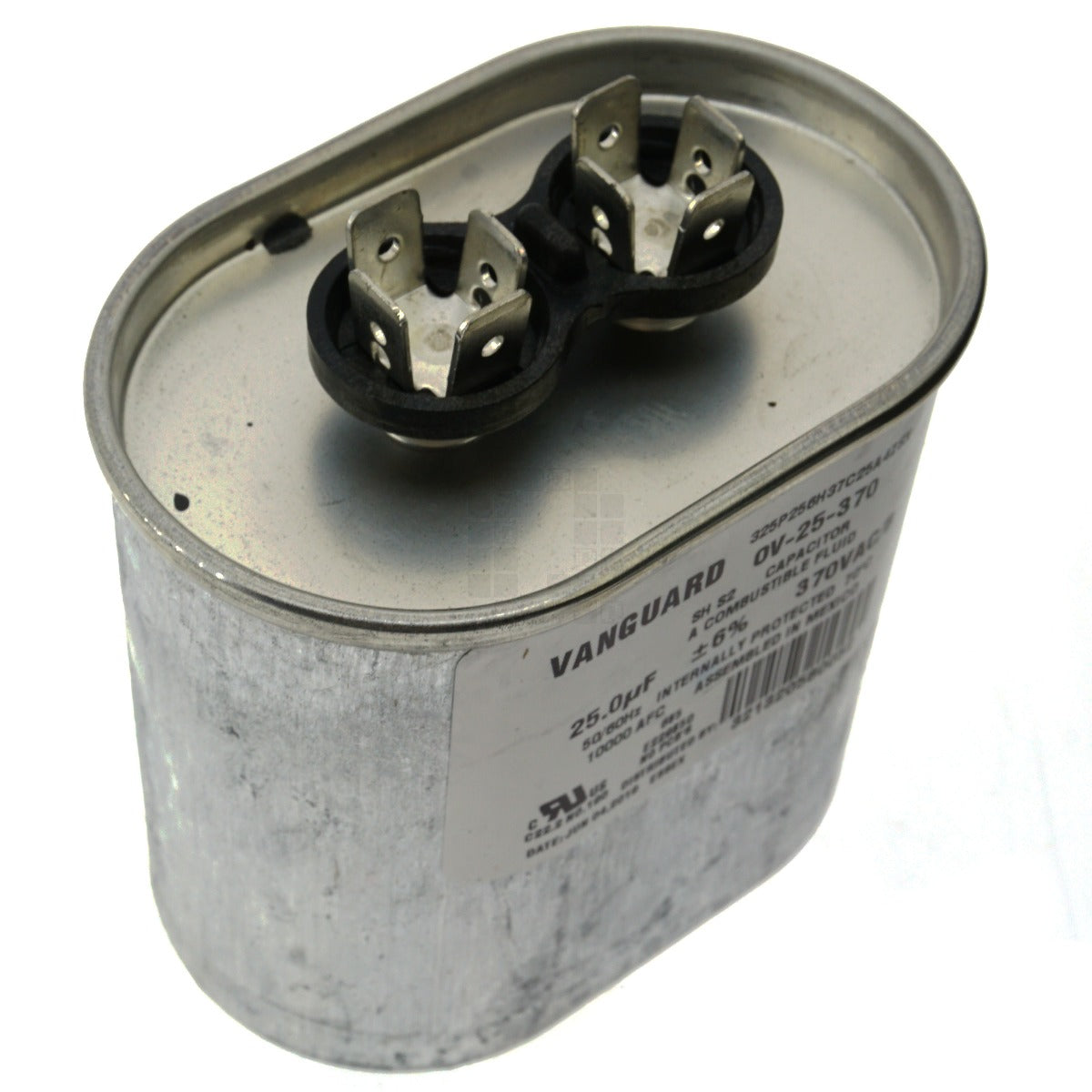

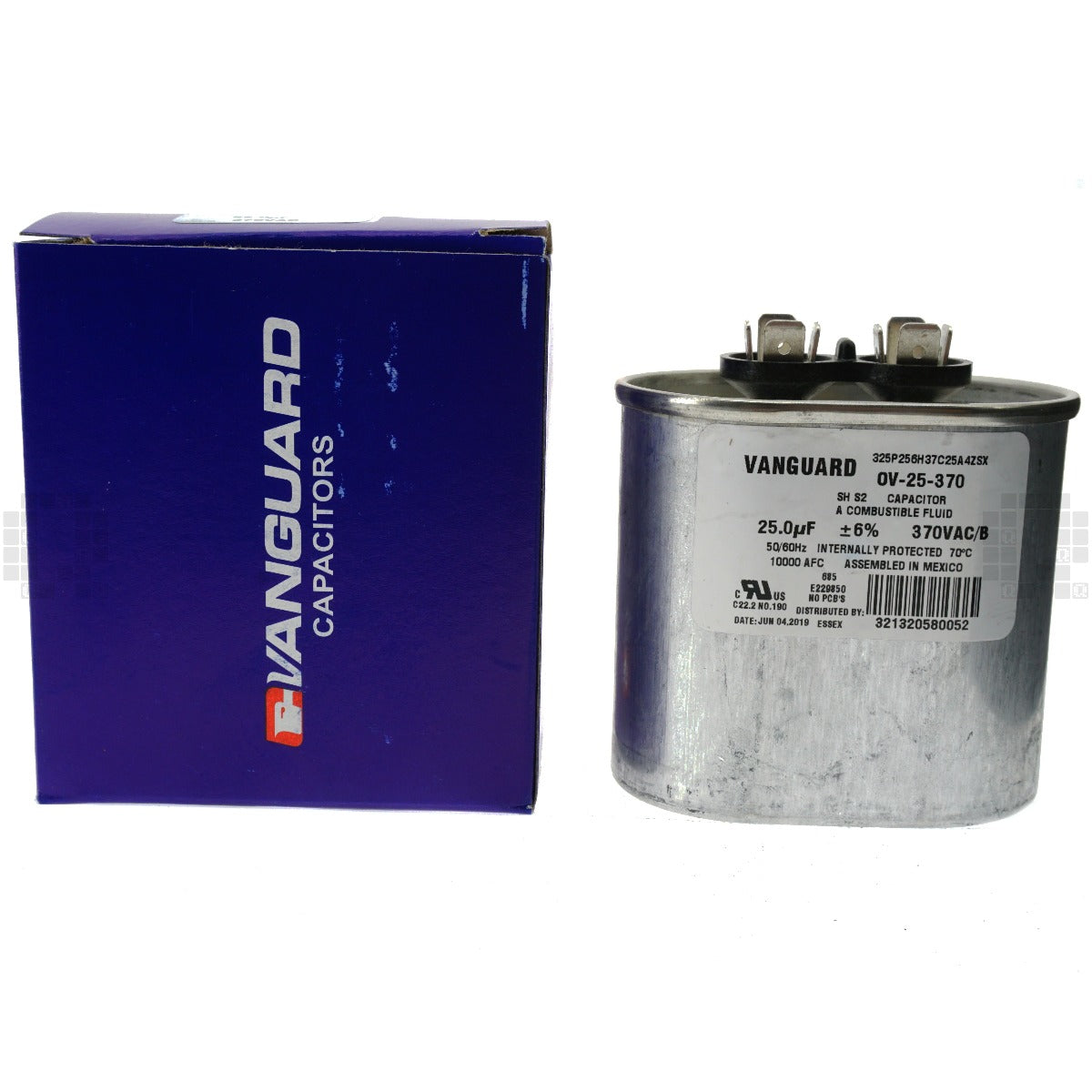

Brand Vanguard
Manufacturer Part Number OV-25-370
325P256H37C25A4ZSX
Cross Reference (Fit/Form/Function)
Capacitance 25 uF
Working Voltage 370VAC
Frequency 50/60 Hz
Working Temperature Range +70°C
Type Run Capacitor

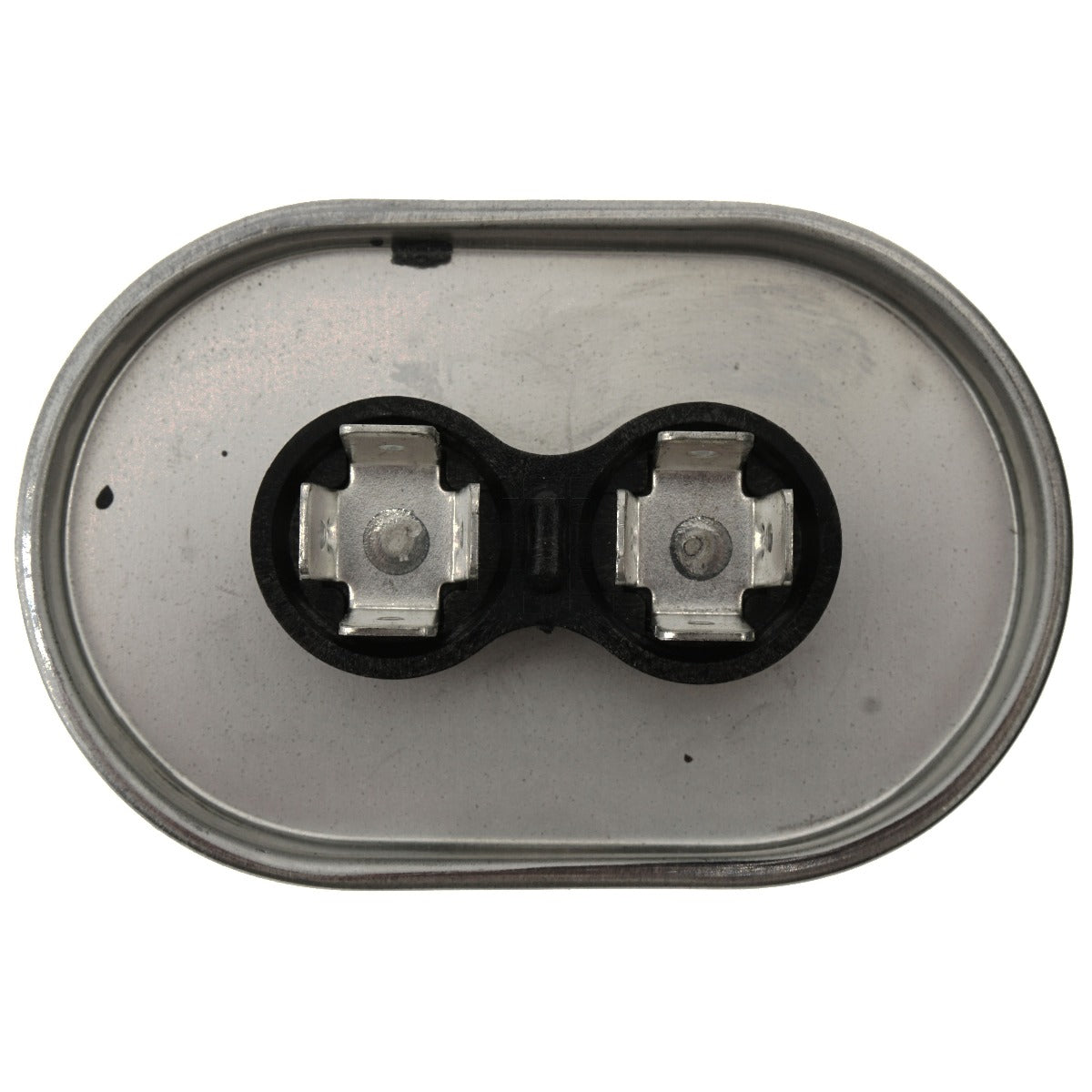

Connection 2 Posts
Four 1/4” male spade terminals on each post
Resistor None
Construction Aluminum Case
Certifications/Approvals UL Approved
Performance Specifications
Case Code
Distance Between Terminals 0.812"
UPC None
Product Origin (COO) Mexico

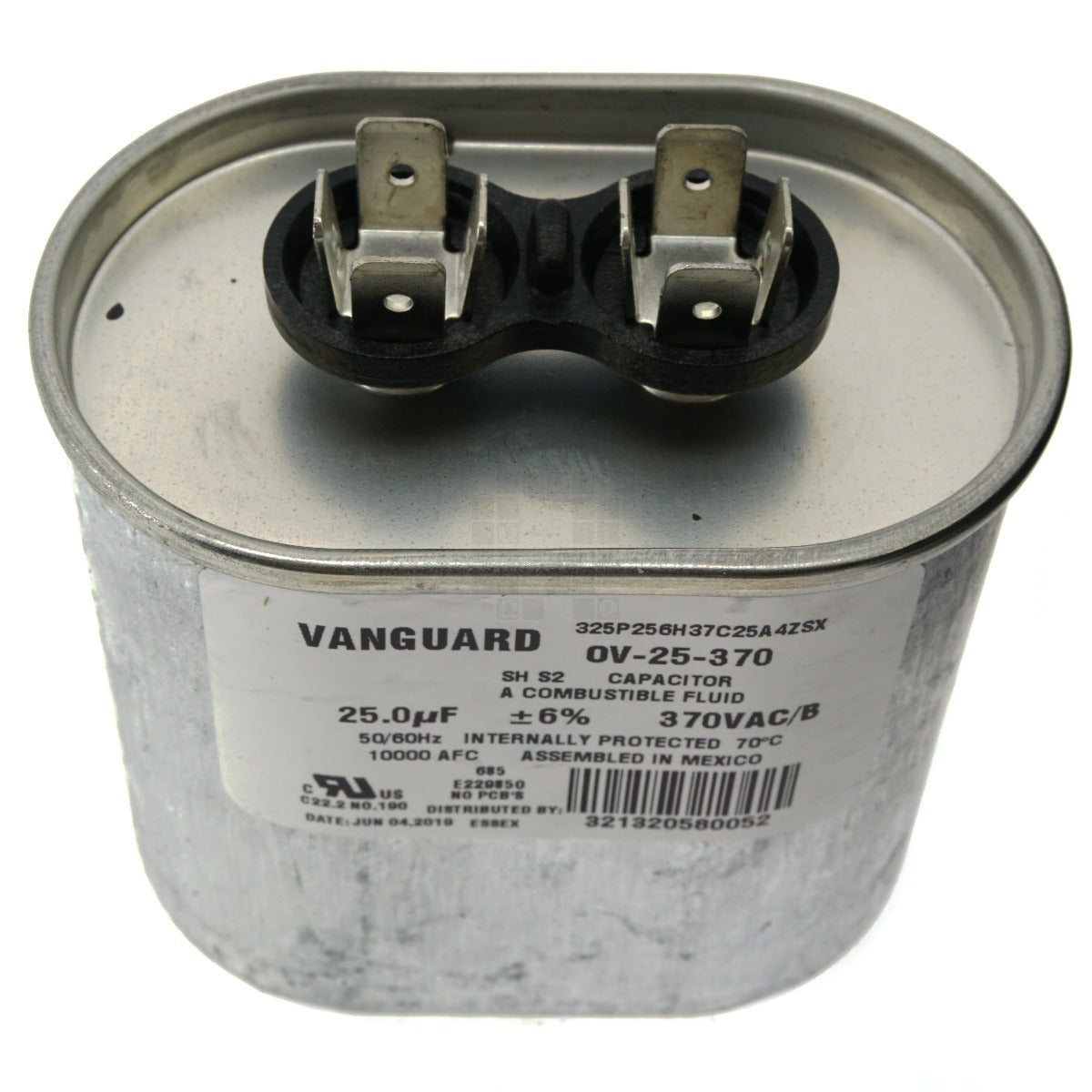

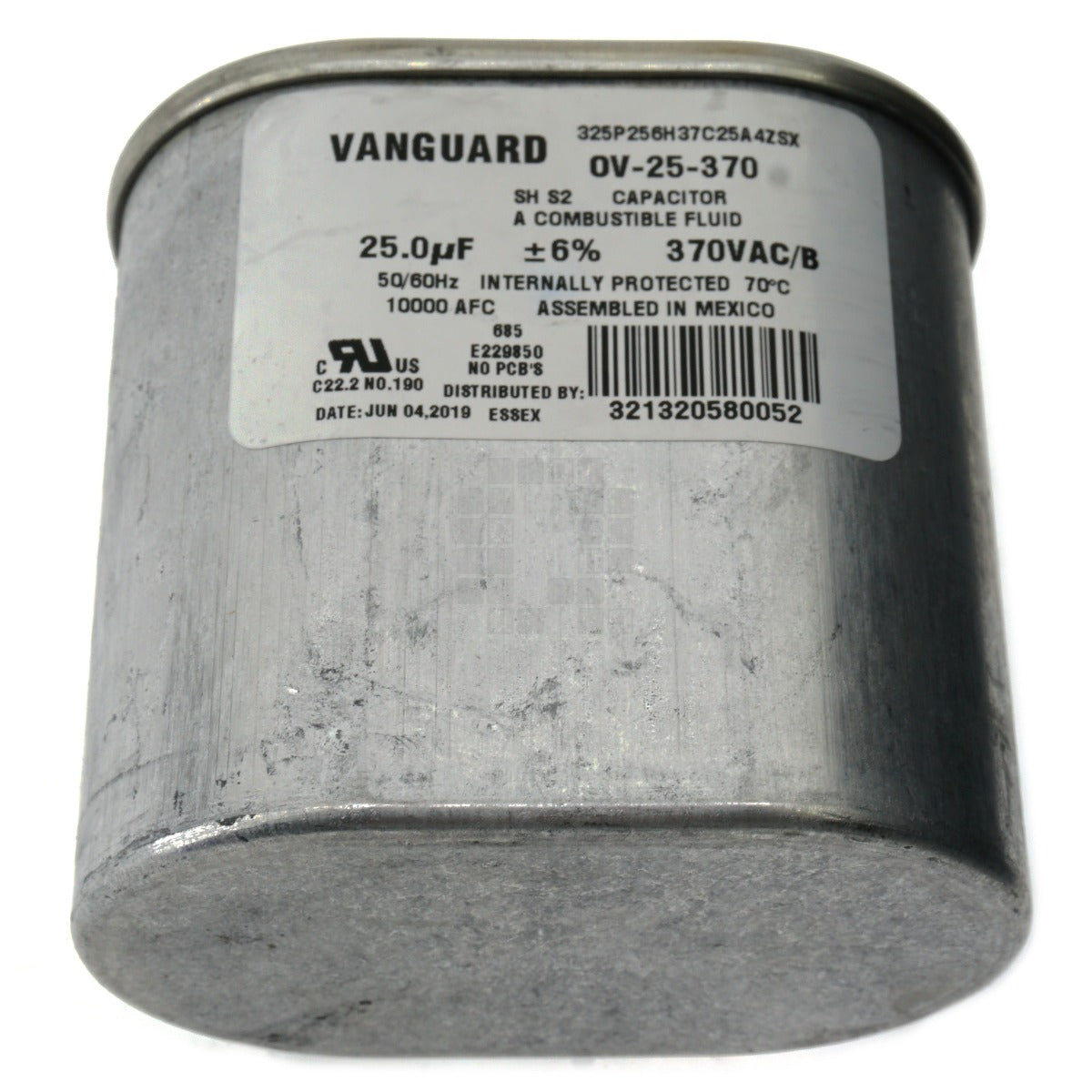

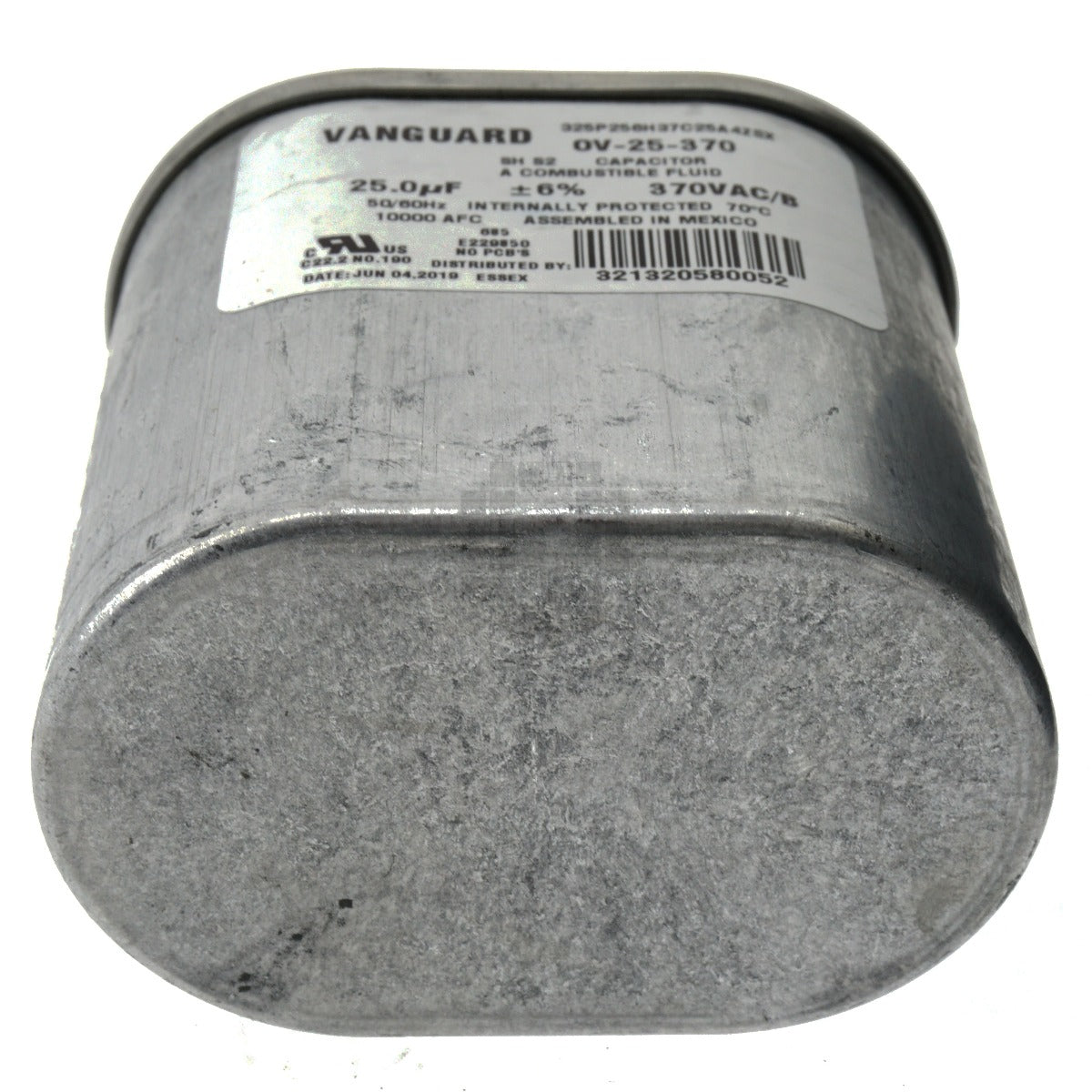

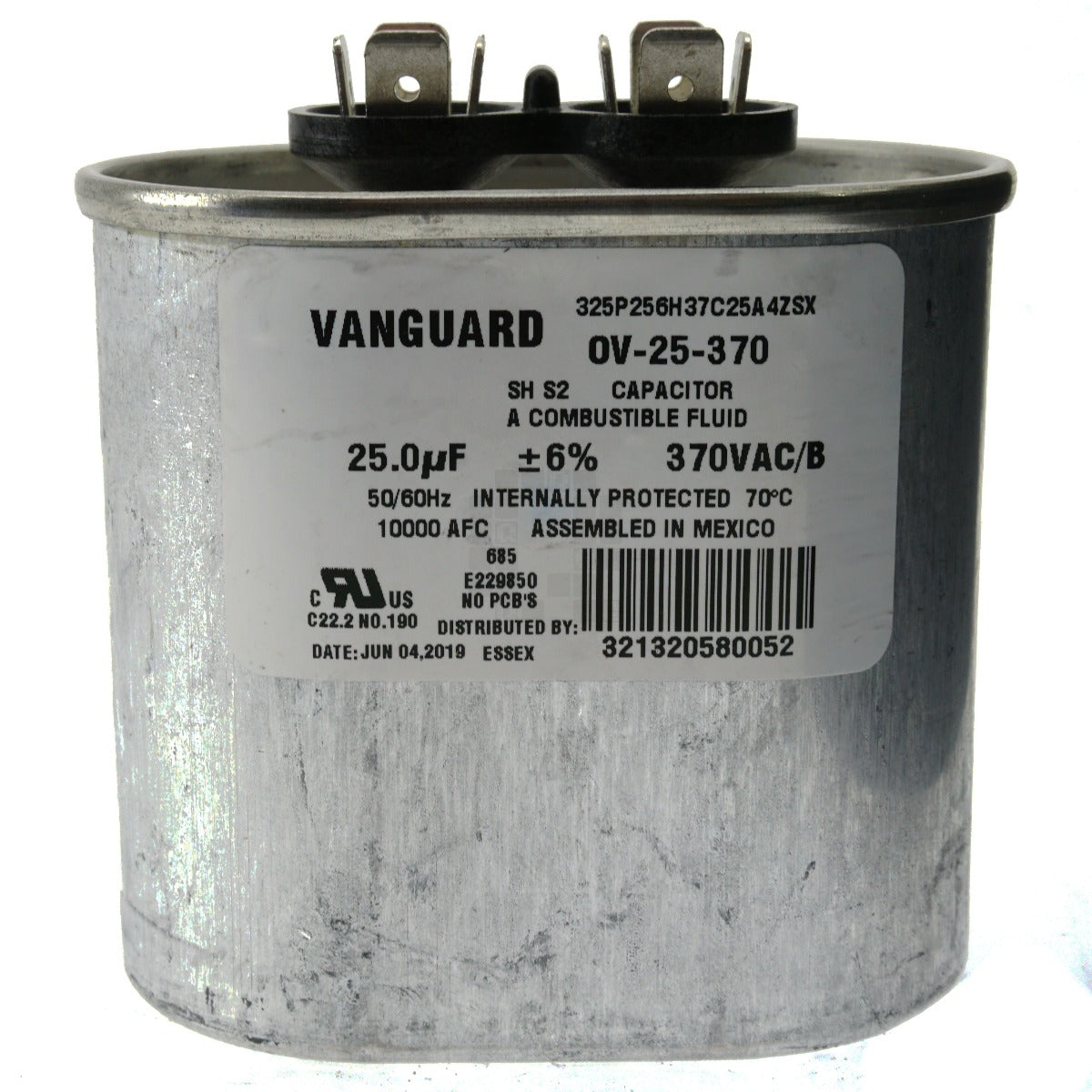

Product Label Vanguard Capacitors
OV-25-370
25.0uF 370VAC

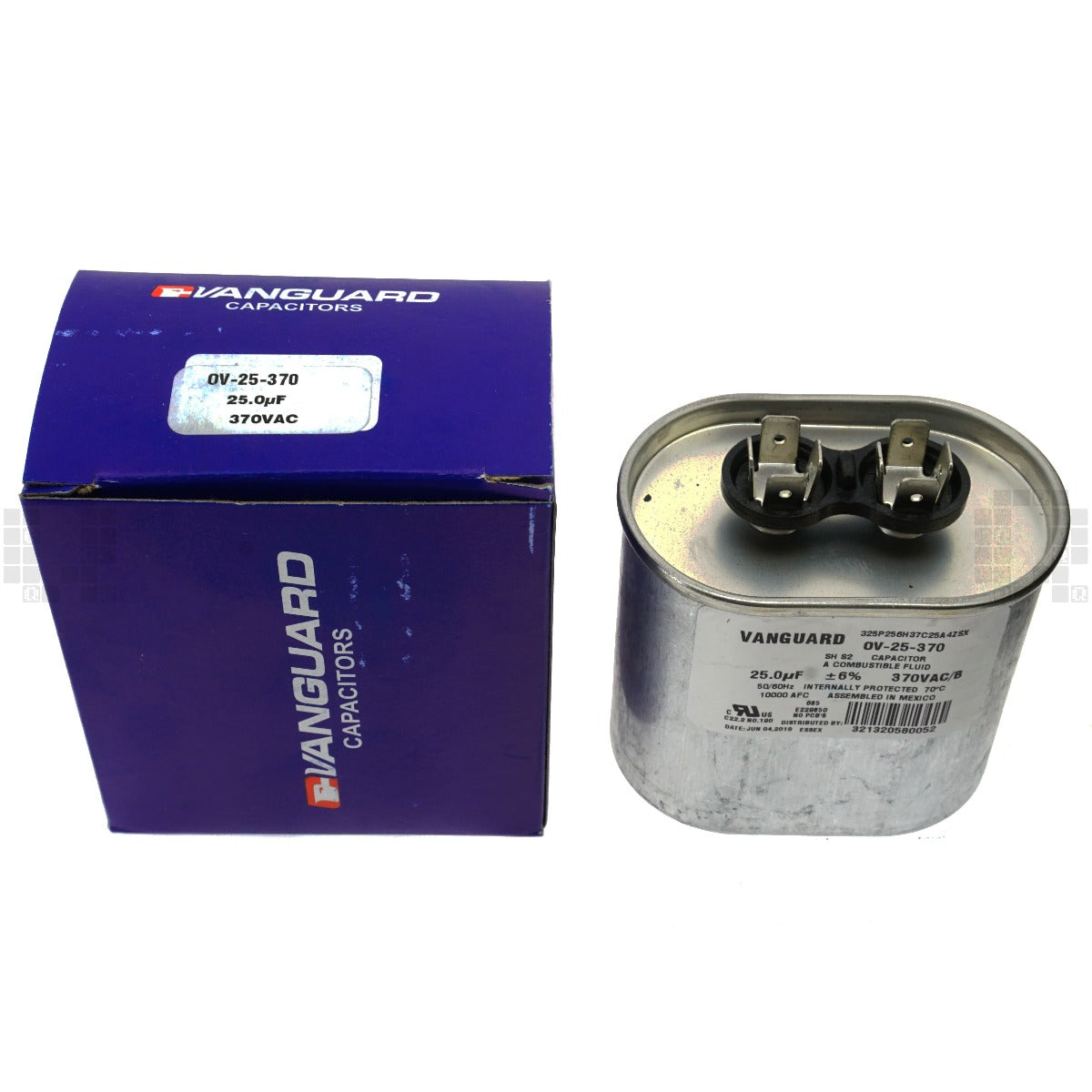

Package Label Vanguard 325P256H37C25A4ZSX
OV-25-370
SH S2 Capacitor
A Combustible Fluid
25.0 uF +/-6% 370VAC/B
50/60Hz Internally Protected 70°C
10000 AFC Assembled in Mexico
No PCB's
Notes An occasional dent in the aluminum housing may be present due to shipping and handling. This is a commercial part and cosmetic damage IS NOT considered a valid reason for a return.
Location
Product Color Silver
Product Shape Oval
Product Dimensions 2-29/32" Width
2-5/8" Height (Case Only)
3.00" Height (With Terminals)
1-29/32" Depth
Product Weight 8 oz
Package Dimensions (LxWxH) 2.06" x 3.09" x 2.38"
Package Weight 8 oz
