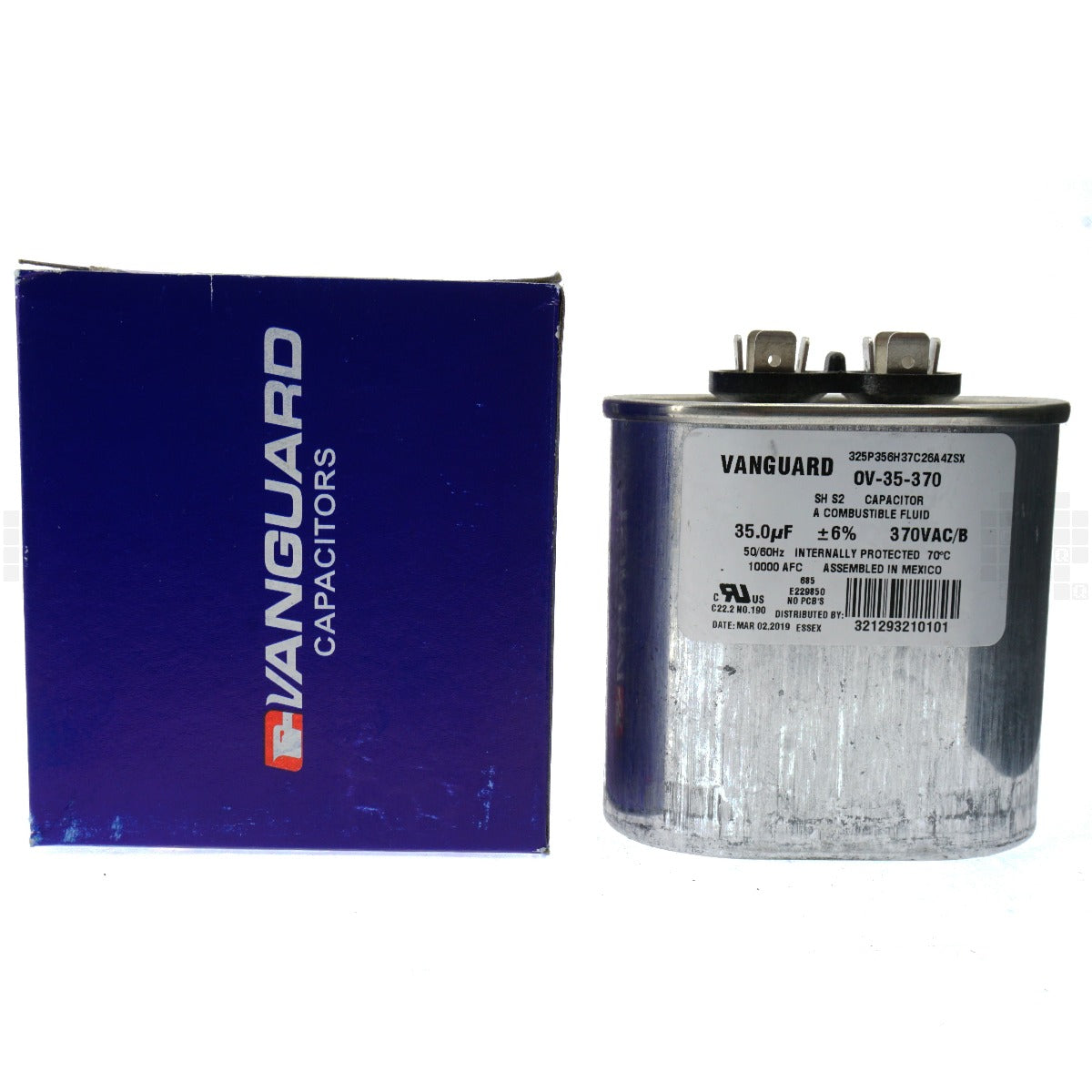

Brand Vanguard
Manufacturer Part Number OV-35-370
325P356H37C26A4ZSX
Cross Reference (Fit/Form/Function)
Capacitance 35 uF +/-6%
Working Voltage 370 VAC
Frequency 50/60 Hz
Working Temperature Range +70°C
Type Run Capacitor

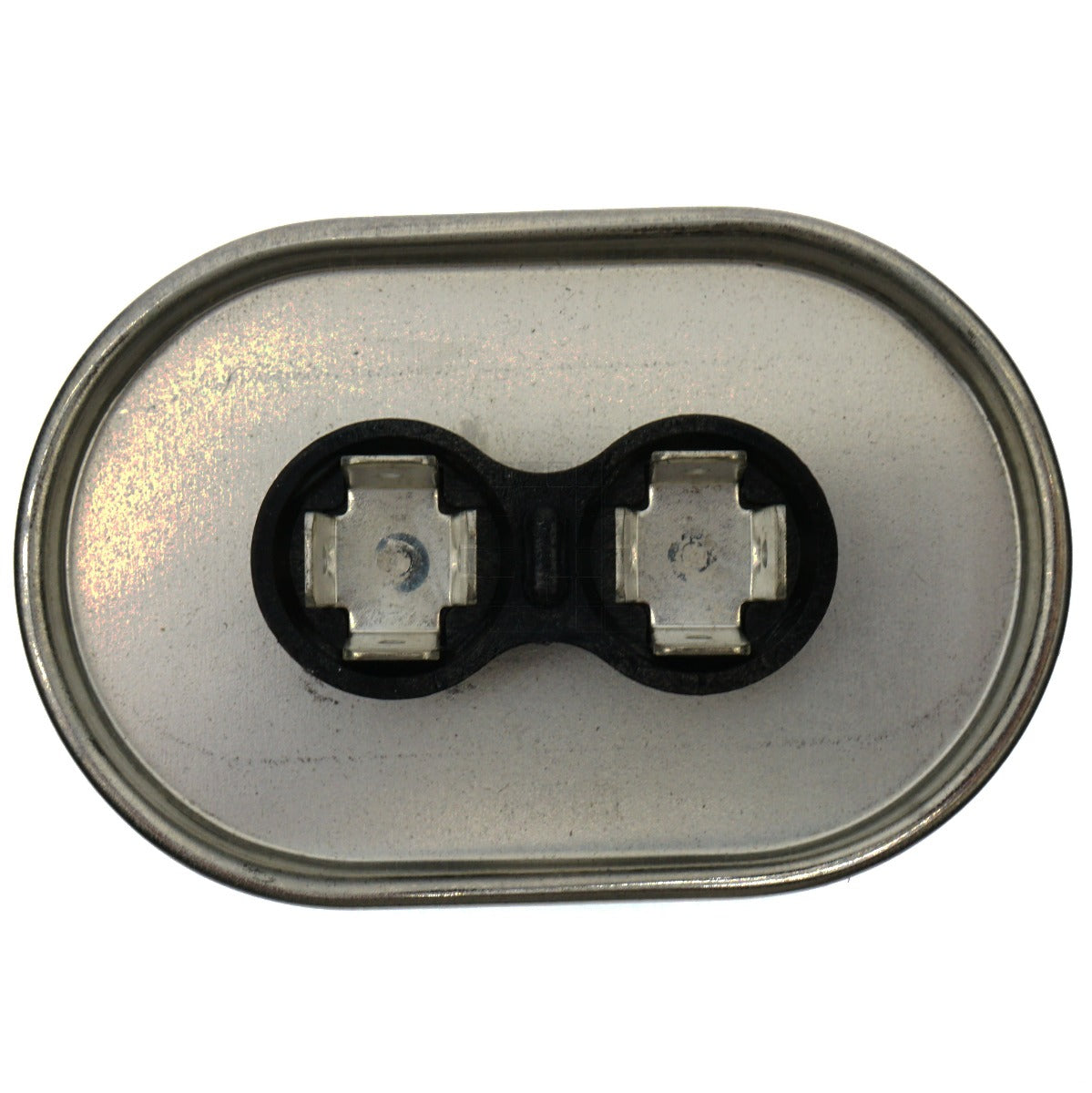

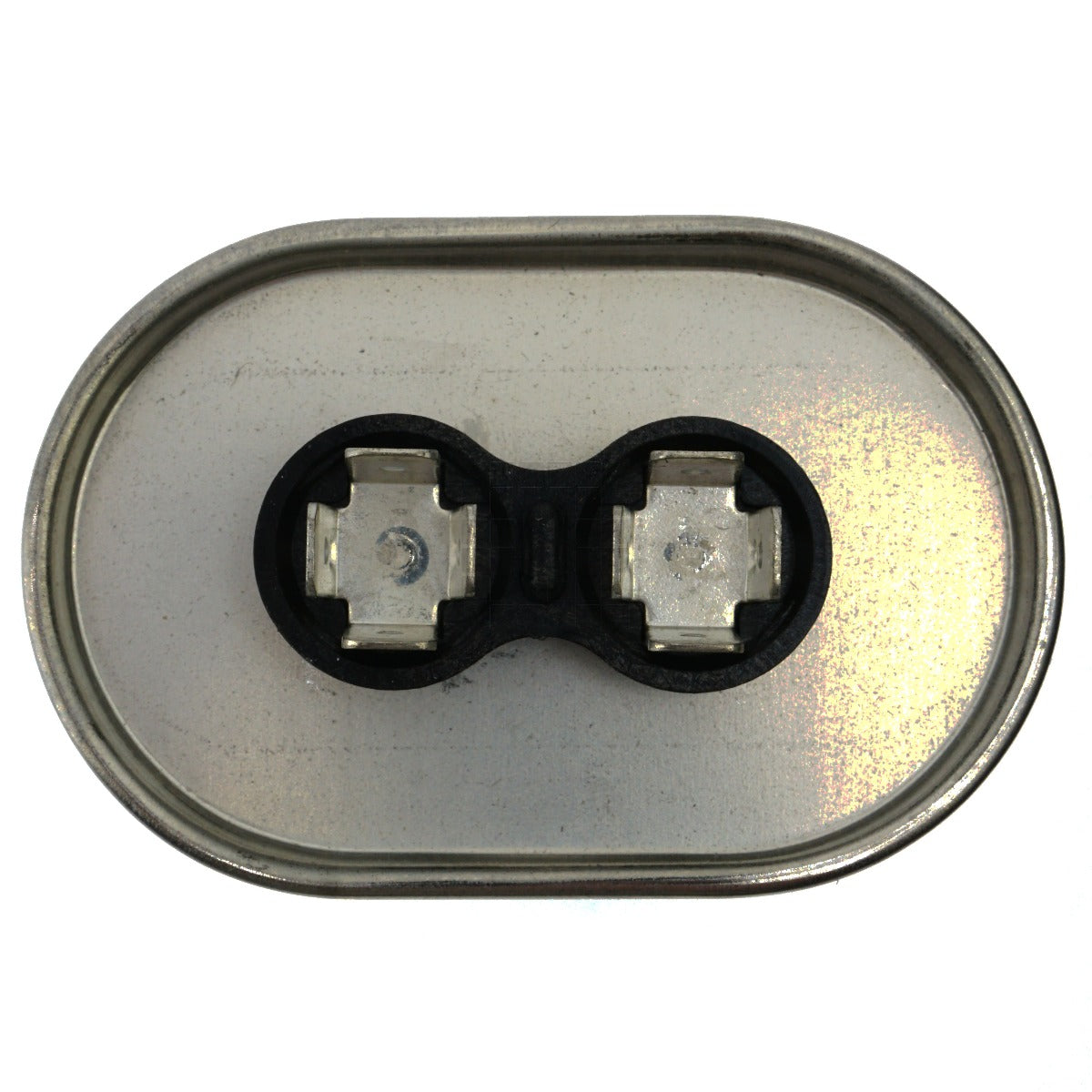

Connection 2 Posts
Four 1/4” male spade terminals on each post
Resistor None
Construction Aluminum Case
Certifications/Approvals UL Approved
Performance Specifications
Case Code
Distance Between Terminals 0.812"
UPC None
Product Origin (COO) Mexico

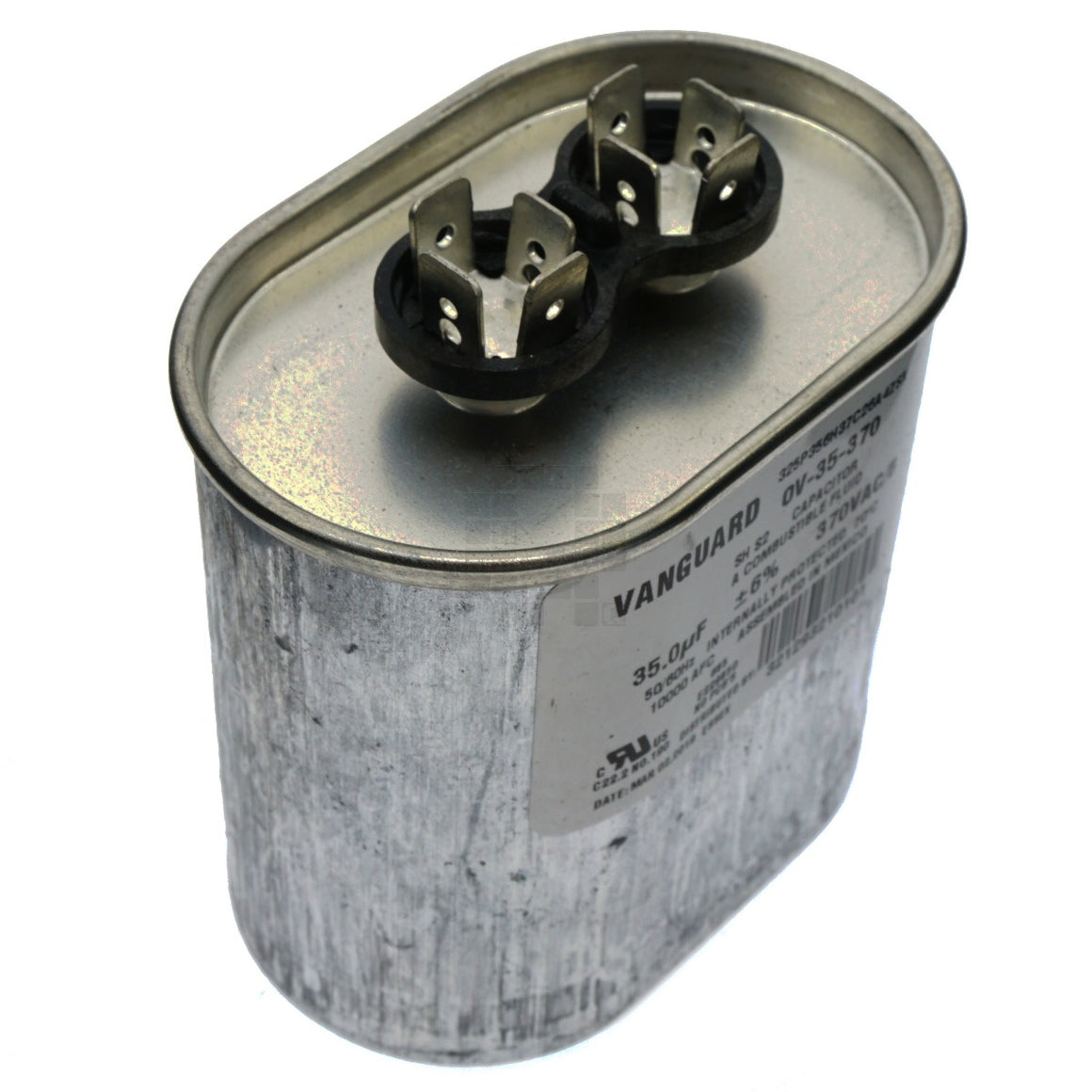

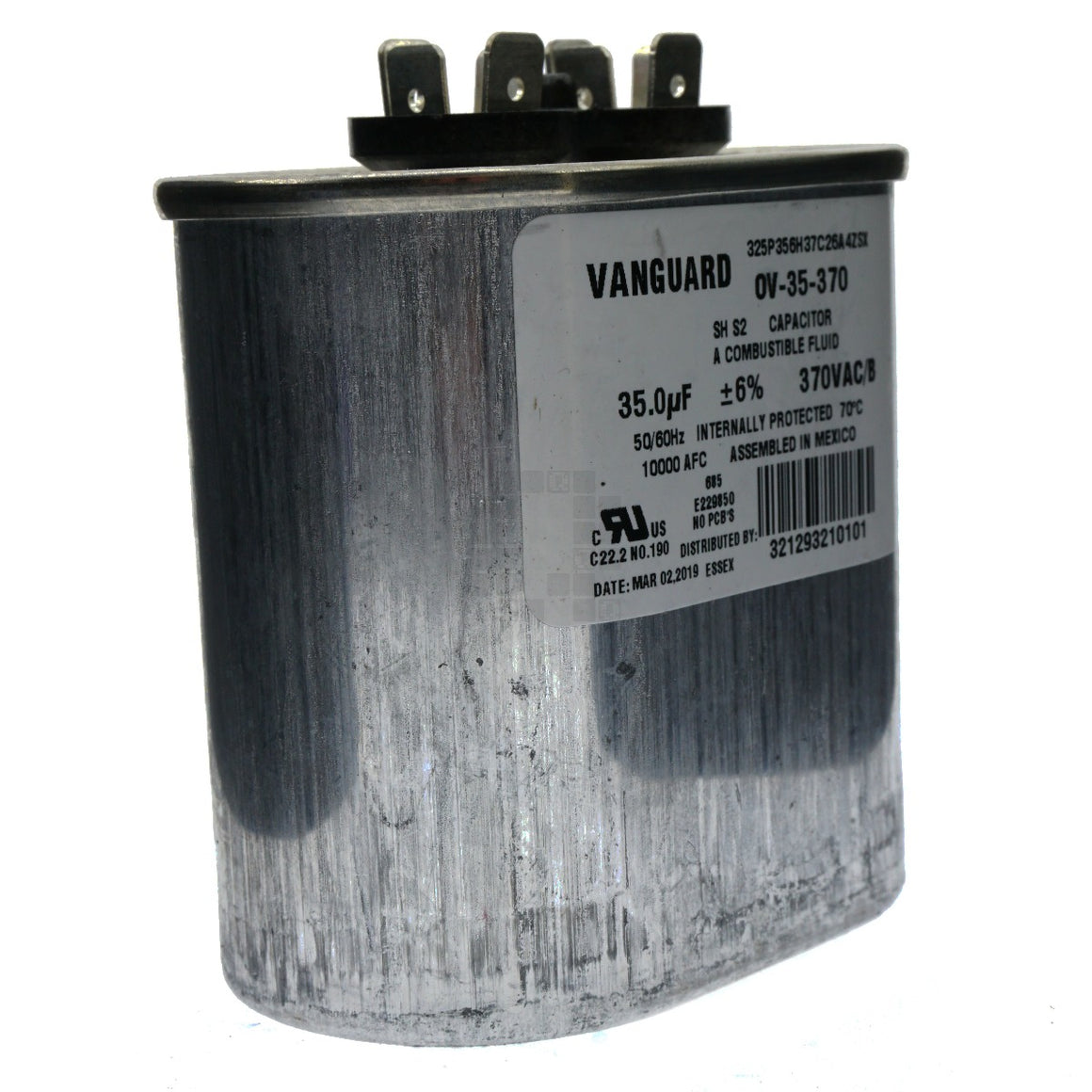

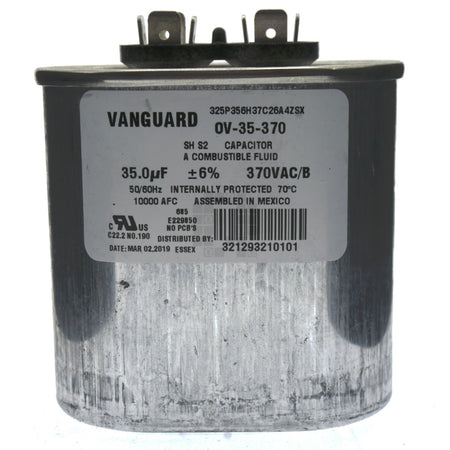

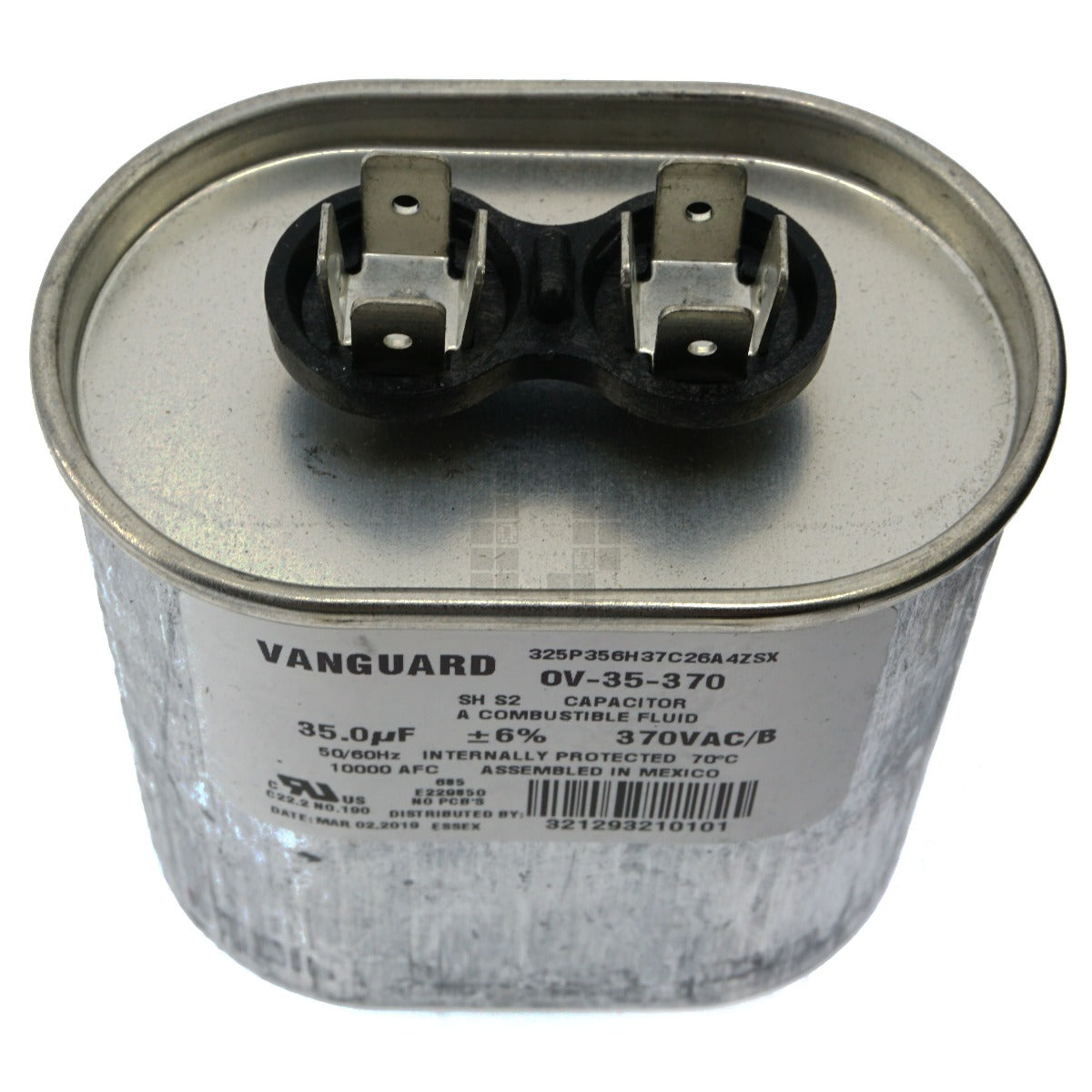

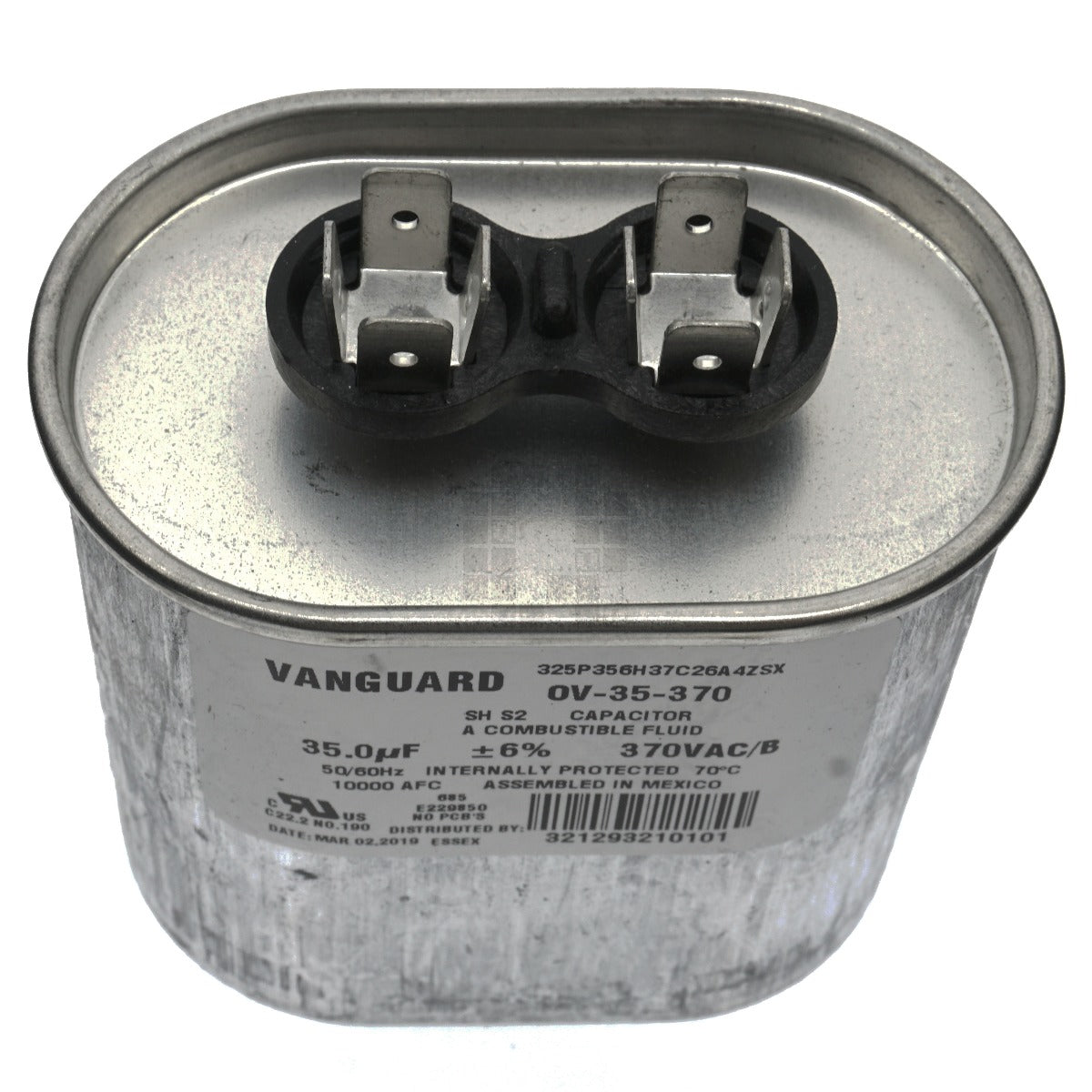

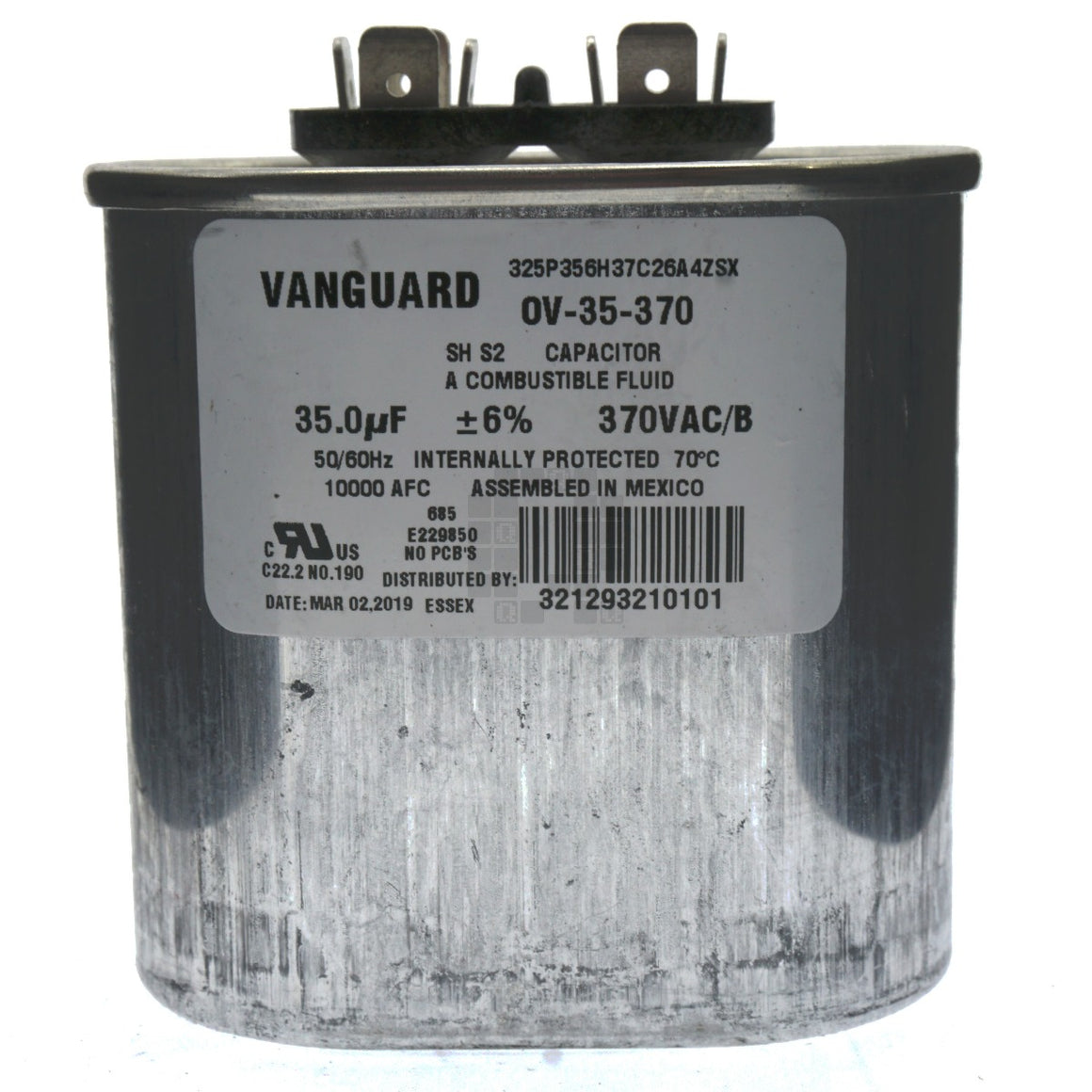

Product Label Vangaurd 325P356H37C26A4ZSX
OV-35-370
SH S2 Capacitor
A Combustible Fluid
35.0 uF +/-6% 370VAC/B
50/60Hz Internally Protected 70°C
10000 AFC Assembled in Mexico
No PCB's

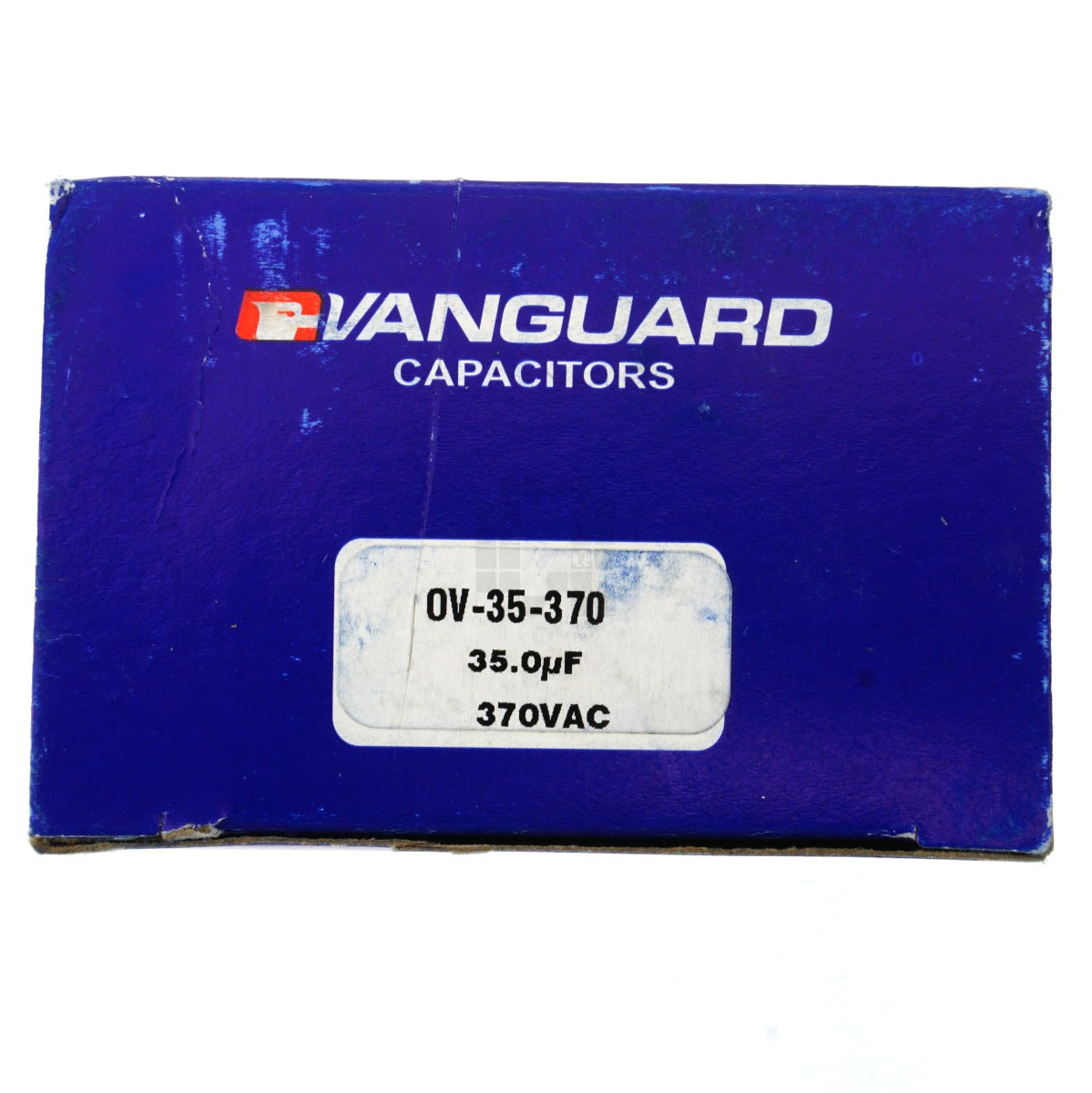

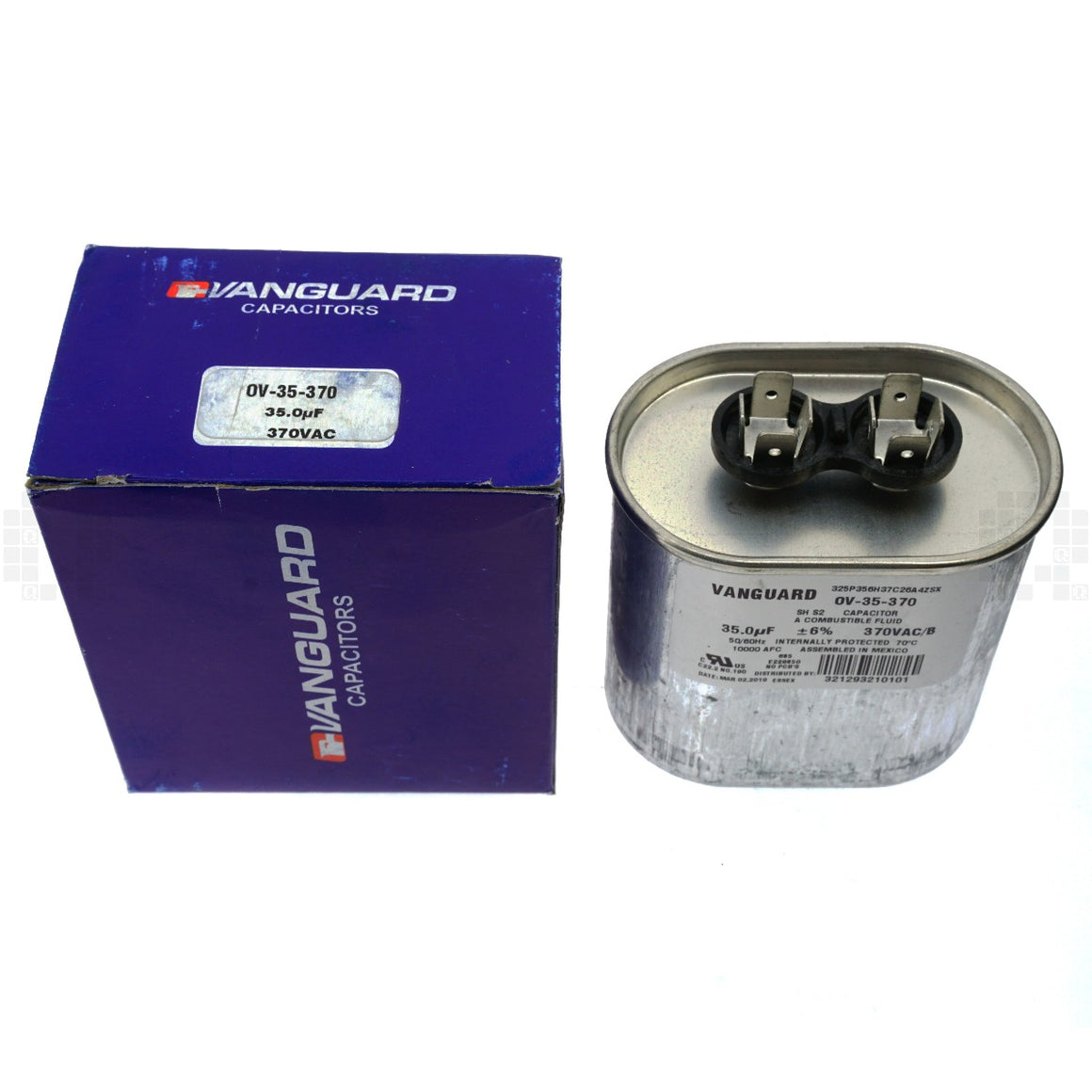

Package Label Vanguard Capacitors
OV-35-370
35.0 uF 370VAC
Notes An occasional dent in the aluminum housing may be present due to shipping and handling. This is a commercial part and cosmetic damage IS NOT considered a valid reason for a return.
Location
Product Color Silver
Product Shape Oval
Product Dimensions 2-29/32" Width
2.75" Height (Case Only)
3.15" Height (With Terminals)
1-29/32" Depth
Product Weight 9 oz
Package Dimensions (LxWxH) 3.125" x 2.062" x 3.375"
Package Weight 9 oz
