Brand Vanguard
Manufacturer Part Number OV-4-370
325P405H37A14A4ZSX
Cross Reference (Fit/Form/Function)
Capacitance 4.0 uF +/-6%
Working Voltage 370 VAC
Frequency 50/60 Hz
Working Temperature Range +70°C
Type Run Capacitor

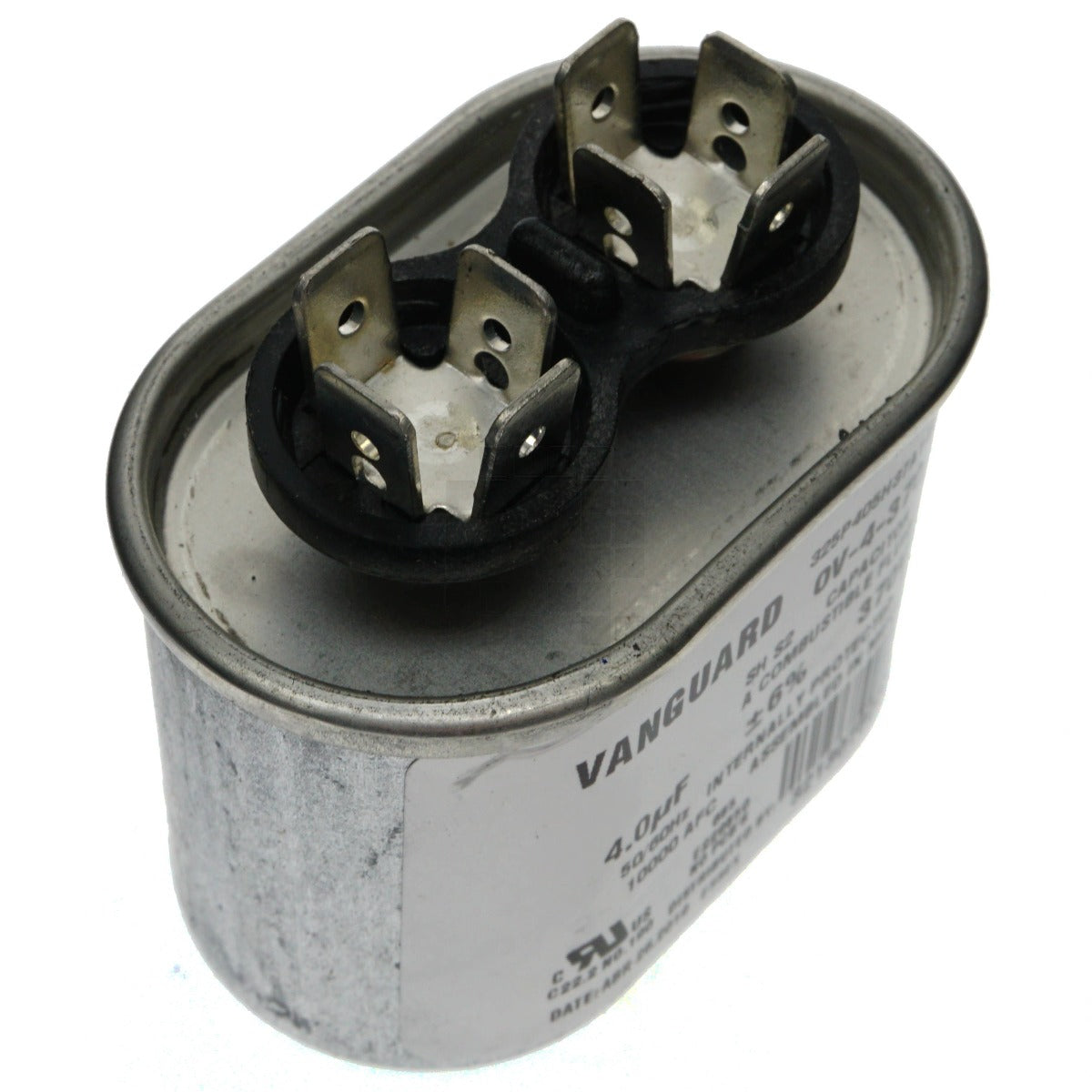

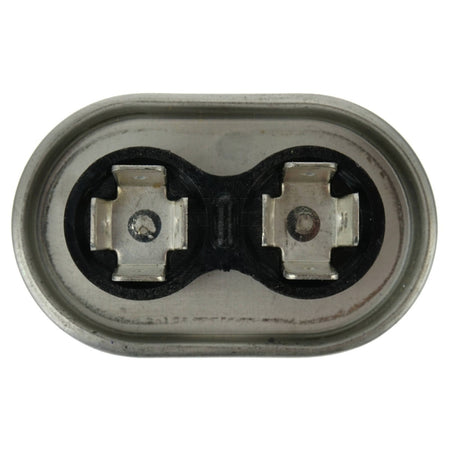

Connection 2 Posts
Four 1/4” male spade terminals on each post
Resistor None

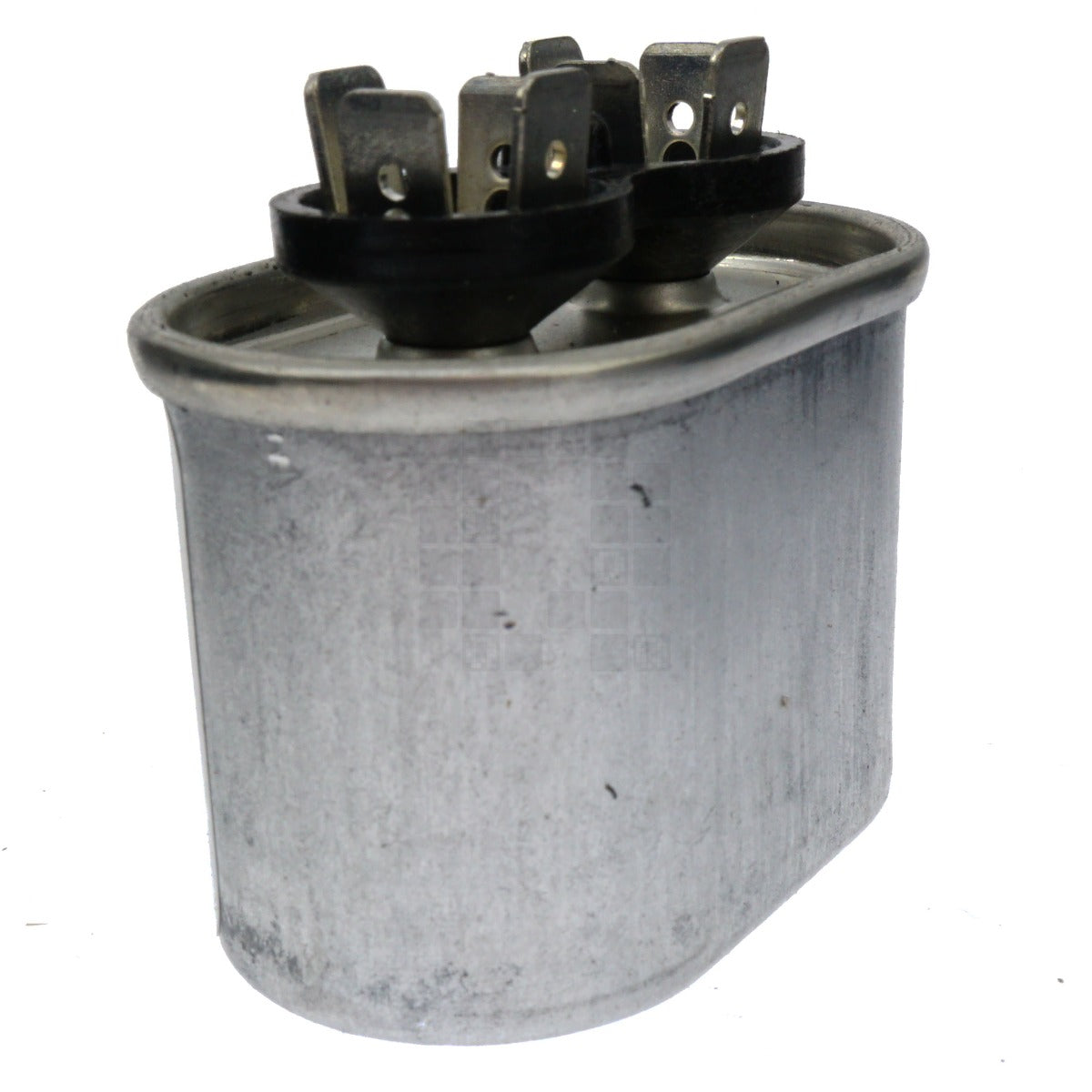

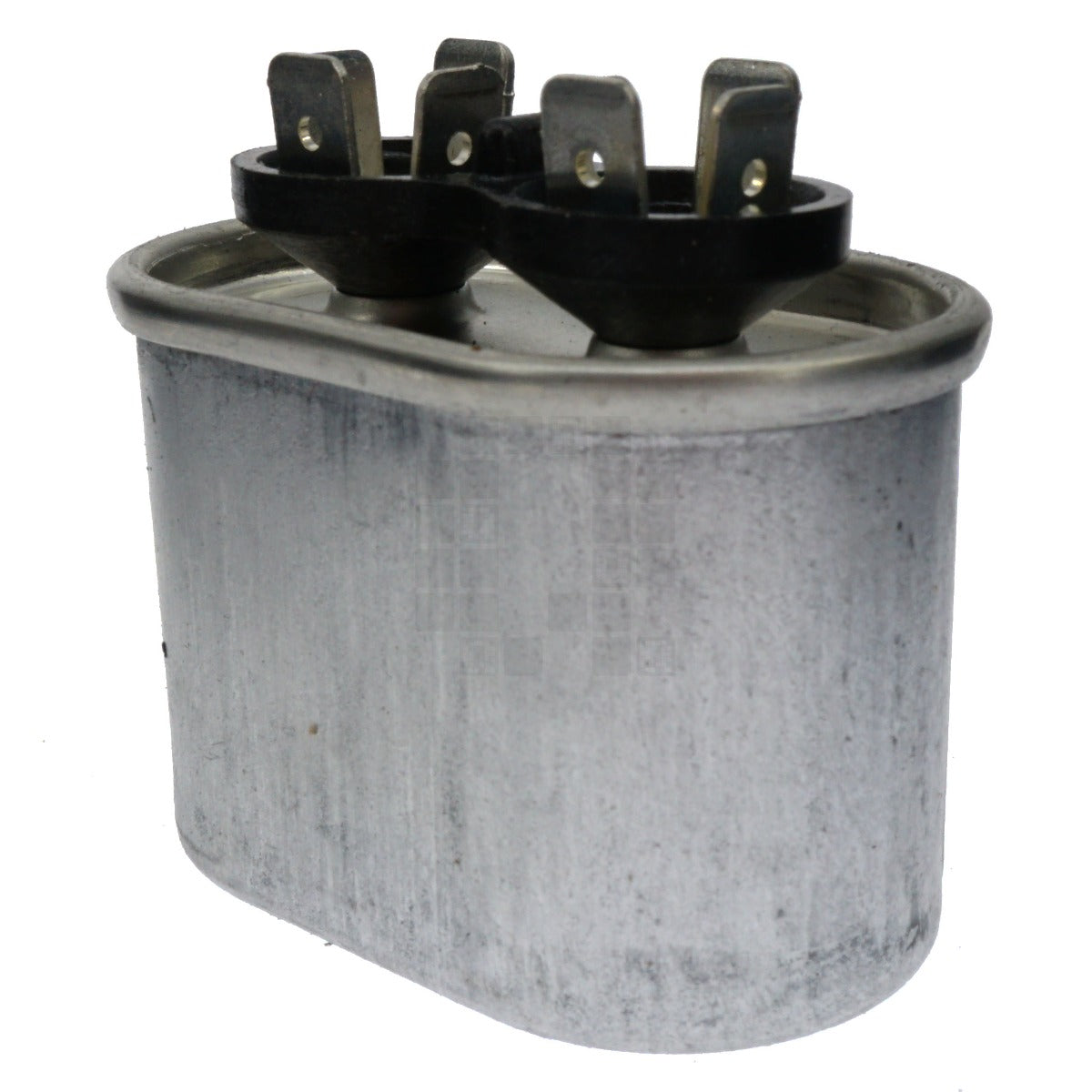

Construction Aluminum Case
Certifications/Approvals UL Approved
Performance Specifications
Case Code
Distance Between Terminals 0.812"
UPC None
Product Origin (COO) Mexico

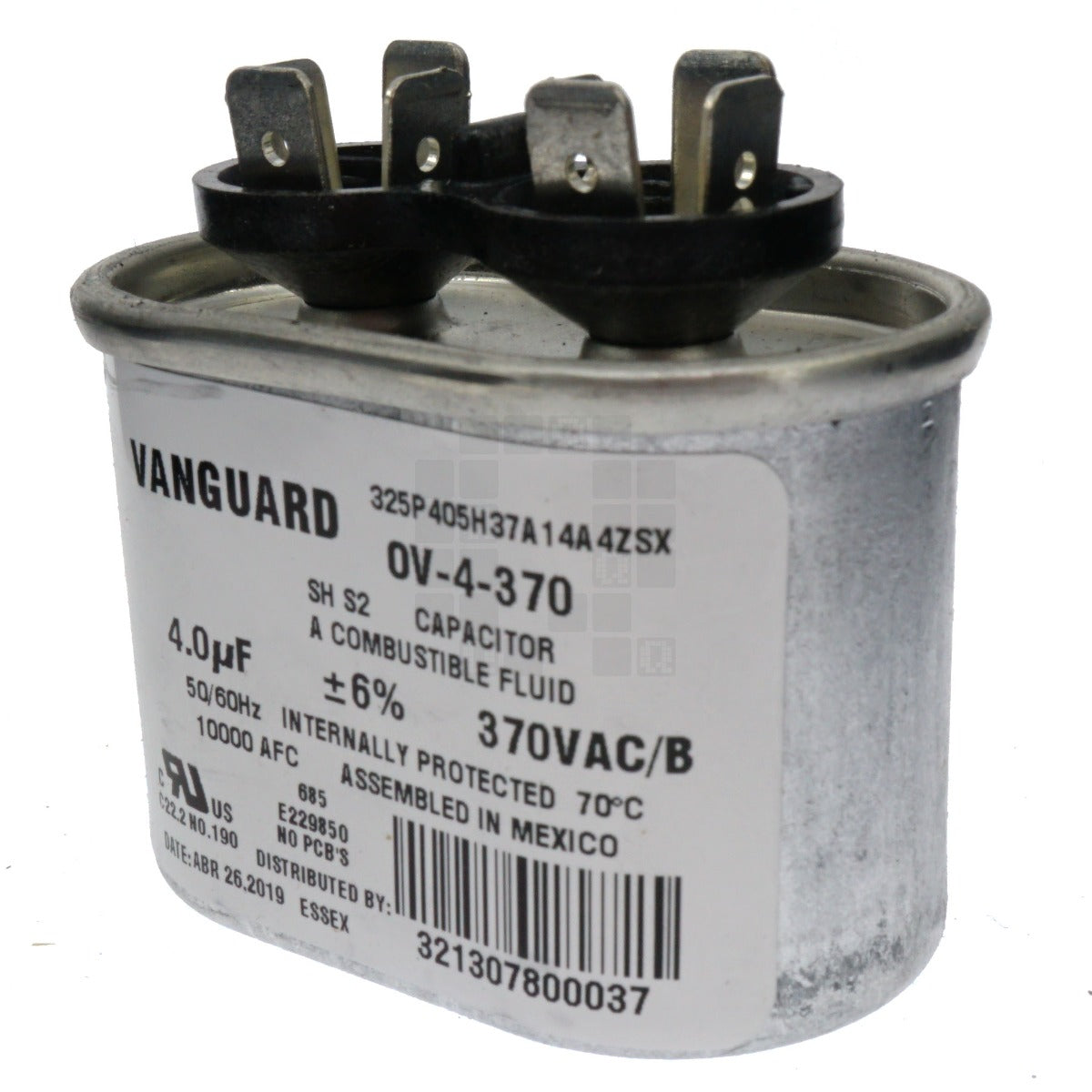

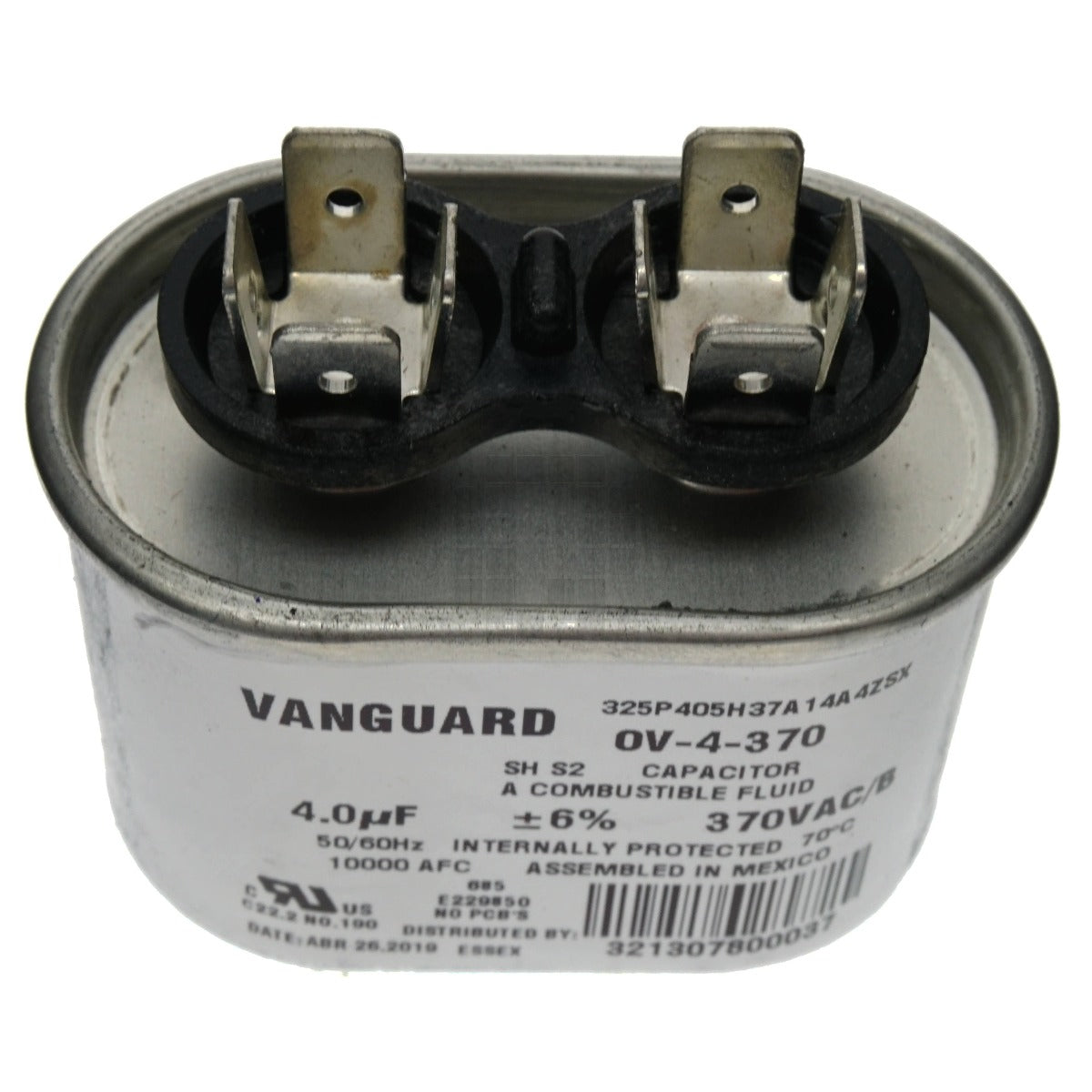

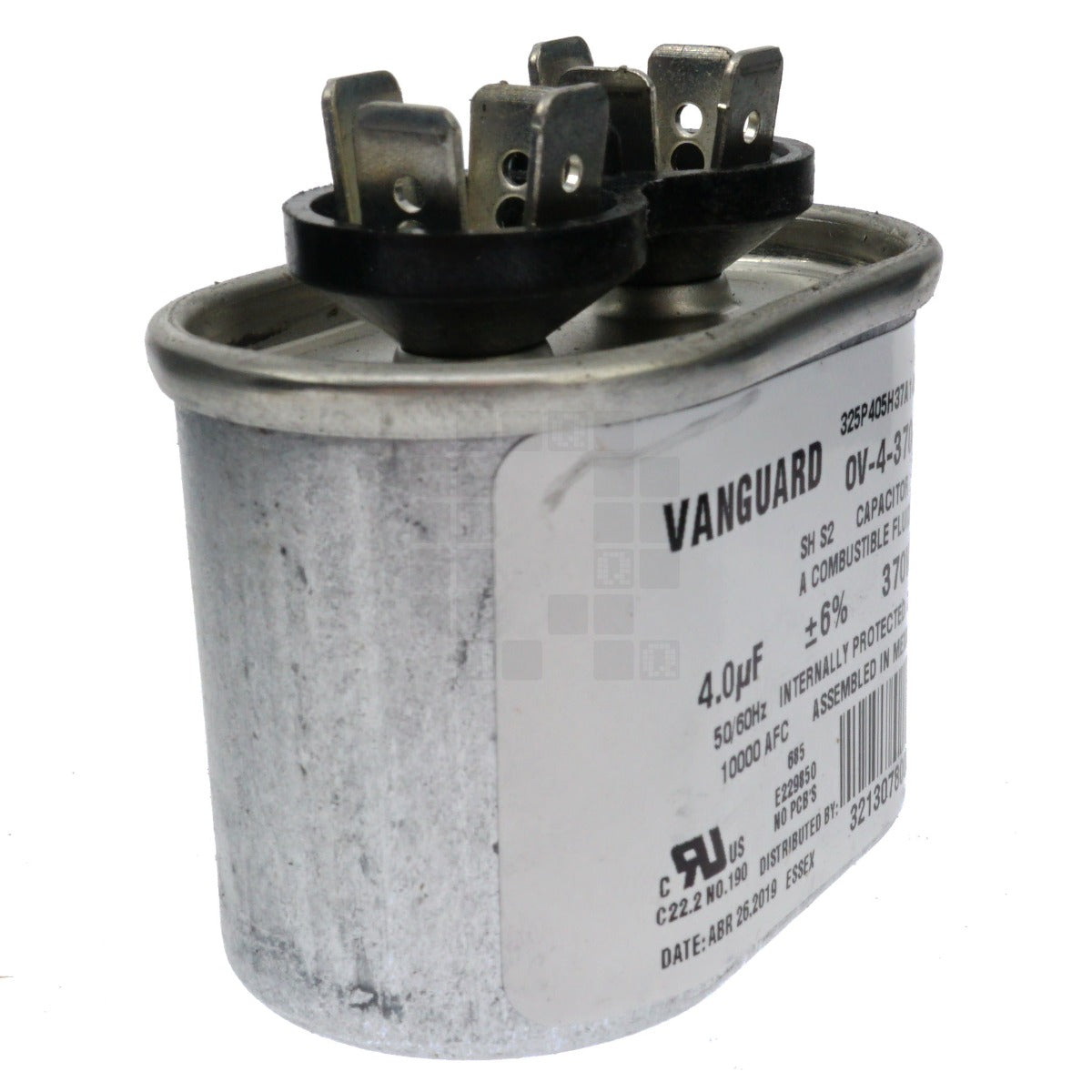

Product Label Vanguard 325P405H37A14A4ZSX
OV-4-370
SH S2 Capacitor
A Combustible Fluid
4.0uF +/-6% 370VAC/B
50/60Hz Internally Protected 70°C
10000 AFC Assembled in Mexico
No PCB's

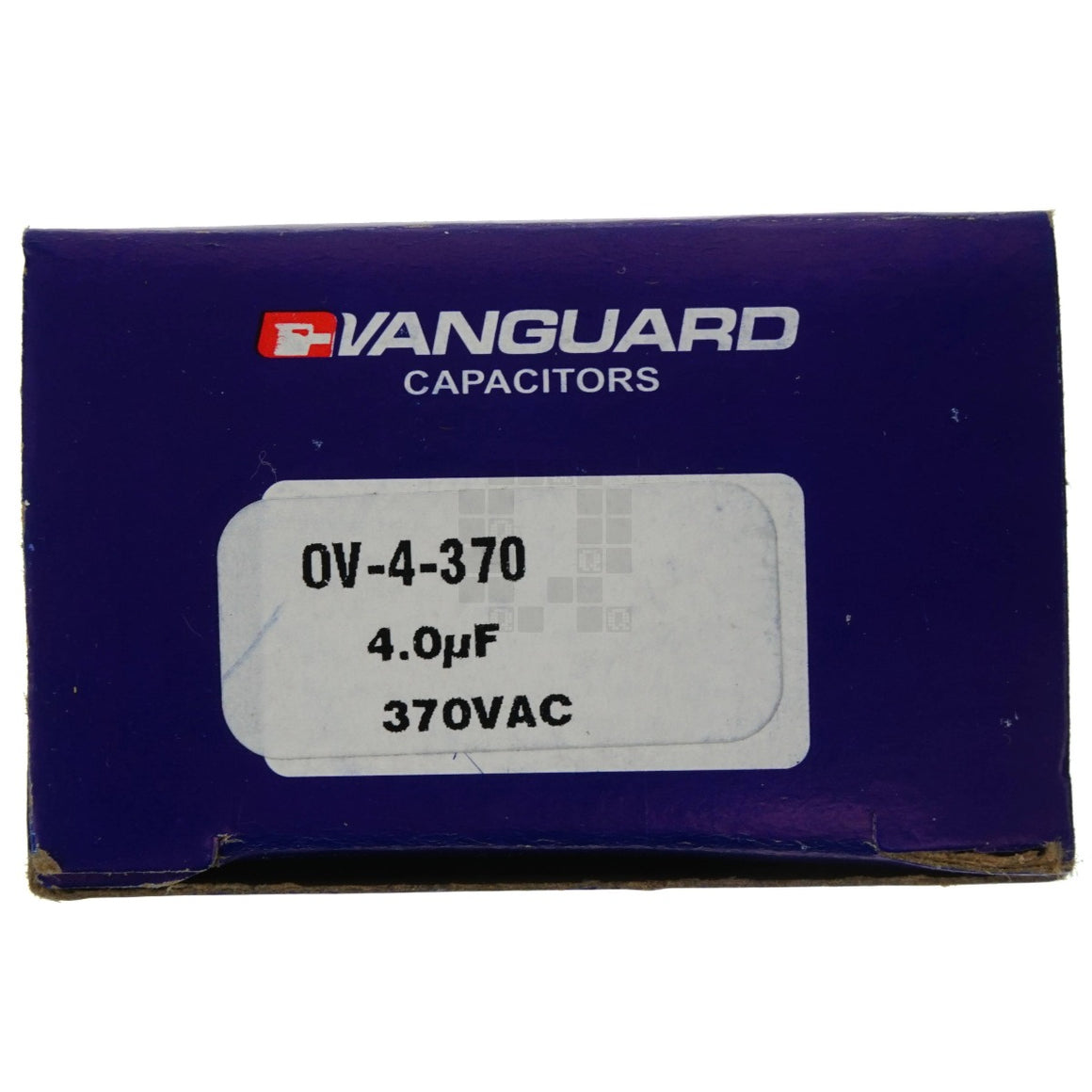

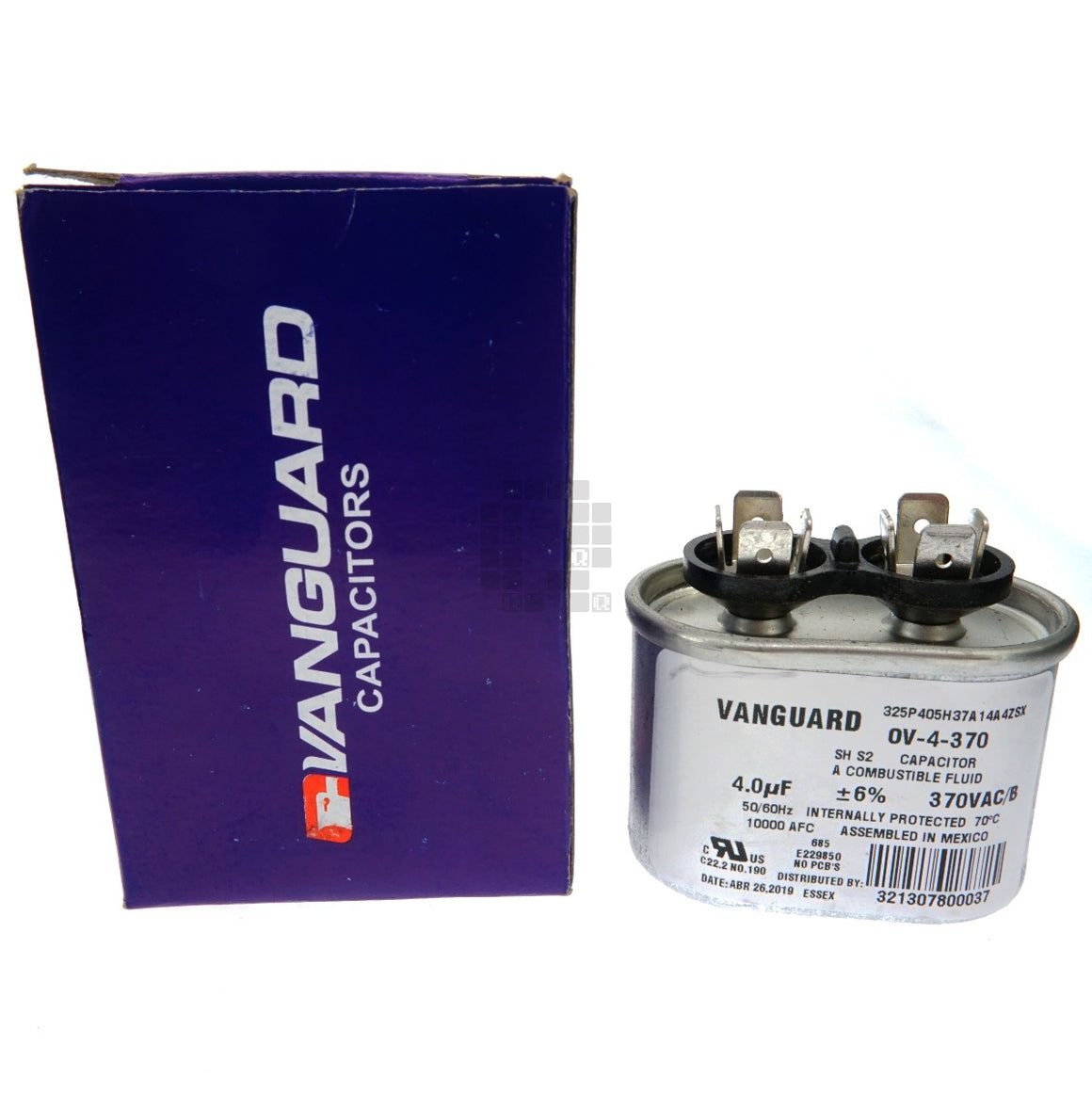

Package Label Vanguard Capacitors
OV-4-370
370VAC
Notes An occasional dent in the aluminum housing may be present due to shipping and handling. This is a commercial part and cosmetic damage IS NOT considered a valid reason for a return.
Product Color Silver, Aluminum
Product Shape Oval
Product Dimensions 2-5/32" Width
2-1/8" Height (Does not include Terminals)
1-5/16" Depth
Product Weight 3 oz
Package Dimensions (LxWxH) 2.25" x 1.50" x 3.38"
Package Weight 3 oz
