Brand Vanguard
Manufacturer Part Number OV-40-370
325P406H37C33A4ZSX
Cross Reference (Fit/Form/Function)
Capacitance 40.0 uF +/-6%
Working Voltage 370 VAC
Frequency 50/60 Hz
Working Temperature Range +70°C
Type Run Capacitor

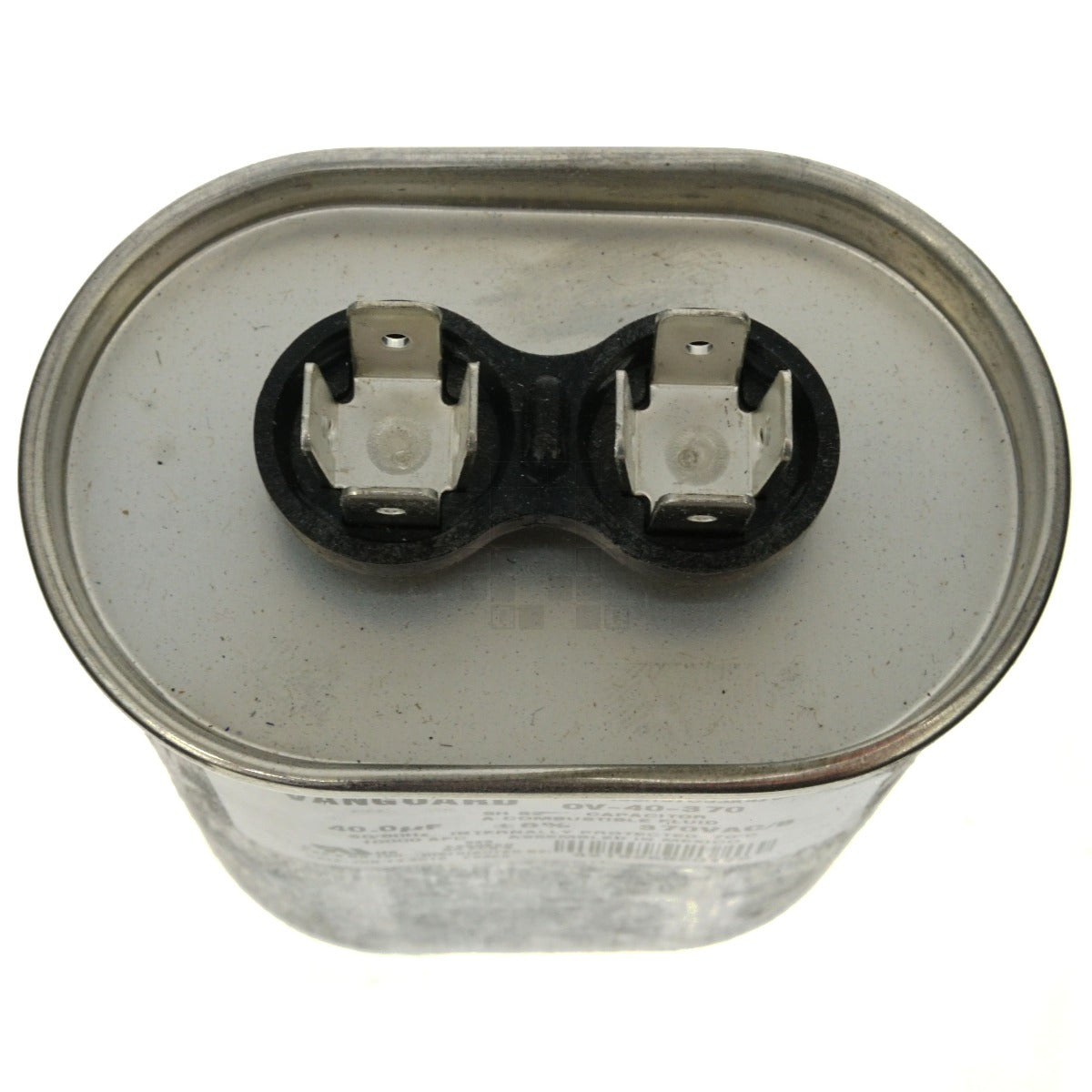

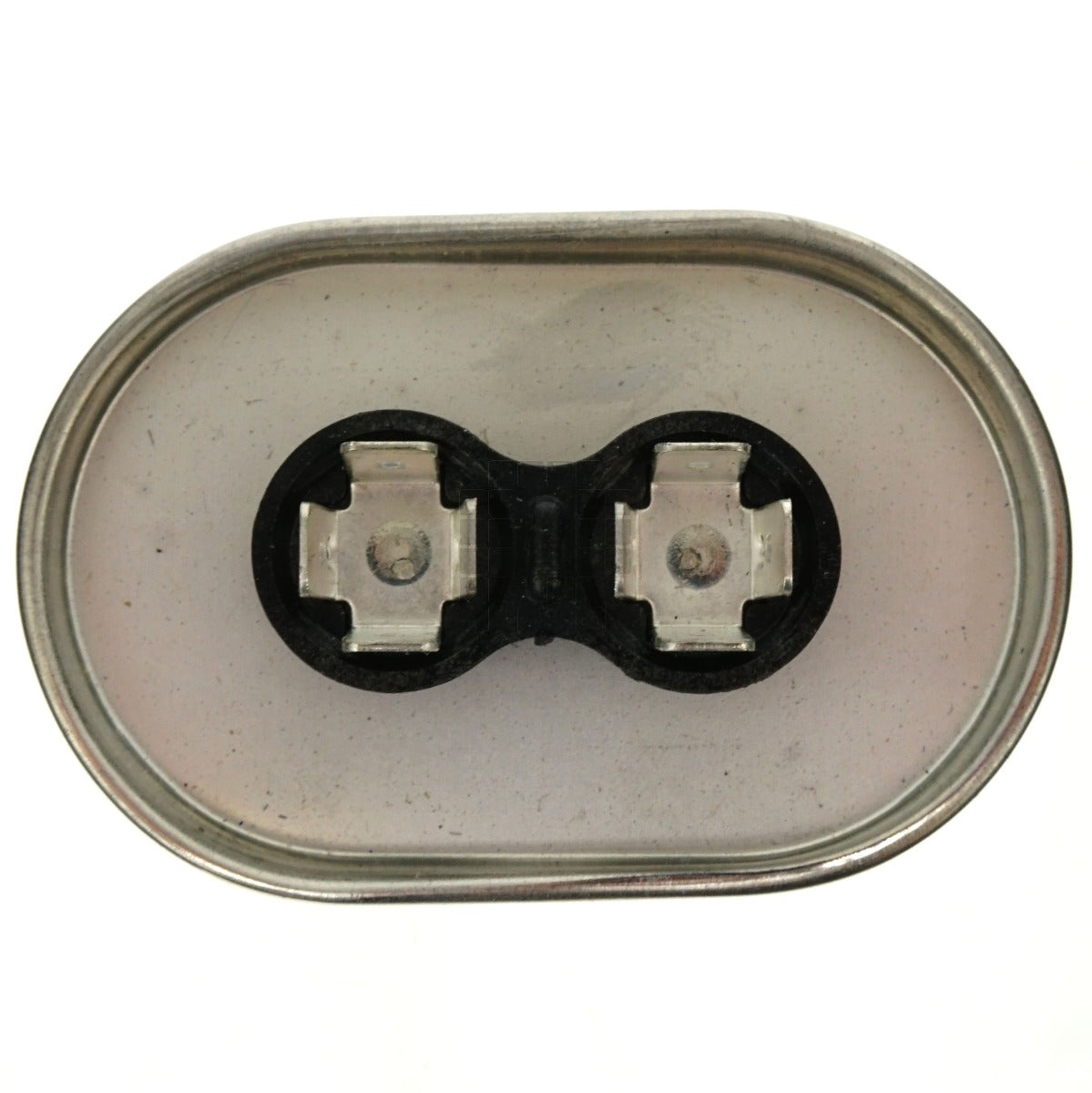

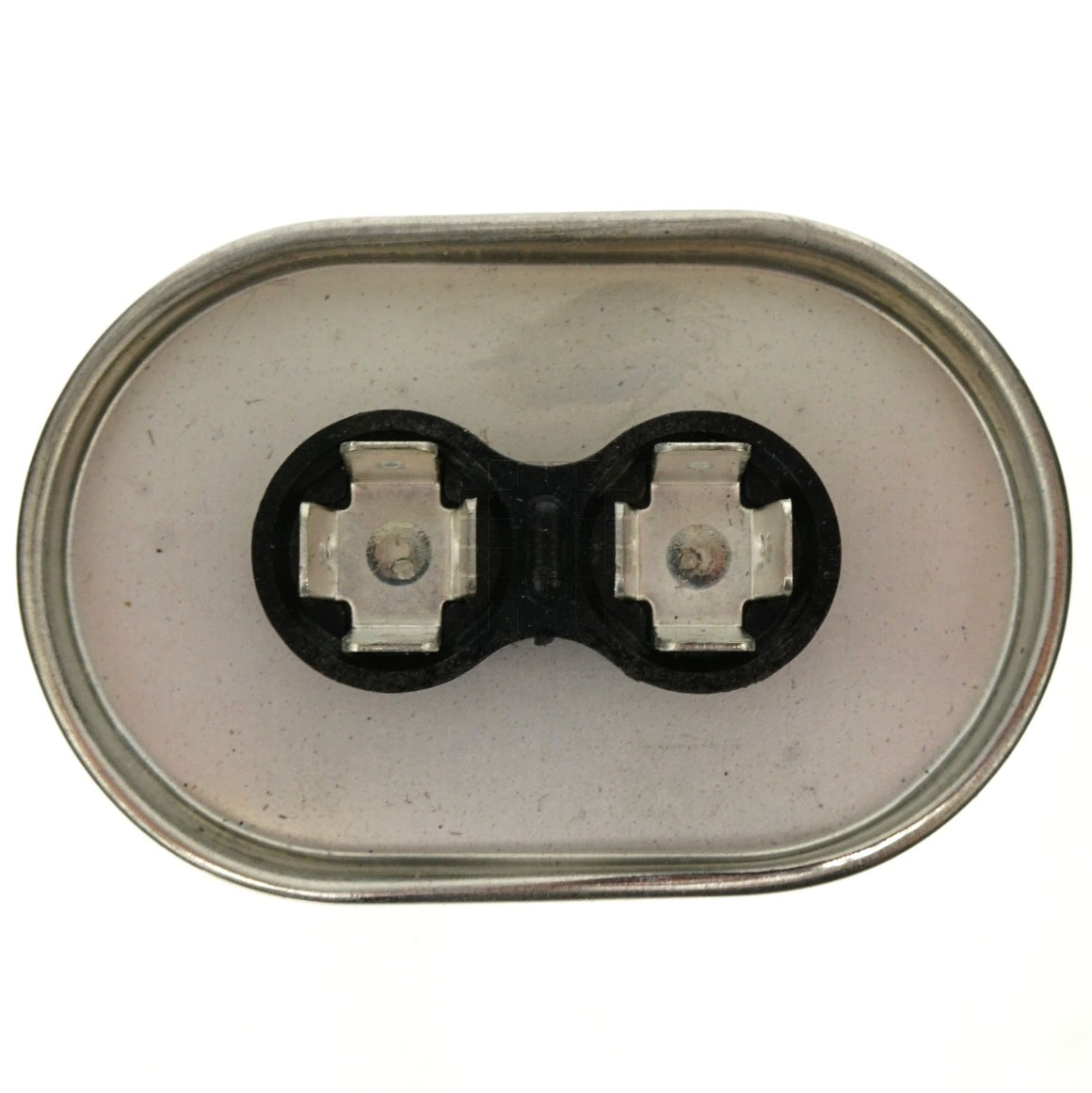

Connection 2 Posts
Four 1/4” male spade terminals on each post
Resistor None
Construction Aluminum Case
Certifications/Approvals UL Approved
Performance Specifications
Case Code
Distance Between Terminals 0.812"
UPC None
Product Origin (COO) Mexico

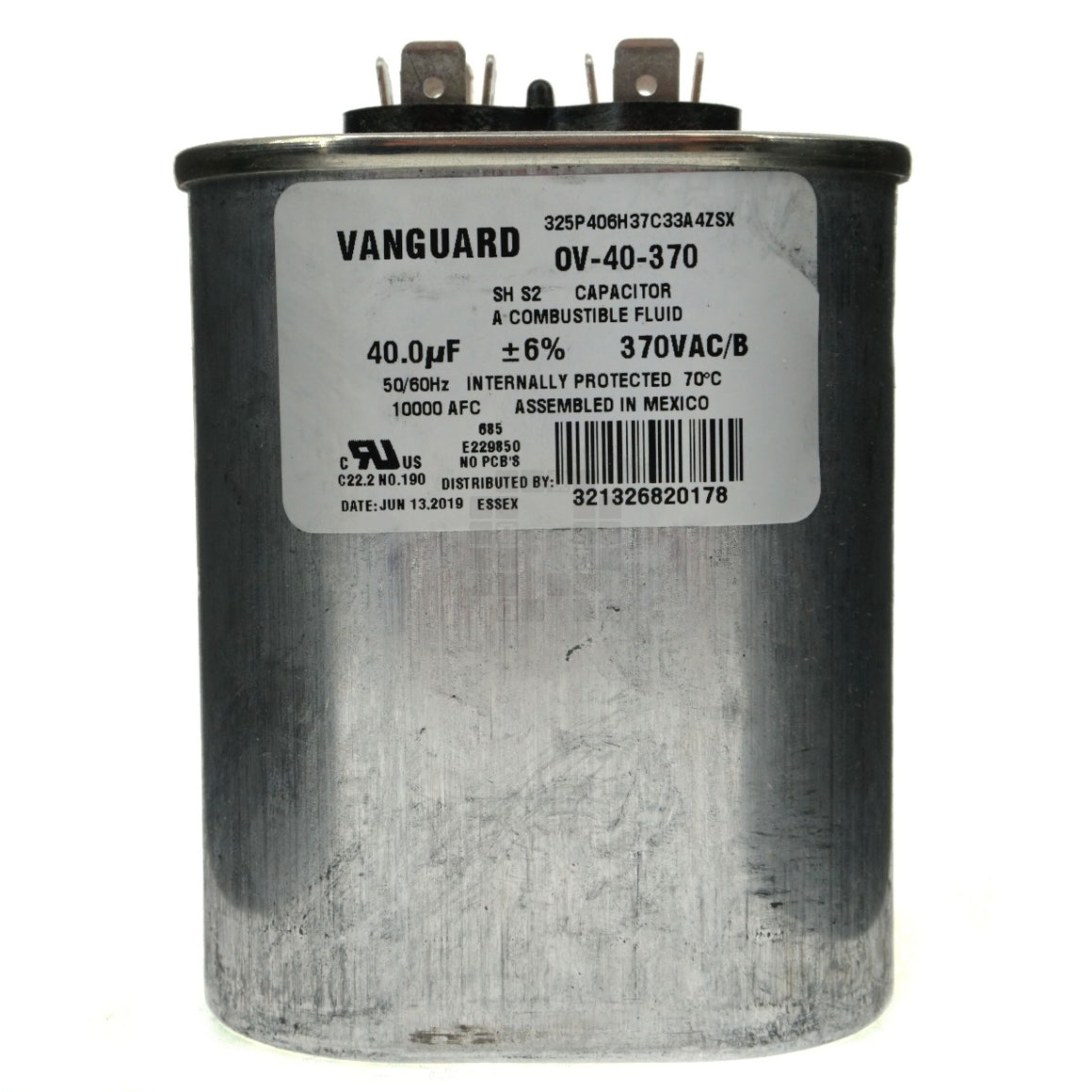

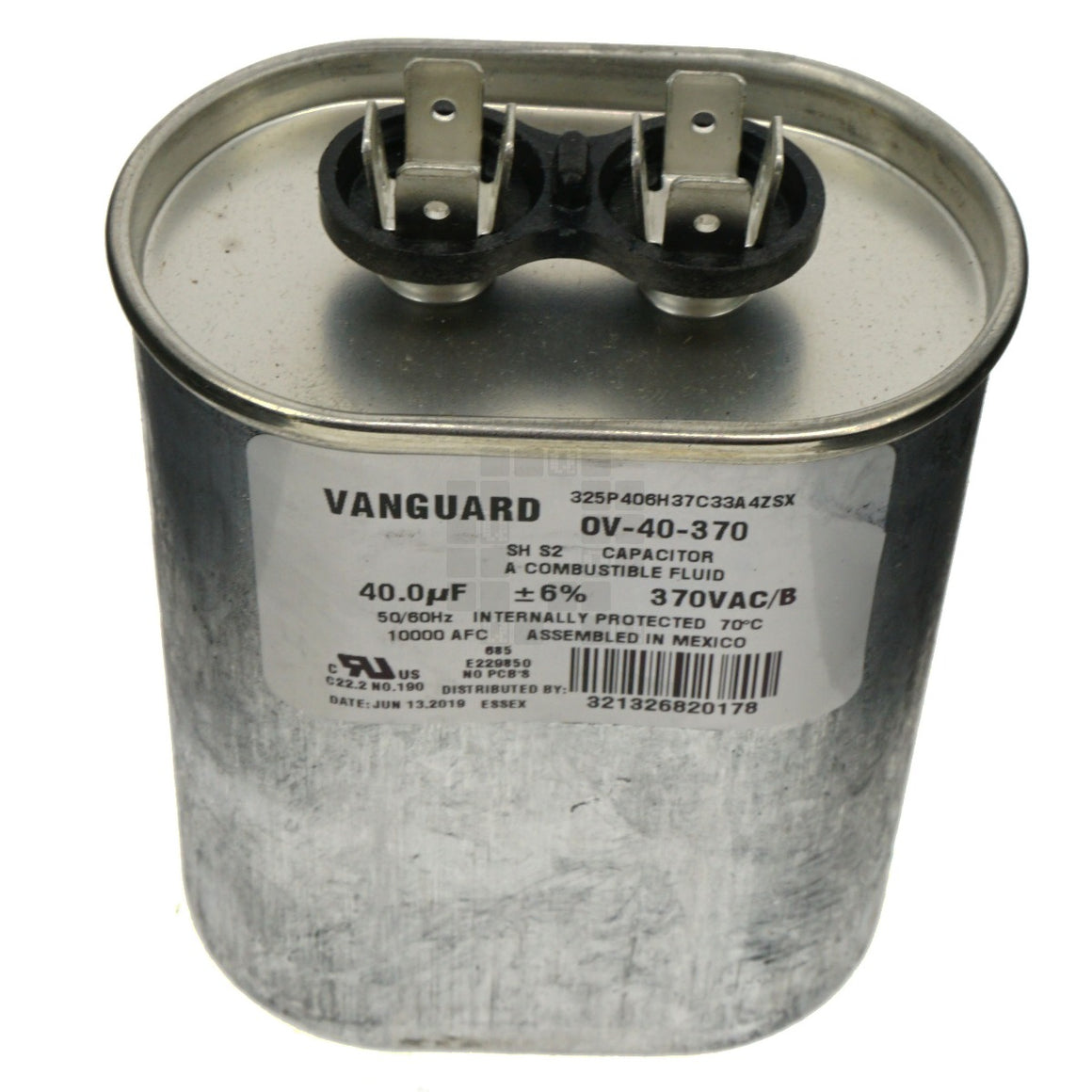

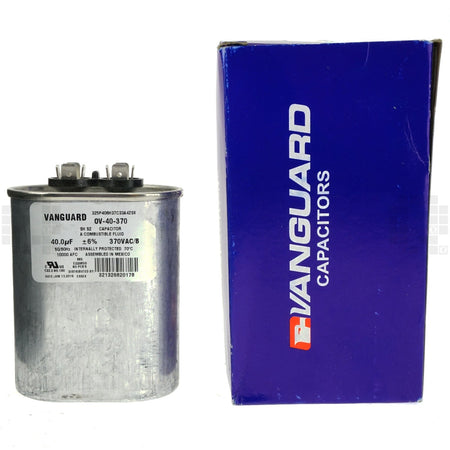

Product Label Vanguard 325P406H37C33A4ZSX
OV-40-370
SH S2 Capacitor
A Combustible Fluid
40.0 uF +/-6% 370VAC/B
50/60Hz Internally protected 70°C
10000 AFT Assembled in Mexico
No PCB's

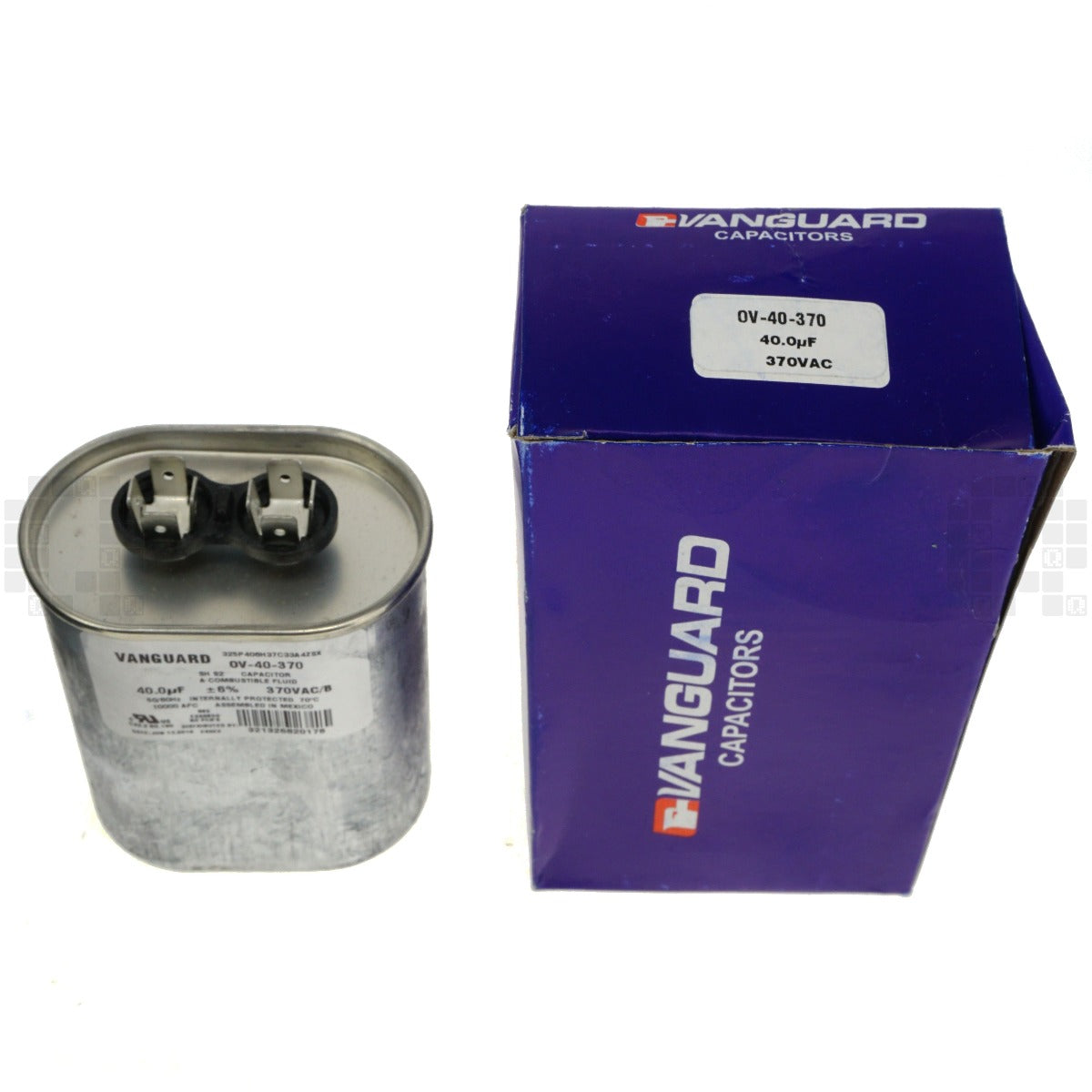

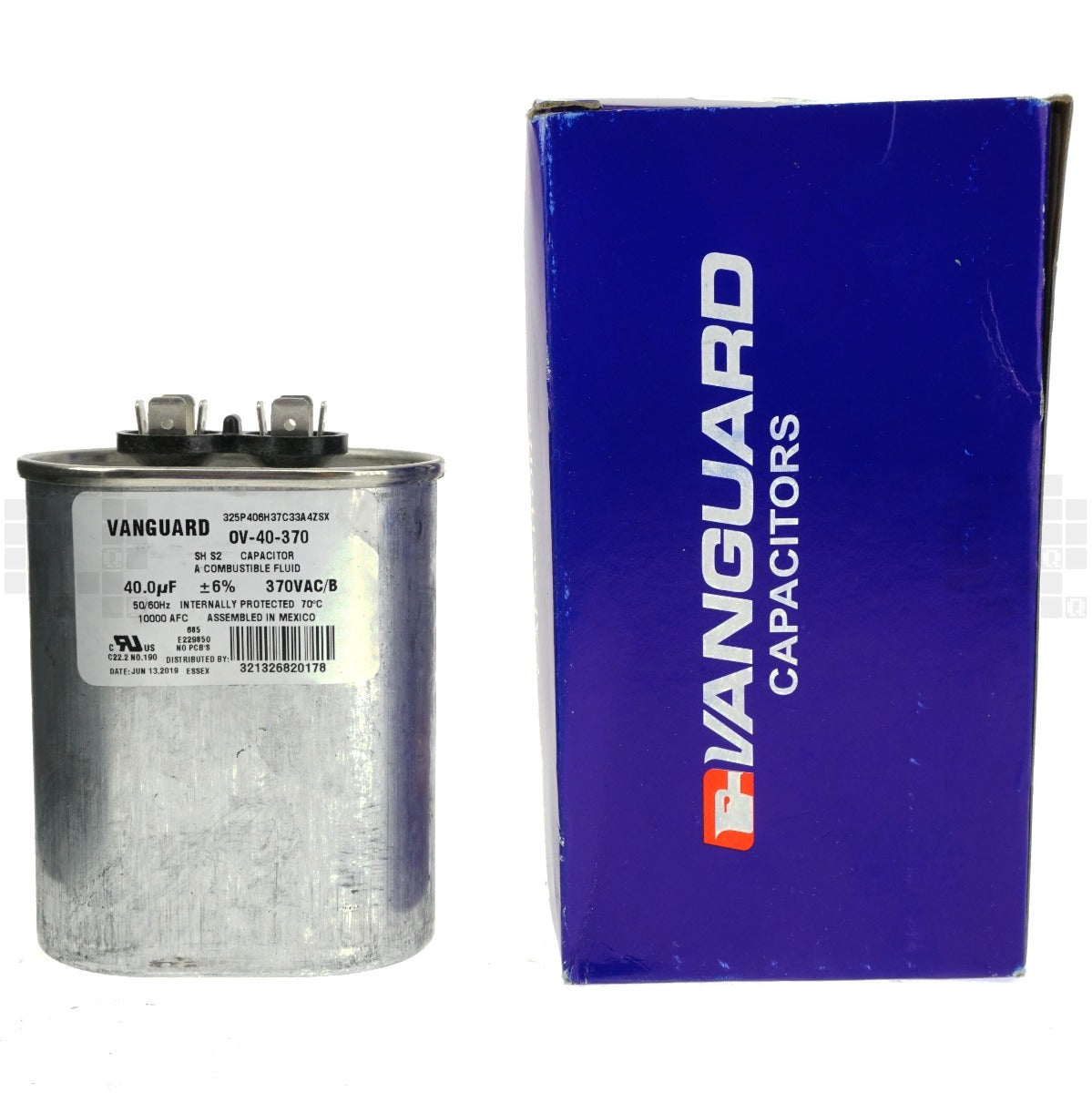

Package Label Vanguard Capacitors
OV-40-370
40.0uF
370VAC
Notes An occasional dent in the aluminum housing may be present due to shipping and handling. This is a commercial part and cosmetic damage IS NOT considered a valid reason for a return.
Location
Product Color Silver
Product Shape Oval
Product Dimensions 2-29/32" Width
3-3/8" Height (Case Only)
1-29/32" Depth
Product Weight 9 oz
Package Dimensions (LxWxH) 2" x 3" x 5.63"
Package Weight 10 oz
