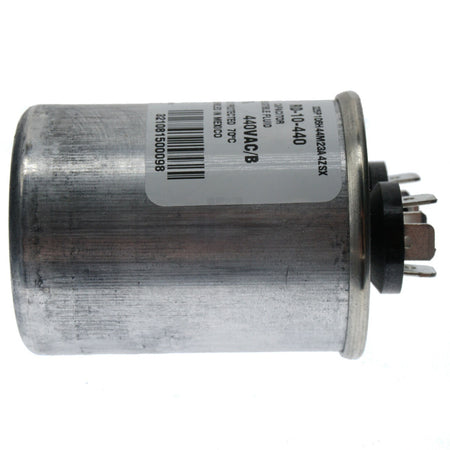

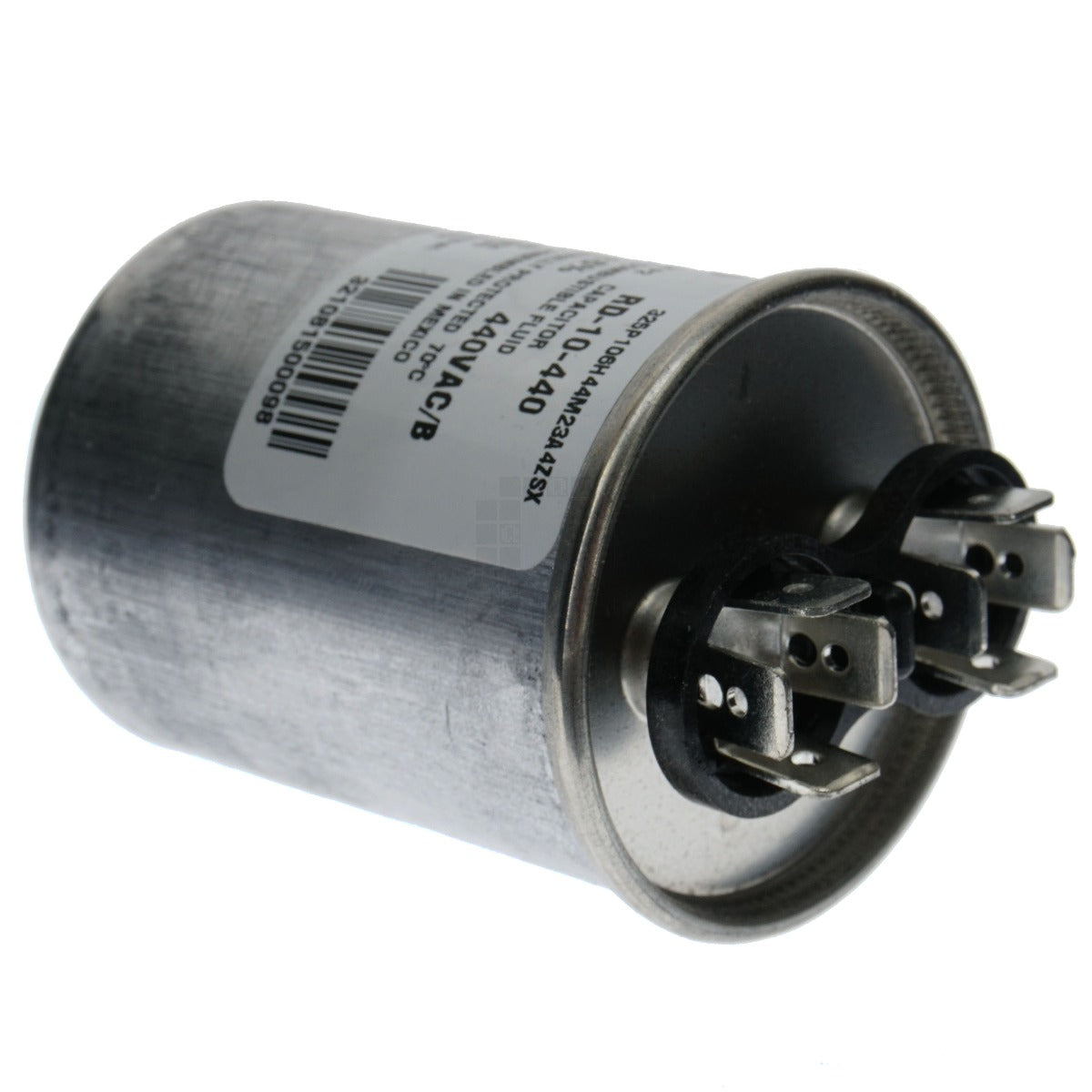

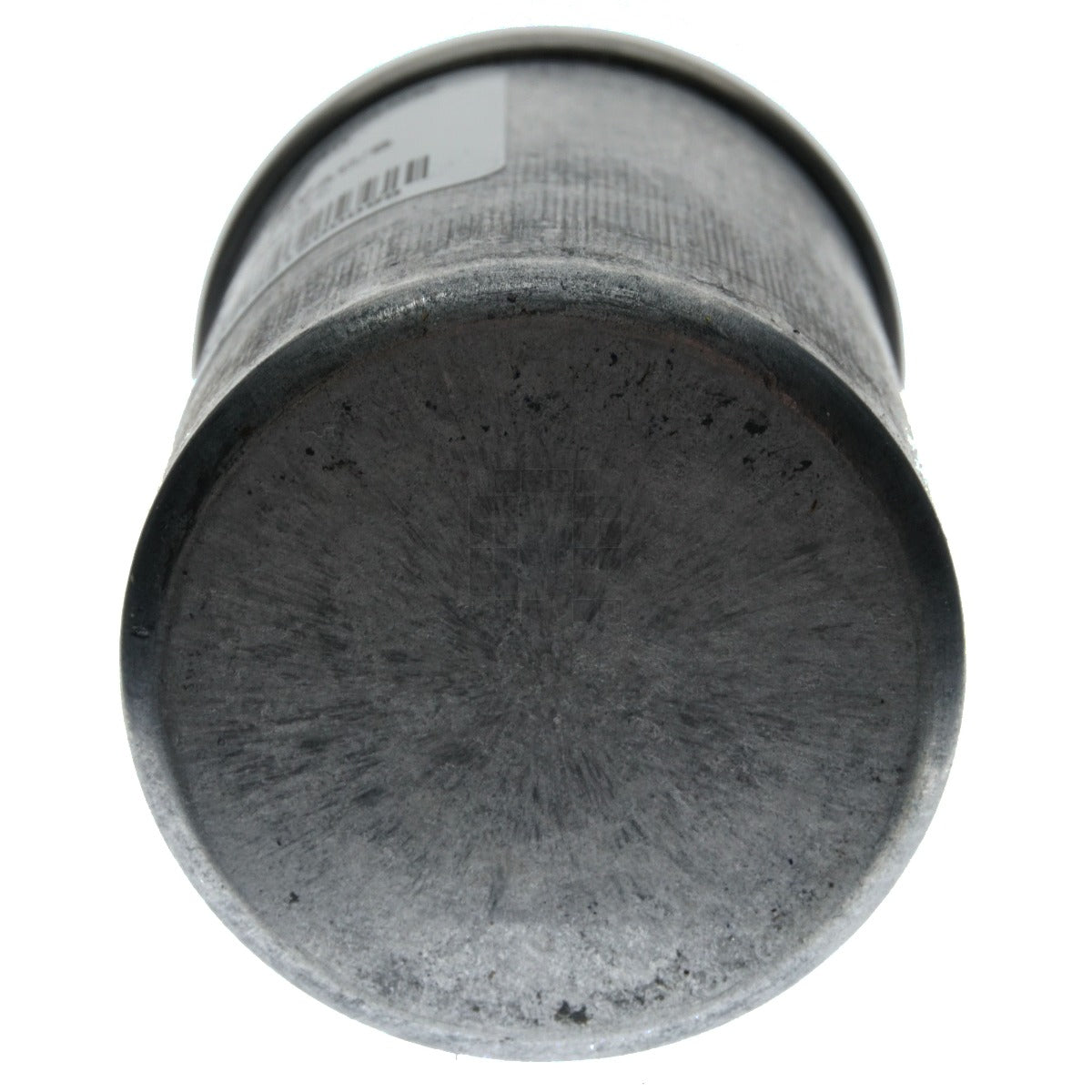

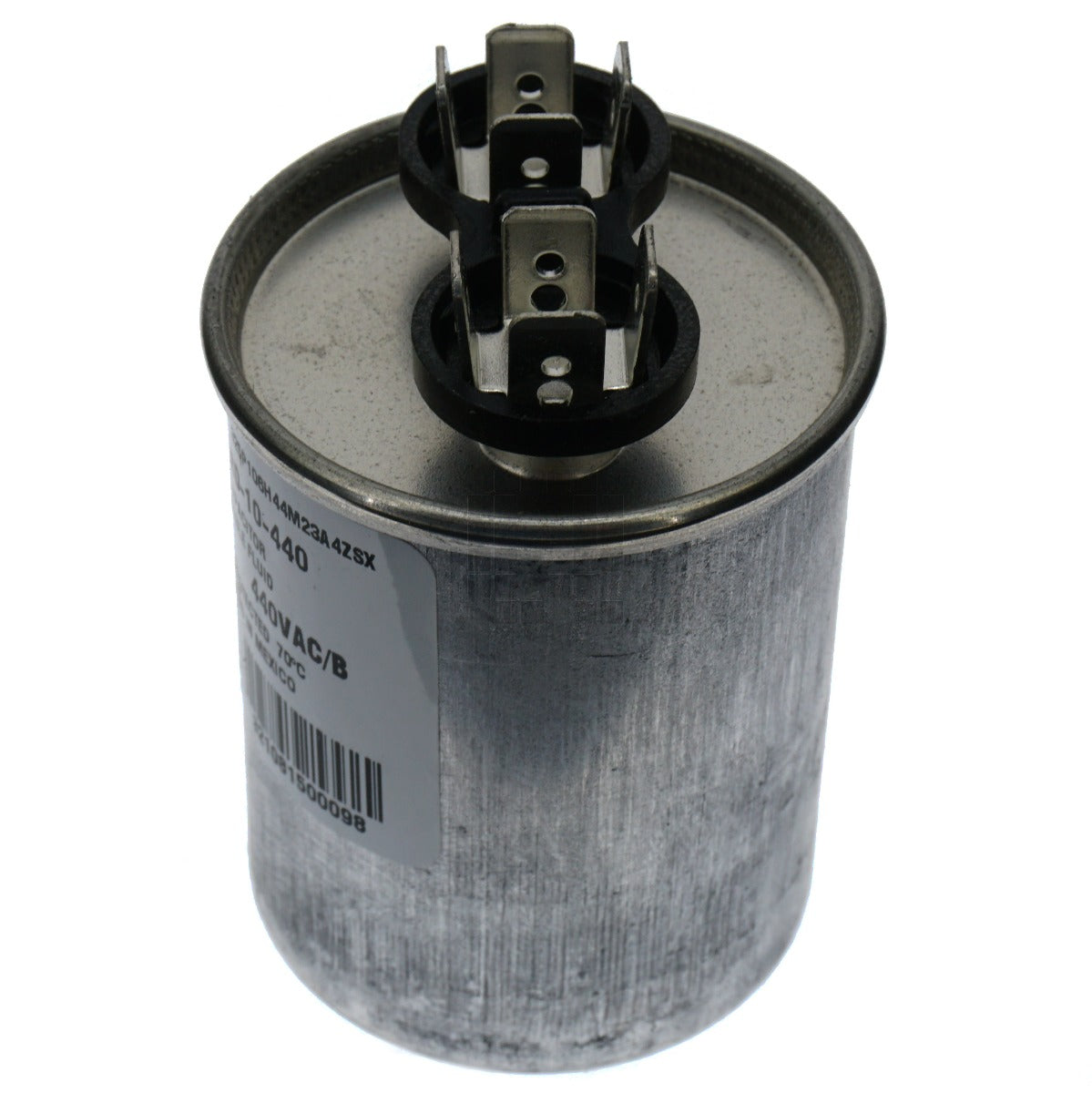

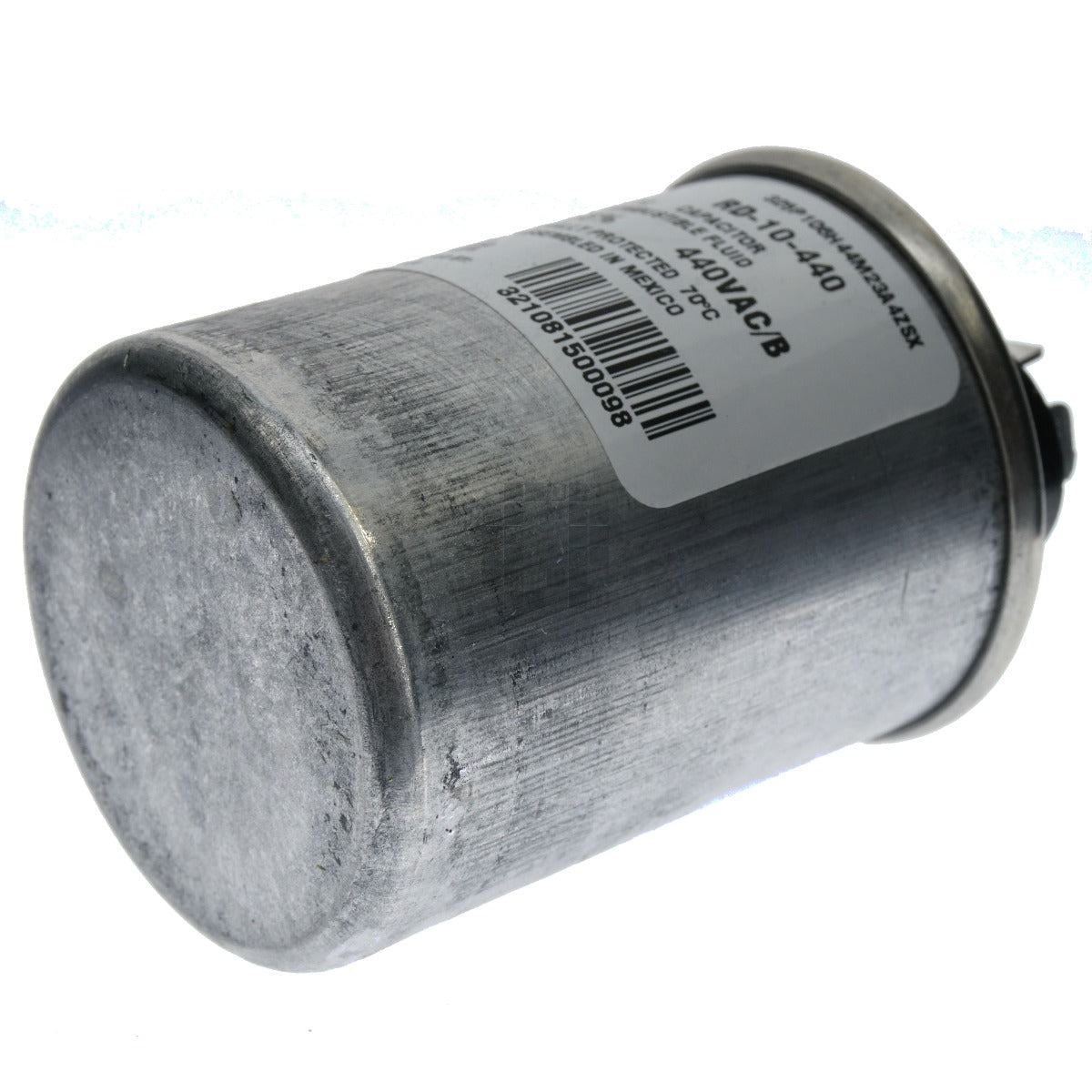

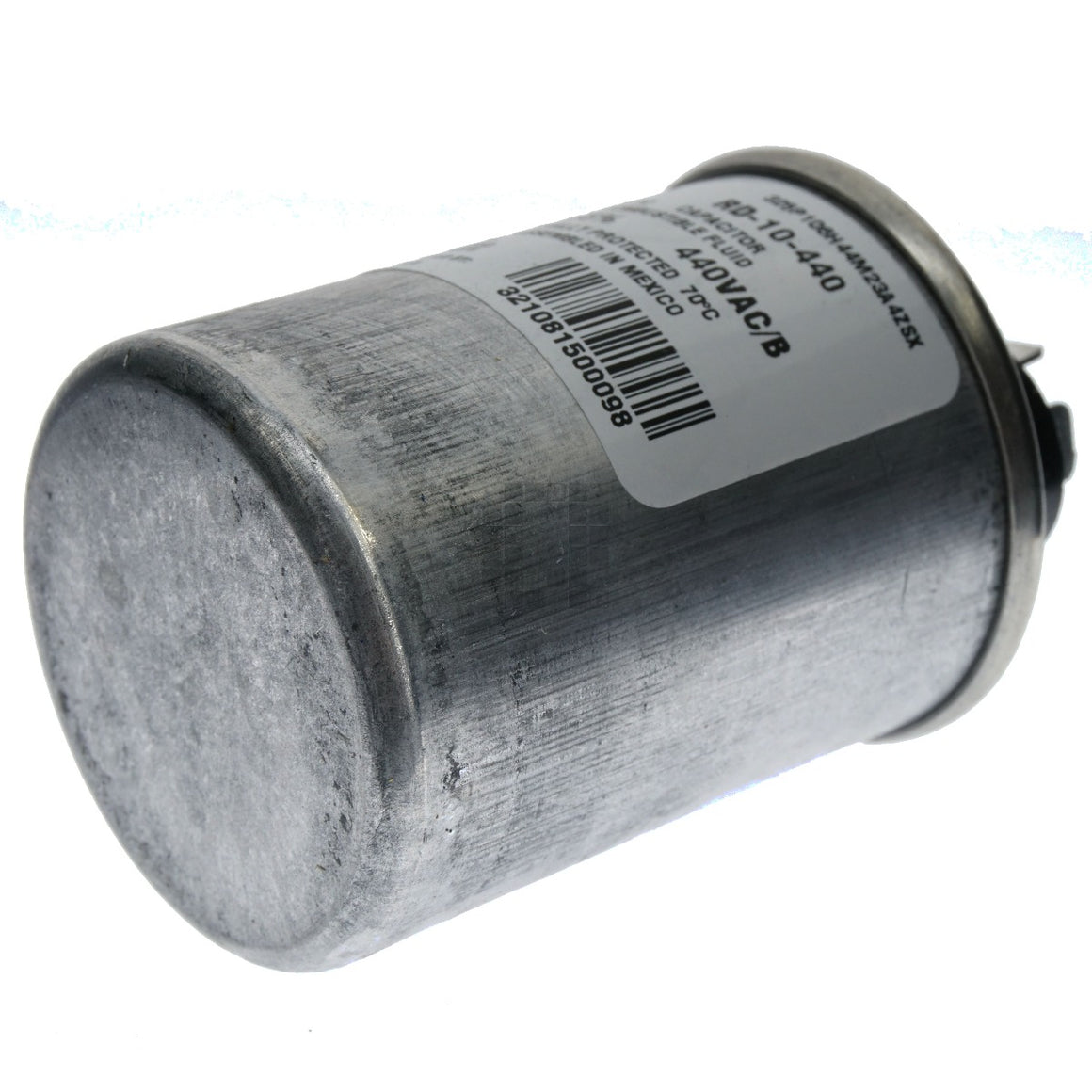

Vanguard RD-10-440 Electric Motor Run Capacitor, 10 uF, 440 VAC 50-60Hz

Name: Vanguard RD-10-440 Electric Motor Run Capacitor, 10 uF, 440 VAC 50-60Hz
Brand: Vanguard
SKU: RD-10-440
Price: 7.74 USD
Availability: InStock

(0)

Please note: While we strive for accuracy in our descriptions and images, the actual color and appearance of the items may vary slightly from the photographs due to lighting conditions or varying computer monitor settings.

Vanguard SKU: RD-10-440

$7.74 USD

Only 2 left

Stock Low

Product Information

Product Description Product Metafields About the Manufacturer Shipping & Handling Product Metafields (Unsorted)

Location
Brand	Vanguard manufactured by NGM
Manufacturer Part Number	RD-10-440 325P106H44M23A4Z 325P106H44M23A4ZNG 325P106H44M23A4ZSX
Cross Reference (Fit/Form/Function)
Capacitance	10 uF +/-6%
Working Voltage	440 VAC
Frequency	50/60 Hz
Working Temperature Range	-40°C to +70°C
Type	Run Capacitor Metallized Polypropylene Film

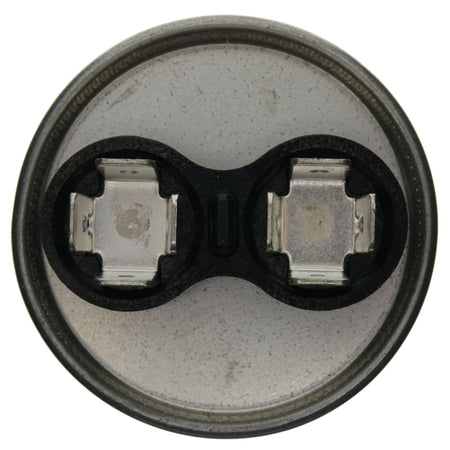

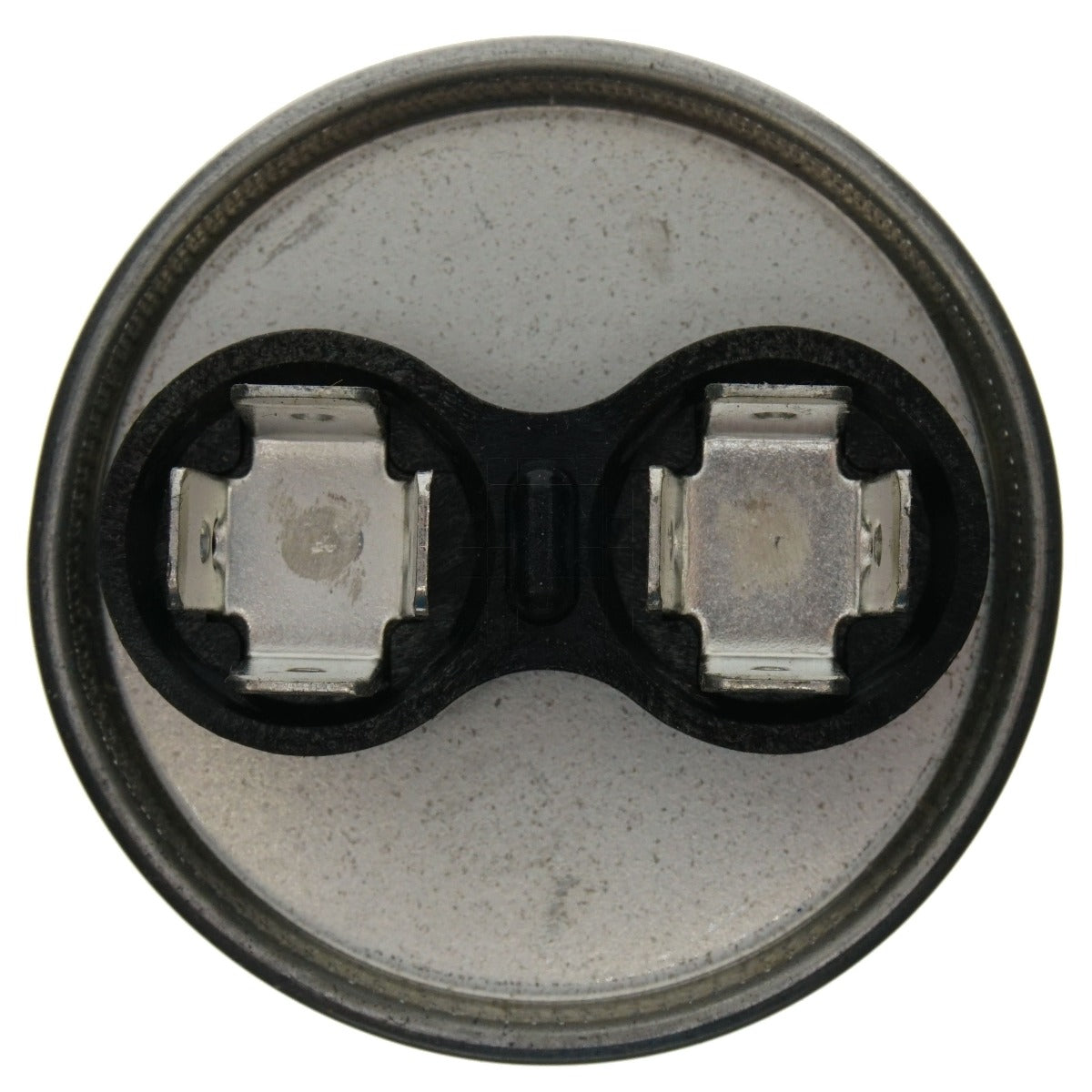

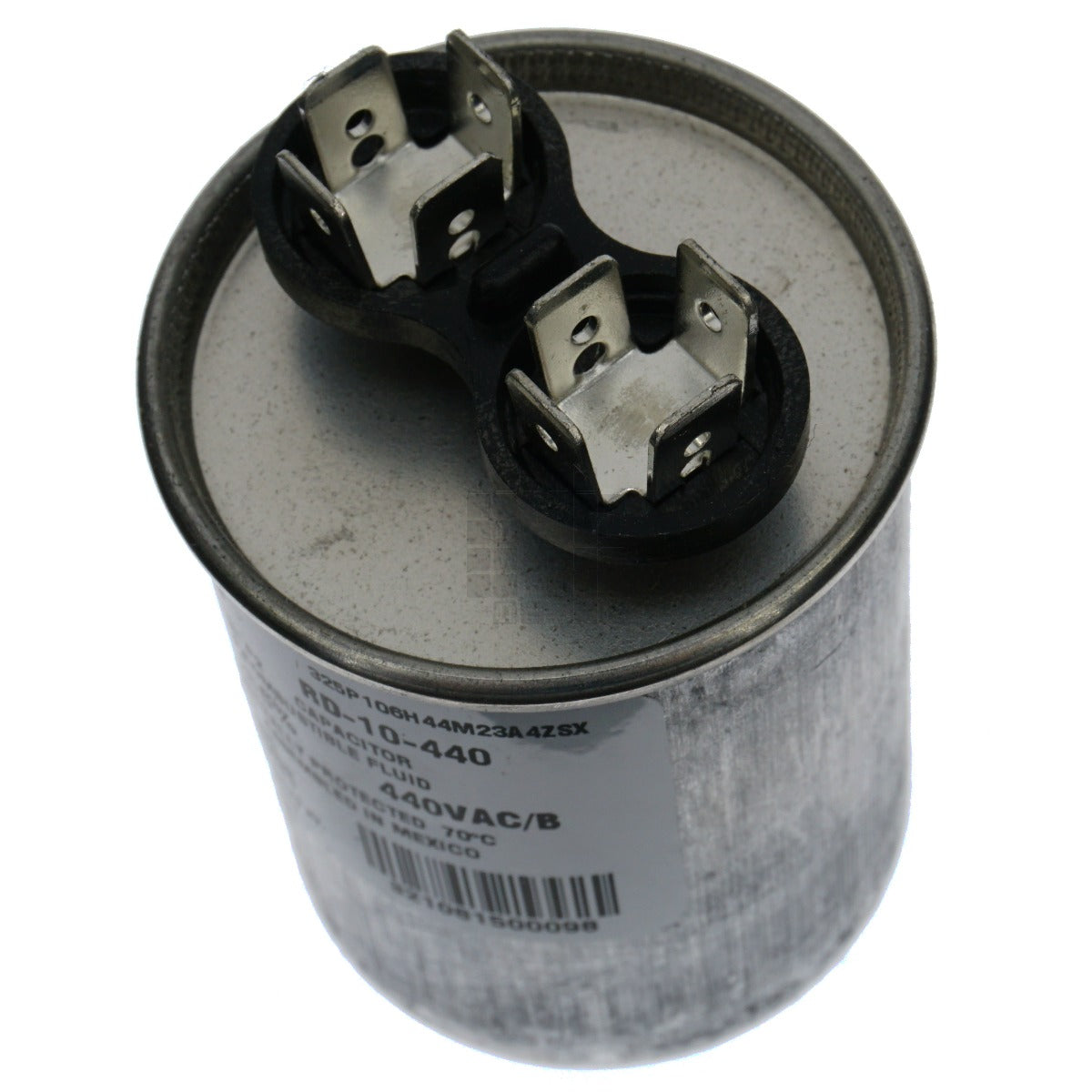

Connection	2 Posts Four 1/4” male spade terminals on each post
Resistor	None
Construction	Aluminum Case
Certifications/Approvals	UL Approved
Performance Specifications
Case Code
Distance Between Terminals
UPC	None
Product Origin (COO)	Mexico

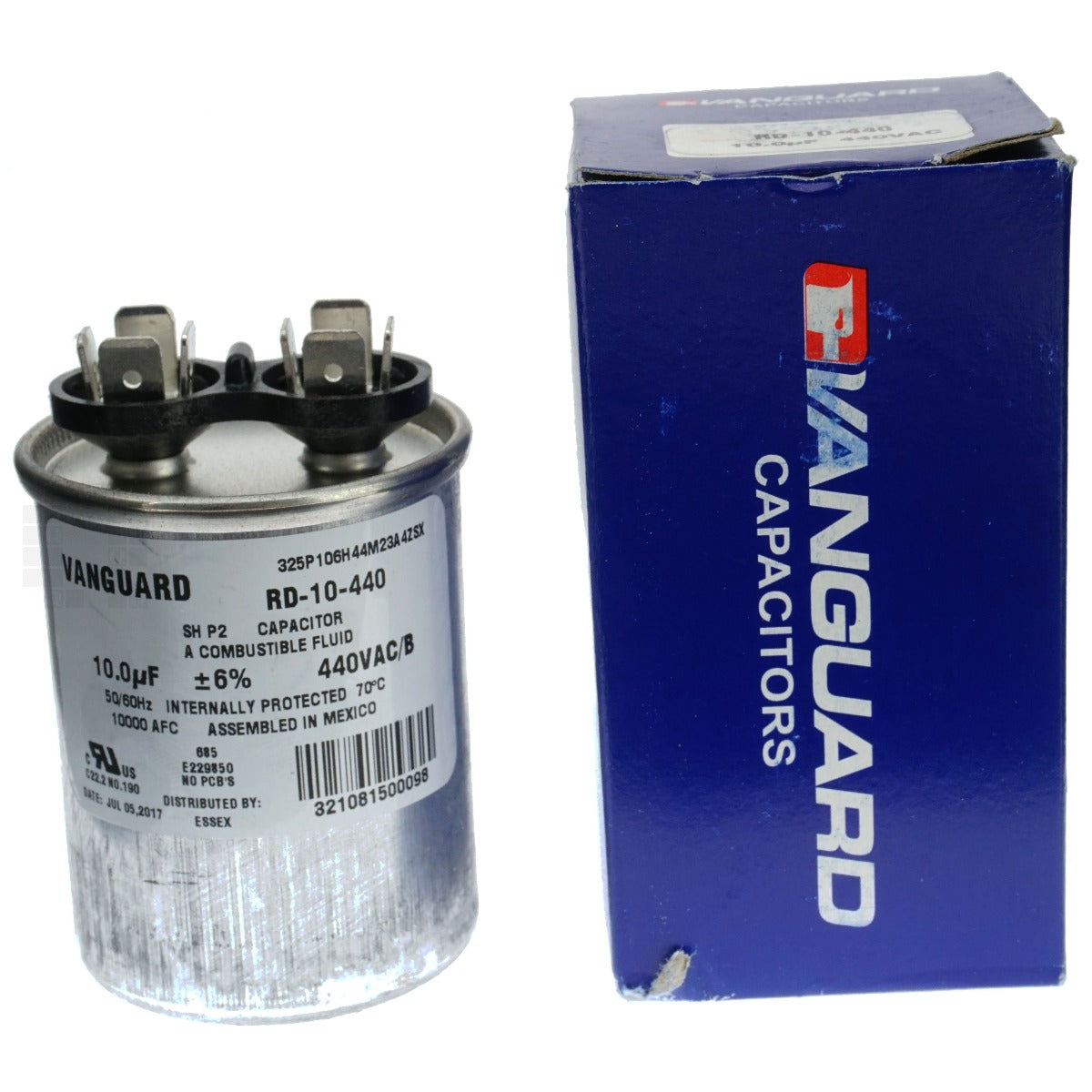

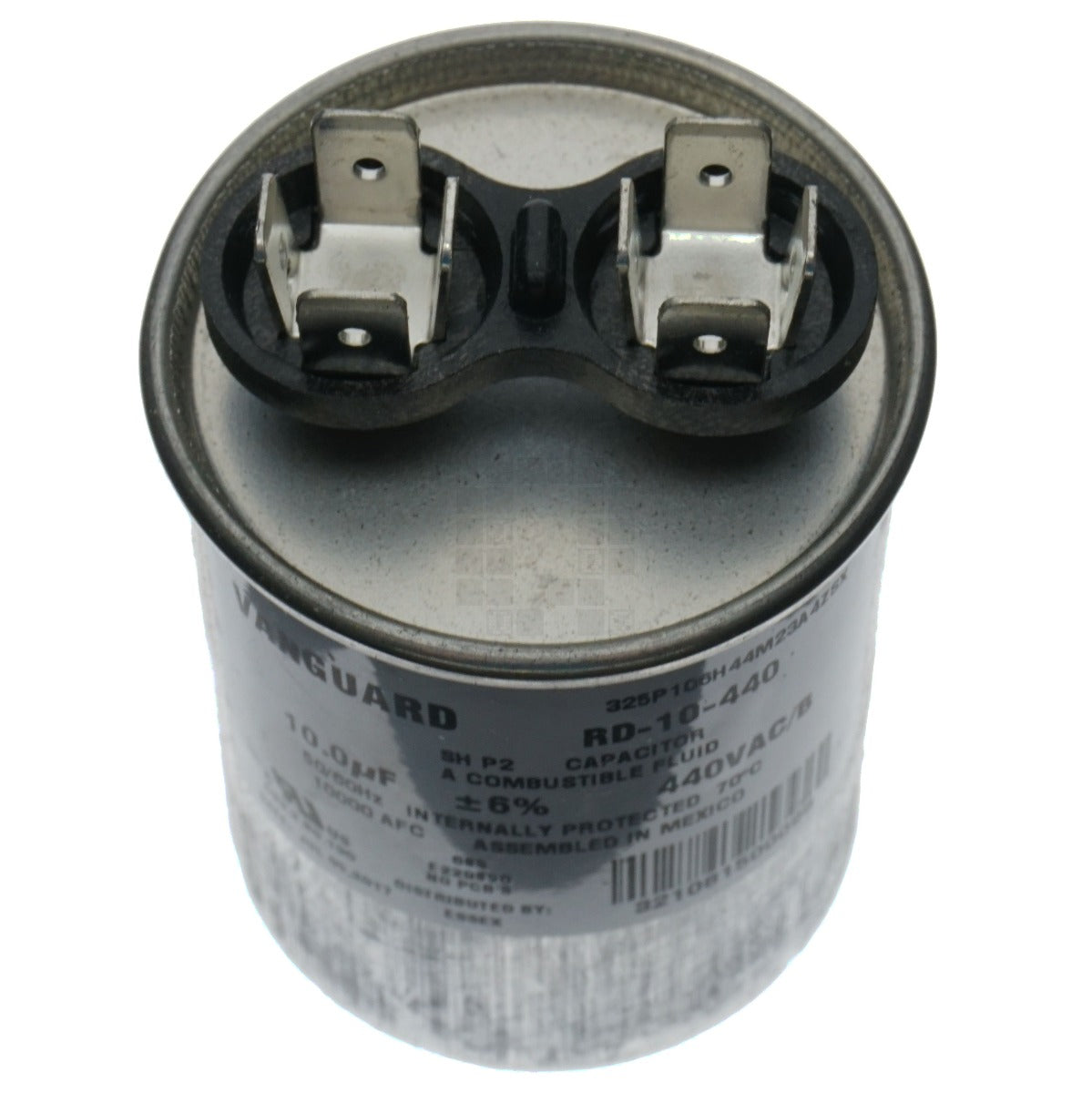

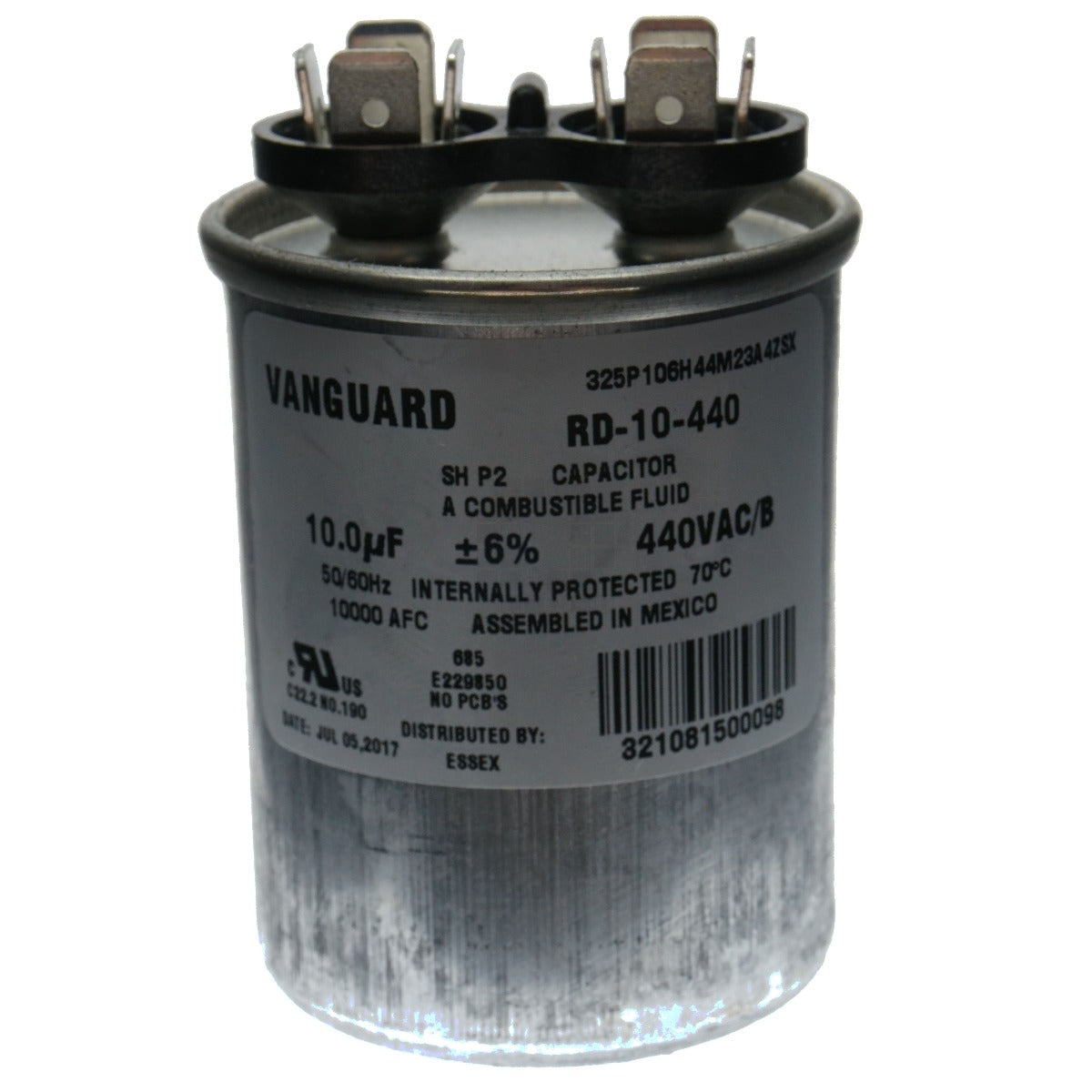

Product Label	Vanguard 325P106H44M23A4ZSX SH P2 Capacitor A Combustible Fluid 10.0 uF +/-6% 440VAC/B 50/60Hz Internally Protected 70°C 10000 AFC Assembled in Mexico No PCBs

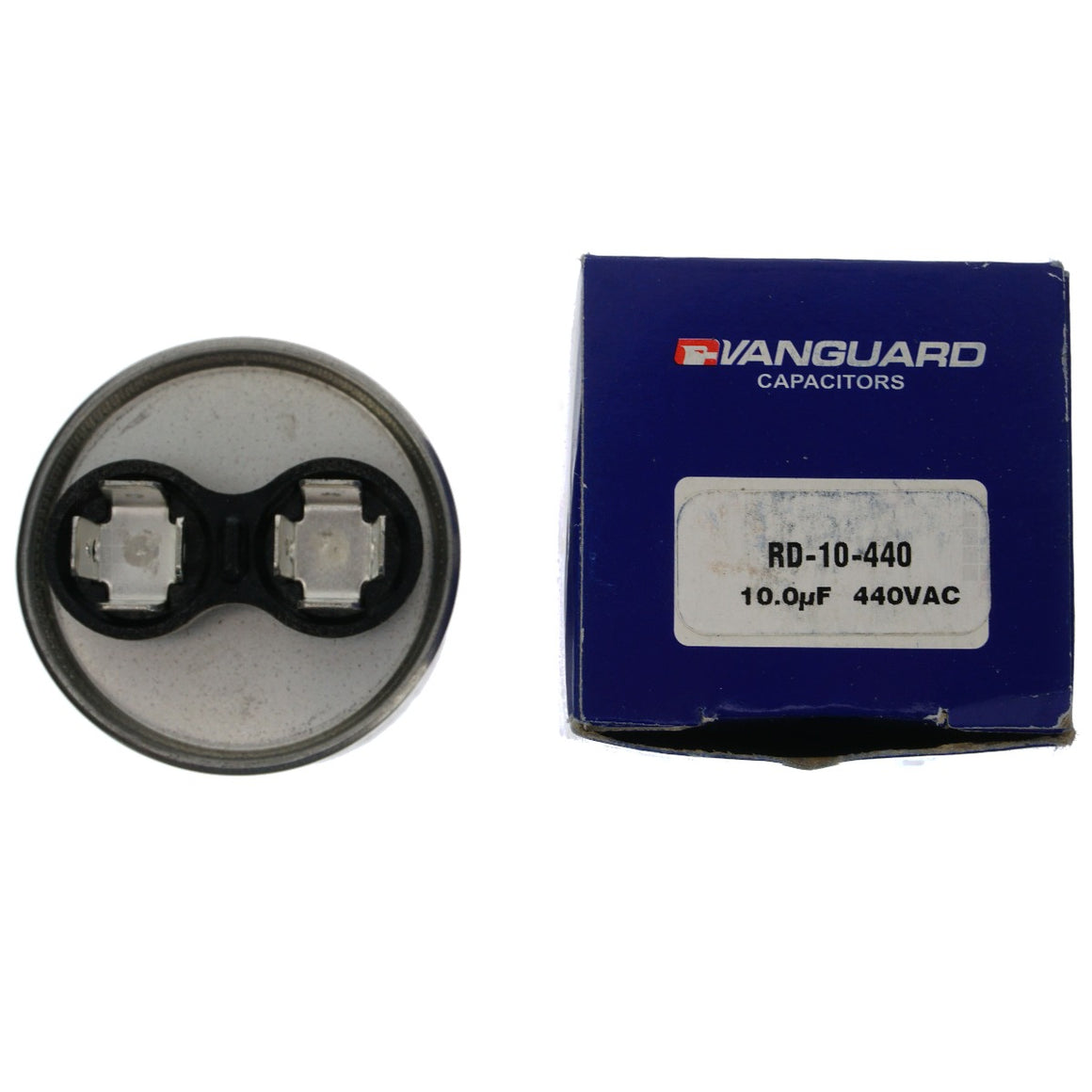

Package Label	Vanguard Capacitors RD-10-440 10.0uF 440VAC
Notes	An occasional dent in the aluminum housing may be present due to shipping and handling. This is a commercial part and cosmetic damage IS NOT considered a valid reason for a return.

Product Color	Silver
Product Shape	Cylinder
Product Dimensions	1.75" Diameter 2.33" Case Height 2.812" Height (with Terminals)
Product Weight	5 oz
Package Dimensions (LxWxH)	1.90" x 1.90" x 3.50"
Package Weight	5 oz

Electrical
Amperage:

Battery System:

Contact Form:

Frequency:50Hz|60Hz
Protection Type:

Terminal Type:

1/4" Male Spade

Voltage:

440VAC

Packaging & Dimensions:
Inside Diameter:

Outside Diameter:

1.750 in (1-3/4 in)

Overall Length:

Packaging Type:

Package Length:

Package Width:

Package Height:

3.50"

Sold As:Each
