Brand Vanguard
Manufacturer Part Number RD-15-370
325P156H37M23A4ZSX
Cross Reference (Fit/Form/Function)
Capacitance 15 uF
Working Voltage 370 VAC
Frequency 50/60 Hz
Working Temperature Range +70°C
Type Run Capacitor

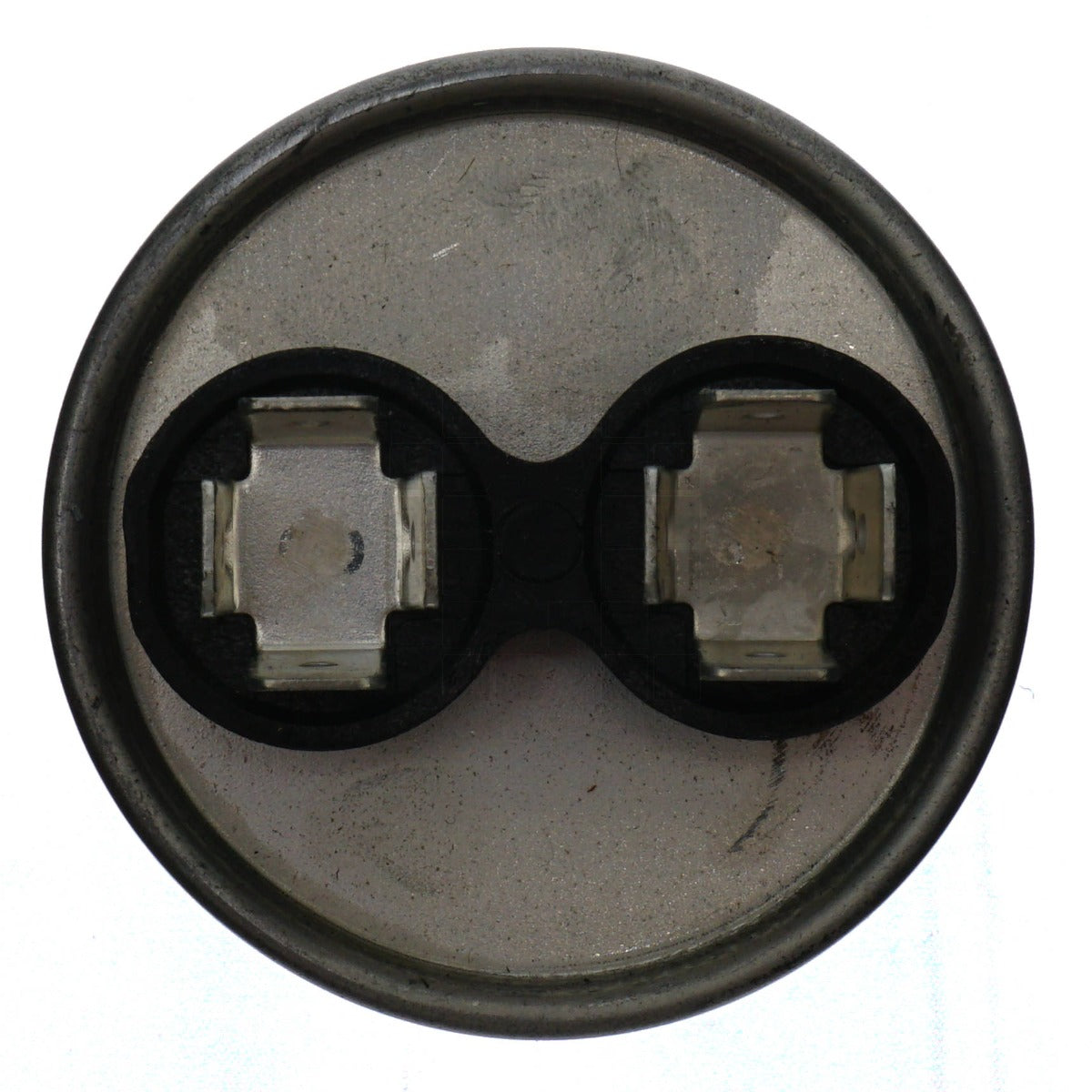

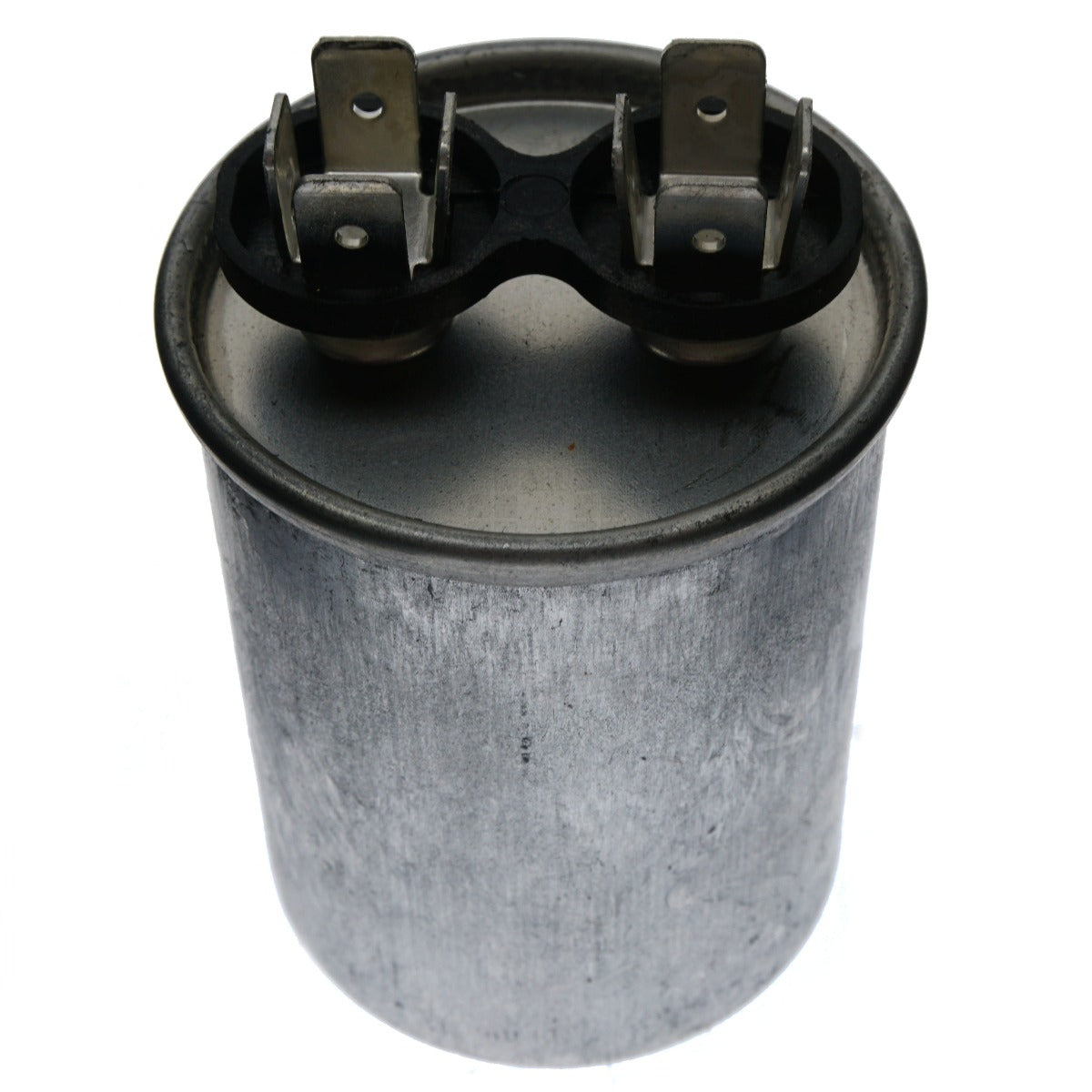

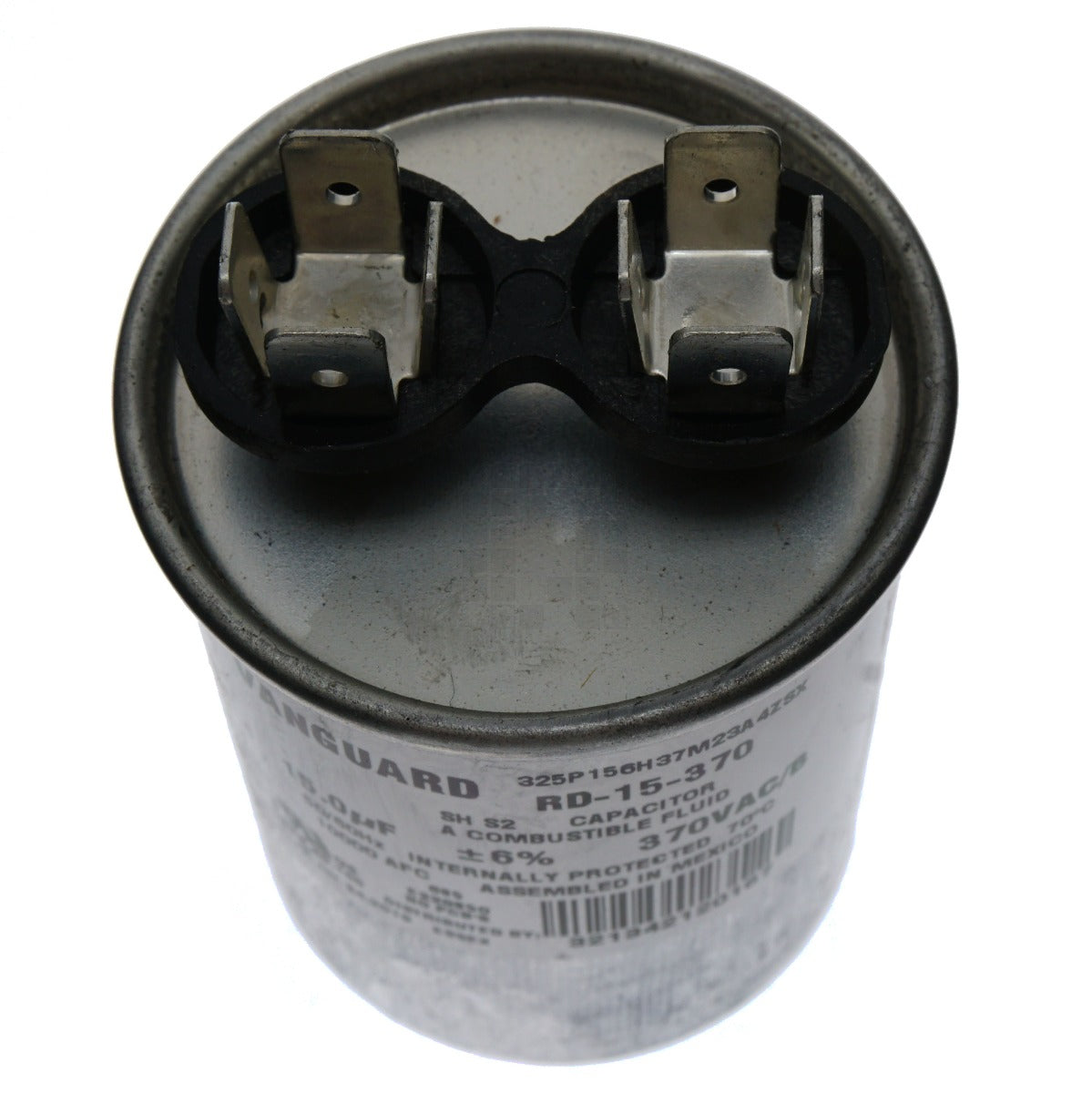

Connection 2 Posts
Four 1/4” male spade terminals on each post
Resistor None

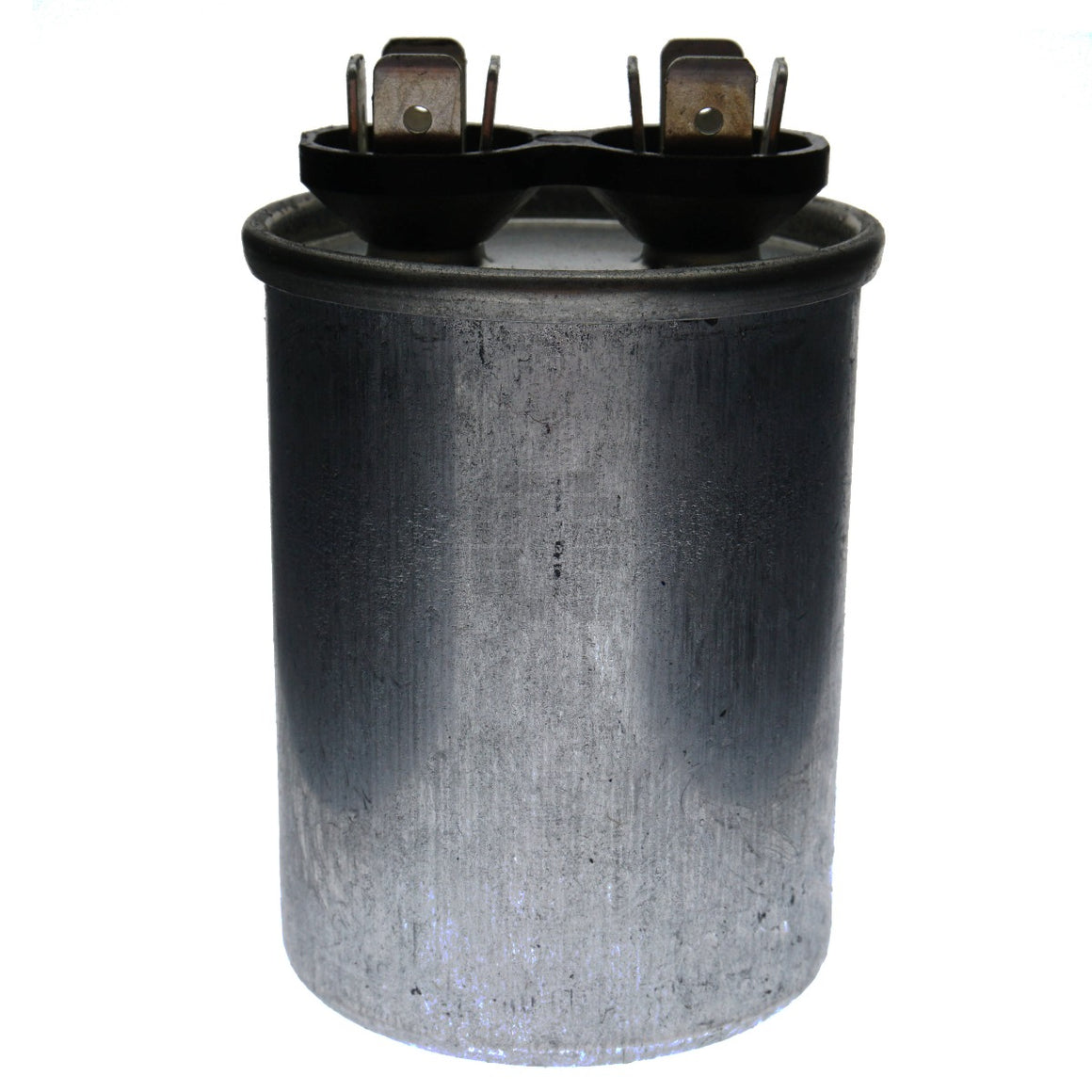

Construction Aluminum Case
Certifications/Approvals UL Approved
Performance Specifications
Case Code
Distance Between Terminals 0.812"
UPC None
Product Origin (COO) Mexico

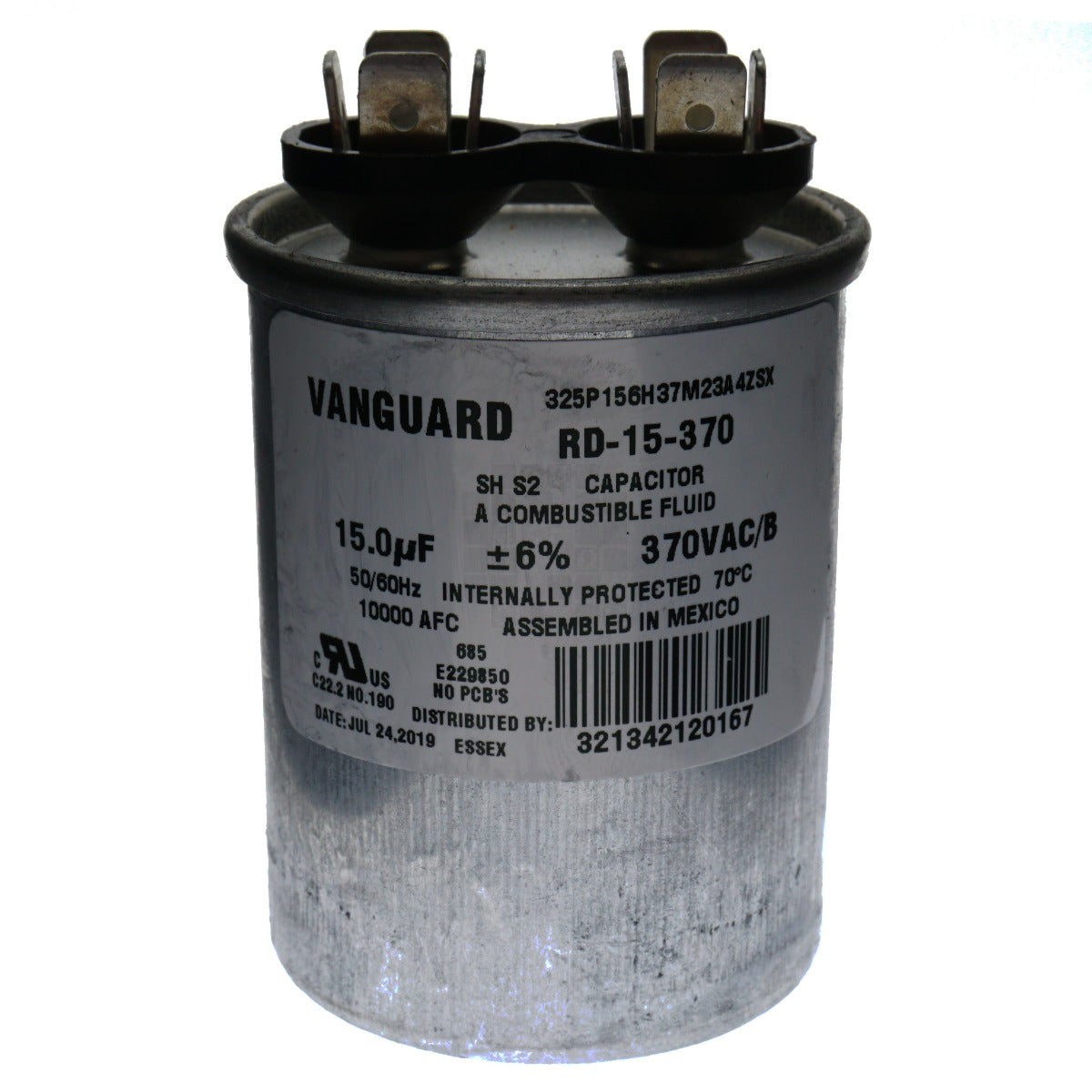

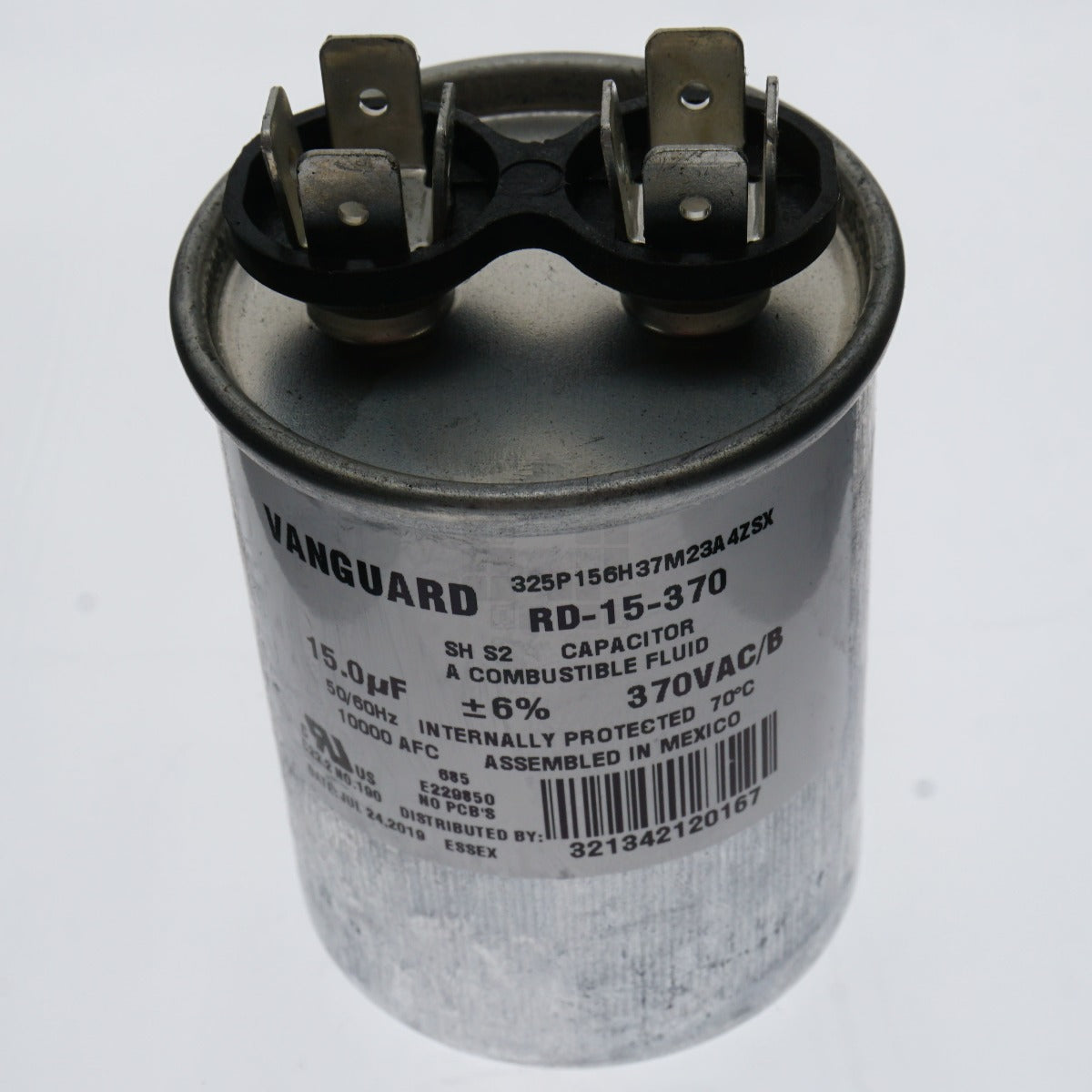

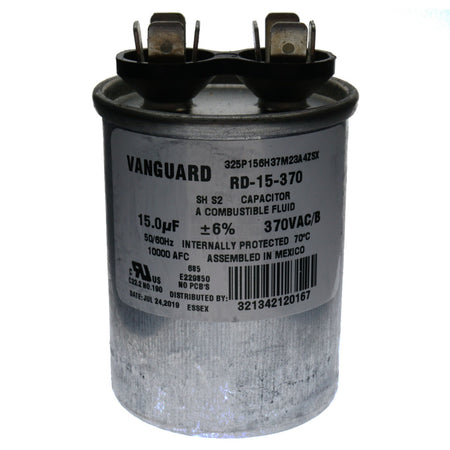

Product Label Vanguard 325P156H37M23A4ZSX
RD-15-370
SH S2 Capacitor
A Combustible Fluid
15.0 uF +/-6% 370VAC/B
50/60Hz Internally Protected 70°C
10000 AFC Assembled in Mexico
No PCB's

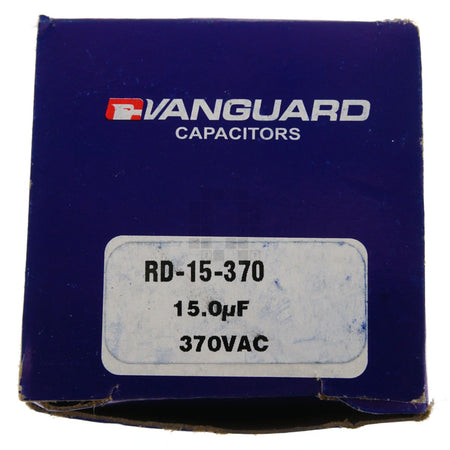

Package Label Vanguard Capacitors
RD-15-370
15.0 uF
370VAC
Notes An occasional dent in the aluminum housing may be present due to shipping and handling. This is a commercial part and cosmetic damage IS NOT considered a valid reason for a return.
Location
Product Color Silver
Product Shape Cylinder
Product Dimensions 1.75" Diameter
2.875" Height (With Terminals)
2.375" Height (Case Only)
Product Weight 5 oz
Package Dimensions (LxWxH) 1.90" x 1.90" x 3.50"
Package Weight 6 oz
