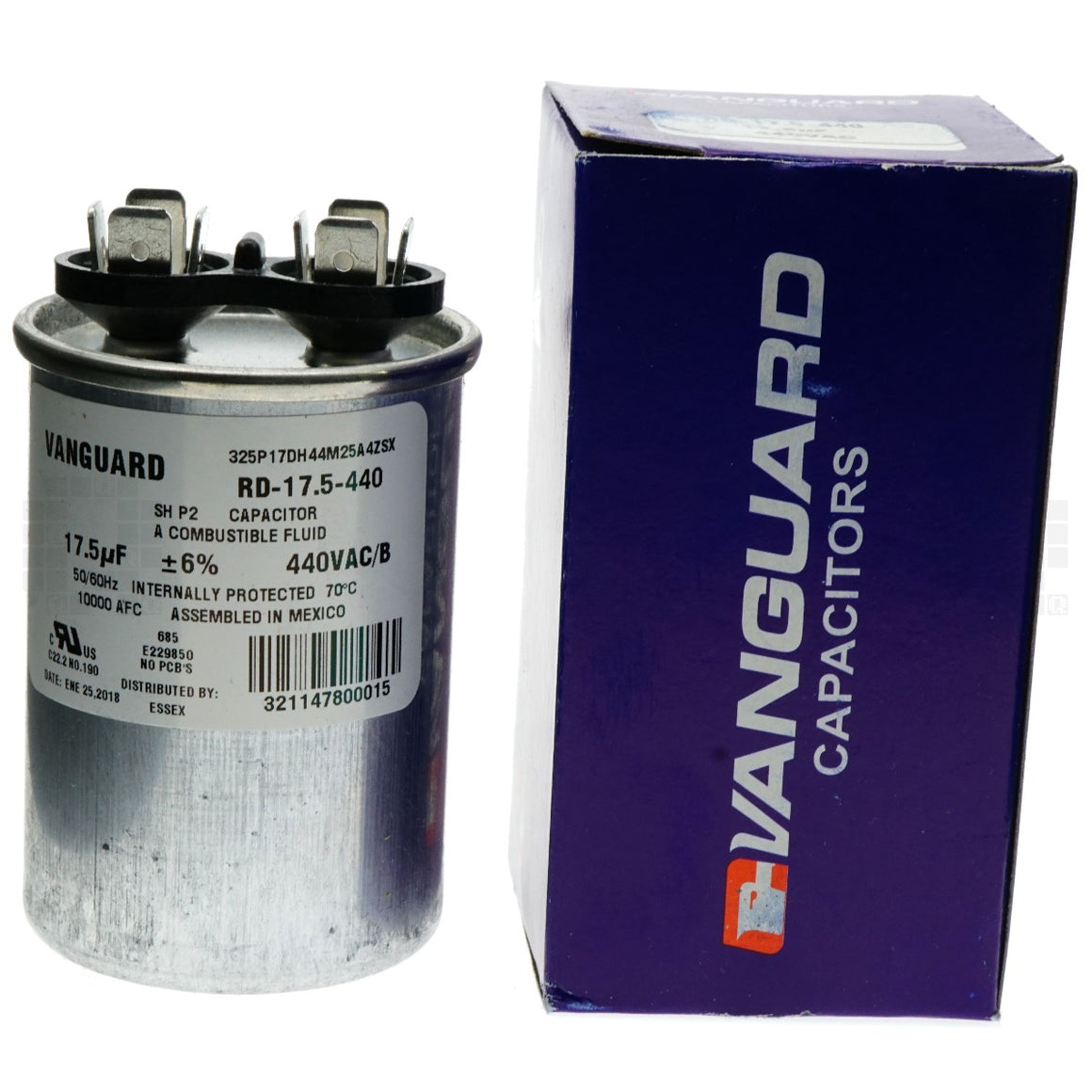

Brand Vanguard
Manufacturer Part Number RD-17.5-440
325P17DH44M25A4ZSX
Cross Reference (Fit/Form/Function)
Capacitance 17.5 uF +/-6%
Working Voltage 440 VAC
Frequency 50/60 Hz
Working Temperature Range -40°C to +70°C
Type Run Capacitor

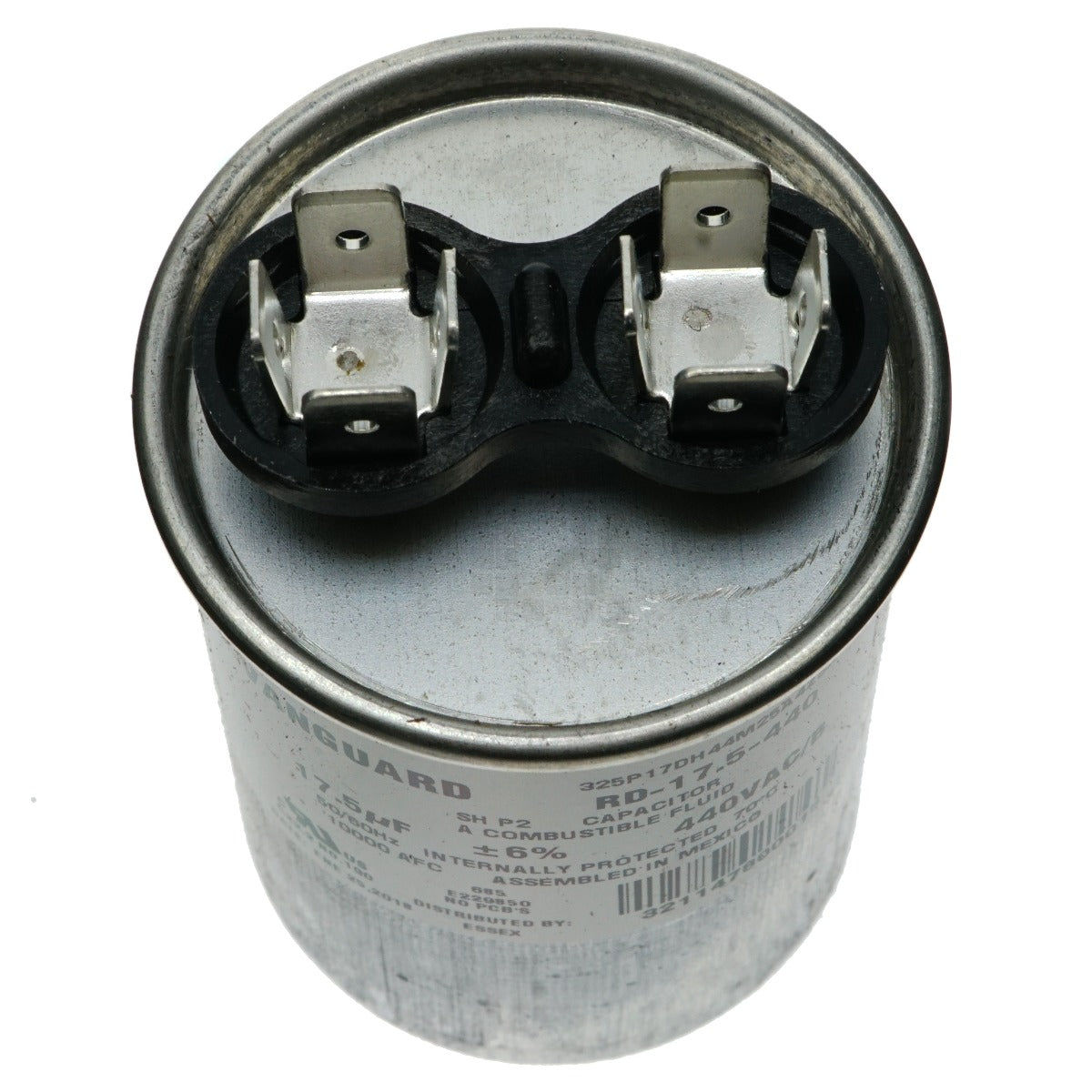

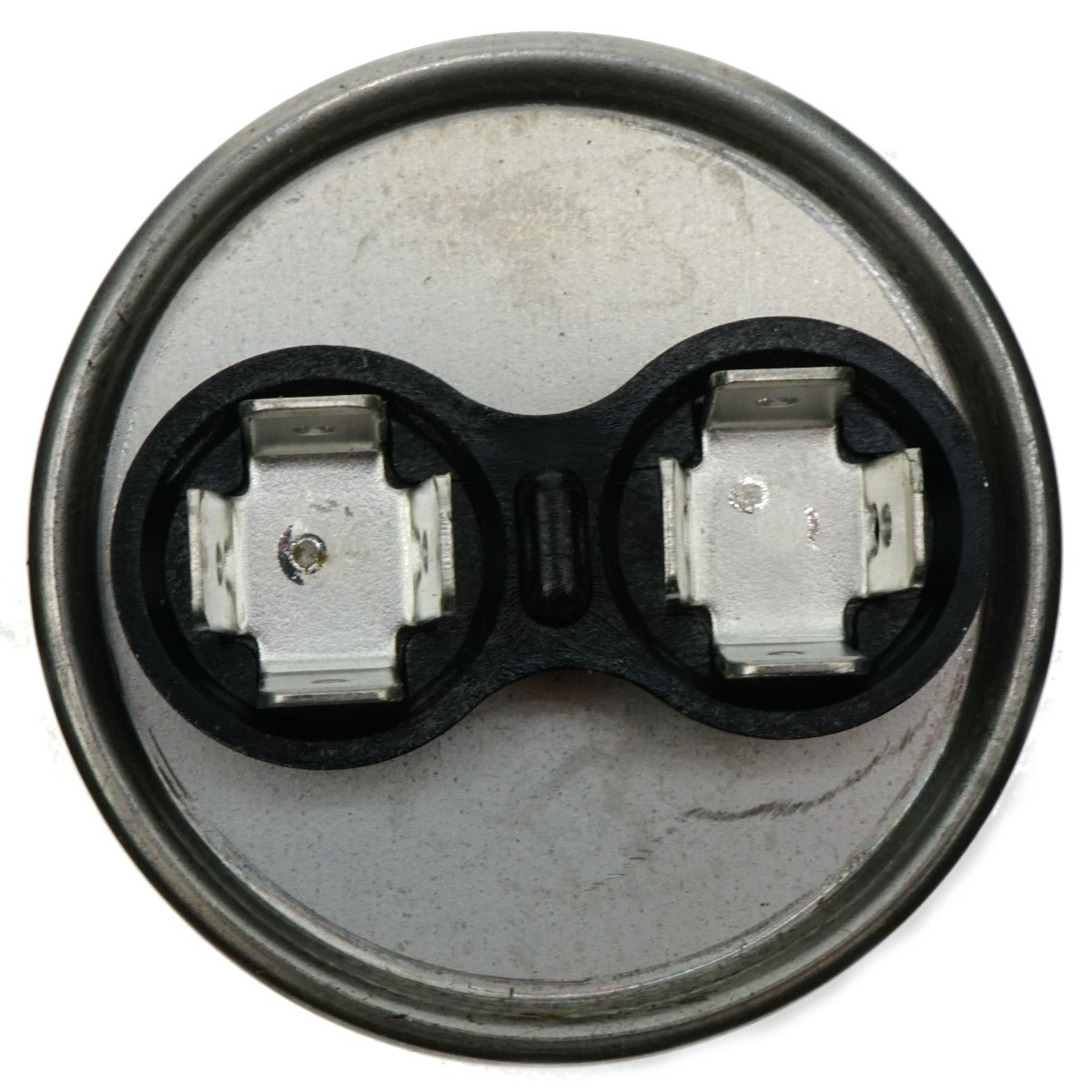

Connection 2 Posts
Four 1/4” male spade terminals on each post
Resistor None

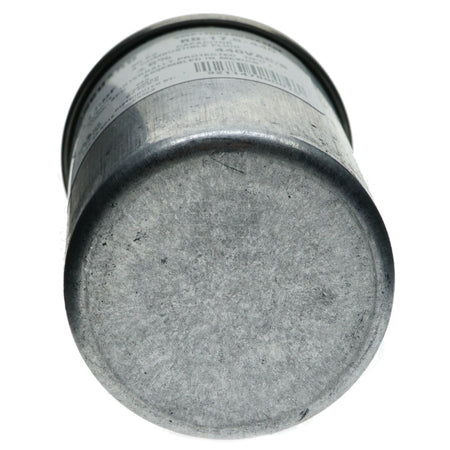

Construction Aluminum Case
Certifications/Approvals UL, CUL, VDE, CE
Performance Specifications
Case Code
Distance Between Terminals 0.812"
UPC None
Product Origin (COO) Mexico

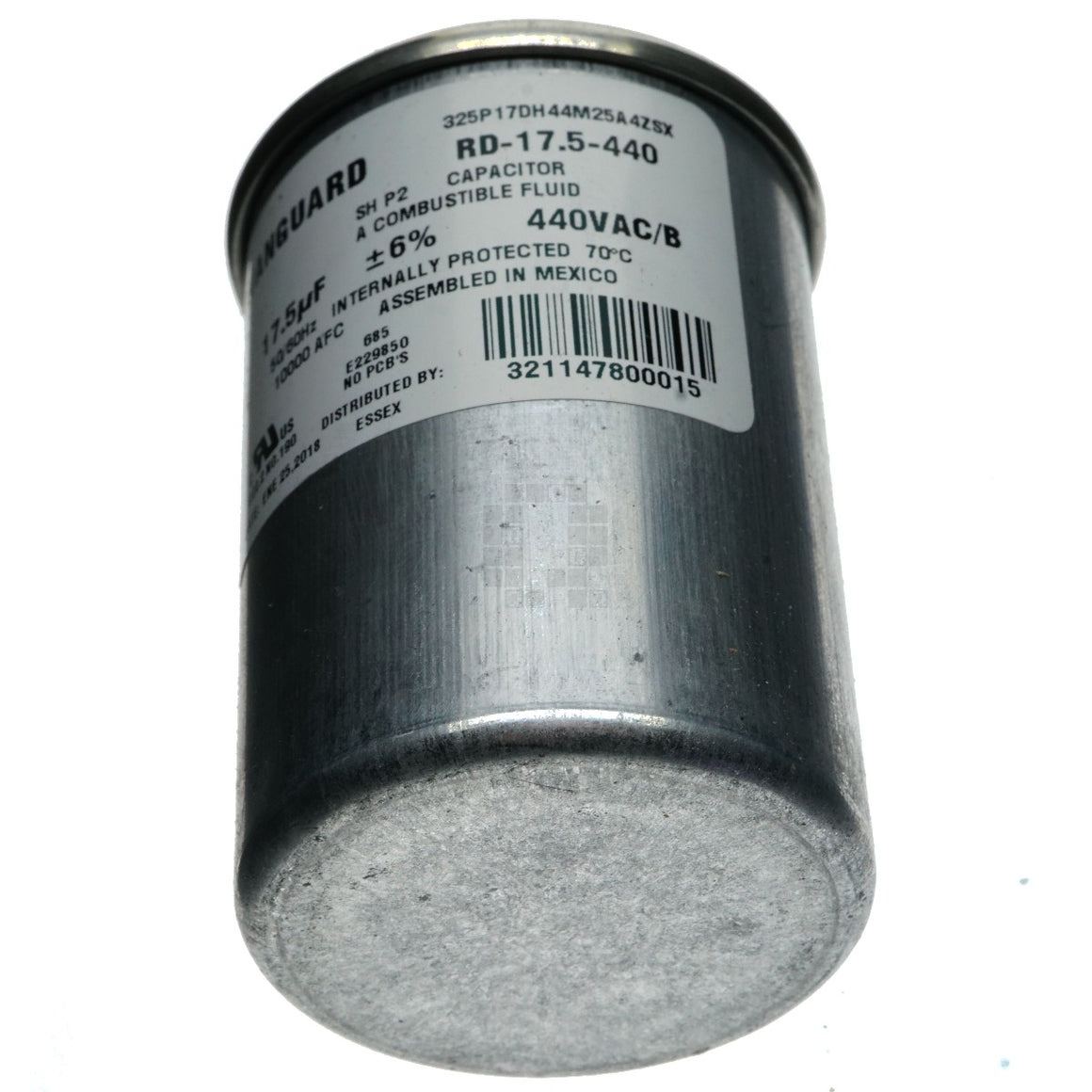

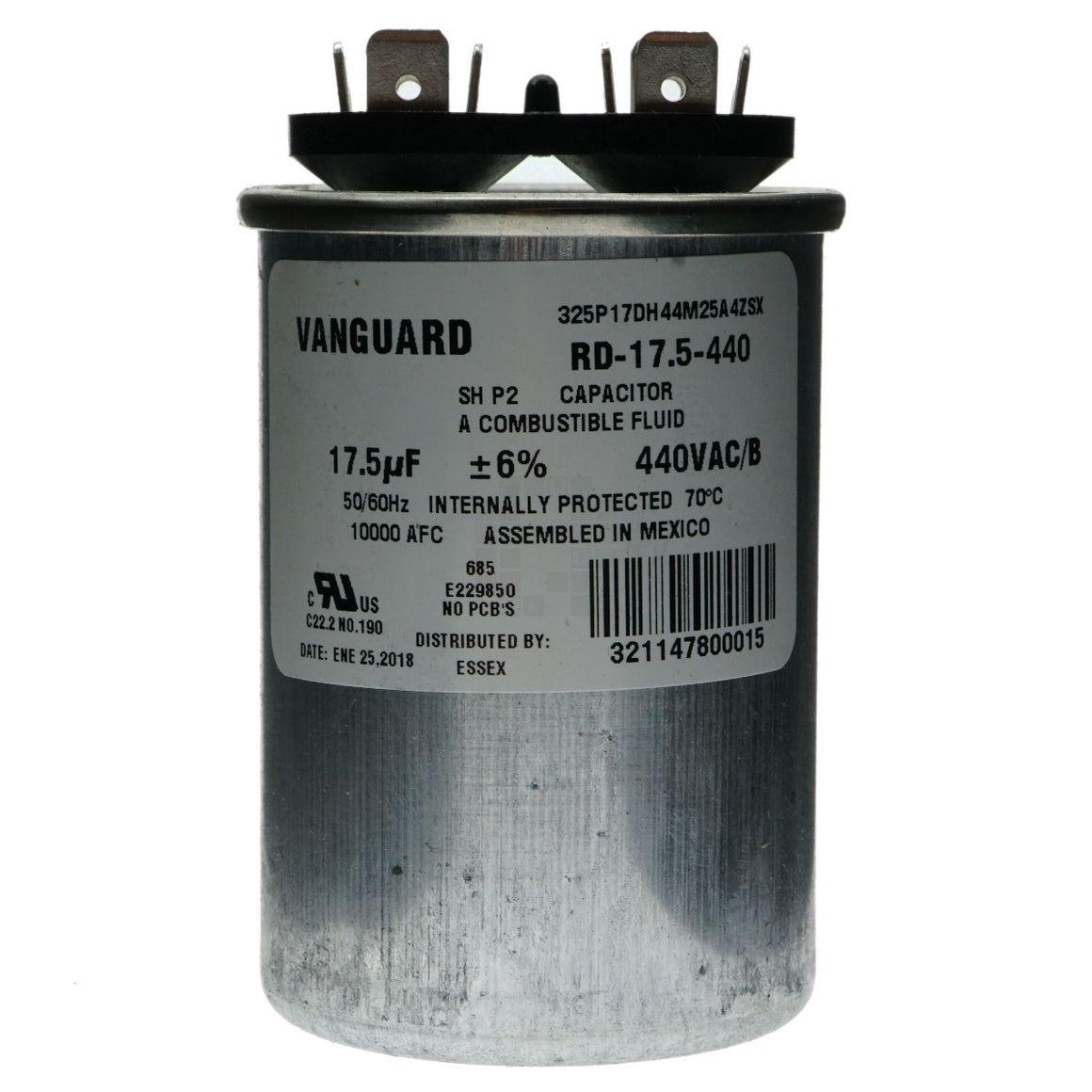

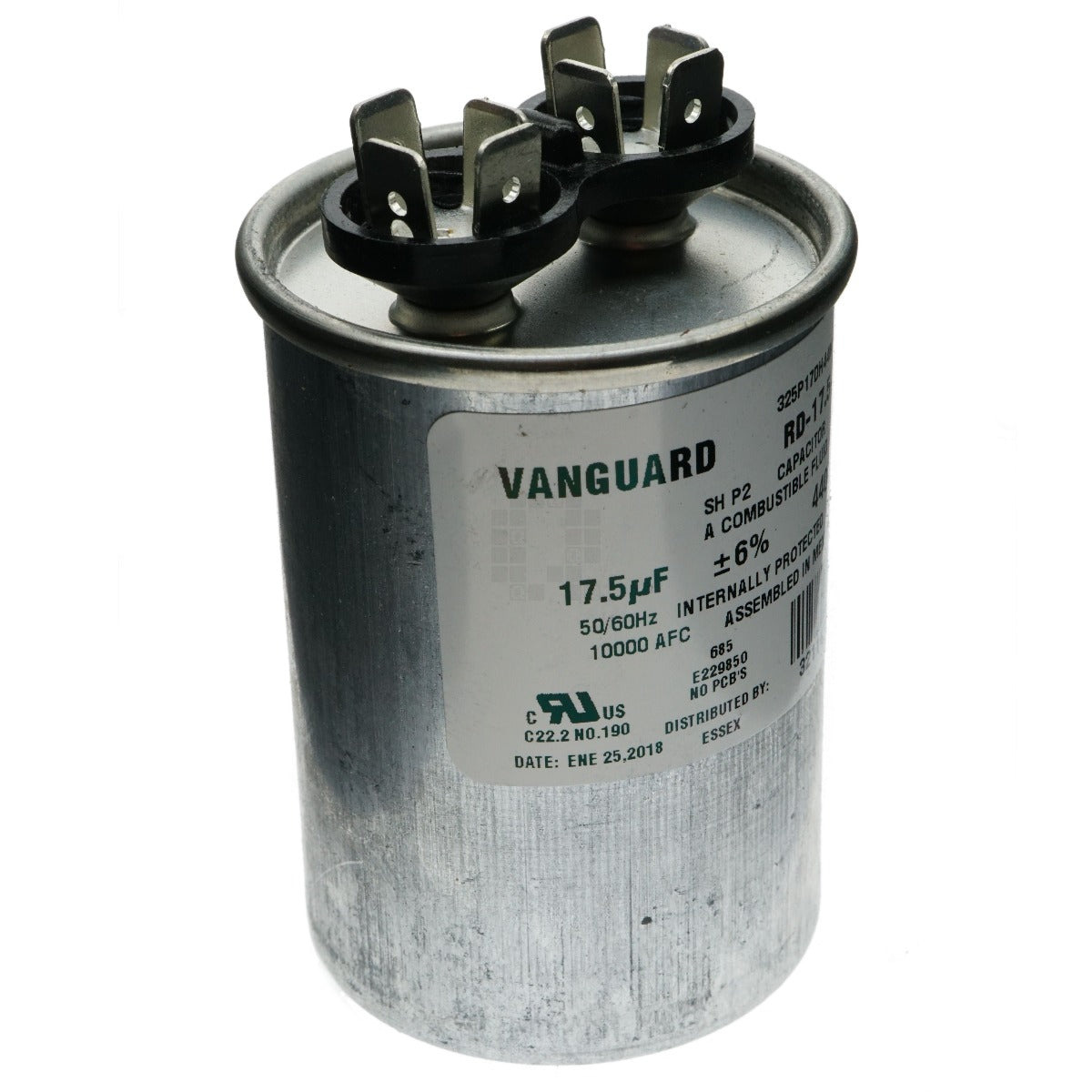

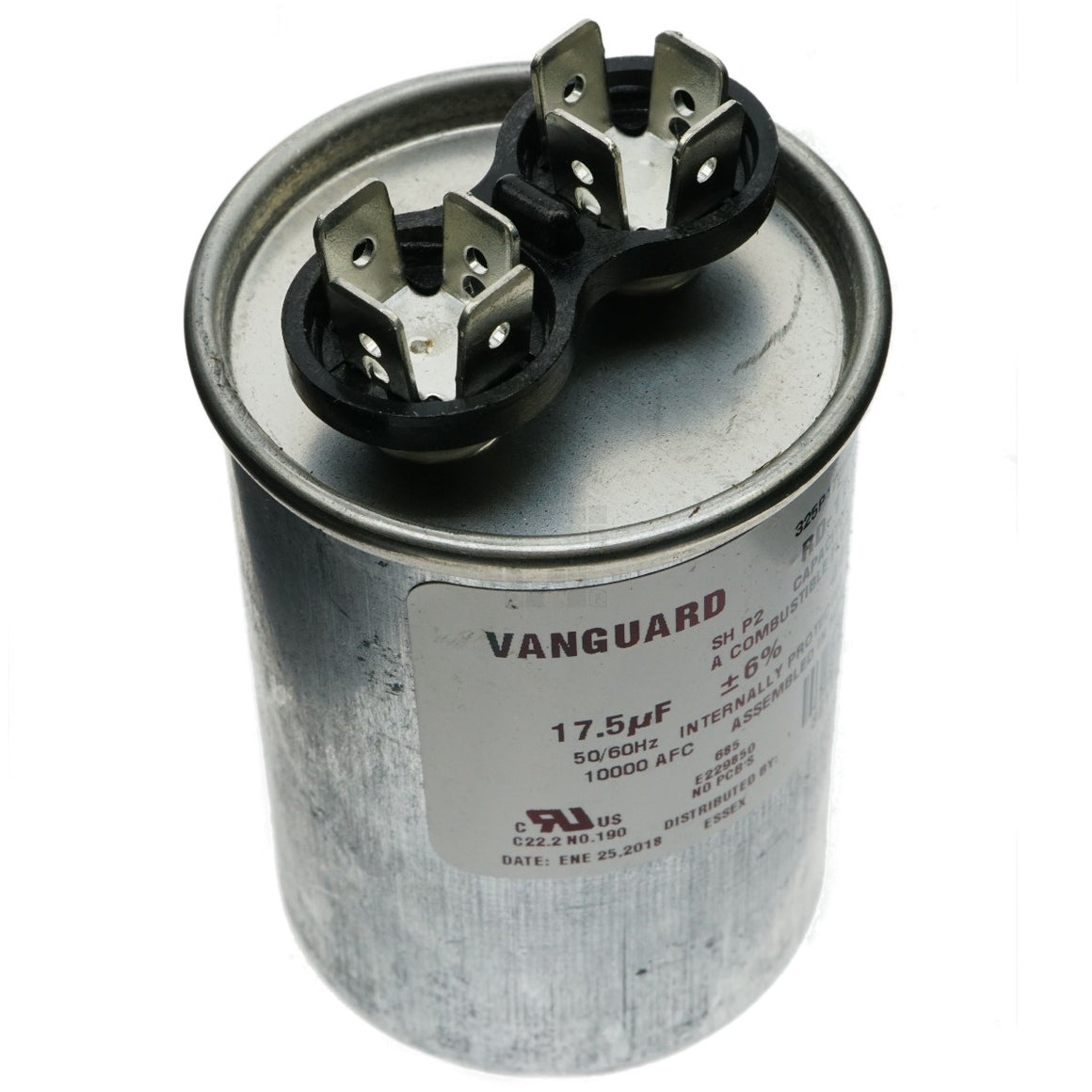

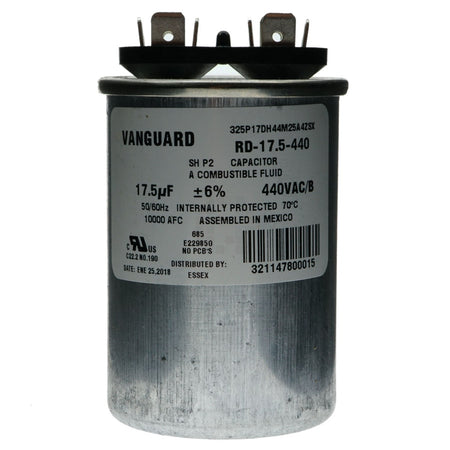

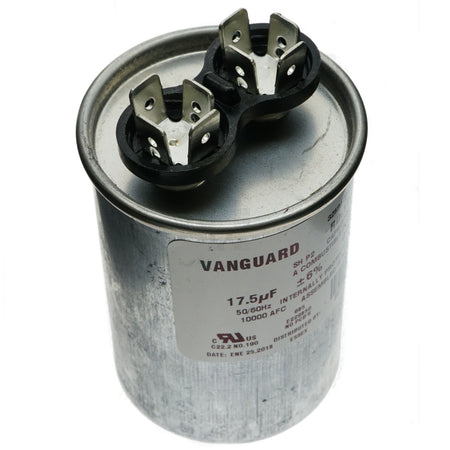

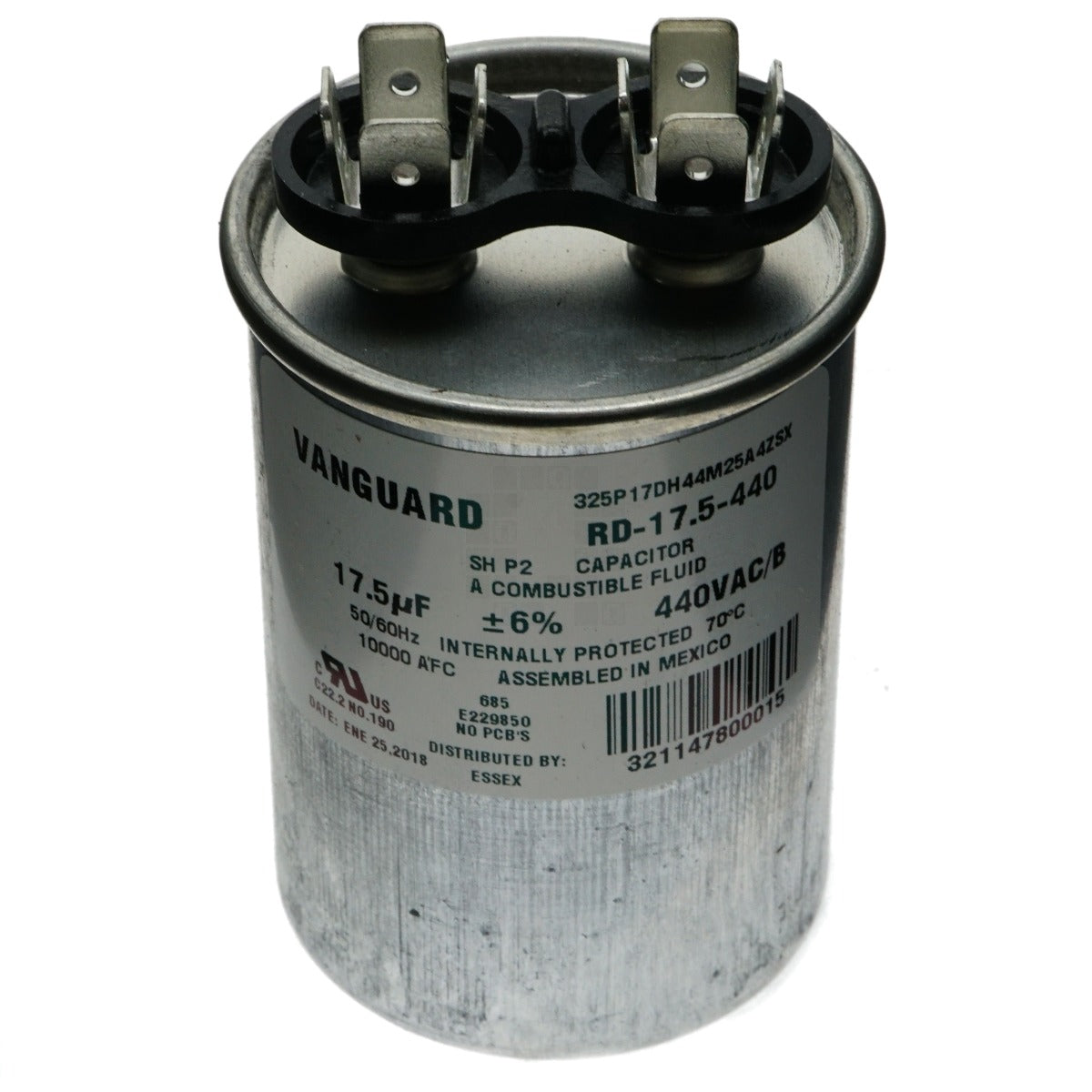

Product Label Vanguard 325P17DH44M25A4ZSX
SH P2 Capacitor
A Combustible Fluid
17.5 uF +/-6% 440VAC/B
50/60Hz Internally Protected 70°C
10000 AFC Assembled in Mexico
No PCB's

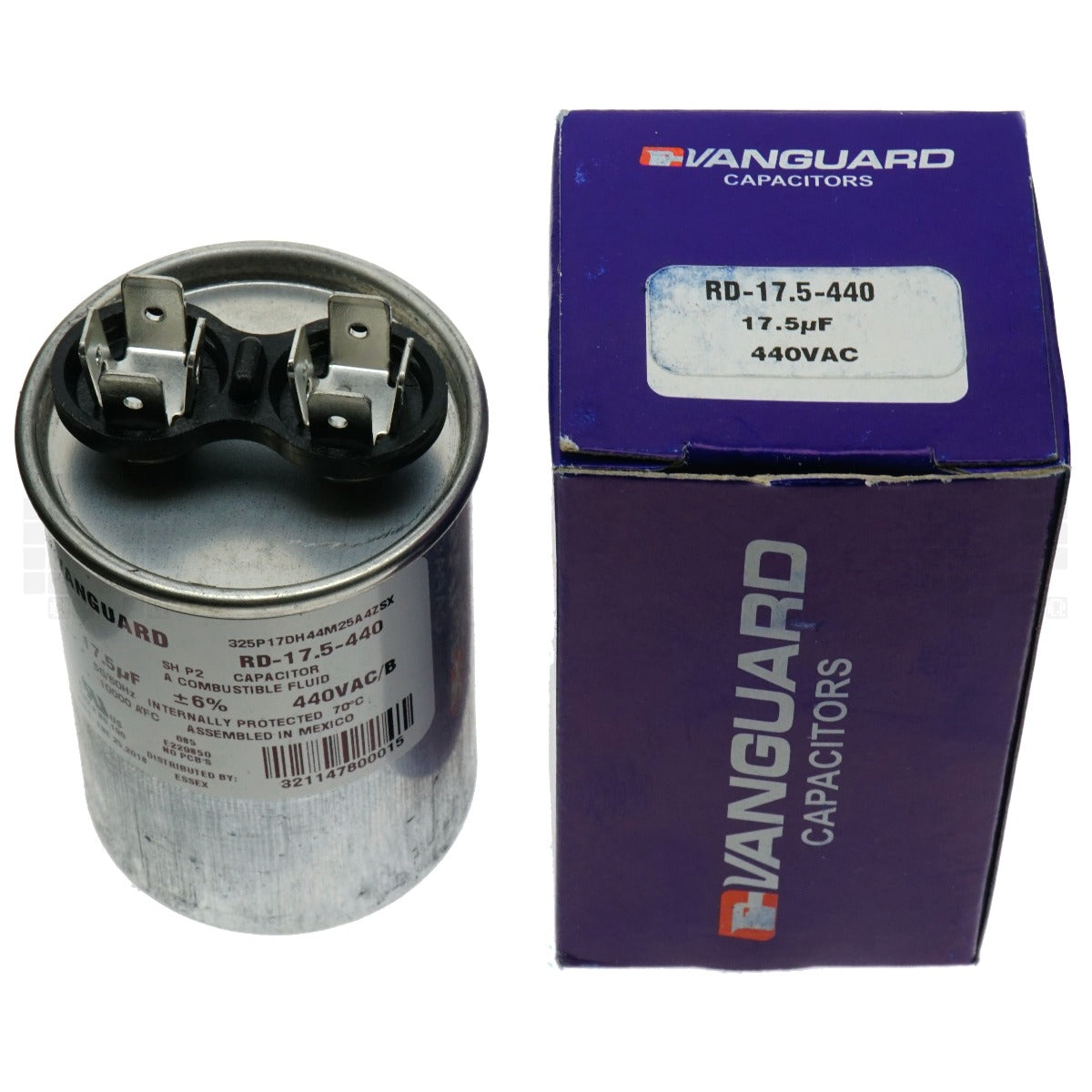

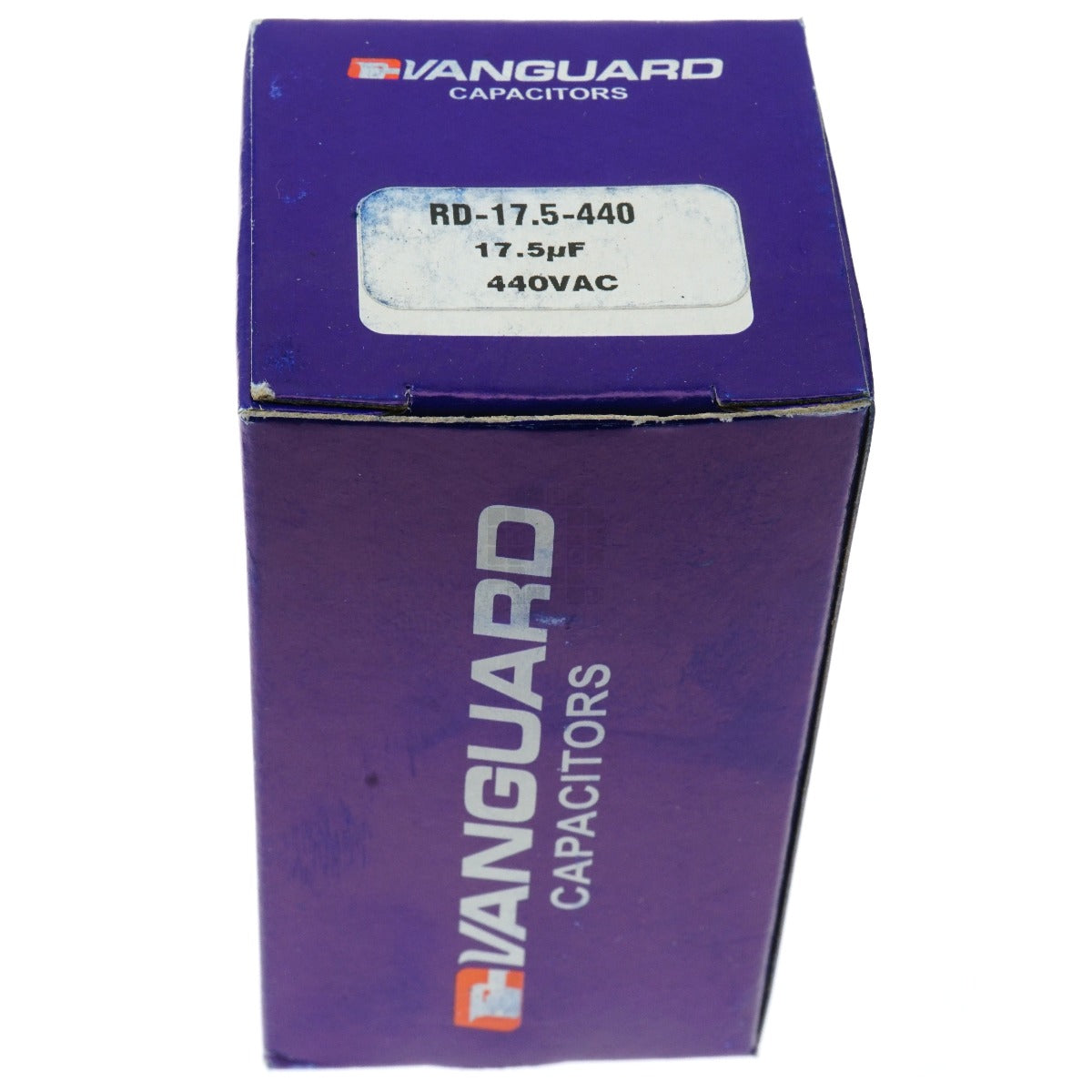

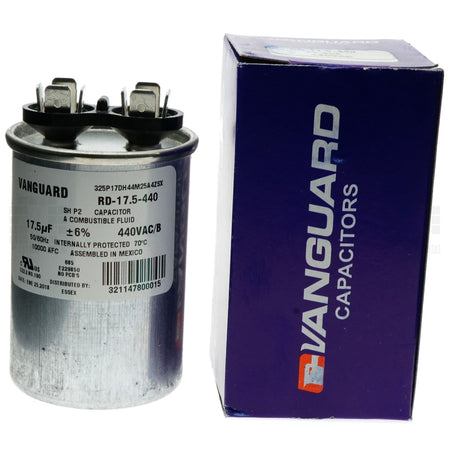

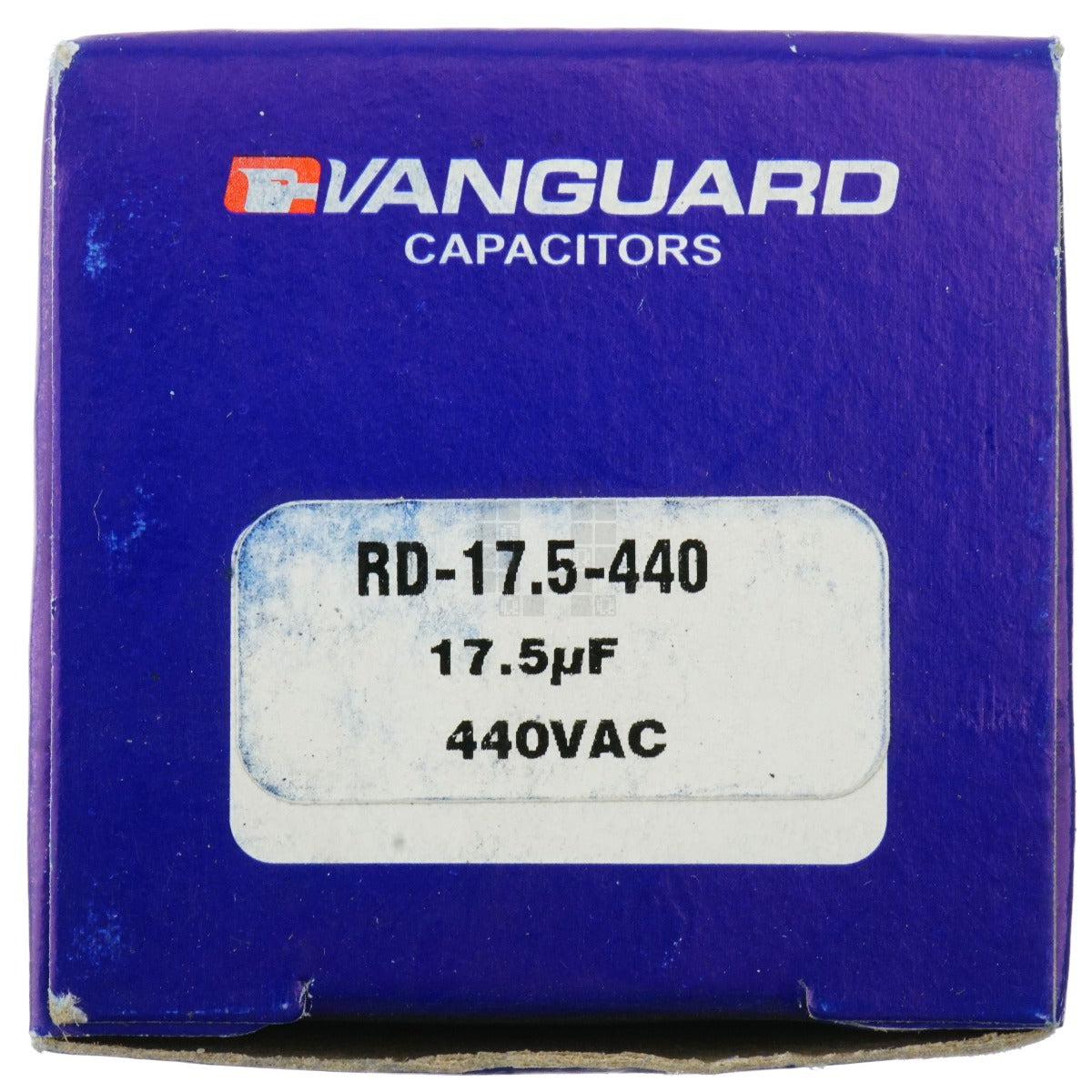

Package Label Vanguard Capacitors
RD-17.5-440
17.5uF 440VAC
Notes An occasional dent in the aluminum housing may be present due to shipping and handling. This is a commercial part and cosmetic damage IS NOT considered a valid reason for a return.
Location
Product Color Silver
Product Shape Cylinder
Product Dimensions 1.75" Diameter
3.062" Height (including terminals)
2.625" Height (Case Only)
Product Weight 5 oz
Package Dimensions (LxWxH) 1.90" x 1.90" x 3.45"
Package Weight 5 oz
