Brand Vanguard
Manufacturer Part Number RD-30/5-440
328P3005H44N37A5ZX
Cross Reference (Fit/Form/Function)
Capacitance 30 + 5 uF +/-6%
Working Voltage 440 VAC
Frequency 50/60 Hz
Working Temperature Range -40°C to +70°C
-40°F to +158°F
Type Run Capacitor
Metallized Polypropylene Film

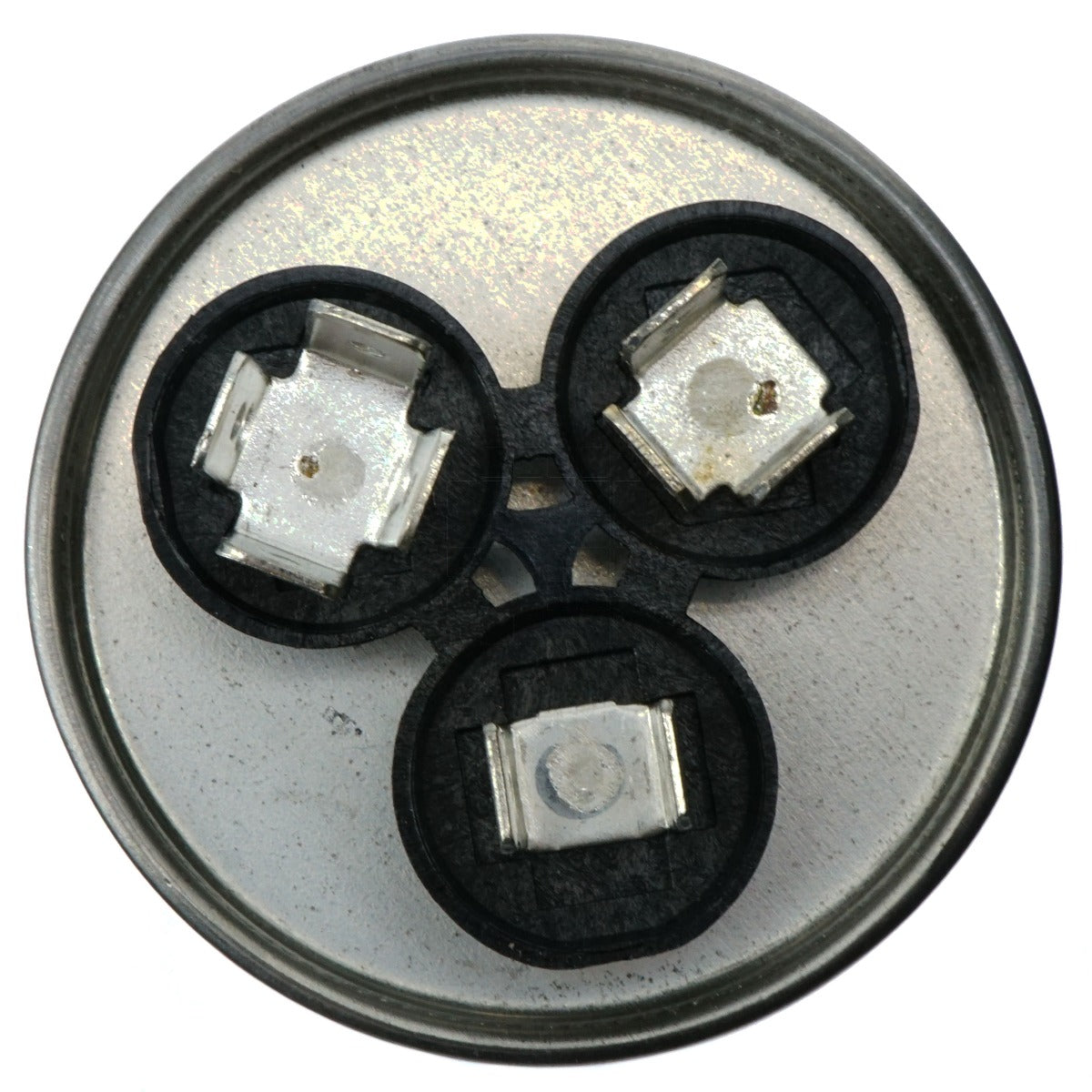

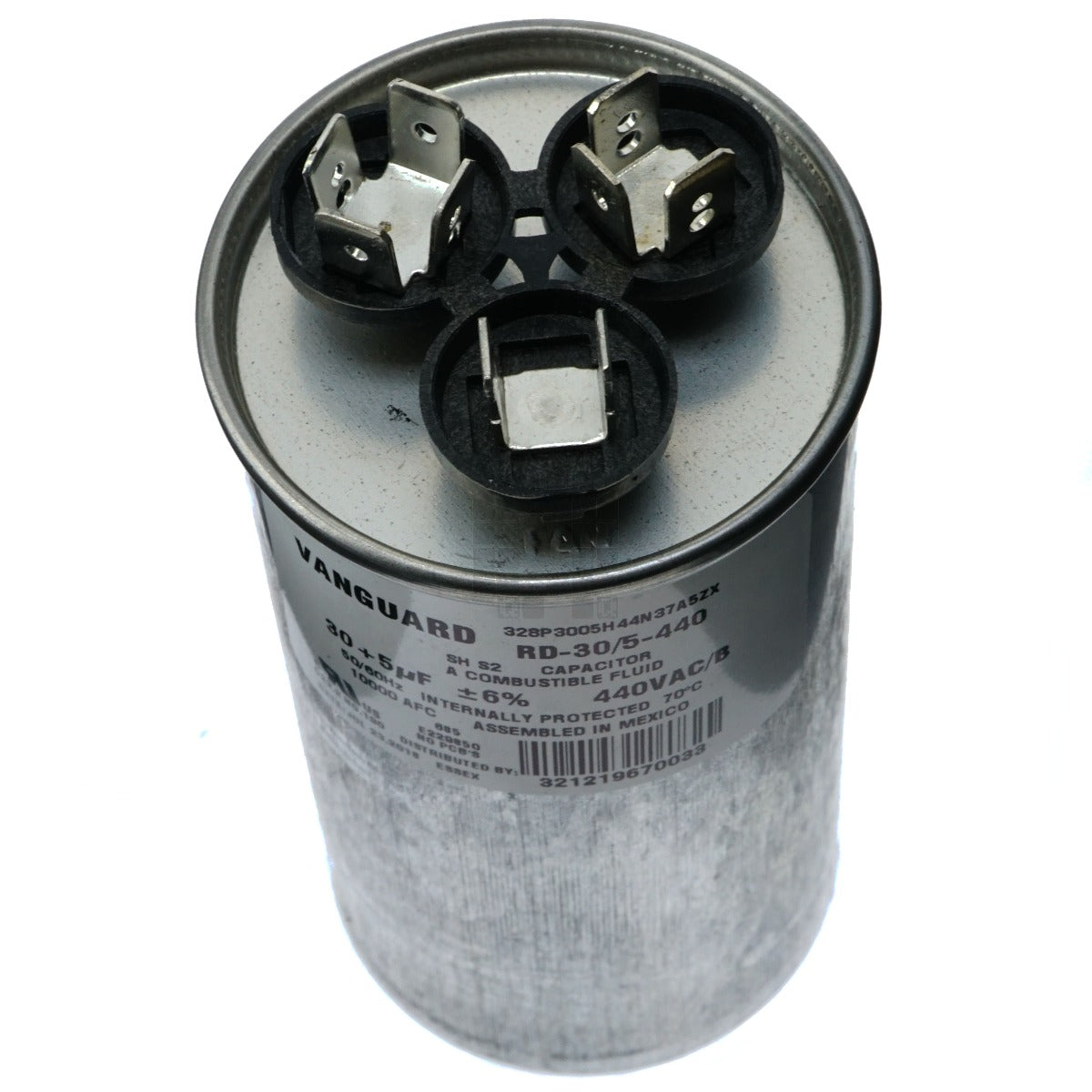

Connection 3 Posts
Four (C), Three (HERM) and Two (FAN) 1/4” male spade terminals
Resistor None
Construction Aluminum Case
Certifications/Approvals UL, CUL, VDE 7 CE Approvals
Rated Life 60,000 Hours
94% Survival
Case Code
Dissipation Factor 0.1% @ 60Hz and 25°C
1% @ 1,000Hz and 25°C
UPC None
Product Origin (COO) Mexico

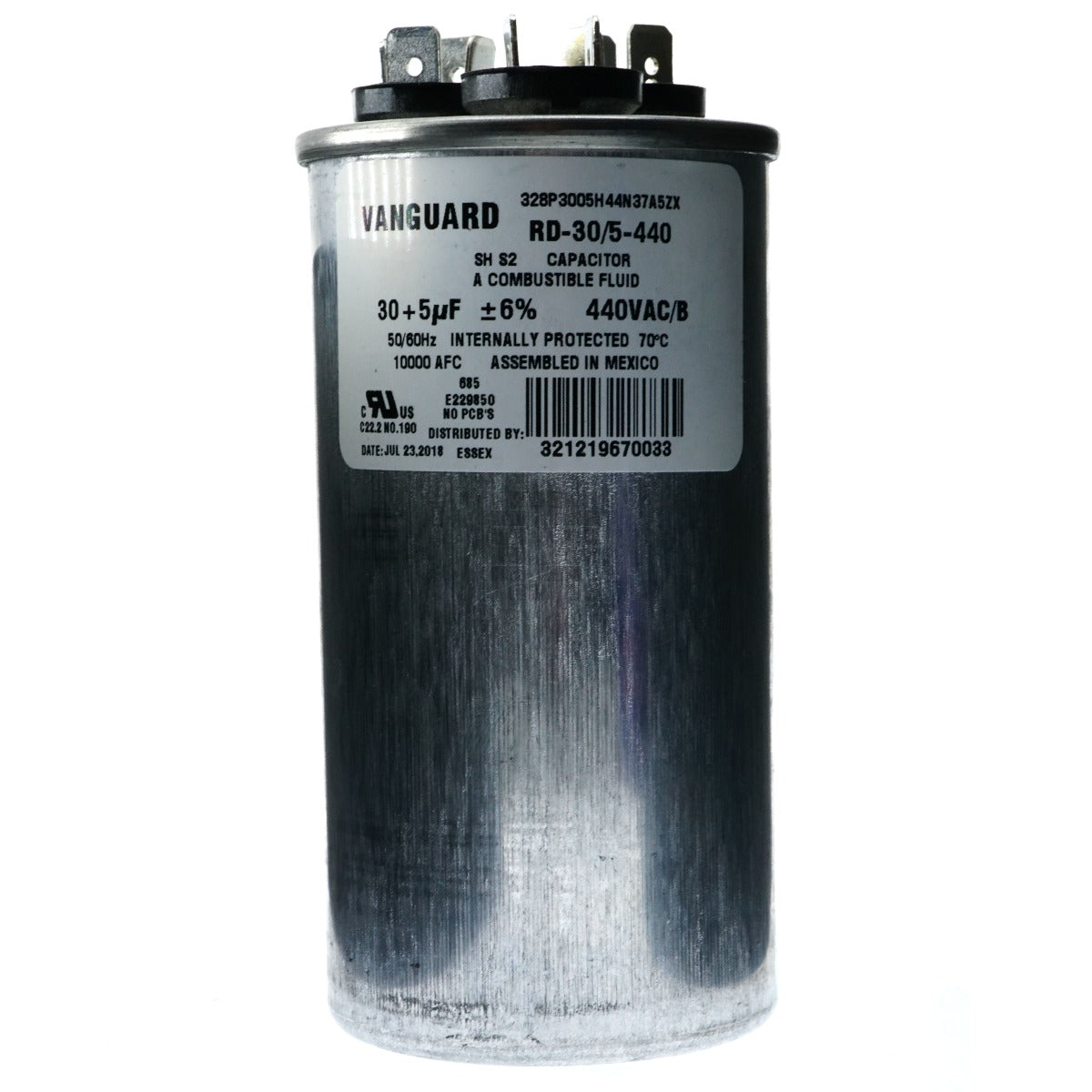

Product Label Vanguard 328P3005H44N37A5ZX
RD-30/5-440
SH S2 Capacitor
A Combustible Fluid
30 + 5 uF +/-6% 440VAC/B
50/60Hz Internally Protected 70°C
10000 AFC Assembled in Mexico
No PCB's

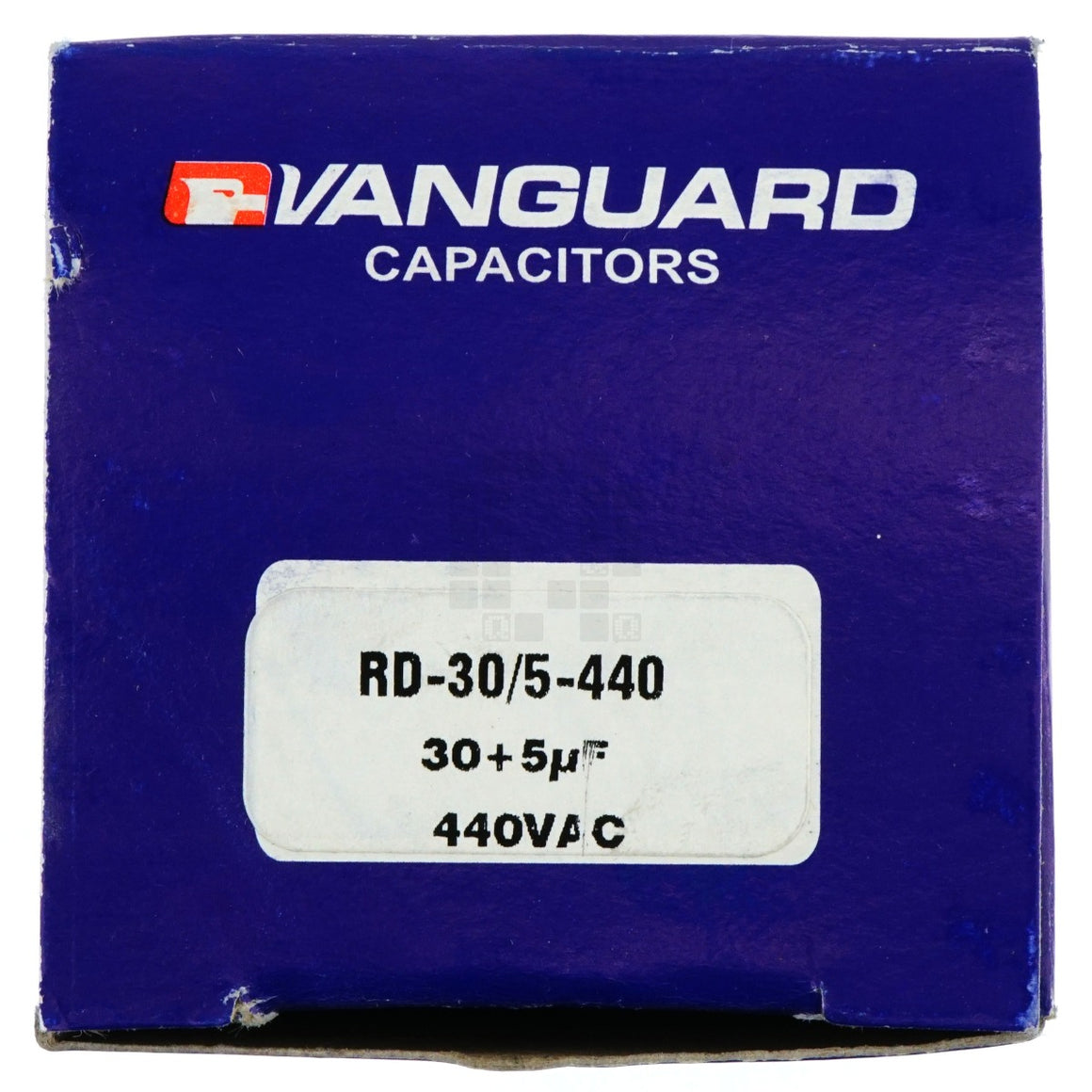

Package Label Vanguard Capacitors
RD-30/5-440
30+5uF
440VAC
Notes An occasional dent in the aluminum housing may be present due to shipping and handling. This is a commercial part and cosmetic damage IS NOT considered a valid reason for a return.
Product Color Silver
Product Shape Cylinder
Product Dimensions 2.00" Diameter
3.875" Height (Case Only)
4.35" Height (Case and Terminals)
Distance Between Terminals 0.81" +/-0.06"
Product Weight 8 oz
Package Dimensions (LxWxH) 2.15" x 2.15" x 4.60"
Package Weight 9 oz
