Product Specifications :

Brand Vanguard
manufactured by NGM
Manufacturer Part Number RD-40-370
325P406H37M36A4Z
325P406H37M36A4ZSX
Cross Reference (Fit/Form/Function)
Capacitance 40.0 uF +/-6%
Working Voltage 370 VAC
Frequency 50/60 Hz
Working Temperature Range +70°C
Type Run Capacitor

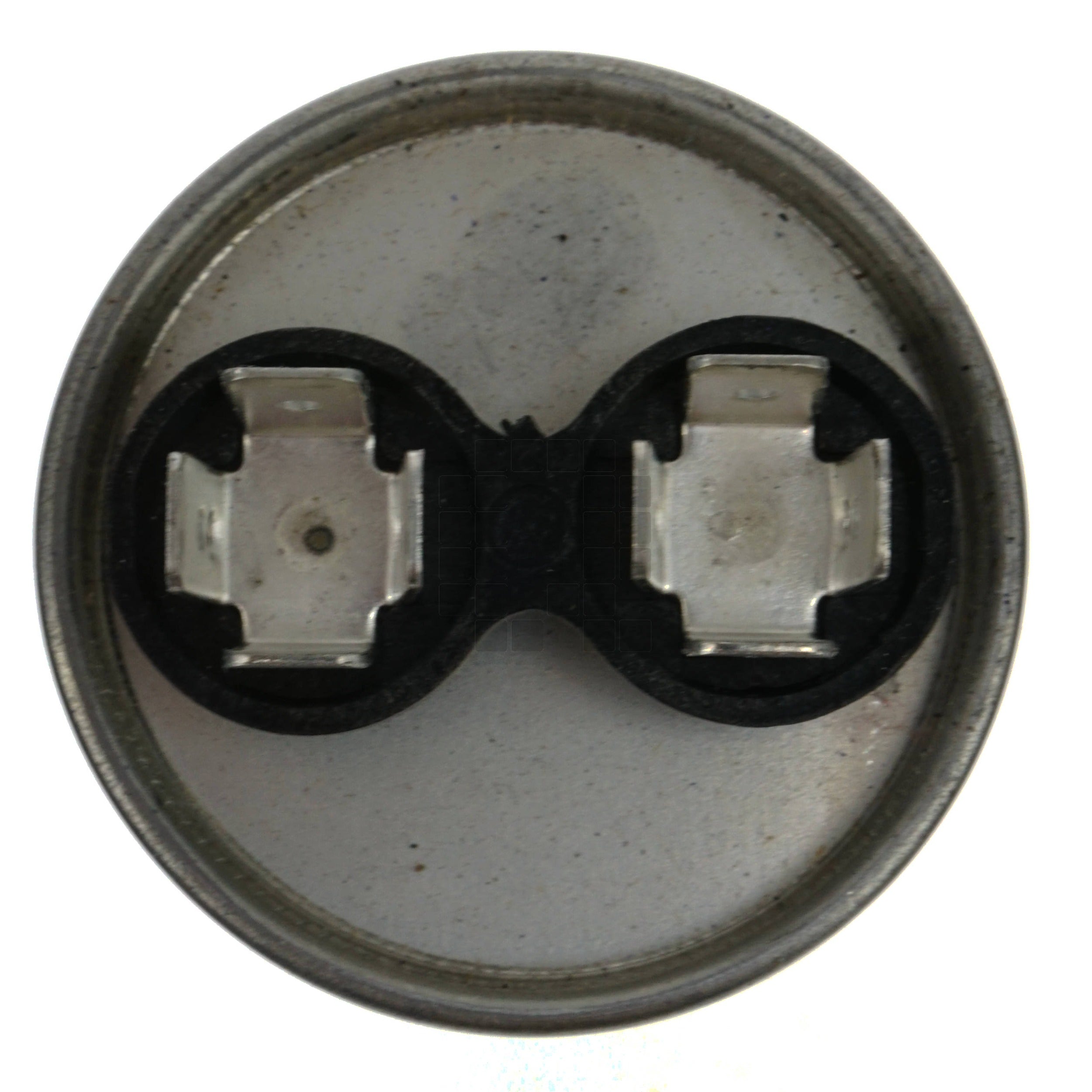

Connection 2 Posts
Four 1/4” male spade terminals on each post
Resistor None
Construction Aluminum Case
Certifications/Approvals UL, CUL, VDE & CE Approvals
Performance Specifications
Case Code
Distance Between Terminals 0.812"
UPC None
Product Origin (COO) Mexico

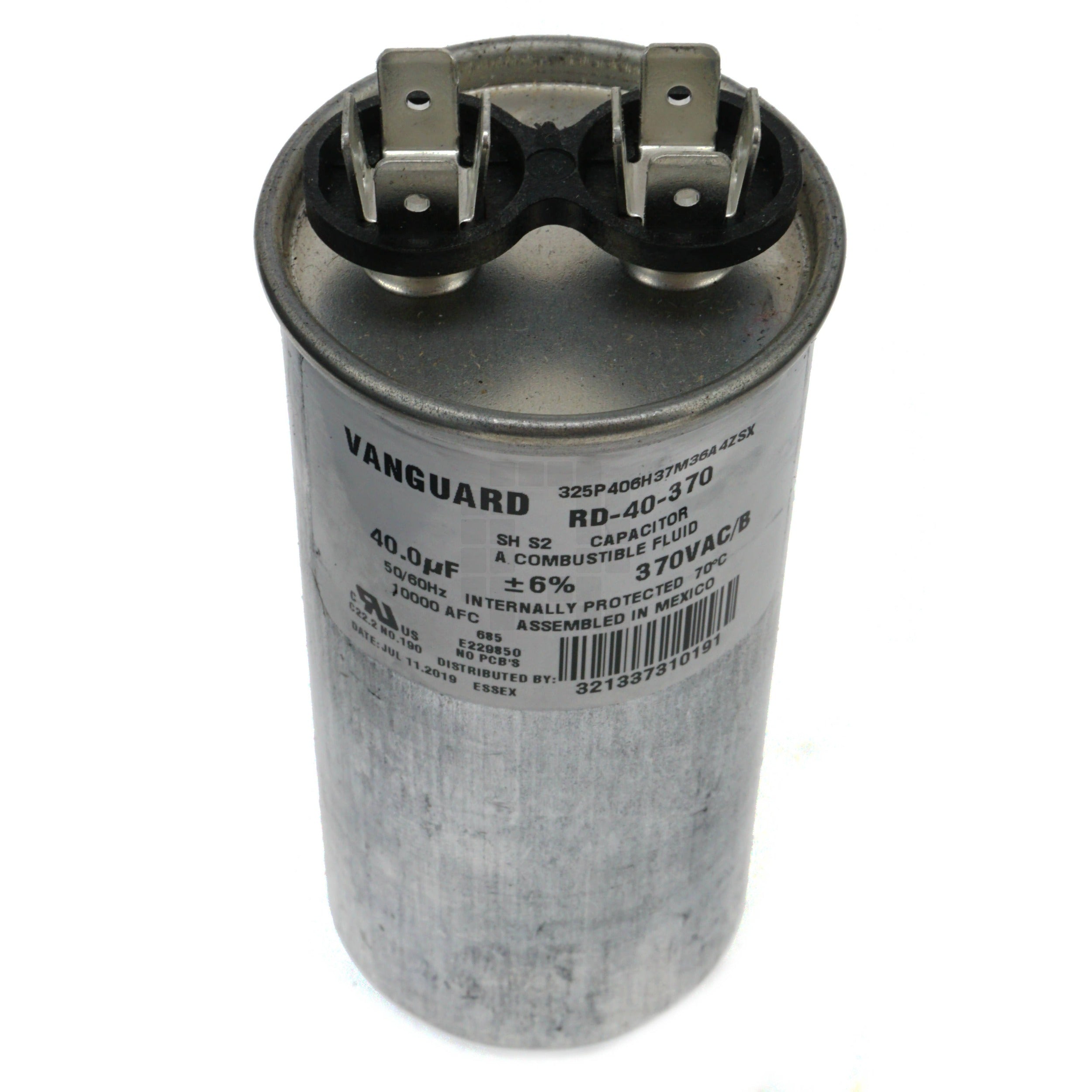

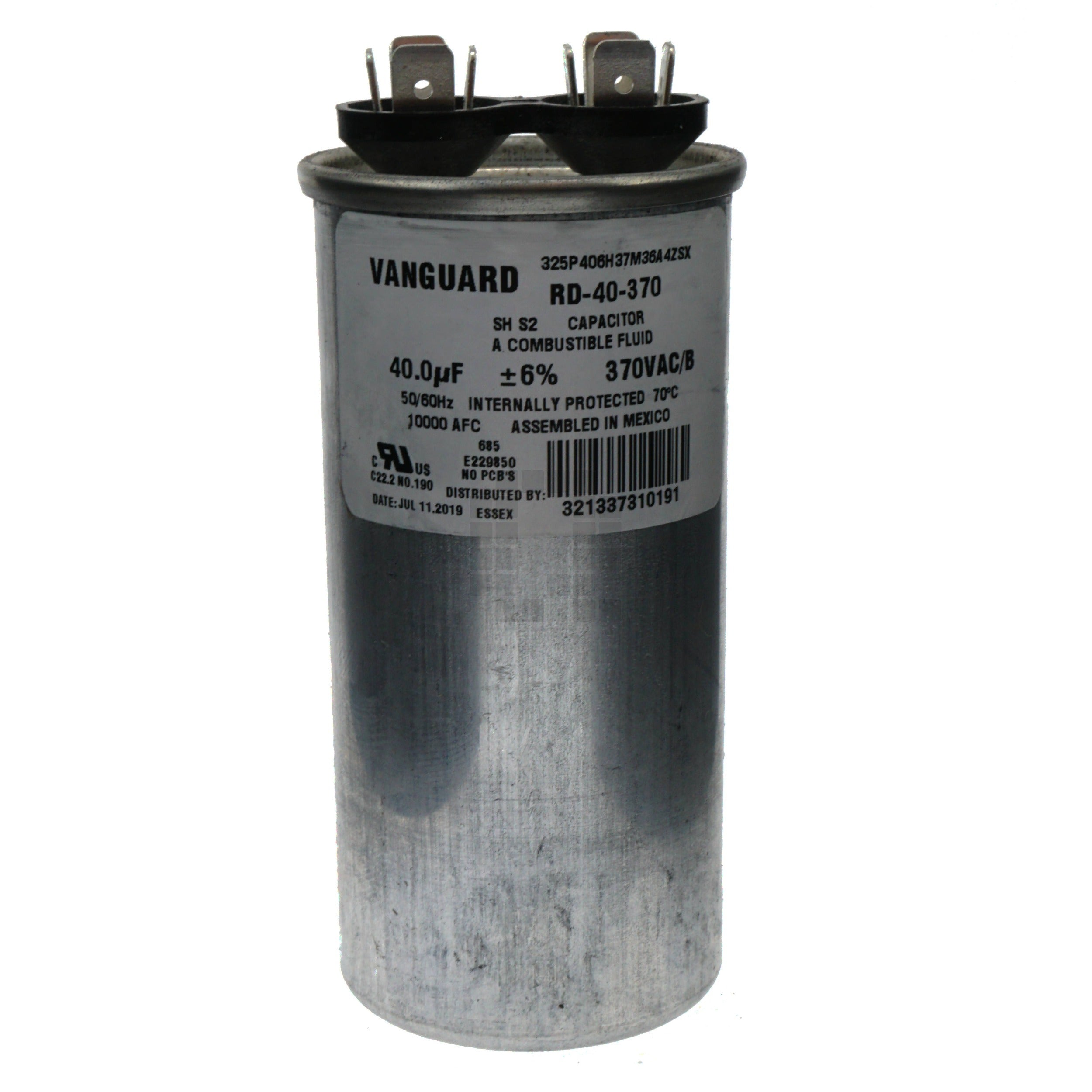

Product Label RD-40-370
40.0 uF
370VAC

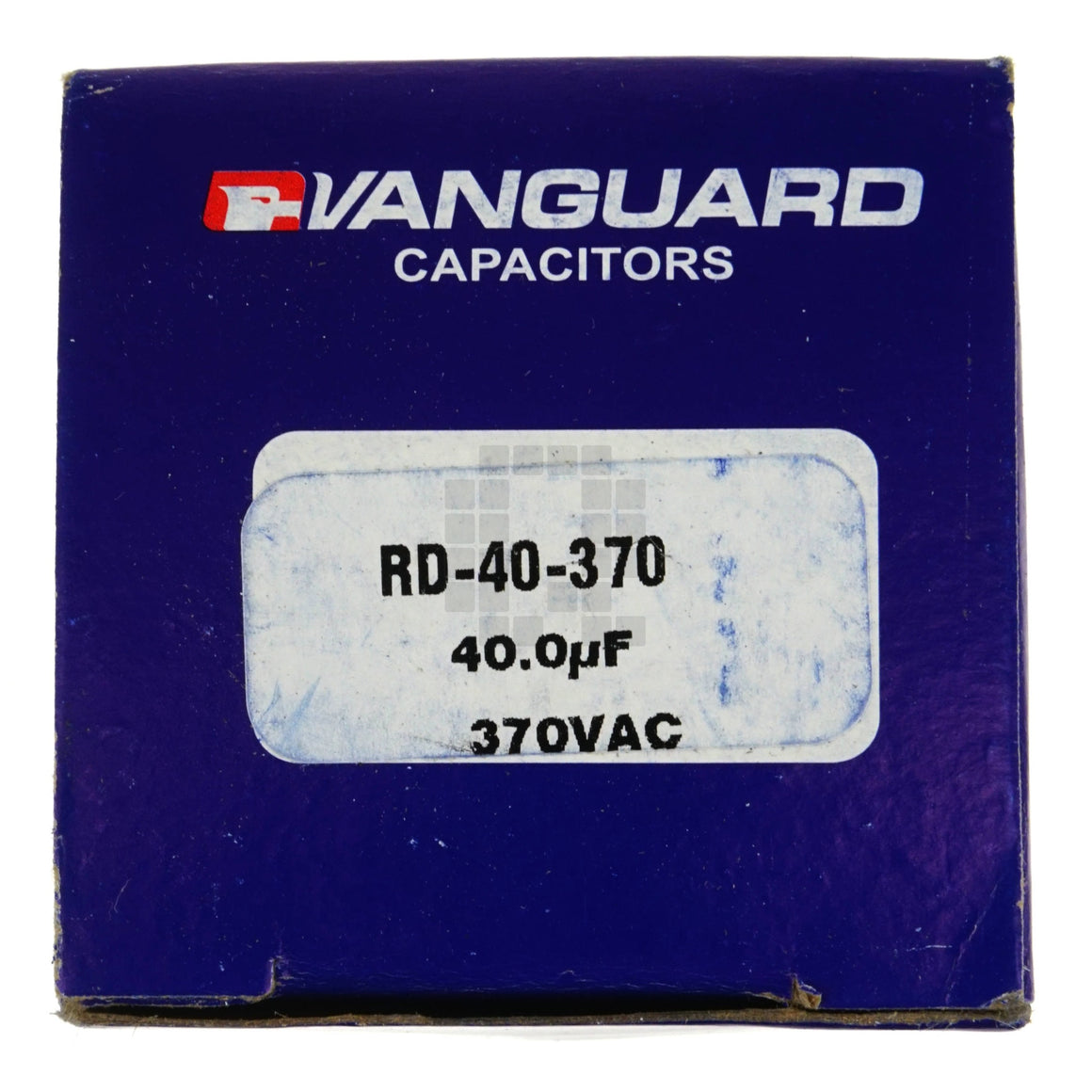

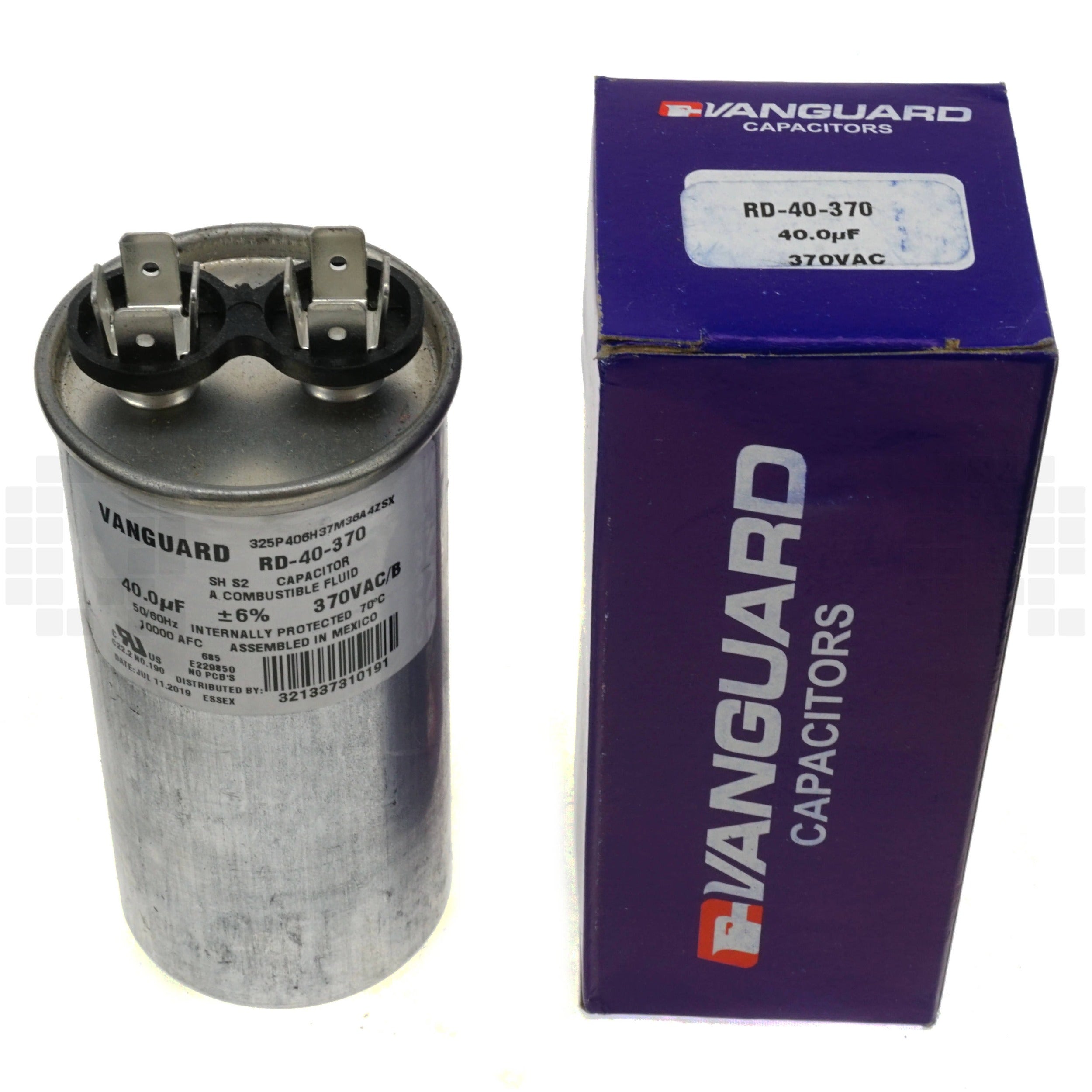

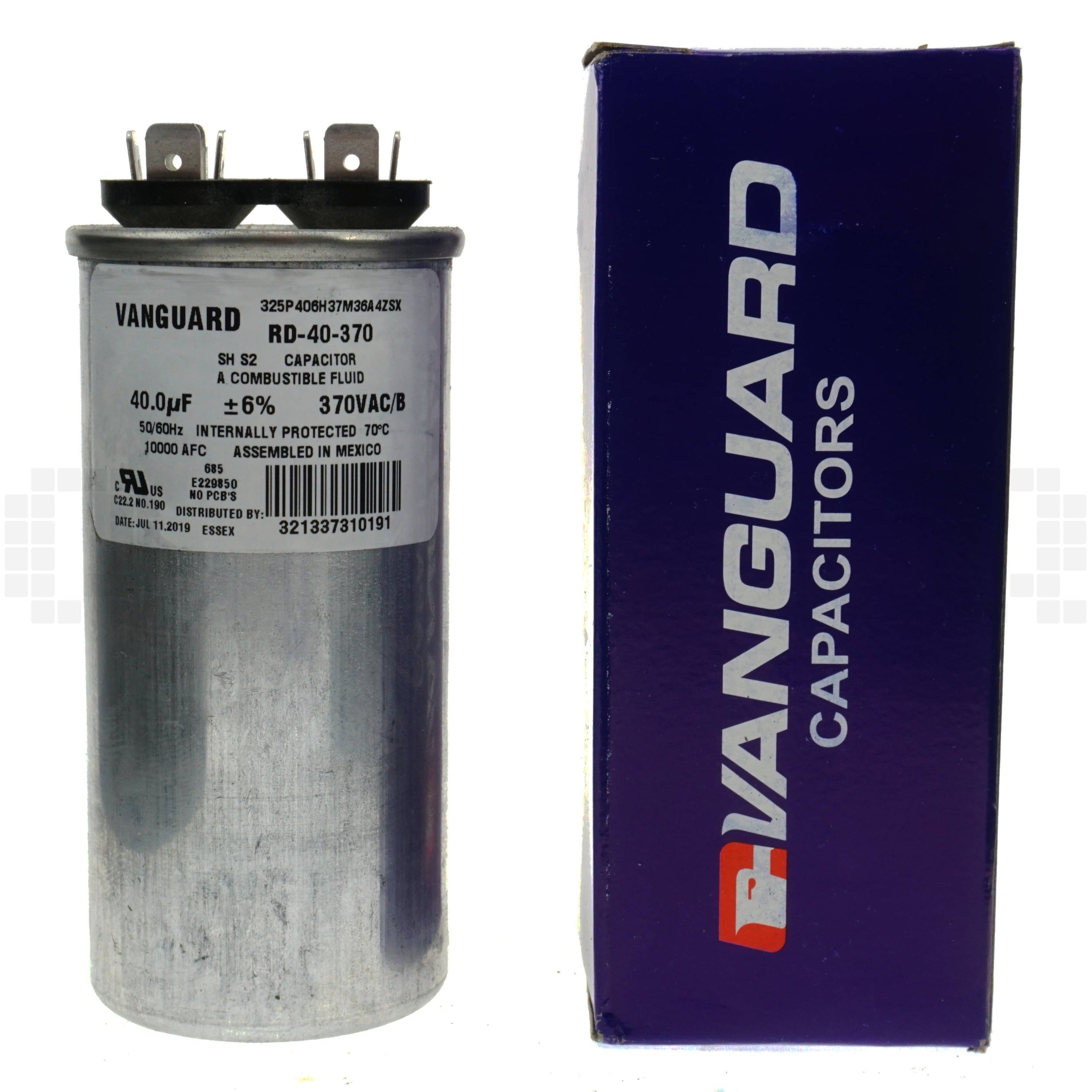

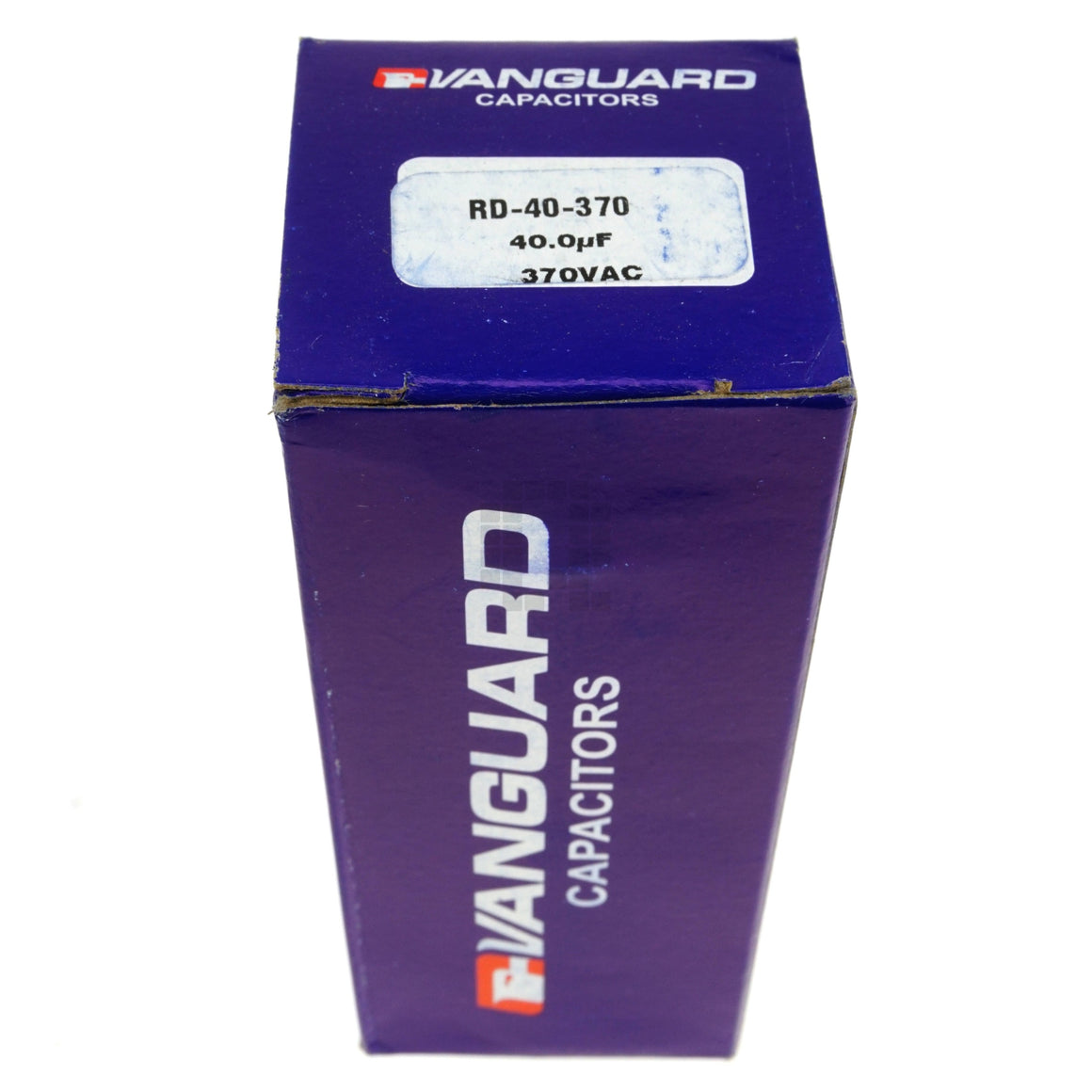

Package Label Vanguard 325P406H37M36A4ZSX
SH S2 Capacitor
A Combustible Fluid
40.0 uF +/-6% 370VAC/B
50/60Hz Internally Protected 70°C
10000 AFC Assembled in Mexico
No PCB's
Notes An occasional dent in the aluminum housing may be present due to shipping and handling. This is a commercial part and cosmetic damage IS NOT considered a valid reason for a return.

Dimensions & Weights :

Product Color Silver

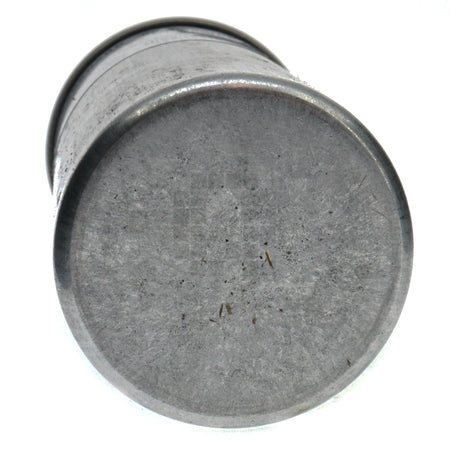

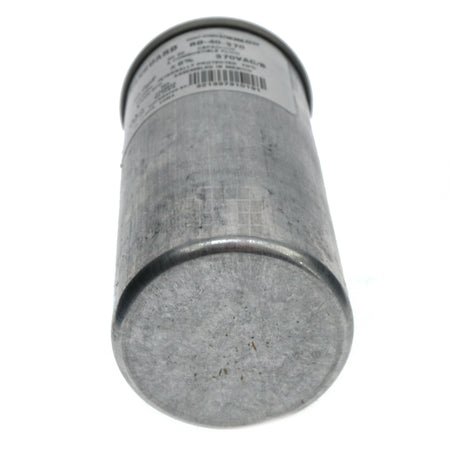

Product Shape Cylinder
Product Dimensions 1.75" Diameter
3-7/8" High
Product Weight 7 oz
Package Dimensions (LxWxH) 1.85" x 1.85" x 4.50"
Package Weight 8 oz
