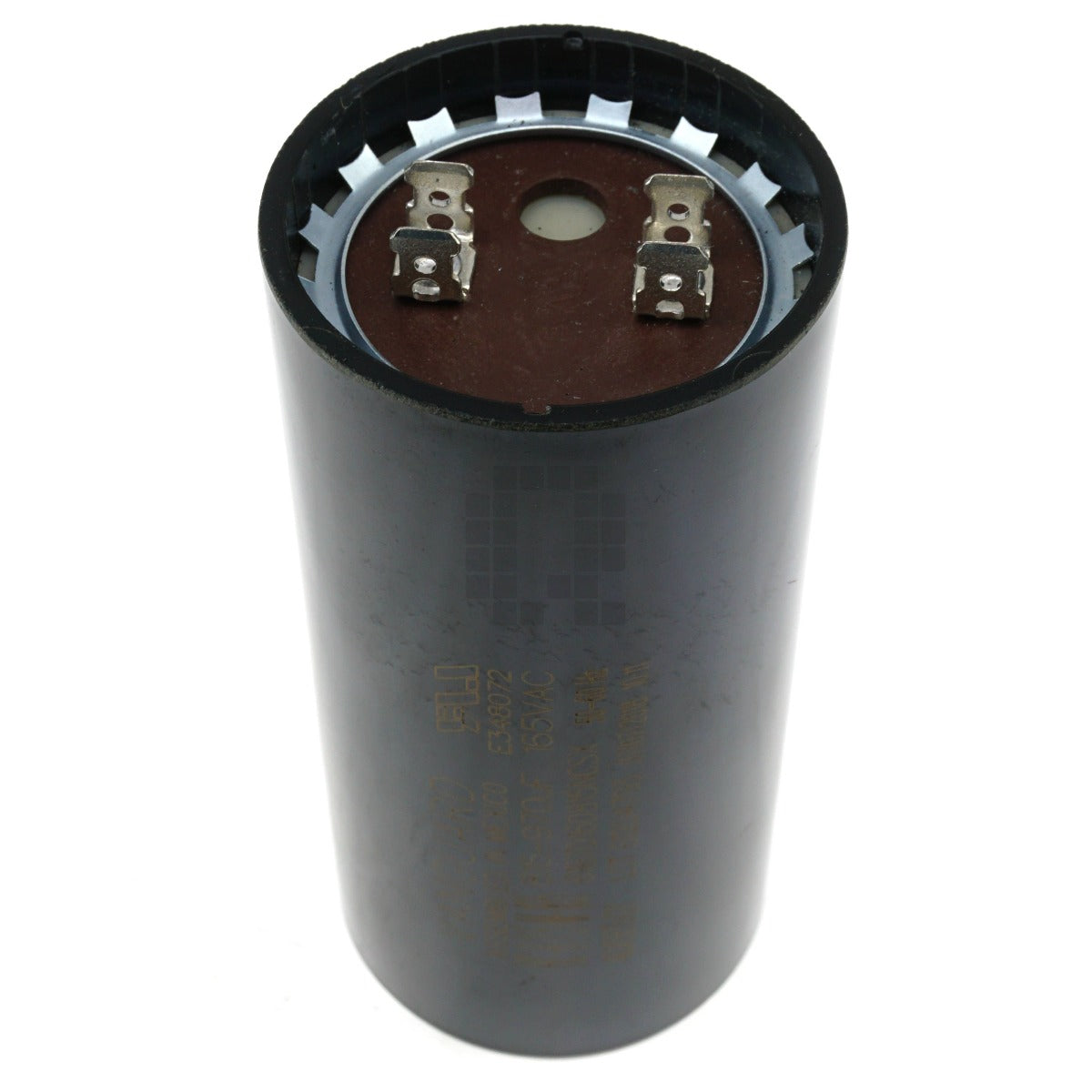

Brand Vanguard
Manufacturer Part Number BC-815M-165
61B7D160815NCSX
Cross Reference (Fit/Form/Function)
Capacitance 815-970 uF
Working Voltage 165 VAC
Frequency 50/60 Hz
Working Temperature Range -40°C to +65°C
-40°F to +149°F
Type Start Capacitor

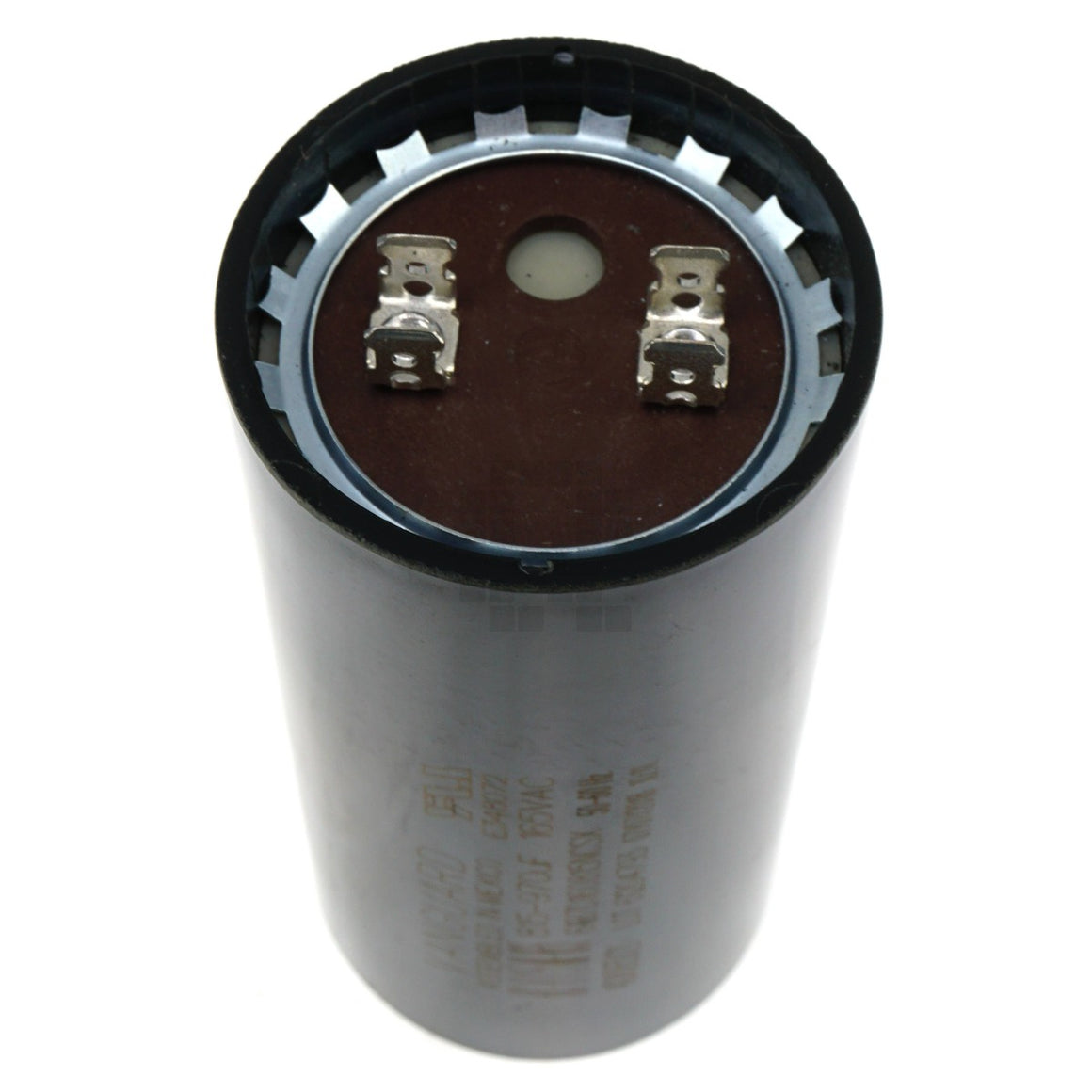

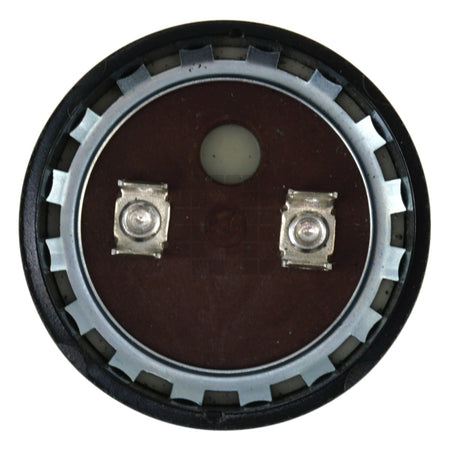

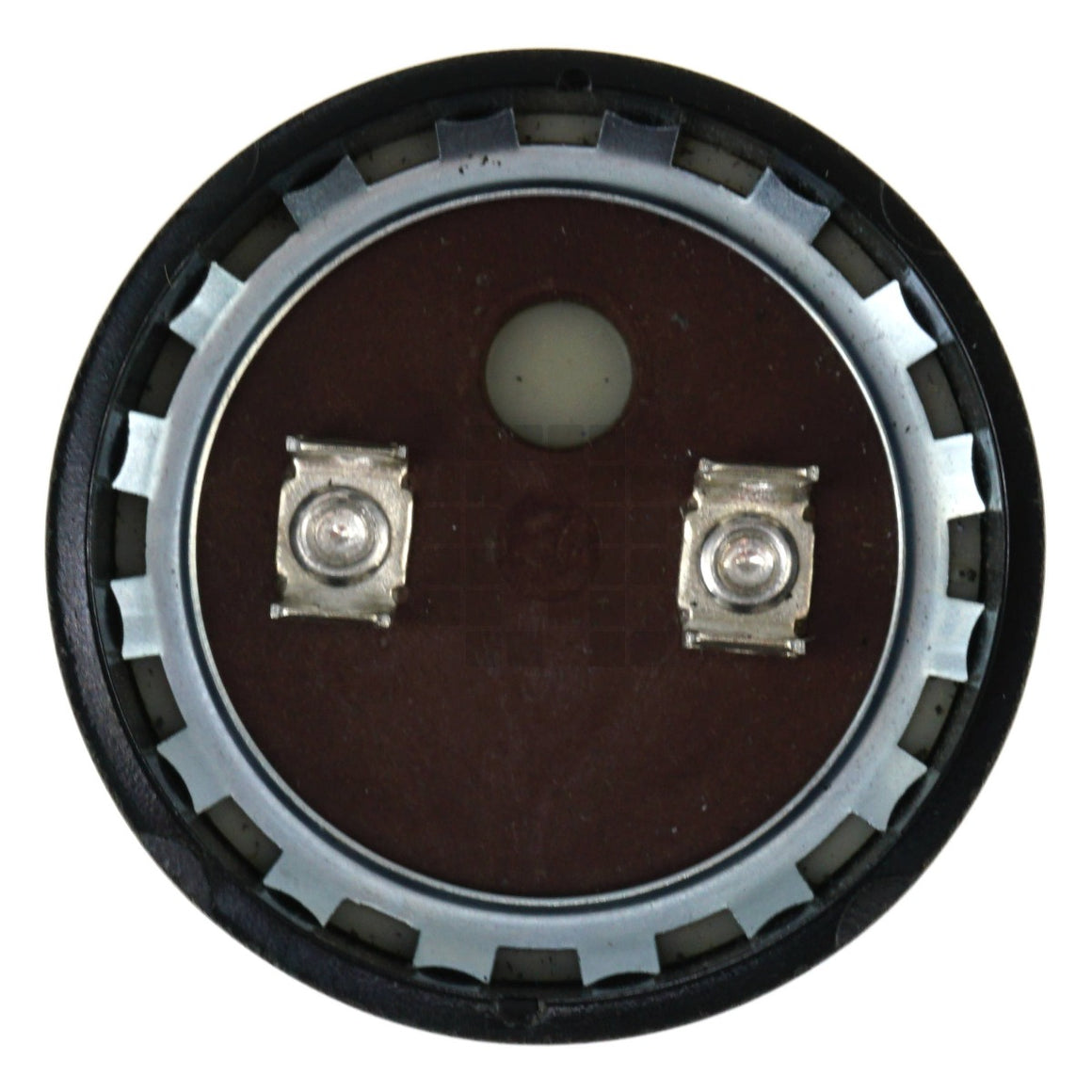

Connection 2 Posts
Two 1/4” male spade terminals on each post
Resistor None
Construction Phenolic Plastic Case
Certifications/Approvals UL Approved
Performance Specifications
Case Code
Distance Between Terminals 0.875"
UPC None
Product Origin (COO) Mexico

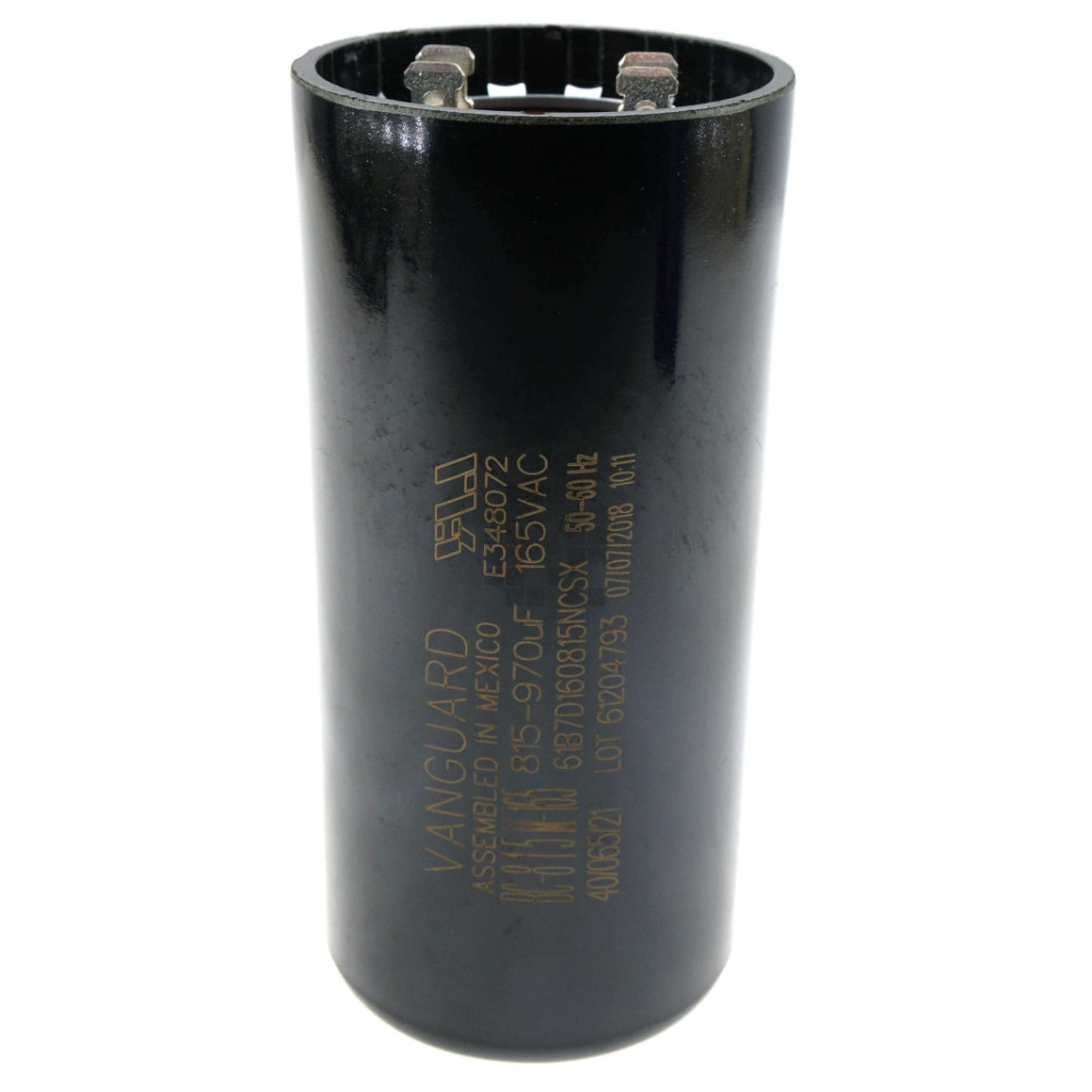

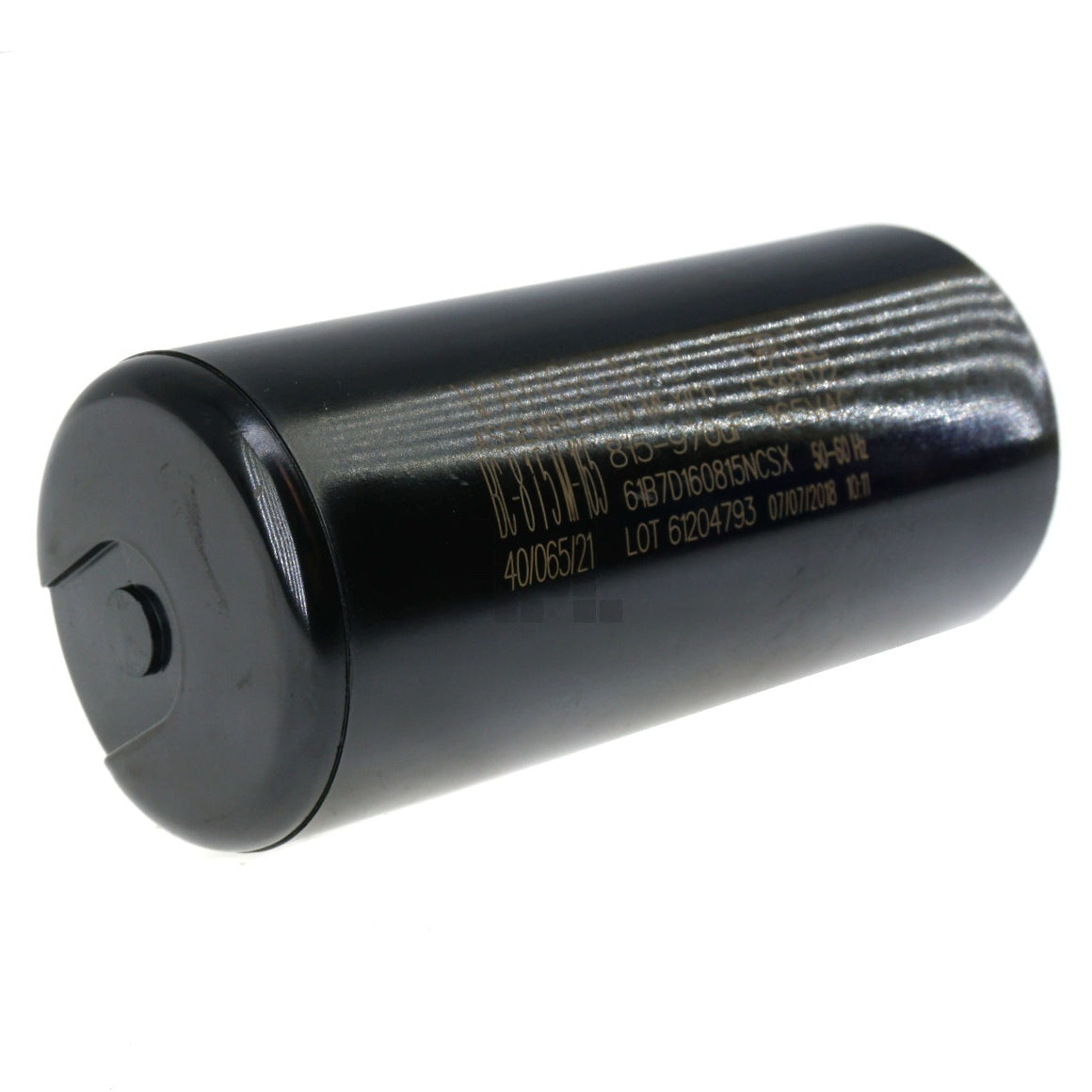

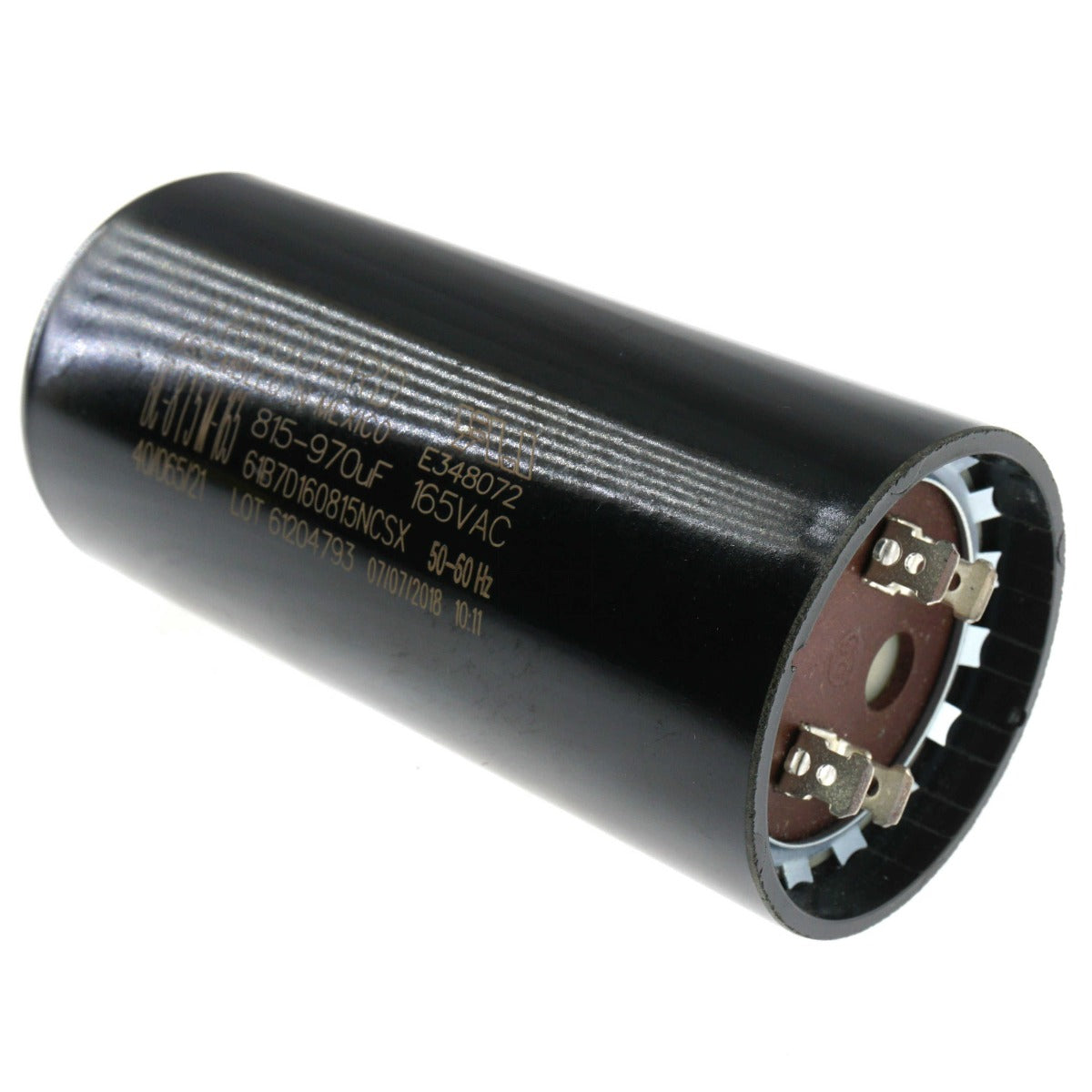

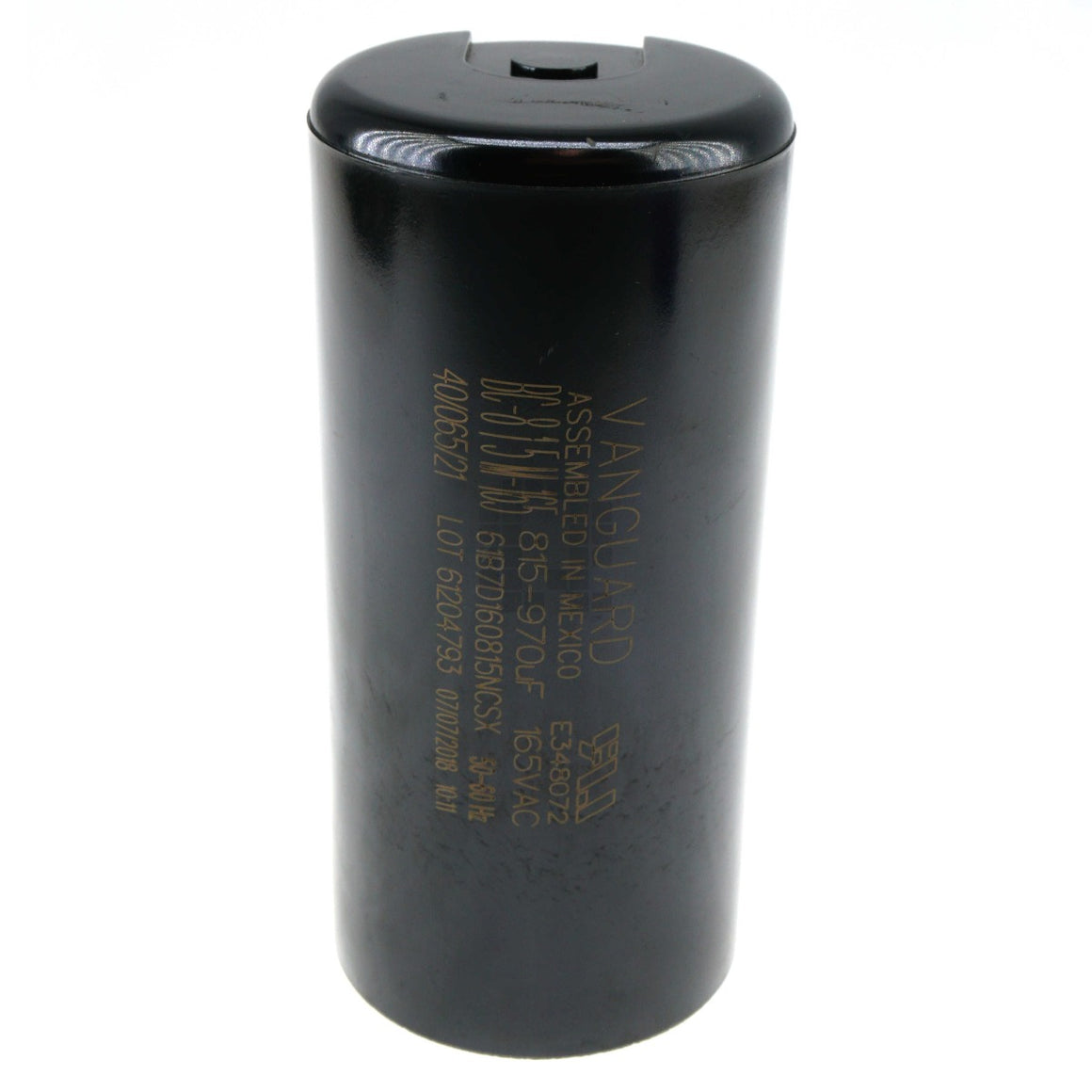

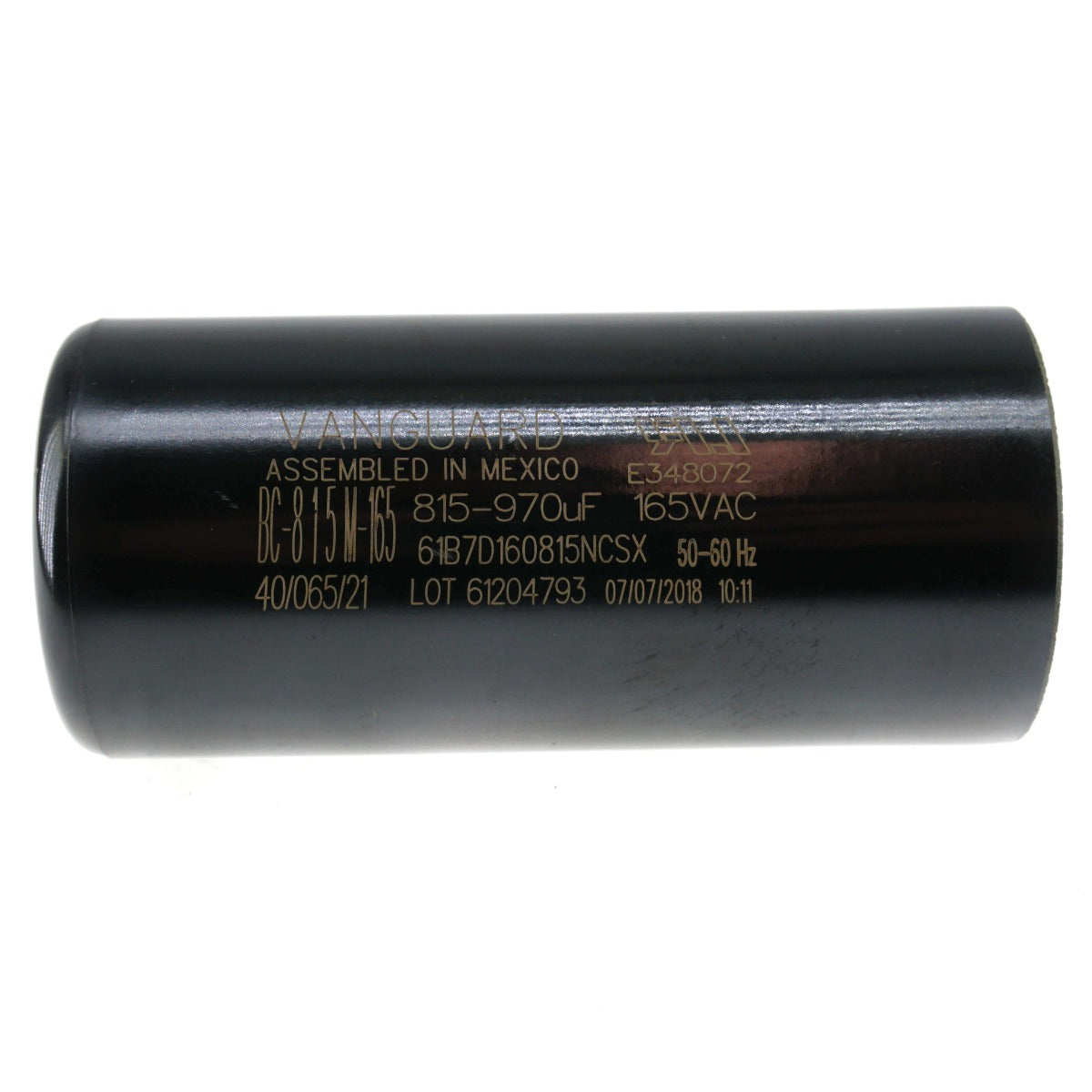

Product Label Vanguard
Assembled in Mexico
BC-815M-165 815-970 uF 165VAC
61B7D160815NCSX 50-60Hz

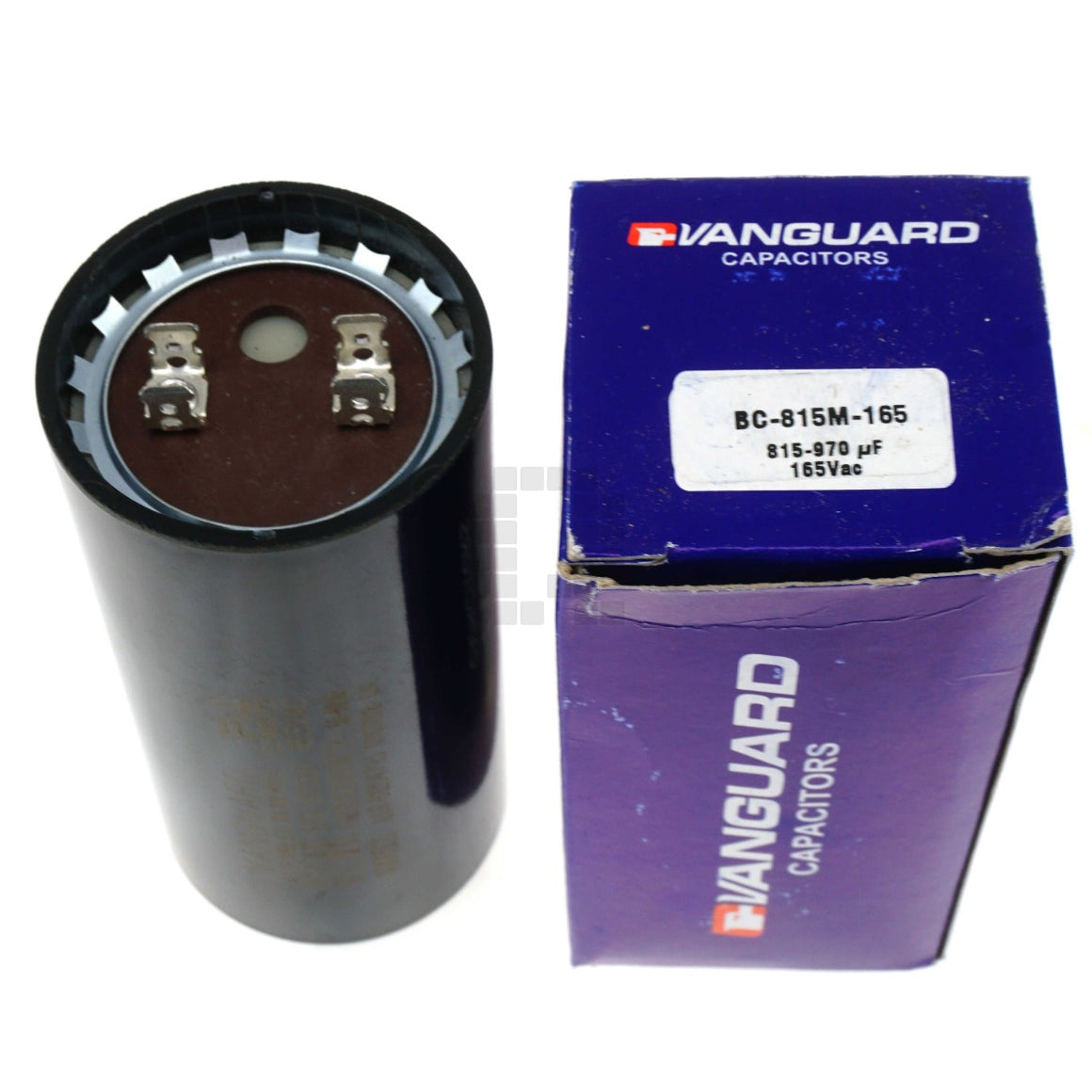

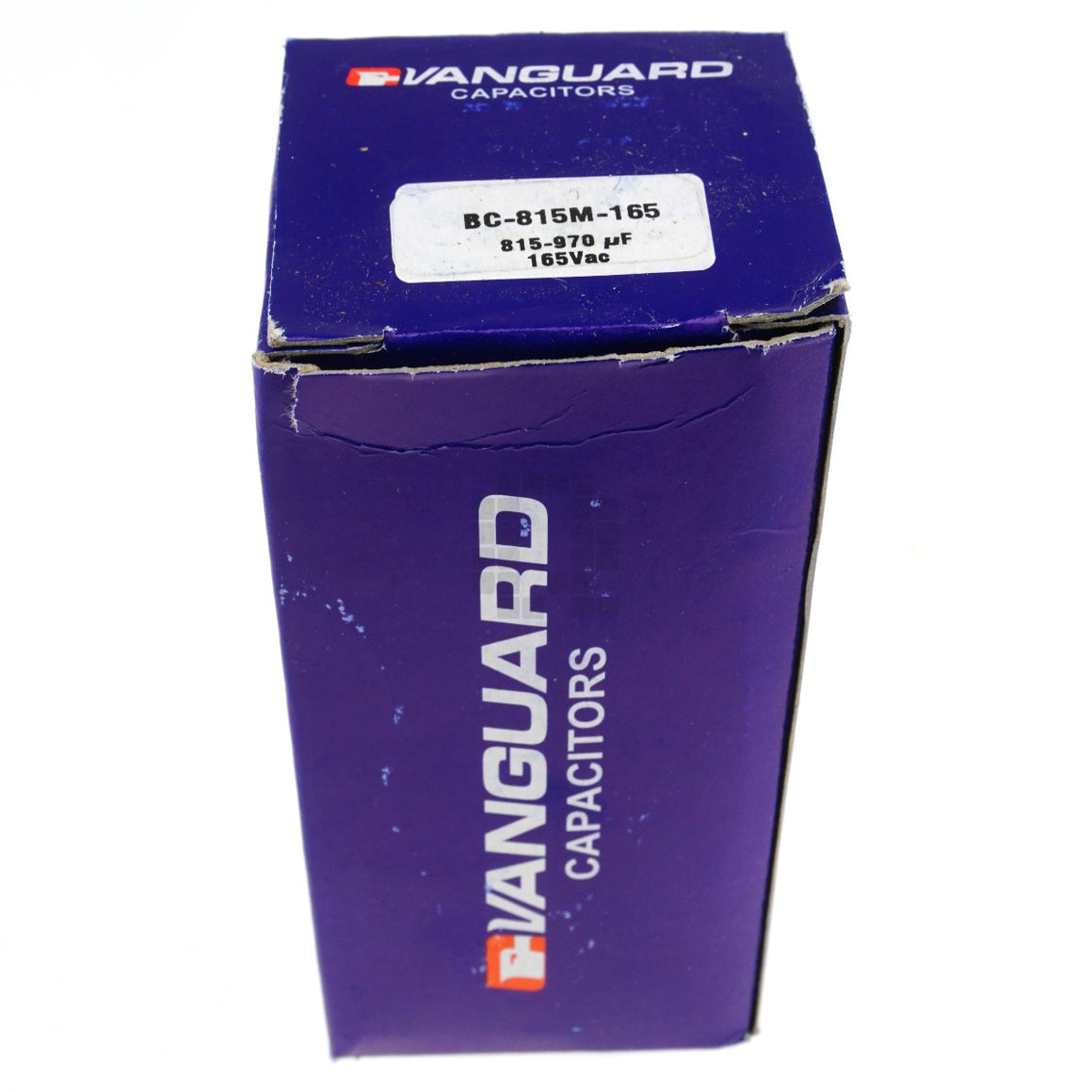

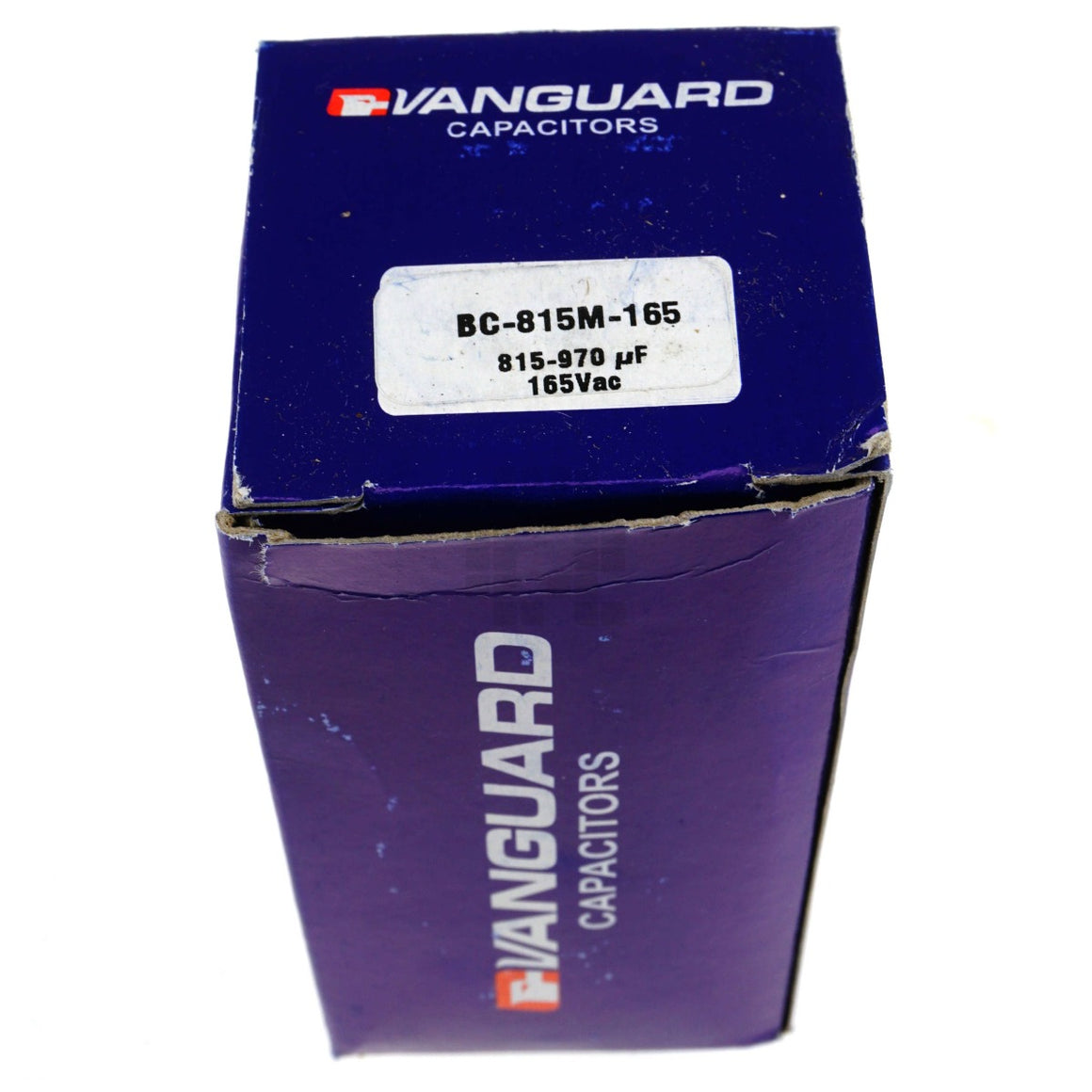

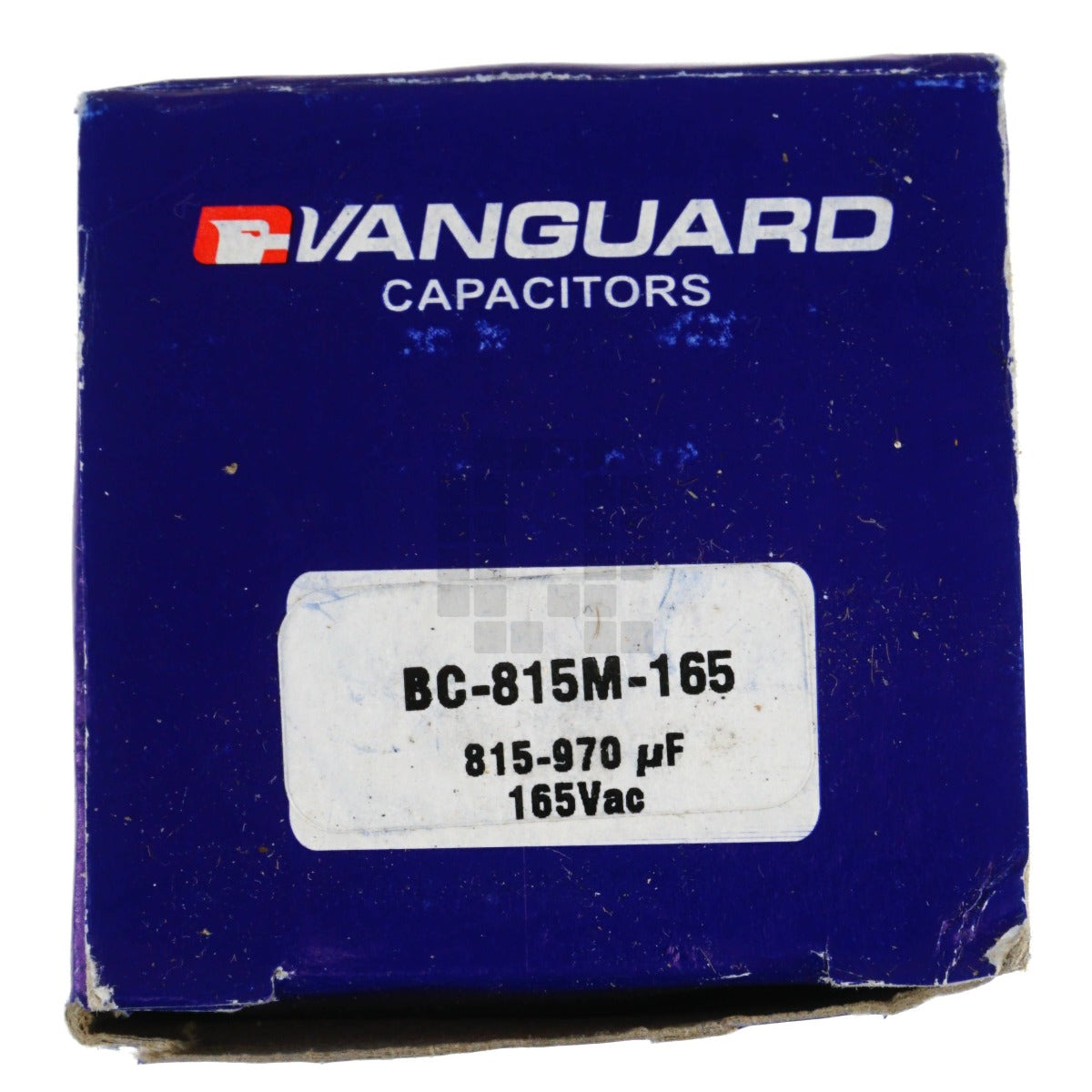

Package Label BC-815M-165
815-970 uF
165 VAC
Notes
Product Color Black

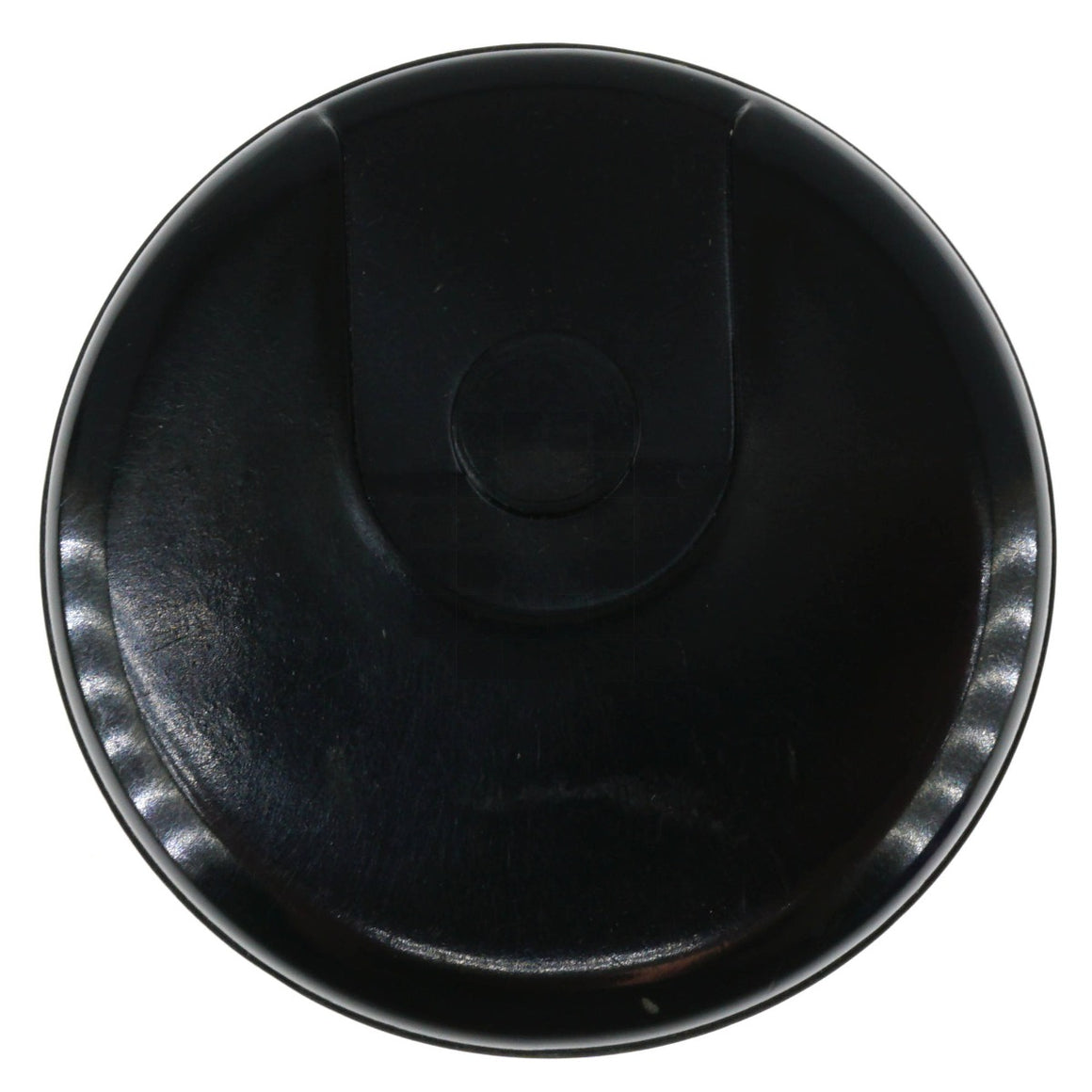

Product Shape Cylinder
Product Dimensions 2.062" Diameter
4.375" High
Product Weight 10 oz
Package Dimensions (LxWxH) 2.15" x 2.15" x 4.5"Inches
Package Weight 11 oz
